AITEXM WS2812B RGB LED Digital Flexible Individually Addressable Panel Light WS2812 8x8 16x16 8x32 Module Matrix Screen 5050

AITEXM WS2812B RGB LED Digital Flexible Individually Addressable Panel Light WS2812 8x8 16x16 8x32 Module Matrix Screen 5050

CFA8,469 XOF
CFA0 XOF CFA8,469 XOF
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
Color

SPECIFICATIONS

Brand Name: AITEXM ROBOT

Choice: yes

High-concerned chemical: None

Model Number: 8x8 16x16 8x32 256pixels

Origin: Mainland China

is_customized: Yes

Description:

  • Brand new and high quality

  • Enegry saving, low heat

  • Long service life, more than 100,000 hours

  • Used for lighting decoration in shopping malls, home decoration, cove lighting, lighting box, signage lighting, backlighting & channel lighting, etc

  • Smart LED RGB WS2811 IC chips SMD5050 Screen

  • 256pcs 5050 RGB LED With 256pcs WS28IC inside to drive 256 pixels,Connecting with the controller can get more than 80 programs which are various color changing and almost magic effect

Technology advantages:

  • The WS2811 SMD5050 RGB LED,  every led built-in(embedded) an WS2811 IC,therefore every one led lignting effect can be control, every rgb led is digital addressable.

Easy installation:

  • Every one LED lamp can be arbitrary cut off, good flexibility, easy installation, can be arbitrary bending.

Dream color lighting:

  • Match use controller can appear colorful curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effect, you can also edit animation effect by Coreldraw/Flash/LedEdit software.

Application:

  • Making led screen, led wall, advertising board. Apply to hotel, KTV,bars,advertisement company, decoration company, the city lighting projectentertainment and leisure places lighting

Product Specification:
1. Emitting color: pixel RGB , IC WS2812
2. Work voltage:  DC 5V
3. Power:  0.3W/pixel
4. Dimension:  16*16CM 256 pixels
5. LED quantity: 256leds RGB SMD5050, 256 pixels
6. waterproof level: Non-waterproof
7. Working mode: external controller Arduino compatible.
8. Connection:  VCC: RED; GND:BLACK; DAT:BLUE
9:PCB board color : Black

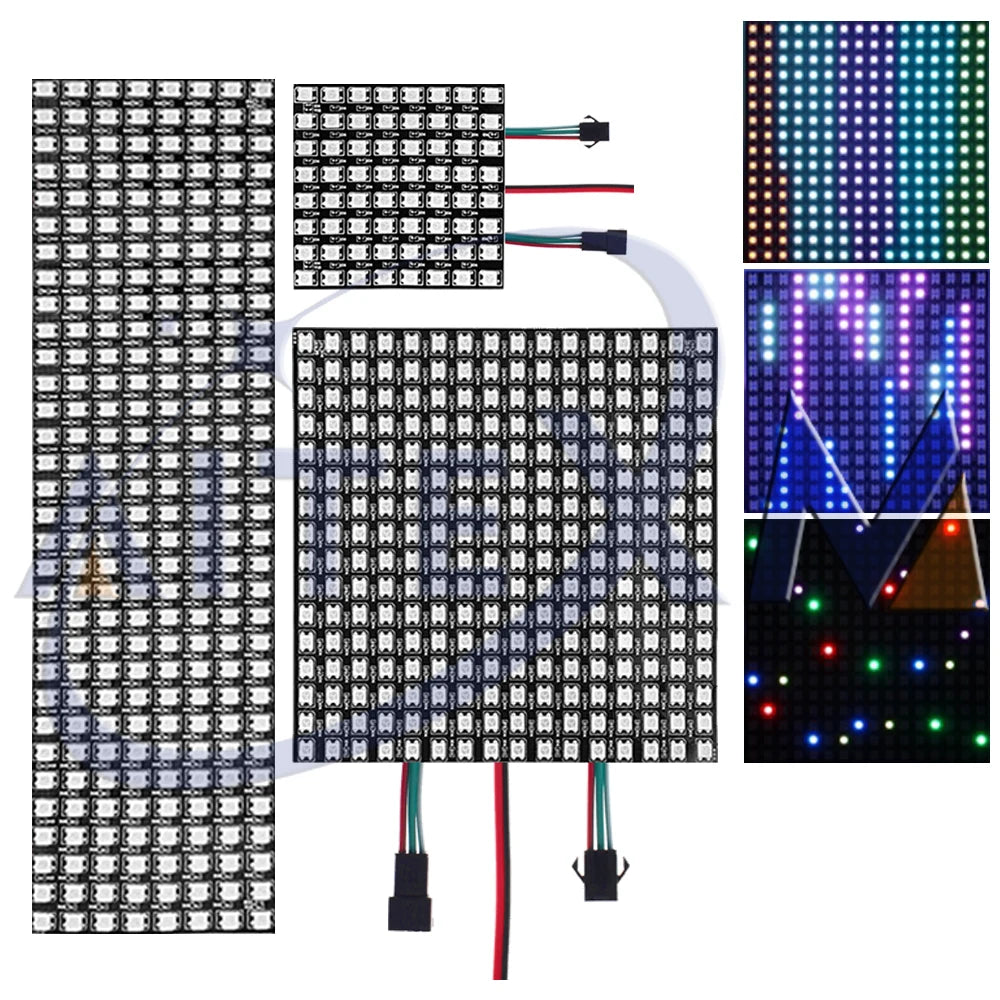

Three Size:

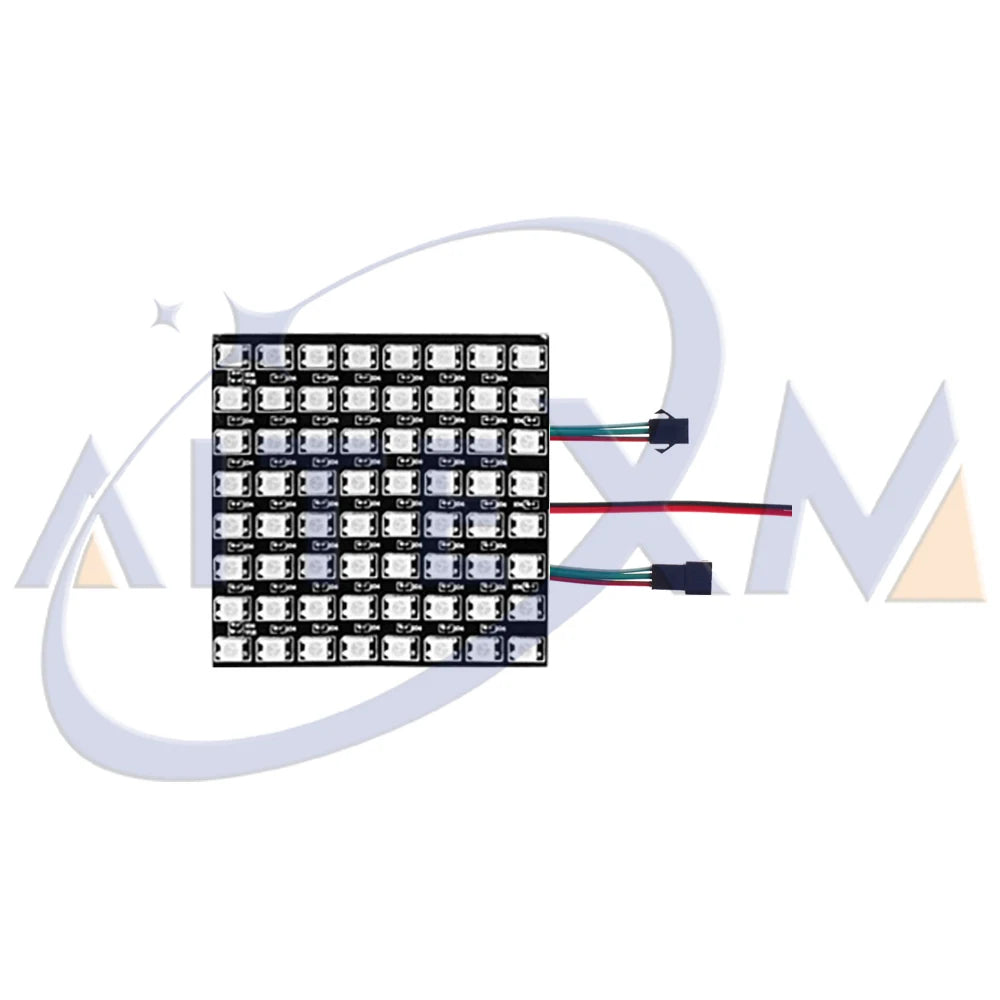

8*8, 64leds, 8cm*8cm

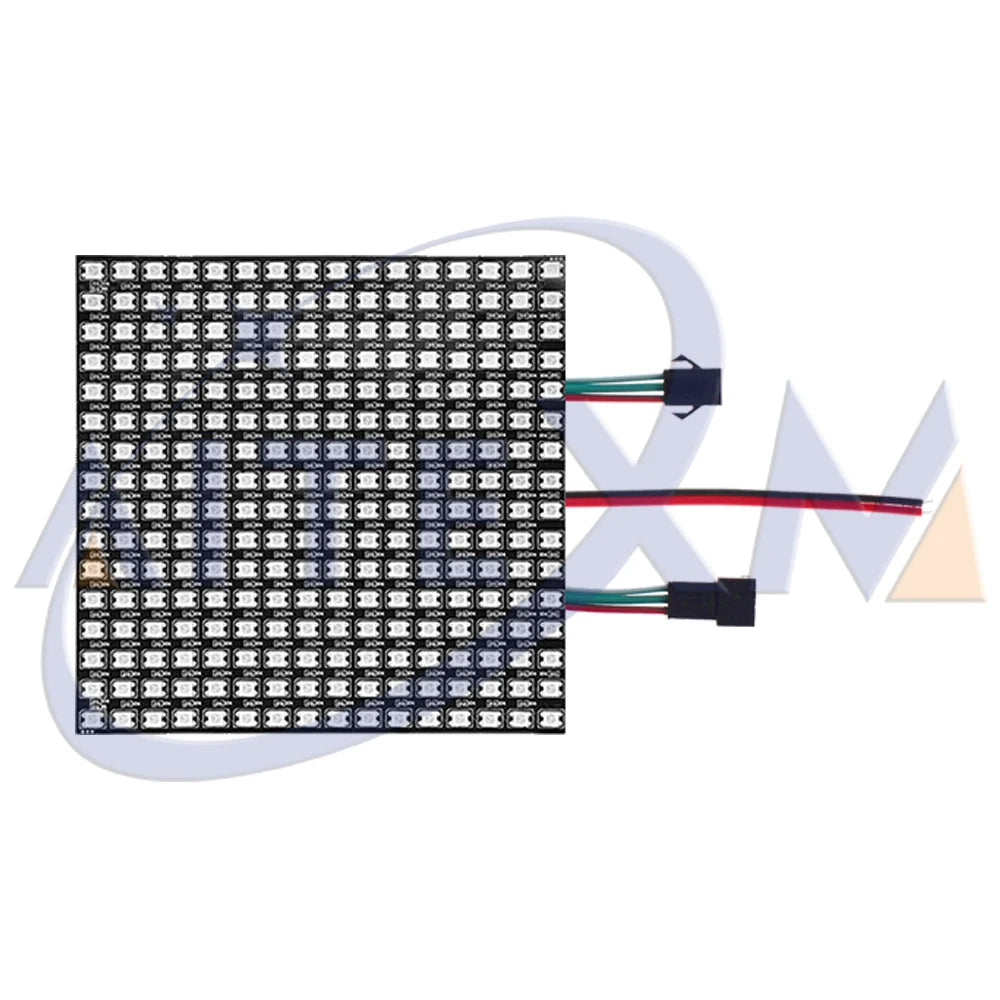

16*16, 256leds, 16cm*16cm

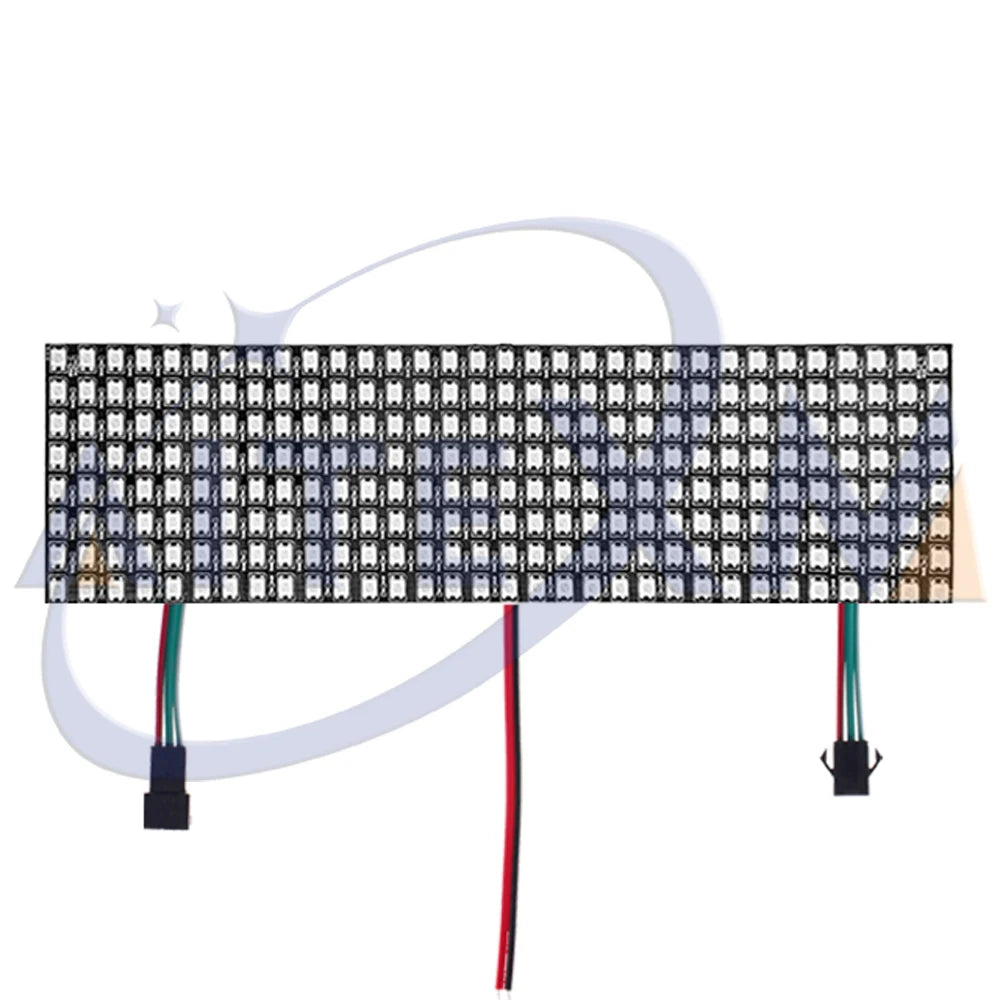

8*32, 256leds, 8cm*32cm
WS2812 led digital flexible panel light(ws2811 IC controlled),DC5V input
Work with the programmable SD controller(not included), it can make flexible LED screen
Arduino IC Digital Addressable Dream Color RGB LED Strip
Arduino compatible.You can control the strip by your programmable arduino.
Technology advantages
The WS2811 SMD5050 RGB LED,  every led built-in(embedded) an WS2811 IC, therefore every one led lignting effect can be control, every rgb led is digital addressable.
Easy installation
Every one LED lamp can be arbitrary cut off, good flexibility, easy installation, can be arbitrary bending.
Dream color lighting
Match use controller can appear colorful curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effect, you can also edit animation effect by Coreldraw/Flash/LedEdit software.
Application
Making led screen, led wall, advertising board. Apply to hotel, KTV, bars, advertisement company, decoration company, the city lighting project, entertainment and leisure places lighting.
1. Emitting color: pixel RGB , IC WS2812
2. Work voltage: DC5V
3. Power: 0.3W/pixel
4. waterproof level: Non-waterproof
5. Working mode: external controller Arduino compatible.
6. Connection:  VCC: RED; GND:BLACK/WHITE; DAT:BLUE
1, LED Chip Material:
9pcs Pure Gold Line, Copper Bracket (WS2812B).
2, LED IV Value Brightness:
Red: 400-700mcd, Green: 1000-1500mcd, Blue: 200-400mcd (WS2812B).
3, Warranty Period of Led Strip:
36 Months (WS2812B)
4, Suggestions on Product Application:
Such as Park, Square, Hotel, Airport, Office Building, Shopping Mall, Coffee Bar, KTV, Supermarket, etc (WS2812B).
