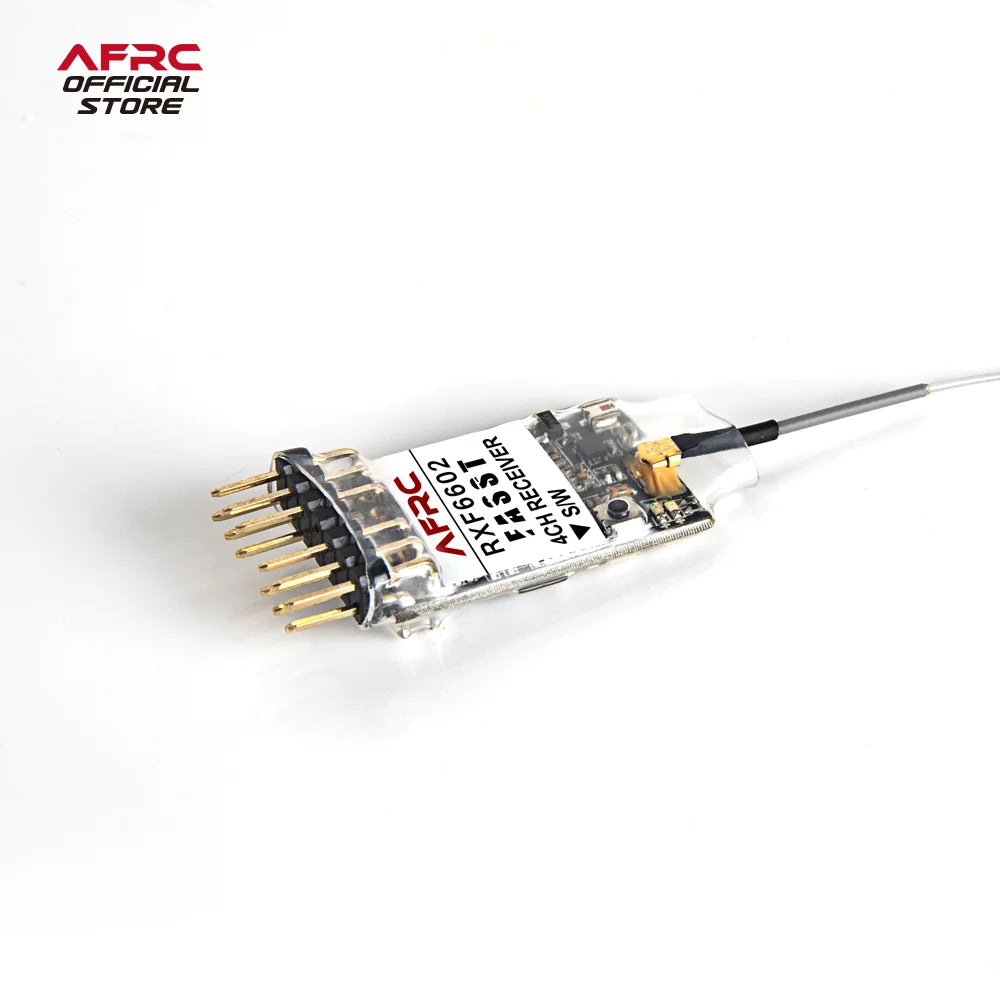

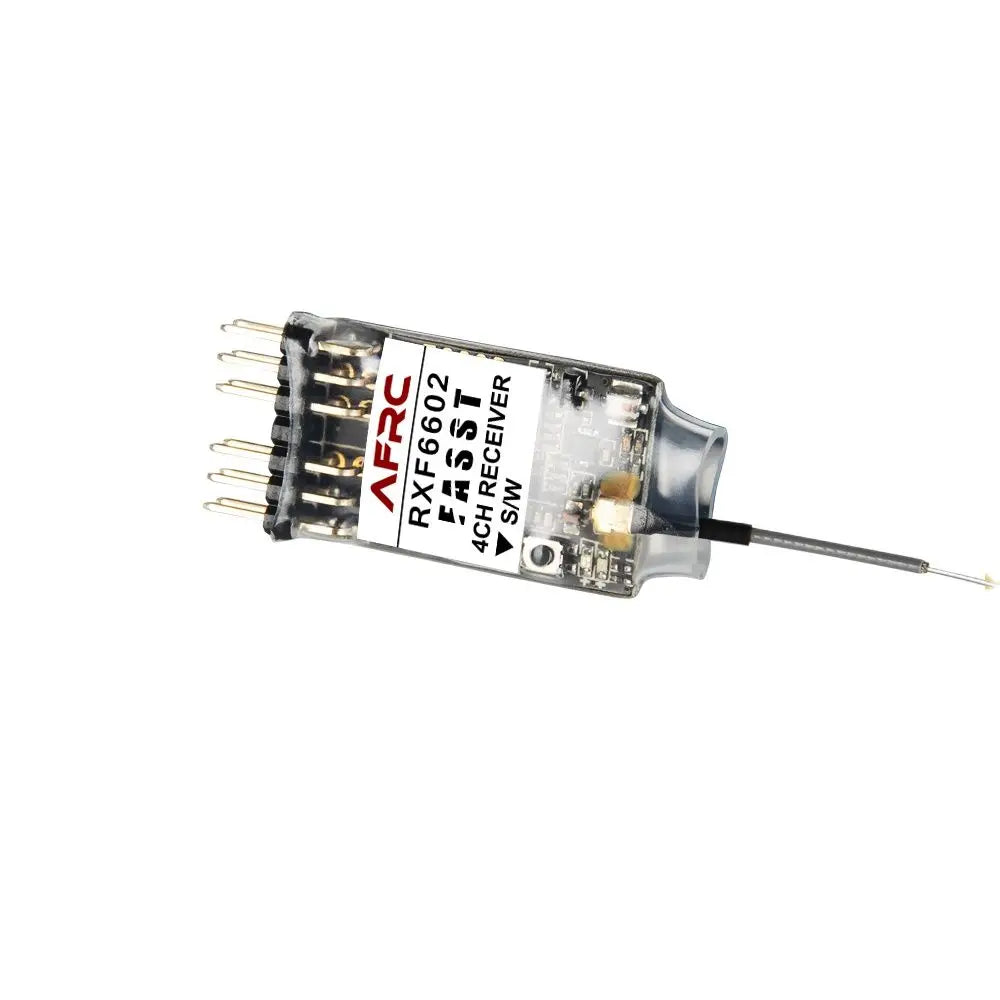

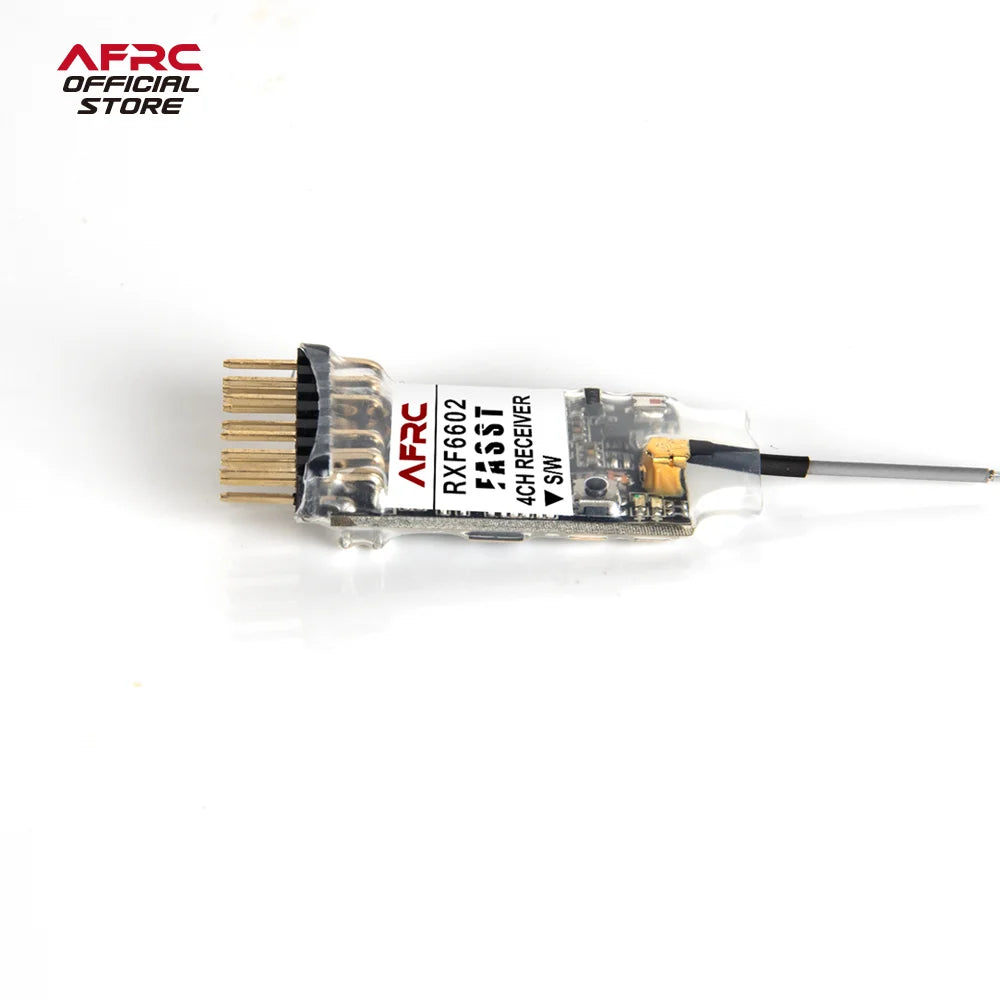

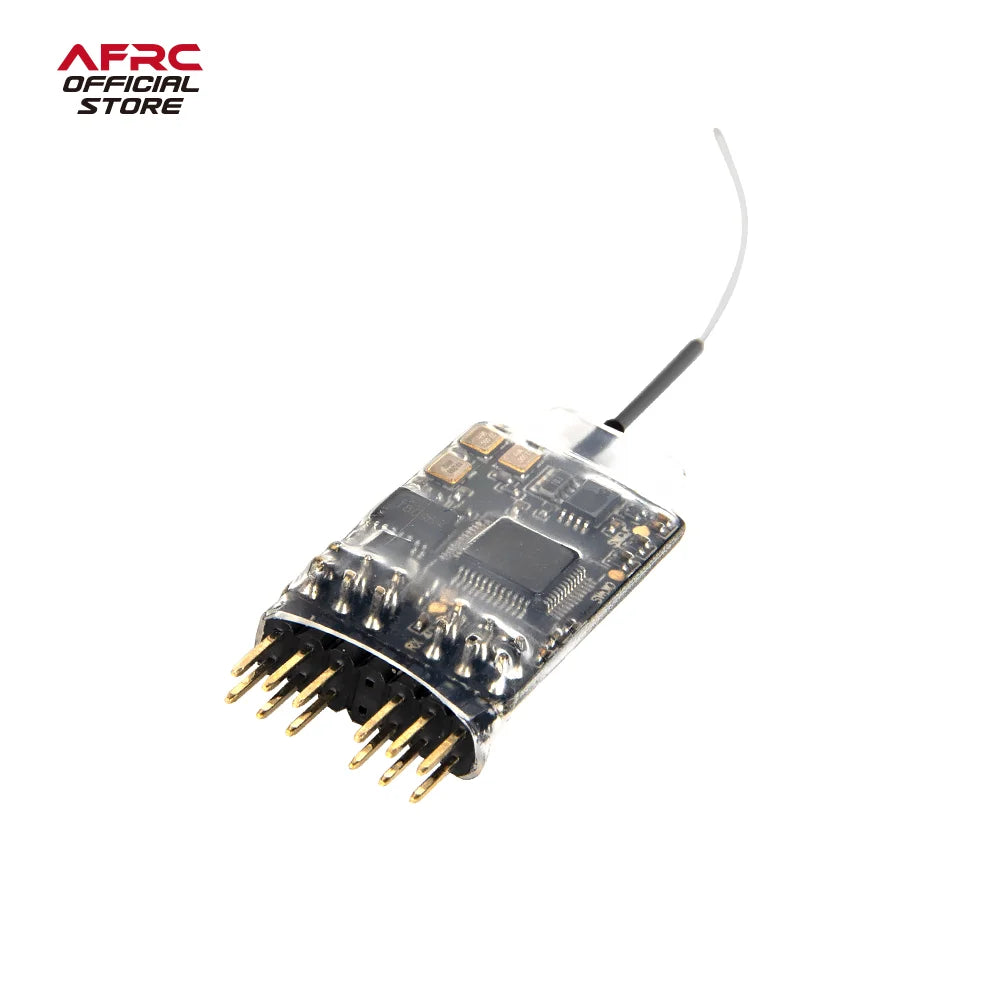

AFRC-RXF6602 Mini Receiver For Futaba FASST 6EX, 7C, TM-7, TM-8, T8FG, T10C, TM-10, T10CG, T12Z, T12FG, TM-14, T14MZ, T18MZ

Compatibility:
Compatible : Futaba FASST remote control system
Application: Futaba FUTABA 6EX, 7C, TM-7, TM-8, T8FG, T10C, TM-10, T10CG, T12Z, T12FG, TM-14,
T14MZ, T18MZ etc. FASST system
Features:
◆ High quality PA to ensure high receiving sensitivity;
◆ Short antenna, micro size with 4CH output, especially designed for mini aircraft to save mounting space;
◆ Compatible with high frequency Futaba FASST, stronger anti-interference capability.
Description:
Model: AFRC-RXF6602
Operating Voltage：4.8V～8.4V

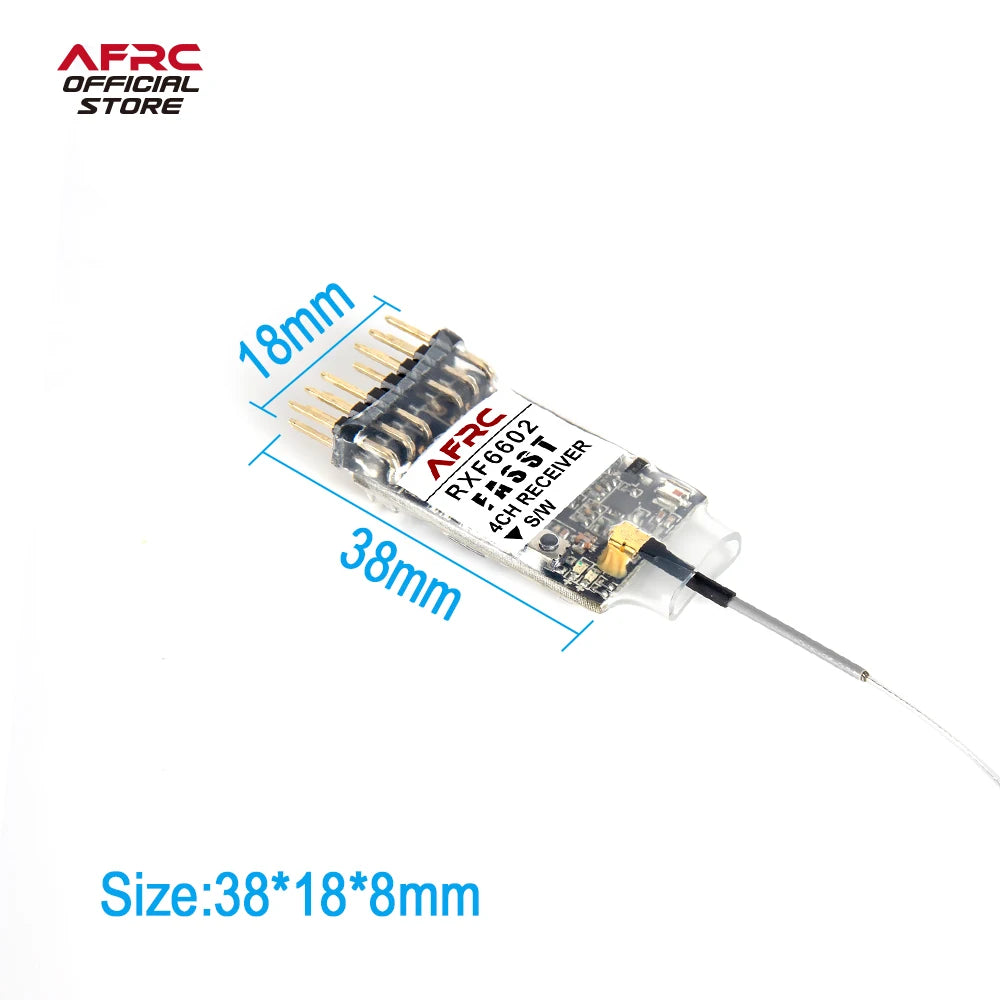

Dimension：38x18x8mm
Weight： 4g
No. Of Channels：4CH
Antenna: Single Antenna
Bind Procedure:
1. Get the transmitter and receiver ready.
2. Turn on the transmitter.
3. Turn on the receiver

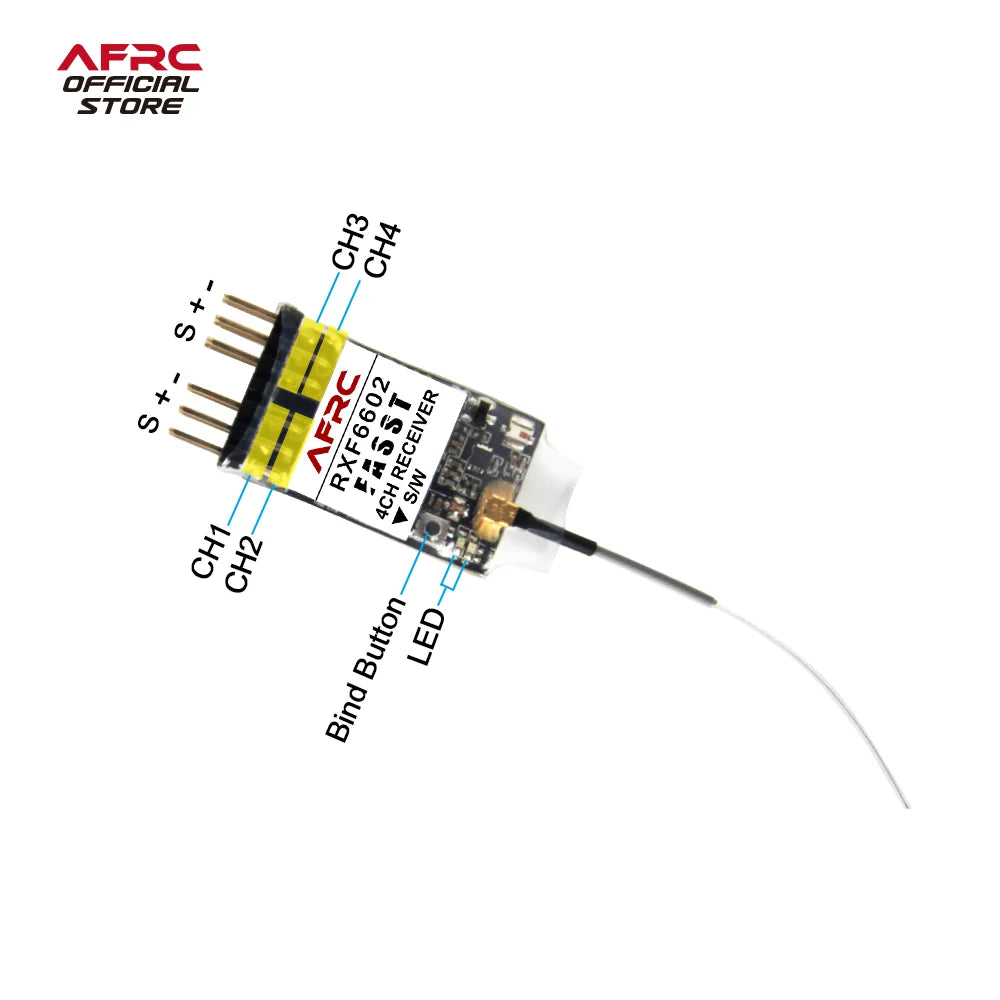

4. Press the SW on the receiver and power on, the Red LED off and Green LED on, mean bind successfully,
the receiver start to work; It could be failed to bind as the environment, please repeat the above steps.
LED Status:
