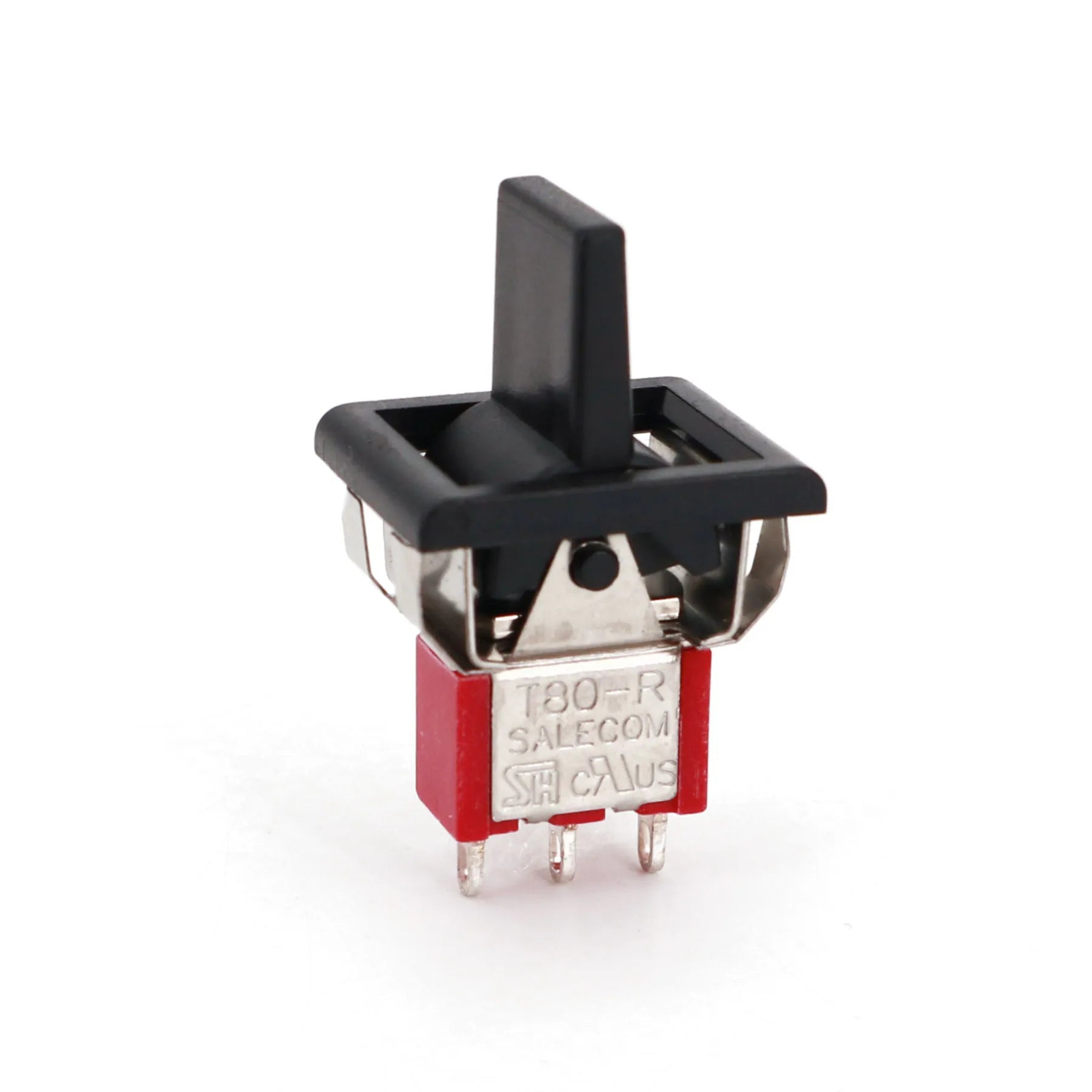

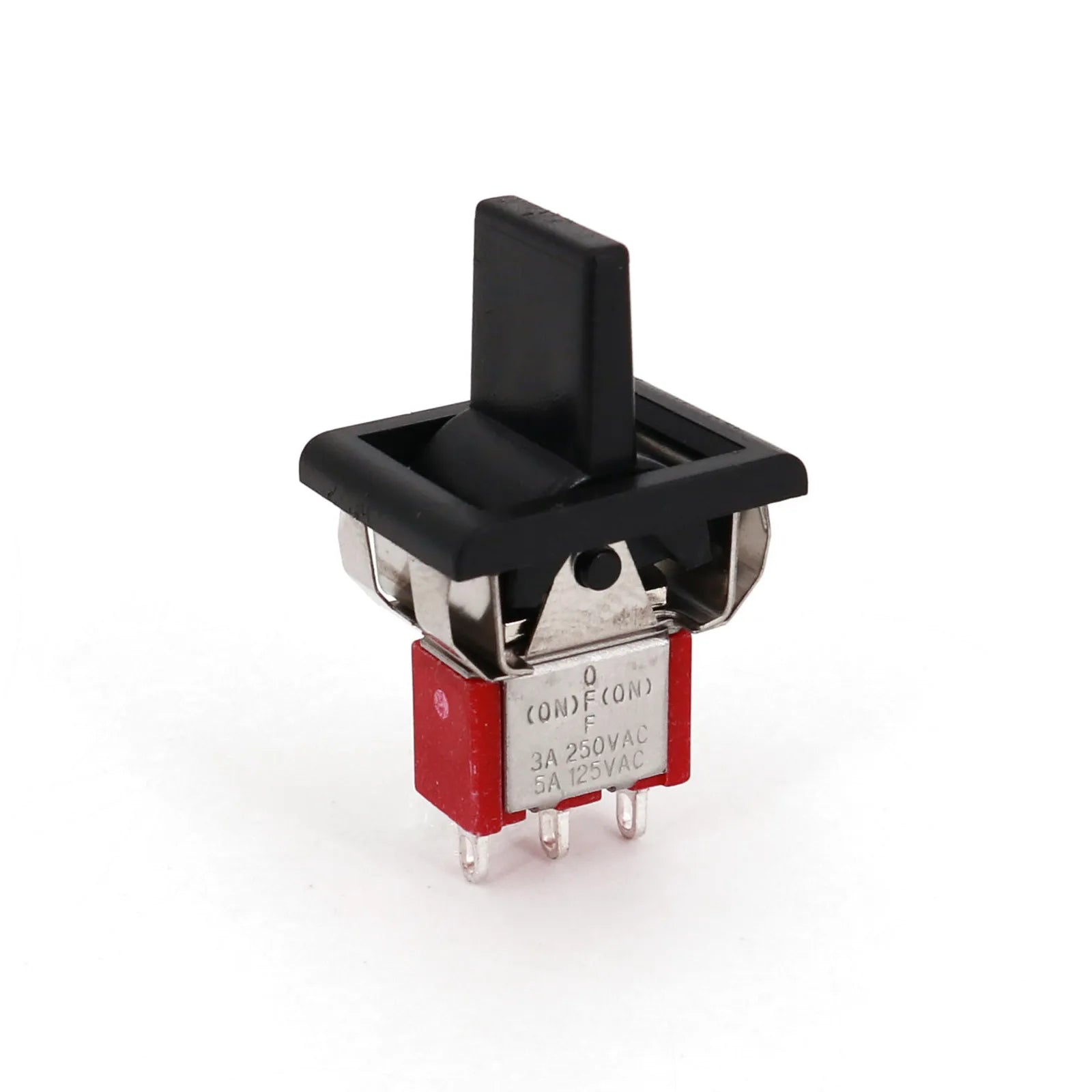

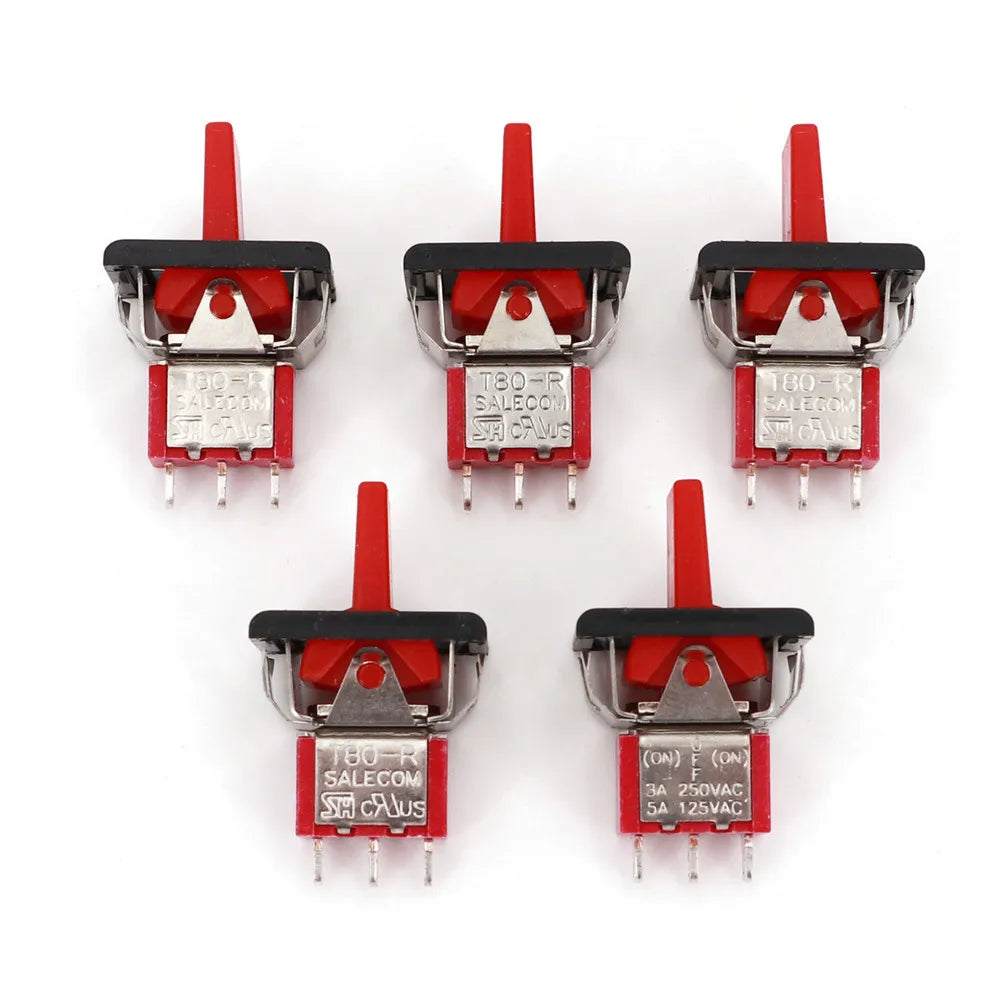

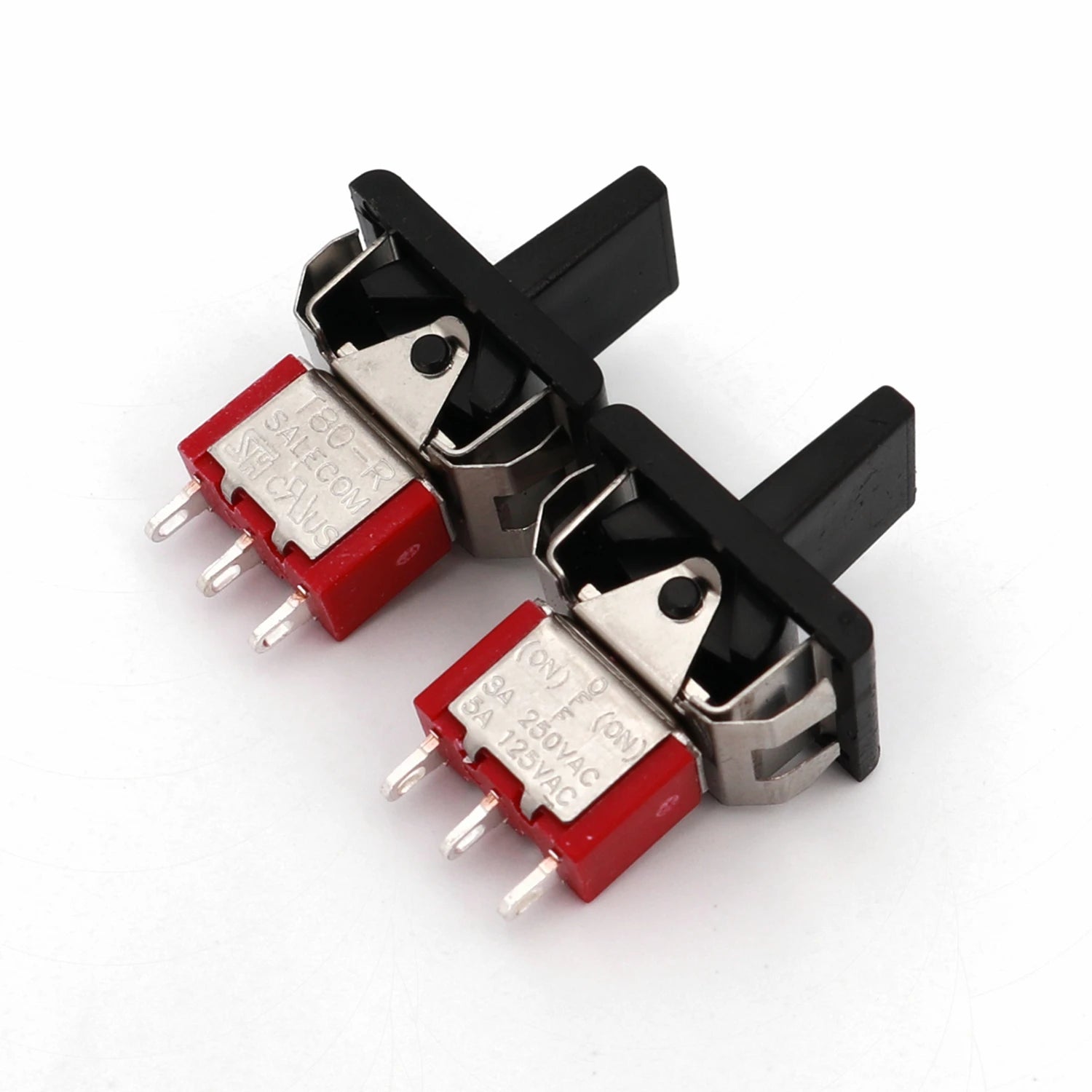

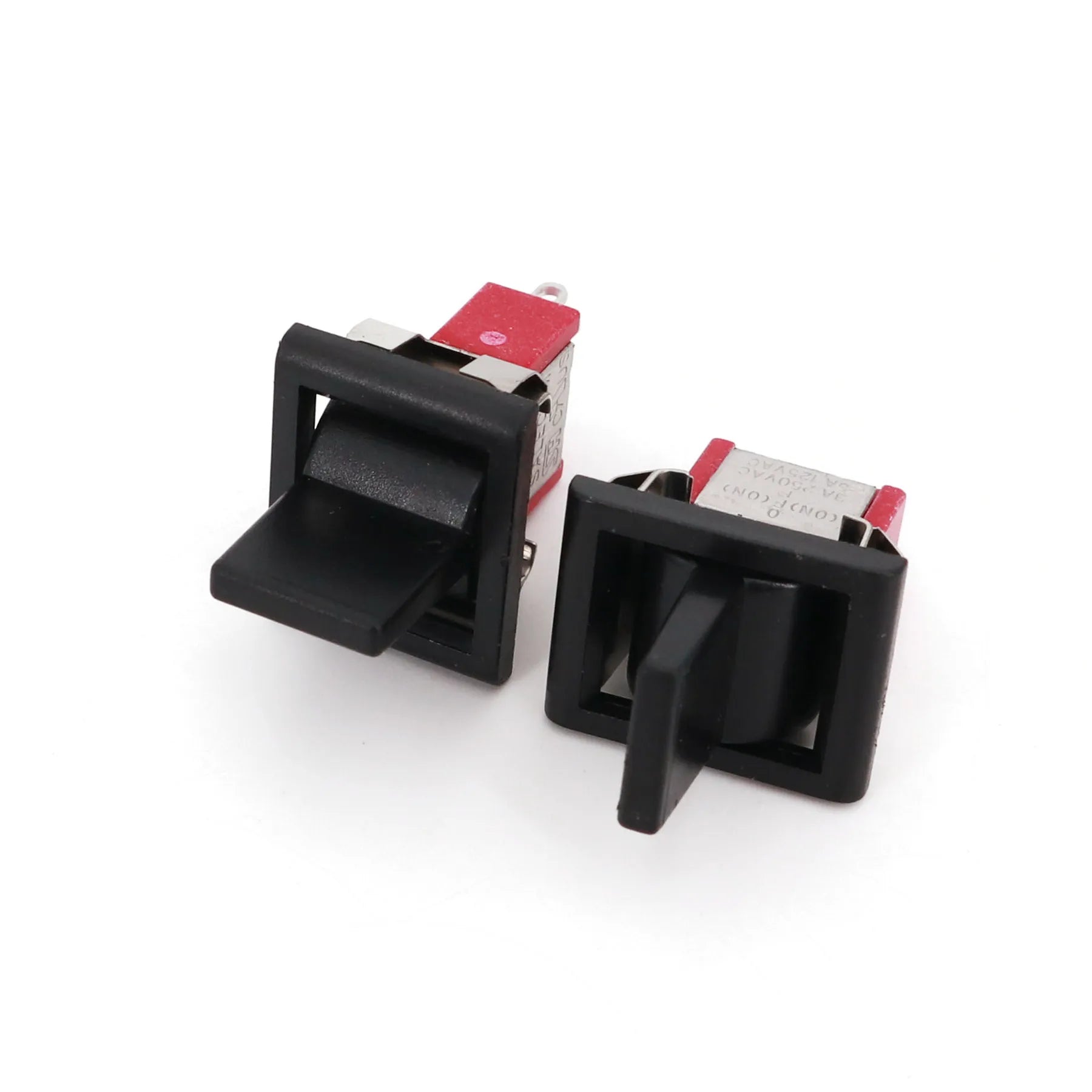

5Pcs SH T80-R Series R8016A-P14 3Pin Momentary MOM-OFF-MOM Self-Return SPDT Mini Rocker and Paddle Switch
5Pcs SH T80-R Series R8016A-P14 3Pin Momentary MOM-OFF-MOM Self-Return SPDT Mini Rocker and Paddle Switch
Prix habituel
CFA5,166 XOF
Prix habituel
CFA0 XOF
Prix promotionnel
CFA5,166 XOF
Frais d'expédition calculés à l'étape de paiement.
Quantité
Impossible de charger la disponibilité du service de retrait

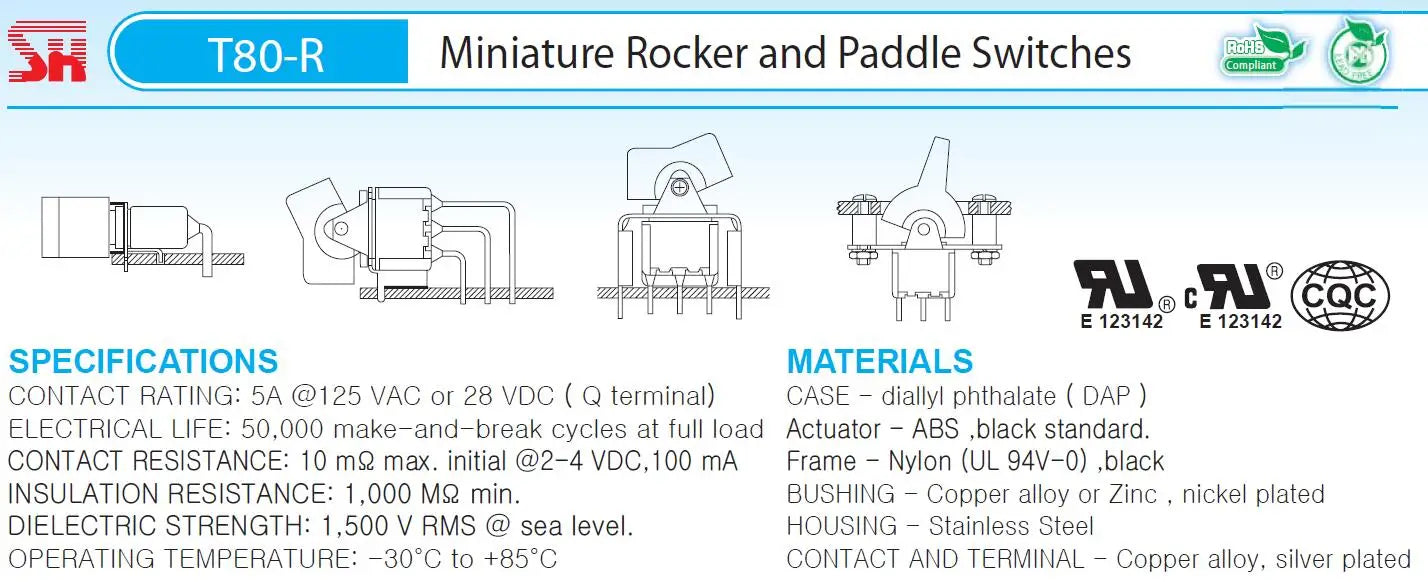

SPECIFICATIONS
Brand Name: NONE
Certification: UL,RoHS
Current: 5A
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
Features: Momentary
High-concerned chemical: None
Item Type: SWITCHES
Material: Plastic
Model Number: R8016A-P14
Origin: Mainland China
Switch Type: Toggle Switch
Warranty: 1 Year
Feature
Model:R8016A-P14
Switch Action: Momentary (Self-Return)
When you release,the actuator will return to the middle position.
Function: MOM-OFF-MOM

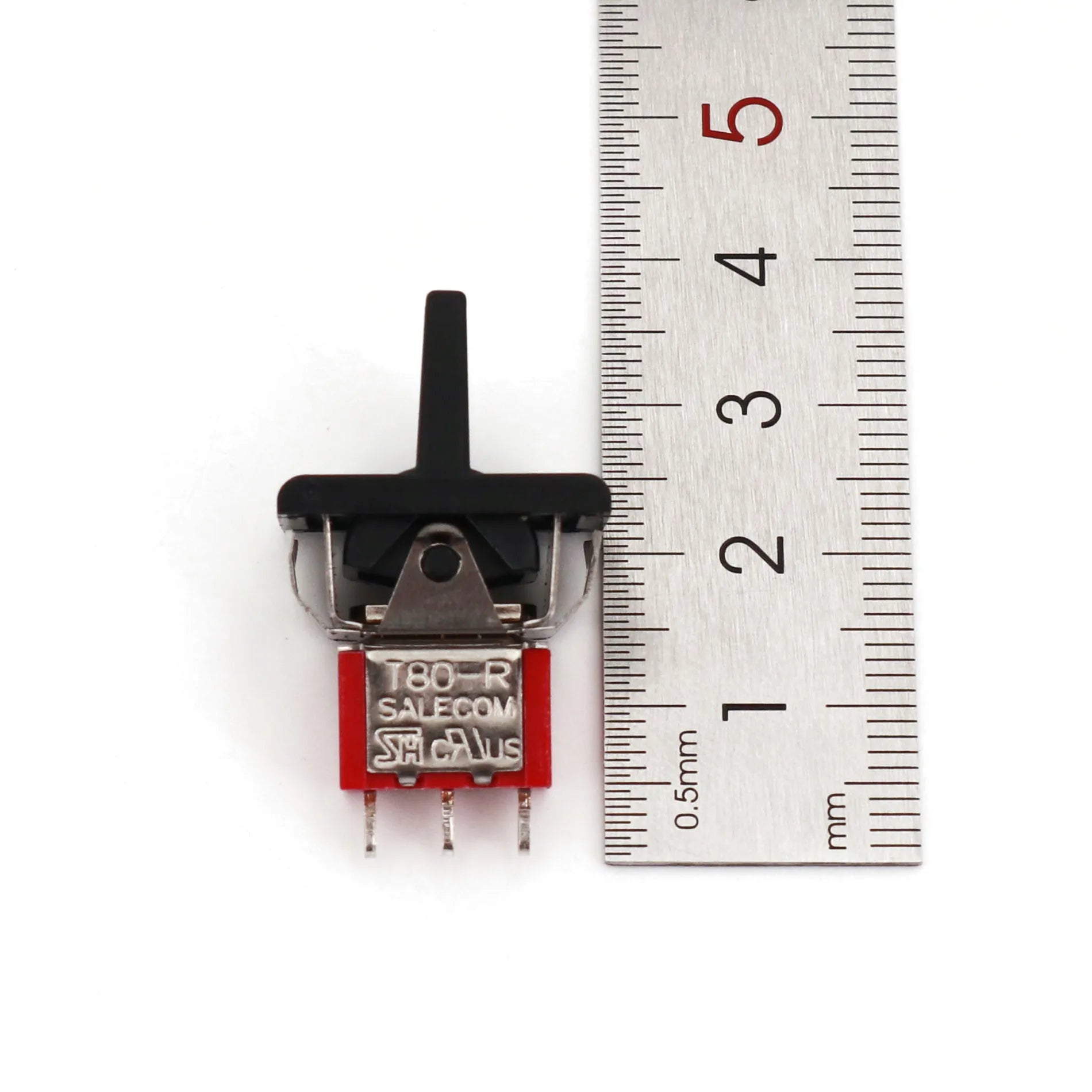

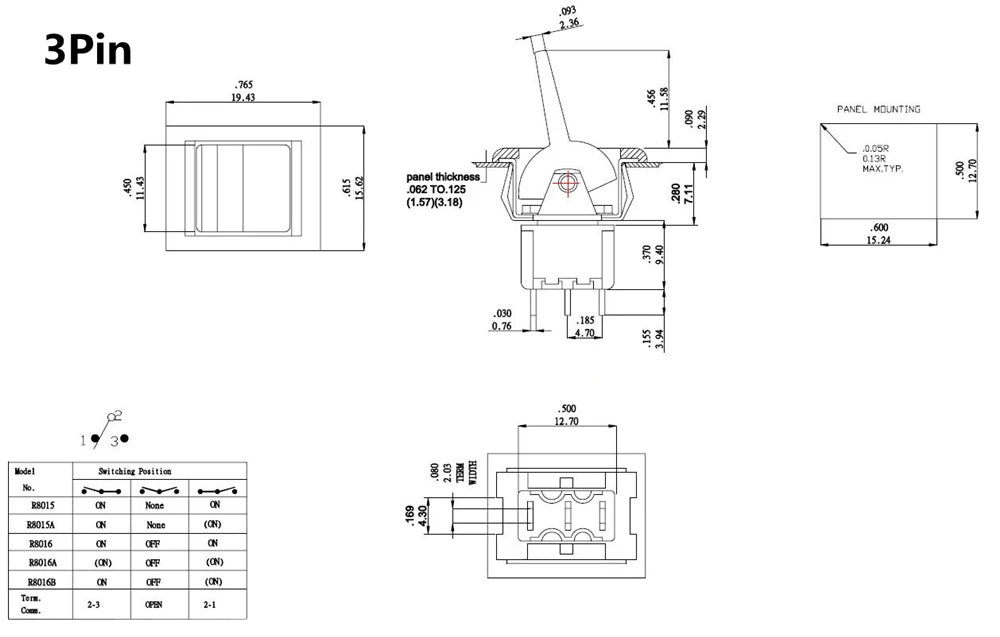

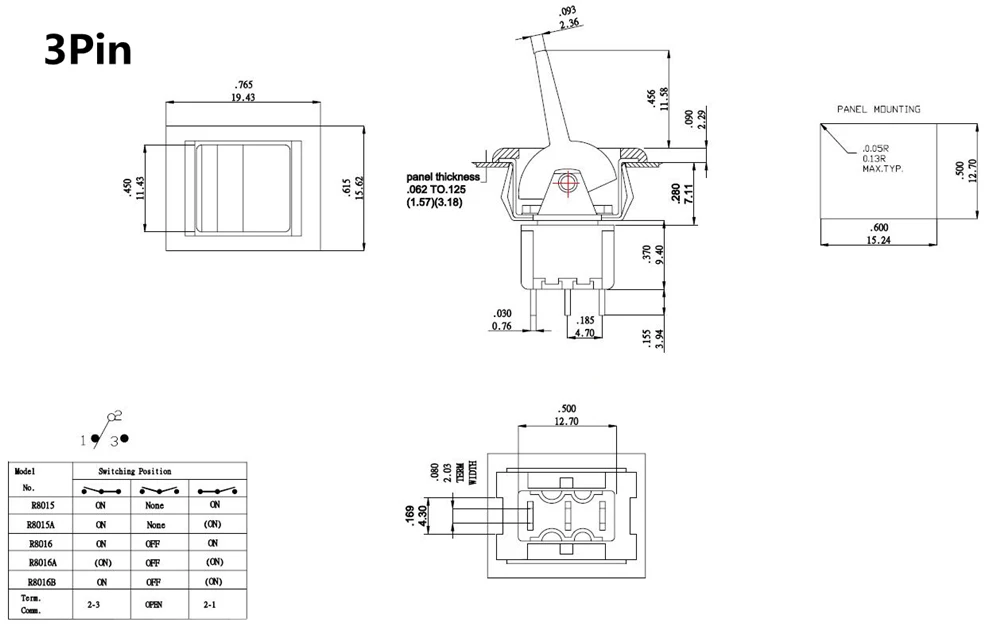

Panel Opening (L*W): 15.3x12.7mm
Contact Rating: 5A /125 VAC, 3A/250VAC
Electrical Life: 50,000 make and break cycles at full load
Insulation Resistance: 1,000 MΩ min.
Operating Temperature: -30°C to 85°C
Weight:5.2g
Package Included

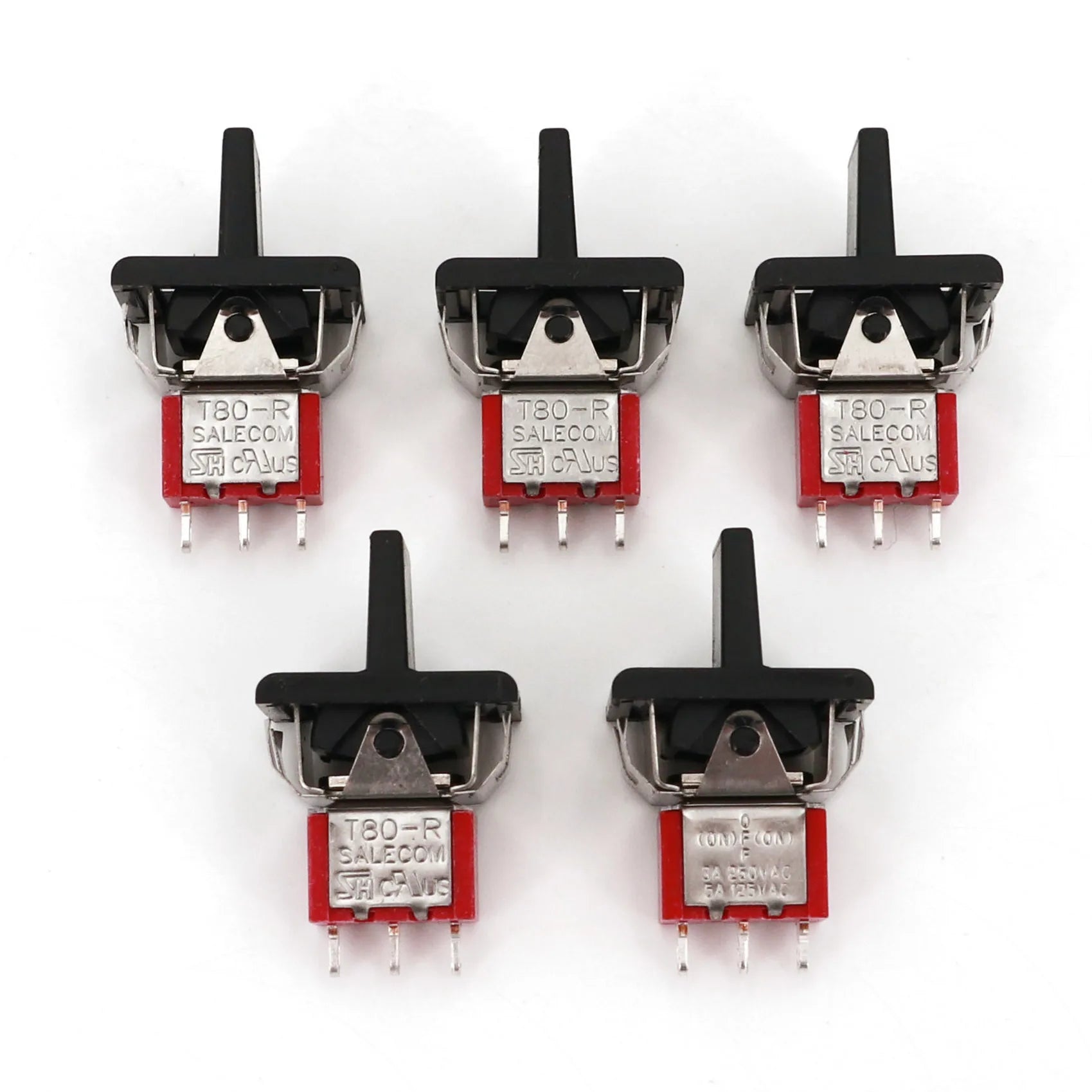

1 Lot = 5Pcs
