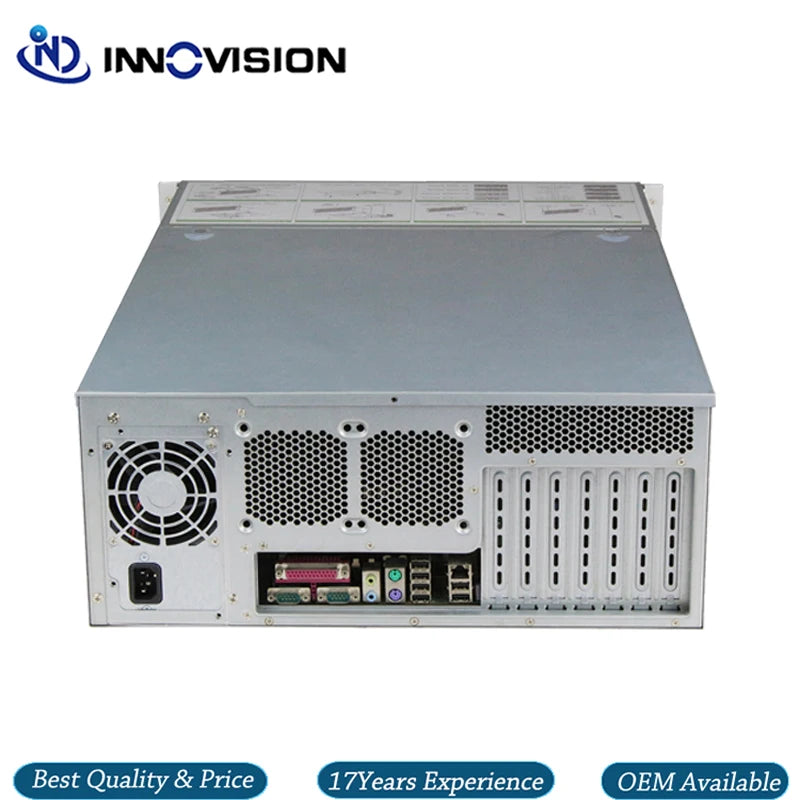

4U 20bays Hot-swap Server Optional Expander Backplane

CFA128,678 XOF

~~CFA0 XOF~~ CFA128,678 XOF

Promotion Épuisé

Frais d'expédition calculés à l'étape de paiement.

color Black

model number S46520

SPECIFICATIONS

Available Color: Front Panel coated Black/Customzied optional

Dimensions: L650*W437.5*H176mm

Form Factor: 4U Rackmount Case

Hot-swap Backplane: With 6.0Gb/s Mini SAS/expander hot-swap backplane

Motherboard Support: Motherboard Size-MAX 12" x 13".

OEM: Available

Power Supply Support: PS2/Redundant Server Power Supply

Processor Support: Dual and Single Intel / AMD processors/Optional

Product Name: S46520 4U 20 bays hotswap rack server cases

Stroage--Drive Disk Bays: 16x 3.5"/2.5" SATA Hot-swap drive bays&Inside 2*2.5" drive Bays

application: Server

brand name: IOVSTECH

form factor: Max ATX 13" x 12" Motherboard

front ports: Usb

material: Steel,1.0mm SGCC(Super Coating fingerprint resistant film)&Super ABS ROSHs

place of origin: Guangdong, China

products status: Stock

style: with fan

type: Rack

Product Description

Spotlight Features:

• Server Barebone OEM / ODM Available
• Optimized 4U rackmount server chassis

• Support MAX 12"x13" etc.Motherboard
•7x full-height & full-length expansion slot(s)

•Super Anti-finger ROHs SGCC & Plastic Material

• High-quality stable Mini SAS 6.0Gb/s hot-swap backplane
• 20 Hot-swap 3.5" SAS3/SATA3 drive bays, 2*2.5" drive bays (Inner)

•Support 500-800W PS2 / Redundant Server Power Supplies optional

• Standard with 2 Hot-swap 120mm PWM cooling fans(3*12cm Fan Bays,2*8cm Fan Bays)
• Application For Corporate Database, Data Center,Cloud storage, Database Processing & Storage, Enterprise Server, HPC, iSCSI SAN
• Similar Product---CSE_S46524 Chassis Avaible(Support MAX 12"x13"etc.Motherboard.)

Item Name	Speed 20 hotswap bays 4U rack huge storage nas server cases
Item NO.	CSE-S46520
Motherboard Support	Motherboard Size-MAX 12"x13",12"x10.5",12" x 9.6",9.6" x 9.6"etc.
Processor Support	Dual and Single Intel® and AMD processors
Dimensions	L650W437.5H176mm,4U Rack
Material	1.0mm SGCC(Super Coating fingerprint resistant film)&Super ABS ROSHs
Available Color	Front Panel coated Black (Others optional)
Expansion Slots	7x full-height & full-length expansion slot(s)
Hot-swap Drive Disk Bays	20x 3.5"/2.5" SATA Hot-swap drive bays&Inside 2*2.5" drive Bays
Hot-swap Backplane	Mini SAS 6.0Gb/s hot-swap backplane
Peripheral Drive Bays	NA
Front Panel Control	Power On/Off button,System Reset button,Unit Identification (UID) button 1xPower LED,1xPower Fail LED,1xHard drive activity LED,2x Network activity LEDs 1xFan Fail/System Over Heat LED,1xUnit Identification (UID) LED 2x USB Port
System Cooling	3x 12cm Fan Bay(s),2x 8cm Fan Bay(s), Standard With 4-pin 2 x 12cm high-performance PWM fan(s)
Operating Environment (System)
Operating Temperature Range	10 - 35°C (50° - 95°F)
Non-Operating Temperature Range	-40 - 70°C (-40° - 158°F)
Humidity Range	8 - 90% non-condensing
Non-Operating Humidity Range	5 - 95% non-condensing
Power Supply Support	2U Single/Redundant Server Power Supply
PSU Recommended	1.2U 500W 80Plus Super Quiet power supply Optional 2.2U 600W 80Plus Super Quiet power supply Optional 3.2U 650W Platinum 80Plus Super Quiet power supply Optional 4.2U 800W Platinum 80Plus Super Quiet power supply Optional

Similar Item NO.	S36516	S26512	S25508
Dimension	L650W437.5H132mm,3U	L650W437.5H88mm,2U	L550W437.5H88mm,2U
Hotswap Disk QTY.	Supporting 16 Bays	Supporting 12 Bays	Supporting 8 Bays
MAX.Motherboard	MAX.12"*13" Various MB	MAX.13"*12" Various MB	MAX.12"*10.5" Various MB

Similar Item NO.	S46524	S46532	Customzied
Dimension	L650W437.5H176mm,4U	L650W437.5H176mm,4U	OEM
Hotswap Disk QTY.	Supporting 24 Bays	Supporting 32 Bays	Customzied Available
MAX.Motherboard	MAX.12"*13" Various MB	MAX.12"*13" Various MB	Customzied Available

Detailed Image

Our Company

Shenzhen Innovision Technology Co.,Ltd

was founded in 2001, mainly engaged in network server, industrial server, industrial development, industrial computer and server hardware barebone---Case, Power Supply and other products of the production, assembly, testing and sales. The company R & D and manufacturing base is located in the beautiful Shenzhen River Golf Club.After 15 years of development, we are the China's most professional leading manufacturer of industrial server barebone.
Our Aim: Devoted ourselves to server for you with 100% satisfy.

Our Advantage

OEM Service

FAQ

Q1. Do you have any MOQ limit ?

A: Low MOQ. 1Set standard product for sample checking is available.
OEM products MOQ is 50Set.

Q2. What's the server chassis OEM sample policy?

A:As our factory sample rule,the sample cost is USD300,which is just as deposit.We will return most sample charge until the order above 50sets.(Deducting one case charge and once-time mould charge.)

Q3. How long to get the exact quotation?

A: Please let us know your requirements and your QTY.My sale engineer will quote it within 1-2working days.

Q4. How to proceed a OEM mass order?

A: 1st.let us know your requirements or application and your planing QTY.
2nd.My sale engineer give the best solution and quote according to your requirements.
3rd.Sign a sample contract and pay the payment.
4th.Make a sample and Confirm it.Satisfy or modify some parts.
5th.Place a mass order.Return the sample cost. Pay the payment.
6th.We arrange the production.Delivery within 15-23days as contract.

Q5. What about the lead time?

A:As usually,we have sufficient Standard products.Delivery within 1-3 days.
OEM/Mass production time takes 15-23days.

Q6. How do you ship the goods and how long does it take to arrive?

A: The shipment is as your choosing.
For small order,it's better by internation express.Eg.DHL, UPS,EMS, FedEx or TNT. It usually takes 3-12 days to arrive. For big volume order,recommended the Airline and sea shipping.
We also can deivery the goods to your signed logistic in China.
Duing of the server chassis big volume weight,sometimes the shipping cost is higher than the chassis cost.We're highly recommend to buy the powersupply,heatsink etc.linked products.We'll give you our best price.
