SPECIFICATIONS

Ball Material: Carbon Steel,Cast Iron

Body material: SS304/SS316/SS316L

Certifications: ISO9001

Connection: Threaded screw thread

Connection Size: 1/2 in,1/4 in,1 in,3/4 in,3/8 in,2 in,3 in,4 in,5 in,6 in

Connection Type: NPT

End Connection: Threaded

For Maximum Pipe Size: 50 mm,15 mm,20 mm,25 mm,100 mm,75 mm,3 in,1/2 in,2 in,4 in,1 in,3/4 in,38 mm,1.5 in

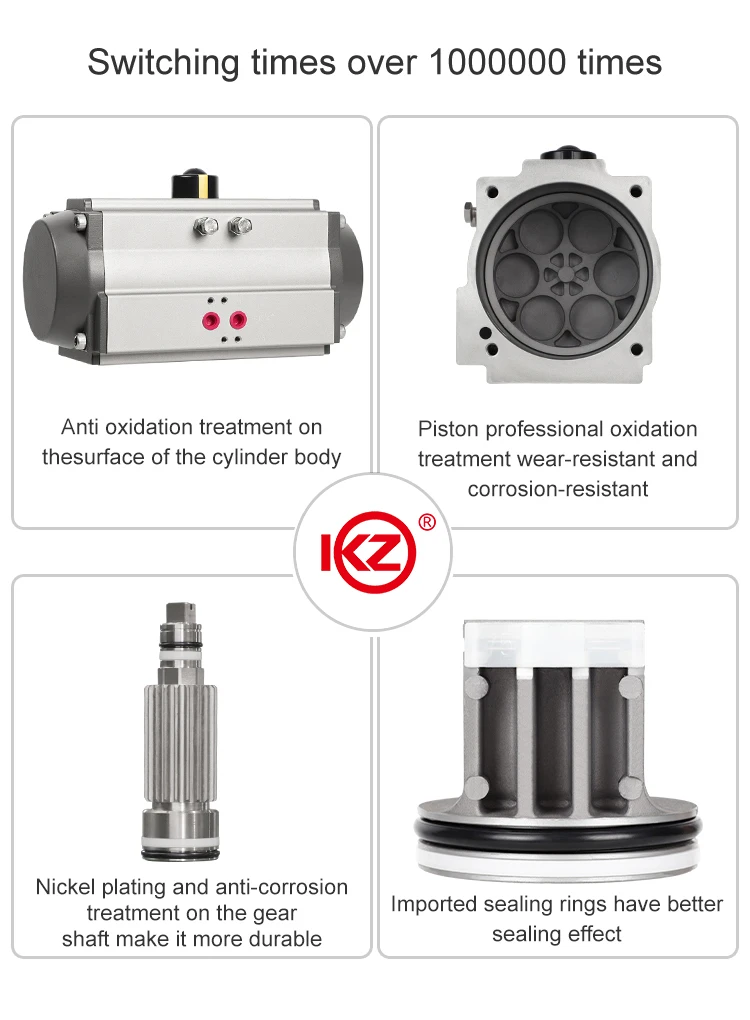

Lifespan: 1,000,000 (1 Million) Times

Material: Stainless Steel 304/316

Port Size: DN8-DN100

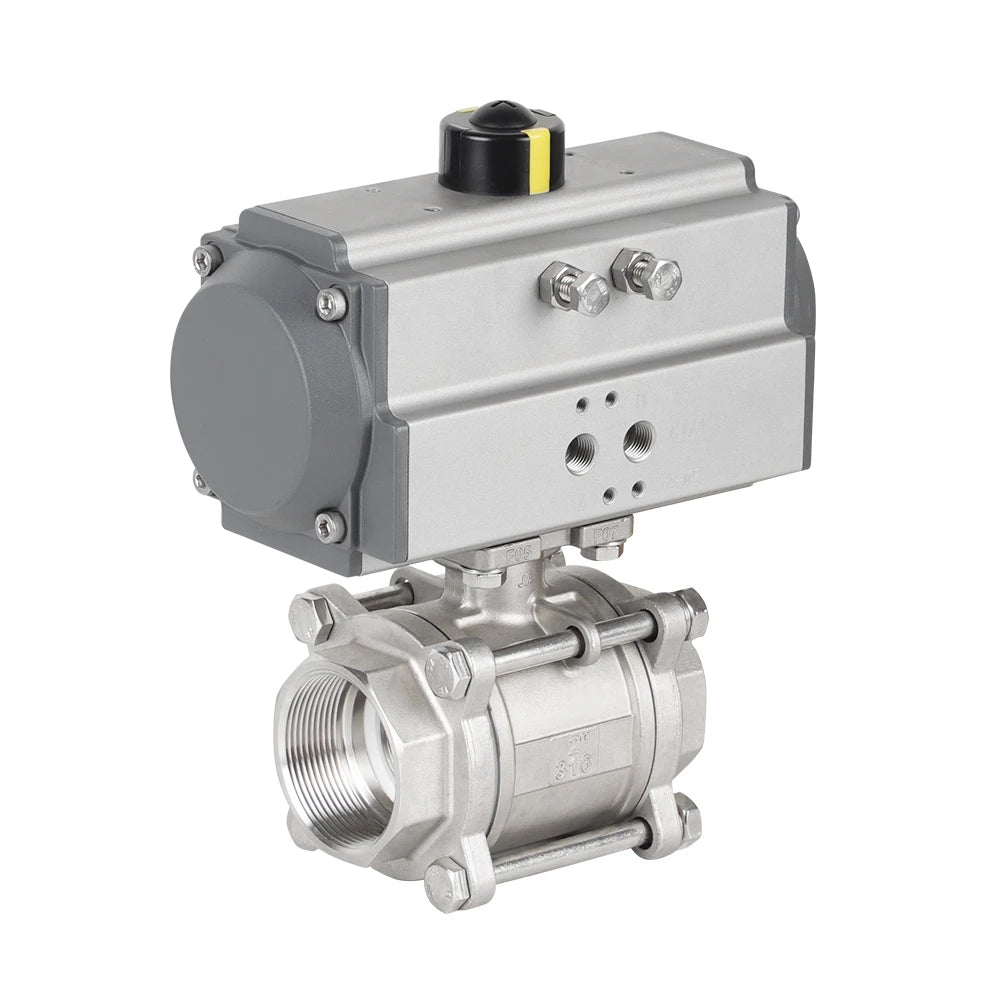

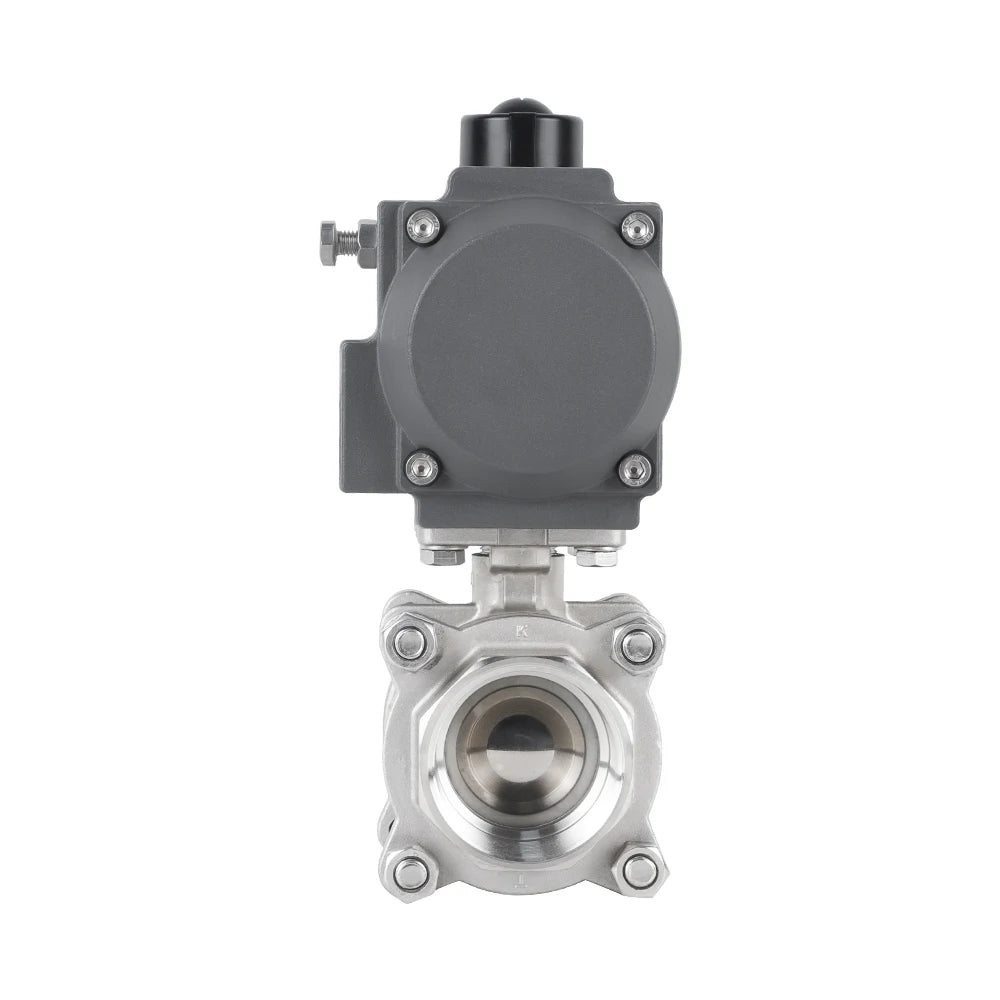

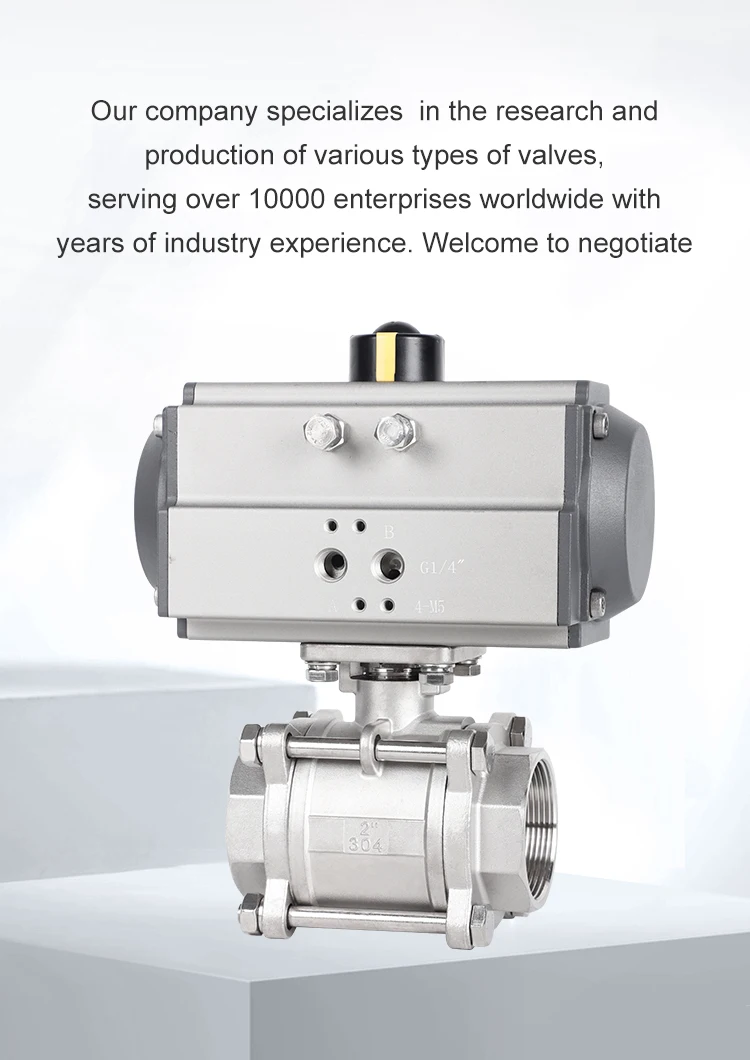

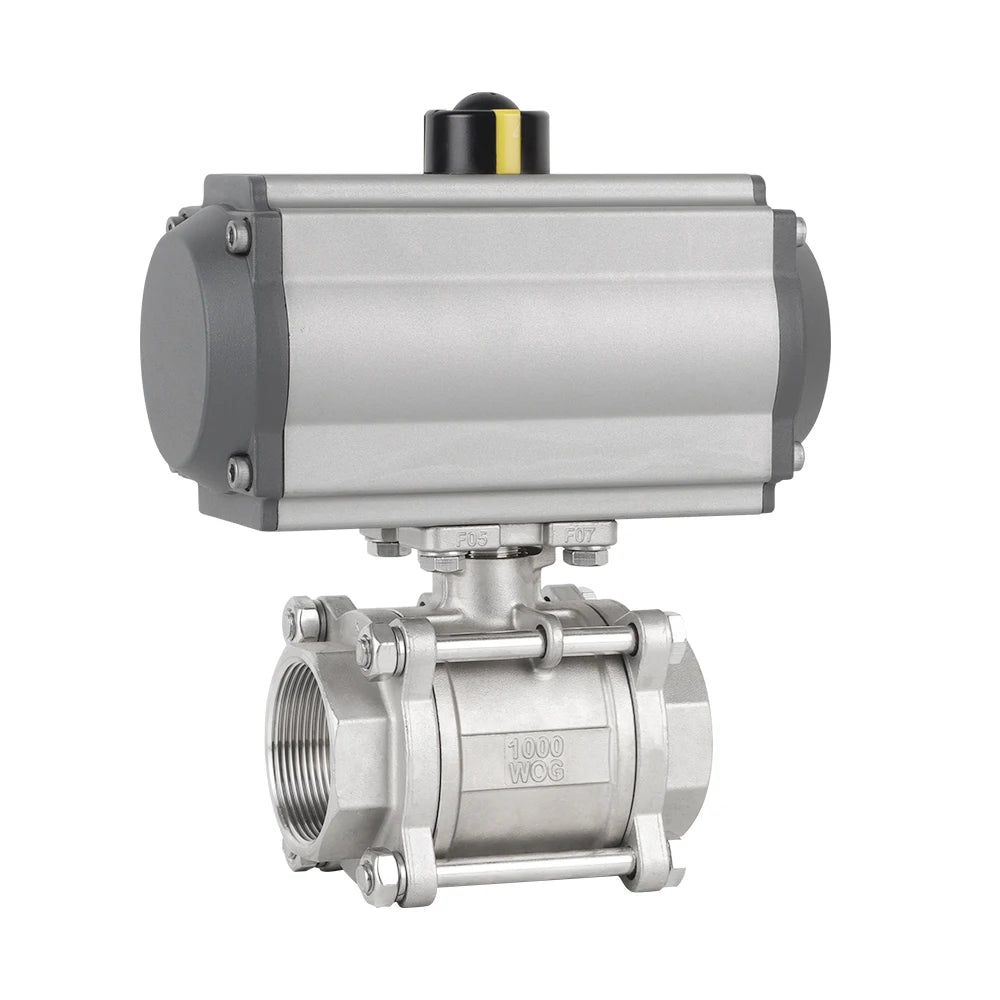

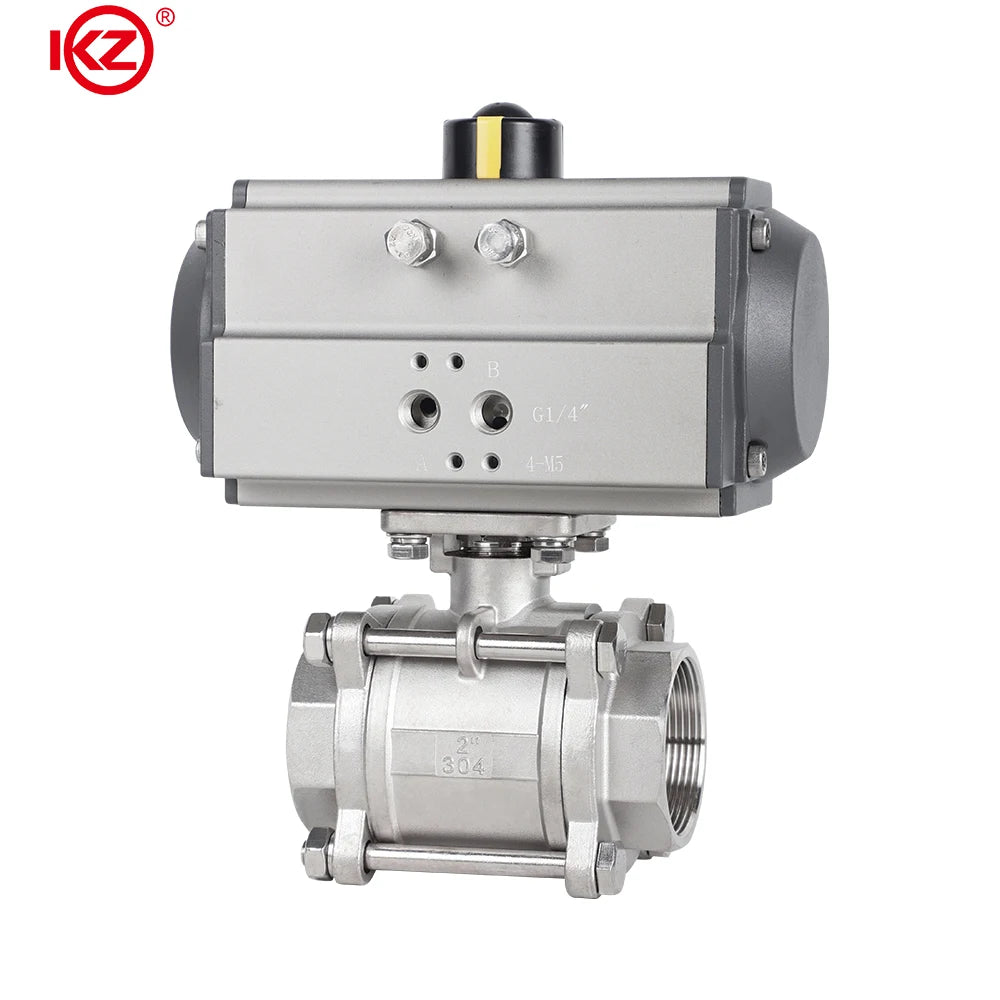

Product name: Pneumatic Threaded Ball Valve

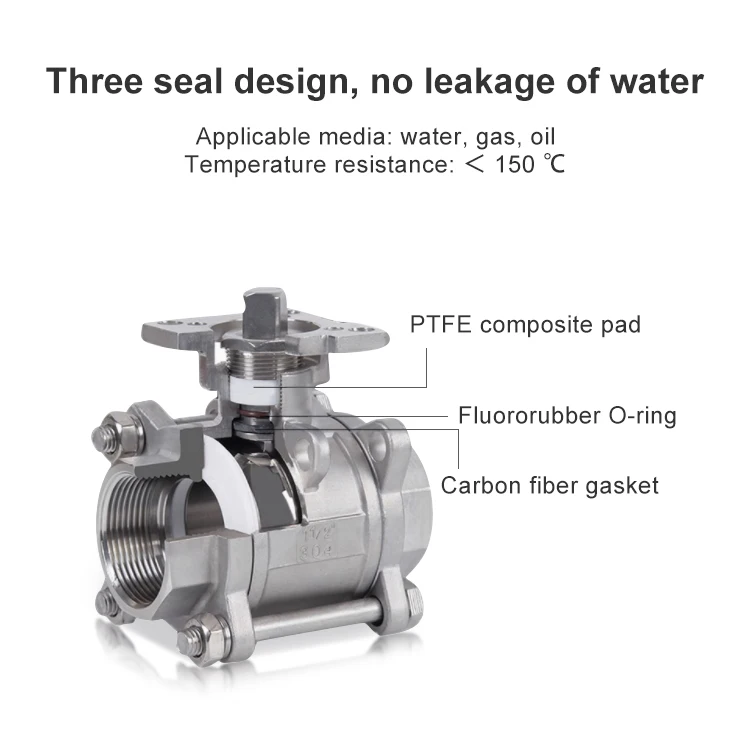

Sealing Material: PTFE

Size: Customized Size

Type: 2-way

application: General

brand name: Fude Sheng

customized support: OEM

media: Air, Gas, Oil, Liquid,water

model number: Q611F-16P

place of origin: Jiangsu, China

power: Pneumatic

pressure: PN16

structure: Ball

temperature of media: Low Temperature,Medium Temperature,Normal Temperature,High Temperature

warranty: 1years

Products Description

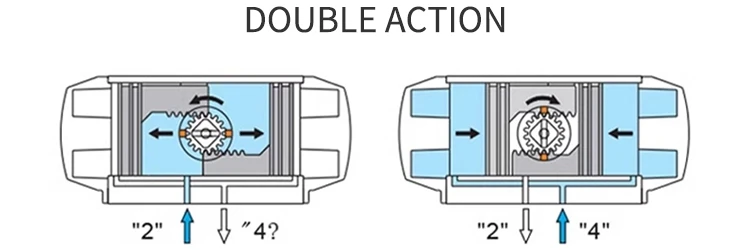

OPEN VALVE：The gas source entersfrom (2) and exits from (4)			CLOSE THE VALVE：The gas source entersfrom (4) and exits from (2)
Figure（2）shows the intake causing the introduction of two pistons into the cylinder Separate the two pistons and move them in two sections.			Figure（4）shows the intake of air to introduce the two pistons intothe cylinder Move towards the center, with the output shaft in the closed state.

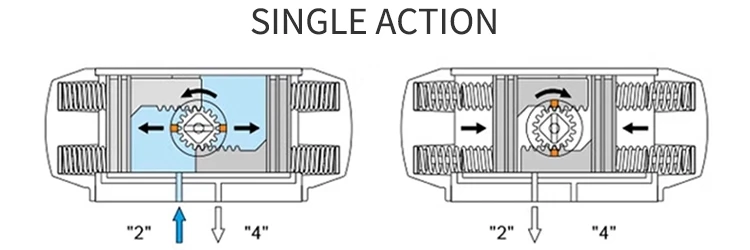

OPEN VALVE：The gas source entersfrom (2) and exits from (4)					CLOSE THE VALVE：The gas source entersfrom (4) and exits from (2)
Figure（2）shows the intake causing the introduction of two pistons into the cylinder Compress the two ends of the spring between them.					Figure （4）shows the solenoid valve being switched backwards with the spring facing downwards Compression causesdisplacement,thus resetting.

Company Profile

Certifications

Packaging & Shipment

FAQ

Q1: Are you a manufacturer or a trading company? A1: We are a specialized manufacturer focusing on valve solutions for harsh working conditions, with direct factory production and sales. Eliminating middlemen allows us to respond to your needs more efficiently. Q2: Do you provide installation guidance from technical engineers before or after sales? A2: Definitely. No need to worry. Our technical team will follow up via remote video throughout the process, providing one - on - one guidance from installation steps explanation to valve commissioning. Q3: What are your payment terms? A3: Typically, 30% T/T as deposit and 70% balance before delivery. We will send you real - time videos of products and packaging for your confirmation before requesting the balance payment. Q4: What delivery terms do you offer? A4: We support common terms like EXW, FOB, CFR, CIF, and also provide door - to - door services such as DAP and DDP for you to choose flexibly based on logistics needs. Q5: How long is the delivery time? A5: Generally, we can ship within 2 - 5 days after receiving the advance payment. The specific timeline depends on the product model and order quantity, and we will refine the schedule when you place the order. Q6: Do you test all goods before delivery? A6: Absolutely. Each valve undergoes 100% full inspection including pressure testing and sealing detection before leaving the factory, with inspection reports attached to the goods. Q7: How do you maintain long - term and good business relationships? A7: We ensure customer benefits through stable quality and cost - effective pricing. Meanwhile, we treat every customer as a partner—regardless of origin, we uphold sincere business ethics and focus on building trust through reliable service.
