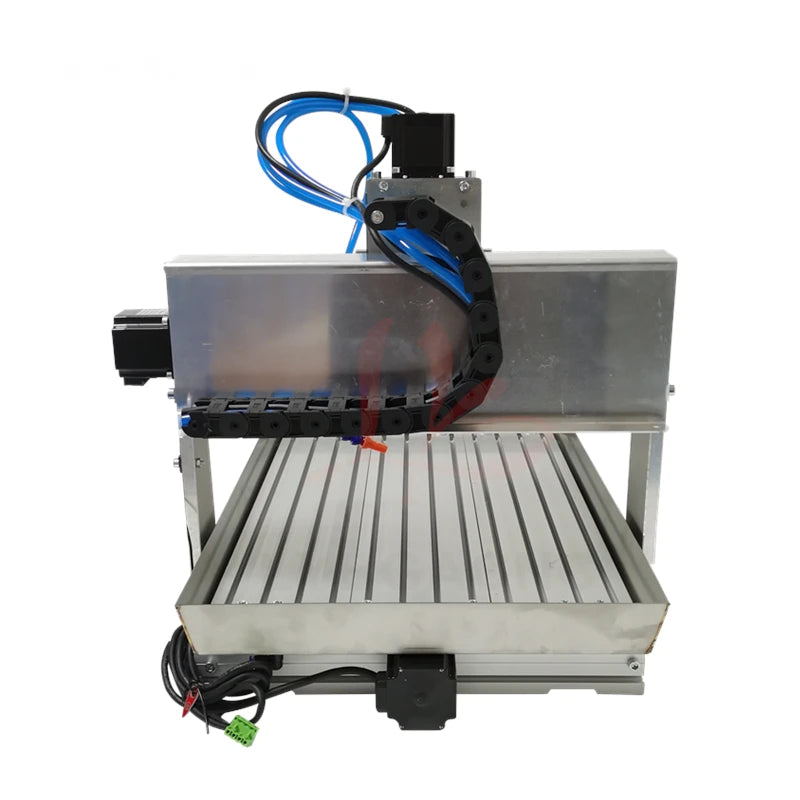

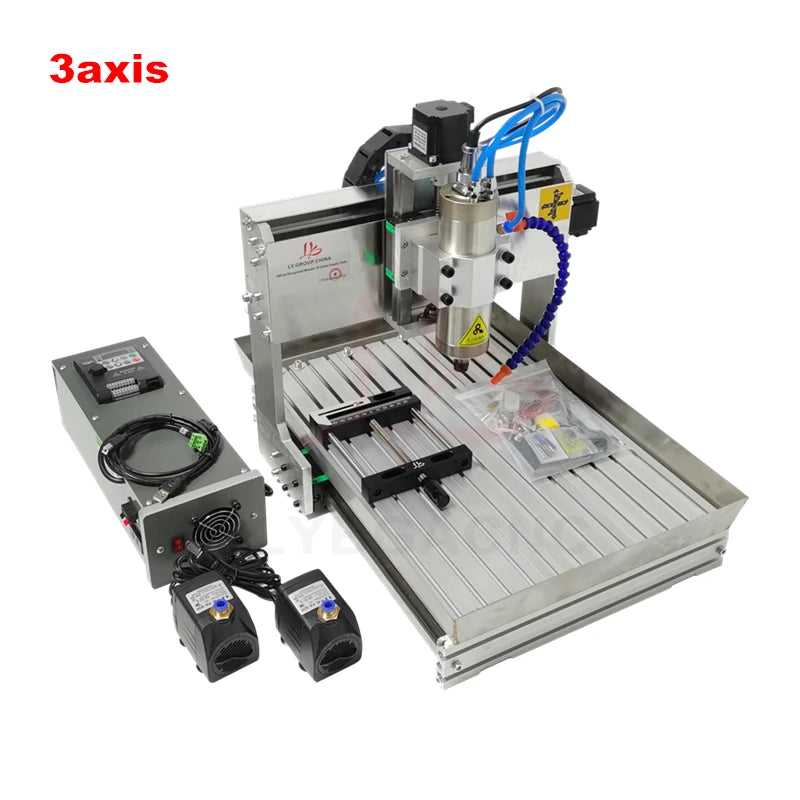

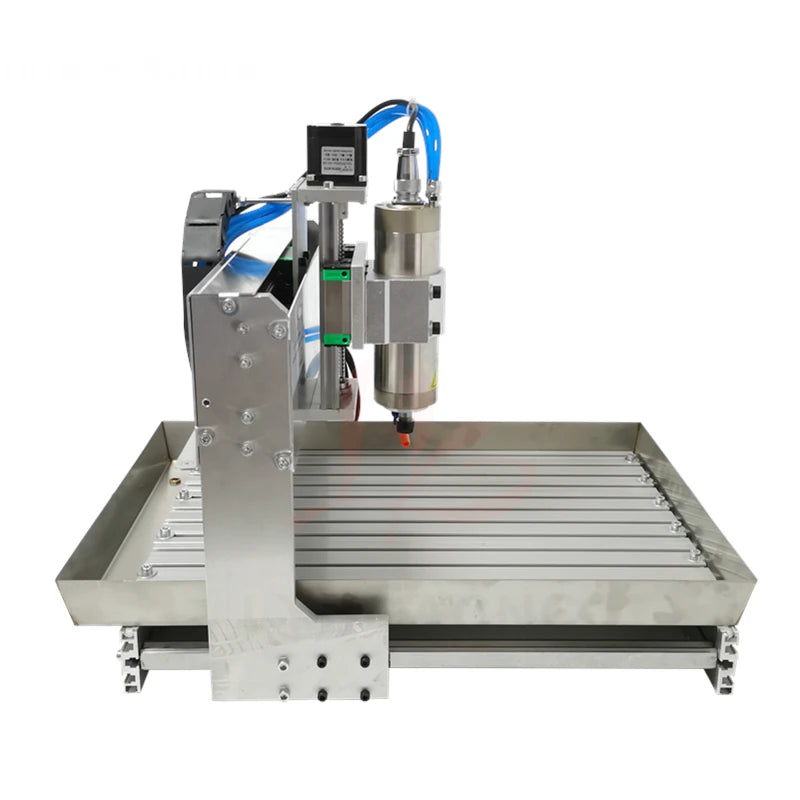

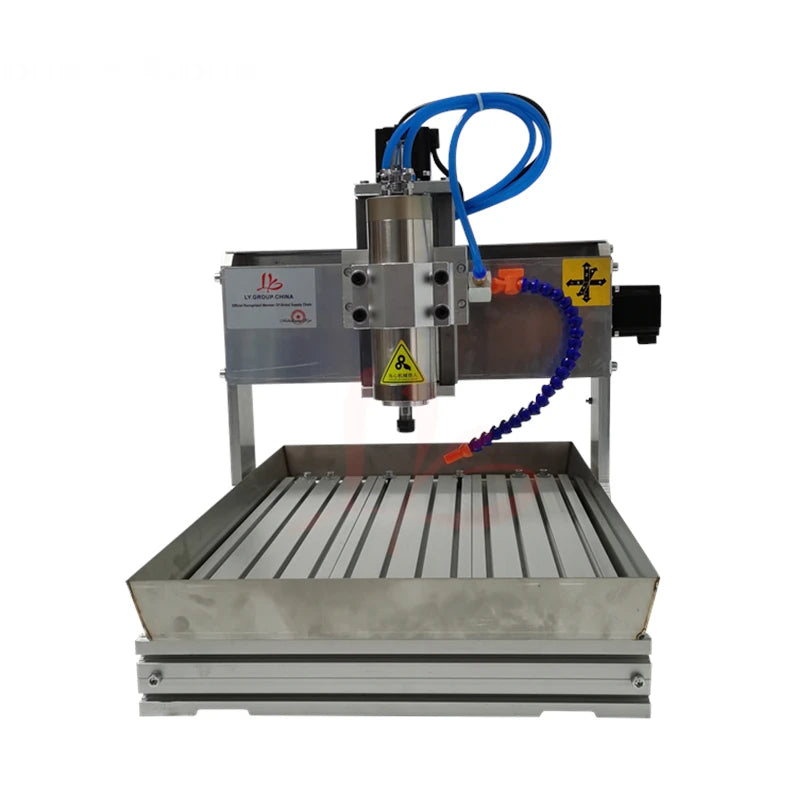

3 Axis Water-Cooled Engraving Machine for DIY, Wood, Plastic-CNC Router Engraving Drilling and Milling Machine 1.5 kw LY FS3040
3 Axis Water-Cooled Engraving Machine for DIY, Wood, Plastic-CNC Router Engraving Drilling and Milling Machine 1.5 kw LY FS3040
Impossible de charger la disponibilité du service de retrait
SPECIFICATIONS
No. of Spindles: Single
Spindle Motor Power (kw): 1.5
brand name: LY
cnc or not: CNC
core components: Motor
dimension(l*w*h): 300*400*100
key selling points: Easy To Operate
machine type: CNC Router
machinery test report: Provided
number of axes: 3
place of origin: Guangdong, China
positioning accuracy (mm): 0.02
range of spindle speed(r.p.m): 0 - 24000
repeatability (x/y/z) (mm): 0.02
travel (x axis)(mm): 300
travel (y axis)(mm): 400
video outgoing-inspection: Provided
voltage: 220
warranty: 1 Year
weight (kg): 31
LYBGACNC LYFS2030 3040 3060 4060 3/4/5axis Engraving machine CNC Router Engraving Drilling and Milling Machine
Introduction
This is a very good era,in the past we only can see the CNC machine equipment in factory, but now, the CNC equipment has been into our lives;
Whether you are a small or medium enterprises managers, project engineers, CNC enthusiast or artists, related students, there are something on this machine will attract you;
It can help you processing a lot of parts, whether you are modeling or home decoration or creative DIY.
It can help you intuitively to learn CNC knowledge. And testing learning outcomes in real time.

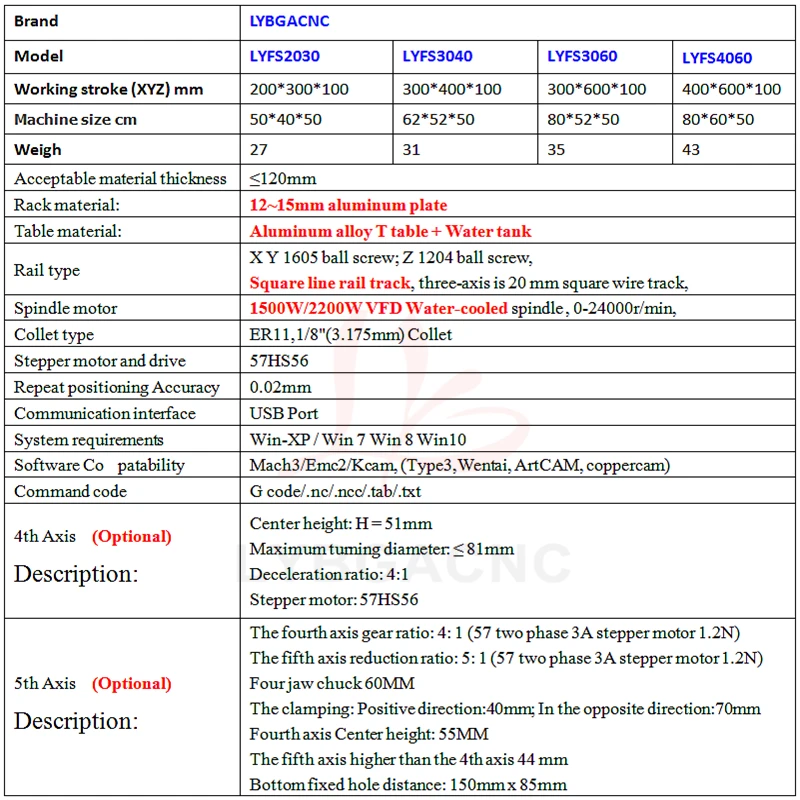

Model and Technical Parameters
|
Brand |
LYBGACNC |
|||
|
Model |
LYFS2030 |
LYFS3040 |
LYFS3060 |
LYFS4060 |
|
Working stroke (XYZ) mm |
300*400*100 |
300*600*100 |
400*600*100 |
|
|
Machine size cm |
50*40*50 |
62*52*50 |
80*52*50 |
80*60*50 |
|
Weigh |
27 |
31 |
35 |
43 |
|
≤120mm |
||||
|
12~15mm aluminum plate |
||||
|
Table material: |

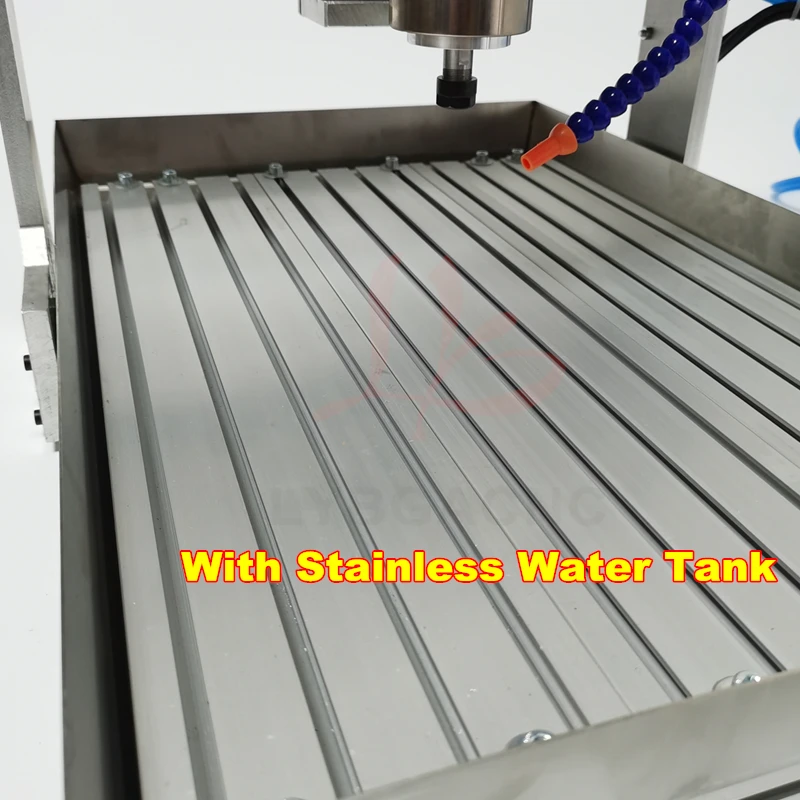

Aluminum alloy T table + Water tank |
|||
|
Rail type |
X Y 1605 ball screw; Z 1204 ball screw, Square line rail track, three-axis is 20 mm square wire track, |
|||
|
Spindle motor |

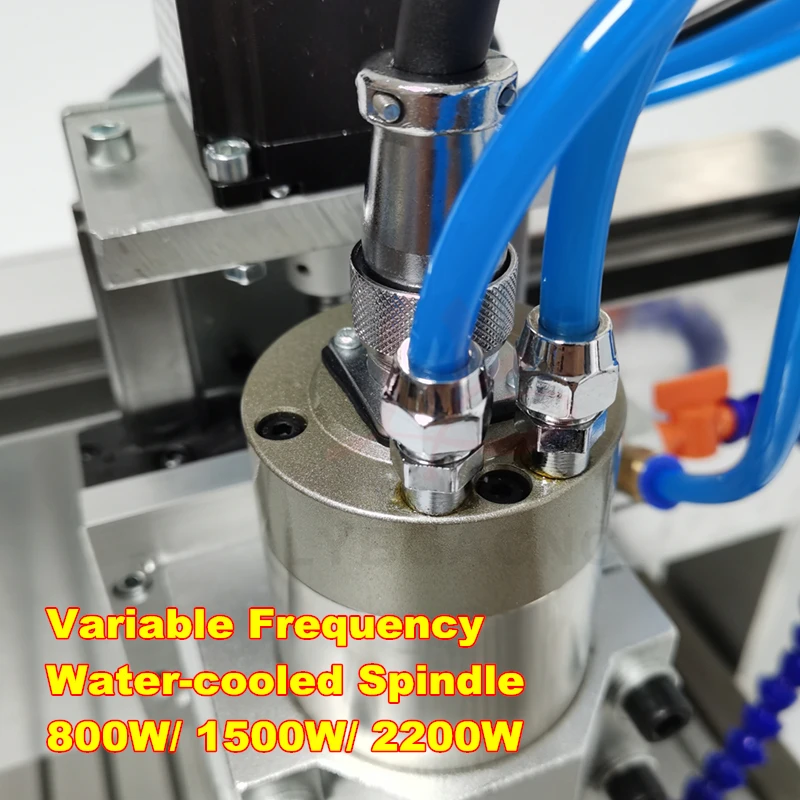

1500W/2200WVFD Water-cooled spindle ,0-24000r/min, |
|||
|
Collet type |
ER11,1/8"(3.175mm) Collet |
|||
|
Stepper motor and drive |
||||
|
Repeat positioning Accuracy |
0.02mm |
|||
|
Communication interface |
USB Port |
|||
|
System requirements |
Win-XP / Win 7 Win 8 Win10 |
|||
|
Software Co patability |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
|||
|
Command code |
G code/.nc/.ncc/.tab/.txt |
|||
|
4th Axis (Optional) Description: |
Center height: H = 51mm Maximum turning diameter: ≤ 81mm Deceleration ratio: 4:1 Stepper motor: 57HS56 |
|||
|
5th Axis (Optional) Description: |
The fourth axis gear ratio: 4: 1 (57 two phase 3A stepper motor 1.2N) The fifth axis reduction ratio: 5: 1 (57 two phase 3A stepper motor 1.2N) Four jaw chuck 60MM The clamping: Positive direction:40mm; In the opposite direction:70mm Fourth axis Center height: 55MM The fifth axis higher than the 4th axis 44 mm Bottom fixed hole distance: 150mm x 85mm |
|||
Warranty
More Precise Stepping Motor
Simple operation and installation
1 year machine part and 6 months electrical parts,stepping motor,spindle Free Warranty
Precautions for use
1.Beware of potential safety hazards of electricity use. Please ground the rack and take necessary personal protection measures. It should be placed at a place where children can't touch everyday;
2. The machine is divided into 110 and 220V. Please leave a message when ordering;
3. When the new machine is assembled, the main shaft must be connected to the main shaft output of the control box;
4.After the machine works for a period of time, if the main shaft does not rotate, please check whether the two carbon brushes on the motor are worn;
