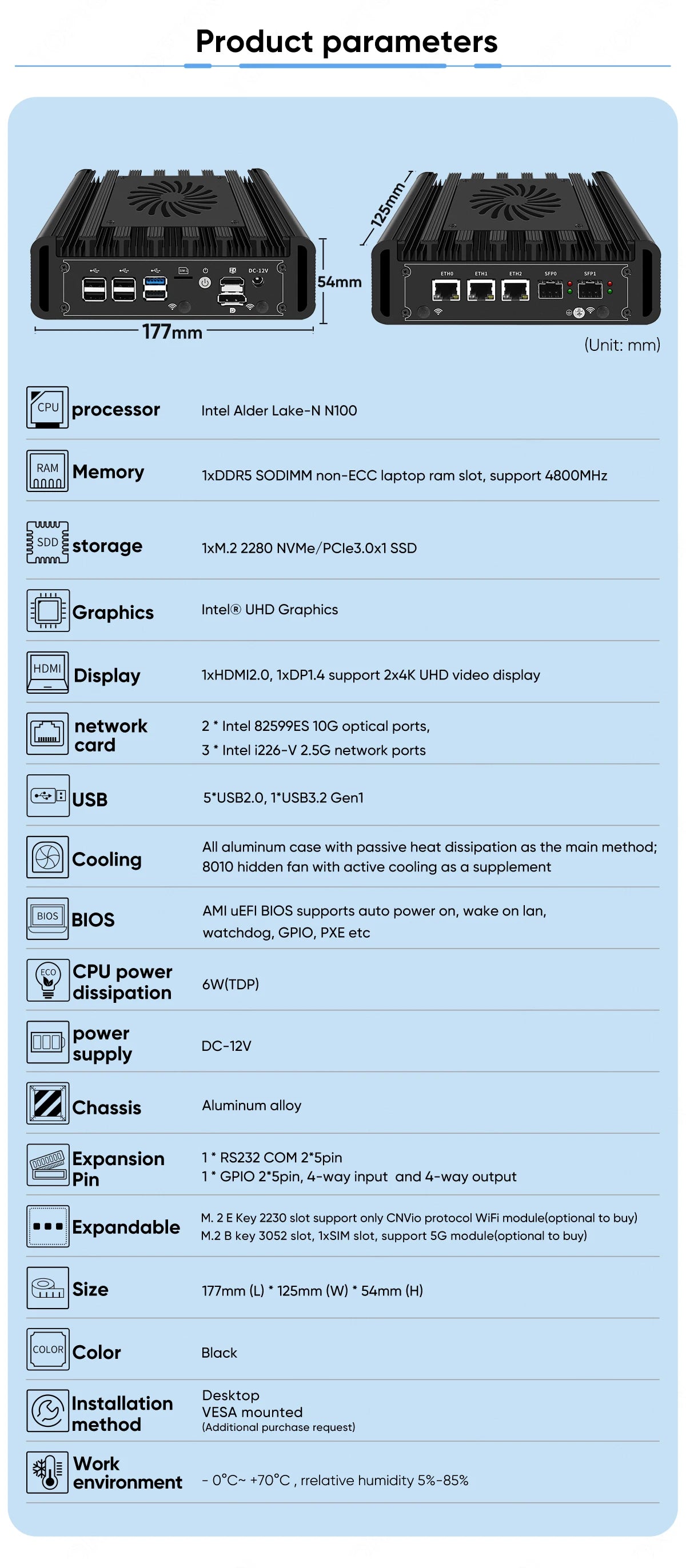

SPECIFICATIONS

Brand Name: Topton

Certification: CE,FCC,RoHS

Graphics Card Type: Integrated Card

Hard Drive Capacity: 1TB

High-concerned chemical: None

Memory Capacity: ≥ 4GB

Model Number: H3F

Origin: Mainland China

Processor Brand: Intel

Processor Main Frequency: Depends on CPU

Processor Model: i3-N300/N150

Type: Mini Desktop,Mini PC

Use: Commercial

Processor parameter for referance only

Processors	Cores & Threads	Cache	Max Turbo Frequency	TDP	Graphics
Intel Core i3-N305	8 cores, 8 threads	6M	3.80 GHz	15W	Intel UHD Graphics 32EUS
Intel Core i3-N300	8 cores, 8 threads	6M	3.80 GHz	7W	Intel UHD Graphics 32EUS
Intel N150	4 cores, 4 threads	6M	3.60 GHz	6W	Intel UHD Graphics 24EUS
Intel N100	4 cores, 4 threads	6M	3.40 GHz	6W	Intel UHD Graphics 24EUS

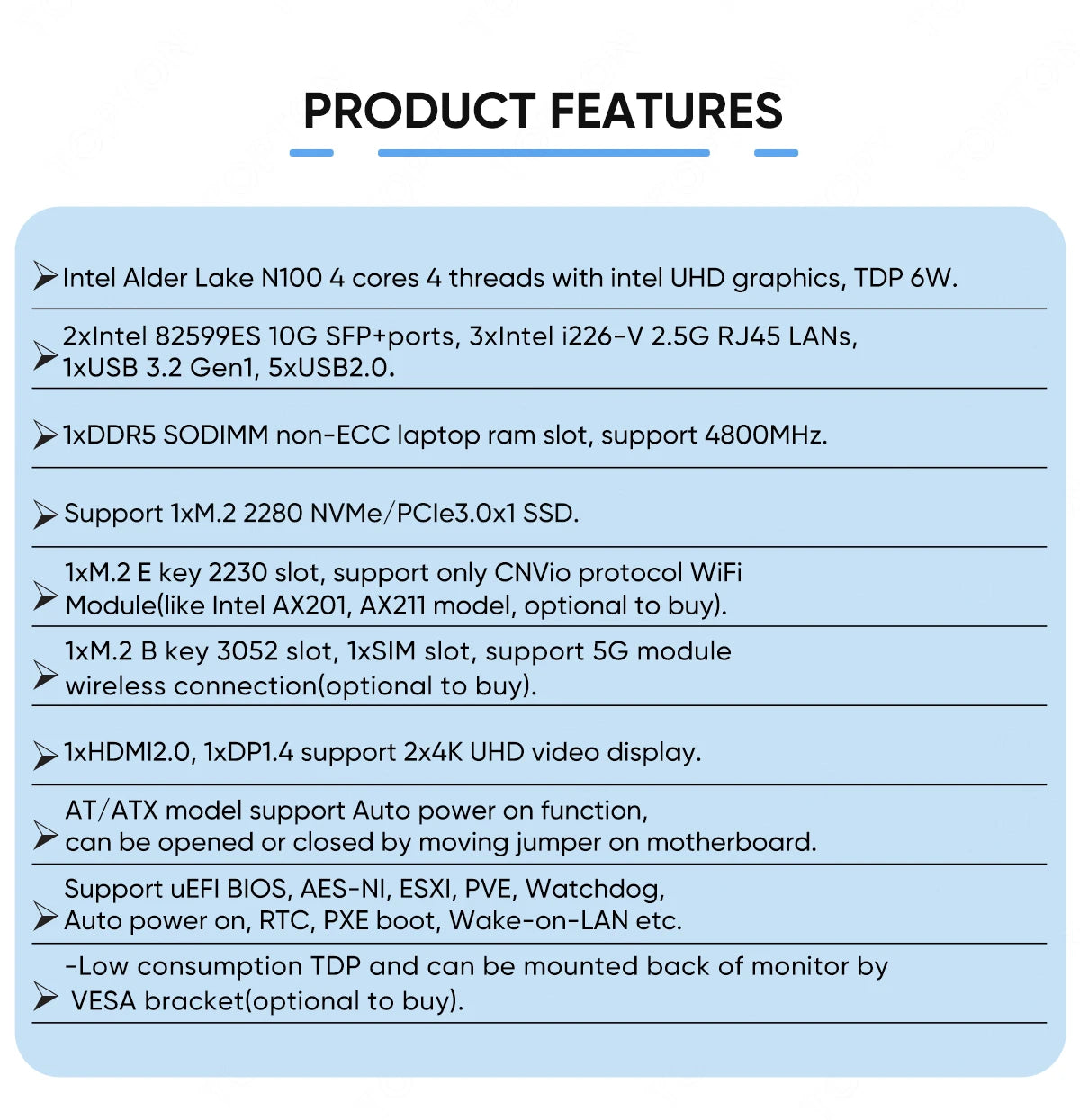

Product Highlight

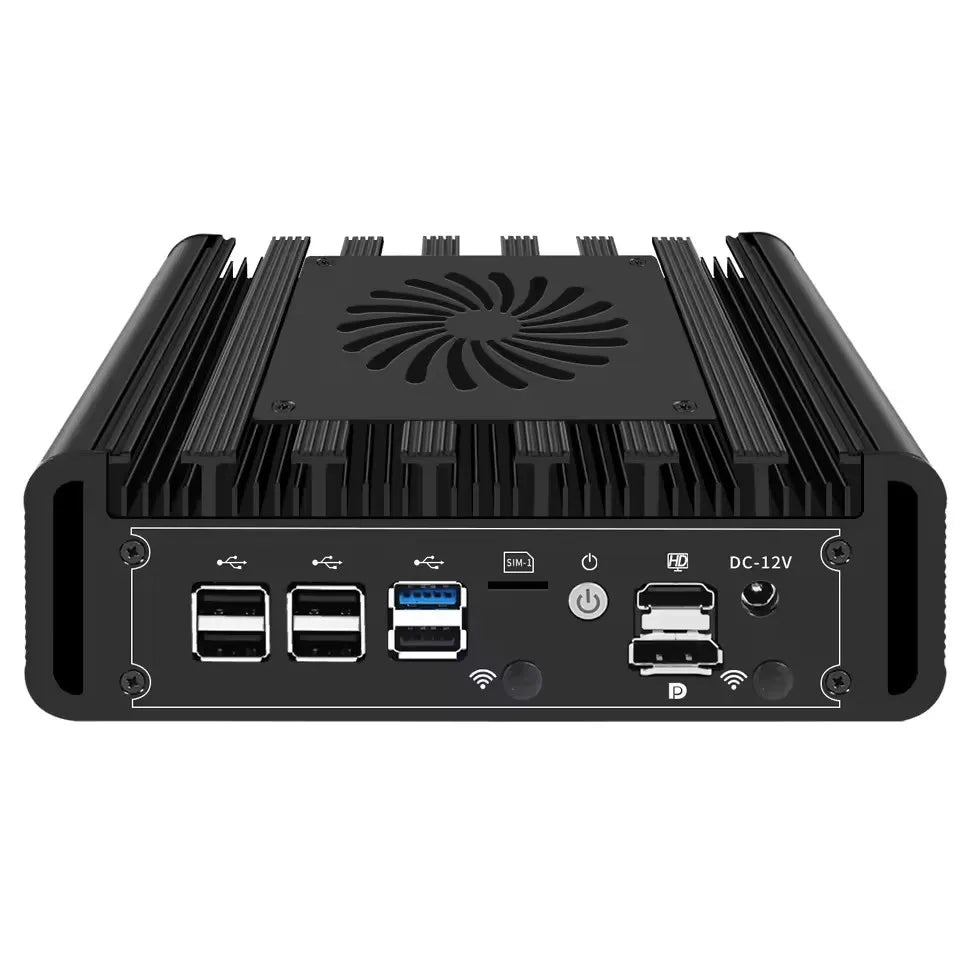

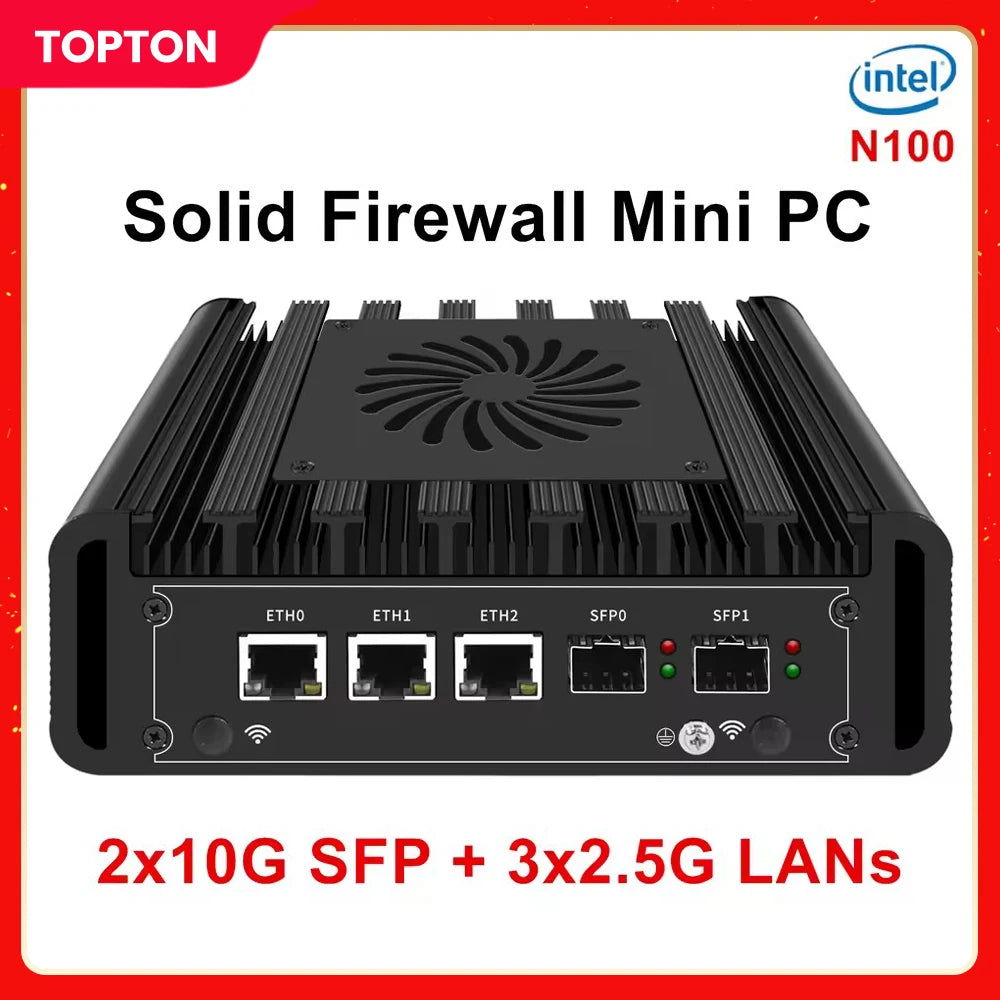

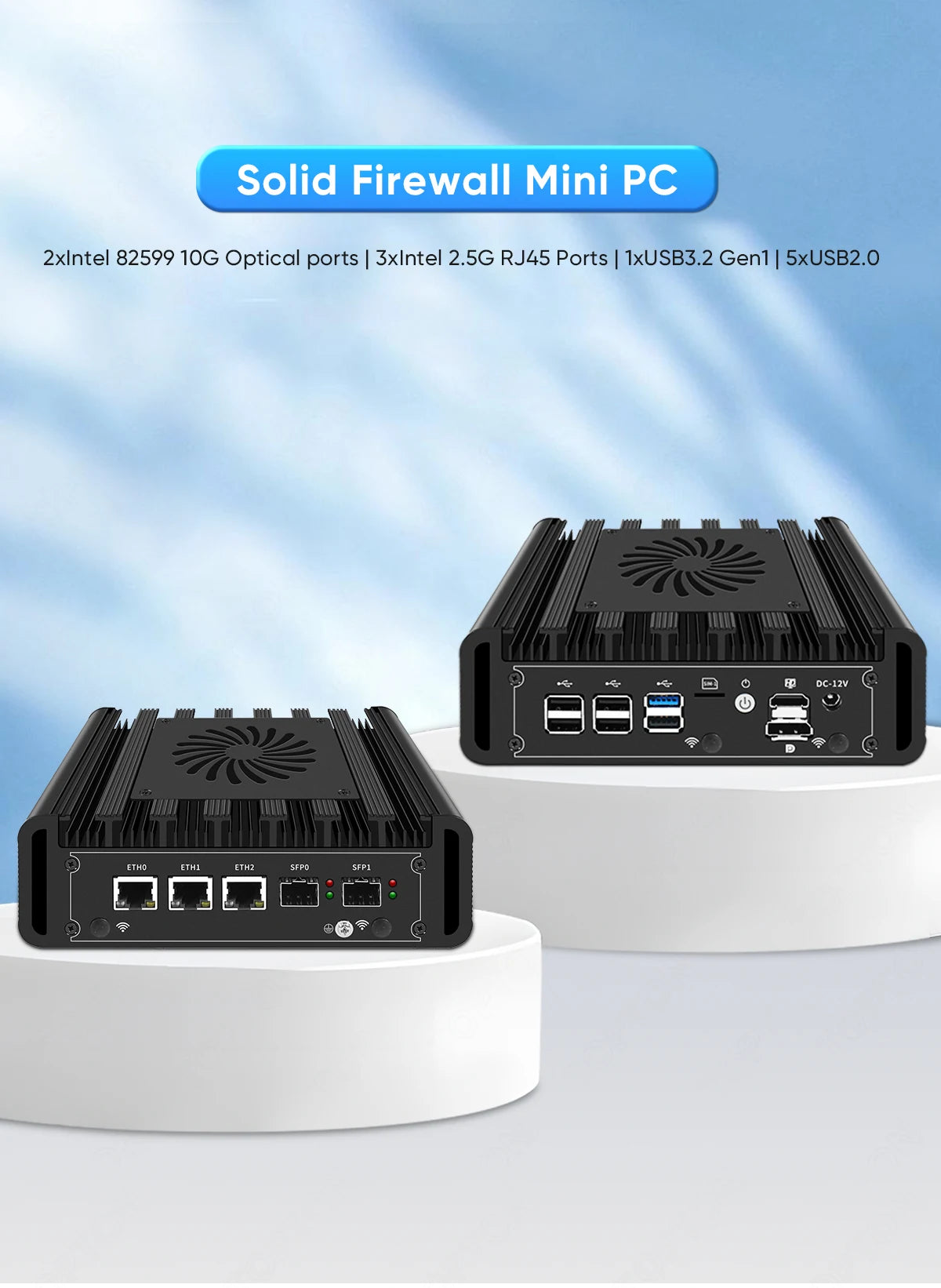

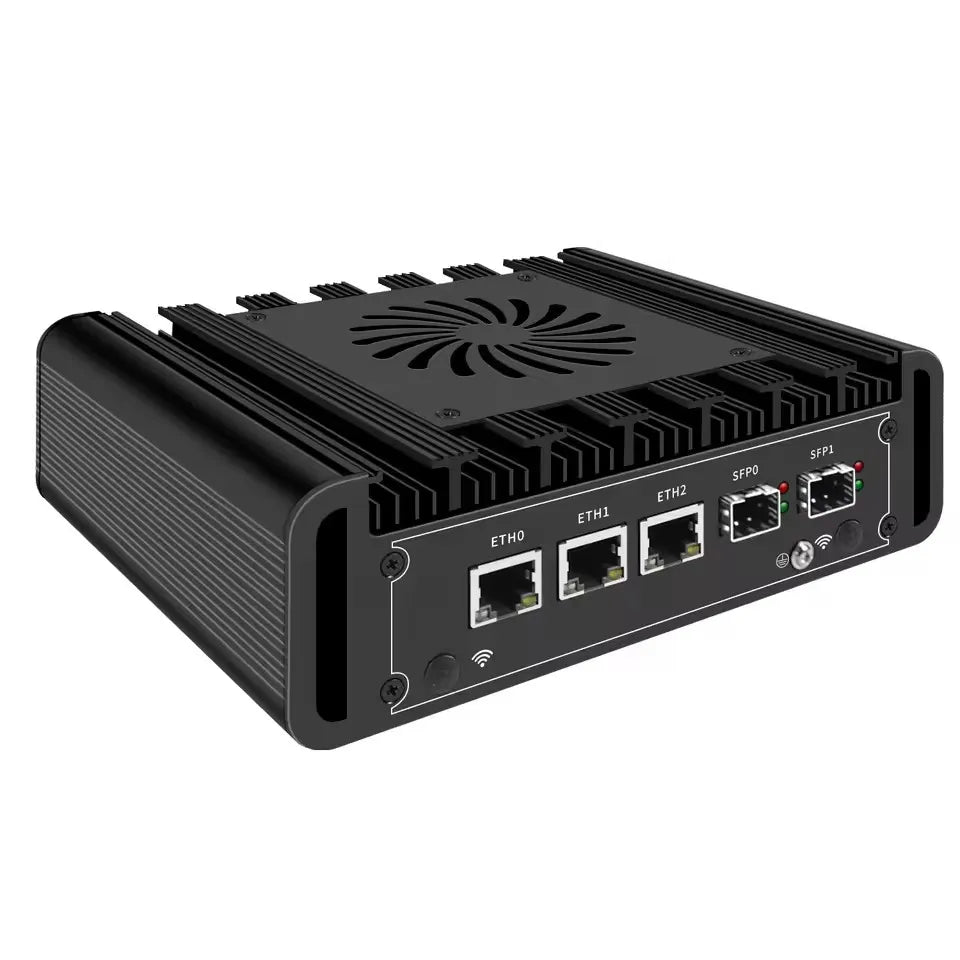

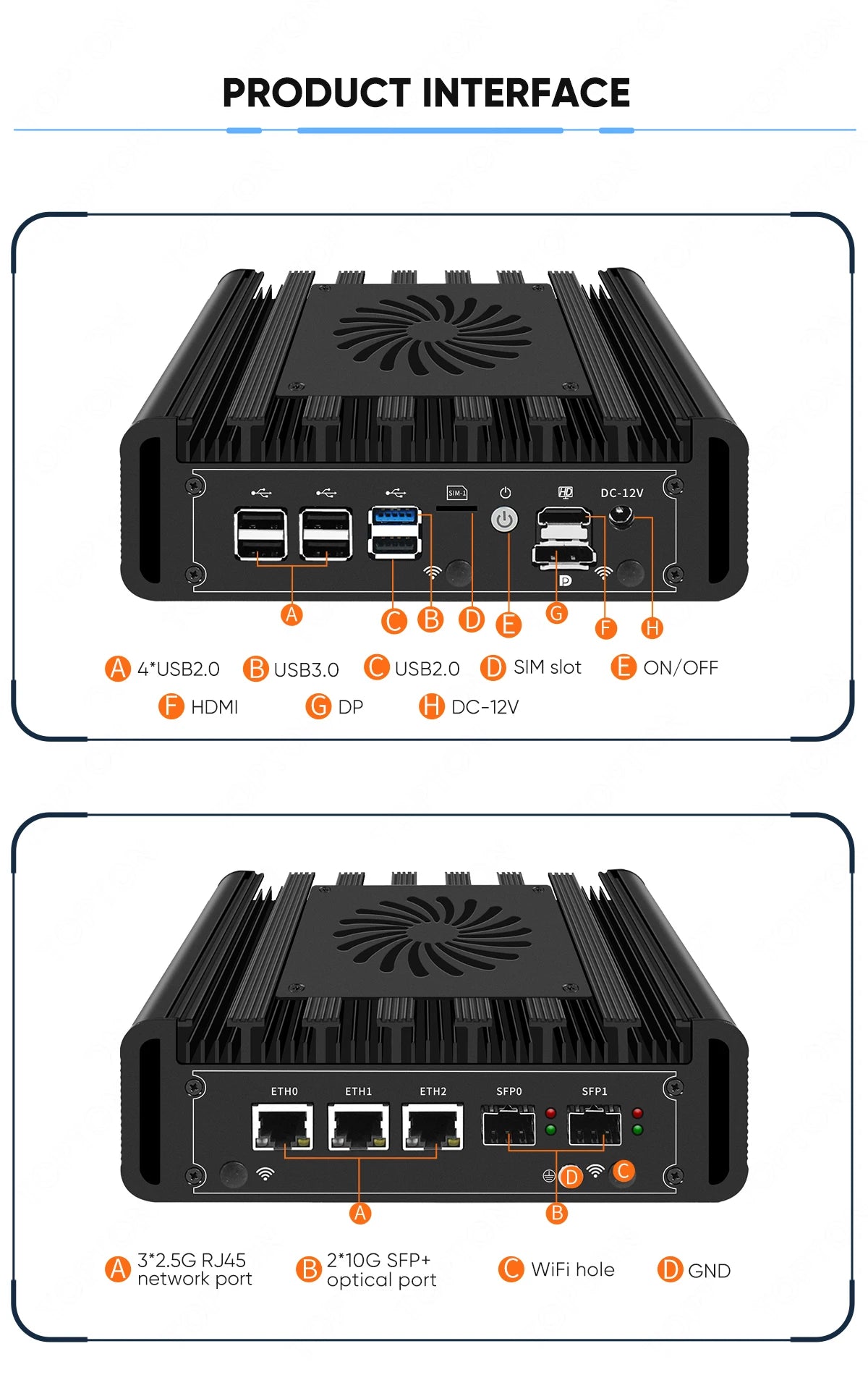

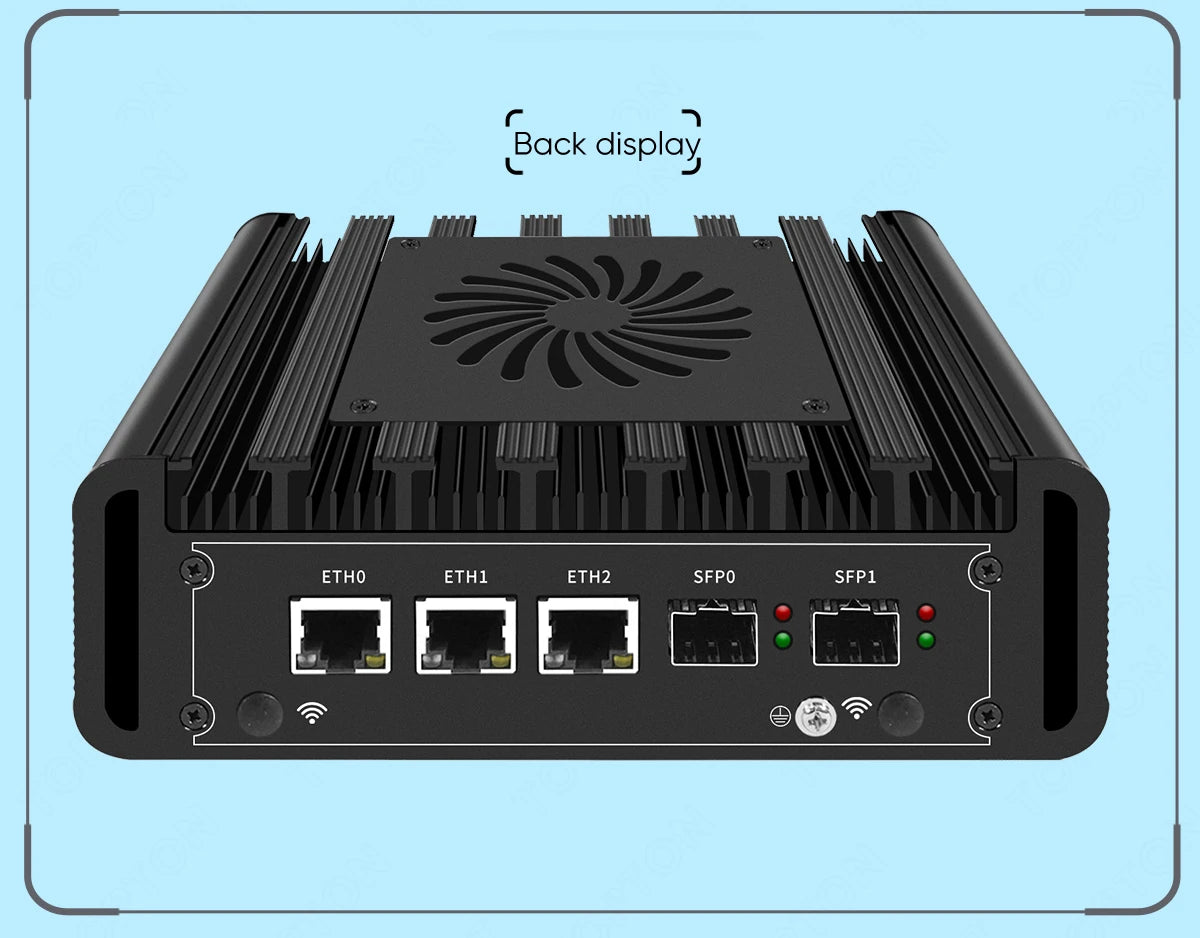

-2xIntel 82599ES 10G SFP+ ports, 3xIntel i226-V 2.5G RJ45 LANs, 1xUSB3.2 Gen1, 5xUSB2.0.

-1xDDR5 SODIMM non-ECC laptop ram slot, support 4800MHz.

-Support 1xM.2 2280 NVMe/PCIe3.0x1 SSD.

-1xM.2 E key 2230 slot, support only CNVio protocol WiFi Module(like Intel AX201, AX211 model, optional to buy, PCIE protocol WiFi will block one RJ45 LAN signal).

-1xM.2 B key 3052 slot, 1xSIM slot, support 5G module wireless connection(optional to buy).

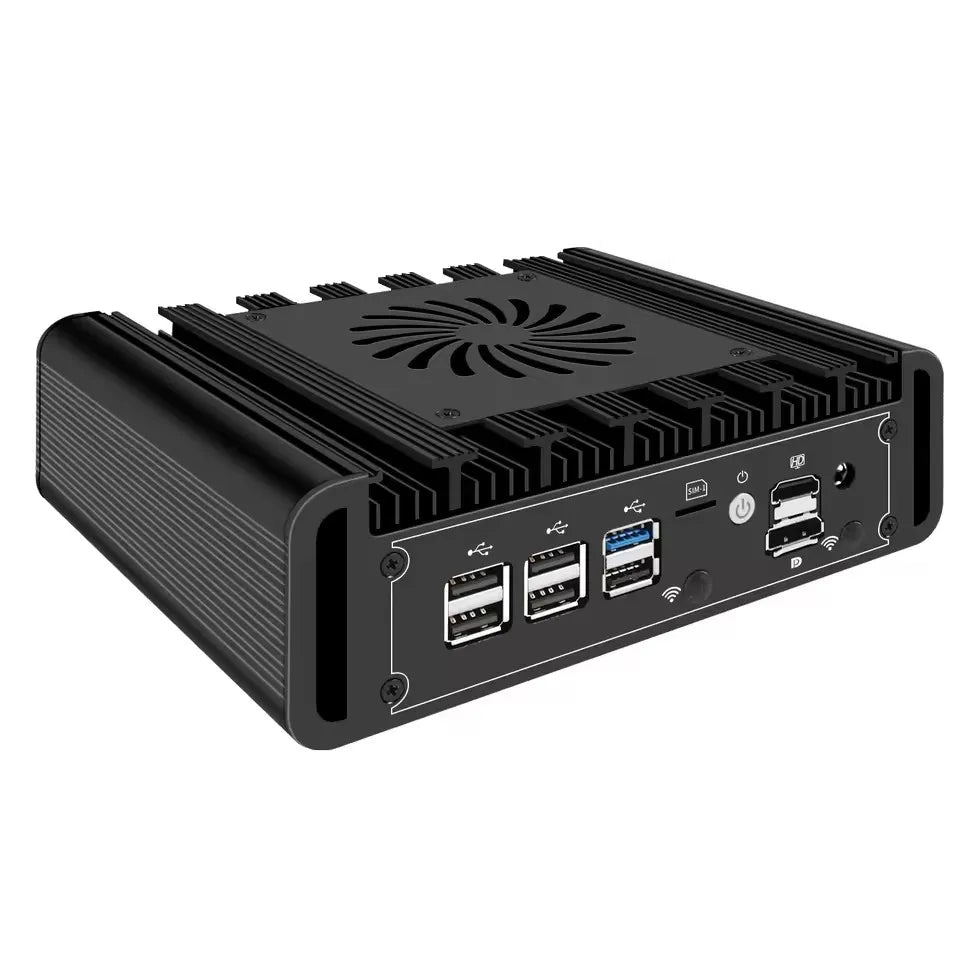

-1xHDMI2.0, 1xDP support 2x4K UHD video display.

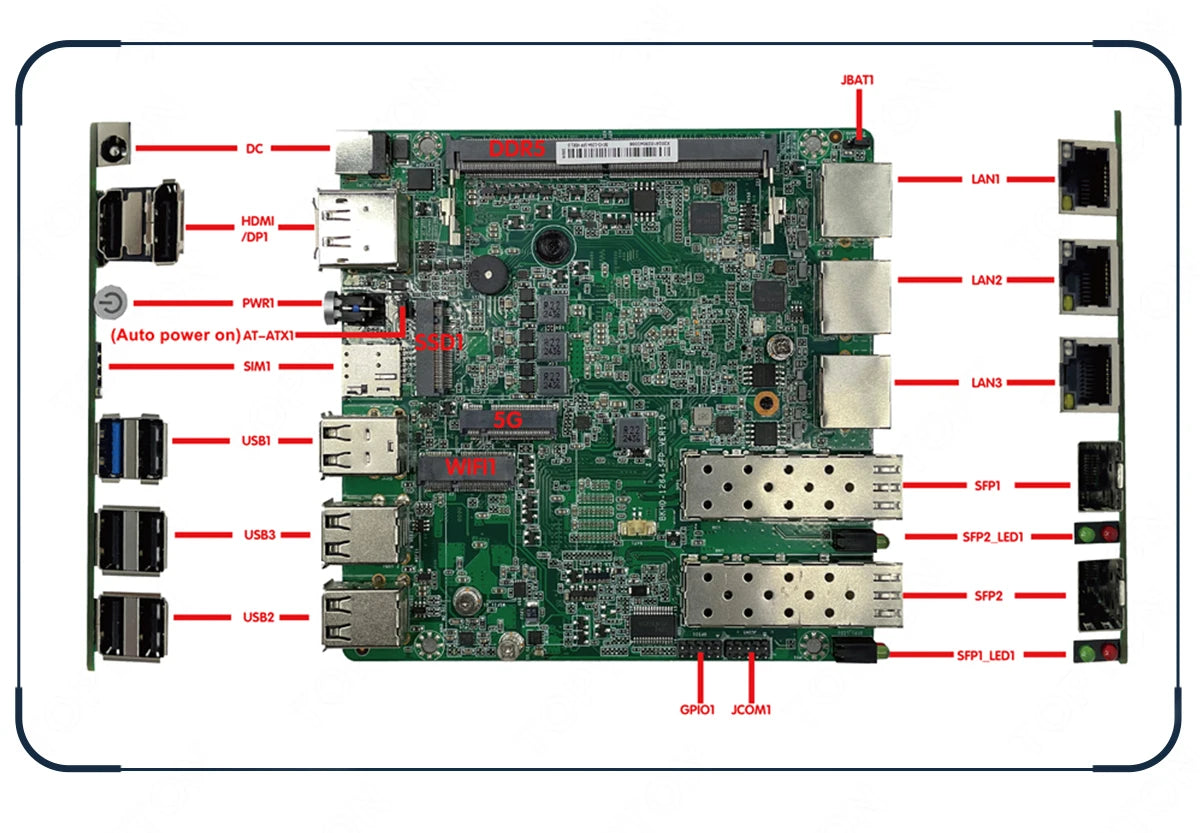

-AT/ATX model support Auto power on function, can be opened or closed by moving jumper on motherboard.

-Support uEFI BIOS, AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.

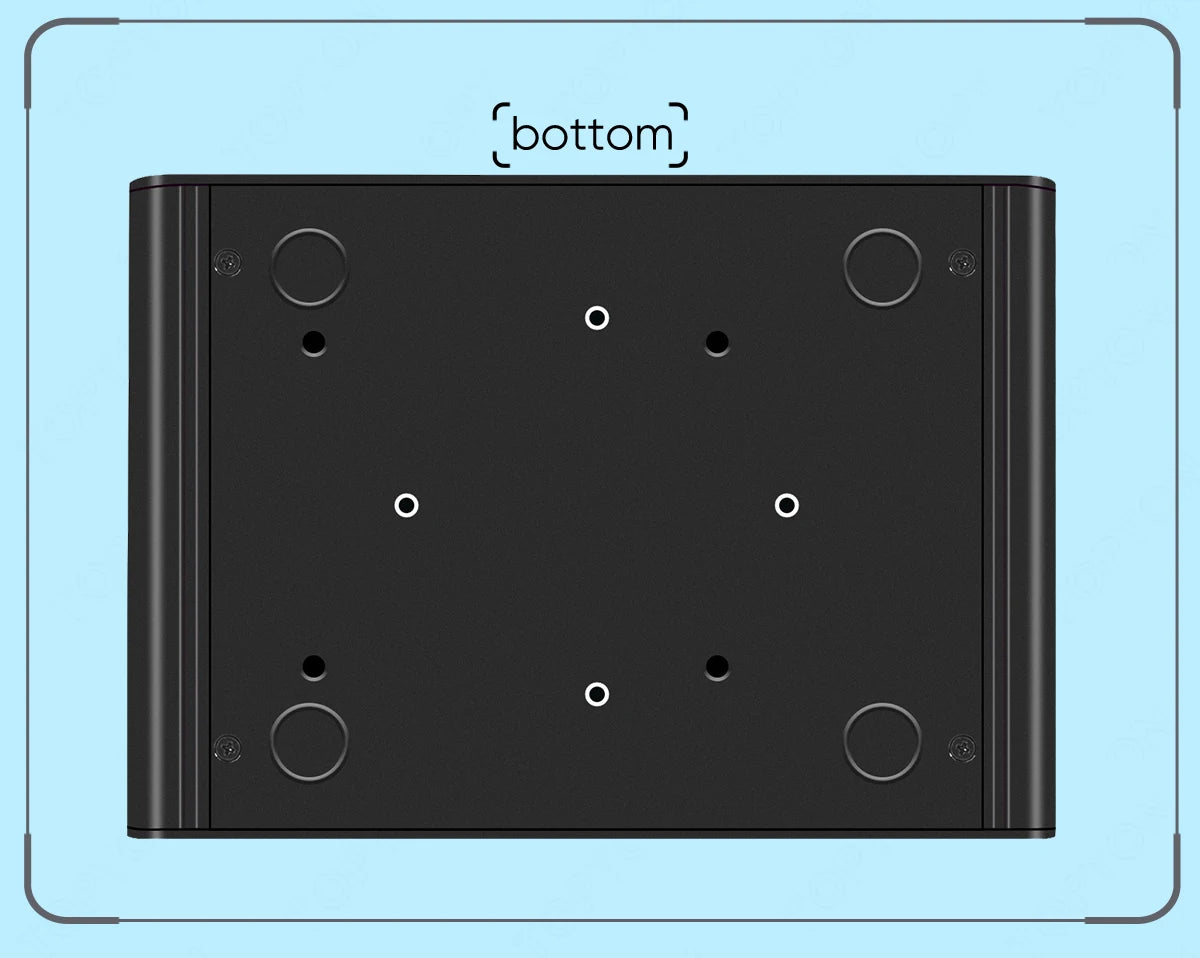

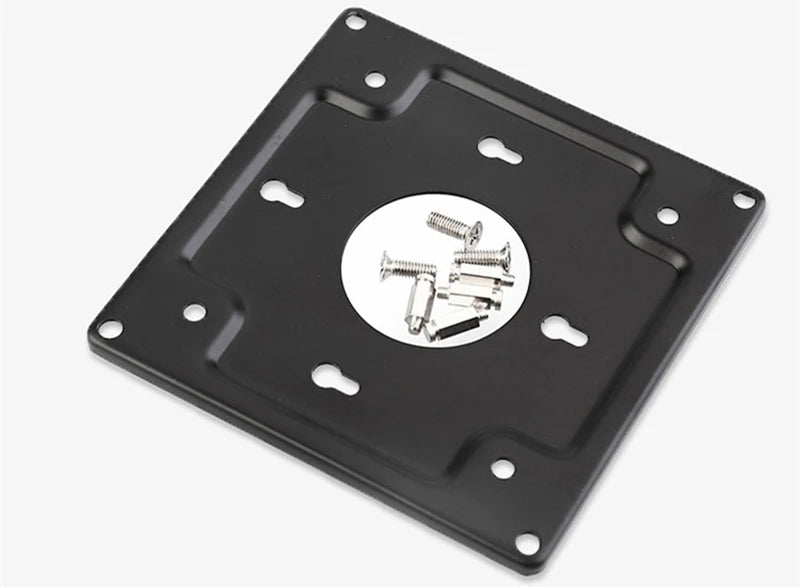

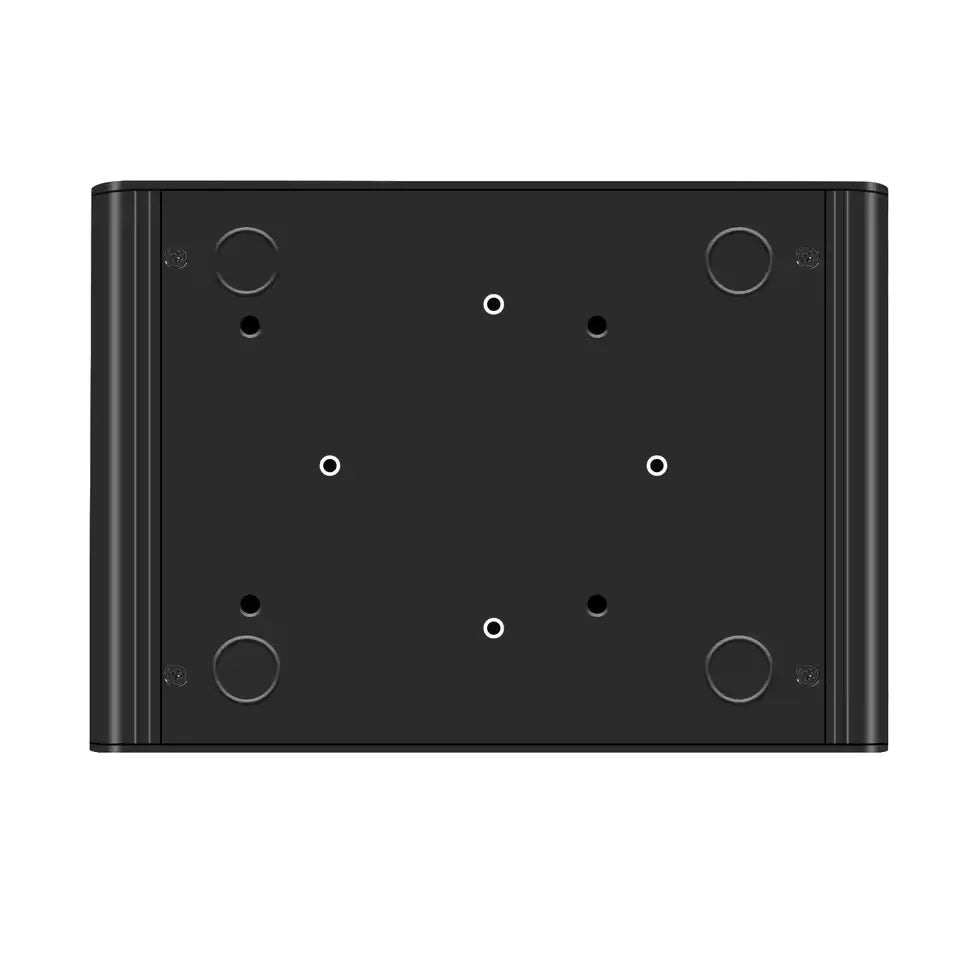

-Low consumption TDP and can be mounted back of monitor by VESA bracket(optional to buy).

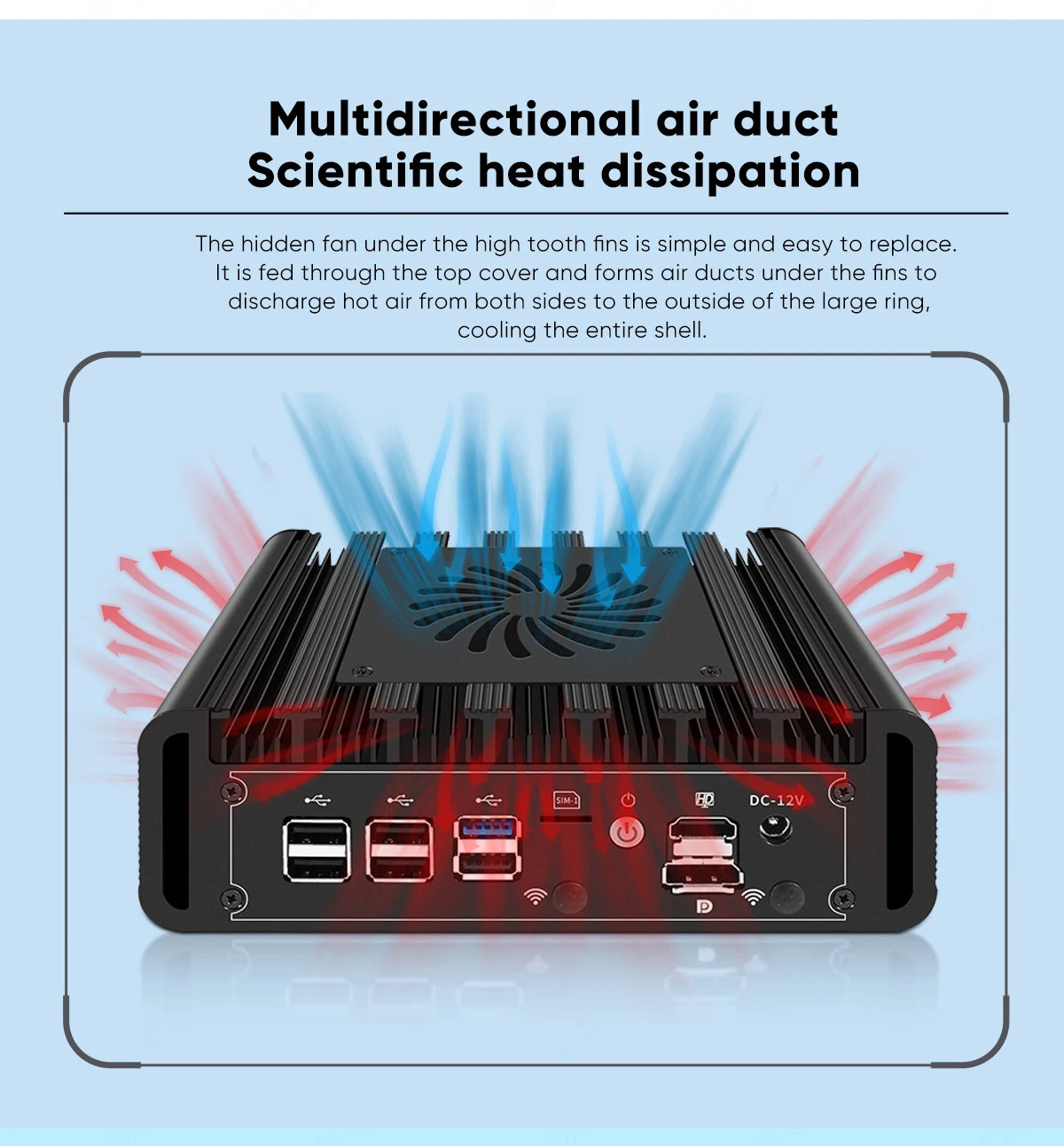

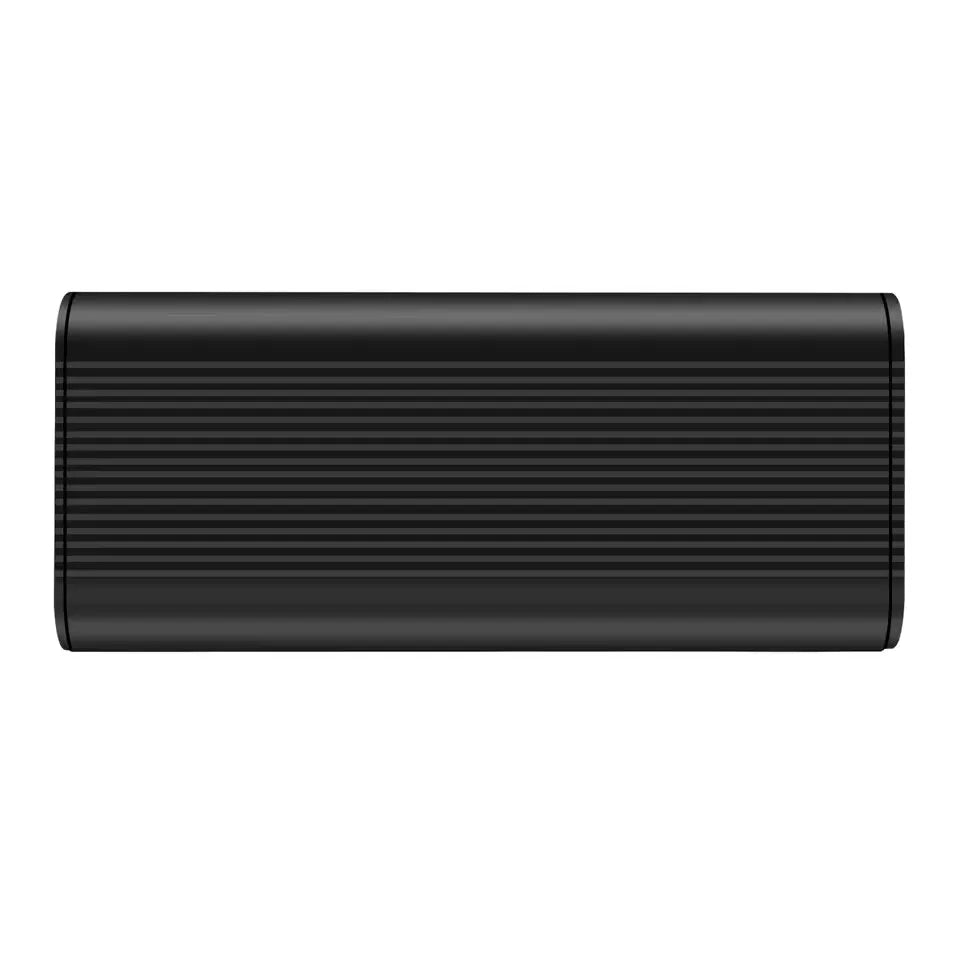

-Innovation: It is flexible to change between fanless system and fan system. A fan built in solid aluminum case(size 177*125*54mm) with high tooth fins get much better heat dissipation to improve CPU performance significantly, sound of the fan is low. You can unplug fan pin off motherboard to make it fanless system if you want silence totally.

Package List

1xMini PC

1xPower Adapter

1xPower Cable(EU/US/UK/AU plug based on buyer's country)
