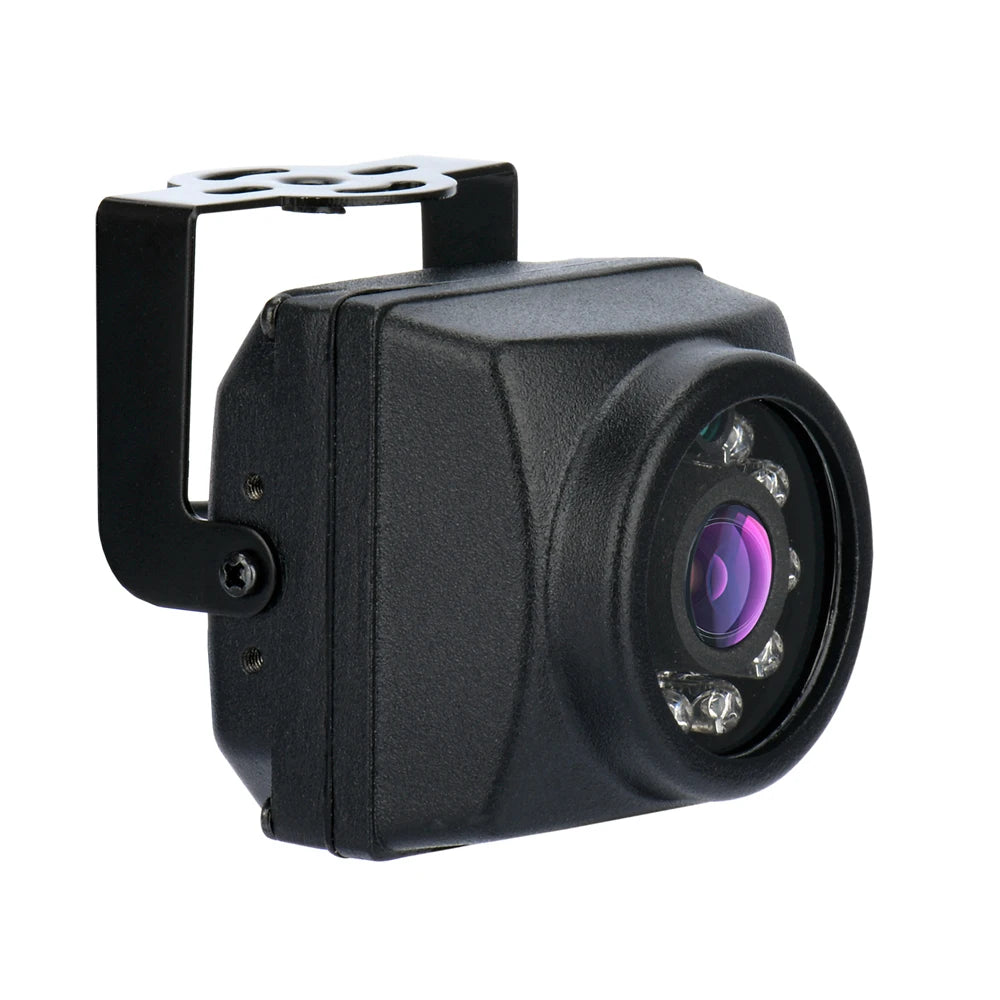

2160P 4K 4MP 5MP 3MP IP66 Waterproof Night Vision IR-Cut 940nm Minitype Small POE IP IR Nest Cam Outdoor Security Camera
2160P 4K 4MP 5MP 3MP IP66 Waterproof Night Vision IR-Cut 940nm Minitype Small POE IP IR Nest Cam Outdoor Security Camera
Impossible de charger la disponibilité du service de retrait
4K 8MP is clearer
Immersive 3MP/4MP Super HD

8MP 4K Feature
Different angle lens available
120 degree lens is 2.1mm, and the standard configuration is 3.6mm lens, about 90 degrees

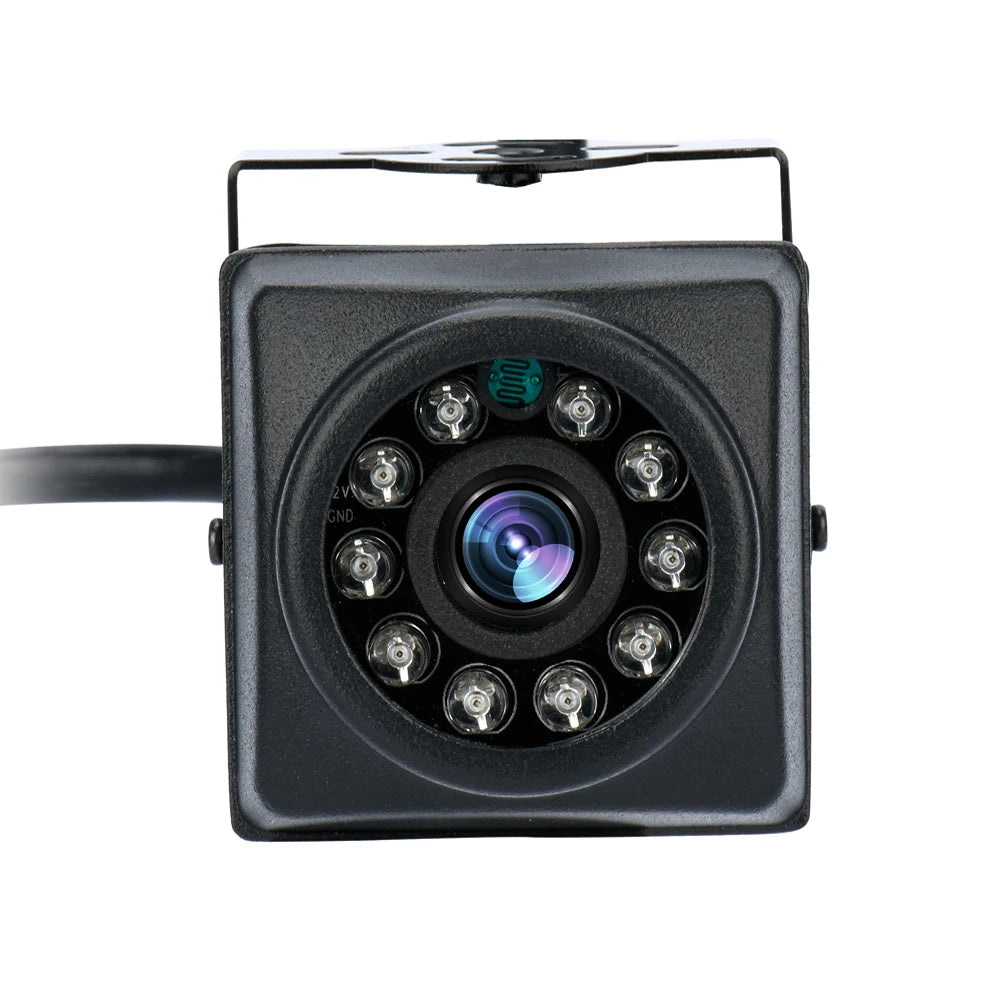

infrared lamp
940nm infrared lamp, invisible light source to human eyes, no harm to birds and animals,

Waterproof IP66
Made of metal case, it can work outside ,even in rainy days.10pcs IR light, you can still get clear, when there is not enough light video on a rainy day.

|
OS |
Parameters |
4K 8MP |
|
kernel |
System |
Linux |
|
Processor |
Mstar |
|
|
Video |
Image sensor |
8MP Super Low illuminance COMS image sensor |
|
Video Codec |
H.265 main profile and baseline |
|
|
LEN |
3.6mm |
|
|
IR LED |
10pcs 940nm LED |
|
|
IR distance |
1-10M |
|
|
Support mobile phone |
All phone |
|
|
P2P |
PHONE,IE,P2P Client global Internet |
|
|
Video Resolution |
First stream:4K 8MP(3840*2160)@15fps/5MP(2880*1624)@25fps/4MP(2560*1440)@25fps/ 3MP(2304*1296)@25fps/2MP(1920*1080)@25fps can be set |
|
|
4K 8MP(3840*2160) |
||
|
Second stream:1280*720,800*448,704*576,640*360 |
||
|
Three stream:640*360/352*288 |
||
|
frame rate |
8MP:15fps,5MP:25fps,4MP:25fps,3MP:25fps,2MP:25fps |
|
|
Video compression |
32Kbits/S~12280Mbits/S |
|
|
Min.Lux |
Color>0.01 LUX B&W<0 LUX |
|
|
Store |
SD card |
NA |
|
Client/Browser |
Support |
|
|
Record |
Client |
support |
|
Browser |
Support |
|
|
SD CARD |
not Support |
|
|
Playback |
Client |
support |
|
Browser |
Support |
|
|
SD CARD |
not support |
|
|
SD Card |
|
not support SD card |
|
|
||
|
Audio |
Audio input |
Mic is builded in camera |
|
Audio output |
SNA |
|
|
Audio Codec |
G.726/G.711 |
|
|
Internet |
Internet face |
10Base-T/100Base-TX, POE |
|
Network Protocol |
TCP/IP,https,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP |
|
|
Access Protocol |
ON VIF |
|
|
Alarm |
Motion detection |
At most 4 respective regions |
|
Alarm linkage |
Alarm picture send E-mail, alarm images upload FTP server |
|
|
Snap |
Time snap |
Regular support capturing images to the FTP server |
|
safe |
User management |
Provide three levels of rights management (admin, user, guest), support to modify login user name and password |
|
Other |
Inter Power,consumption |
DC12V 2A/POE (The package does not provide a power adapter) |
|
Working temperature |
-40℃ ~ +55℃ |
|
|
Working Humidity |
10-95% |
|

![]() |
Company profileHQCAM Electronic Technology Co Ltd,who have 8 years history,is a professional manufacturer of surveillance system.hqcam has its own brand HQCAM,which already well know in security mi-ni camera system.Leveraging our strong research and development strength,advanced technology, service concept and stable marketing and sales network, as well as continuous RD investment,we have build up our reputation in the industry and recognized by our customers. HQCAM can also OEM or customize products specially by customers' requirements.At present,our main products are CCD camera,IP camera, SDI camera,USB camera, AHD camera,etc. |
![]() |
![]() |
||
![]() |
![]() |
||||
