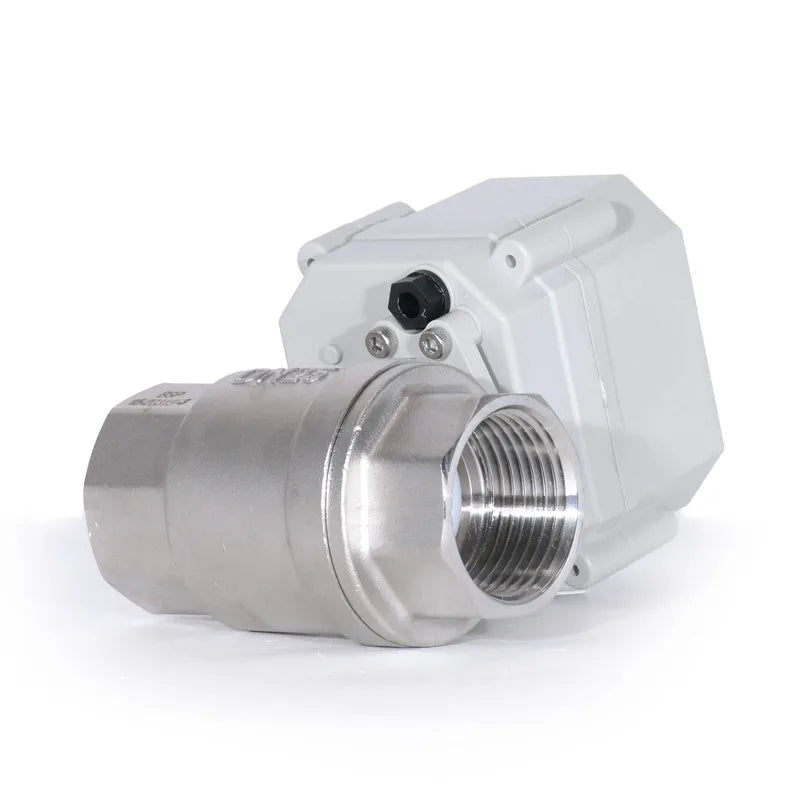

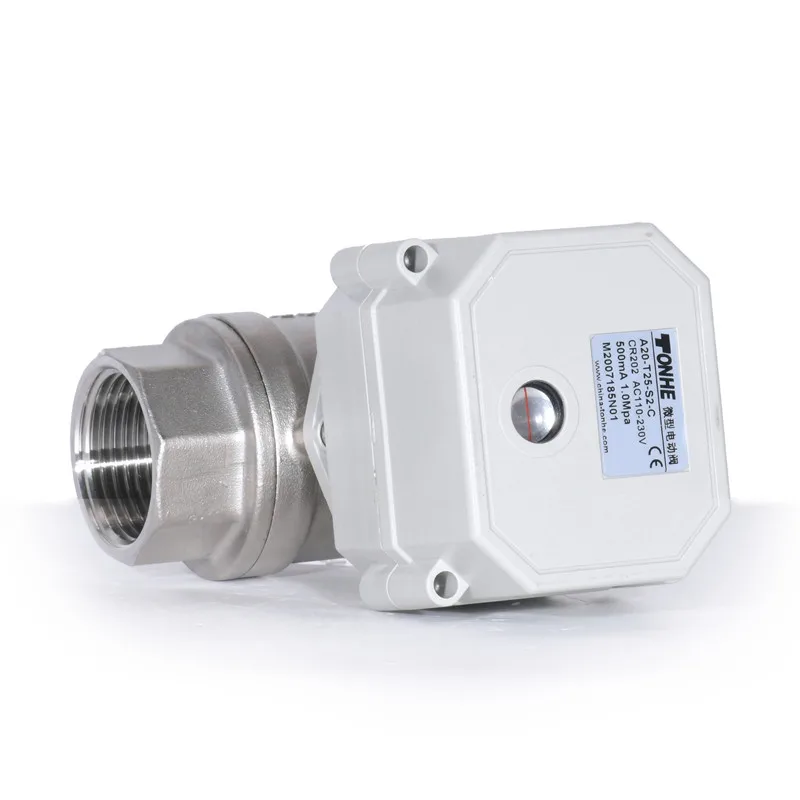

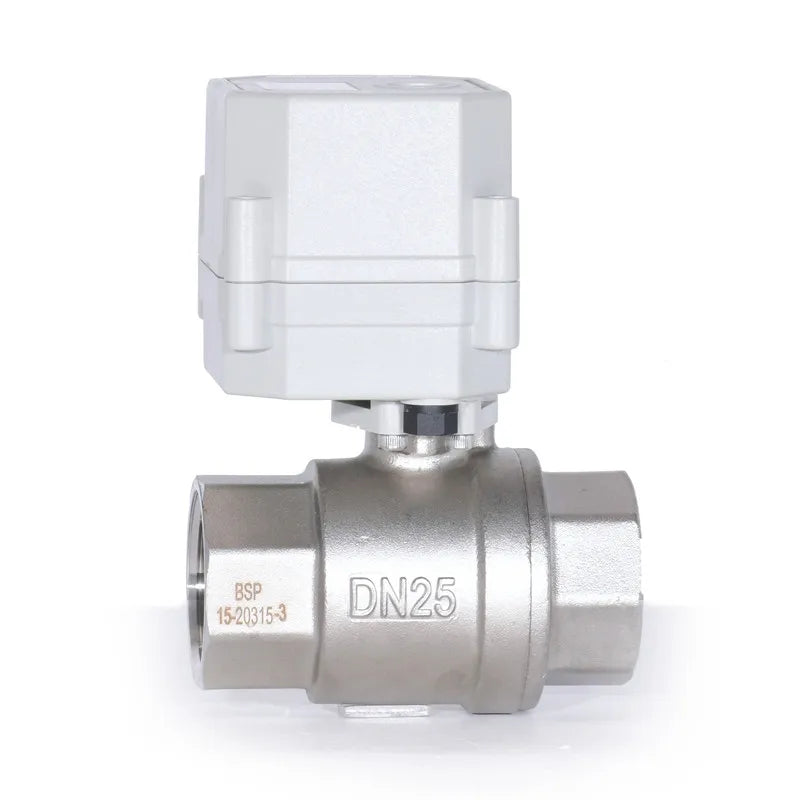

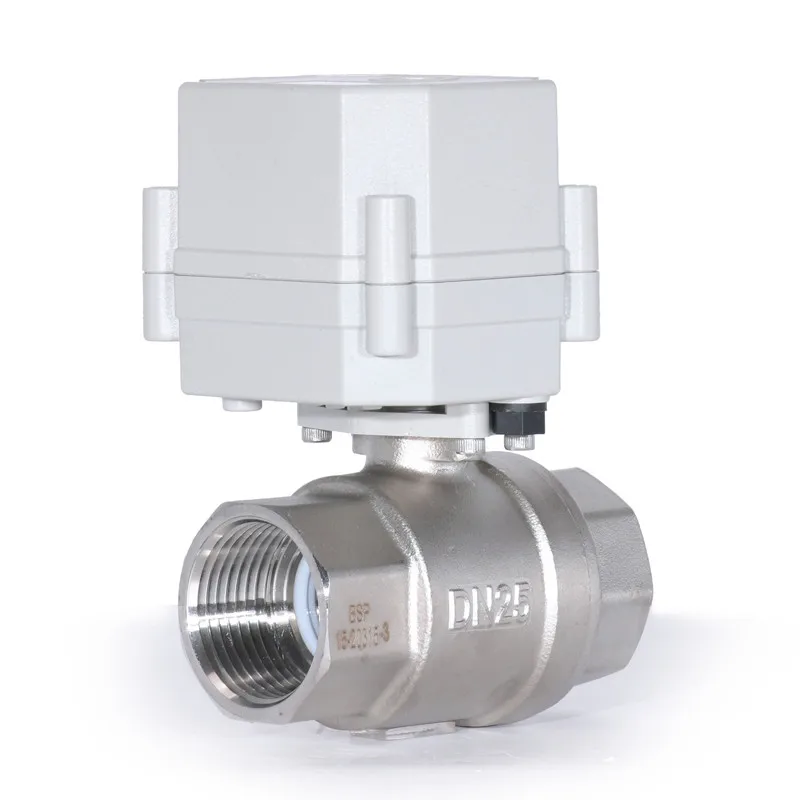

2-Way 1'' DN25 SS304 Electric Proportional Modulating Ball Valve 9-24VDC 4-20mA 0-5V 0-10V Analog Signal

CFA28,018 XOF

~~CFA0 XOF~~ CFA28,018 XOF

Promotion Épuisé

Frais d'expédition calculés à l'étape de paiement.

size 1 in

material Stainless Steel

pressure Medium Pressure

SPECIFICATIONS

Actuator Material: PPO

Analog input signal: 4-20mA,0-5V,0-10V,1-5V, 2-10V

Analog output signal: PWM, 4-20mA, 2-10V

Cable Length: 0.5m or customized

Circle Life: 70,000+ open/close

Max.Working Pressure: 1.0MPa (10bar/150psi)

Output Torque: 3NM

Protection: IP67

Rated Voltage: 9-24VDC

Seals: PTFE + FKM/EPDM

application: General

brand name: Tonheflow

customized support: OEM,ODM,OBM

media: Fluid, Air

model number: A20-M25-S2-C

place of origin: Zhejiang, China

port size: 1''

power: Electric

structure: Ball

temperature of media: Normal Temperature

warranty: 1 year

Product Description

Specification

Model Number	A20-M25-S2-C
Port Size	1'' DN25 BSPP or NPT
Brand Name	Tonheflow or Neutral or OEM
Media	Fluid, Air
Rated Voltage	9-24VDC
Analog input signal	4-20mA, 0-5V, 0-10V, 1-5V, 2-10V (Optional)
Analog output signal	PWM , 4-20mA, 2-10V (Optional)
Max.Working Pressure	1.0MPa (10bar/150psi)
Open / Close time	≤7s
Circle Life	70,000+ open/close
Output Torque	3NM
Seals	PTFE + FKM/EPDM
Actuator Material	PPO
Actuator Color	White or Black or customized
Visual position indication	With
Manual Override Feature	Without
Protection	IP67
Cable Length	0.5m, 1.5m or customized

Please specify the following details when inquiring or ordering sample:

1. Thread standard: BSPP-British Standard Pipe Parallel or NPT-National (American) Pipe Thread.

2. Analog input signal: 4-20mA, 0-5V, 0-10V, 1-5V, 2-10V (Optional)

3. Analog output signal: PWM , 4-20mA, 2-10V (Optional)

6. Cable length: 0.5m/1.5m or customized

7. Actuator color: White/Black or customized

Please inform us if you have any special requirements or need any customization!

The default configuration for the sample order is:

4-20mA input & output signal control, cable length 0.5m, white actuator.

Wiring Methods:

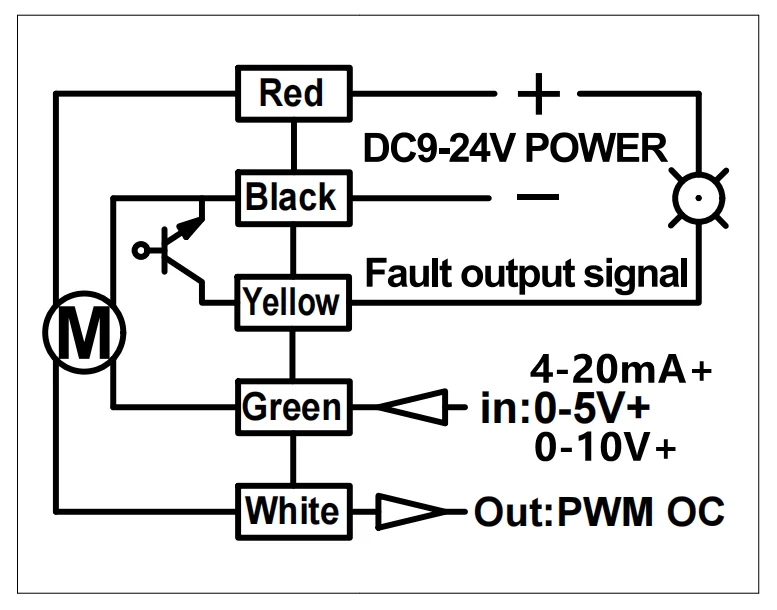

Wiring control diagram 1:

Input signal 4-20mA, 0-5V, 0-10V, 1-5V, 2-10V (Optional), output signal PWM:

1、RD(red wire) connect to DC9-24V+positive pole. 2、BK(black wire) connect to DC9 ~ 24V-negative pole, and 4-20mA-/0-5V-/0-10V-/1-5V-/2-10V analogy signal -negative pole. 3、GR(green wire) connect to analogy signal +positive pole(4-20mA, 0-5V, 0-10V, 1-5V, 2-10V). 4、YW(yellow wire) connect to ERROR output -negative pole. Wet contact NPN triode collector output. When there is an error causing the motor to work with excessive current, such as when debris blocks the valve and the ball cannot rotate, the contact is closed, when working normally, the contact open, It only can pull down the external signal. The load is 500mA 5、WT(white wire) connect to position feedback-negative pole. Wet contact NPN triode collector output, OC output PWM signal, 100Hz, 5%-95%, indicating 0-90 degrees. The load is 500mA. *PWM: Connect a pull-up resistor from WT to RD, usually use a 1k or 5.1k resistor, recommend using 1k for power supply below 15V, and 5.1k for power supply above 15V. Oscilloscope clamp connects to power’s negative pole, and oscilloscope probe connects to PWM white wire. *5%-95% represents duty cycle, which is the ratio of VCC time to the cycle time. *PMW signal is a position feedback signal, the error signal needs to be connected to a 10k resistor to power’s positive pole. When blocking occurs, the error signal to the ground voltage will be lower, at this time, it is able to test signal with oscilloscope.

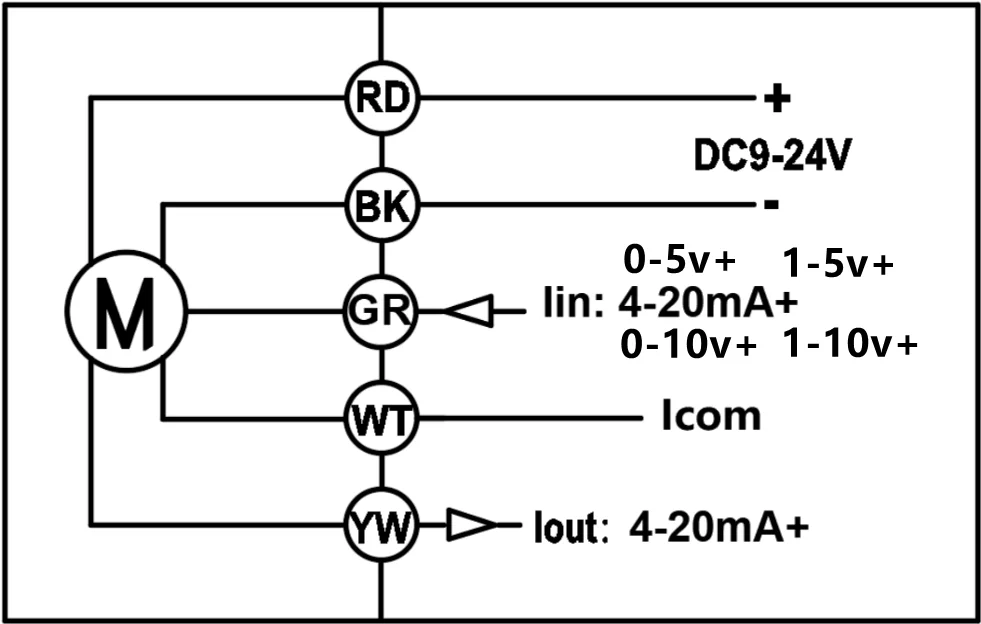

Wiring control diagram 2:

Input signal 4-20mA, 0-5V, 0-10V, 1-5V, 2-10V(Optional), output signal 4-20mA:

1. RD(red wire) connect to DC9-24V+ positive pole. 2. BK(black wire) connect to DC9-24V-negative pole. 3. GR(green wire) connect to position input /control current / control voltage+(4-20mA, 0-5V, 0-10V) positive pole. 4. WT(white wire) connect to common signal input and output signal’s -negative pole. 5. YW(yellow wire) connect to position feedback positive pole, output signal 4-20mA as the feedback signal. * When output signal is 4-20mA, the maximum load resistance is the input power voltage (v-2) /0.02, e.g. if the power is 15V, then (15-2)/0.02=650Ω, it is recommended to use a 300Ω load resistor.

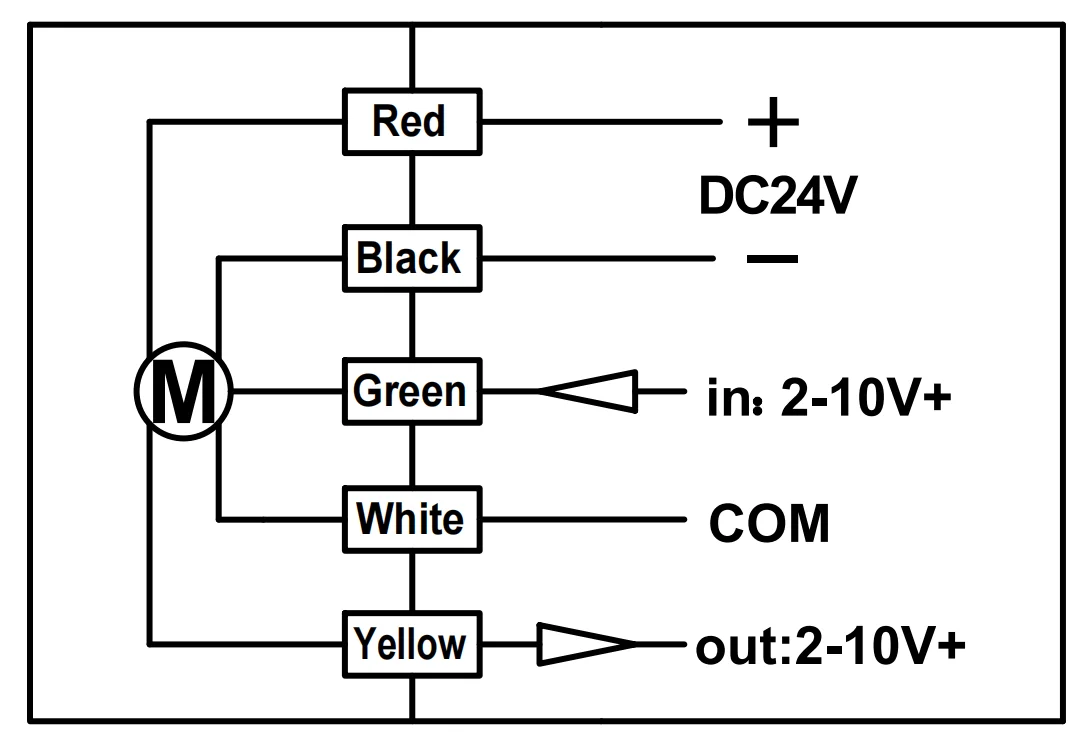

Wiring control diagram 3:

Input & output signal 2-10V

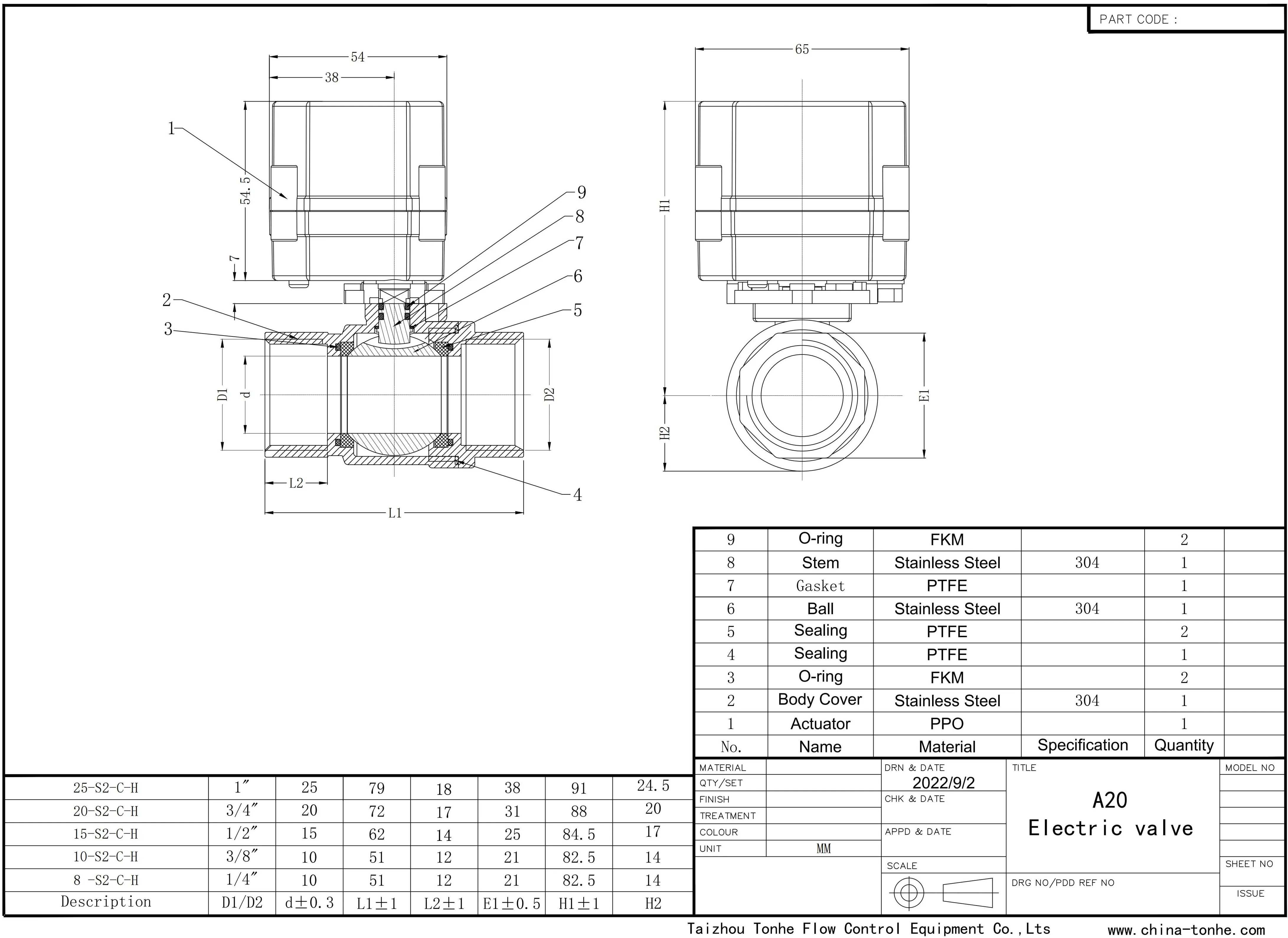

Dimensions:

Customizations for reference:
Please contact us if you require any customization, price will be re-quoted accordingly.

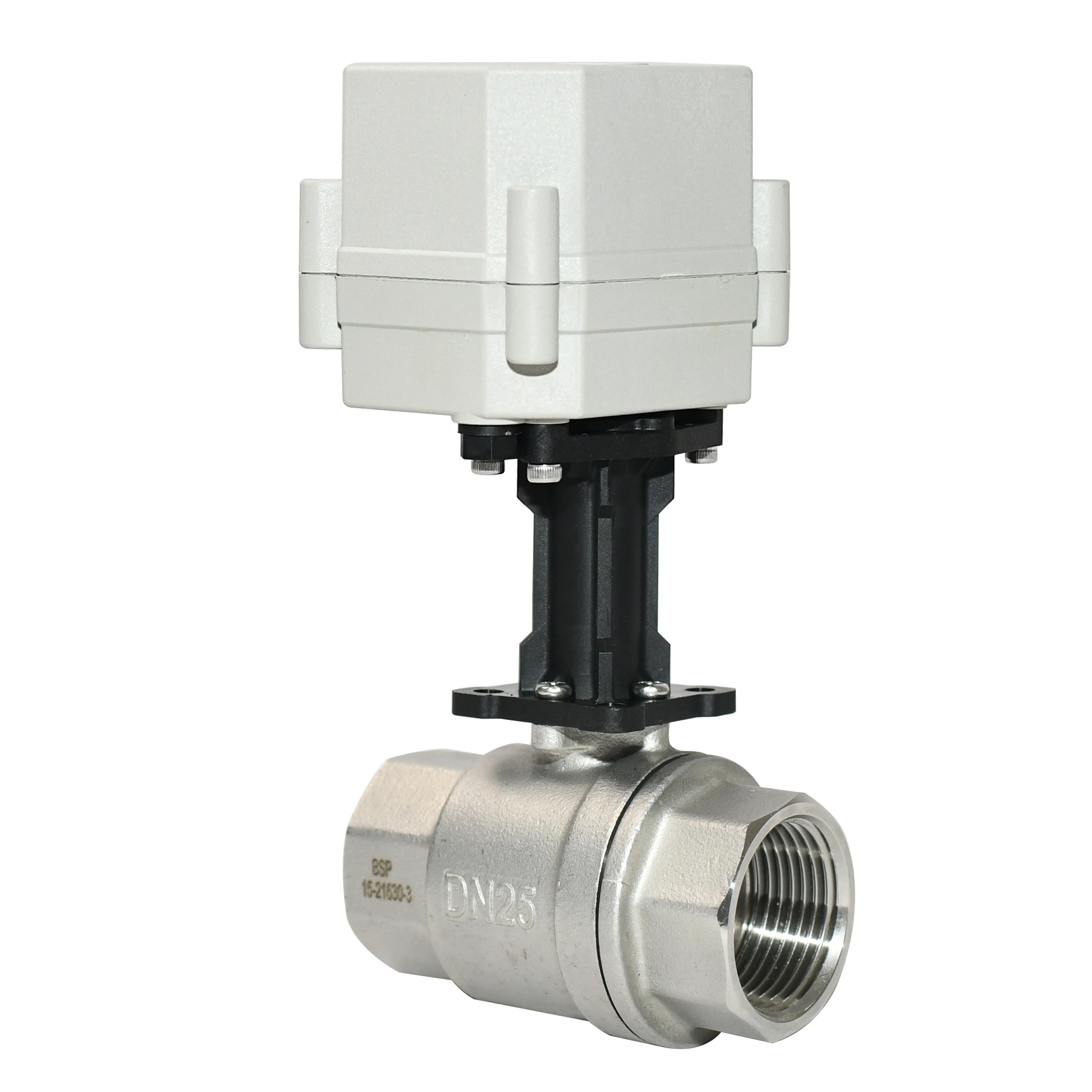

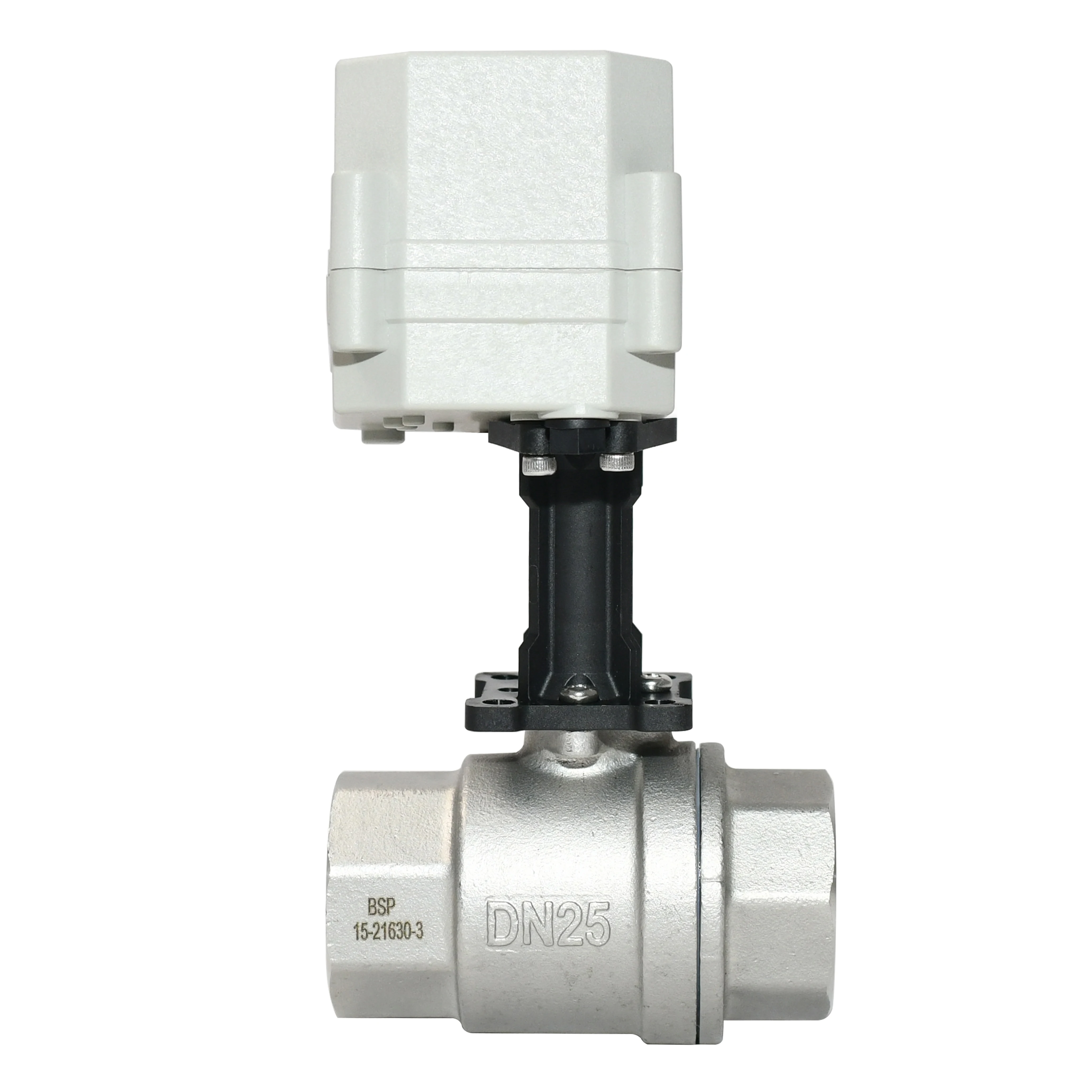

Customized Bracket for high-temperature liquids exceeding 100℃

Packing & Delivery

1pcs/case 30pcs/carton
