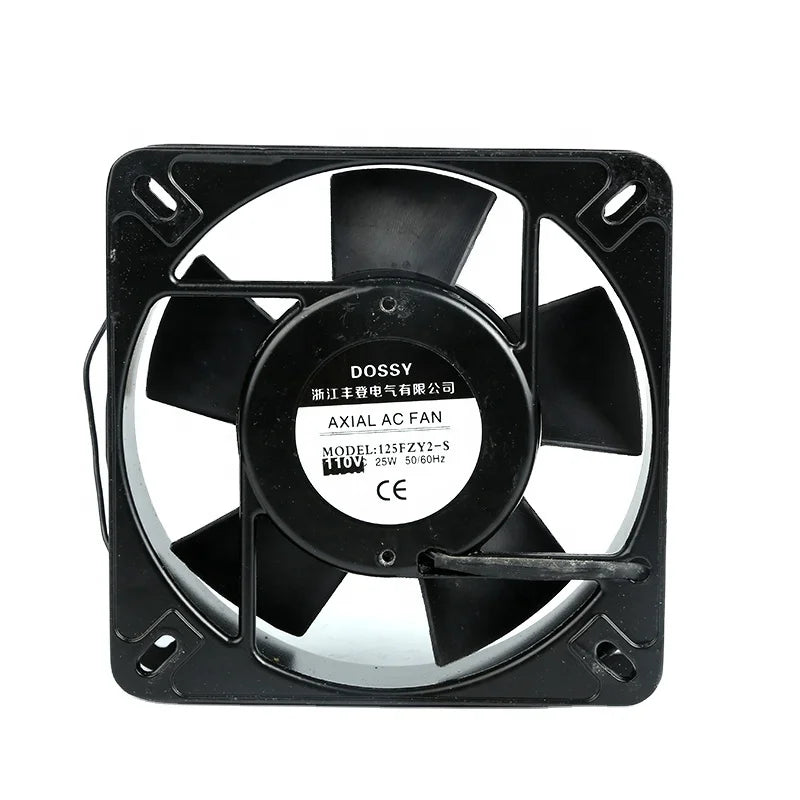

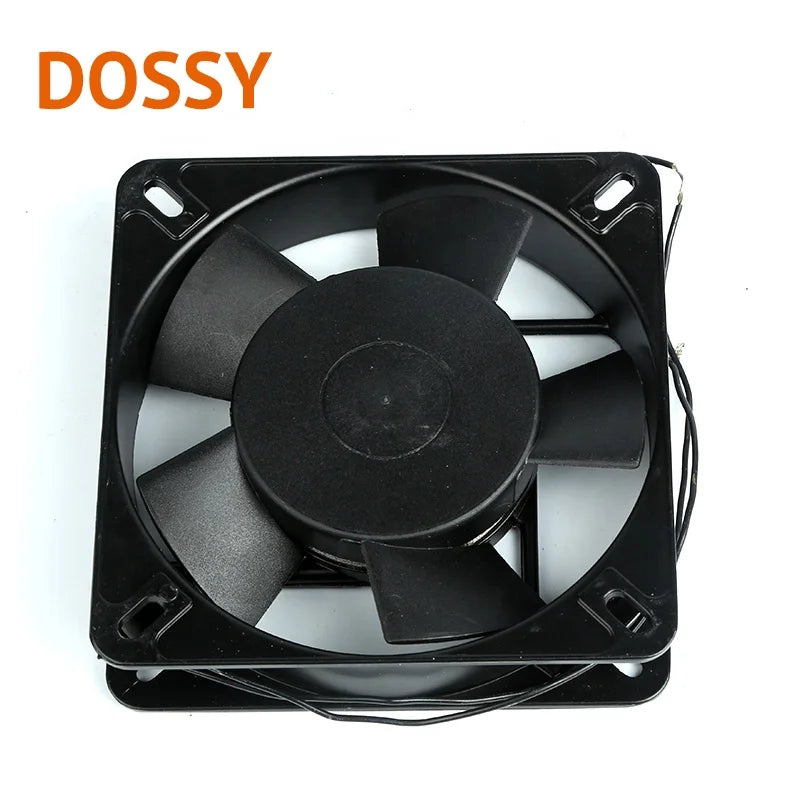

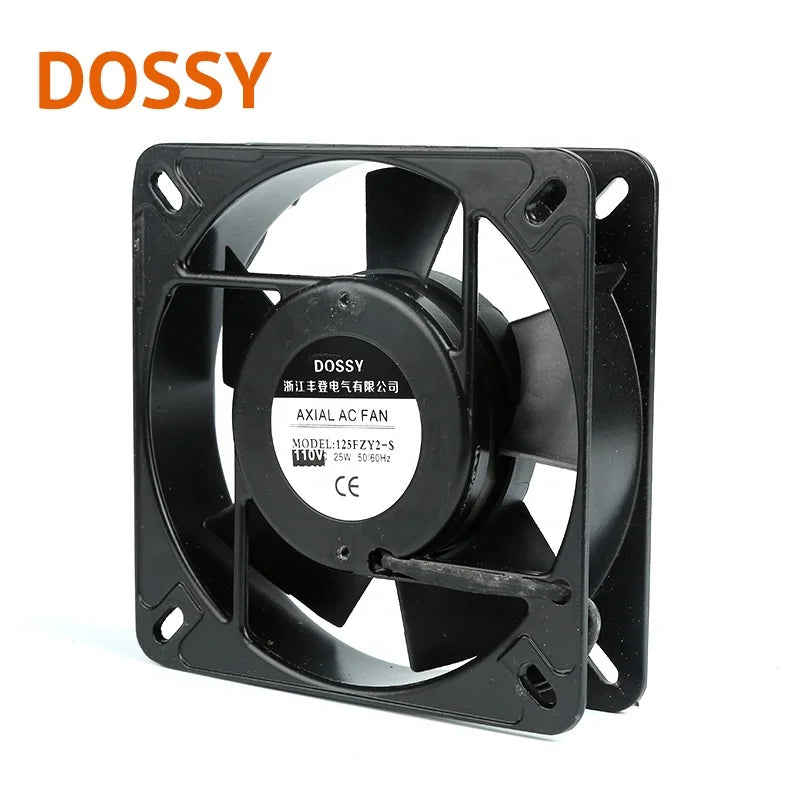

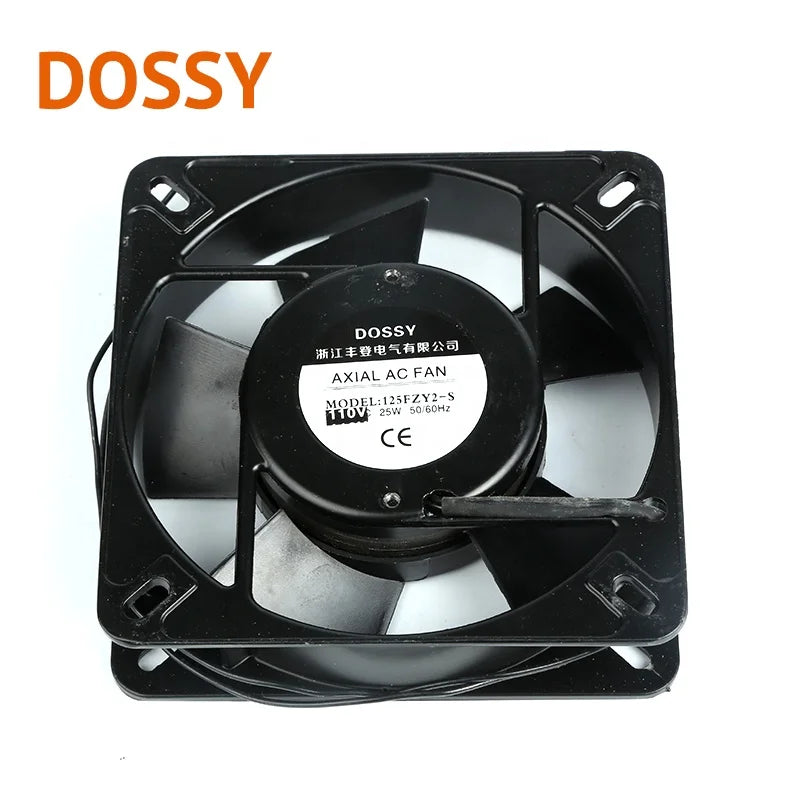

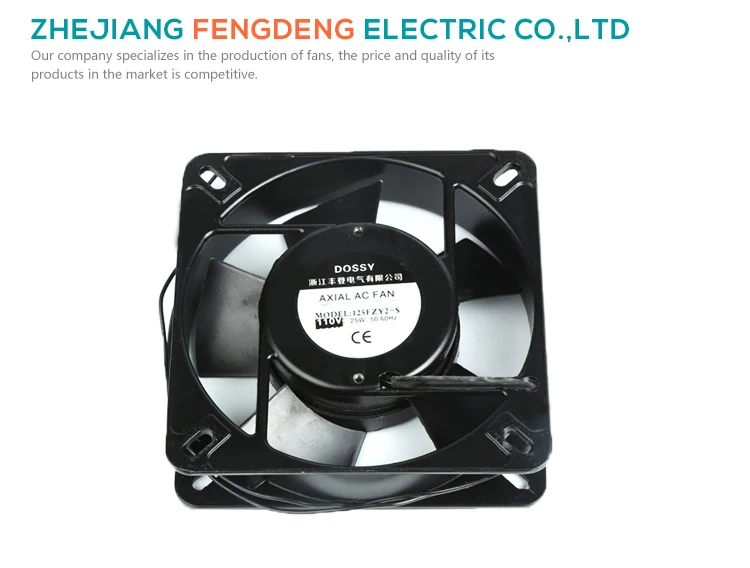

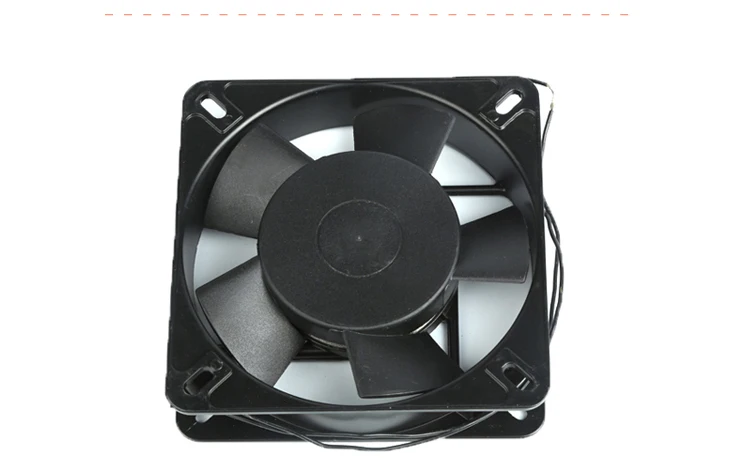

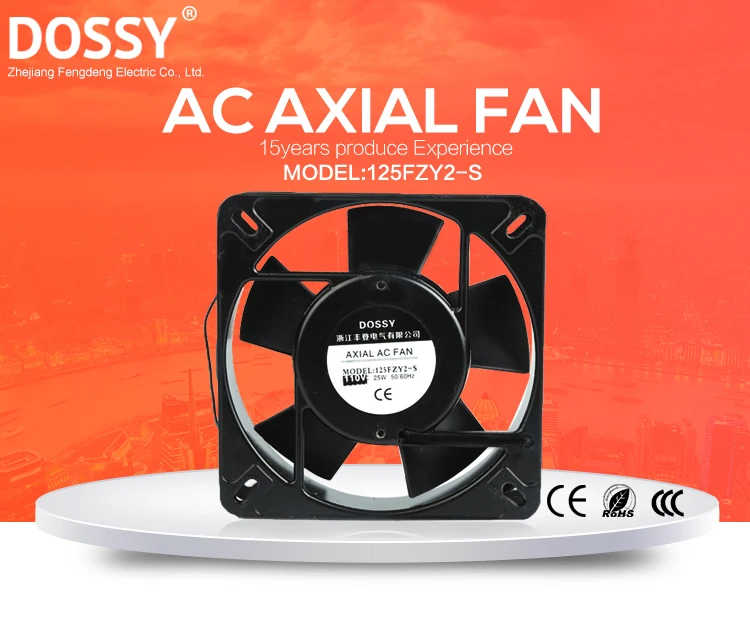

135x135x32mm 125FZY2-S 110V Sleeve-bearing Type Cooling Fan for Panel
135x135x32mm 125FZY2-S 110V Sleeve-bearing Type Cooling Fan for Panel
Impossible de charger la disponibilité du service de retrait
SPECIFICATIONS
Blade Diameter: 5.4in
Certification: ce/RoHS/CCC
Current: 0.28A/0.14A/0.08A

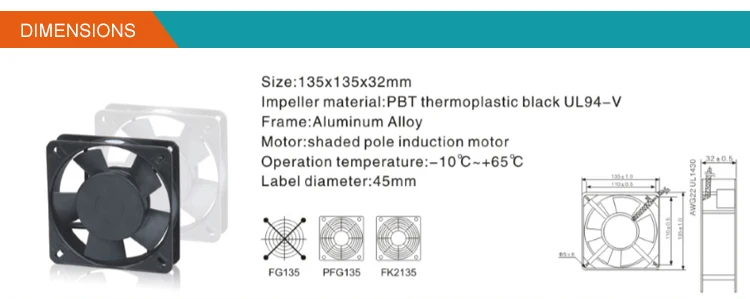

Fan size: 135*135*32mm
Frame: Aluminum Alloy
Impeller Material: PBT Thermoplastic Black UL94-V
Label diameter: 45mm
Material: Aluminum alloy

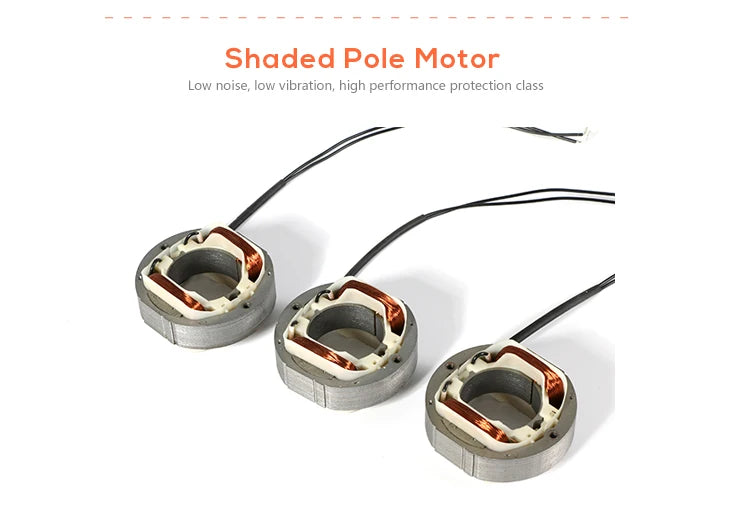

Motor: Shaded Pole Induction Motor
Power Source: Electric
Type: ac axial fan,Axial flow fan
Voltage: 110/220V/380V,110/220/380
after-sales service provided: Online support
bearing type: Sleeve Bearing
blade material: Plastic
brand name: DOSSY
customized support: OEM,ODM
model number: 125FZY1-S/110V
mounting type: Wall Fan
perating Temperature: -10C~+65C
place of origin: Zhejiang, China
speed: 2500 RPM
warranty: 1 Year
sleeve-bearing type axial cooling fan 135x135x32
| Product name | Axial fan |
| Material | Aluminum Alloy Frame+Plastic Impeller |
| Delivery time | Quantity |
| Packaging | 40pcs/carton |
| Size | 135*135*32 |
| Weight | 24kg/ctn |
| OEM/ODM | Customization Service Provided |
| Factory Code | Model | Voltage | Current | Freq | Noise | Bearing | Power | Speed | Air volume | connector | Packing | |||
| (V) | (A) | (HZ) | (Db) | (Watt) | (r/min) | (m3/h) | CFM | pcs/ctn | weight | dimension | ||||
| AF13532S11L | 125FZY1-S | 110 | 0.28 | 50/60 | 45 | sleeve | 25 | 2500 | 168 | 98 | wire | 40 | 24kg | 37*29.5*30 |
| AF13532B11L | 125FZY1-S | 110 | 0.28 | 50/60 | 45 | ball | 25 | 2550 | 180 | 105 | 40 | 24kg | 37*29.5*30 | |
| AF13532S22L | 125FZY2-S | 220 | 0.14 | 50/60 | 45 | sleeve | 25 | 2500 | 168 | 98 | 40 | 24kg | 37*29.5*30 | |
| AF13532B22L | 125FZY2-S | 220 | 0.14 | 50/60 | 45 | ball | 25 | 2550 | 180 | 105 | 40 | 24kg | 37*29.5*30 | |
| AF13532S38L | 125FZY4-S | 380 | 0.08 | 50/60 | 45 | sleeve | 25 | 2500 | 168 | 98 | 40 | 24kg | 37*29.5*30 | |
| AF13532B38L | 125FZY4-S | 380 | 0.08 | 50/60 | 45 | ball | 25 | 2550 | 180 | 105 | 40 | 24kg | 37*29.5*30 | |
Q1: Are you a factory or trading company ?
A1: Yes,We are the factory which have 15 years manufacture history.
Q2: What is DC Fan and AC fan?
A2: DC fan is power by DC voltage,always is 5V 12V 24V 48V 60V and72V.
AC fan is power by AC voltage,always is 110V,220V and 380V.
Q3: How to choose Fan?
A3: To choose a Fan, you should consider the points below:
a. Fan size b. Fan voltage c. Fan speed
d. Fan bearing type ? ( Sleeve-bearing or Ball-bearing type?)
e. Fan power ( Wattage) f. Fan airflow.
Q4: How long is the warranty?
A4: We Guarantee 1 years warranty.
Q5: What is the delivery time?
A5: Sample lead time:3-5 days
Mass production Delivery lead time: 1 -3 weeks(Depend on the quantity)
Q6: Can you tell me the normal DC fan Model?
A6: 15*15*6mm 25*25*10mm 30*30*10mm 40*40*10mm 40*40*20mm 40*40*28mm 50*50*10mm 50*50*15mm 50*50*20mm 60*60*10mm 60*60*20mm 60*60*25mm 70*70*15mm 70*70*25mm 80*80*15mm 80*80*25mm 80*80*38mm 92*92*25mm
120*120*25mm 120*120*38mm 140*140*25mm 150*150*51mm 172*150*51mm
Q7: Can you tell me the normal AC fan Model?
A7: 80*80*25mm, 80*80*38mm, 92*92*25mm, 92*92*38mm,
110*110*25mm, 120*120*25mm, 120*120*38mm, 135*135*32mm
172*150*38mm, 172*150*51mm, 150*150*51mm, 172*172*51mm,
180*180*61mm, 200*200*60mm, 223*223*61mm, 230*200*65mm,
107*100*30mm, 150*160*60mm, 210*210*70mm 172*150*51mm 225*225*80mm,280*280*80mm, 250*410*90mm, 300*460*100mm,
200mm-600mm External Rotor fan, 130FLJ1 blower
