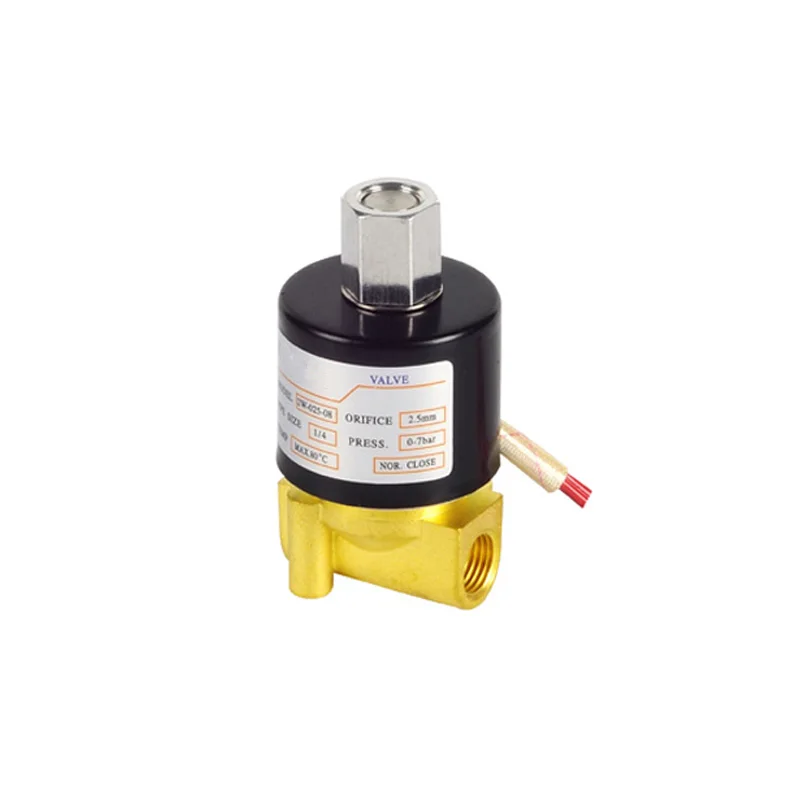

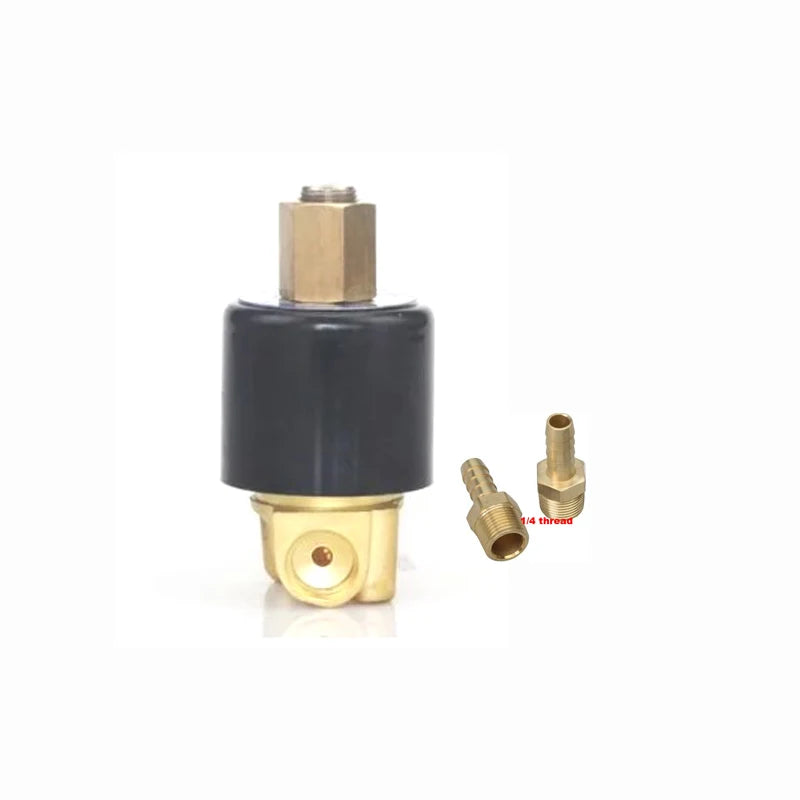

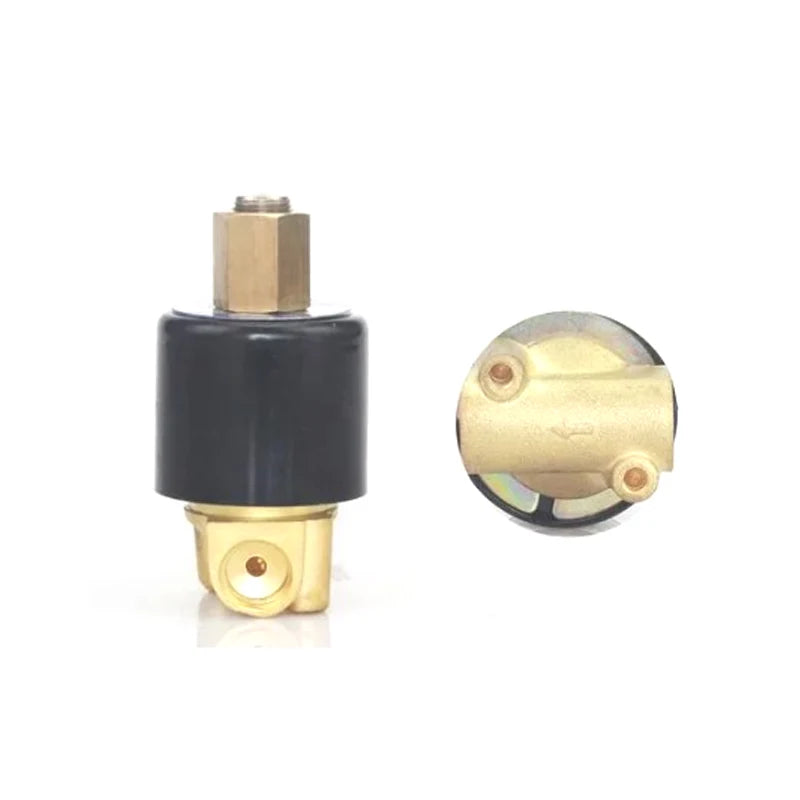

12V DC Electric Solenoid Valve Water Air N/O 1/4\" Brass Body Normally Open Type with 2W025-08-K Wire Lead OEM Customizable
12V DC Electric Solenoid Valve Water Air N/O 1/4\" Brass Body Normally Open Type with 2W025-08-K Wire Lead OEM Customizable
Impossible de charger la disponibilité du service de retrait
SPECIFICATIONS
Body Material: Brass
Color: Black & Silver
Port Size: 1/4''
Seal Material: NBR or FKM
Standard or Nonstandard: Standard
Supply Voltage: 12~240V AC/DC
Voltage: Dc 24V,AC 110 V,Dc 12V,AC 220 V,AC 240V
application: General
brand name: EPSolid
customized support: OEM
media: Base

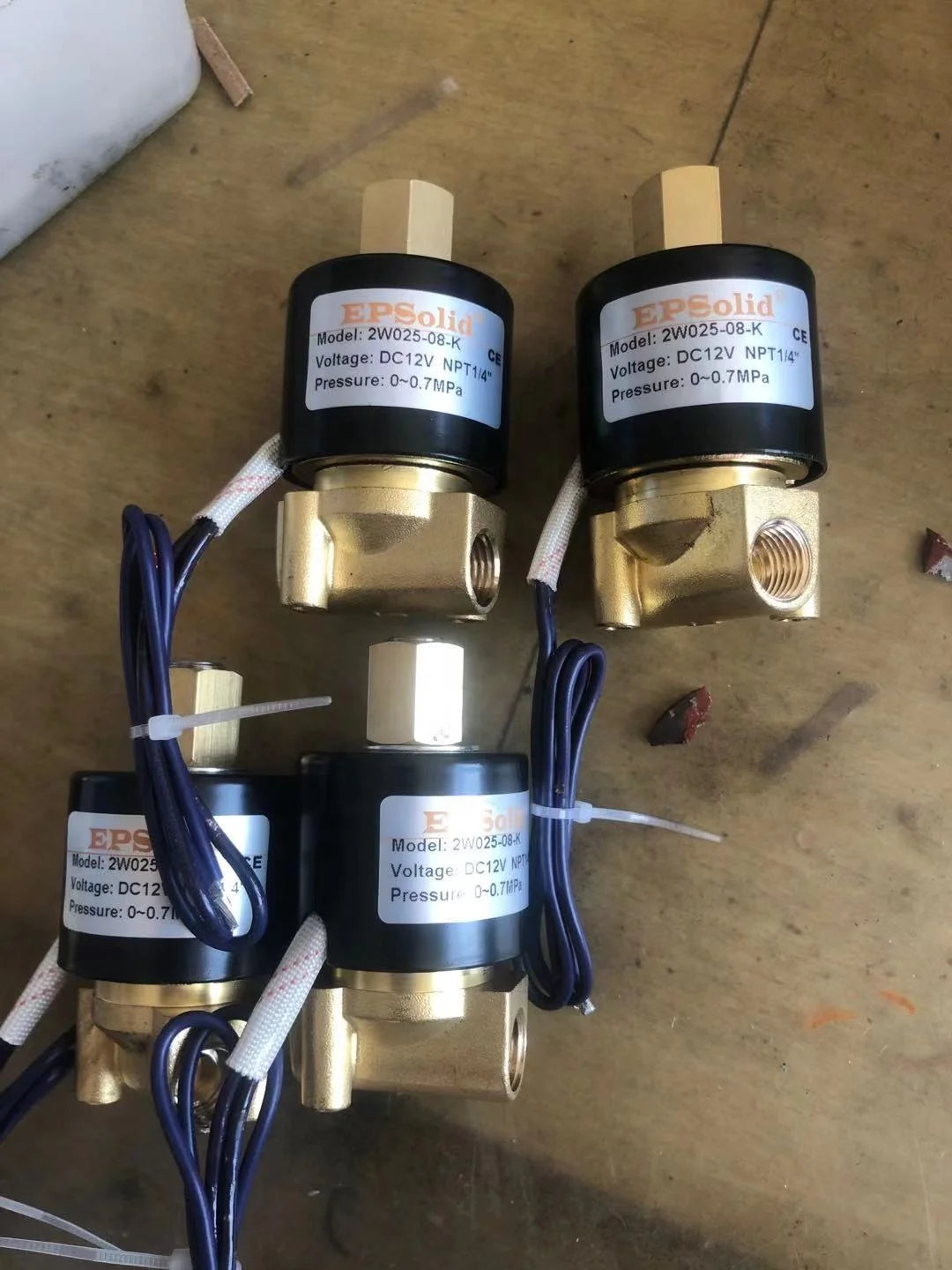

model number: 2W025-08-K
place of origin: Zhejiang, China
port size: 1/8'' or 1/4''
power: Solenoid
structure: Control
temperature of media: Medium Temperature
warranty: 1 years

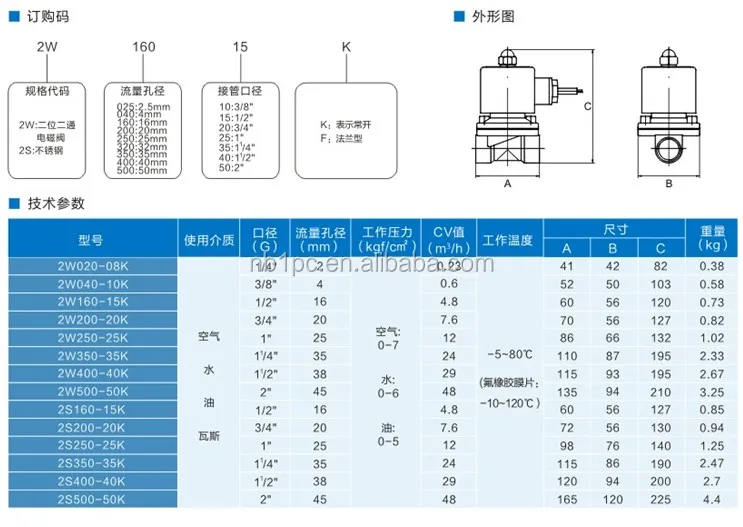

Specification:
Model 2W025-08-NO
Voltage DC12V,DC24V,AC110V,AC220V
Operation Mode Normally Closed (valve opens when energized)
Valve Type Direct Acting, Wet Armature
Inlet/Outlet Ports G1/8'' or G1/4" Female (NPT Threads)
Max Pressure Rating Air/Water/Oil: 0-7Bar
Suitable Media Air, Water, Very Low Viscosity Fluids, Vacuum
Cv Value 0.4
Temperature -5-85'c degree
Valve Response Time Very Fast Acting
Duty Cycle Continuous (can be left powered without overheating)
Materials Valve Body BRASS
Plunger Tip Nitrile Butadiene Rubber (NBR)
Mounting Position Coil up preferred
Description:
With solenoid operated for control appropriate flow and direction, provide great performance.
Sturdy body have a long lifespan, perfect for electrically driven pneumatic power control.
