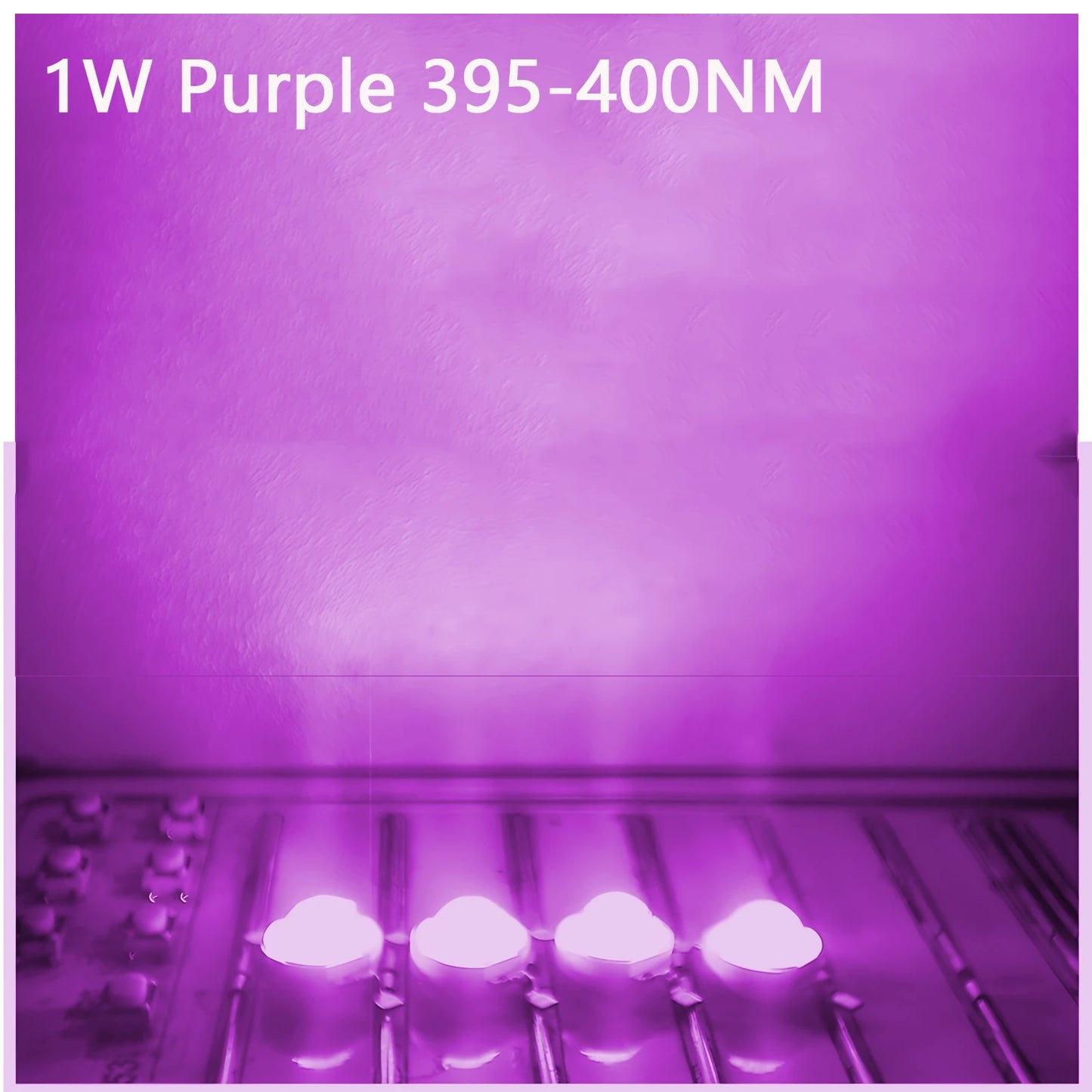

10pcs 1W 3W High Power LED Lamp Diodes Beads White Red Blue Green Yellow Purple Pink RGB for Blubs Spotlight Downlight Chip
10pcs 1W 3W High Power LED Lamp Diodes Beads White Red Blue Green Yellow Purple Pink RGB for Blubs Spotlight Downlight Chip
Prix habituel
CFA2,965 XOF
Prix habituel
CFA0 XOF
Prix promotionnel
CFA2,965 XOF
Frais d'expédition calculés à l'étape de paiement.
Quantité
Impossible de charger la disponibilité du service de retrait
SPECIFICATIONS
Brand Name: NONE
Choice: yes
Color: White/Natural White/Blue/Yellow/Green/Red/Cold White/Pink/Purple/RGB
High-concerned chemical: None
Name: LED Lamp Diodes SMD COB Bulbs
Origin: Mainland China
Power: 1W/3W
Product No:1W 3W High power LEDs
Average Life:More than 50000 hours
Feature:
1. super high brightness, low degradation, high luminous efficiency.
2.Designed specifically for high current operation
3. Low thermal resistance: 12K/W
4.SMT welding permeability
5. with excellent quality brand LED chip, longer working life.
6. Royal Blue, Deep Red, Pink Full Spectrum: it is suit for Plant Grow.
7. White Full Spectrum: it is suit for Aqurium Lighting.
8. 1W 4pin/6pin RGB, it is use 3 x 1W (30mil chip) , 350mA
9. 3W 4pin/6pin RGB, it is use 3 x 3W (42mil chip) , 500-700mA
Applications:
Widely used in Traffic lighting, Landscape lighting, advertising lighting, Indoor Lighting, Special lighting..
Package: 10pcs or 50pcs LED Chip
LED heat dissipation instructions
1. It is recommended to use LED heat dissipation aluminum profiles or copper heat sinks for heat dissipation. It is recommended to add a fan for active cooling of integrated light beads above 20W, and the specific temperature of the light beads should not exceed 50 ℃.
2. It is recommended to use a heat sink with a surface area of ≥ 50 square centimeters for 1W LED beads, and a heat sink with a surface area of ≥ 150 square centimeters for 3W LED beads. And the lamp beads must be tightly attached to the flat radiator for use. 3. The function of thermal conductive silicone grease is to fill the gap between the bottom of the lamp bead and the heat sink. Do not apply too much, as excessive thermal conductive silicone grease can hinder heat dissipation. Simply apply a thin layer.
LED welding instructions
1. Immersion welding: It is recommended to control the welding temperature of the product within 230 ° C ± 5 ° C for 5-10S Max, and the immersion welding position should be at least 3 millimeters away from the colloid.
2. Solder iron welding: It is recommended to use a constant temperature soldering iron for manual welding. The soldering iron should be in contact with the solder pad at a maximum temperature of 350 ℃/3-5 seconds to complete. The soldering iron must be grounded and static electricity must not exceed the range. The welding position should be at least 3 millimeters away from the colloid.
Pin forming instructions
1. The bracket must be at least 2 millimeters away from the colloid to be bent.
2. The forming of the bracket must be done using fixtures and by professional personnel.
3. The formation of the bracket must be completed before welding.
4. The forming of the bracket must ensure that the pins and spacing are consistent with those on the circuit board.
