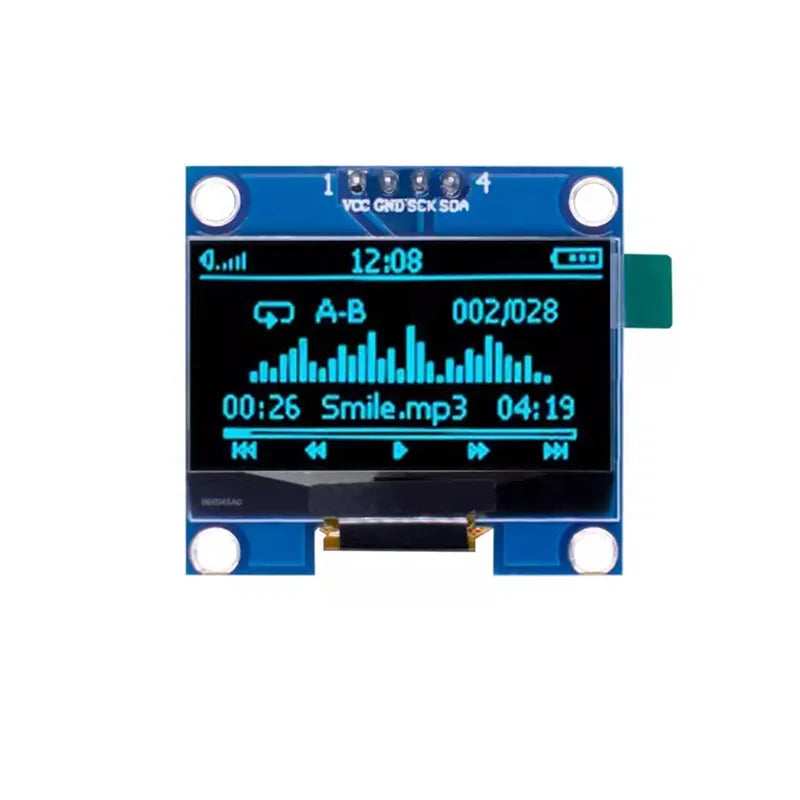

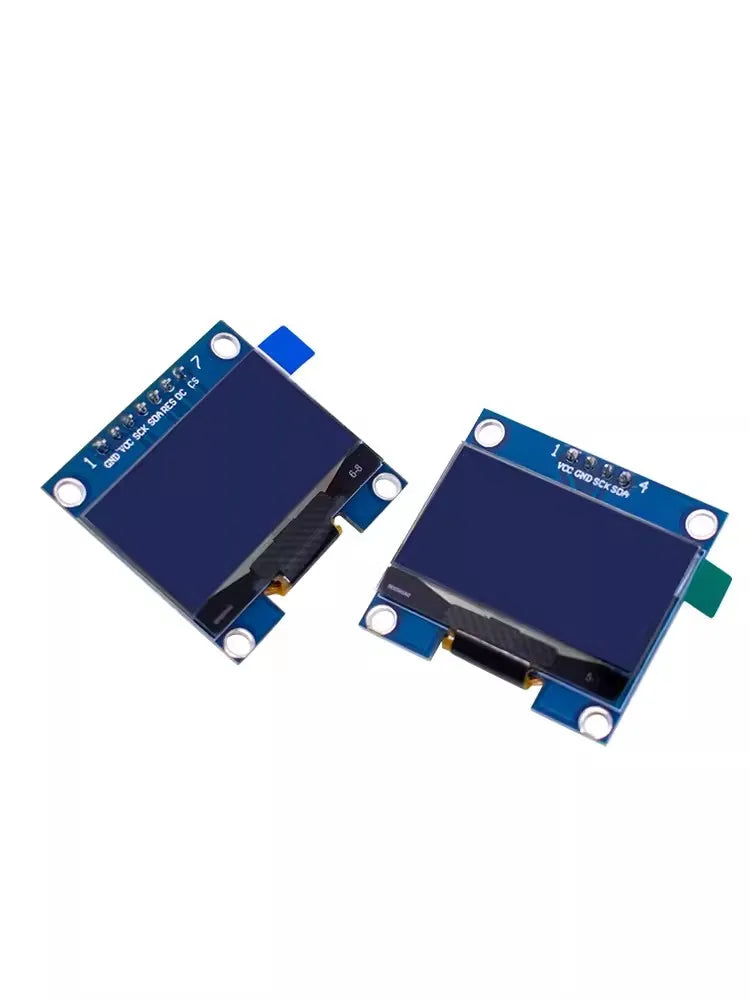

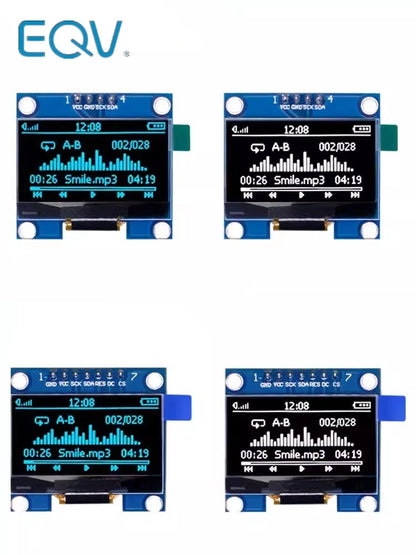

1.3 Inch Oled Module Witte Kleur 128X64 Oled Lcd Led Display Module 1.3 Iic I2C Spi Communiceren Voor Arduino Diy kit
1.3 Inch Oled Module Witte Kleur 128X64 Oled Lcd Led Display Module 1.3 Iic I2C Spi Communiceren Voor Arduino Diy kit
Impossible de charger la disponibilité du service de retrait

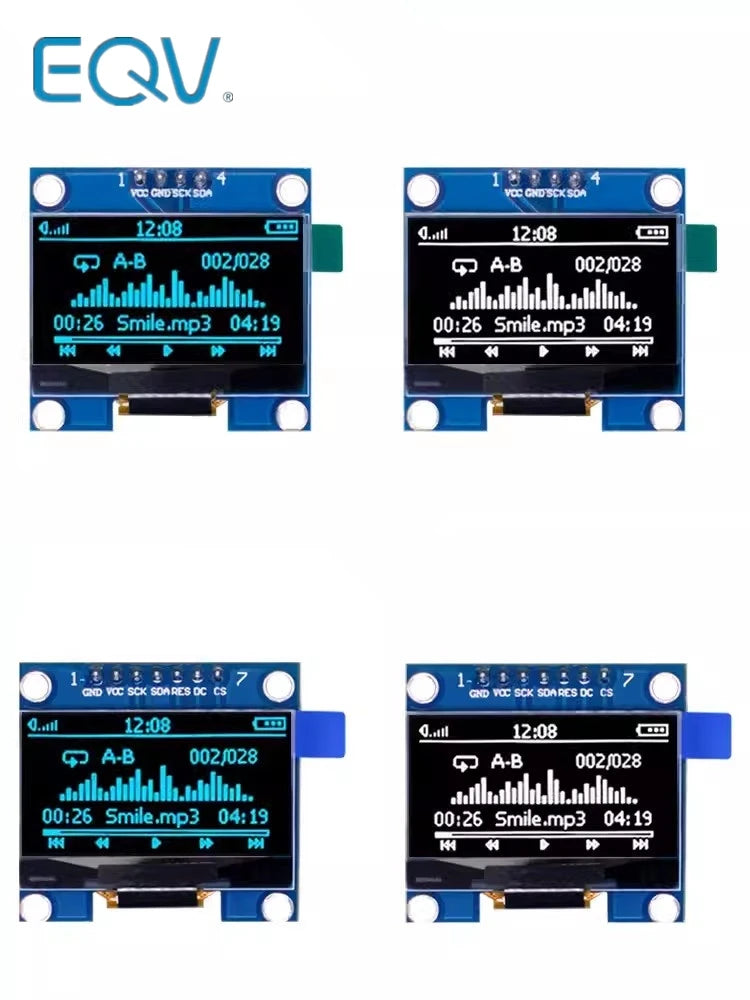

Product Description
1.3-inch OLED, high resolution: 128X64 (same resolution as 12864, high PPI)
Super large viewing angle: greater than 160 °(the screen with the largest viewing angle in the display screen)
Ultra low power consumption: normal display 0.06w (far lower than TFT display)
Wide voltage supply (3V ~ 5V), compatible with 3.3V and 5V level logic, without level conversion chip
The default SPI interface (IIC interface can be changed), only 5 IOS are needed to light up easily
The working temperature range is industrial grade (- 20 ℃ ~ 70 ℃)
Military grade process standard, long-term stable work
Provide rich routines, provide the underlying driver technical support
Product Parameters
Name |
Parameter |
Display Color |
white/blue |
SKU |
MSP130W / MSP130B |
Screen Size |
1.3(inch) |
Screen Type |
OLED |
Driver IC |
SH1106 |
Resolution |
128*64 (Pixel) |
Module Interface |
4-wire SPI interface |
Active Area |
29.42x14.7(mm) |
Module PCB Size |
33.50x35.40(mm) |
Operating Voltage |
3.3V~5V |
Logic IO port voltage |
3.3V(TTL) |
Power Consumption |
TBD |
Rough Weight(Package containing) |
10(g) |

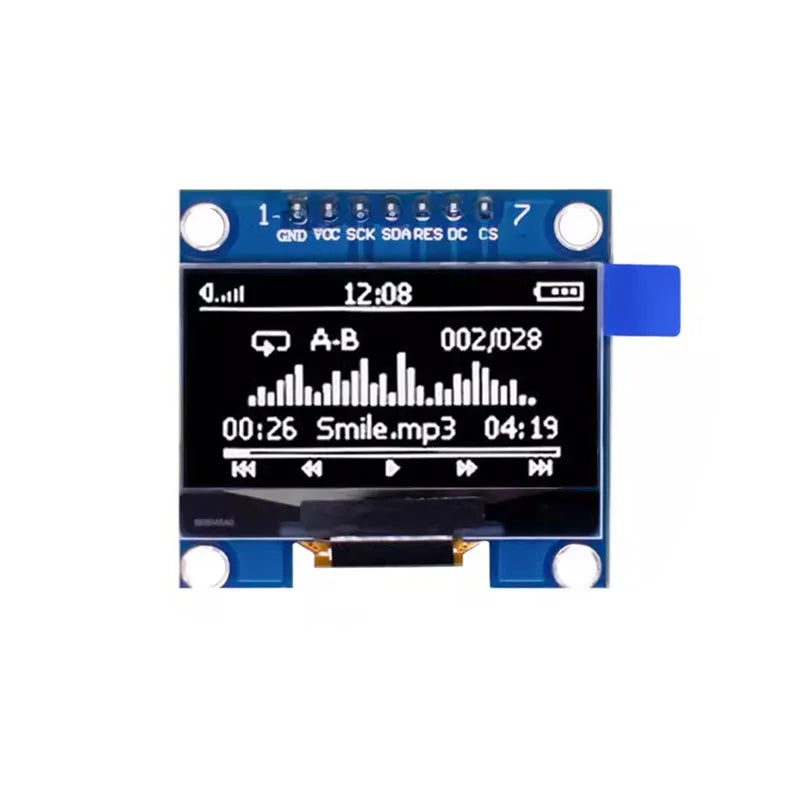

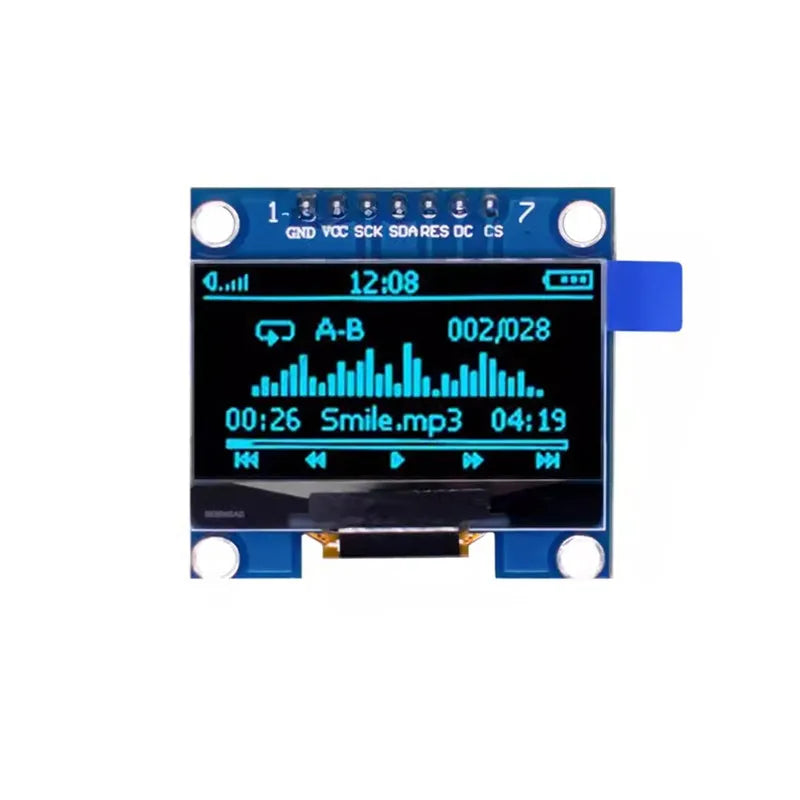

Interface Definition
Module Pin |
Pin description |
GND |
OLED power ground |
VCC |
OLED power positive (3.3V~5V) |
CLK |
SPI bus clock signal of OLED display module |
MOSI |
SPI bus write data signal of OLED display module |
RES |
Reset control signal of OLED display module |
DC |
Command / data selection control signal of OLED display module |
CS |
Chip selection control signal of OLED display module |
Product Description
1.3 inch OLED screen with black and white or black and blue color display
128x64 resolution for clear display and high contrast
Large viewing angle: greater than 160° (one screen with the largest viewing angle in the display)
Wide voltage supply (3V~5V), compatible with 3.3V and 5V logic levels, no level shifting chip required
With IIC bus, only a few IOs can be used to light up the display
Ultra-low power consumption: normal display is only 0.06W (far below the TFT display)
Military-grade process standards, long-term stable work
Provides a rich sample program for STM32, C51, Arduino, Raspberry Pi and MSP430 platforms
Provide underlying driver technical support
Product Parameters
Name |
Parameter |
Display Color |
white/blue |
SKU |
MC130GW/MC130GB |
Screen Size |
1.3(inch) |
Screen Type |
OLED |
Driver IC |
SH1106 |
Resolution |
128*64 (Pixel) |
Module Interface |
IIC interface |
Active Area |
29.42x14.7(mm) |
Touch Screen Type |
have no touch screen |
Touch IC |
have no IC |
Module PCB Size |
33.50x35.40(mm) |
Visual Angle |
>160° |
Operating Temperature |
-20℃~60℃ |
Storage Temperature |
-30℃~70℃ |
Operating Voltage |
3.3V~5V |
Power Consumption |
TBD |
Rough Weight(Package containing) |
10(g) |

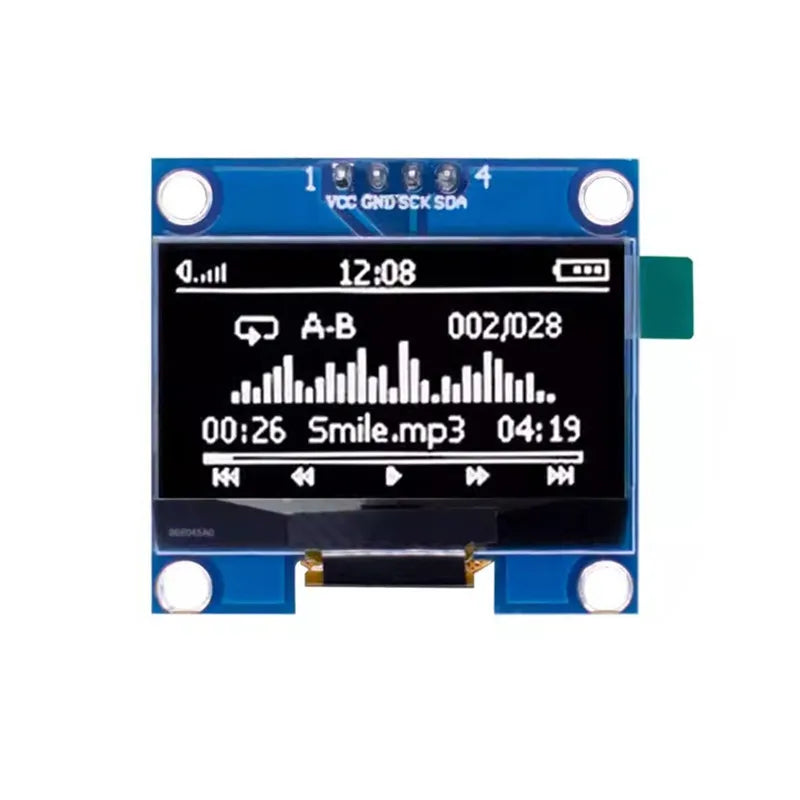

Interface Definition
|
NOTE:

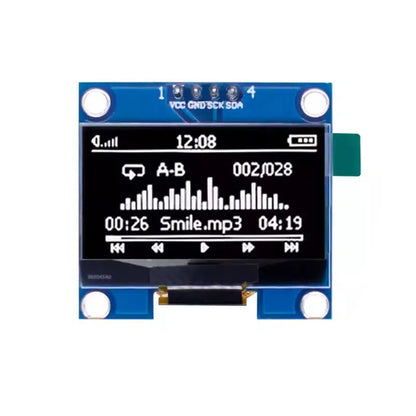

1.This module supports IIC slave device address switching (shown in red box in Picture 4), as follows:A.Solder the 0x78 side resistance, disconnect the 0x7A side, then select the 0x78 slave address (default);B.Solder the 0x7A side resistance, disconnect the 0x78 side, then select the 0x7A slave address;2.The hardware switches the IIC slave device address, and the software also needs to be modified accordingly.For details, see the test program description document or the user manual..
Number |
Module Pin |
Pin description |
1 |
GND |
OLED power ground |
2 |
VCC |
OLED power positive (3.3V~5V) |
3 |
SCL |
OLED IIC bus clock signal |
4 |
SDA |
OLED IIC bus data signal |
