SPECIFICATIONS

Application: Water

Ball Material: Brass

Body material: Brass

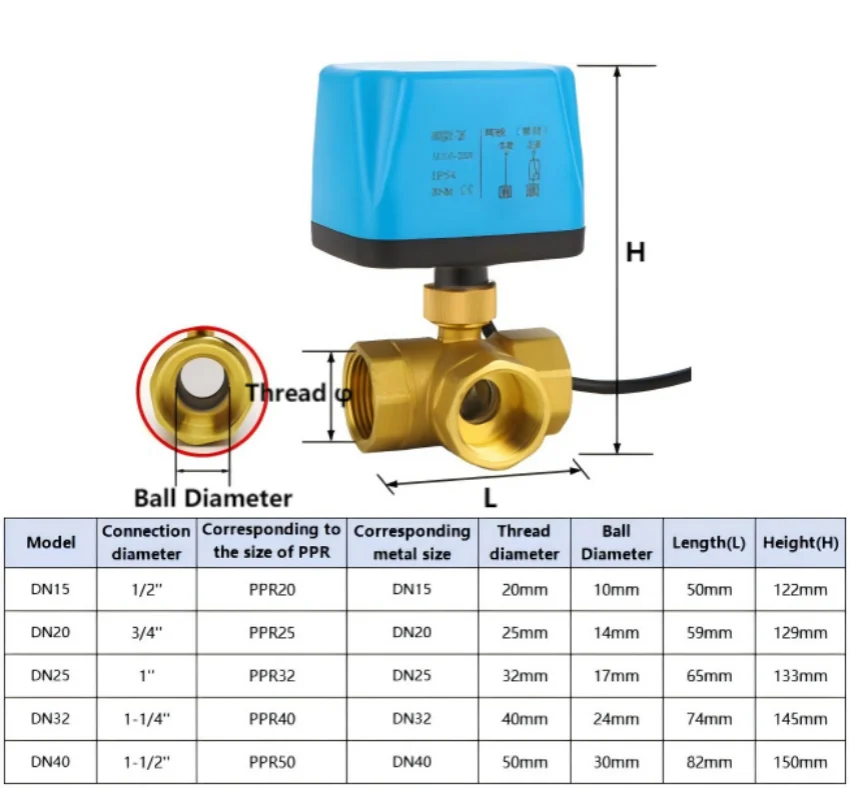

Connection Size: 1/2 in,3/4 in,1 in,2 in,1-1/4 in,1-1/2 in

Connection Type: Thread

Connection type: BSP (G)

For Maximum Pipe Size: 2 in

Operation: Two wire Normally close

Port Size: 1/2" to 2"

Power: 6W(Only when the valves open and close)

Running Time: 5-15 Seconds

Sealing Material: PTFE

Structure Forms: Three Ways

Temperature: <95℃

Voltage: 12VDC, 220VAC, 24VDC

Working pressure: 0-16bar

application: General

brand name: Acarps

customized support: OEM

media: Water

model number: 2W

place of origin: Guangdong, China

power: Solenoid

structure: Ball

temperature of media: Normal Temperature

warranty: 1 year

Products Description

Specification:
Medium: Cold/hot water, 60% Ethylene Glycol
Material: BrassPower Supply: AC220V/DC24V/DC12V

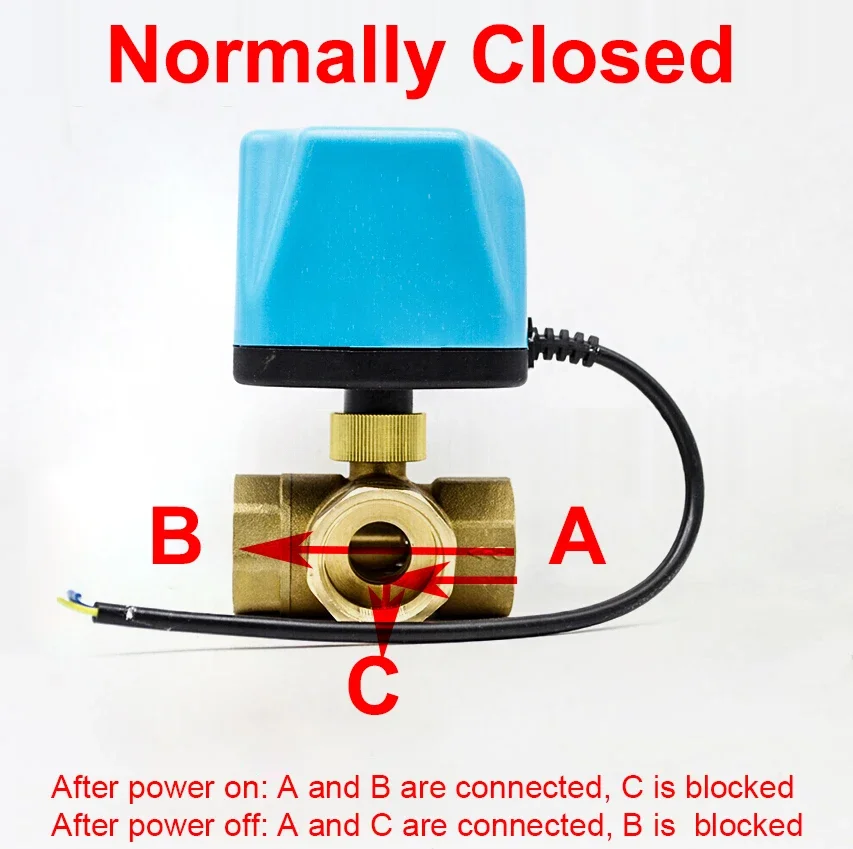

Structure Forms: Three Ways T Type&L Type

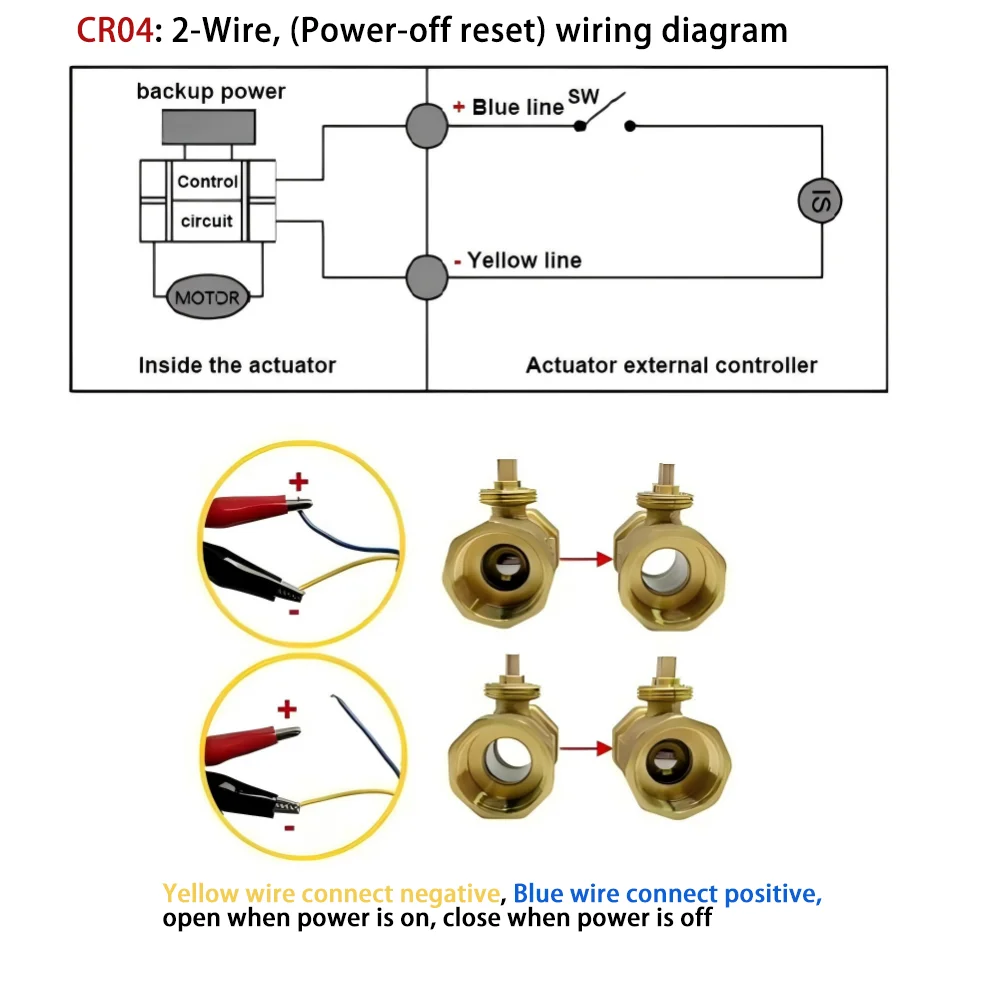

Operation Mode: CR04,Normally Close
Power: 6W (Only when the valves open and close)
Running Time: 5-15 Seconds
Nominal Pressure: 1.6MPa
Medium Temperature: <90℃
Maximum Differential Pressure: 1.0MPa
Working Current: 2A
Sealing Material: NBR+PTFE
Max. Torque Force: 8 N.M
Cable Length: 0.35m
Protection Class: IP52
Connection Mode: G Internal Thread

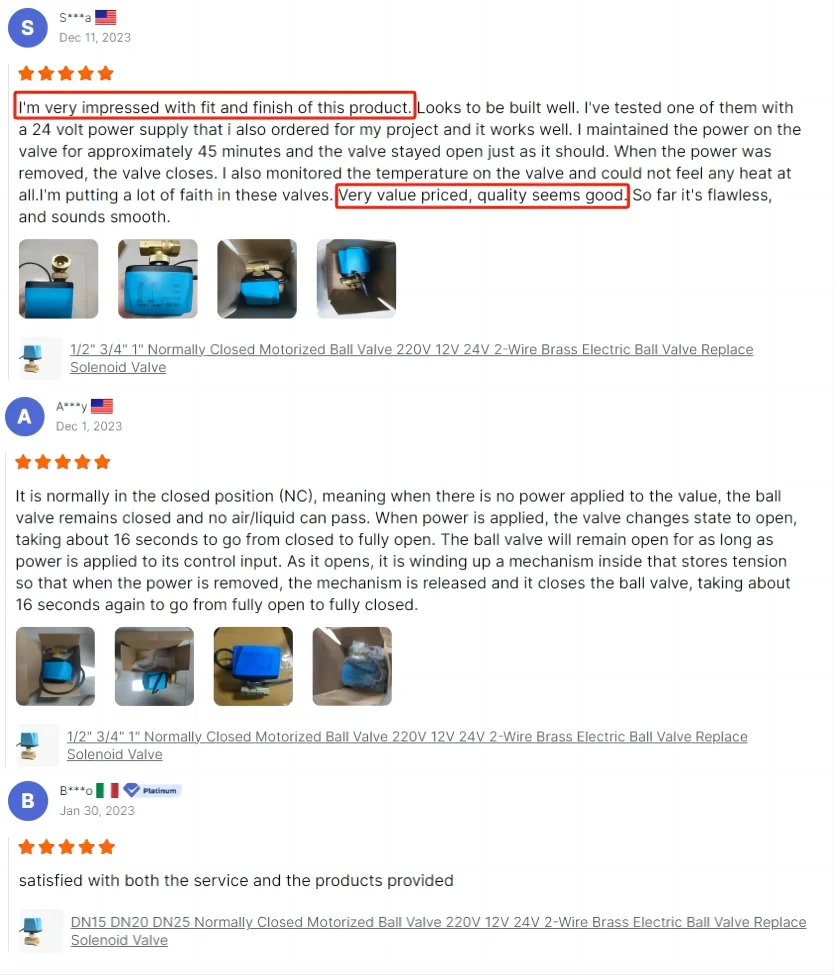

Customer Feedback

Shipment and Payment

FAQ

Q1: Only bulk orders?
A1: No, sample orders are welcome.

Q2: How to place orders?
A2: You can send inquiry or leave messages about your requirements on Alibaba. Our sales will get back to you within 24 hours.

Q3: How to make payment?
A3: After confirming all details, our sales will provide an order to you.(TT, Paypal, Credit cards (MasterCard/VISA) are supported. Welcome to make Alibaba Trade Assurance Orders with full assurance.

Q4: After-sales services?
A4: We shall be grateful if picture or videos can be provided once there is any problem when you use our product. Our sales will give prompt response and solving method will be provided in the first time.
