SPECIFICATIONS

Application: Water

Body material: Stainless Steel

Connection Size: 1/2 in,2 in,1 in,3/4 in,1.5 in

Connection type: BSP (G)

Operating Temp. Range: 0~95℃

Operation: Three wire two control

Operational Pressure Range: 16bar

Power: 6W(Only when the valves open and close)

Running Time: 5-15 Seconds

Structure Forms: Two Ways

Temperature: <95℃

Voltage: AC 220 V,Dc 12V,Dc 24V,12VDC, 220VAC, 24VDC

Working pressure: 0-16bar

application: General

brand name: Acarps

customized support: OEM,ODM,OBM

media: Water

model number: EBA

place of origin: Guangdong, China

port size: 1/2" to 2"

power: Solenoid

structure: Acarps

temperature of media: Normal Temperature

warranty: 1year

Products Description

Specification:
Medium: Cold/hot water, 60% Ethylene Glycol
Material: Stainless Steel
Power Supply: AC220V/AC110/DC24V/DC12V
Structure Forms: Two Ways

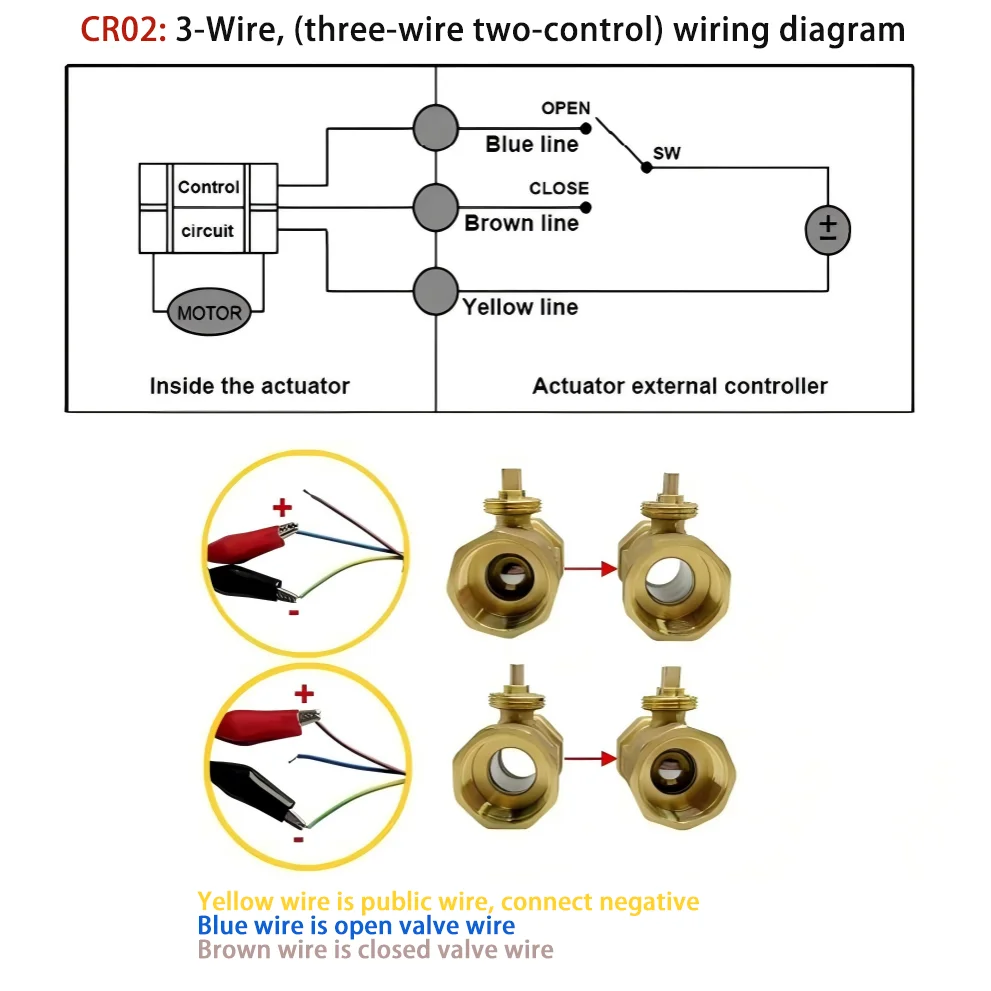

Operation Mode: CR02

Power: 6W (Only when the valves open and close)
Running Time: 5-15 Seconds
Nominal Pressure: 1.6MPa
Medium Temperature: -10~100℃
Maximum Differential Pressure: 1.0MPa
Working Current: 2A
Sealing Material: NBR+PTFE
Max. Torque Force: 8 N.M
Protection Class: IP65
Connection Mode: G Internal Thread

Shipment and Payment

FAQ

Q1: Only bulk orders?
A1: No, sample orders are welcome.

Q2: How to place orders?
A2: You can send inquiry or leave messages about your requirements on Alibaba. Our sales will get back to you within 24 hours.

Q3: How to make payment?
A3: After confirming all details, our sales will provide an order to you.(TT, Paypal, Credit cards (MasterCard/VISA) are supported. Welcome to make Alibaba Trade Assurance Orders with full assurance.

Q4: After-sales services?
A4: We shall be grateful if picture or videos can be provided once there is any problem when you use our product. Our sales will give prompt response and solving method will be provided in the first time.
