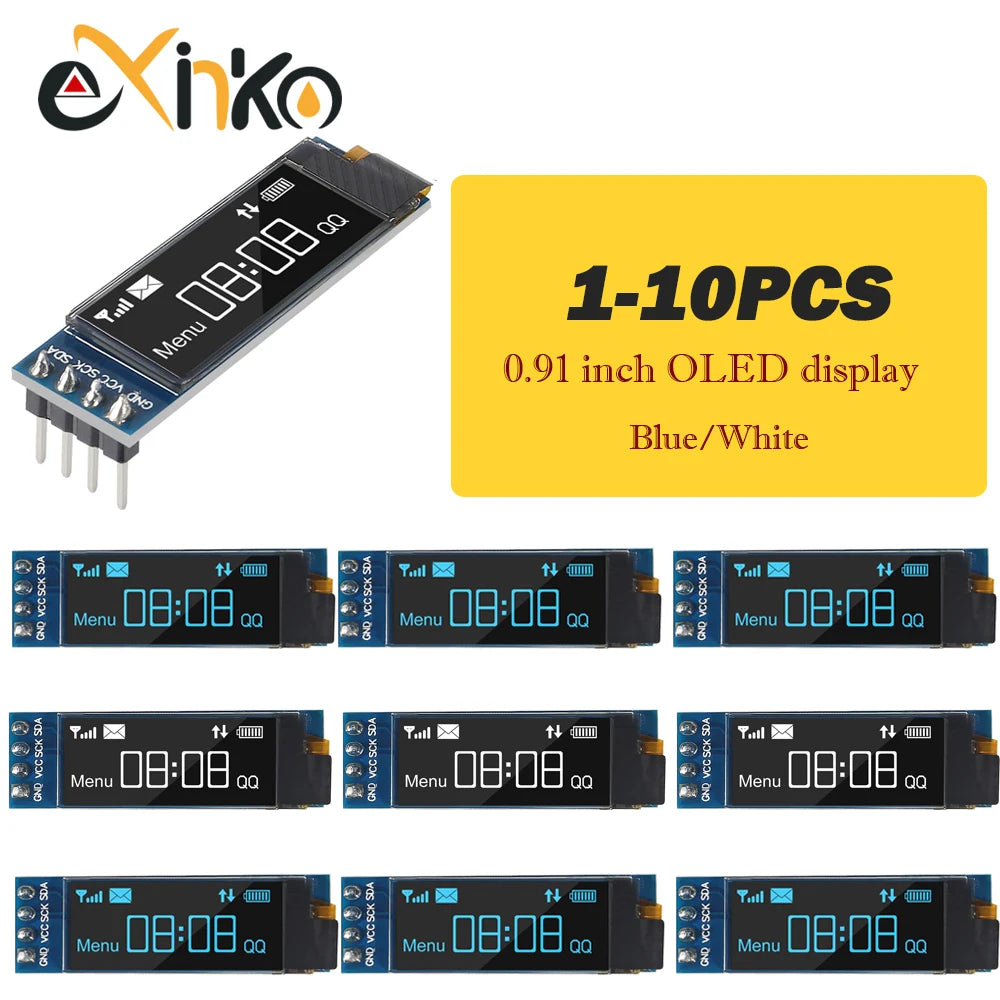

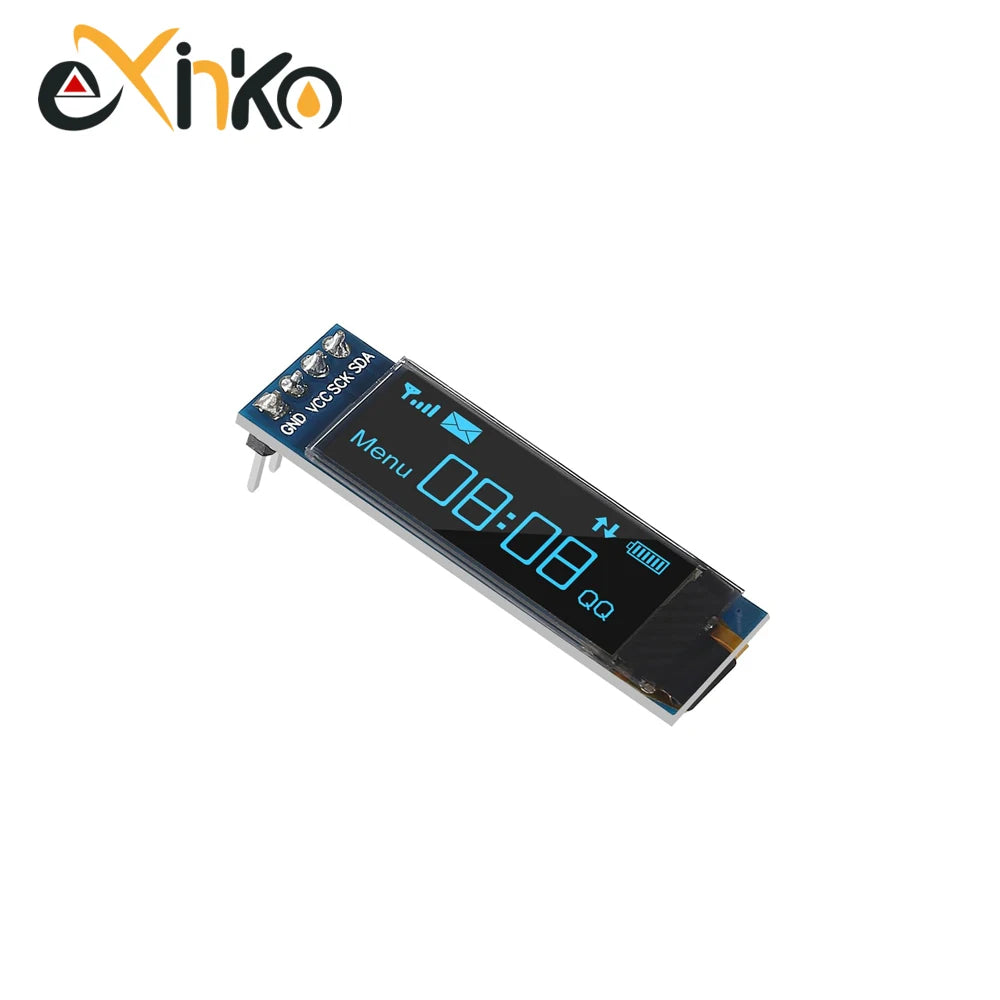

1-10pcs 0.91 inch OLED display module white/blue OLED 128X32 LCD LED Display SSD1306 12832 0.91 IIC i2C Communicate for ardunio
1-10pcs 0.91 inch OLED display module white/blue OLED 128X32 LCD LED Display SSD1306 12832 0.91 IIC i2C Communicate for ardunio
Impossible de charger la disponibilité du service de retrait
1-10pcs 0.91 inch OLED display module white/blue OLED 128X32 LCD LED Display SSD1306 12832 0.91 IIC i2C Communicate for ardunio
Noted:The needle is not welded and needs to be welded by oneself!!!
Description
- 0.91 OLED, lightweight and compact
- high resolution: 128 x32 (same resolution as 12832, clearer display)
- visual angle: greater than 160 ° (each direction can be clearly seen)
- wide voltage power supply (3V ~ 5V), simultaneously containing 3.3V and 5V level logic, without level conversion chip
- ultra-low power consumption: normal display 0.06w (much lower than TFT display)
- the IIC interface can be easily lit with only 2 IO
- military-grade craft standard, long-term stable work
parameter
name |
color classification |
||
display color |
white |
blue |
|
SKU |
|||
the size of |
0.96(inch) |
||
type |
OLED |
||
the OLED drive chip |
SSD1306 |
||
resolution |
128*32 (Pixel) |
||
module Interface |
IIC,①-GND,②-VCC,③-SCL,④-SDA |
||

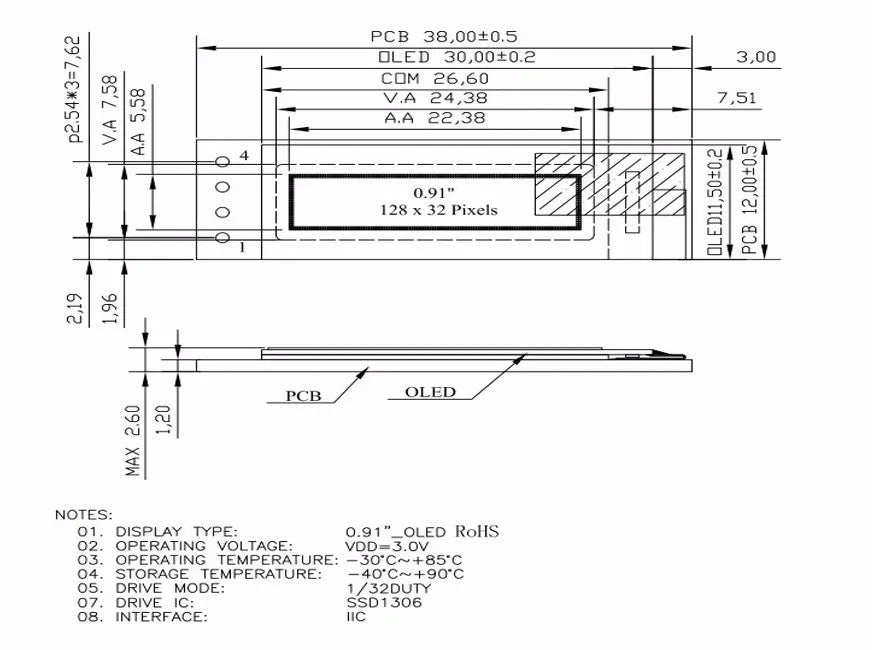

the effective display region |
5.52x22.38(mm) |
||
module size |
12x38(mm) |
||
from the perspective |
> 160 ° |
||
working voltage |
3.3V / 5V |
||
power consumption |
the full brightness is about 25mA, and the full extinction is about 1.5mA |
||
product Weight |
15(g) |
||

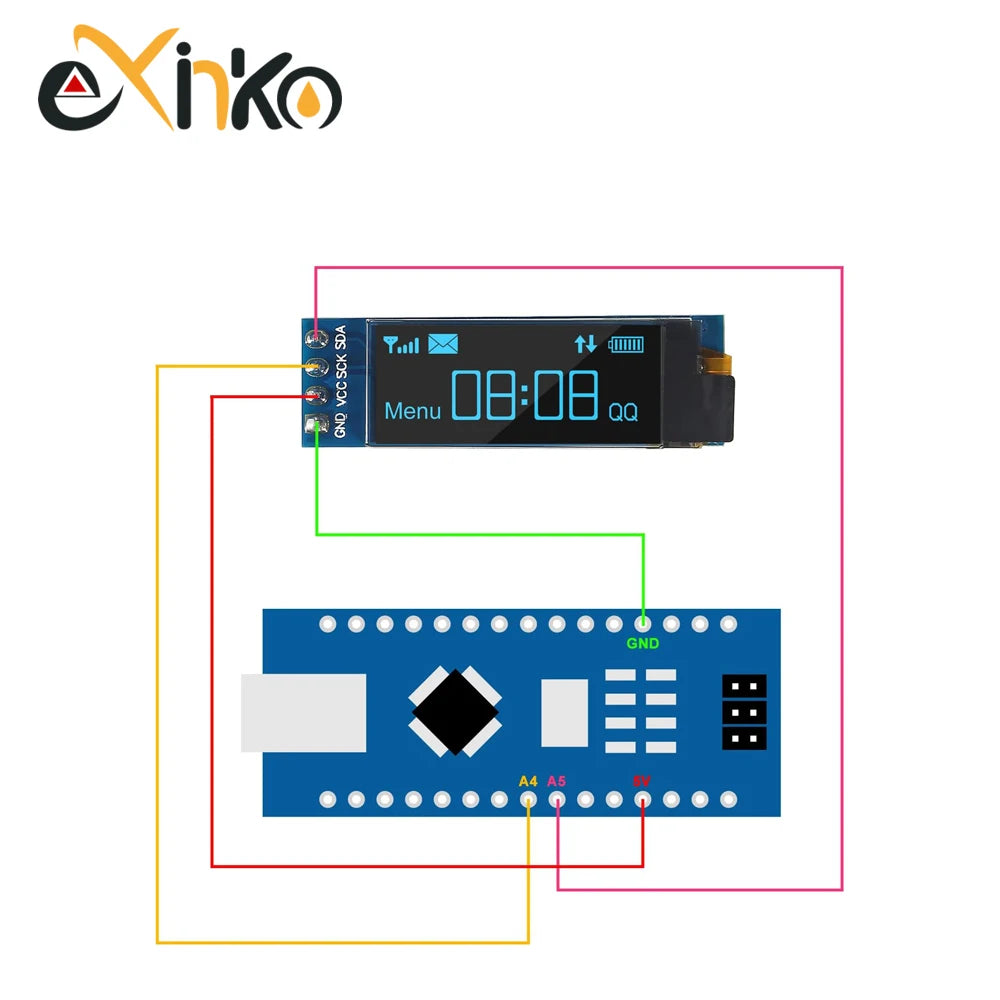

interface Definition
PIN |
cement grade |
pin description |
1 |
GND |
OLED power ground |
2 |
VCC |
OLED power supply positive (3.3V ~ 5V) |
3 |
SCL |
OLED IIC bus clock signal |
4 |
SDA |
OLED IIC bus data signal |
