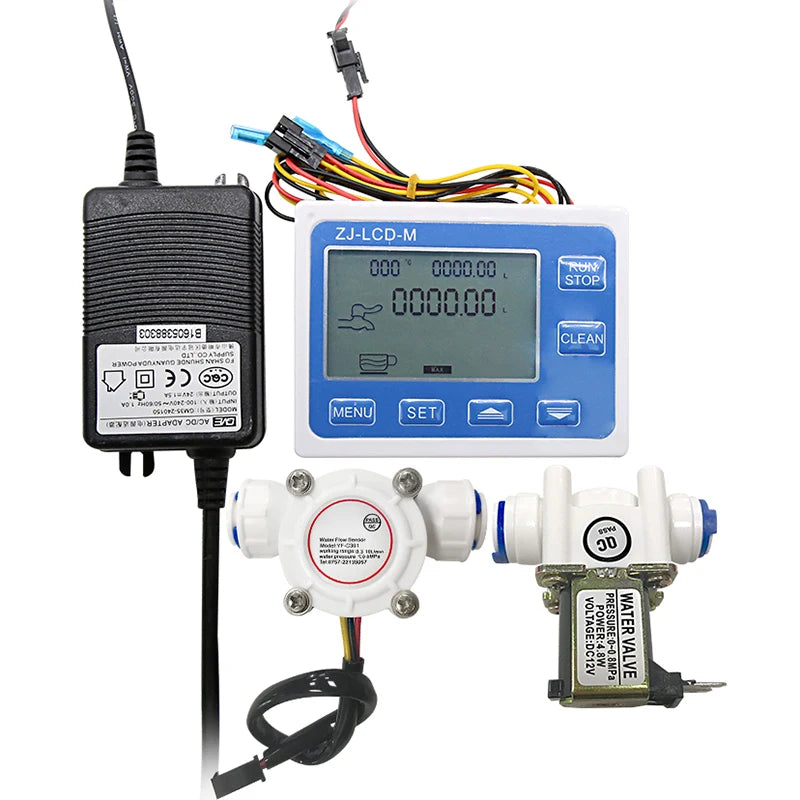

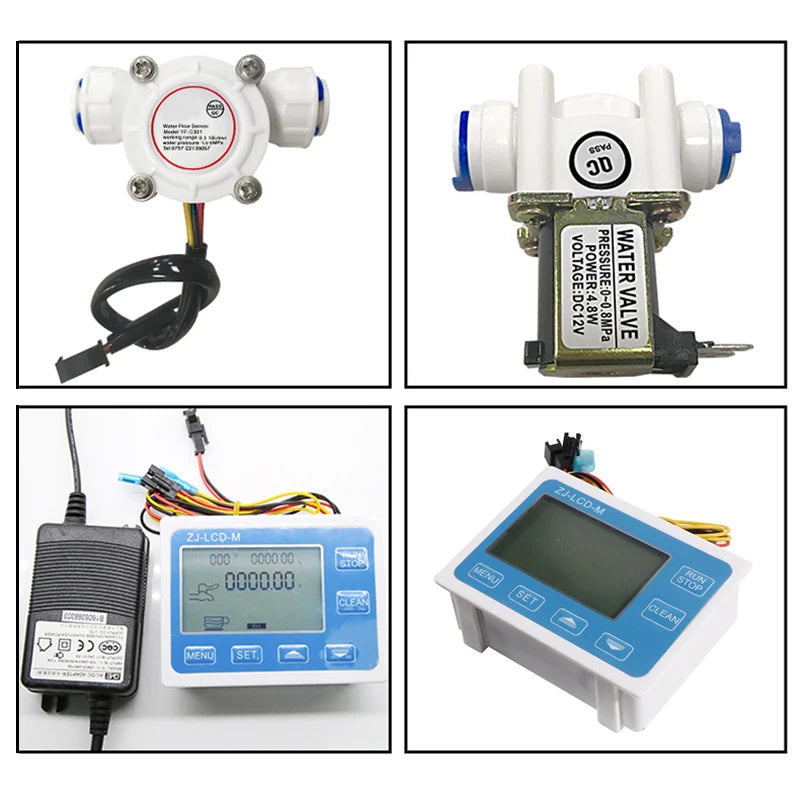

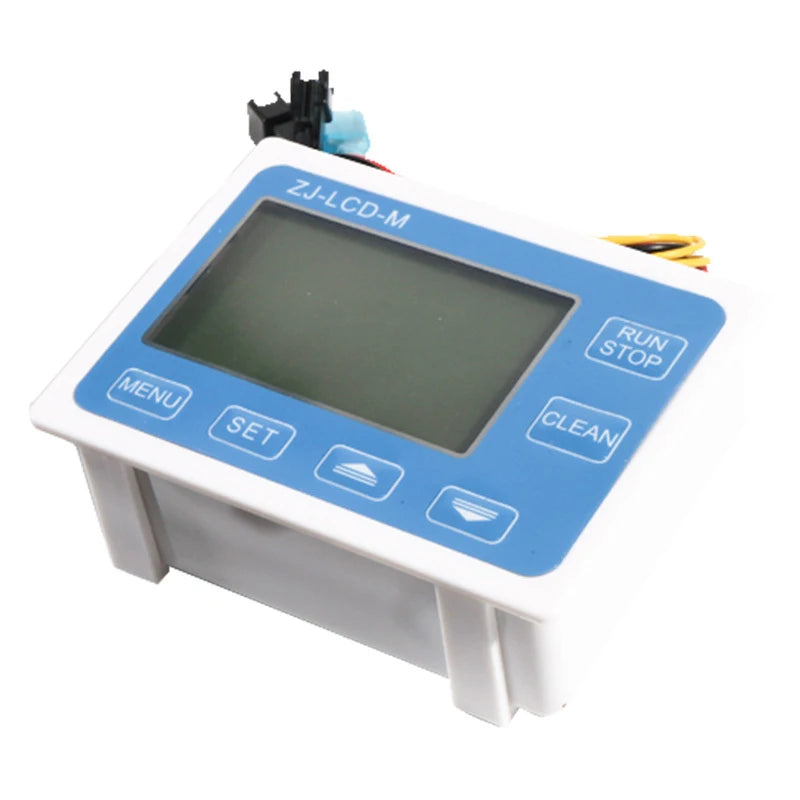

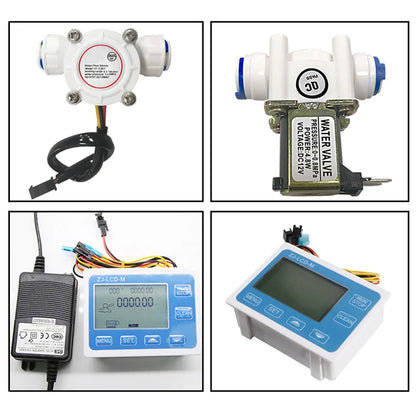

SPECIFICATIONS

Model: ZJ-LCD-M

Operating Temp. Range: 0~60℃

Operating voltage: DC5V (flow probe input pulse signal)

Operational Pressure Range: 0.02~0.08MPa

Quantitative range: 0.1-9999 liters, K value can beplaced in the meter.

Solenoid valve voltage: DC12V/0.3A-0.5A (Normally closed solenoid valve)

Working voltage: DC24V±8V/1A

application: General

brand name: Acarps

customized support: OEM,ODM,OBM

media: Water

model number: ZJ-LCD-M

place of origin: Guangdong, China

port size: 3/8''

power: Electric

structure: Control

temperature of media: Normal Temperature

warranty: 1year

Product Description

About this item

This flow controller allows for quantitative control of the flow rate of the liquid (the liquid can be set to stop the flow of water at the desired volume. For example, set the flow rate to 10L, and when the flow measurement reaches 10L, the controller lets the valve shut off the flow of water)

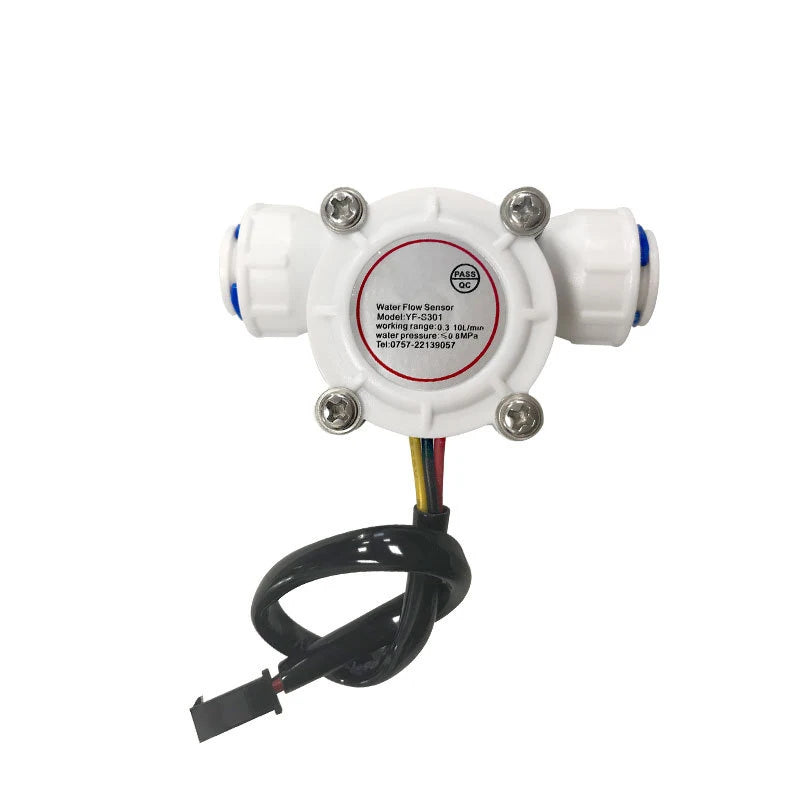

Gear Sensors parameters

Model: YF-S301 Interface size: 3/8"(DN10)

Inner diameter: 9.7mm Working voltage range: DC3.5～24V Material: POM Pressure: ≤1.2MPa Output pulse high level: >DC4.7V (input voltage DC5V) Output pulse low level: 100MΩ Flow range: 0.5～10L\min Tightness: Close each hole, add 1.75Mpa water pressure test for 1 minute without leakage and deformation Flow pulse characteristics: F= (21*Q) ±3% Q=L/min

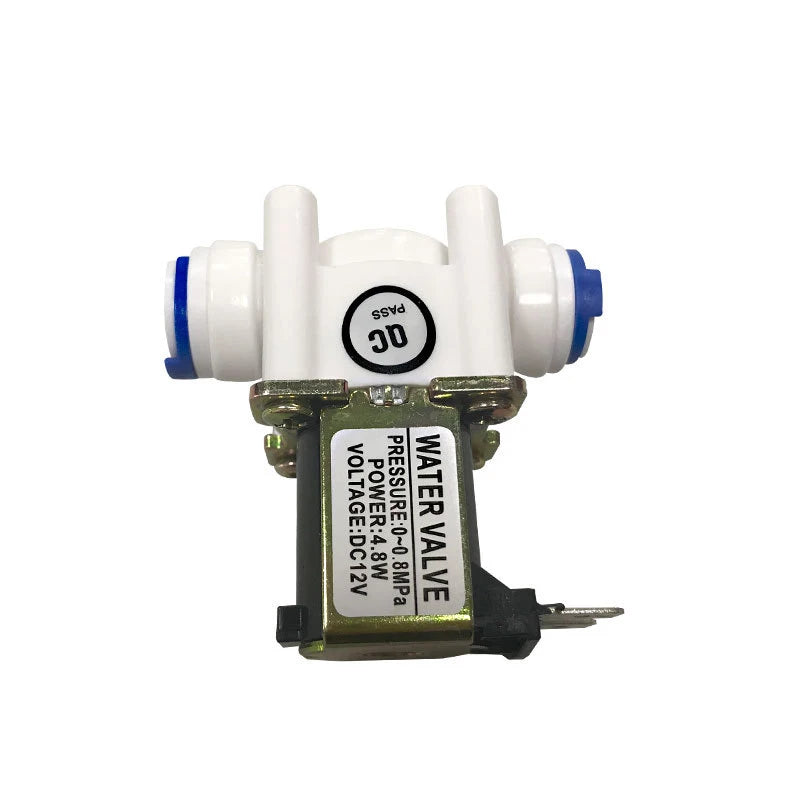

Solenoid valve parameters

Type：3/8" Normally closed water inlet valve

Take over method: water inlet 3/8"；water outlet 3/8"

Inner diameter: 6.5mm

Material: Nylon

Medium: water, oil, gas Working voltage: DC12V Power: 5W Medium temperature: 0~60℃ Working pressure: 0.02~0.8MPa Installation method: Horizontal installation
