SPECIFICATIONS

Certificate: CE IS09001 IS014001 1S045001

Control Mode: On Off Electric Actuator/Emergency handles

MOQ: 1

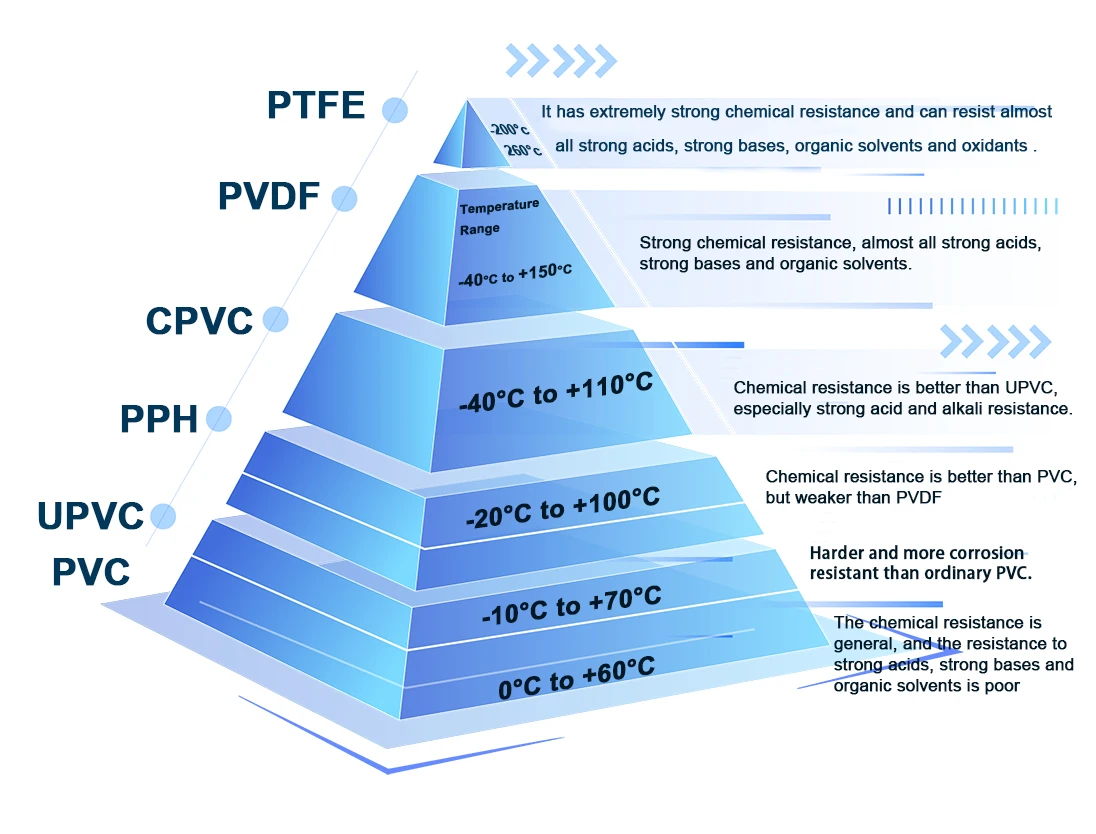

Material: PVC/ UPVC/CPVC/PP-H/PVDF/Customizable

Media: Air, Gas, Oil, Liquid,Initiate Inquiry

Port Size: DN15~DN100,ANSI 1/2"~10",JIS 16A~250A

Power: Electric Actuator BUTTERFLY Valve

Sealing Material: EPDM/FPM

Type: Electric PVC BUTTERFLY Valve

Voltage: Customizable

applicable medium: Water,Oil,Gas

application: General

brand name: YNTO

customized support: OEM,ODM,OBM

media: Water

place of origin: Guangdong, China

port size: 2"~8"

power: Electric

structure: Butterfly

temperature of media: High Temperature,Low Temperature,Medium Temperature,Normal Temperature

warranty: 1 years

Become an Output Fluid System Solution Developer

Switzerland GF industrial Pipeline Cooperation Agent

United States Colder Products Company(CPC) States Cooperative Agent

Professional electric valve manufacturer
Choose the most suitable electric valve for you --YNTO

Choose the electric ball valve you want
PVC, stainless steel, cast steel, cast iron, two-way, three-way...

Electric valve price description

Because different sizes, actuators, circuits, and functions determine different prices, the price is based on your technical
requirements, Please contact us and we will help you in selecting the appropriate product.

Please Good >>

>> Get the Latest Product Solution Quote >>

Product Showcase

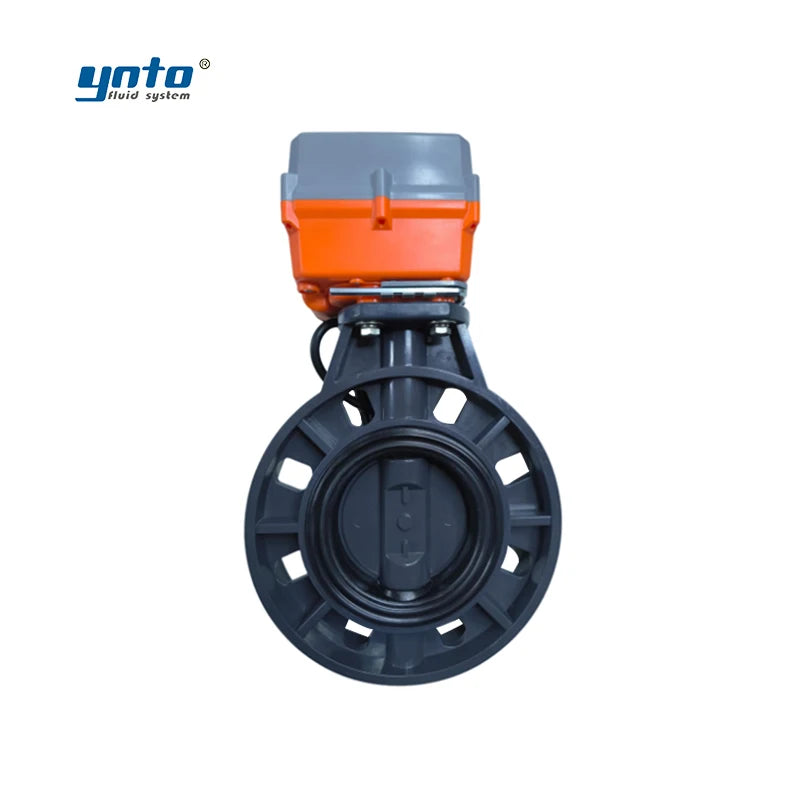

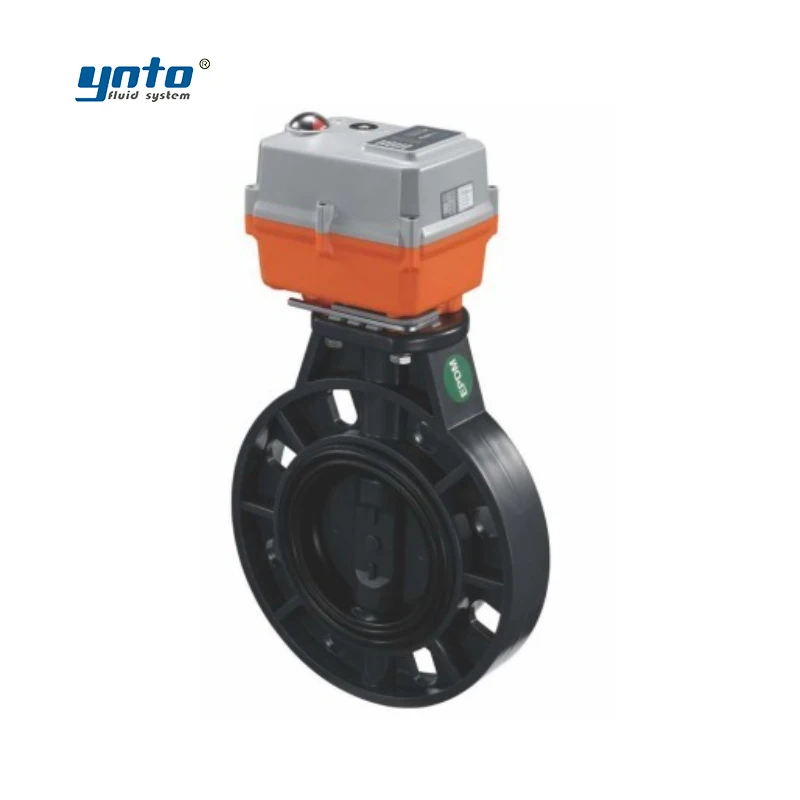

Product Features Butterfly valves

Electric plastic butterfly valves are characterized by their lightweight, low torque, long lifespan, easy installation, and strong corrosion resistance. They are widely used in piping systems for pure water and drinking water, drainage and sewage, saltwater and seawater, as well as in acid-alkali and chemical transport systems across various industries. The quality of these valves has been widely recognized by users.

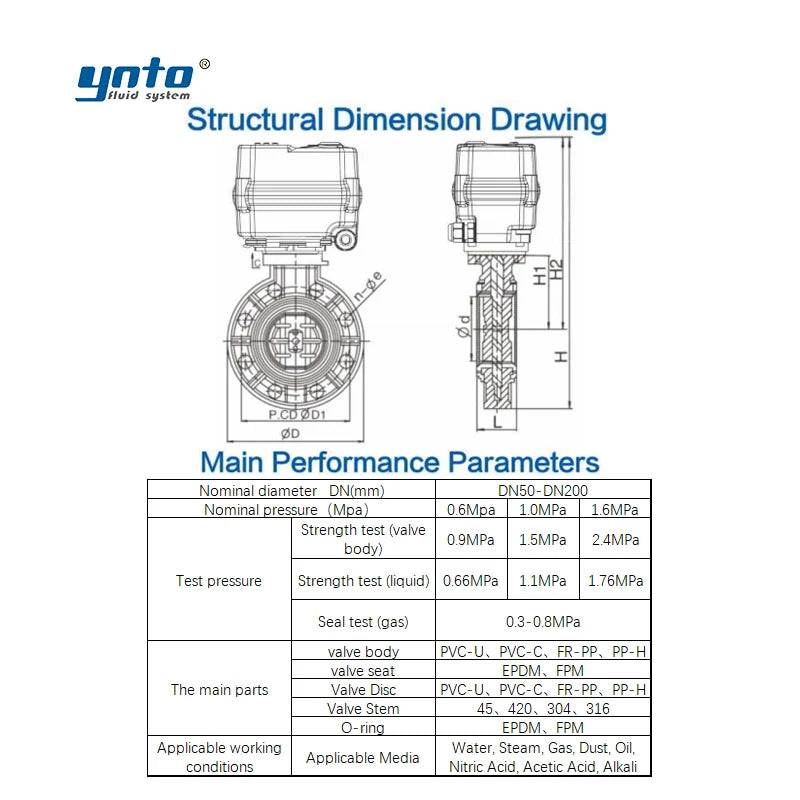

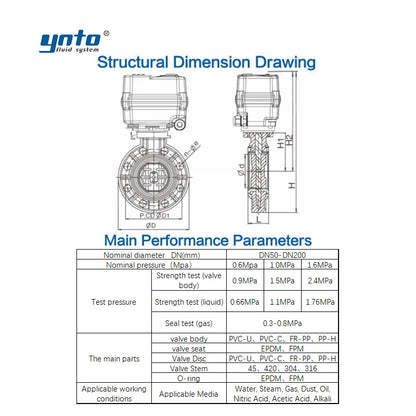

Main Performance Parameters

Nominal diameter DN(mm)

DN50-DN200

Nominal pressure（Mpa）

0.6Mpa

1.0MPa

1.6MPa

Test pressure

Strength test (valve body)

0.9MPa

1.5MPa

2.4MPa

Strength test (liquid)

0.66MPa

1.1MPa

1.76MPa

Seal test (gas)

0.3-0.8MPa

The main parts

valve body

PVC-U、PVC-C、FR-PP、PP-H

valve seat

EPDM、FPM

Valve Disc

PVC-U、PVC-C、FR-PP、PP-H

Valve Stem

45、420、304、316

O-ring

EPDM、FPM

Applicable working conditions

Applicable Media

Water, Steam, Gas, Dust, Oil, Nitric Acid, Acetic Acid, Alkali

Suitable products and target prices

Different industries

Different applications

Can recommend suitable products and target prices

Please Good   >>  >>   Get the Latest Product Solution Quote   >>

Store Hot Sale

Why Choose Us?

Exhibition

Product packaging

FAQ

1. Which voltage of the electric actuator?
DC24V, AC24V, AC110V, AC220V AC380V can be customized and DC12V is available for some smaller torque of actuator.

2. What is the actuation time for electric actuator?
It depends on the torque of actuator.

3. Can the actuation time be faster?
Electric actuator can be customized the quick actuation gear, the soonest actuation time can be reach 1 seconds to open and close.

4. What type of electric actuator you provide?
ON/OFF type, Regulation type and Intelligent type.

5. What is the difference from ON/OFF type, Regulation type and Intelligent type?
(1)ON/OFF type ON/OFF type is fully open and fully closed.
(2)Regulation type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
(3)Intelligent type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system. 4.With display screen to acheieve site control.

6. Can this electric valve be resettable (normally open / closed) automatically when power is removed?
Our regular electric actuator can't be resettable automatically while power-off. But it can go to the multiturn electric actuator
model with the extra electrical storage device along, which acheieve the valves can be automatic reset(normally closed) while
power failure.

7. Have the electric actuator had the presence of limit switches (contact about the position of the cut-off device)?
Yes, there is the position indicator on the top of actuator. The open/closed status can be checked visually.

8. Which type of protection class of this electric actuator? IP65, IP67, IP68,Explosion proof.

9.Is there any manual override of electric valve?
Yes, every electric valve includes the manual override. You can open/close

10. Have the electric valve had the limiting operating time?
Electric haven't had the limiting operating time. It can be working for 99 hours continually without getting heating.
