SPECIFICATIONS

0.25 straw capacity: 2832

Height(mm): 650

Max Working Pressure(mpa): 0 MPa

Neck opening(mm): 50

Number of canister: 6

Outer diameter(mm): 384

Product name: YDS-20

Static evaporation(L/d): 0.10

Static hold time(day): 210

brand name: Zhong Xin

capacity: 21.5

core components: Pressure Vessel

key selling points: Competitive Price

machinery test report: Provided

place of origin: Xinxiang,china

video outgoing-inspection: Provided

warranty: 1 Year

Product Description

ZHONGXIN Liquid Nitrogen tank Cryogenic Storage container

The Liquid nitrogen tank has good heat preservation, durable aluminum alloy, and good liquid nitrogen storage time. The container can store biological specimens for a long time, preserve animals and semen.

It comes with 6 canisters for biological sample storage, suitable for liquid nitrogen.

YDS series liquid Nitrogen Container

YDS Small Capacity Containers: Light and portable and designed for transferring biological samples
YDS Long-Time Storage Containers: For storing biological samples or liquid nitrogen for an extended period of time under a static environment.
YDS High Capacity Containers: Larger capacity containers for longer hold times. Ideal for customers with high storage volumes under a static environment.
YDS Transport Liquid Nitrogen Tanks: Specially designed containers with additional side and bottom reinforcement for additional safety and security during sample transportation.

Technical Parameters

Main Features:

1. Made of high-strength aluminum alloy.
2. Equipped with lock cover to ensure safety.
3. Small size, light weight, with a handy handle.

4. Equipped with protective cover to protect the tank.
5. Designed with multiple layers of thermal insulation.

Main Application:

1. Preservation of animal semen.

2. Preservation of biological samples.

3. Cryogenic treatment of metal materials.

4. Cryogenic assembly of precision parts.

5. Refrigeration and freezing in the health industry.

Liquid nitrogen container from 1 liter to 175 liters

Ordinary Models:

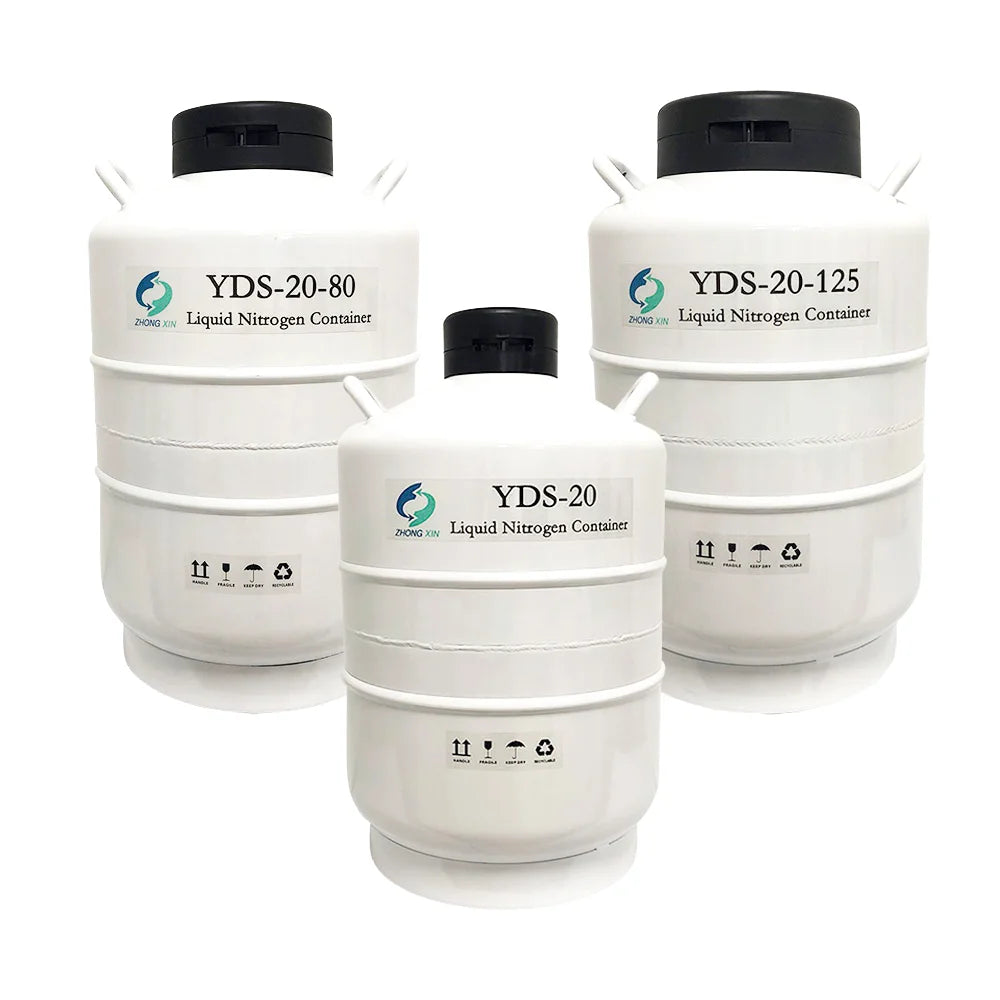

50mm neck: YDS-1, YDS-2, YDS-3, YDS-6, YDS-10 YDS-15, YDS-20, YDS-30, YDS-35, YDS-50B.

80mm neck: YDS-10-80,YDS-20-80, YDS-30-80, YDS-35-80, YDS-50B-80, YDS-30B-80, YDS-35B-80, YDS-50B-80.

125mm neck: YDS-10-125, YDS-15-125, YDS-30-125,YDS-35-125, YDS-50B-125.

* 5-year vacuum warranty for all tanks OEM liquid nitrogen containers with your logos are acceptable

Model	Volume (L)	Neck Opening  (mm)	Outer Diameter (mm)	Height (mm)	Empty Weight (kg)	Static Storage (day)
YDS-1	1	35	224	210	2.6	13
YDS-2	2	35	224	420	2.8	28
YDS-3	3.3	50	224	420	3.5	32
YDS-6	6.5	50	304	510	5.2	63
YDS-10	11	50	304	560	6.1	106
YDS-10-80	11	80	304	560	6.1	62
YDS-10-125	11	125	304	560	6.3	35
YDS-10B	11	50	305	560	6.1	65
YDS-15	16	50	384	590	7.8	159
YDS-15-80	16	80	384	590	8.1	86
YDS-15-125	16	125	384	590	8.3	52

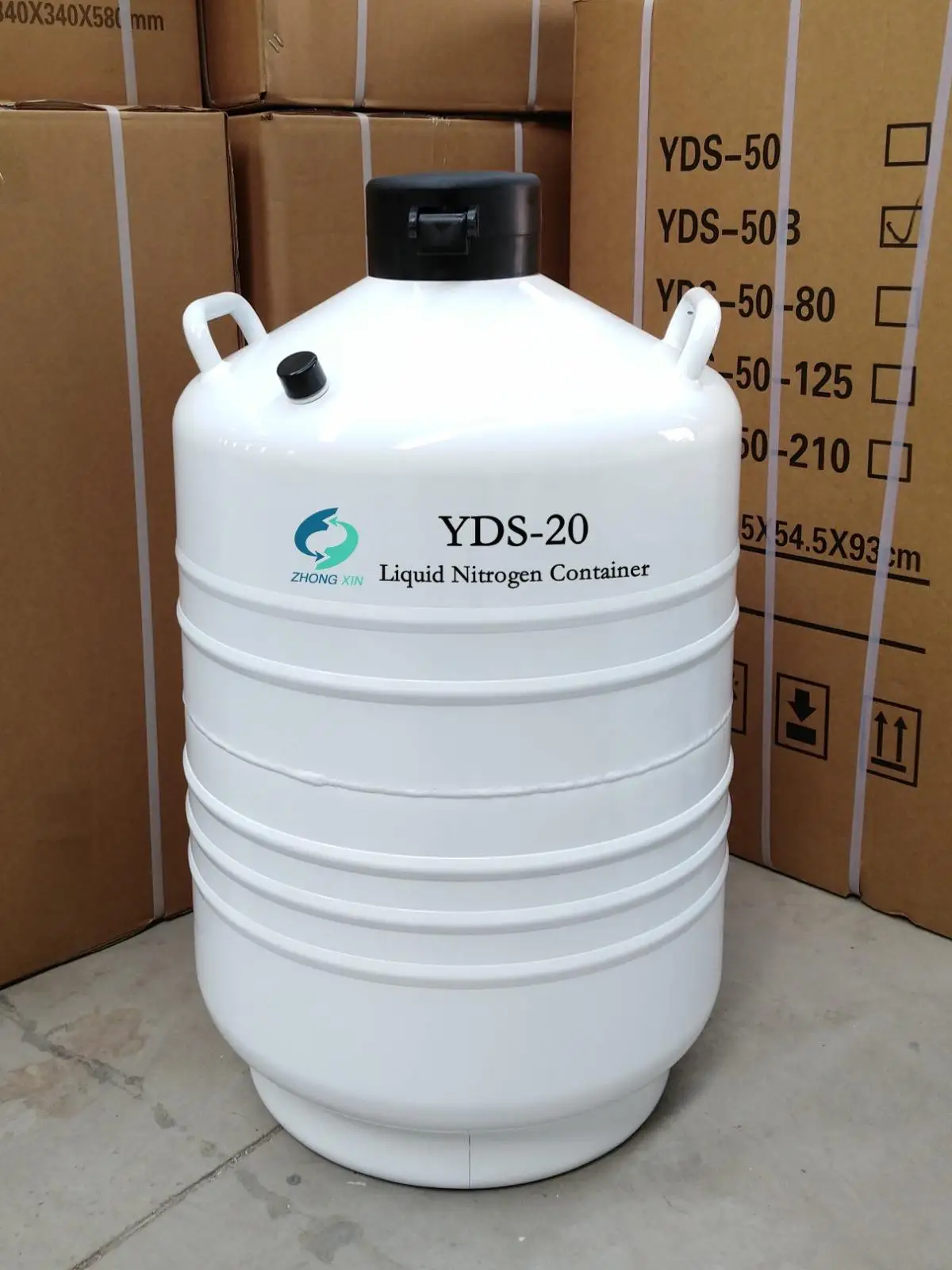

YDS-20	21.5	50	384	650	8.7	210
YDS-20-80	21.5	80	384	650	8.9	116
YDS-20-125	21.5	125	384	650	9	69
YDS-30	32	50	440	720	14	296
YDS-30-80	32	80	440	720	14	175
YDS-30-125	32	125	440	720	14.3	112
YDS-30B	31.5	50	440	720	14.9	185
YDS-30B-80	31.5	80	440	720	15	132
YDS-30B-125	31.5	125	440	720	15.2	93
YDS-35	36.5	50	440	750	15	326
YDS-35-80	36.5	80	440	750	15.1	189
YDS-35-125	36.5	125	440	750	15.4	122
YDS-35B	35.5	50	440	750	17.2	209
YDS-35B-80	35.5	80	440	750	17.5	144
YDS-35B-125	35.5	125	440	750	17.6	102
YDS-50B	51	50	495	850	19.5	260
YDS-50B-80	51	80	495	850	19.6	193
YDS-50B-125	51	125	495	850	20	136

Product Details

Handle

The design of the handle makes the use more comfortable and the appearance is more beautiful and generous.

Protective cover

Prevent the tank from bumping in the process of use. And it can be carried on the back.

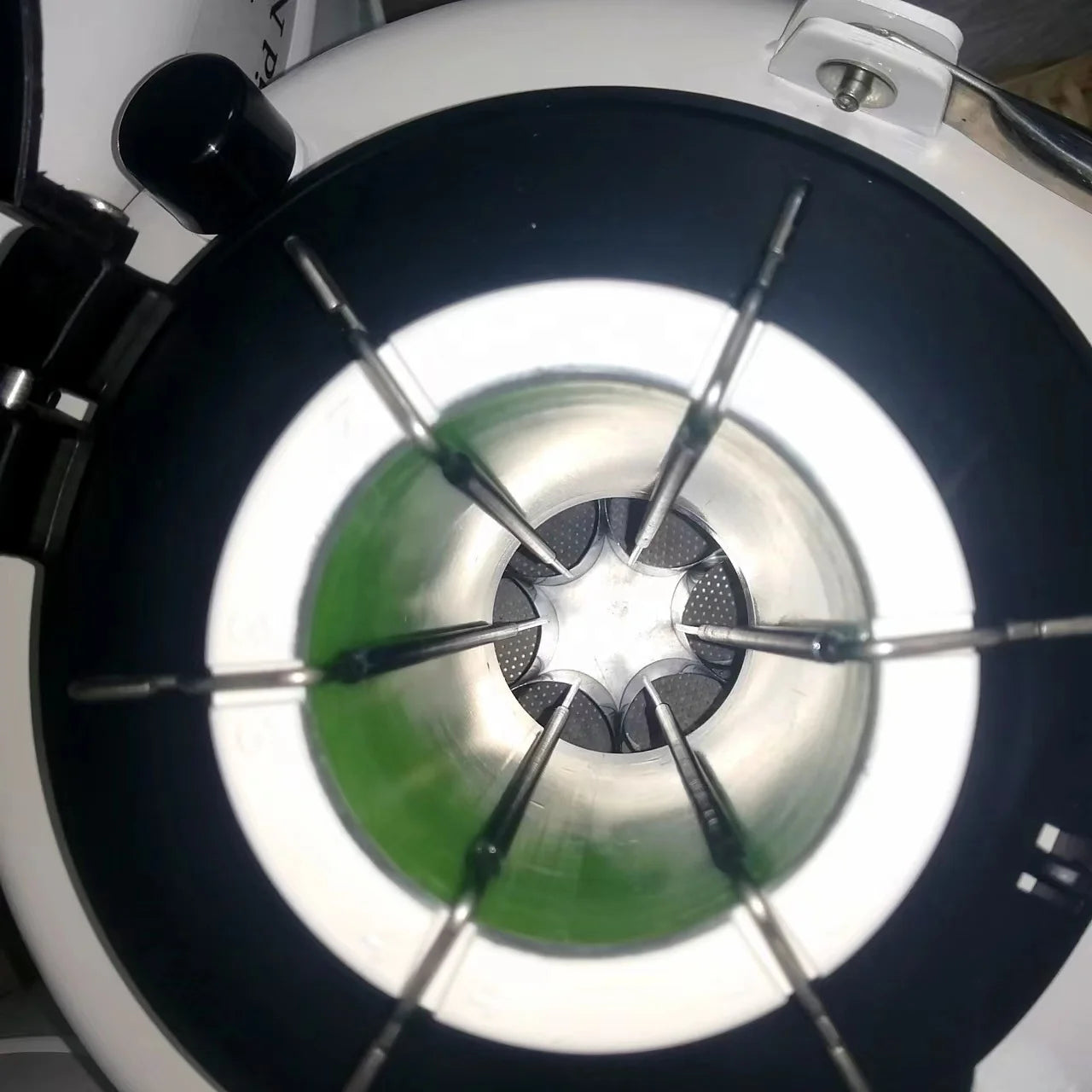

Canister

There are two types of canisters: nonporous or porous. The size of the lifting cylinder is determined by the caliber of the Liquid nitrogen tank.

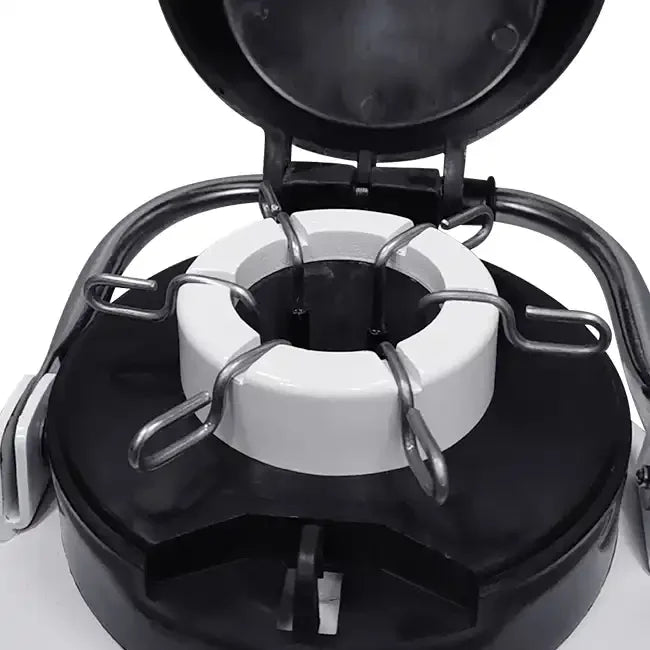

Neck plug

The neck plug is made of polyurethane material, which can reduce the evaporation of liquid nitrogen and fix the lifting cylinder.

Company Profile

Xinxiang Zhongxin Trading Co., Ltd.

Our founder team has been engaged in the research and production of liquid nitrogen containers since 2005. Since its establishment, our factory has designed, produced, and delivered products to the highest standards in the industry. All tanks are CE certified. Our liquid nitrogen tanks have been put into use in over 60 countries and regions. In addition to our own liquid nitrogen containers, we also supply various necessary equipment for the laboratory industry and animal husbandry industry, providing one-stop services for our customers..

Product Application

Cryopreservation in liquid nitrogen for frozen semen/embryo transfer. It is mainly used for cattle, sheep, and other fine kinds of public animals and treasure animal semen cryopreservation, and long-distance transportation.

Cryopreservation of biological samples. In the biomedical field, samples can be soaked in liquid nitrogen tanks stored in liquid nitrogen and long-term active preservation.

Cryotherapy: to supply liquid nitrogen for cryochamber/cryosauna

Food and beverage: liquid nitrogen smoke ice cream, molecular food, smokey beverage, popcorn, etc.

Beauty industry: facial freckles, spot moles, and other skin diseases cryotherapy.

Stage effects: the stage effect of clouds and smoke during celebrations like weddings, parties, dramas and movies

Packing & Delivery

1.Export standard packaging.

2.One piece in one carton (If necessary, wooden case or pallet is available.)

3.Each packed with insulated cover.

4.Customer requirements.

Our Service

Pre-Sales Service

- Quick response to customers' inquiry or online message.

- Offer detailed specification and competitive prices.
- Provide professional technical solutions,recommend the right models.

After-Sales Service

- 1 years warranty.
- 5 years of vacuum protection.
- Long-term technical support.
- If any problems due to quality reasons, we are responsible for repair or replacement of a new to you.

FAQ

1. What is the minimum order quantity (MOQ) of your products?
MOQ:1 pieces

2. How about warranty of your product?
Warranty of our liquid nitrogen tank is 12 months.

3. Do you test all your goods before delivery?
Yes,we have 100% test before delivery.

4. Do you accept OEM/ODM order?
Yes,of course,our factory can make a custom for you.

5. How about the delivery time?

7-30 days after receiving the deposit.
