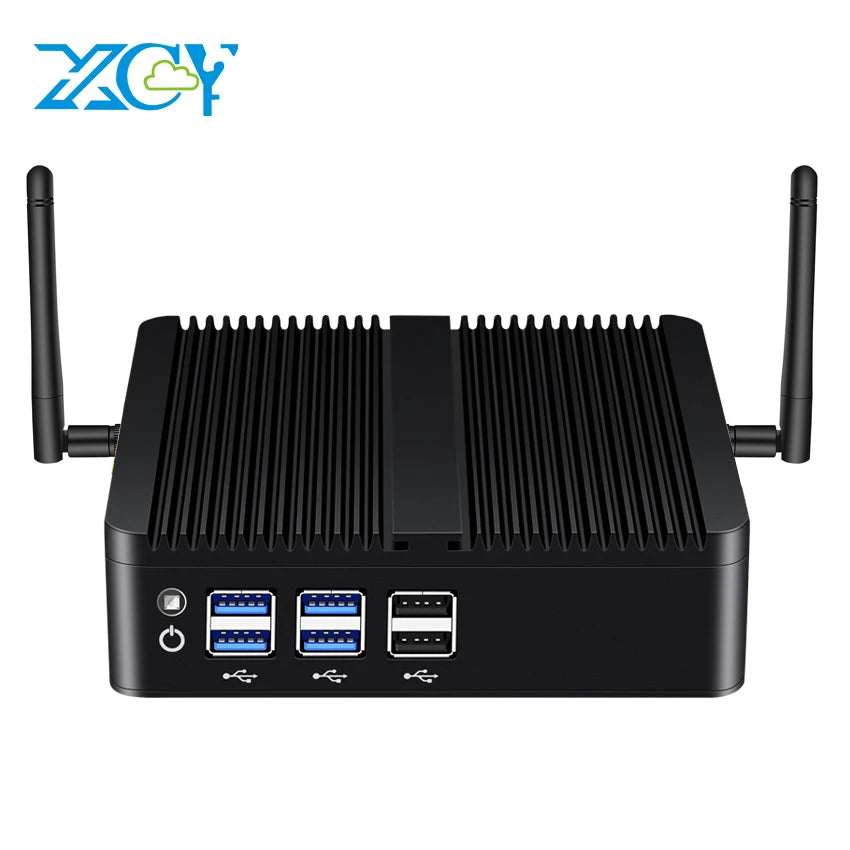

XCY Fanless Mini PC Intel Core I7 4500U I5 4200U Gigabit Ethernet HDMI VGA Display 8x USB Ports Support WiFi Windows Linux
XCY Fanless Mini PC Intel Core I7 4500U I5 4200U Gigabit Ethernet HDMI VGA Display 8x USB Ports Support WiFi Windows Linux
Couldn't load pickup availability
SPECIFICATIONS
Audio Ouput: 3.5mm Jack, support MIC and earphone IN
Brand Name: XCY
Certification: CE,FCC,RoHS
Construction: Fanless design passive cooling
Dimension: 133*125*34mm
Ethernet: 10/100/1000Mbps Realtek 8111H BaseT LAN
Graphics Card Type: Integrated Card
Hard Drive: mSATA SSD (support 2.5 inch SATA )
Hard Drive Capacity: 512GB
High-concerned chemical: None
Memeory Types: SODIMM DDR3L 1333/1600MHz 1.35V
Memory Capacity: 8 GB
Model Number: XCY-X30
Origin: Mainland China
PC Case Material: Aluminum alloy
Power Adapter: AC100-240V to DC12V-5A/3A
Processor Brand: Intel
Processor Main Frequency: Depends on CPU
Processor Model: Intel Core i7-4500U
Supported OS: Windows 10, Windows 8, Windows 7, Linux
Type: Mini Desktop,Mini PC

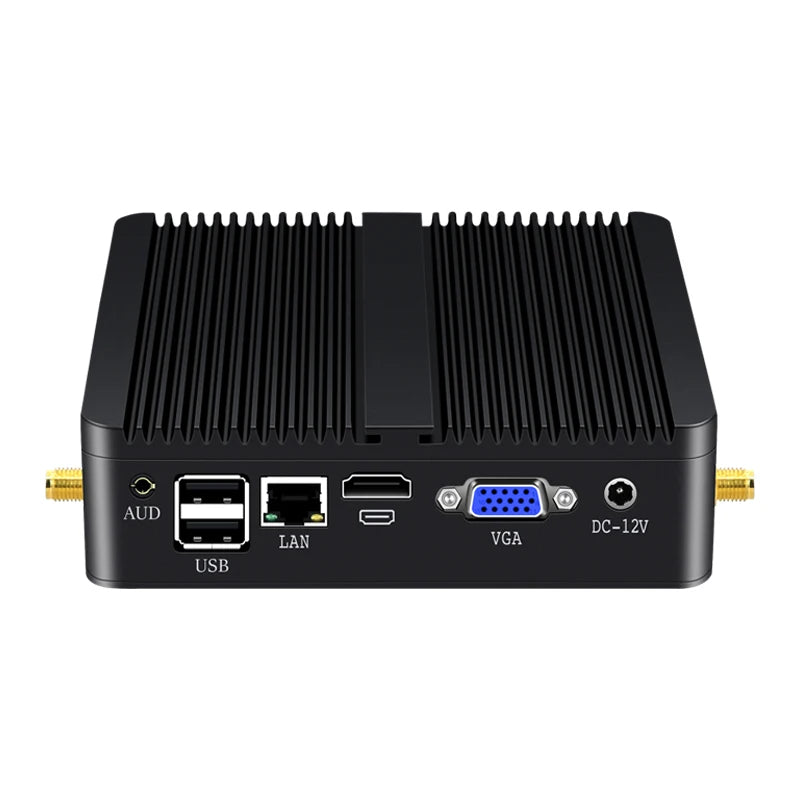

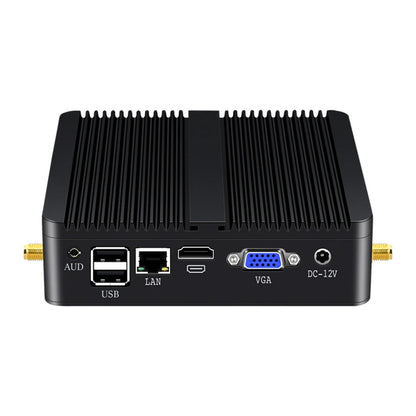

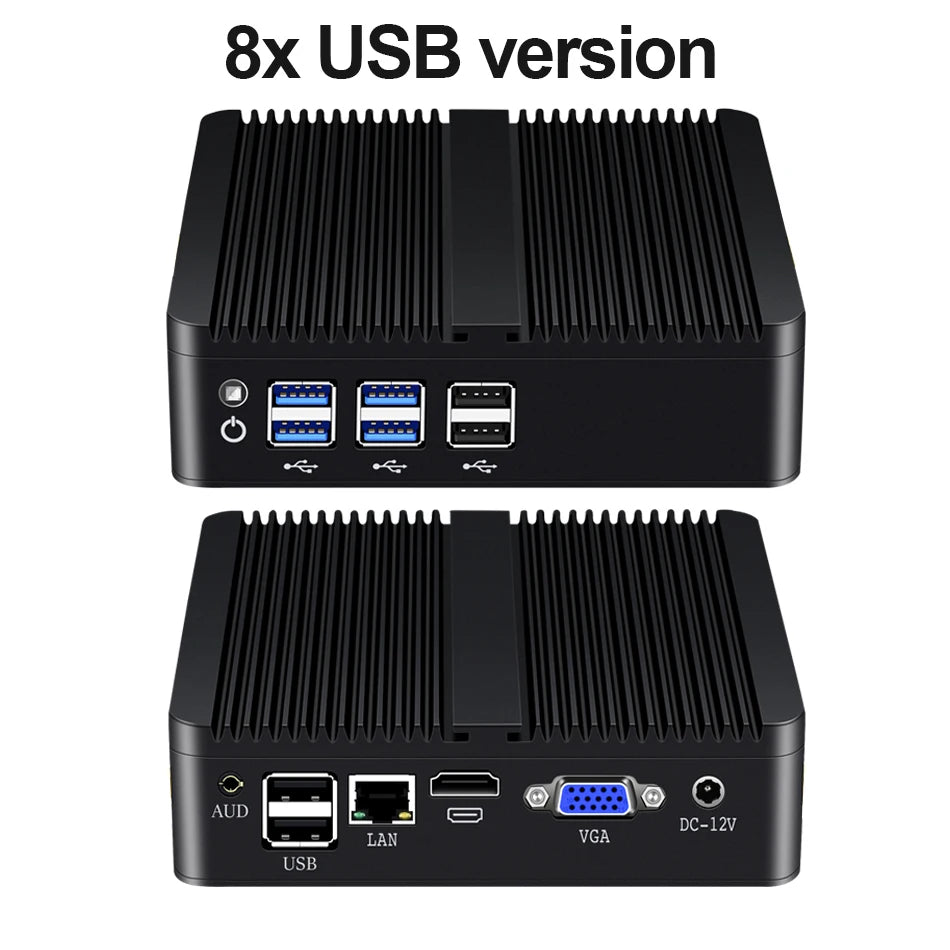

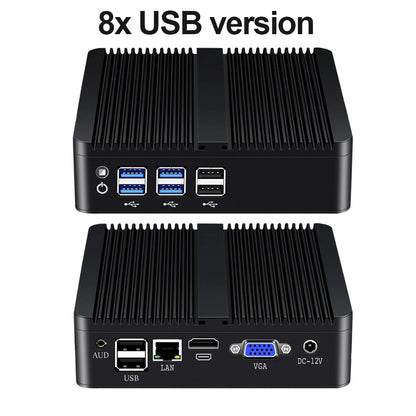

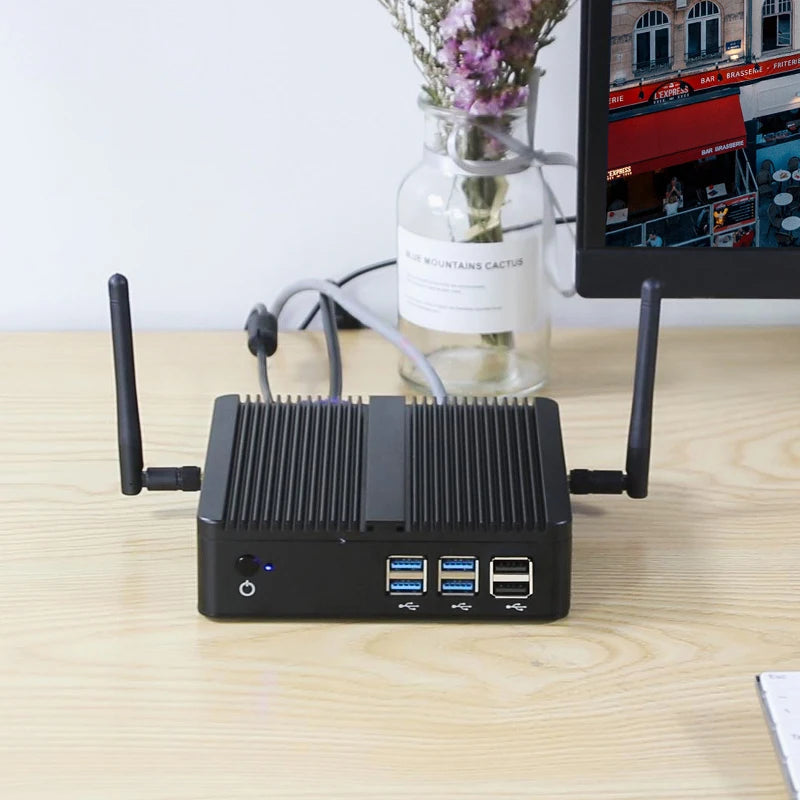

USB Ports: 4x USB 3.0, 4x USB2.0
Use: Multimedia
Video Output: 1x HDMI, 1x VGA
WiFi: 300Mbps (bluetooth optional)
XCY - X30 Serises Mini Computers Intel Core i3/i5/i7/ Intel Celeron Processors, SODIMM-DDR3L RAM, mSATA SSD, HDMI+VGA Dual Display, Support Windows & Linux/Ubuntu, Home Theater/Office Computers/Embedded Industrial Computers/Library computers / Cash register computers
Processors |
Intel Core i7-4500U, 2 cores 4 threads, 4M cache, 1.80GHz, up to 3.0GHz Intel Core i3-5005U, 2 cores 4 threads, 3M cache, 2.0GHz Intel Core i5-4200U, 2 cores 4 threads, 3M cache, 1.60GHz, up to 2.60GHz Intel Core i3-4005U/4010U, 2 cores 4 threads, 3M cache, 1.70GHz Intel Core i5-5200U, 2 cores 4 threads, 3M Cache, 2.20GHz, up to 2.70GHz Intel Celeron 29555U, 2 cores 2 threads, 2 M Cache, 1.40GHz |
Memory |
1x SODIMM DDR3L 1.35V 1333/1600MHZ, max support to 8GB |
Storage |

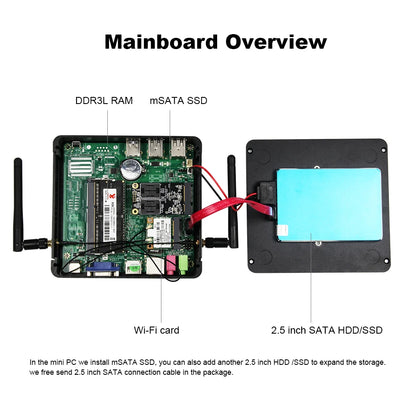

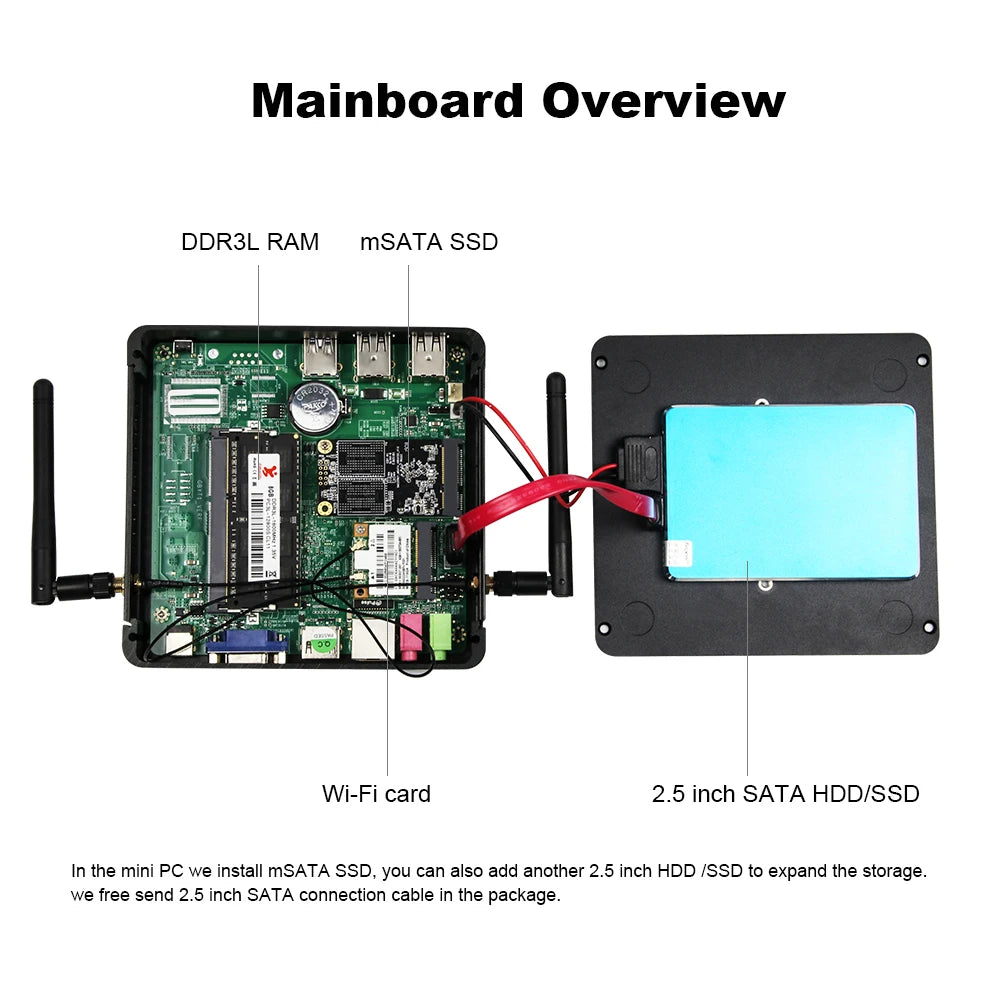

Support 1x mSATA SSD ( we pre-install this type hard drive in mini PC ) Support 1x 2.5 inch HDD |
Graphics |
Integrated graphics |
Network Interfaces |
GbE RJ45 Realtek 8111H, support wake on LAN ,PXE |
Expansion |
1x Mini PCI-E for WiFi/Bluetooth module ( half height size ) |
OS Support |
Windows 7/8/8.1/10, Linux, Ubuntu |
USB Ports |
4x USB3.0, 4x USB2.0 |
Display Port |
1x VGA, 1x HDMI |
Features |
Support WOL,automatically power on when power restored after a sudden power loss |
Audio Ports |
1x 3.5mm jack, support Speaker, MIC-IN/Line out |
Construction |
Fanless passive cooling |
Case |
Aluminum Case |
Dimension |
135x125x35mm |
Netweight |
0.95Kg |
Operating Temperature |
-20℃ to +60℃ |
RH |
5%~90% @30℃, non-condensing |
Power Adapter |
DC12V-5A/3A |

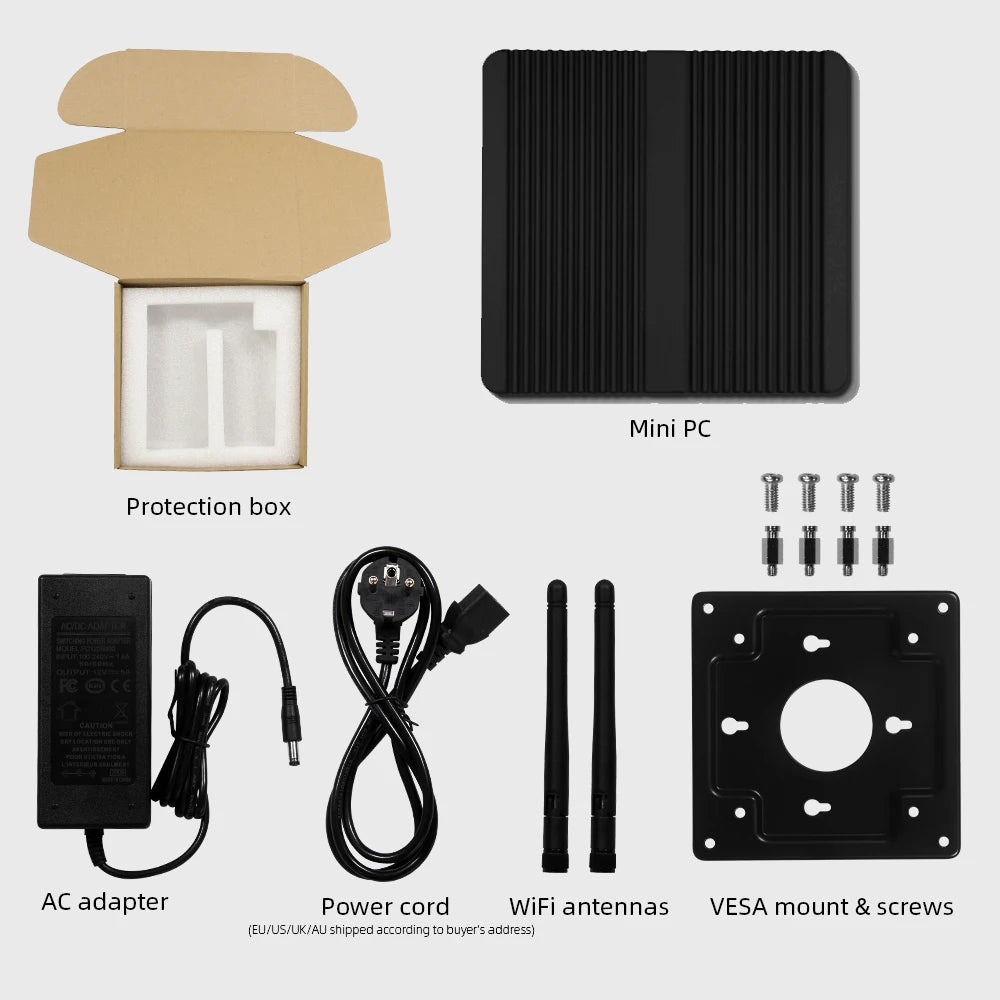

Package List |

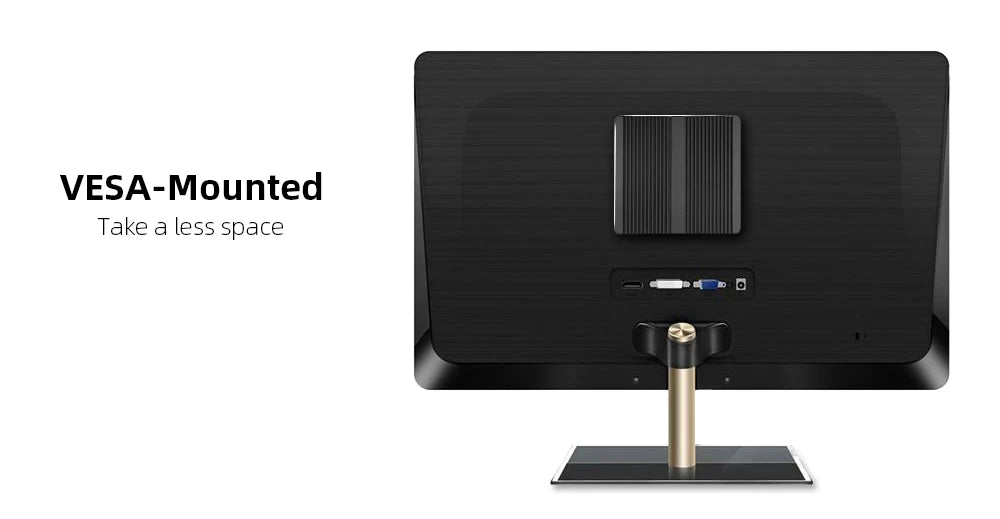

1x Mini PC 1x AC Adapter 1x Power cord ( power plug type according to buyer’s address ) 1x SATA cable 1x VESA mount 1x User manual |
