SPECIFICATIONS

Audio: Realtek ALC1220-VB

BIOS: 2 x 256 Mbit flash

CHIPSET: Intel Z490 Express Chipset

CPU (MAX SUPPORT): 10th I9 I7 I5 I3

FORM FACTOR: E-ATX, 30.5cm x 27.1cm

I/O Controller: iTE I/O Controller Chip

LAN: 1 x Aquantia 10GbE LAN,1 x Intel 2.5GbE LAN chip

MEMORY CHANNEL: Dual

Memory: 4 x DDR4 DIMM sockets

Multi-Graphics Technology: NVIDIA Quad-GPU SLI

application: Desktop

brand name: GIGABYTE

chipset: Intel Z490

chipset manufacturer: Intel

cpu type: Intel

form factor: E-ATX

fsb / ht: 2133mhz

graphics card type: Integrated-need CPU support

hard drive interface: SATA,3 x M.2 ports (Key M)

item condition: Used

maximum ram capacity: 128 GB

memory bank: 4 DDR4

memory channel: Double

memory type: DDR4

package: No

place of origin: Guangdong, China

ports: Wi-Fi,SATA,AGP PRO,PCI-Express X16,PCI-Express X8,PCI-Express X4,AGP 2X,USB 2.0,PS2,Mini USB,E-sata,Ethernet,M.2,USB 3.0,Usb3.1,PCI-E 3.0,PCI-Express X1,AGP 8X,AGP 4X,HDMI

private mold: Yes

products status: Used

socket type: LGA 1151

with cpu: No

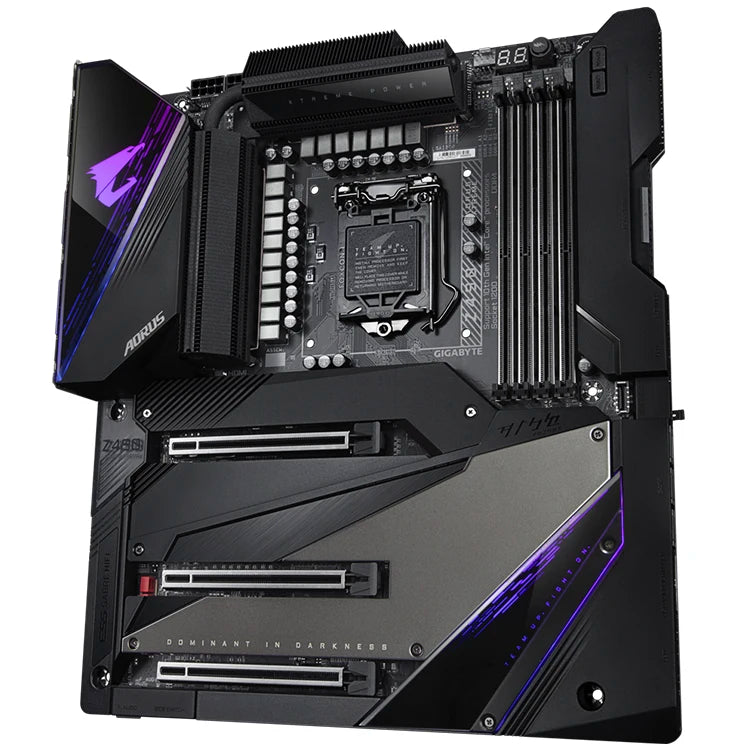

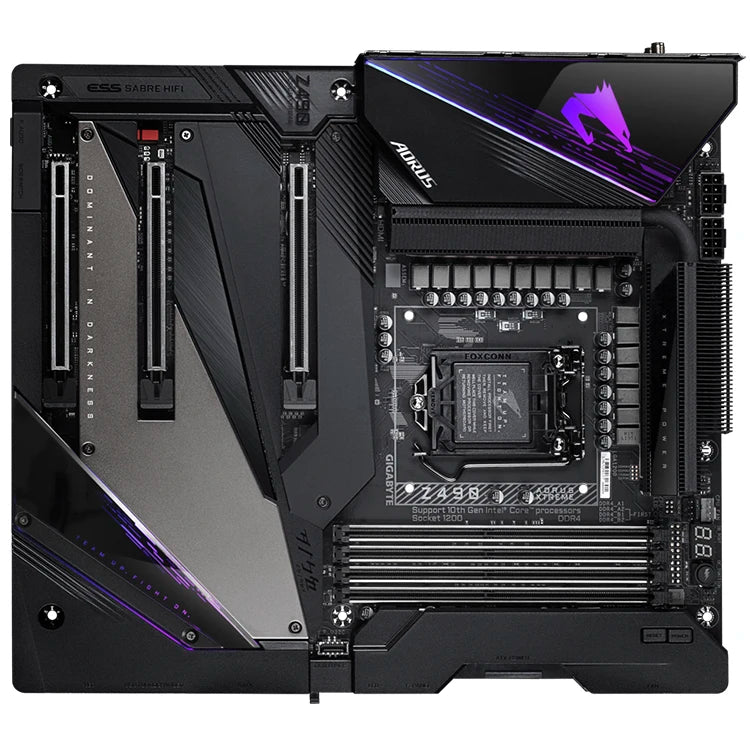

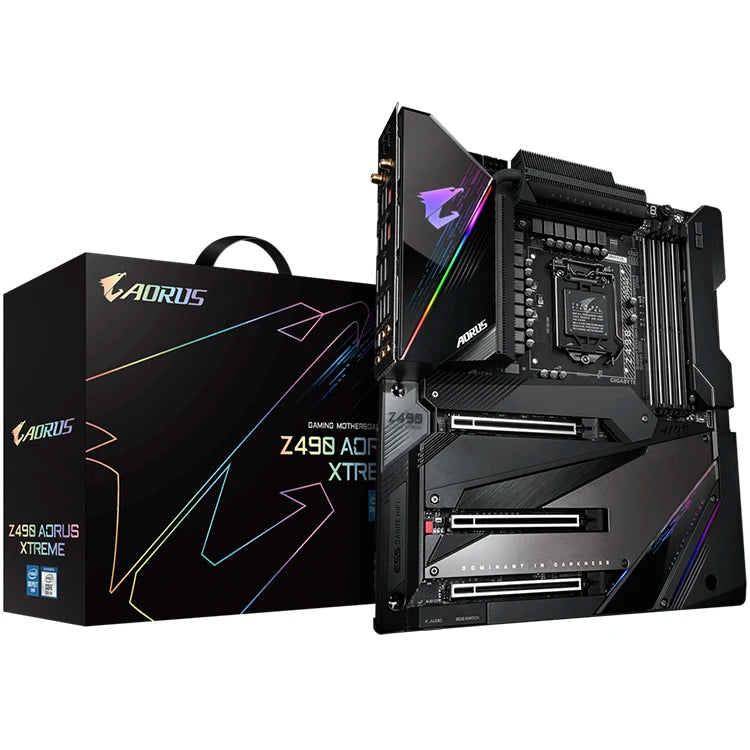

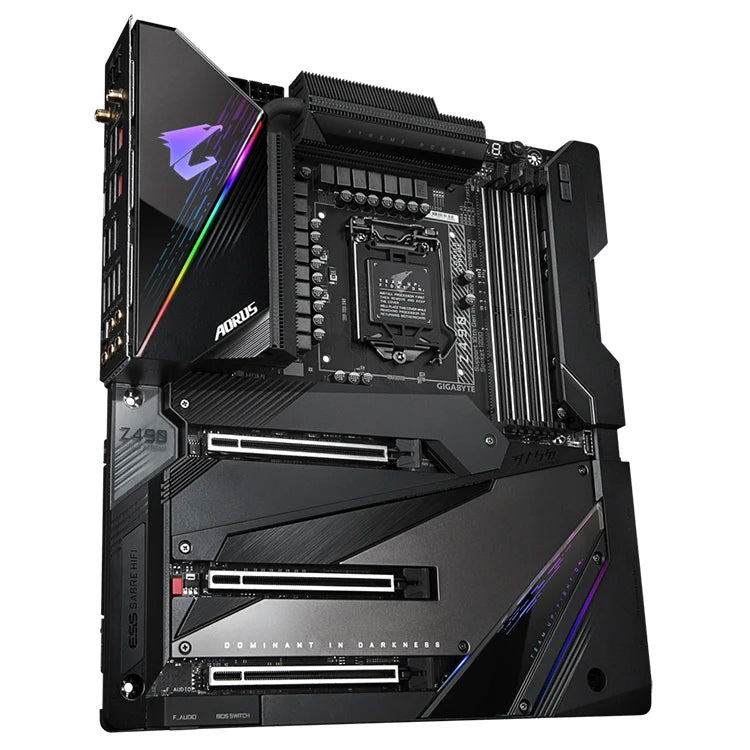

GIGABYTE Z490 AORUS XTREME with Intel Z490 Chipset LGA 1200 E-ATX Gaming Motherboard Support 0th Generation Intel Core Processor

Intel^® Z490 AORUS Motherboard with 16 Phases Digital VRM, Fins-Array II Heatsink, Direct-Touch Heatpipe II ,NanoCarbon Baseplate, Intel^® Thunderbolt 3, ESSential USB DAC, Intel^® WiFi 6 802.11ax, AQUANTIA^® 10GbE LAN, Intel^® 2.5GbE LAN, RGB FUSION 2.0

• Supports 10th Gen Intel^® Core™ Series Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• Intel^® Optane™ Memory Ready

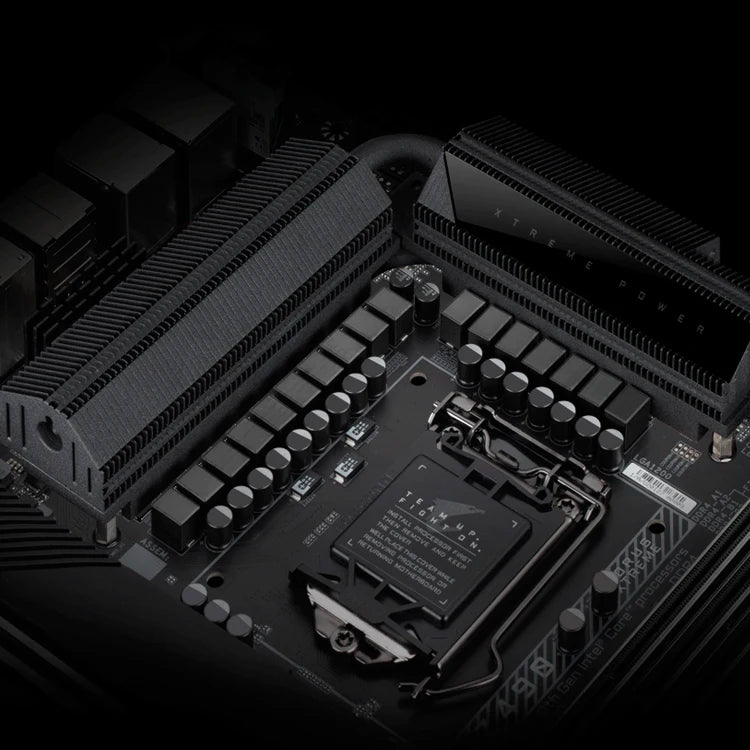

• 16 Phases Digital VRM Solution with 90A Smart Power Stage and Tantalum Polymer Capacitors Array
• XTREME MEMORY with SMT DIMM and Shielded Memory Routing
• Thermal Reactive Armor with Fins-Array II Heatsink, Direct Touch Heatpipe II and NanoCarbon Baseplate
• Intel^® Thunderbolt™ 3 Onboard
• Exclusive ESSential USB DAC
• Onboard Intel^® WiFi 6 802.11ax 2T2R & BT 5 with 2X AORUS Antenna
• 127dB SNR AMP-UP Audio with High-End ESS SABRE 9018K2M DAC, LME 49720 and OPA1622 OP-AMP, WIMA Audio Capacitors
• AQUANTIA^® 10GbE BASE-T LAN and Intel^® 2.5GbE LAN with cFosSpeed
• Triple Ultra-Fast NVMe PCIe 3.0 x4 M.2 with Thermal Guards II
• USB TurboCharger for Mobile Device Fast Charge Support
• RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
• Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection

• CPU
1. Support for 10th Generation Intel^® Core™ i9 processors/Intel^® Core™ i7 processors/ Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/Intel^® Pentium^® processors/ Intel^® Celeron^® processors in the LGA1200 package
2. L3 cache varies with CPU

(Please refer to "CPU Support List" for more information.)

• Chipset
1. Intel^® Z490 Express Chipset
• Memory
1. Intel^® Core™ i9/i7 processors:
   Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz
2. Intel^® Core™ i5/i3/Pentium^®/Celeron^® processors:
   Support for DDR4 2666/2400/2133 MHz
3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
4. Dual channel memory architecture
5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

• Onboard Graphics

Integrated Graphics Processor+Intel^® Thunderbolt™ 3 Controller:

1. 2 x Intel^® Thunderbolt™ 3 connectors (USB Type-C™ ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120 x 2880@60 Hz with 24 bpp
   * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.)
   * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

Integrated Graphics Processor-Intel^® HD Graphics support:

1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
   * Support for HDMI 1.4 version and HDCP 2.3.

Maximum shared memory of 512 MB

• Audio
1. Realtek^® ALC1220-VB codec+ESS ES9218P DAC (front panel audio)
2. Realtek^® ALC1220-VB codec+ESS ES9018K2M DAC+TI OPA1622 operational amplifier (rear panel audio)
3. Support for DTS:X^® Ultra
4. High Definition Audio
5. 2/4/5.1/7.1-channel
6. Support for S/PDIF Out
• LAN
1. 1 x Aquantia 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) (LAN1)
2. 1 x Intel^® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) (LAN2)
• Wireless Communication module

Intel^® Wi-Fi 6 AX201

1. WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
2. BLUETOOTH 5.1
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
   * Actual data rate may vary depending on environment and equipment.
• Expansion Slots
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
   * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
   * The PCIEX4 slot shares bandwidth with the M2P_PCH connector. The PCIEX4 slot operates at up to x2 mode when an M.2 SSD is installed in the M2P_PCH connector.

(All of the PCI Express x16 slots conform to PCI Express 3.0 standard.)

• Multi-Graphics Technology
1. Support for NVIDIA^® Quad-GPU SLI™ and 2-Way NVIDIA^® SLI™ technologies
2. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
• Storage Interface
1. 1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe x4/x2 SSD support)(M2A_CPU)
2. 1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe x4/x2 SSD support)(M2M_PCH)
3. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2P_PCH)
4. 6 x SATA 6Gb/s connectors
5. Support for RAID 0, RAID 1, RAID 5, and RAID 10
   * Refer to "1-9 Internal Connectors," for the installation notices for the PCIEX4, M.2, and SATA connectors.

Intel^® Optane™ Memory Ready

• USB

Chipset+Intel^® Thunderbolt™ 3 Controller:

1. 2 x USB Type-C™ ports on the back panel, with USB 3.2 Gen 2 support

Chipset:

1. 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
2. 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+USB 3.2 Gen 1 Hub:

1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs:

1. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers with the included front USB header extension cable)
• Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 2 x 8-pin ATX 12V power connectors
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 4 x system fan headers
6. 2 x system fan/water cooling pump headers
7. 2 x addressable LED strip headers
8. 2 x RGB LED strip headers
9. 6 x SATA 6Gb/s connectors
10. 3 x M.2 Socket 3 connectors
11. 1 x noise detection header
12. 1 x front panel header
13. 1 x front panel audio header
14. 1 x USB Type-C™ header, with USB 3.2 Gen 2 support
15. 1 x USB 3.2 Gen 1 header
16. 1 x USB 2.0/1.1 header
17. 2 x temperature sensor headers
18. 1 x power button
19. 1 x reset button
20. 1 x OC button
21. 2 x BIOS switches
22. Voltage Measurement Points

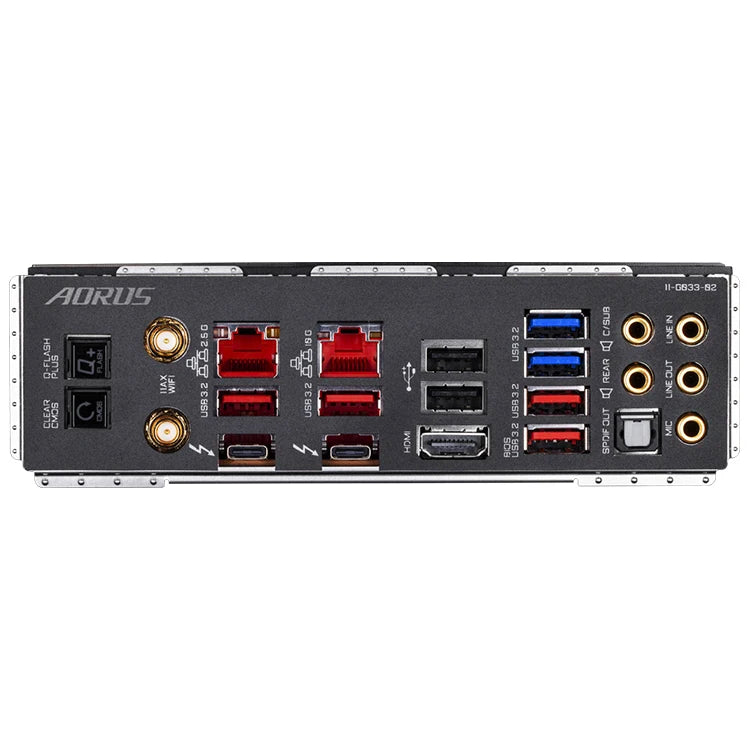

• Back Panel Connectors
1. 1 x Q-Flash Plus button
2. 1 x Clear CMOS button
3. 2 x SMA antenna connectors (2T2R)
4. 2 x Thunderbolt™ 3 connectors (USB Type-C™ ports, with USB 3.2 Gen 2 support)
5. 4 x USB 3.2 Gen 2 Type-A ports (red)
6. 2 x USB 3.2 Gen 1 ports
7. 2 x USB 2.0/1.1 ports
8. 1 x HDMI port
9. 2 x RJ-45 ports
10. 1 x optical S/PDIF Out connector
11. 5 x audio jacks
• I/O Controller
1. iTE^® I/O Controller Chip
• H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Overheating warning
6. Fan fail warning
7. Fan speed control
   * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
8. Noise detection
• BIOS
1. 2 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   @BIOS
   EasyTune
   Fast Boot
   Game Boost
   RGB Fusion
   Smart Backup
   System Information Viewer
   USB TurboCharger
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install
• Bundled Software
1. Norton^® Internet Security (OEM version)
2. cFosSpeed
3. XSplit Gamecaster + Broadcaster (12 months license)
• Operating System
1. Support for Windows 10 64-bit
• Form Factor
1. E-ATX Form Factor; 30.5cm x 27.1cm
• Remark
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
