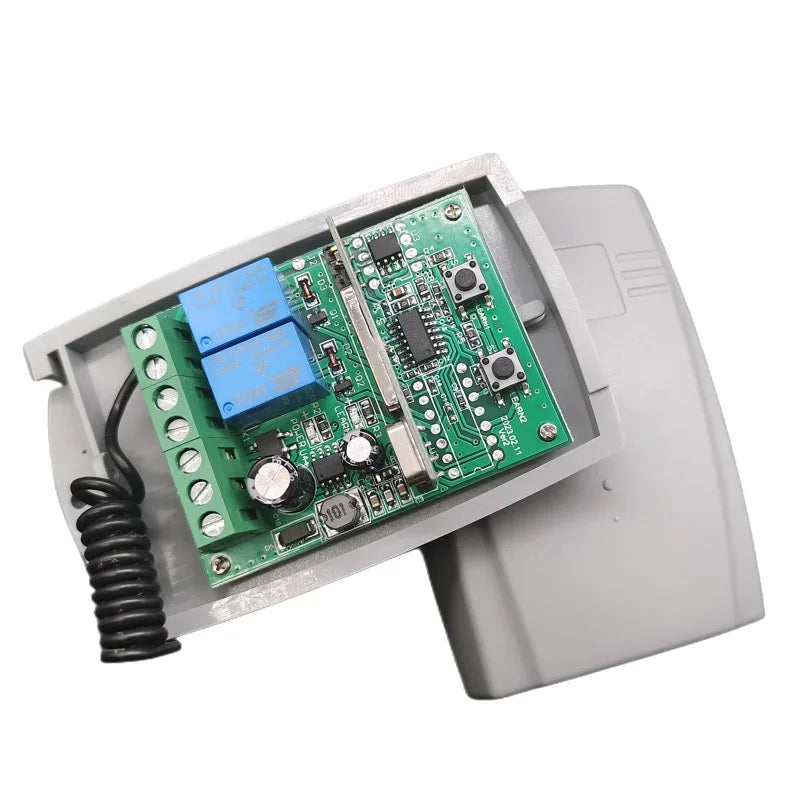

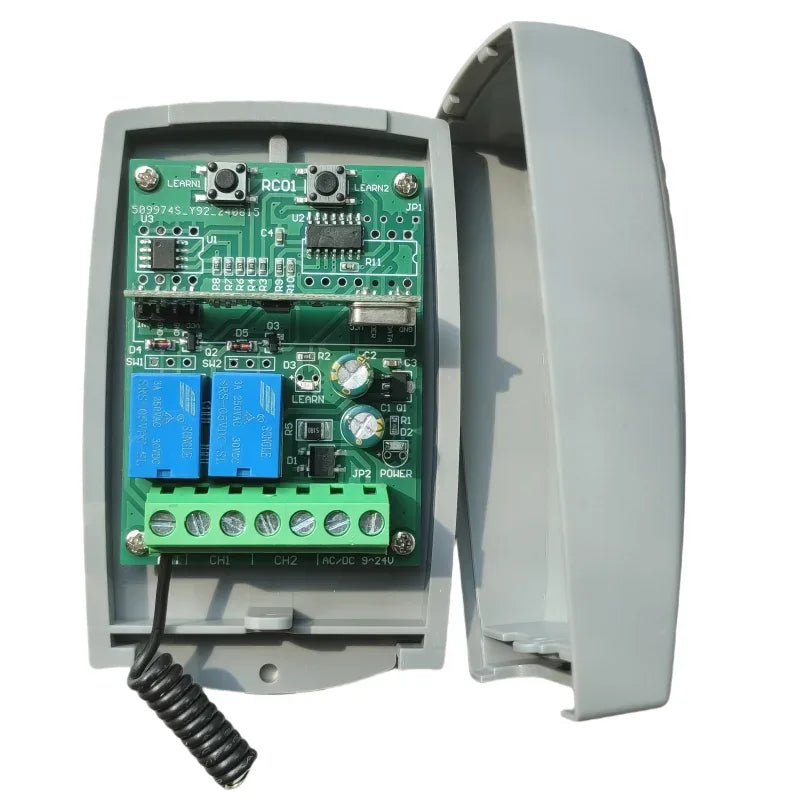

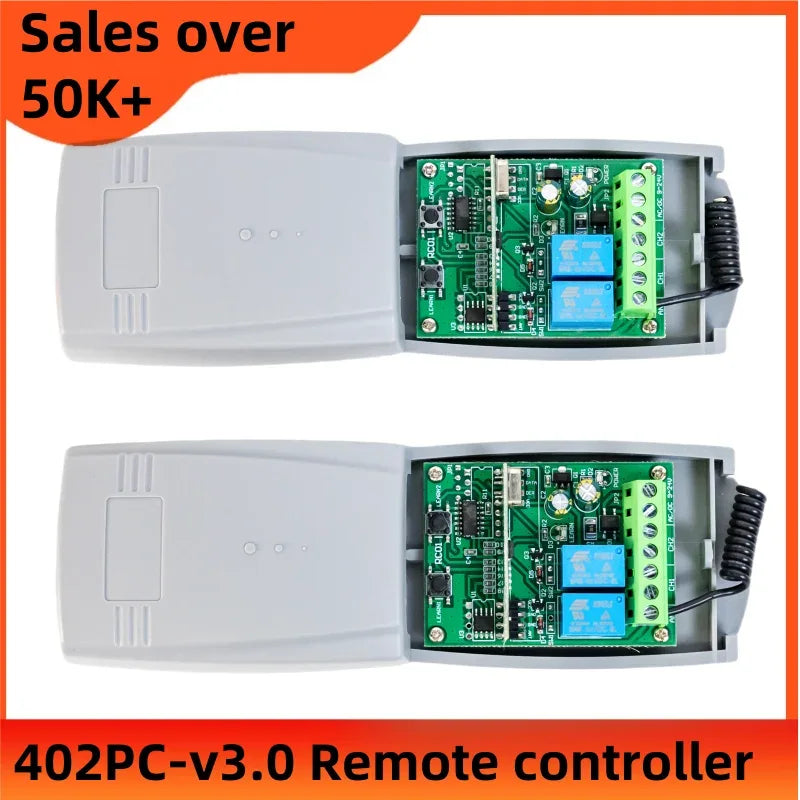

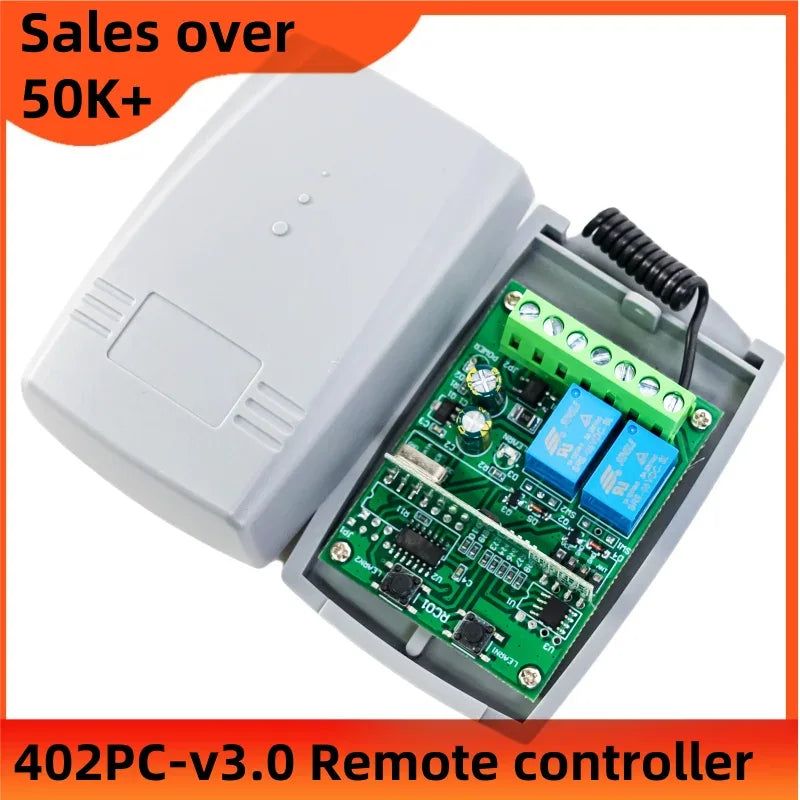

Universal 2 Channel ON/OFF RF Switch Wireless Receiver 9V-24V 433mhz Receiver For Brands Remote Control

CFA2,113 XOF

~~CFA2,113 XOF~~ CFA2,113 XOF

Sale Produits stock

Shipping calculated at checkout.

Color GRAY

Ships From China Mainland

SPECIFICATIONS

Brand Name: NONE

Certification: CE,RoHS

Channel: 2

Color: grey

Frequency: 433 MHz

High-concerned chemical: None

IC: Imported IC

Memory: 400pcs one button remote

Model Number: Universal 2 Channel 433MHZ Wireless Garage Door RF Receiver

Operating temp: -40+-80

Origin: Mainland China

Package: Yes,PE

Static working current: ≤7mA

Support APP: No

Transmitter: HCS301 Rolling code

Use: Universal

Wireless Communication: RF

contact current: ≤3A

product name: 2ch DC 12V 24V RF Receiver For 433.92Mhz Rolling Fixed Code Transmitter Command Garage Gate Motor Receiver

sensitivity: ≥-112dBm

size: 94*60*28.5mm

working voltage: 12-24v AC/DC

Universal 2 Channel 433MHZ Wireless Garage Door RF Receiver work with hcs301Rolling Code transmitter

Specifications:

1.Automatic barrier
2. Garage doors
3. Electronic gates
4. Electrical appliances/Home automation i.e. lights
Easy to use, the 2 channel receiver system lets you take control of your gate, barrier, home and garage door

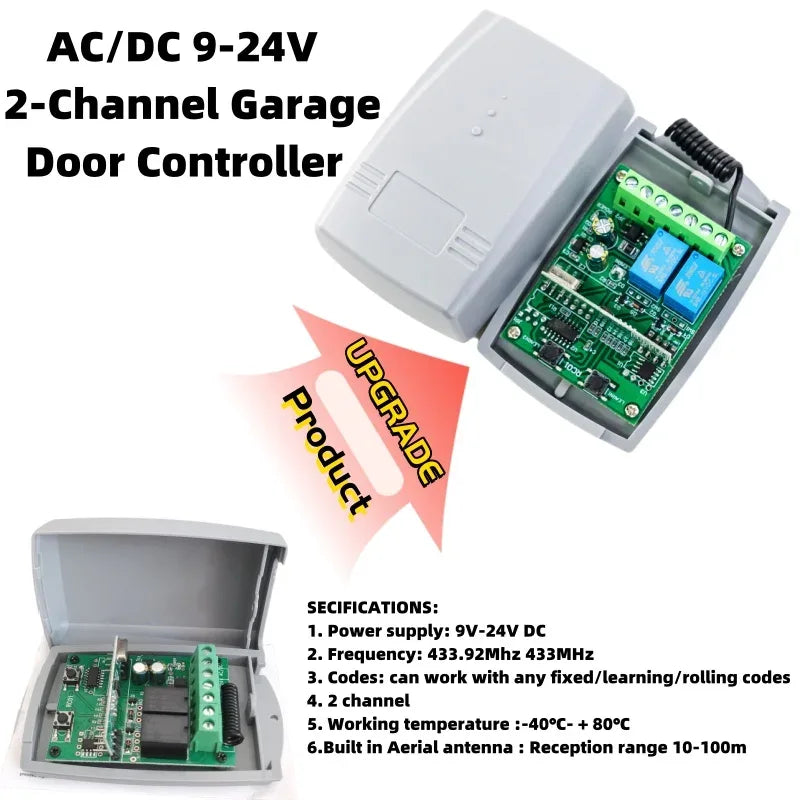

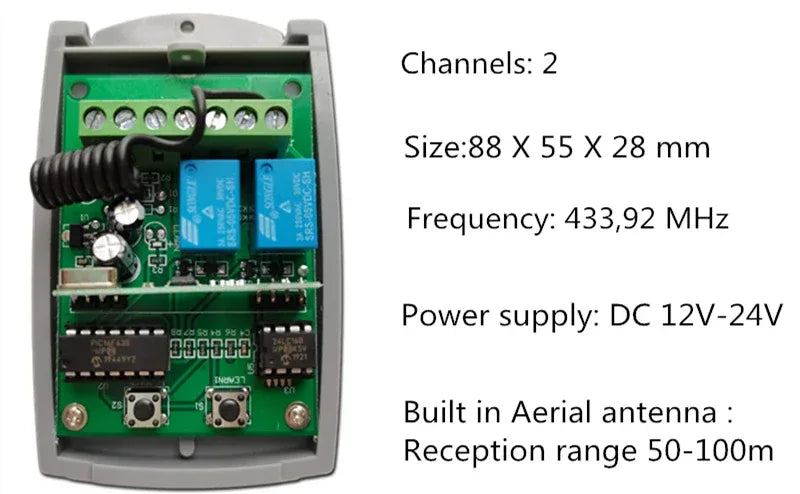

Number of channels: 2
Reception frequency: 433,92 MHz 433MHz
Working temperature :-40℃- + 80℃
Power supply: DC 12V-24V
Built in Aerial antenna : Reception range 70-100m
One receiver can work with 100 codes

Products advantage:

1) Can learn Fixed and Rolling code 433,92Mhz remote controls separately and simultaneously !!!

2) Can learn and use most Original 433,92Mhz Fixed and Rolling code remote controls !!!

3) 2 channel receiver provides you with an option to control and use 2 gate automations or alarm systems simultaneously

4) Very low price.Good quality.

5)Shipped within 48 hours of the working day.

PROGRAMMING: Momentary working model:

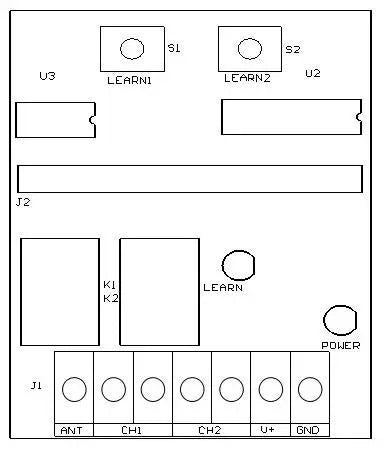

1.Learning transmitter’s codes: Press “learn 1” or “learn 2” for 1 second, the “learn_led” light, then, press the button which you choose on the transmitter till the “learn_led” flash and go out, the transmitter’s code has been stored.

• Repeat the above steps for other transmitters.

2.Erasing transmitter’s codes: Press “learn 1” or “learn2” and hold on to make the “learn_led light till go out, all codes of transmitters which had been stored are erased.
