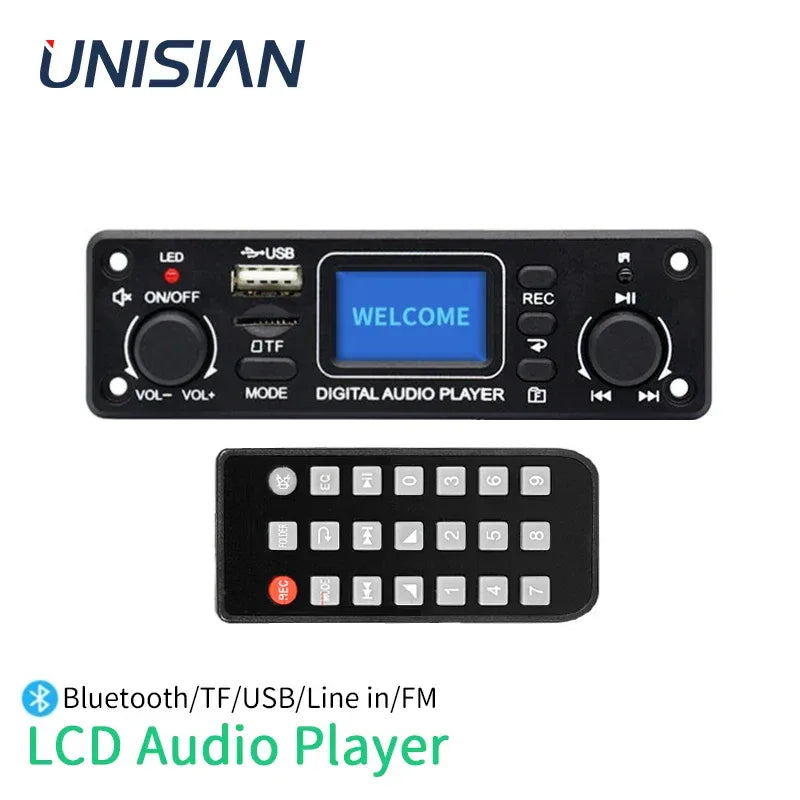

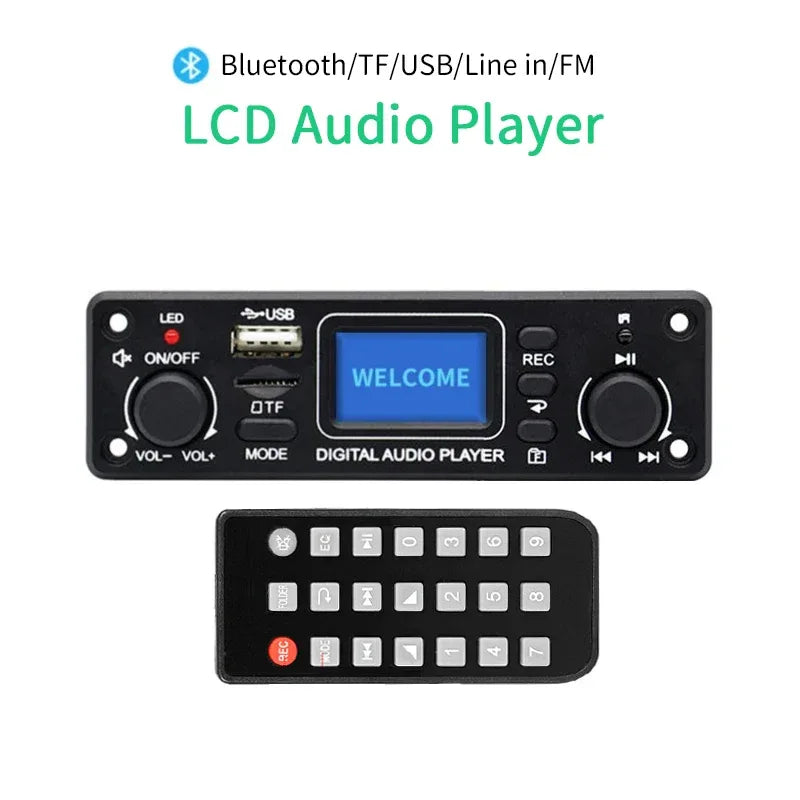

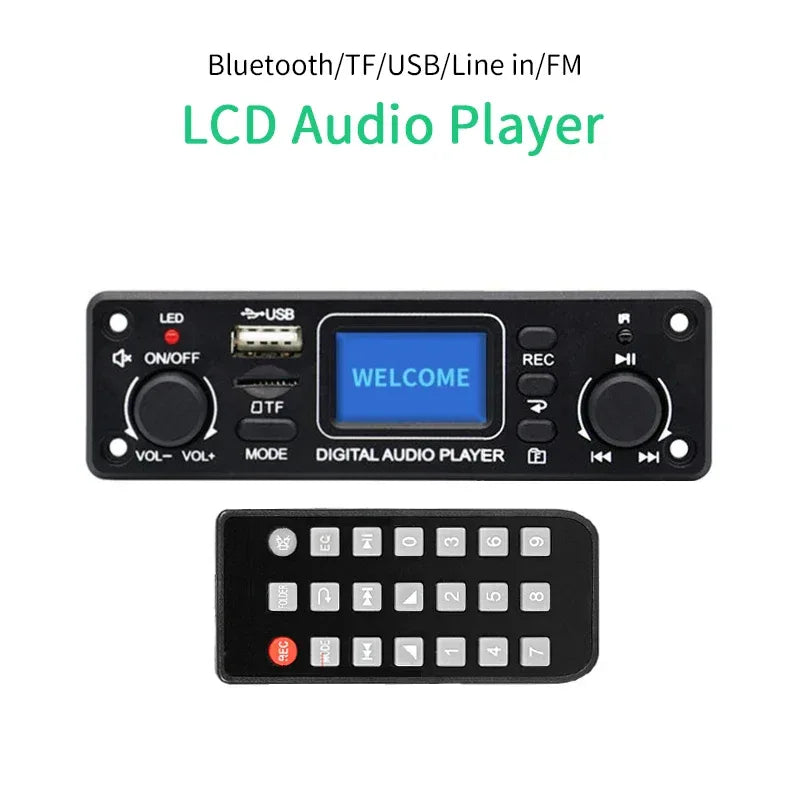

UNISIAN LCD Digital Audio Player Bluetooth MP3 Player Decoder Board 128*64 DOTS LCD USB SD BT FM Music Player Module TPM119B
UNISIAN LCD Digital Audio Player Bluetooth MP3 Player Decoder Board 128*64 DOTS LCD USB SD BT FM Music Player Module TPM119B
Couldn't load pickup availability
SPECIFICATIONS
Bluetooth: Yes
Brand Name: Lenwaycn
DSD Sampling Frequencies: NONE
High-concerned chemical: None
Input Format: MP3/WMA/WAV/FLAC/ACC
Inputs: AUX
Item Name: Digital Audio Player Module
Material: Plastic
Model Number: TPM119B
Origin: Mainland China
Outputs: 3.5 mm
PCM Sampling Frequencies: 44.1 kHz
PCM Word Length: 16-bit
Type: Desktop
Voltage Input: DC9V-15V (DC12V)

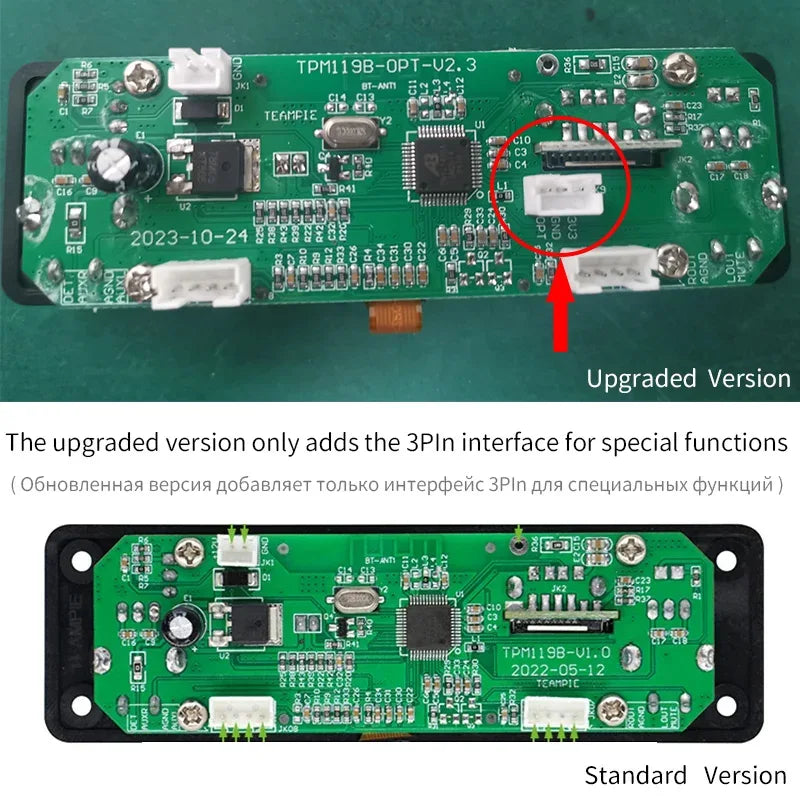

The upgraded version only adds the 3PIn interface for special functions.Reserved interfaces for other functions in the future. Default sending of upgraded version
Bluetooth Digital Audio Player MP3 Player Decoder Board 128*64 DOTS LCD USB SD BT FM Music Player Module TPM119B
Item name ：Digital Audio Player Module
Voltage Input ：DC9V-15V (DC12V)
FILE SYSTEM: FAT32
SUPPORT FORMAT:MP3/WMA/WAV/FLAC/ACC
SIGNAL INPUT ：BLUETOOTH,USB,SD,LINE IN
USB: UPTO 64 GB
TF : UPTO 64 GB
RECORD: MP3 FORMAT 48KHZ,STEREO ,128KBPS
DOT MATRIX LCD:128*64 DOTS(61*20mm)
SONG NAME/LIST DISPLAY : YES

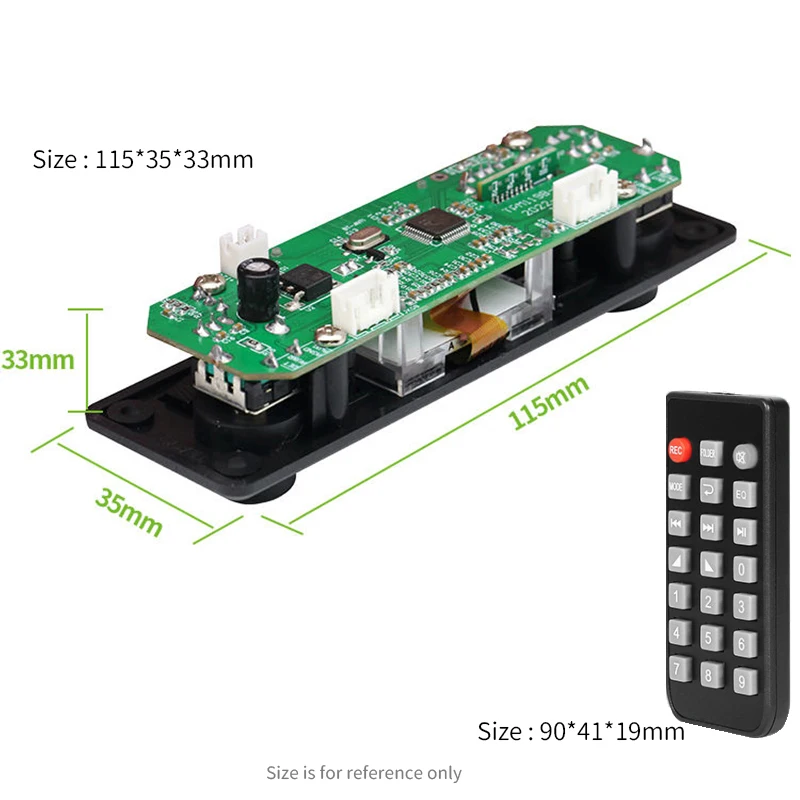

SIZE：115*35*33MM
(The function of microphone was removed)

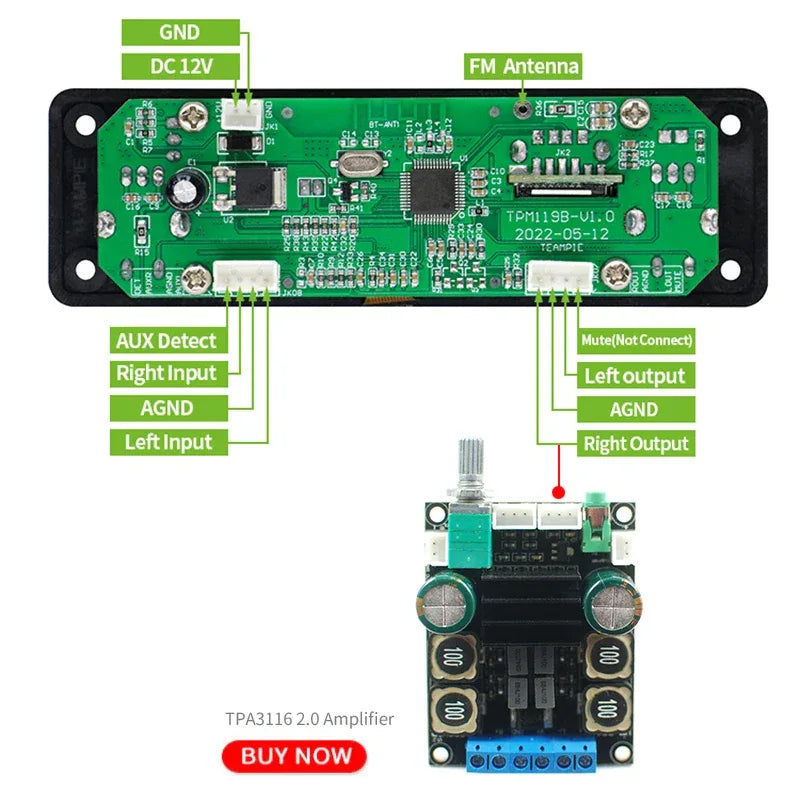

Recommended power amplifier board
Other versions recommended

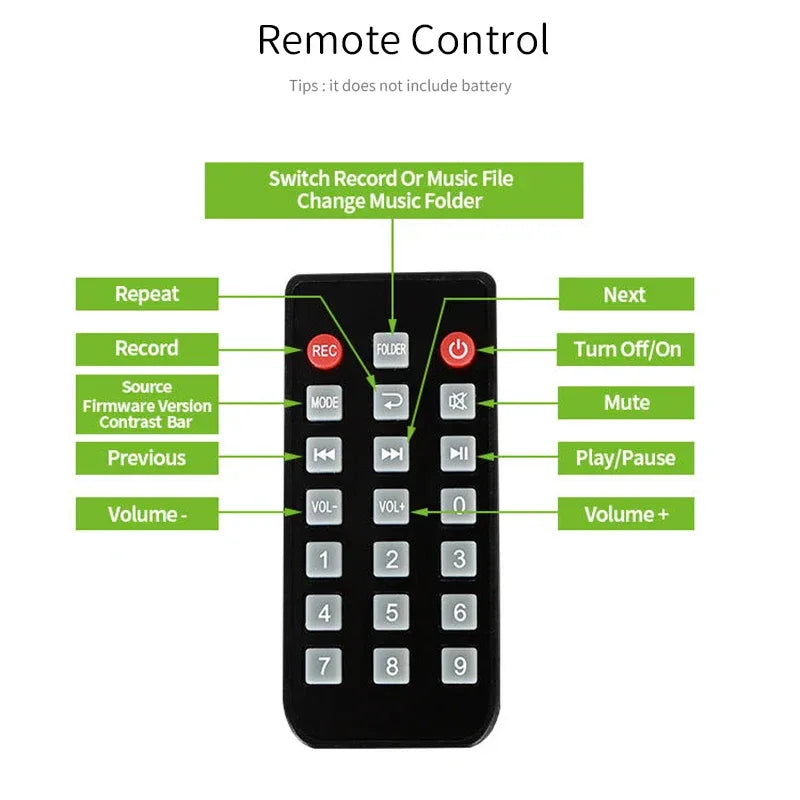

Remote control without battery
