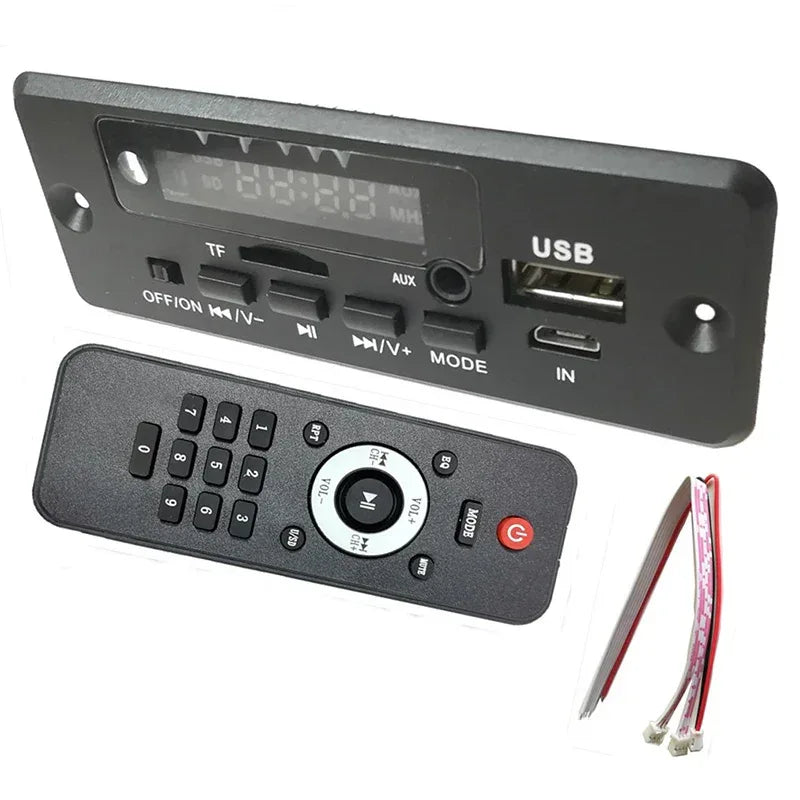

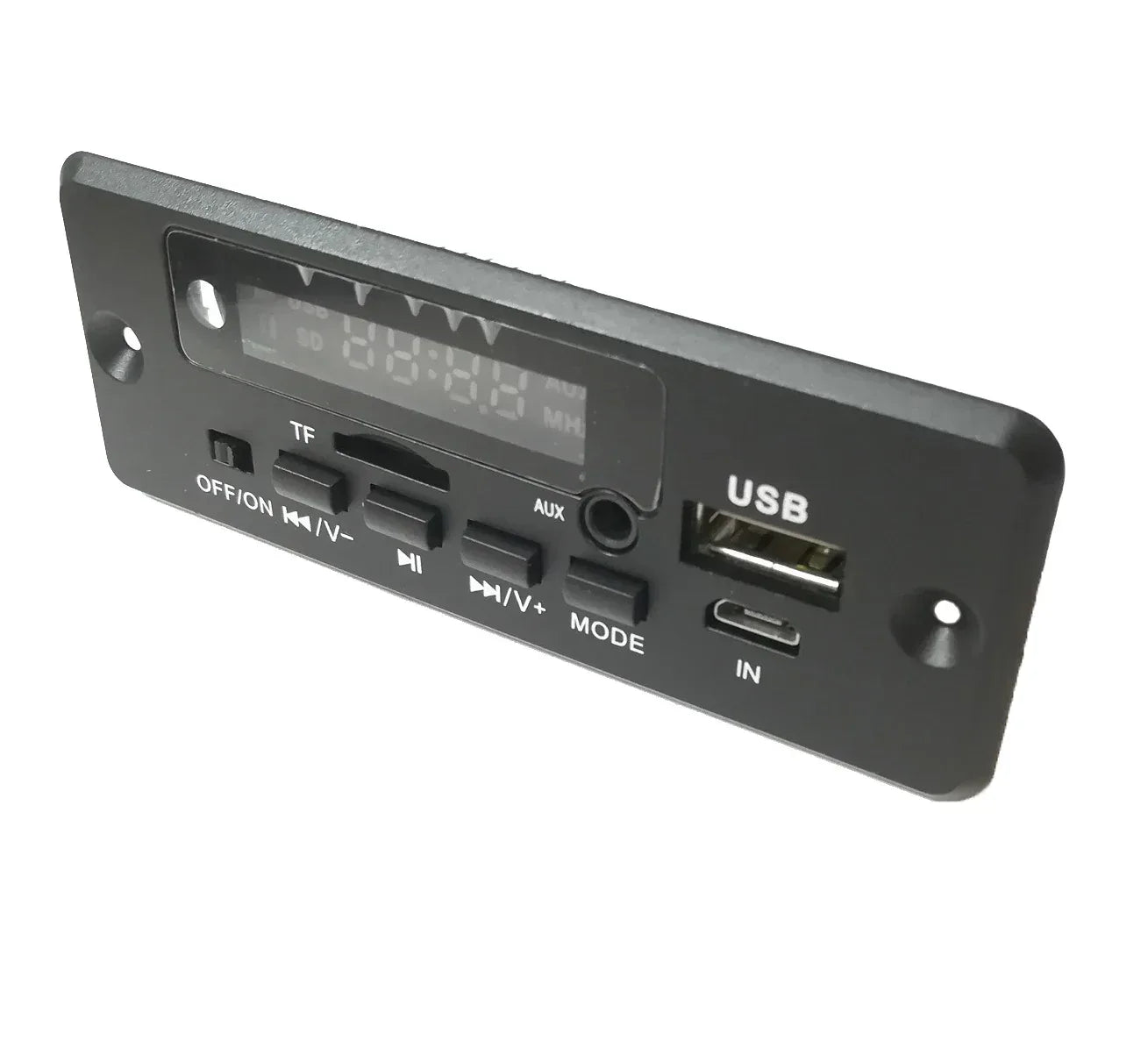

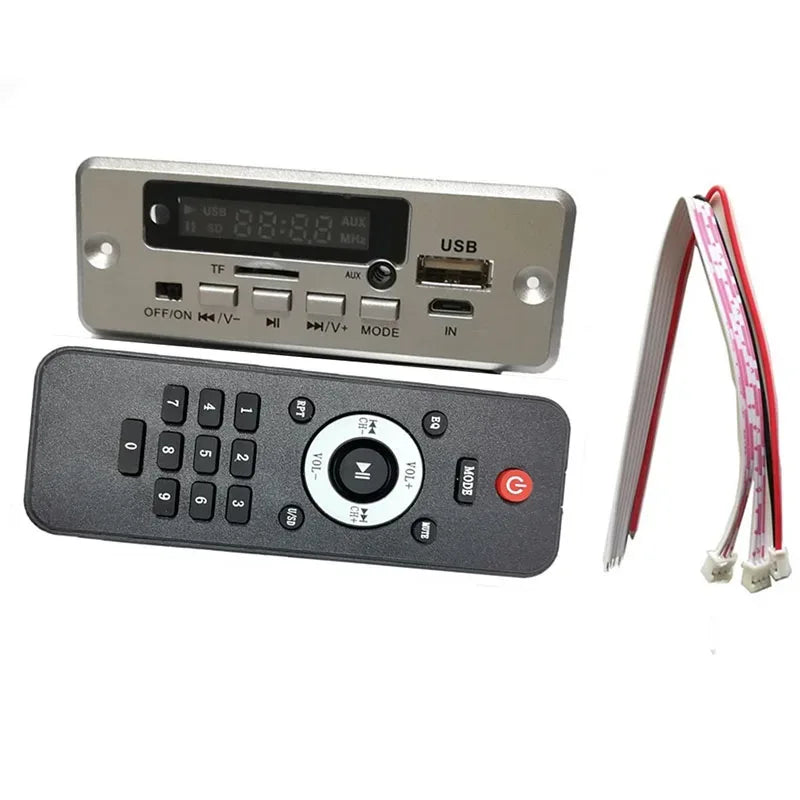

Speaker modification MP3 decoder LED display 12v5V universal lossless Wav module audio decoder PCBA
Speaker modification MP3 decoder LED display 12v5V universal lossless Wav module audio decoder PCBA
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: szymxtv
Choice: yes
FM radio: 76MHz-108MHz
High-concerned chemical: None
Item Type: Speaker Active Components
Model Number: TF 02CAV
Origin: Mainland China
semi_Choice: yes
Note: The module chip model number is random; Different batches have different numbers(including modules)
Special Note:

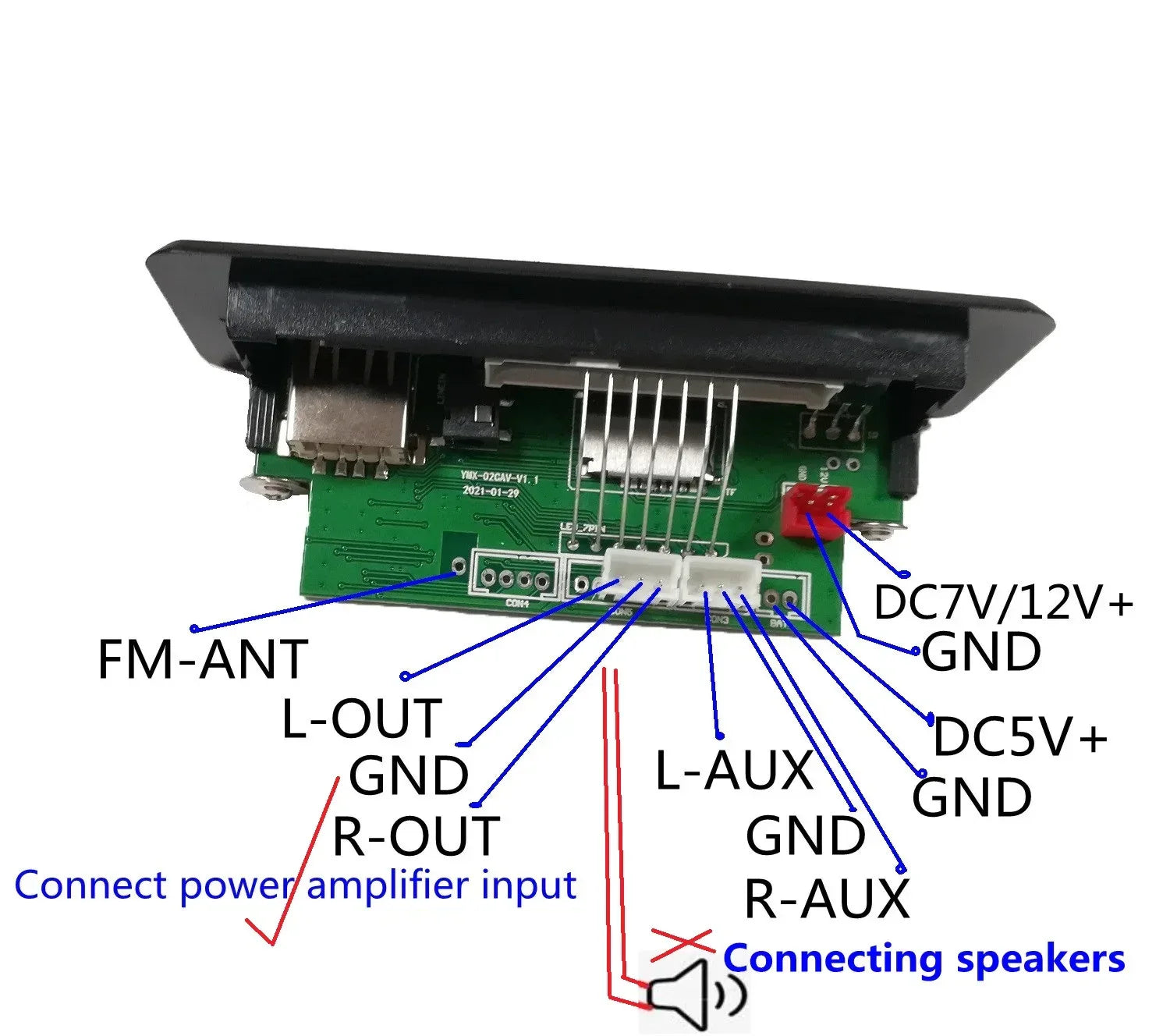

This product does not come with an amplifier function and cannot be directly connected to a speaker for use
The IN hole on the module panel has an invalid working function
LED display 12v5v universal lossless wav module MP3 decoder radio MP3 speaker decoder lossless audio decoder PCBA
type:TF 02CAV
Electrical specification:
Working voltage: DC 5V / 12V (optional)
Working current: 600ma-800ma
Output amplitude: > 700mV

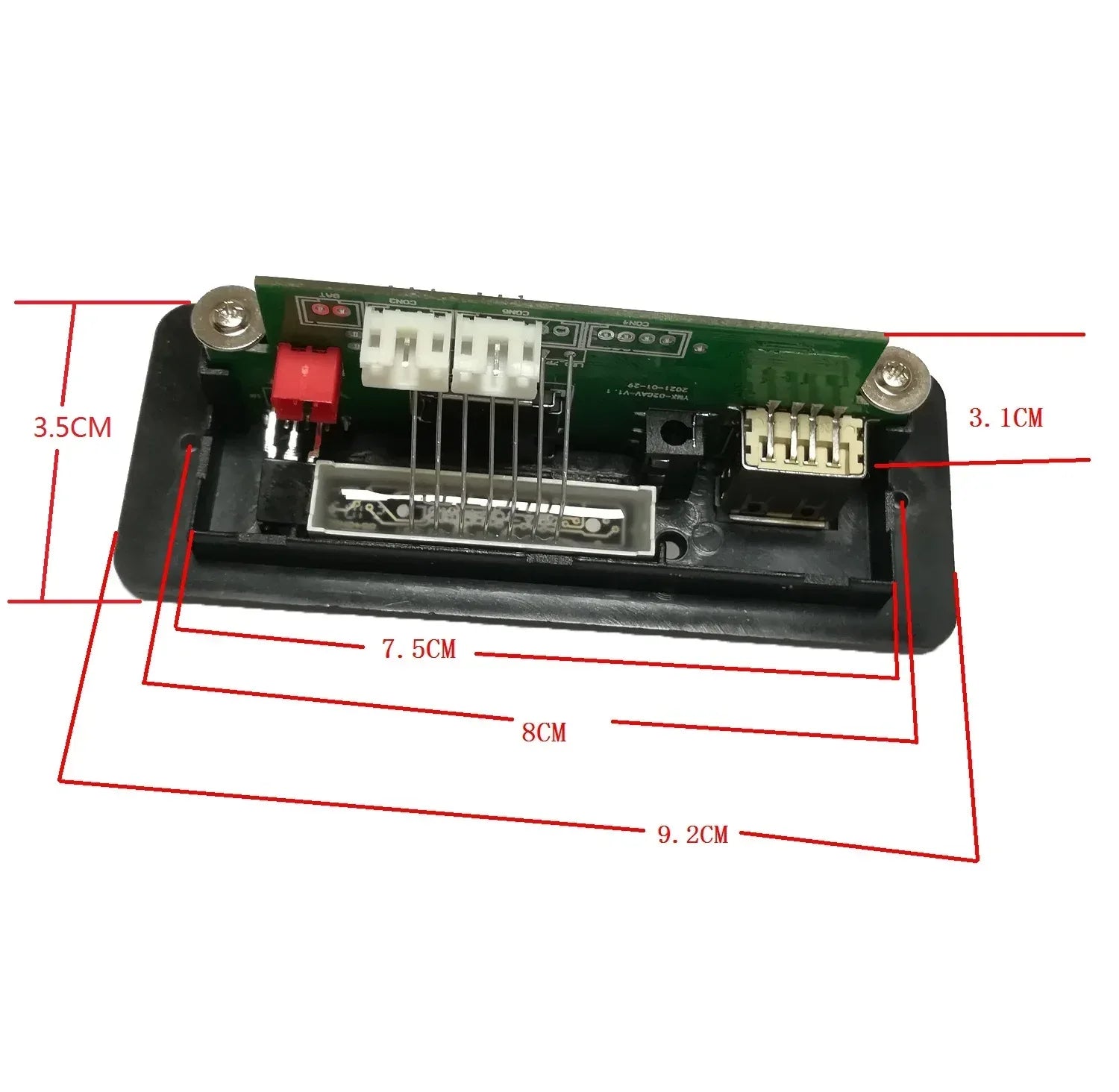

Panel size: 92x35 * 31, depth mm,
Opening size: 75 * 27 * 31mm,
The distance between mounting screw holes is 80mm

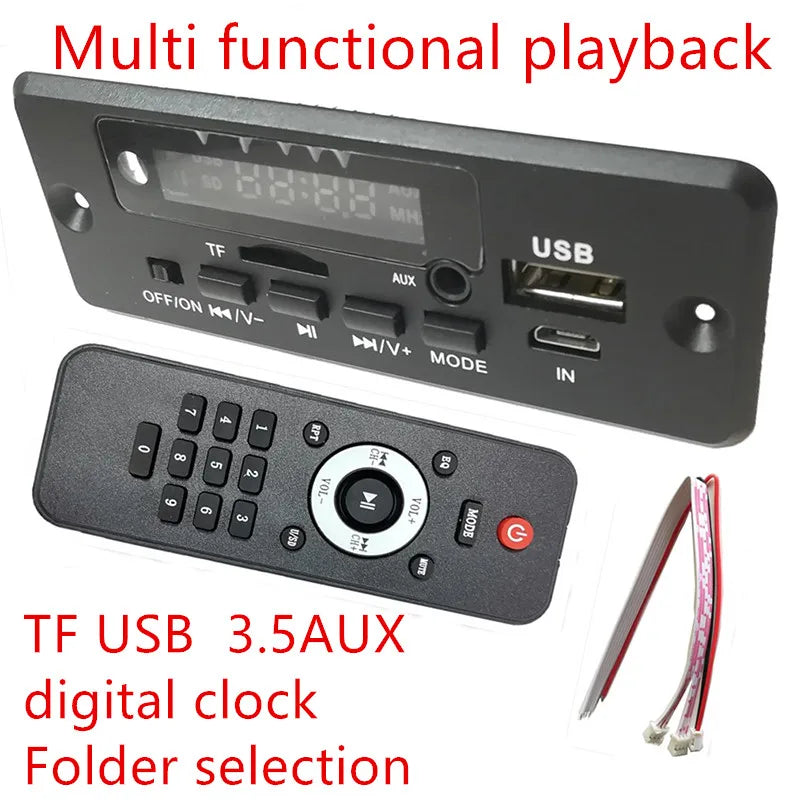

1、 Module features:
Support external signal aux direct switching. Support external touch panel (optional, need to increase cost)
Support electronic clock

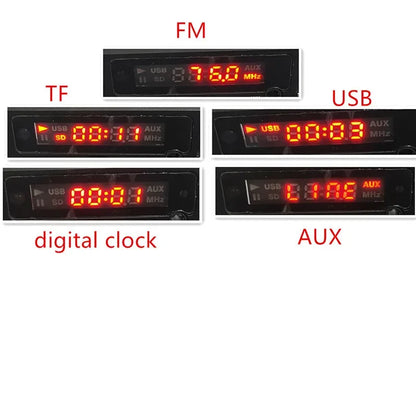

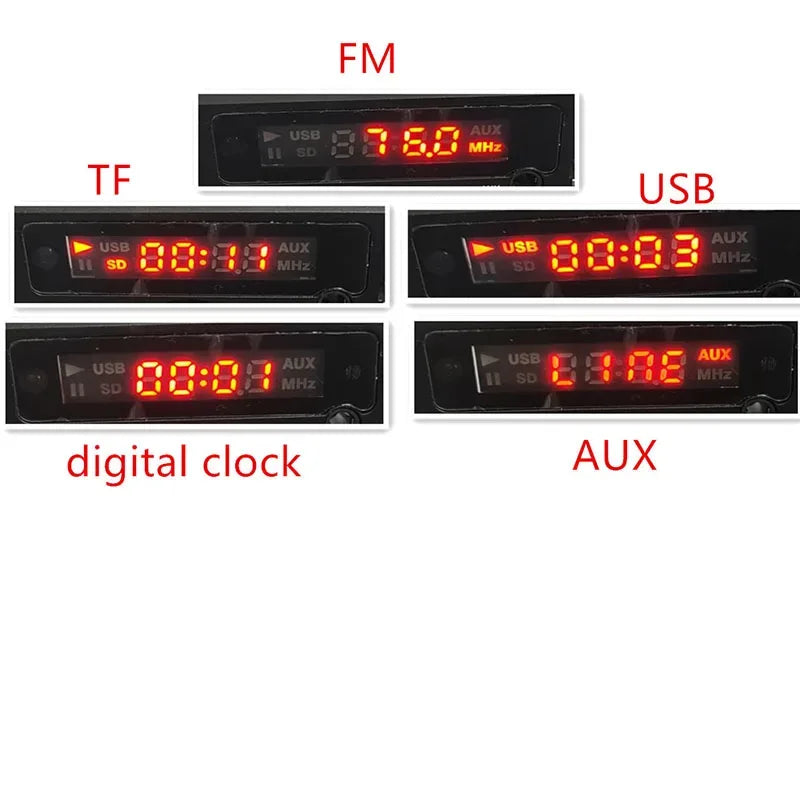

Support USB / TF / FM / line switching.
The module contains MP3 / wma / lossless wav song decoding chip.
Support 2.0 USB / TF card switching, previous song, next song, volume adjustment, EQ, play / pause, single / full song / random / folder repeat, mute, power off, direct selection of songs.
File system supporting fat.
Support songs of MP1 layer3, MP2 layer3 and MP3 layer3. MP3 songs are 32-320kbps songs. Lossless wav is 2-channel below 1411kbps,
Support power-off memory function: remember the songs and volume played before power-off.
Folder playing (convenient for different music categories to choose to play: long press mode in the playing state, and "F01" "F02" will be displayed on the screen at the same time
Support loop mode play (long press the play key): single loop (one) / folder loop (fol) / full loop (all); if you press (fol) in the current folder, only the full loop will be played in the folder

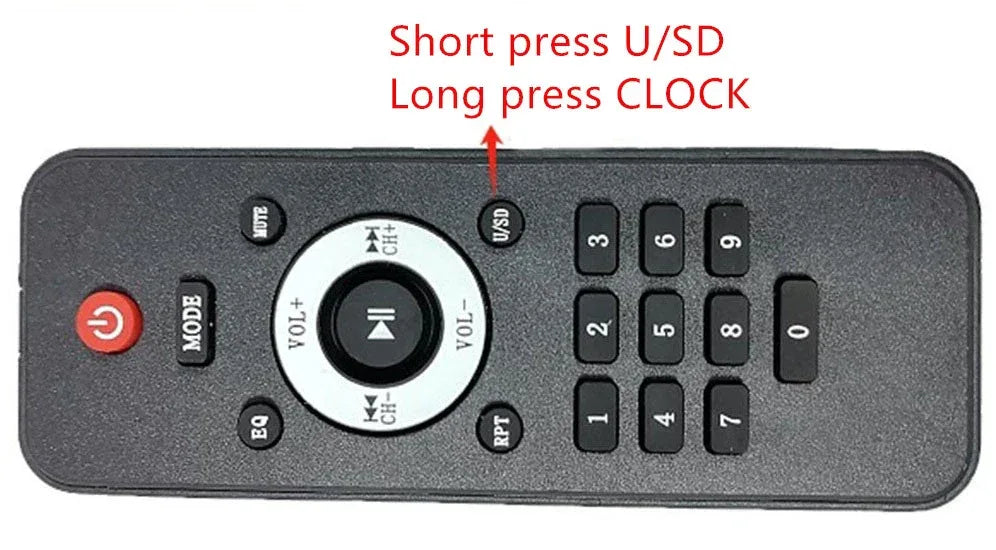

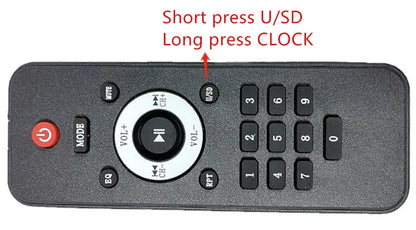

Regarding the use of electronic clocks:Long press "U/SD" to display clock status, "00:00" status, short press“ ▶ ┃┃ "The playback/pause duration will flash, short press“┃ ◀◀ ” Or short press“ ▶▶ ┃ ", adjustable hours, then short press“ ▶ ┃┃ "The play/pause minutes will flash, short press“┃◀◀” Or short press“ ▶▶ ┃ ", adjustable minutes,; Then short press“ ▶ ┃┃ "Save the current settings (must be saved otherwise invalid), press MODE to exit the clock (remote shutdown clock saved), reset the power shutdown clock to zero (needs to be readjusted)
