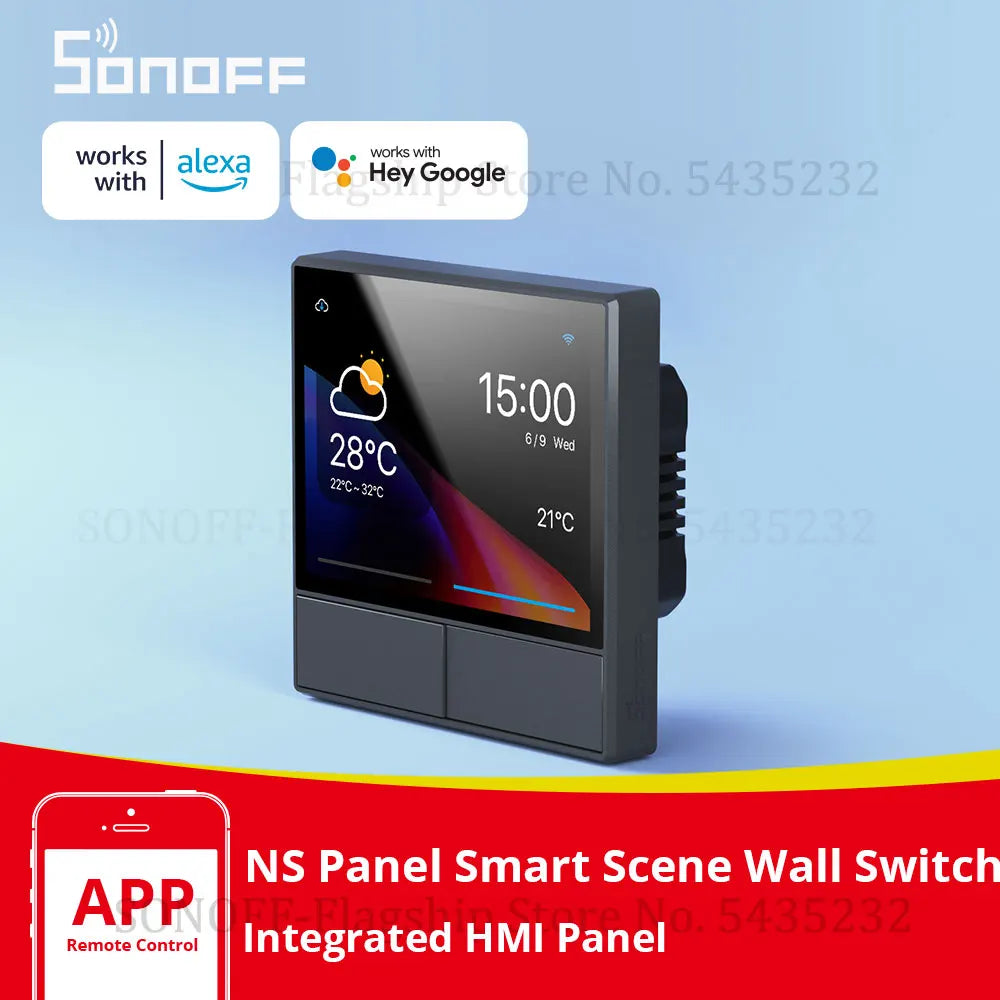

SONOFF NSPanel Smart Scene Wall Switch EU/US Integrated HMI Panel Home Automation Thermostat Smart HomeWorks with Alexa Alice
SONOFF NSPanel Smart Scene Wall Switch EU/US Integrated HMI Panel Home Automation Thermostat Smart HomeWorks with Alexa Alice
Couldn't load pickup availability

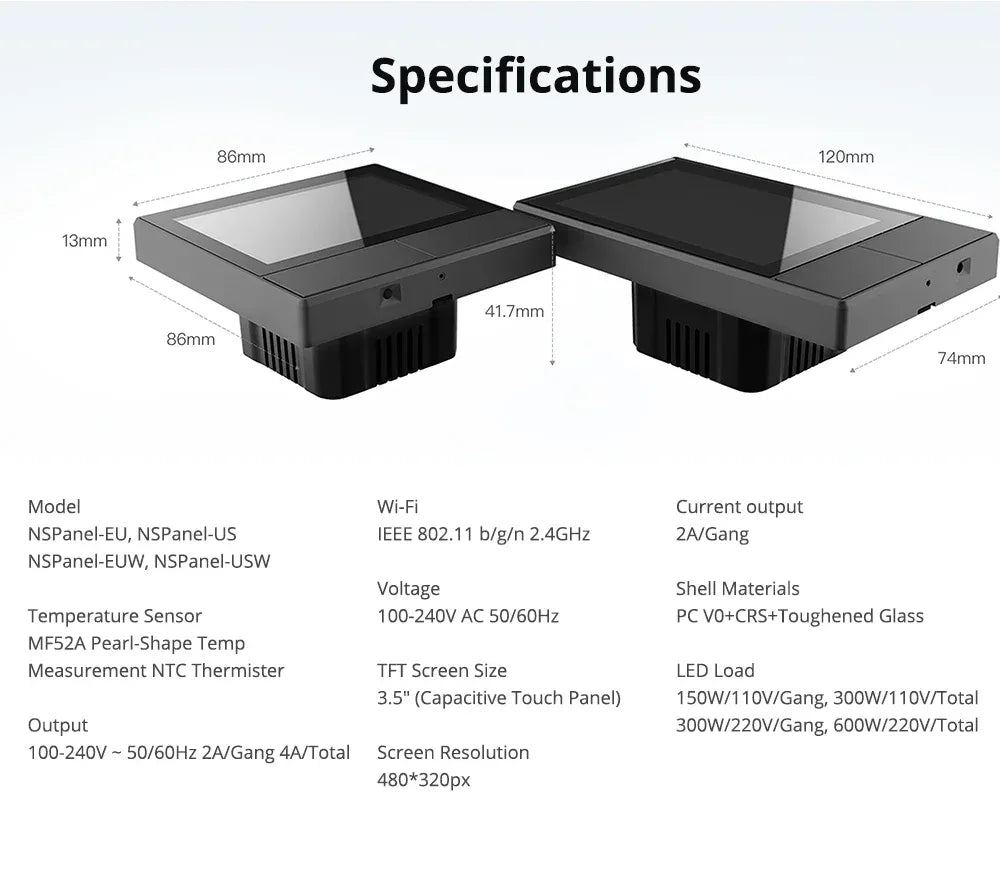

SPECIFICATIONS
APP Operating Systems: Android & iOS
Battery Included: No
Bluetooth Standard: 4.2 BLE
Brand Name: SONOFF
Certification: CE,FCC
Certifications: NSPanel-EU: CE/CQC/SRRC/RoHS, NSPanel-US: CE/FCC/RoHS
Communication method: Wi-fi

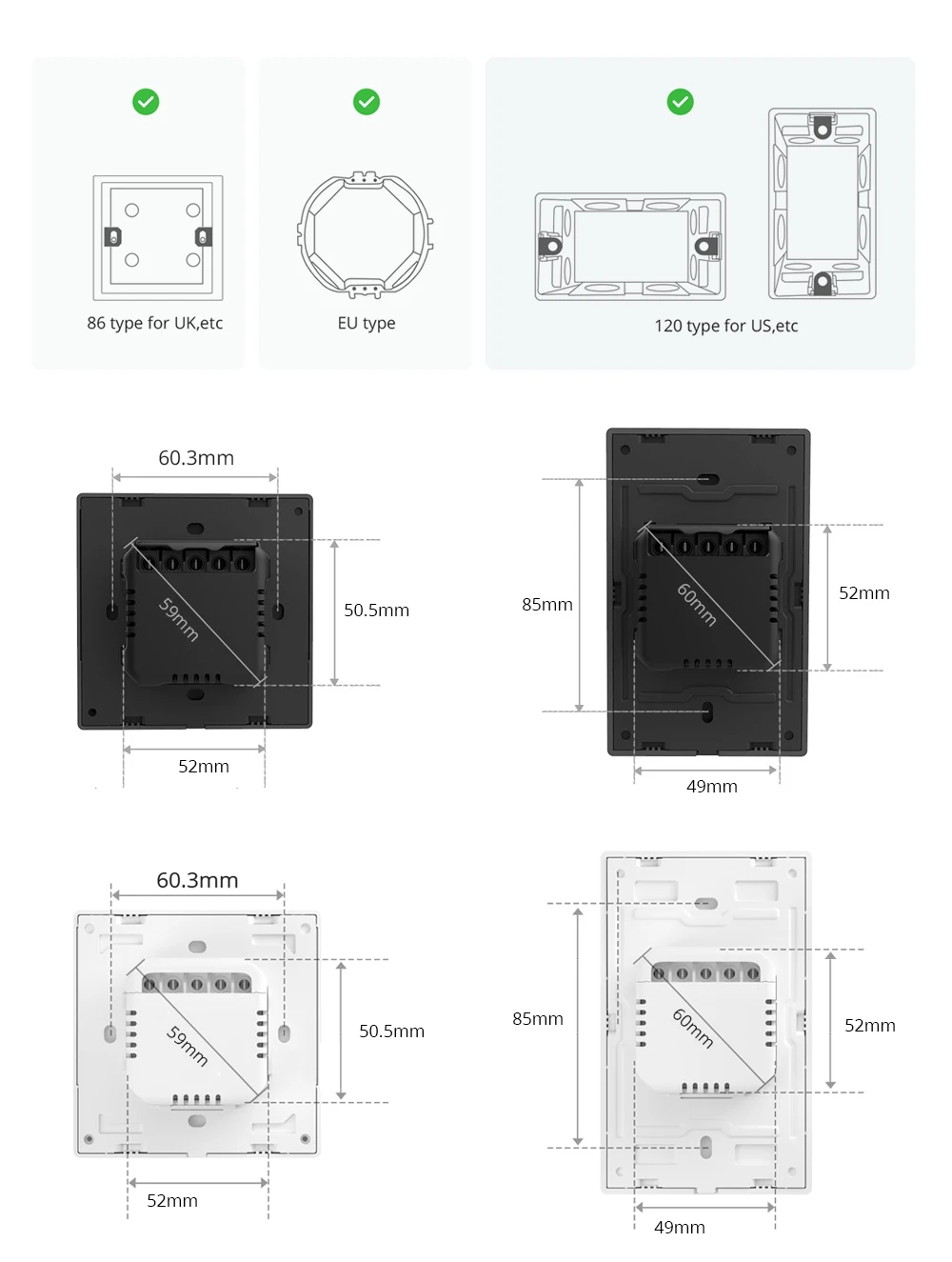

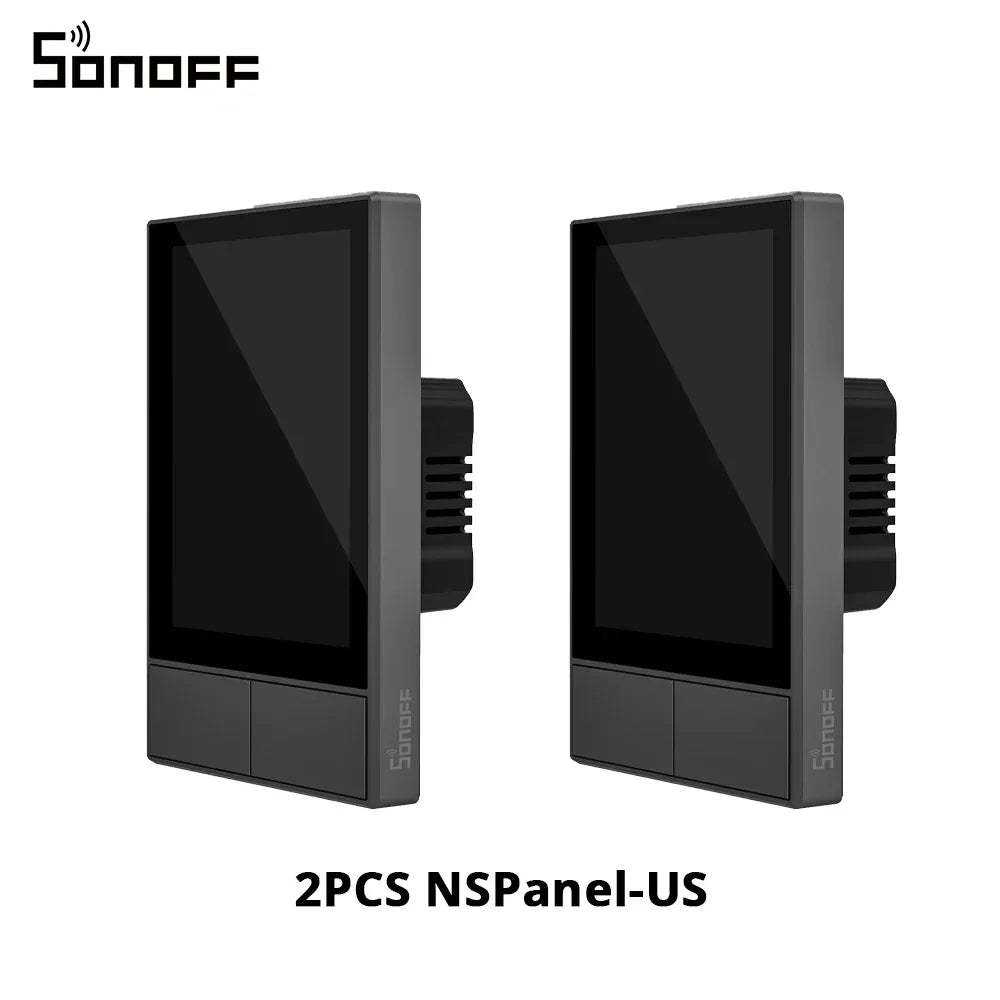

Dimension: NSPanel-EU: 86x86x41.7mm, NSPanel-US: 120x74x41.7mm
Does It Includes Wireless Communication: Yes
High-concerned chemical: None
Inbox adaptor: No
Input: 100-240V~ 50/60Hz 4A Max
LED Load: 150W/110V/Gang, 300W/110V/Total, 300W/220V/Gang, 600W/220V/Total
Model Number: SONOFF NSPanel
Origin: Mainland China
Output: 100-240V~ 50/60Hz 2A/Gang 4A/Total
Power Source: Other,Other
Product Name: SONOFF NSPanel
Screen Resolution: 480*320px
Shell Materials: PC V0+CRS+Toughened Glass
State of Assembly: Ready-to-Go
TFT Screen Size: 3.5" (Capacitive Touch Panel)
Wi-Fi: IEEE 802.11 b/g/n 2.4GHz
SONOFF NSPanel Smart Scene Wall Switch EU/US Integrated HMI Panel Home Automation Thermostat Smart HomeWorks with Alexa Alice
NOTE:
This device has a built-in thermostat. Different with the external sensor, the temperature it monitors may be affected by the heat dissipation of the device's internal body, so the displayed monitoring temperature may be slightly higher, but this will not affect the normal operation of the device.
Do you need one device to centrally control multiple electrical appliances in your home, from lights, heaters, coolers, curtains, doors, and windows? Inconceivable!! NSPanel can control all of these devices, offering an integrated HMI panel for home automation that is super convenient, all you need to do is -- one tap.
NSPanel Smart Scene Wall Switch is equipped with a built-in powerful thermostat and environmental sensors. You can set different indoor temperatures for different periods of time, and NSPanel will automatically trigger the heating or cooling equipment according to your setting conditions to keep the room at a comfortable temperature. What's more, NSPanel has a Scenario-based control function, you can set different modes for wake up, work, entertainment, and sleep, and can switch modes at any time.
Such a powerful panel, how to control it? There are three ways can control SONOFF NSPanel Smart Scene Wall Switch: use the dual-channel switches or touchscreen at a close distance, use the APP to control when you are at a long distance, voice control make your hand free.
SONOFF NSPanel is compatible with various devices of SONOFF, such as smart led bulbs, LED Filament Bulb, LED light strips, S26/S31 plugs, TX, MINIR2, POWR3!

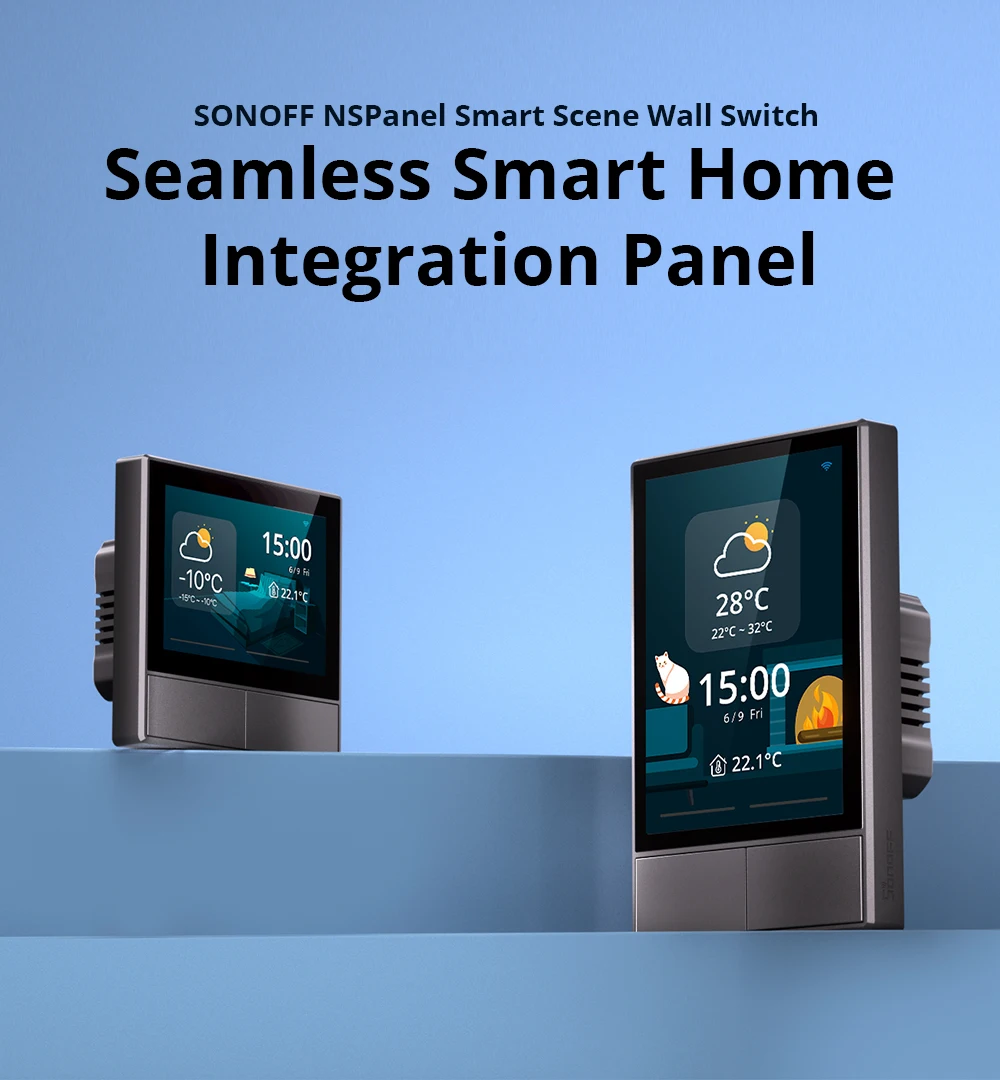

Seamless Smart Home Integration Panel
SONOFF NSPanel Smart Scene Wall Switch

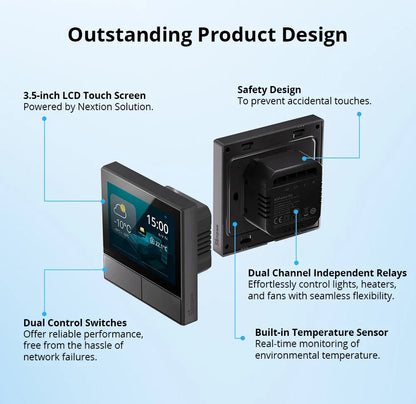

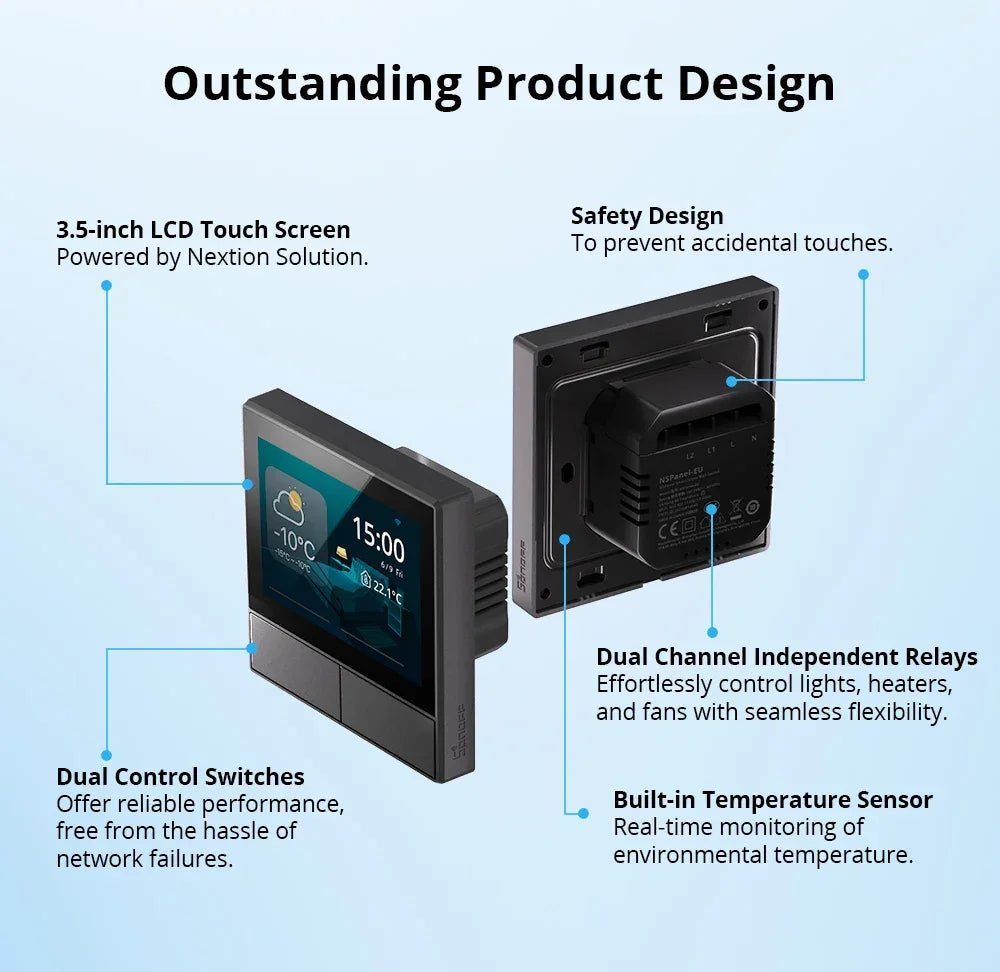

Outstanding Product Design

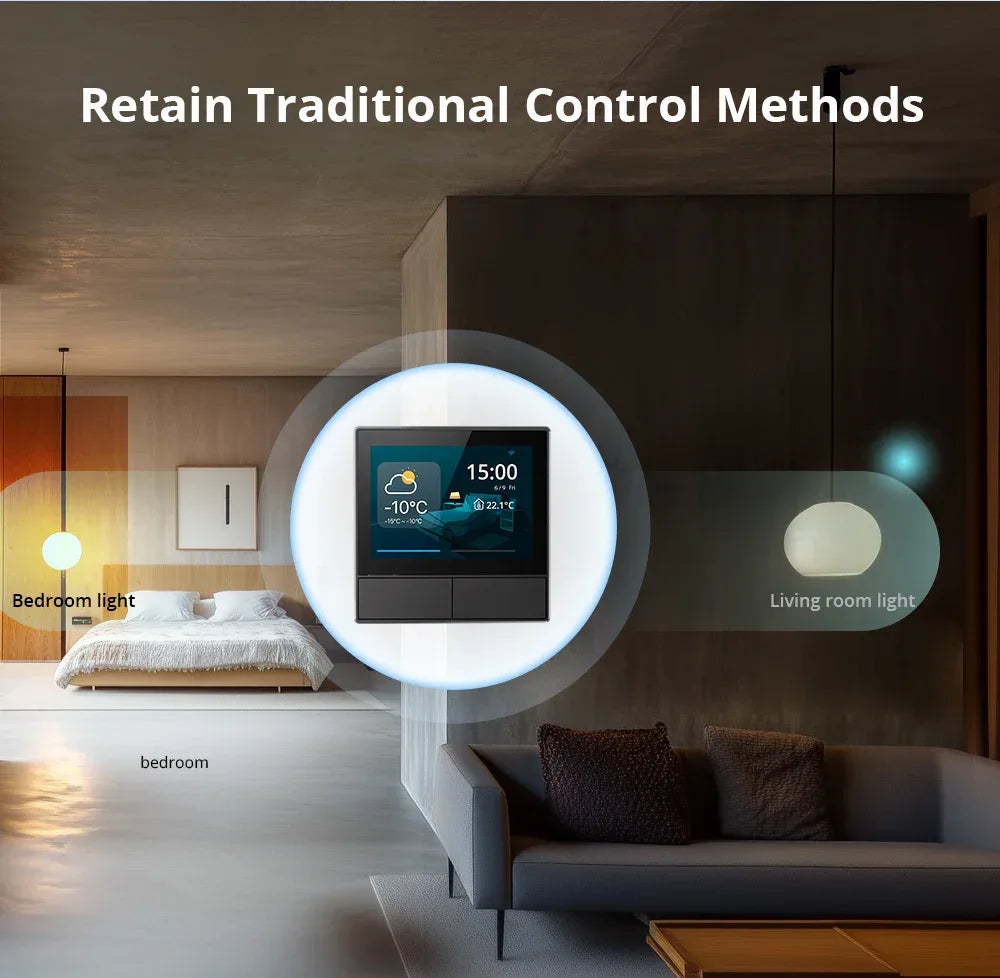

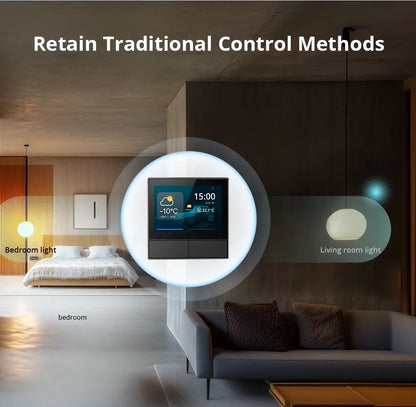

Retain Traditional Control Methods
Equipped with two independent physical buttons, allowing you to easily control your most frequently used devices, preserving your operating habits!

A Stylish Wall Switch with a Screen
You can intelligently sync and integrate various SONOFF devices into the same panel, without the need for cumbersome apps or remote controls. Simply tap on the integrated panel to control the devices seamlessly.

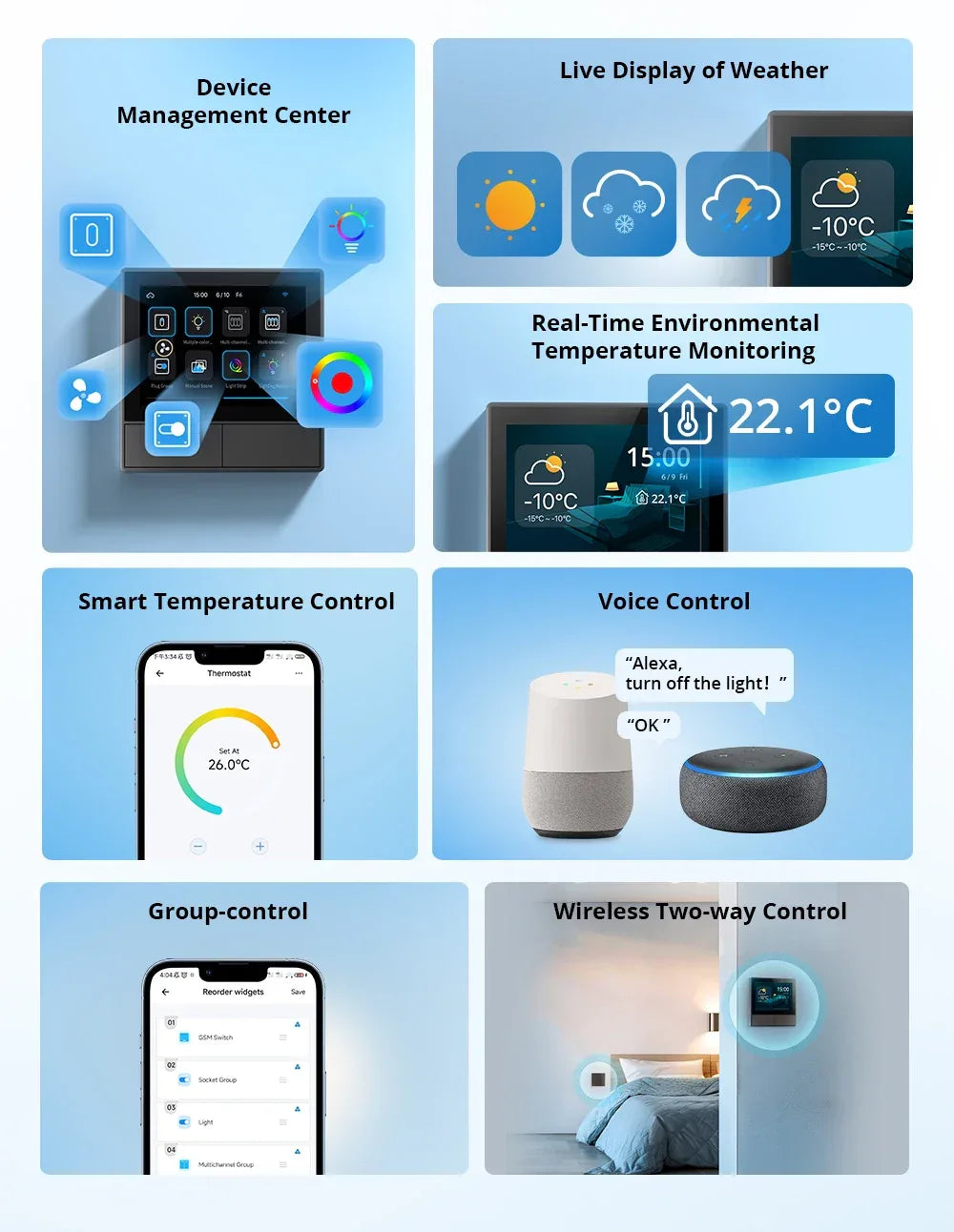

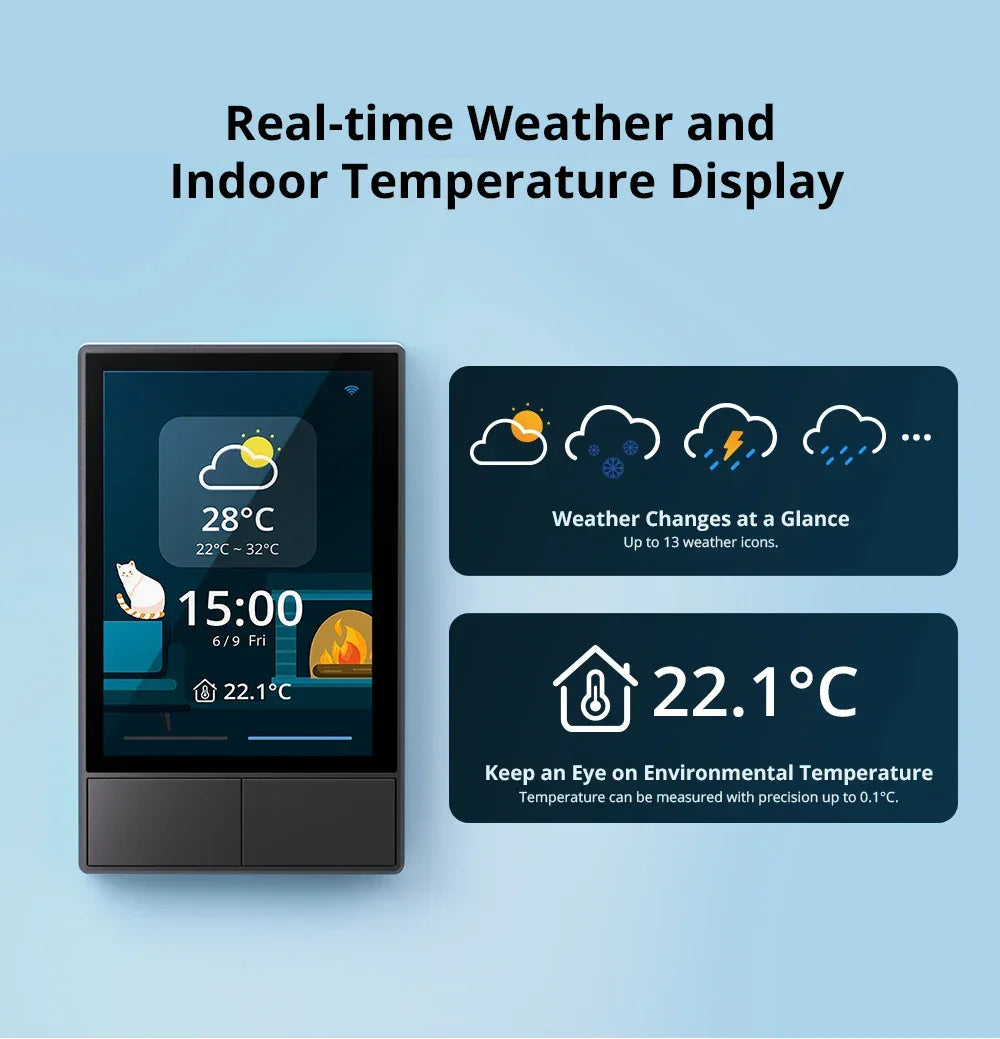

Real-time Weather and Indoor Temperature Display
It provides real-time outdoor weather updates and accurate time display,with a built-in temperature sensor to help you monitor changes in indoor ambient temperature.

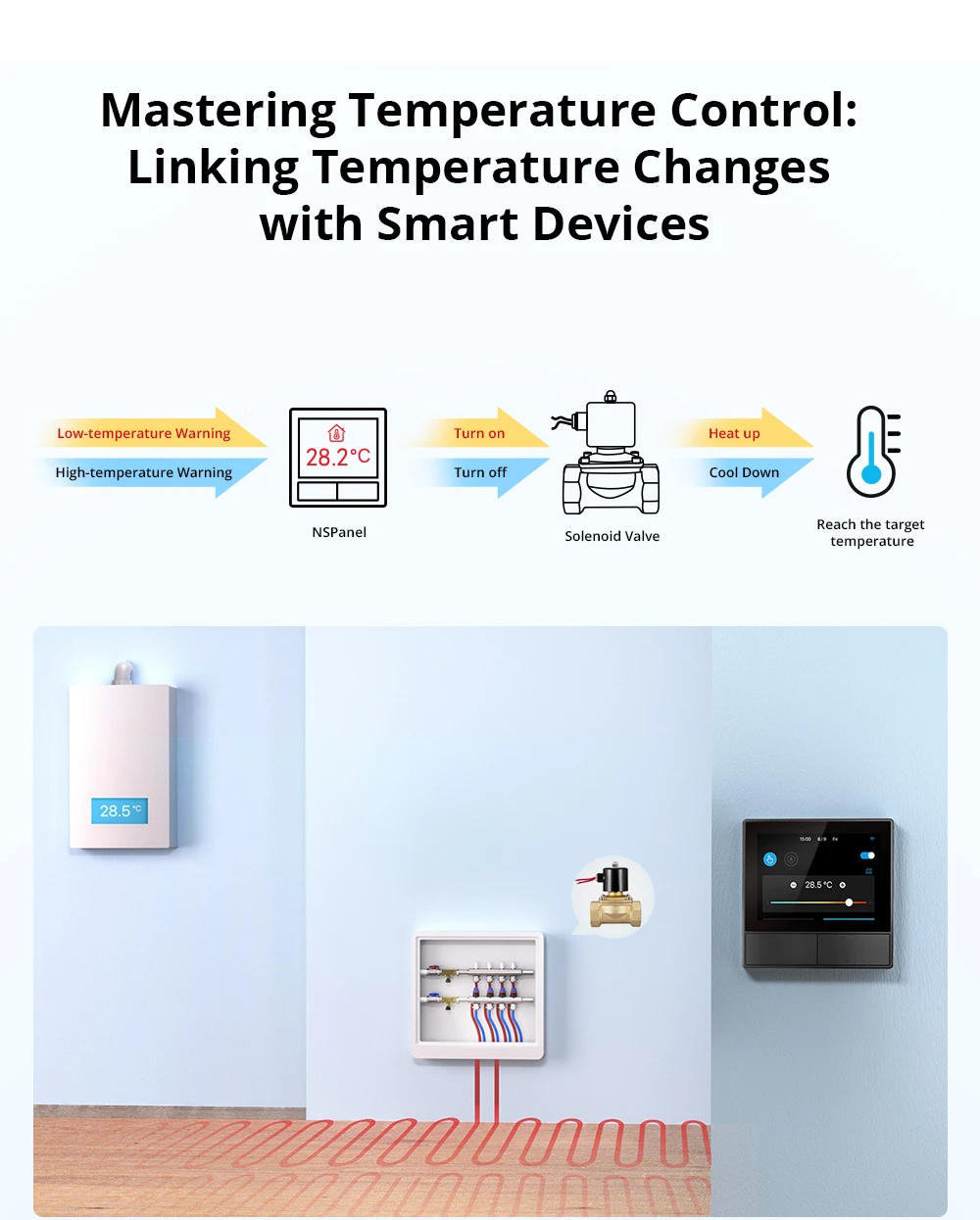

Mastering Temperature Control: Linking Temperature Changes with Smart Devices
Make temperature changes smarter! Whether connected directly or operated remotely through our convenient mobile app, you can easily control the device for precise temperature adjustments.

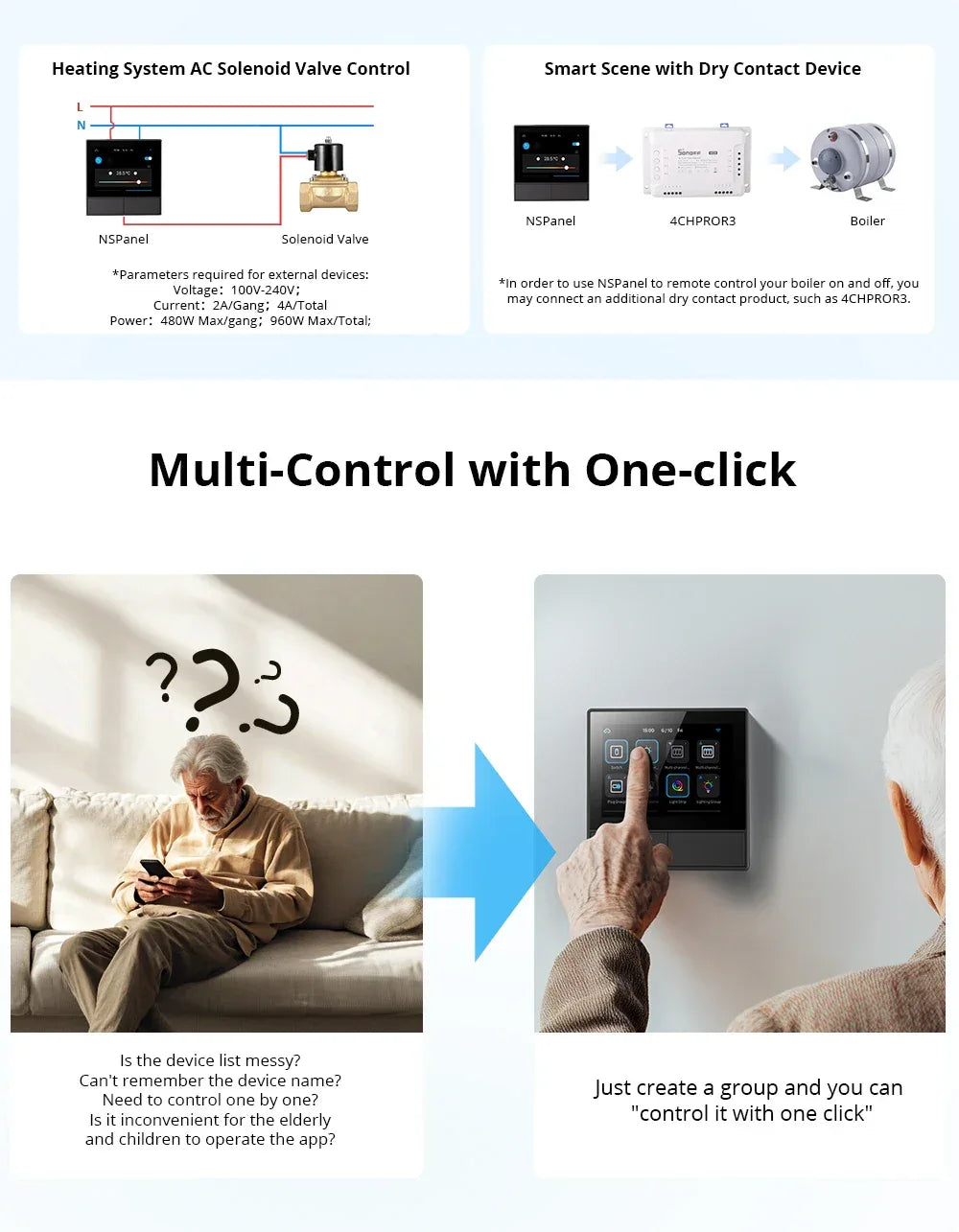

Multi-Control with One-click
By grouping similar devices into the same group, you can achieve “one-click control” of multiple devices.

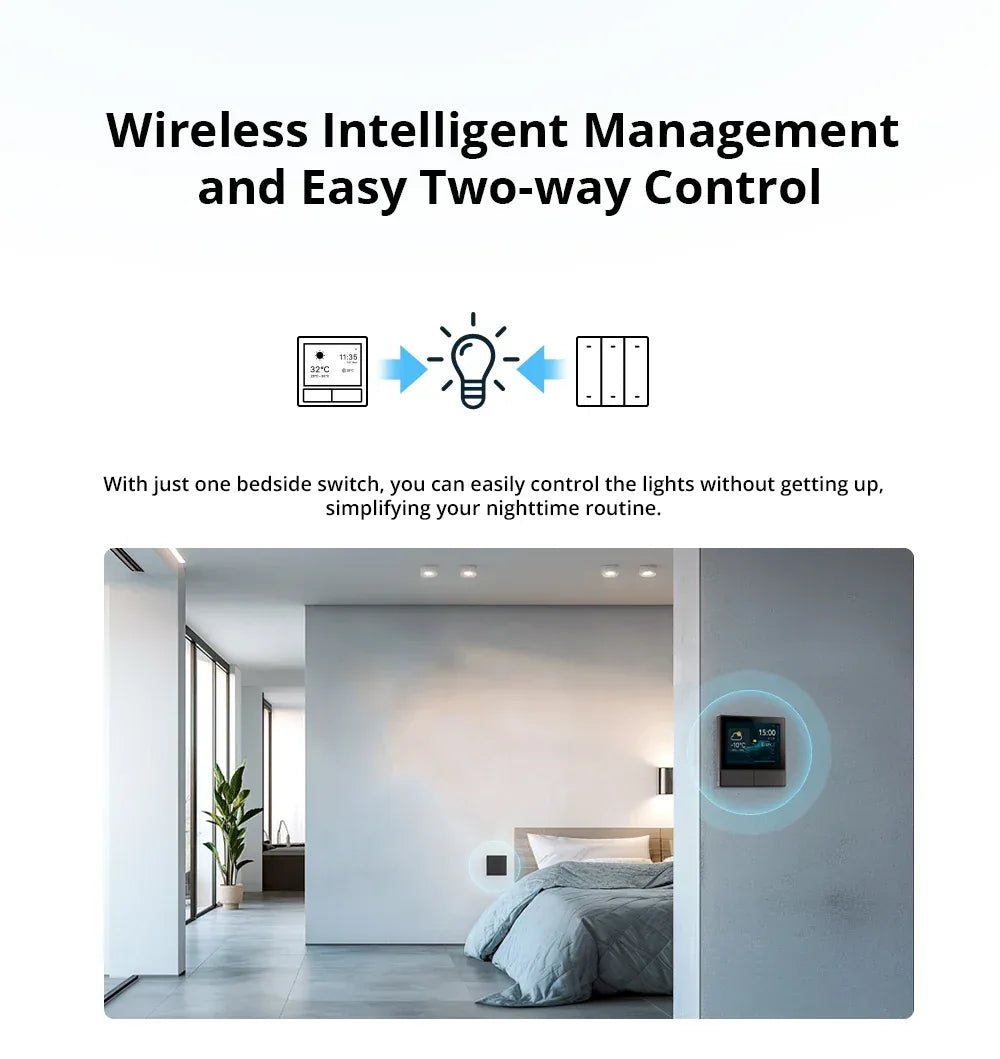

Wireless Intelligent Management and Easy Two-way Control
Are you tired of getting up and walking towards the door to turn off the lights?
By using our NSPanel as a gateway and combining it with Sonoff R5 or S-MATE2, you can achieve eWeLink-Remote Control.

Voice Controls Your Home
Free your hands!Just connect to a third-party platform to seamlessly connect to the existing smart home system and quickly control smart devices through voice commands.

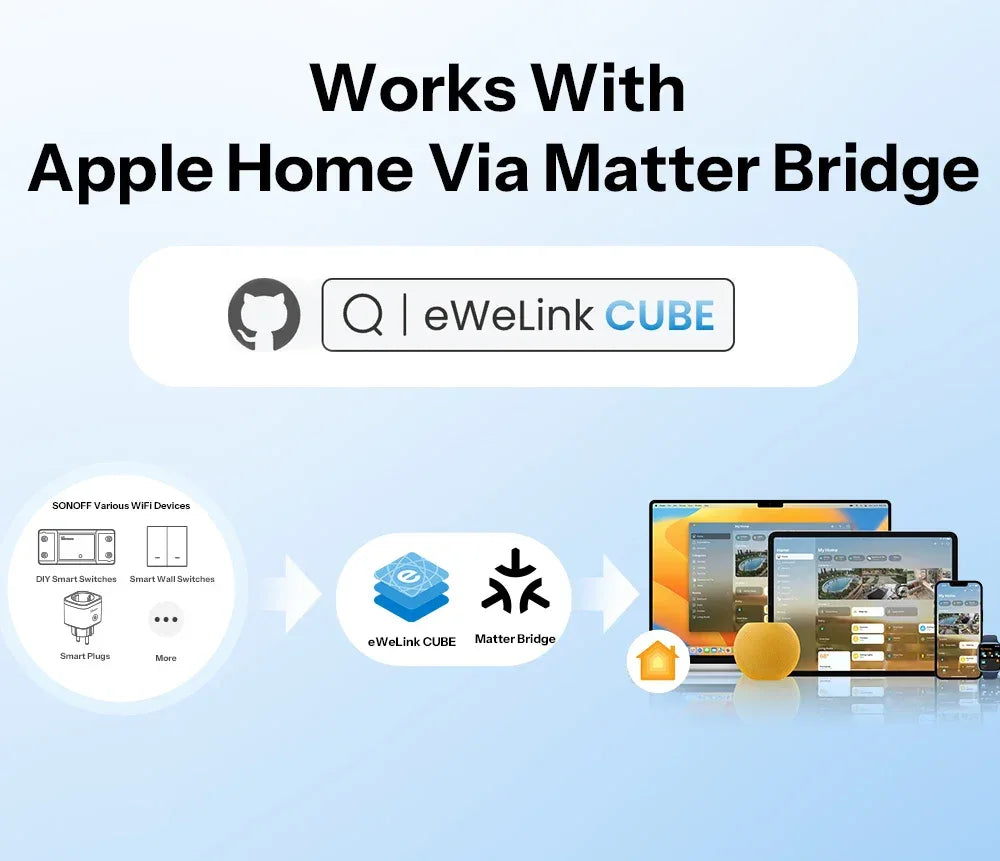

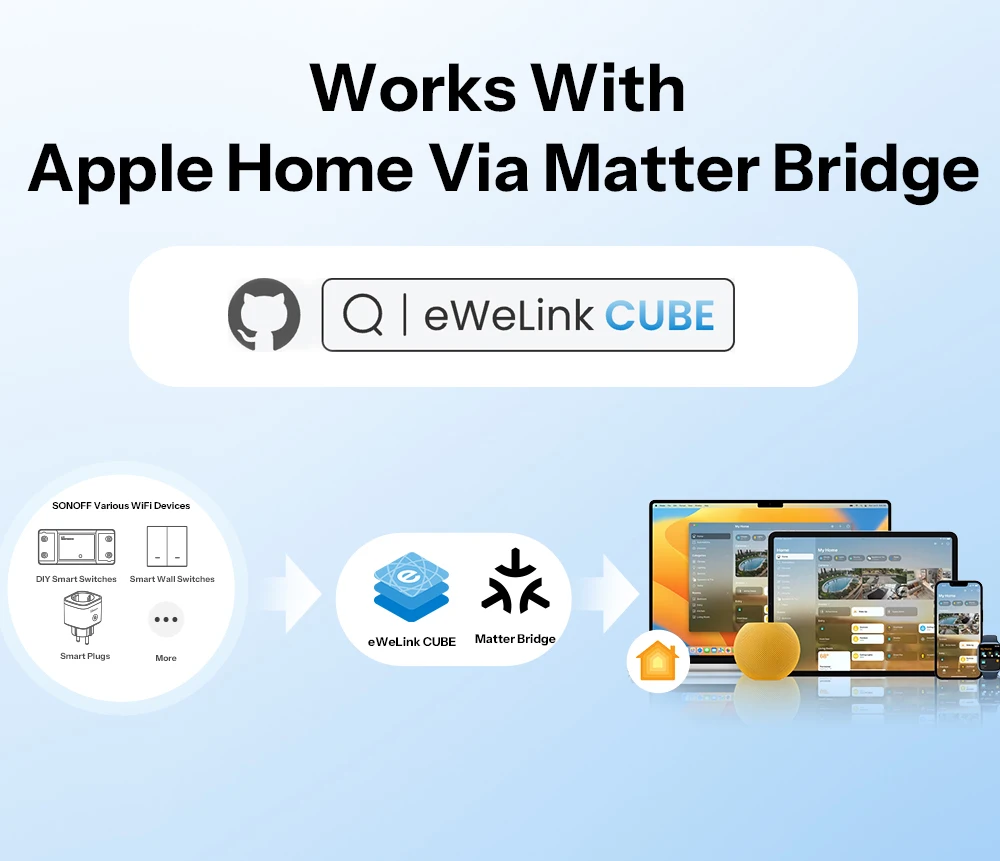

Works With Apple Home Via Matter Bridge
Seamlessly connect SONOFF WiFi devices to Matter via CUBE OS built-in Matter Bridge-- free, local, and ready for Apple Home, Google Home, Alexa, SmartThings, and Home Assistant.

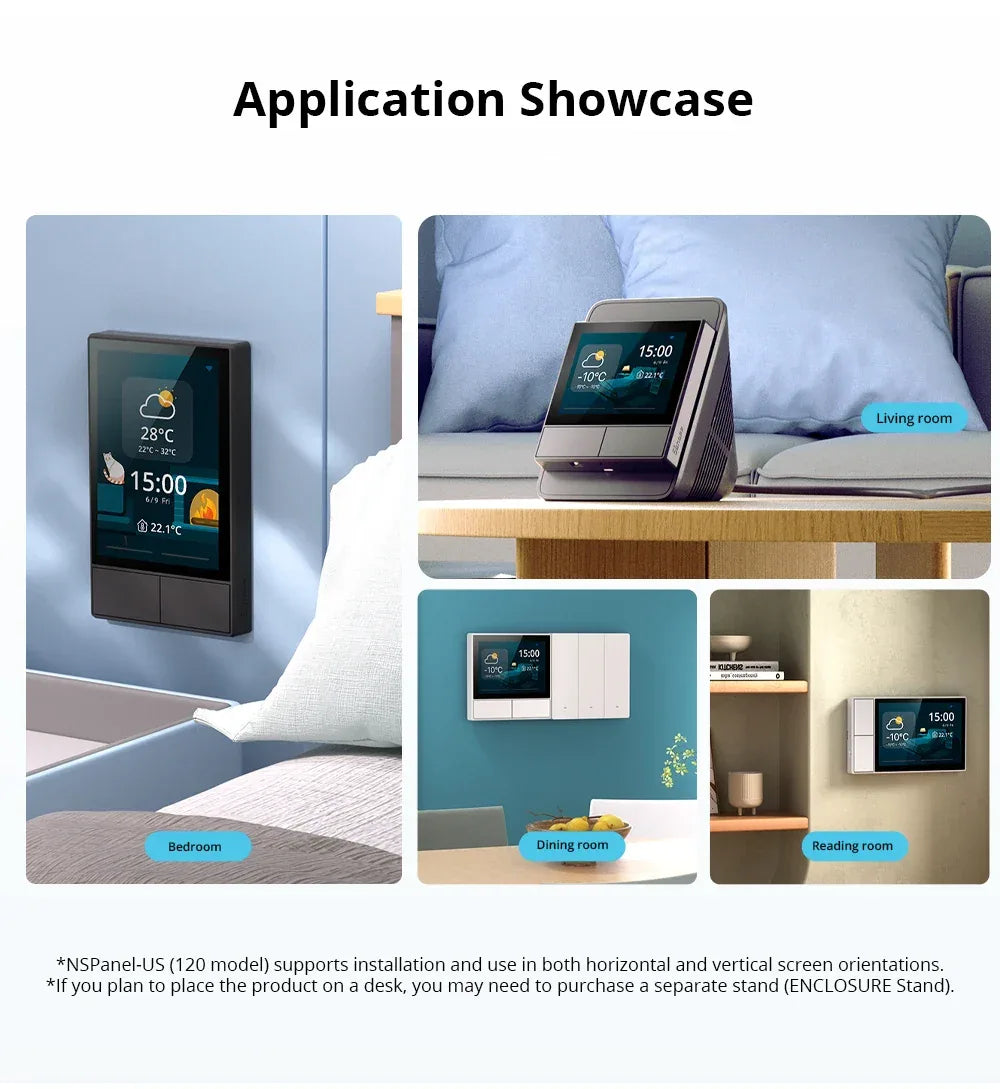

Application Showcase
Choose the style and design that suits you best, according to your interior design style.
