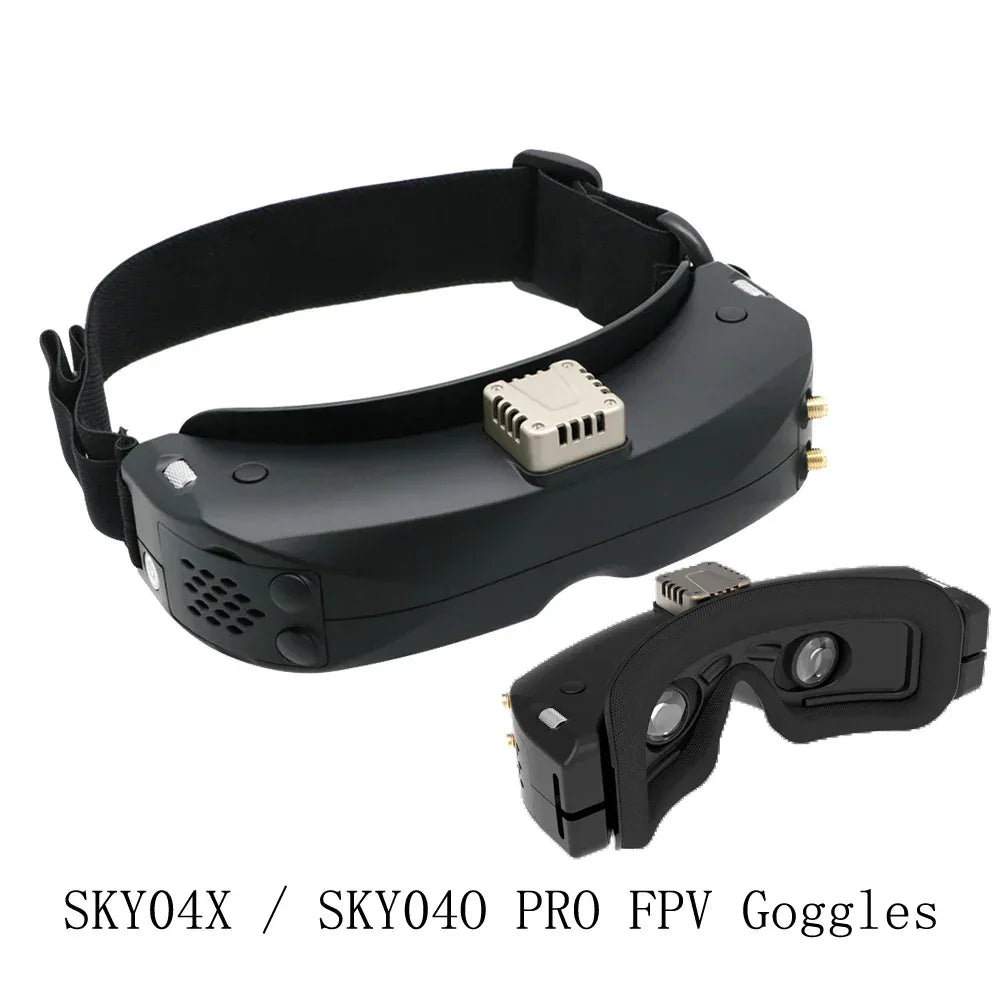

SKYZONE SKY04X PRO / SKY04O Pro FPV Goggles 5.8Ghz 48CH 1920*1080 DVR Video Glasses for RC Drone Airplane

CFA709,236 XOF

~~CFA810,572 XOF~~ CFA709,236 XOF

Sale Produits stock

Shipping calculated at checkout.

Color SKY04X PRO SKY04O Pro

SPECIFICATIONS

Brand Name: underrow

Compatible Drone Brand: GoPro

High-concerned chemical: None

Origin: Mainland China

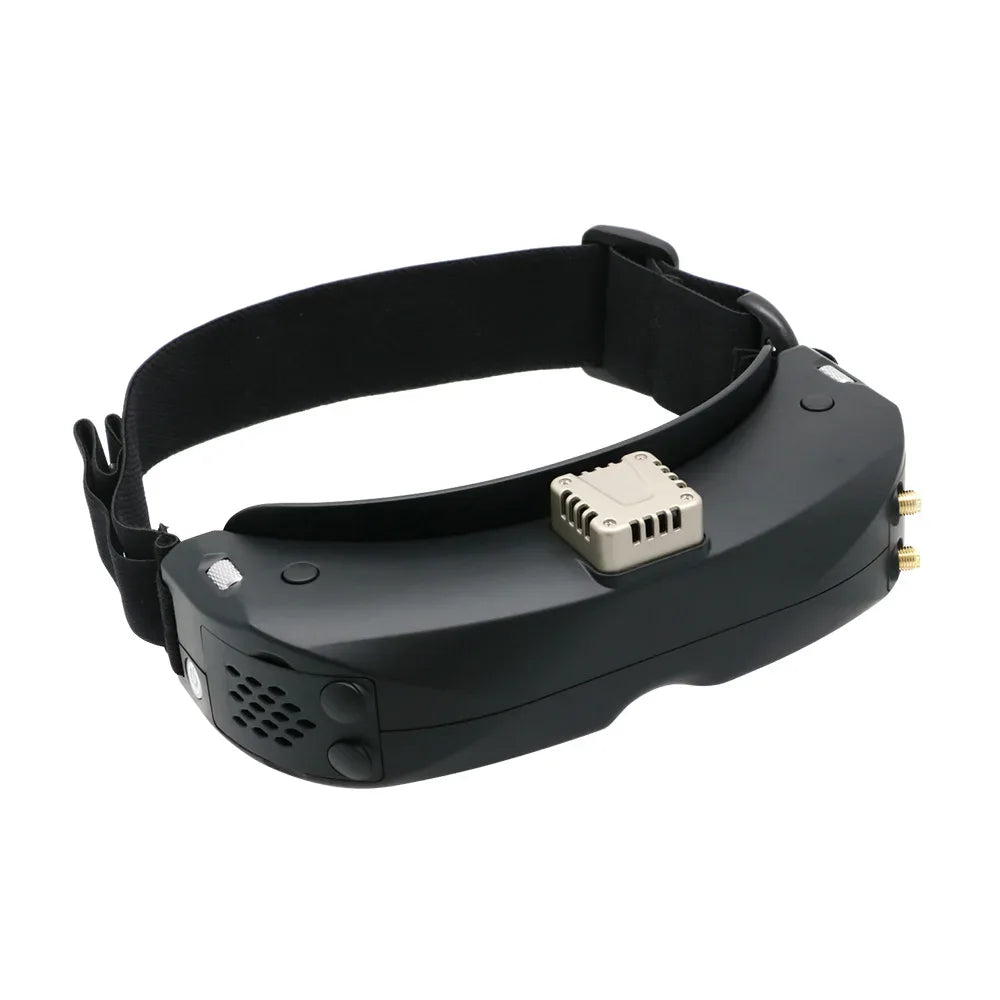

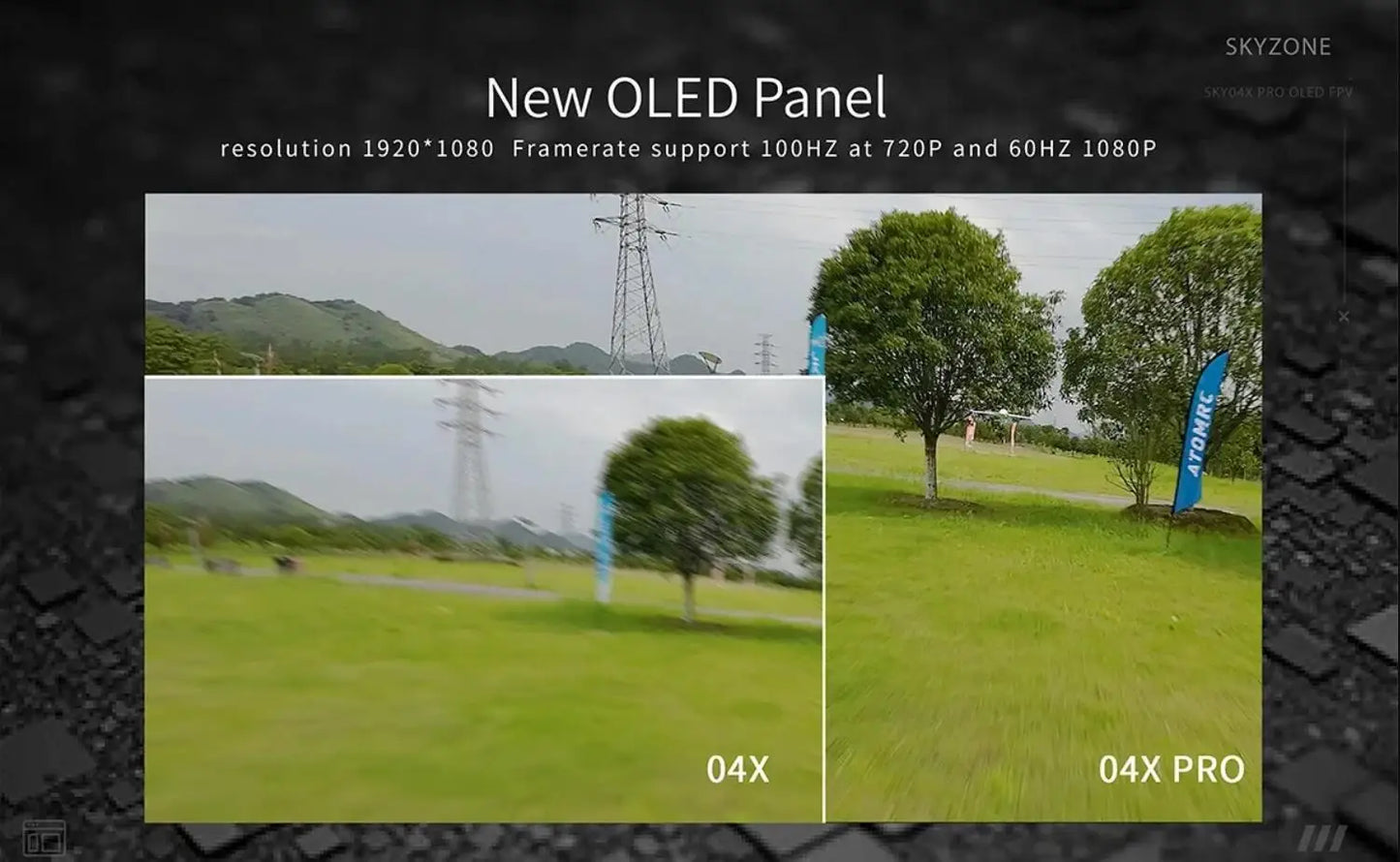

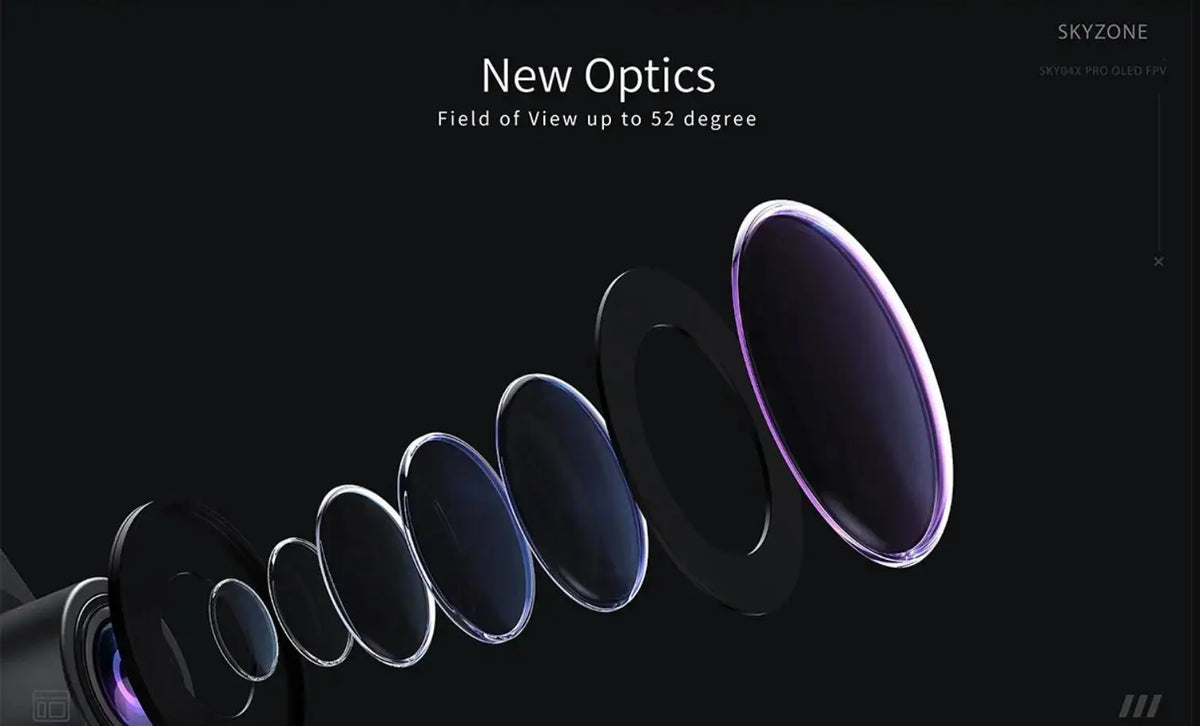

The SKY04X PRO is upgrade version of SKY04X, with new optics and new OLED panel, the SKY04X pro can give pilot 52 degree of field of view, gives huge immersive fpv experience, also with new OLED panel, the 1920*1080 resolution and 100FPS frame rate, use can have way better experience when using the digital VRX system.

The new matte painting also avoid fingerprints and reduces glare .

To be aware, To cooling the high performance OLED panel, the right side bay is installed with cooling fan， so SKY04 X PRO didnt support quadversity mode.

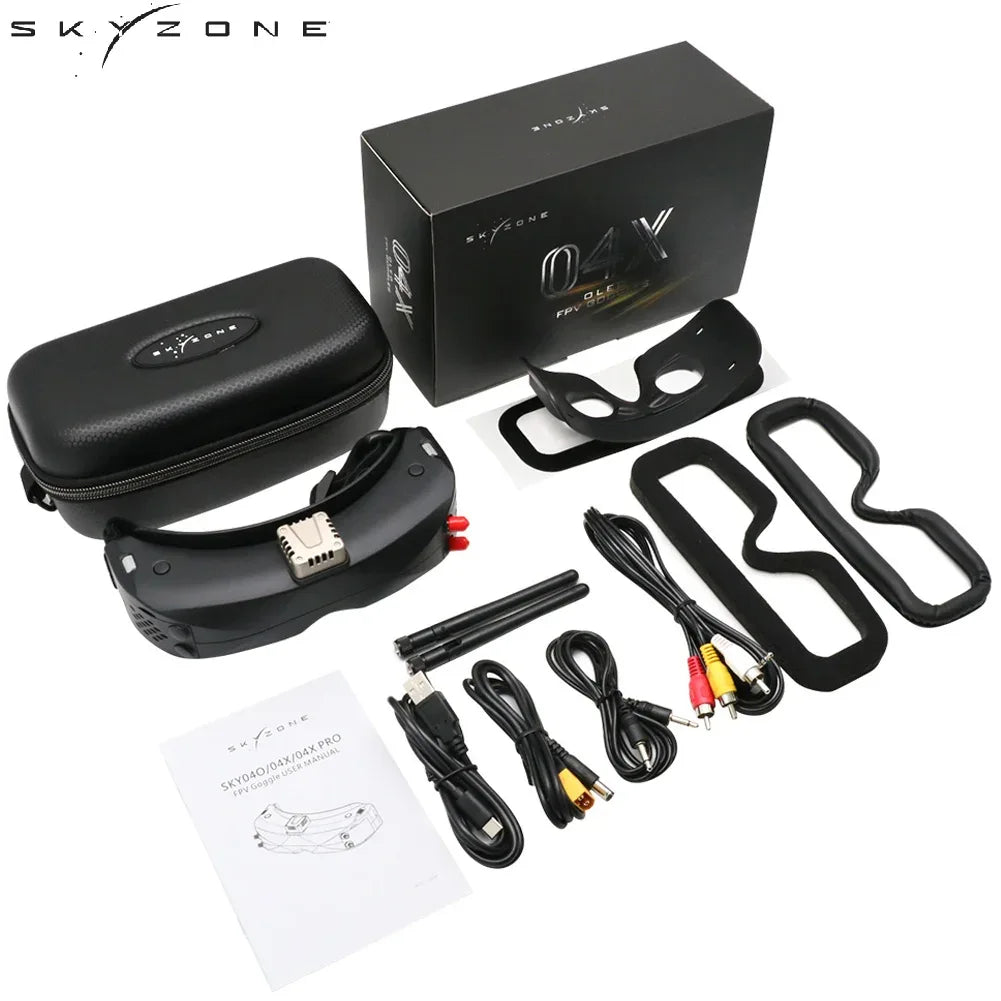

>>>Package Included

1. Goggles*1
2. Receiver Module*1
3. Faceplate*2(wide and narrow)
4. Sponge with velcro*1
5. Zipper case*1
6. Power cable*1
7. Headtracker cable*1
8. 5.8GHz 2dB antennas*2
9. Video/Audio Cable*1
10. USB-C Cable*1
11. User Manual*1

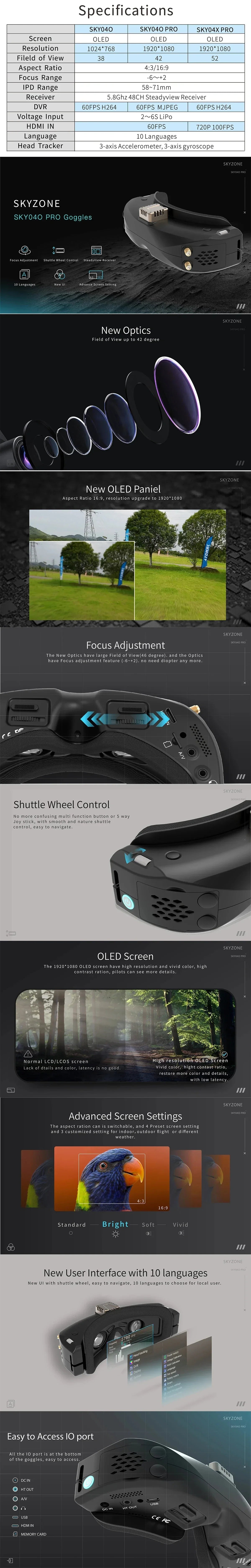

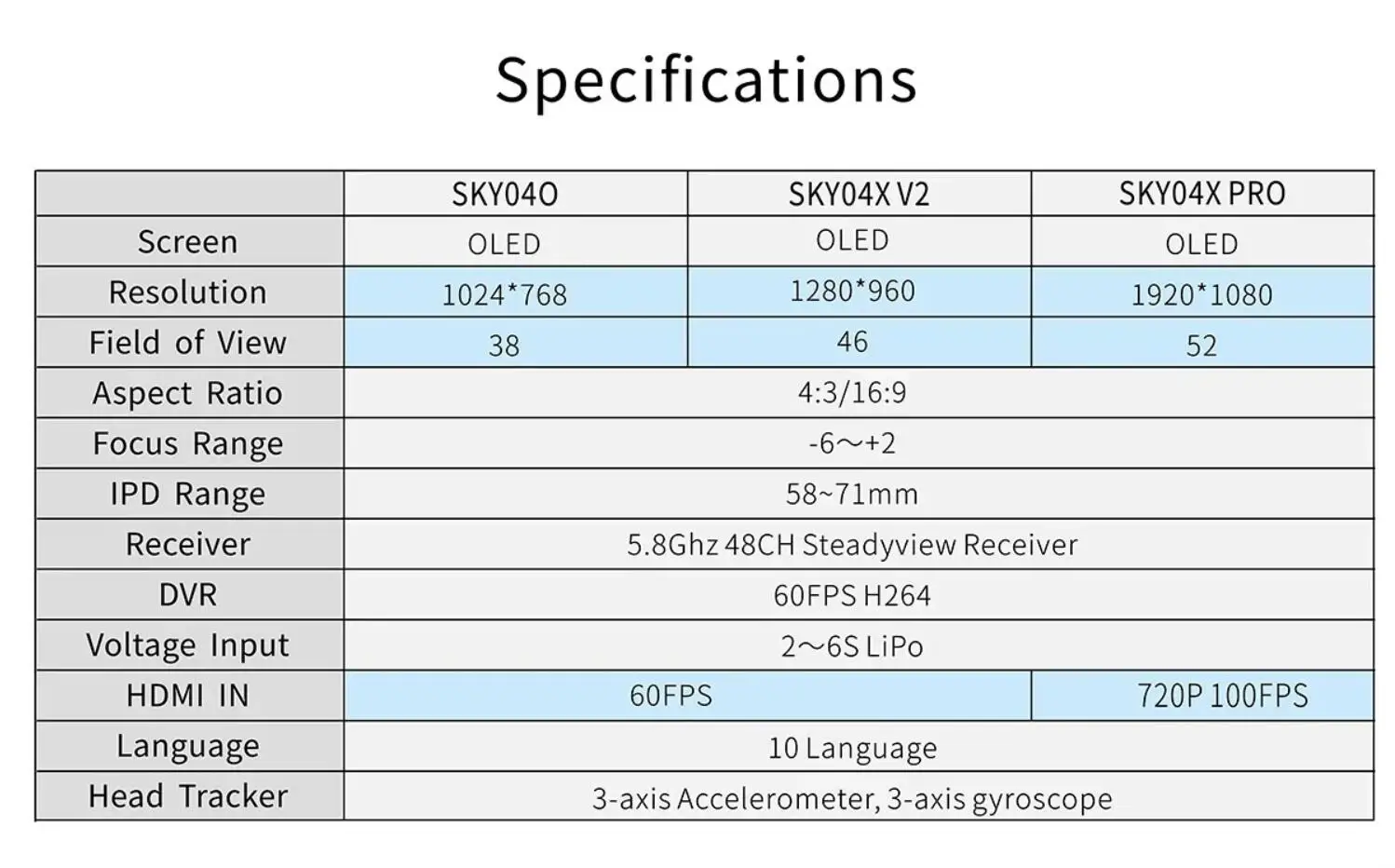

>>>SKY04X PRO Specifications

Screen:OLED
Resolution:1920X1080
FOV（Diagonal）:52°
Aspect Ratio:4:3/16:9

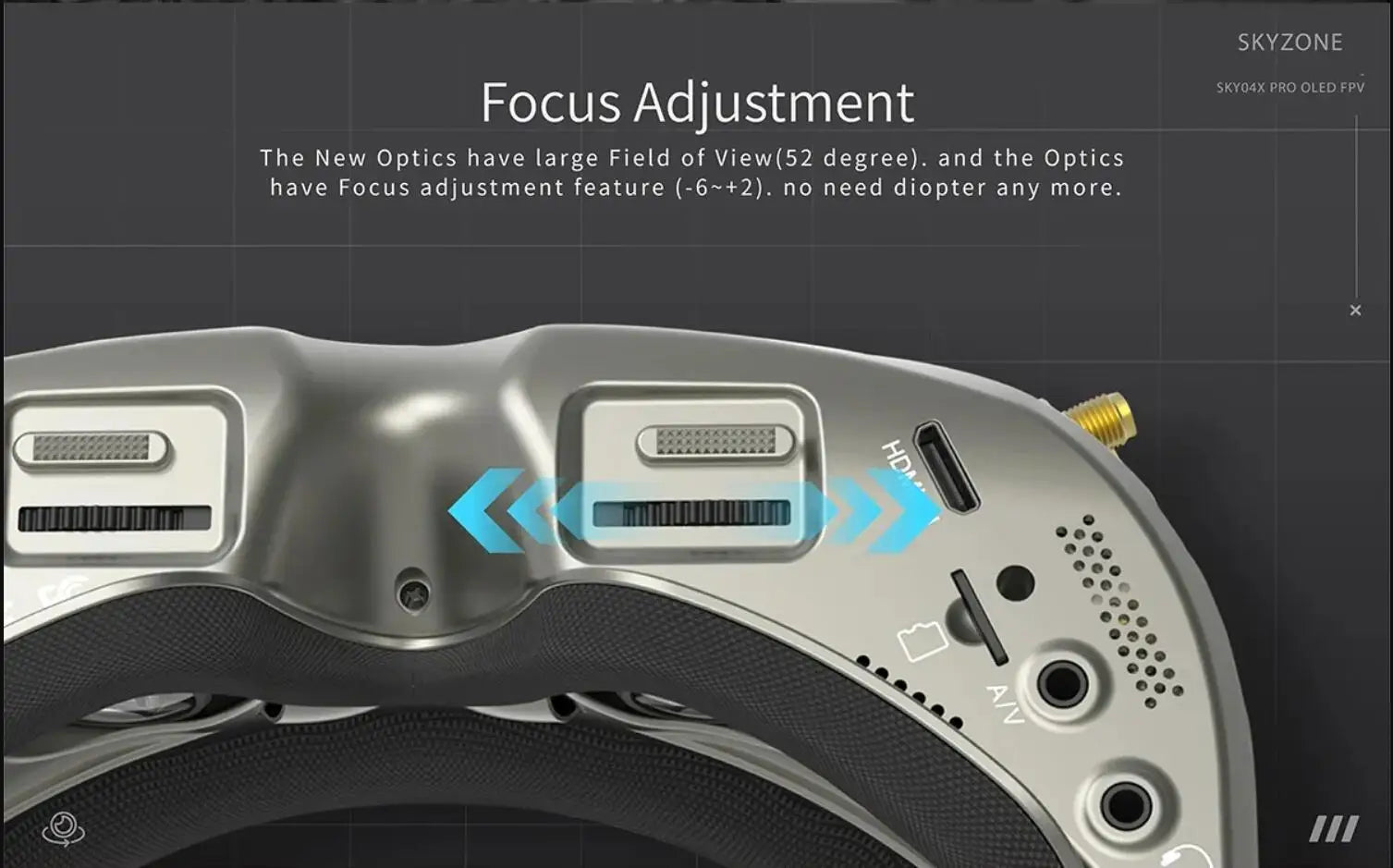

Focus:-6~+2 adjustable
Interpupillary distance (IPD):58-71mm
Receiver:5.8Ghz 48CH SteadyView Receiver
Language:10 Languages
Power Supply:DC 6.5-25.2V/USB 5V
Power Consumption:720mA at 12V
DVR:H264, 100fps,MOV 6Mbps, SD Card support up to 128Gb
Head Tracker:3-axis Accelerometer, 3-axis gyroscope
Dimentions :185*75*67mm
Weight:267g

SKYZONE 04X PRO FPV Goggles Review and Comparison to SKY04X V2.

https://www.youtube.com/watch?v=9FG7DnWMc6E

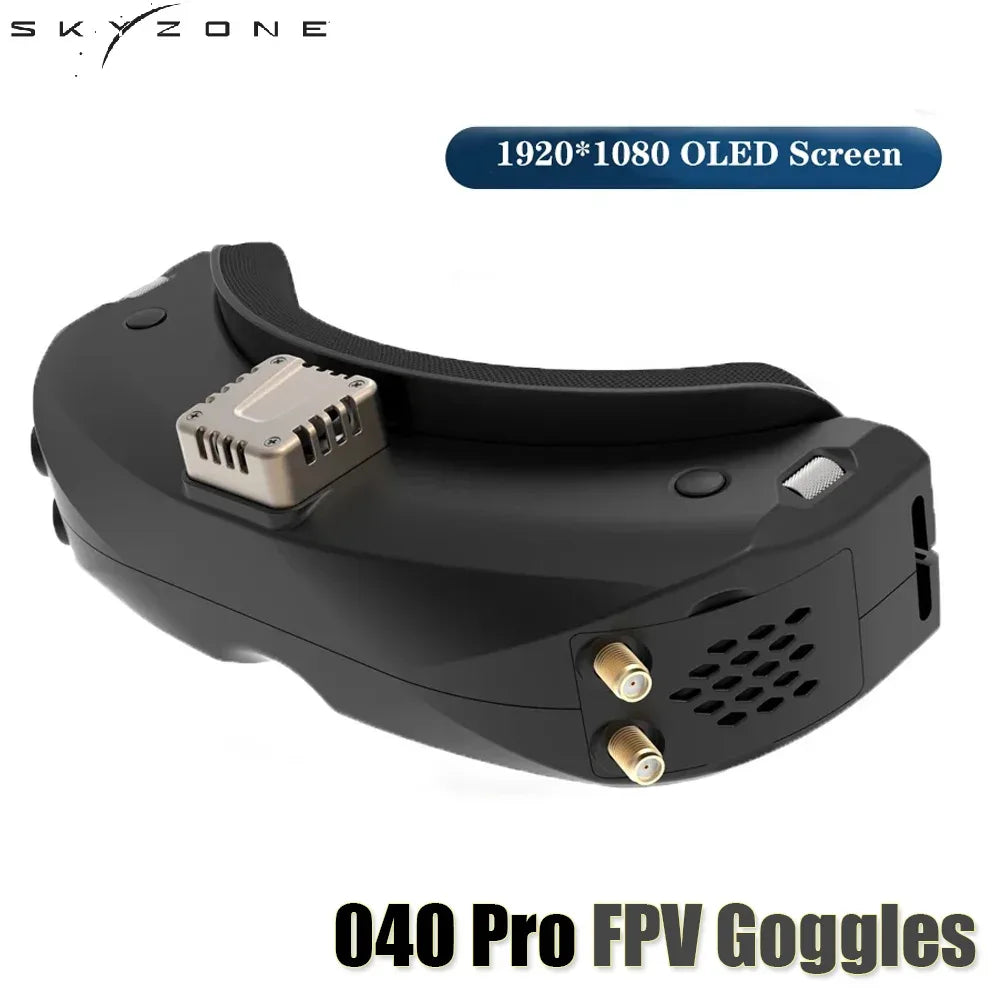

The SKYZONE SKY04O PRO is an upgraded version of SKY04O, with a 1920*1080 OLED panel and new 42-degree optics, user can get a better and more immersive FPV experience than SKY04O, with a 1080P OLED panel, which is also a good choice for Walksnail avatar and hd zero HD VRX Module.

Specification:
Model: SKY04O PRO
Screen: OLED
Resolution: 1920*1080
FOV(Diagonal): 42°
Aspect Ratio: 4:3/16:9
Focus: -6~+2 adjustable (Suitable for long-sighted and near-sighted people.)
Interpupillary distance (IPD): 58~71mm
Receiver : 5.8Ghz 48CH Receiver
3D Function: Side By Side half
Language: 10 Language
Power Supply: DC 6.5-25.2V/USB 5V
Power Consumption: 720mA @ 12V
DVR : MJPEG, 60FPS,MOV 6Mbps, SD Card support up to 128Gb
Head Tracker: 3-axis Accelerometer, 3-axis gyroscope
Antenna Connector: SMA

Package Included
--SKY04O Pro Goggle*1
--Receiver Module*1
--Faceplate*2(wide and narrow)
--Sponge with velcro*1
--Zipper case*1
--Power cable*1
--Headtracker cable*1
--5.8GHz 2dB antennas*2
--Video/ Audio Cable*1
--USB-C Cable*1
--User Manual*1

User Manual(Click to download)
