SPECIFICATIONS

Brand Name: XINGKAITECH

Compatible Drone Brand: DJI

High-concerned chemical: None

Model Number: XK-4.9-6.0G 70CH RX

Origin: Mainland China

Package: Yes

Size: L42.4mm*W25.8mm*H20.5mm

Weight: 22.5g

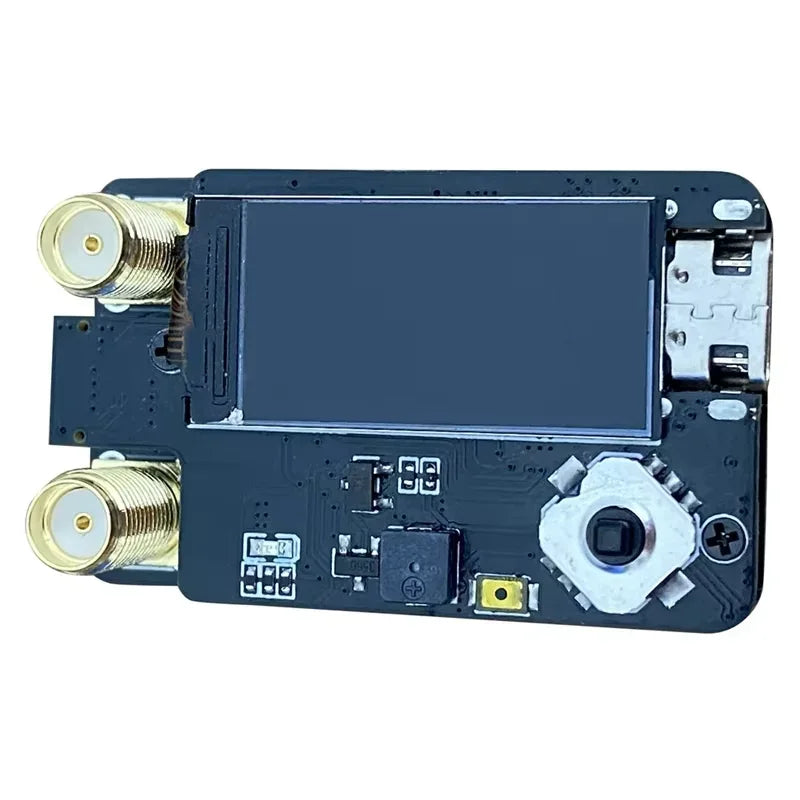

SKYZONE Glasses 4.9/5.8/6G PLUS Dual Antenna Receiver Module Video Receiver 70CH FPV VRX Directly Plugged into Suitable for FPV

Product Specifications

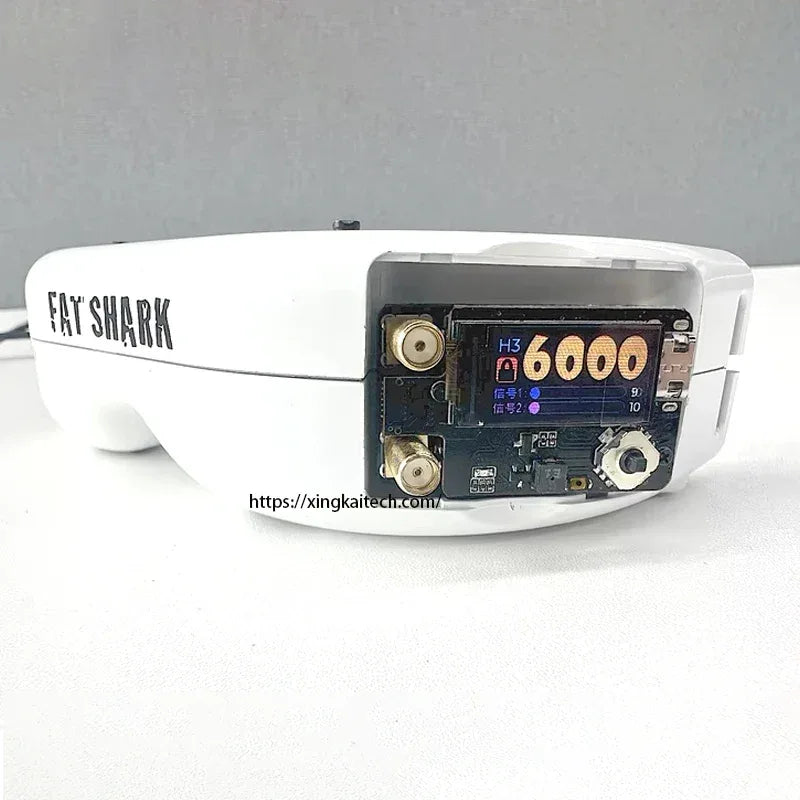

●Adaptation: Fatshark Dominator V1, V2, V3,

HD1, HD2, HD3, HDO, HDO2

Skyzone 04L,04X

DJI V1 V2 FPV Glasses(Need to purchase separately (5.8G RX PORT module)

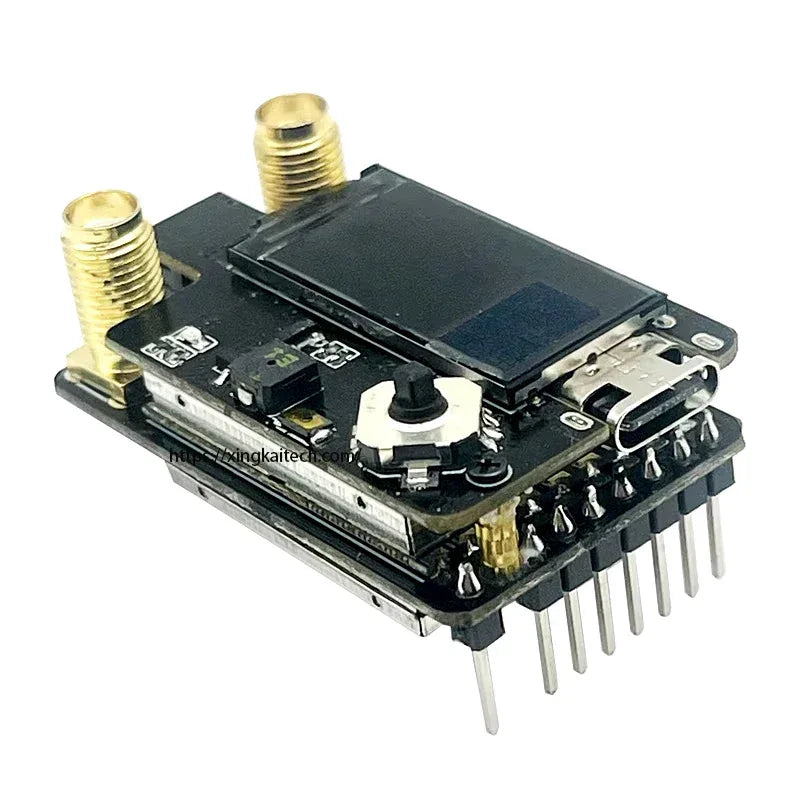

Hardware: ESP32 microcontroller + 0.96" TFTLCD + 5-way

Pushbutton + RF homologation-98dbm receiver module + buzzer

●Interface: LVGL based bilingual interface

Switch between 5.3G-5.9G or 4.9G-6G via the boot animation slider in the Settings interface

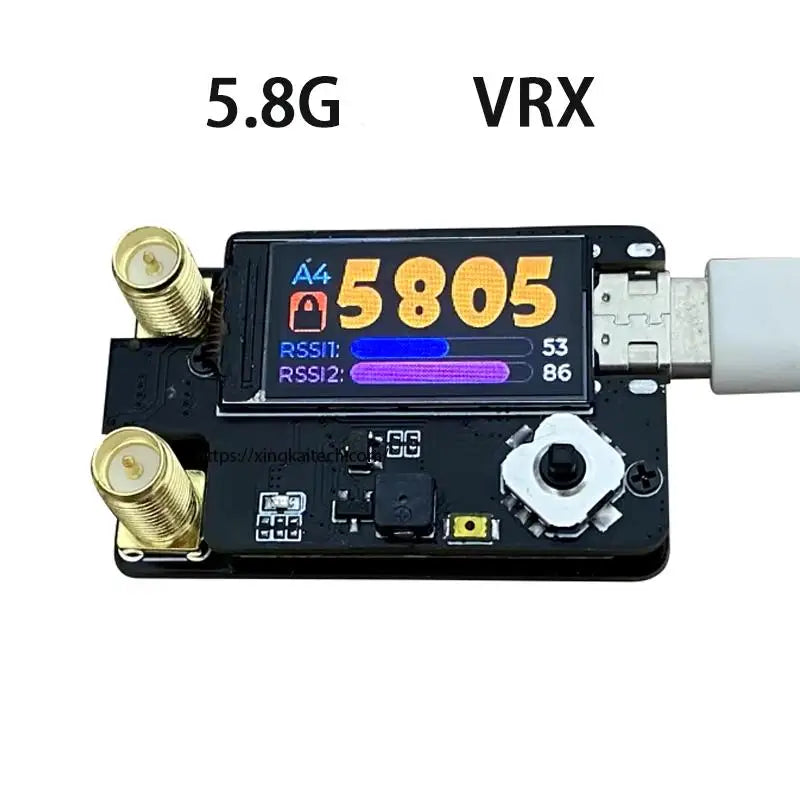

●Frequency: 5.3-5.9G 48 frequencies (A,B,E,F,R,L)

 {5865,5845,5825,5805,5785,5765,5745,5725},   //ACH1-8

 {5733,5752,5771,5790,5809,5828,5847,5866},   //BCH1-8

 {5705,5685,5665,5645,5885,5905,5925,5945},  //ECH1-8

 {5740,5760,5780,5800,5820,5840,5860,5880},   //FCH1-8

 {5658,5695,5732,5769,5806,5843,5880,5917},   //RCH1-8

 {5362,5399,5436,5473,5510,5547,5584,5621}   //LCH1-8

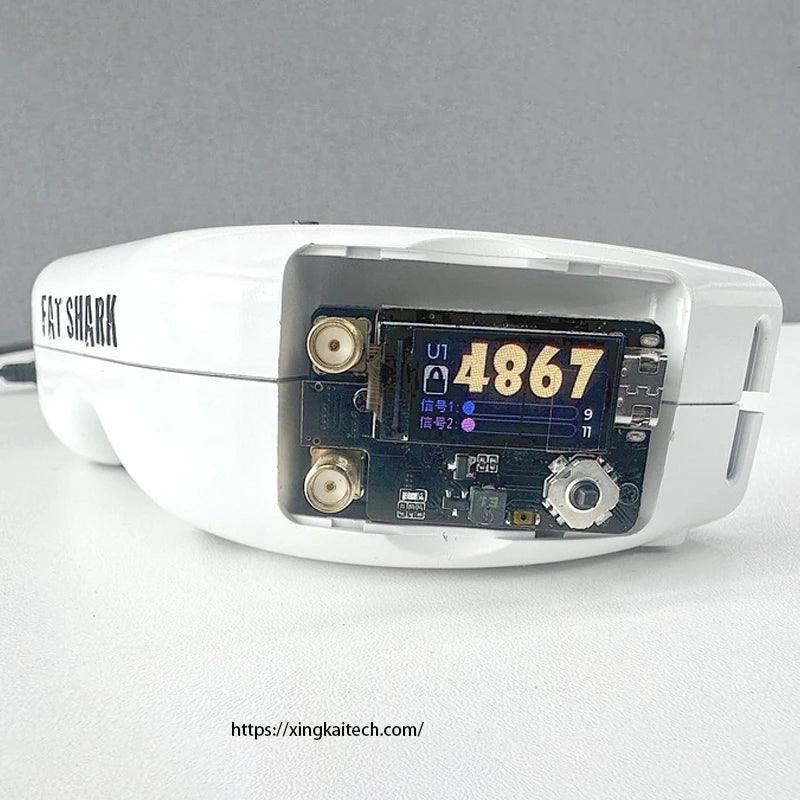

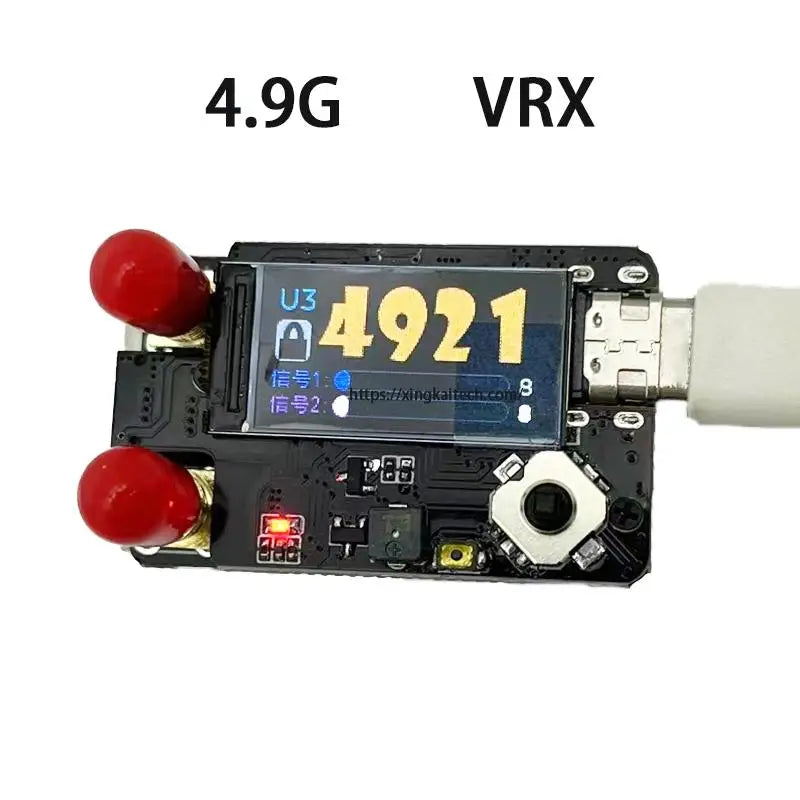

●Frequency: 4.9G-6.1G 22 frequencies (U,H,V,)

 {4990,5020,5050,5080,5110,5140,5170,5200},    //VCH1-8

 {4867,4884,4921,4958,4995,5032,5069,5099},   //UCH1-8

 {5960,5980,6000,6020,6040,6060},   //HCH1-6

Power supply: 5V@450mA

Weight: 22.5g

Dimensions:L42.4mm*W25.8mm*H20.5mm

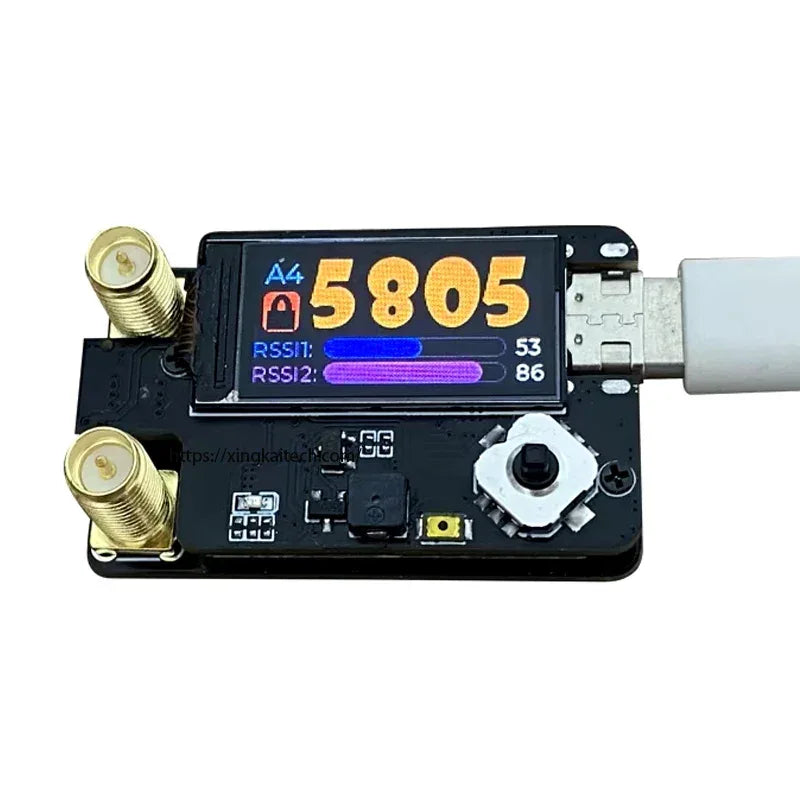

1. On the main interface, long press the OK button to lock/unlock the manual channel, and short press to enter the menu; when unlocked, press up, down, left, and right to adjust the frequency

2. The menu interface is divided into three parts: receiver, settings, and about.

Use the up and down keys to switch menu options, Athe OK key to enter the submenu, and the left key to return to the main interface

3. The receiver menu has three sub-contents.

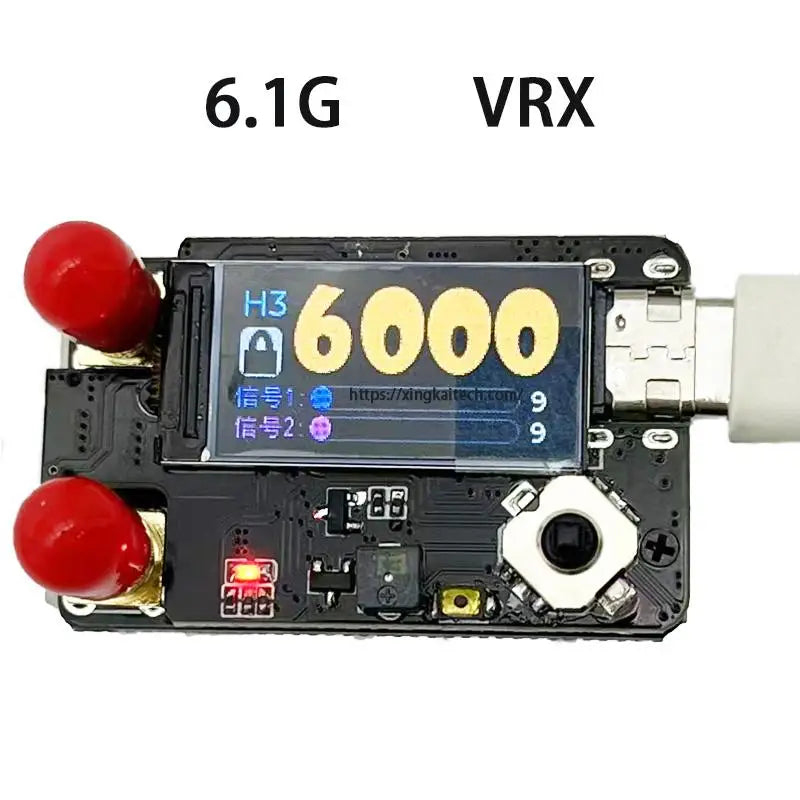

The spectrum scan displays the signal strength of the frequency 5.3G-5.9G or 4.9G-6G.

The spectrum scan display will display the channel signal strength in different color charts.

Channel scanning is used for automatic frequency search. After the scan is completed, the frequency switches to the channel with the best current signal strength and is displayed in the upper right corner.

Signal calibration is used to calibrate RSSI. Failure to turn on the image transmission will cause the calibration to fail, and the result will be saved if successful.

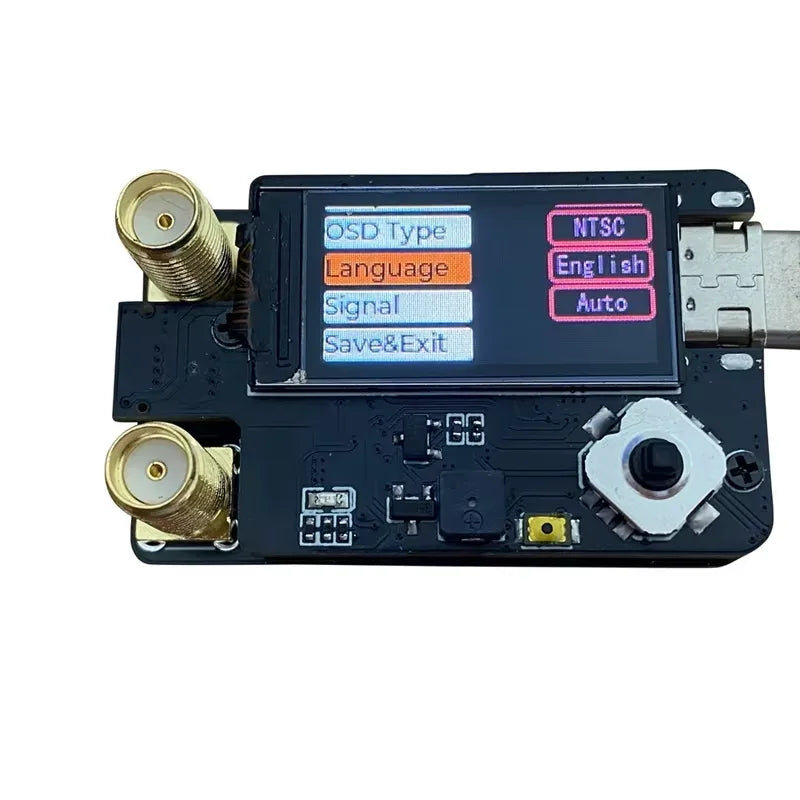

4. The settings interface can set the display backlight intensity, fan speed, startup animation, whether the buzzer is turned on, OSD format, system language, and output signal source.
