SPECIFICATIONS

Brand Name: Shinho

Heating Time: 26s

Language: Multi-language

Model Number: X-950

OEM Service: Available

Place of Origin: Anhui, China

Power supply: 5200mAh battery,support 250 cycles

Product name: X-950 Ribbon fusion splicers

Size: 155mm(L)X144mm (W)X155mm (H)

Splicing Time: 20 Seconds

Splicing mode: Auto,Normal,Manual

Type: Fiber fusion splicer

Use: FTTX

Warranty: 2 Years

Warranty Time: 3 years

Weight: 2.3kg including battery

Product Description

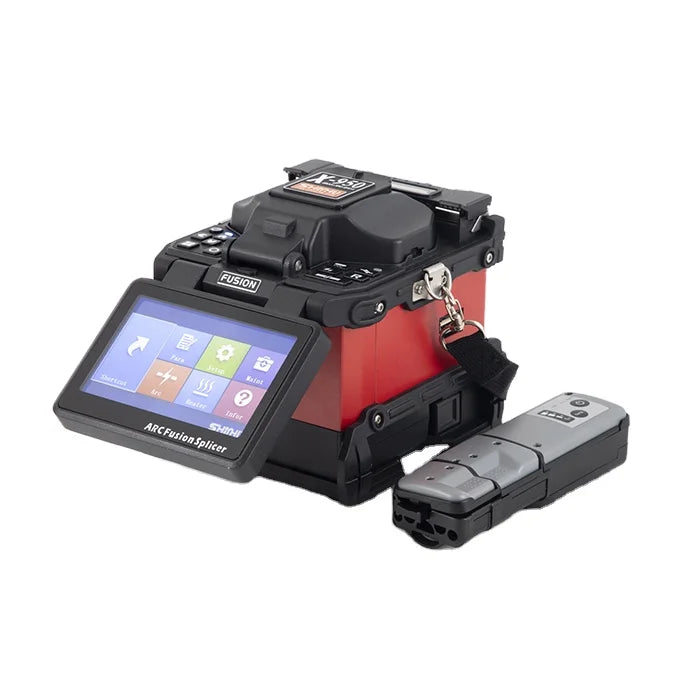

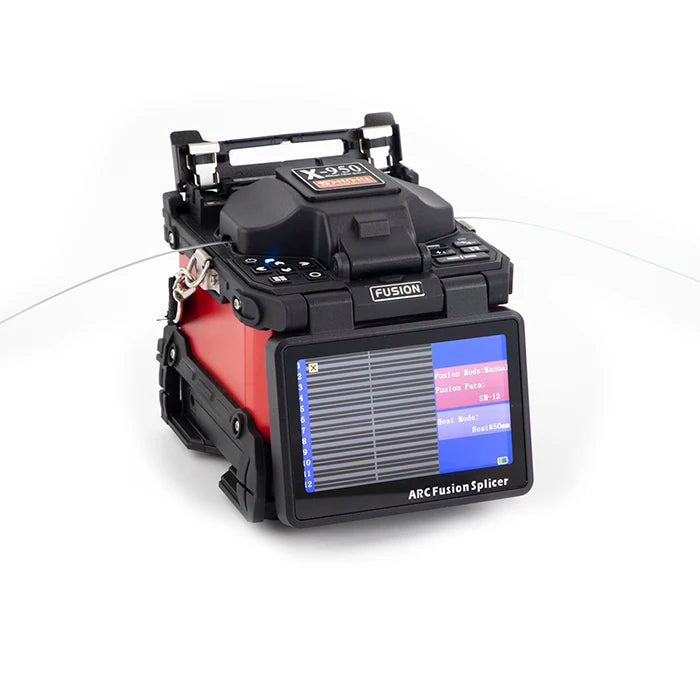

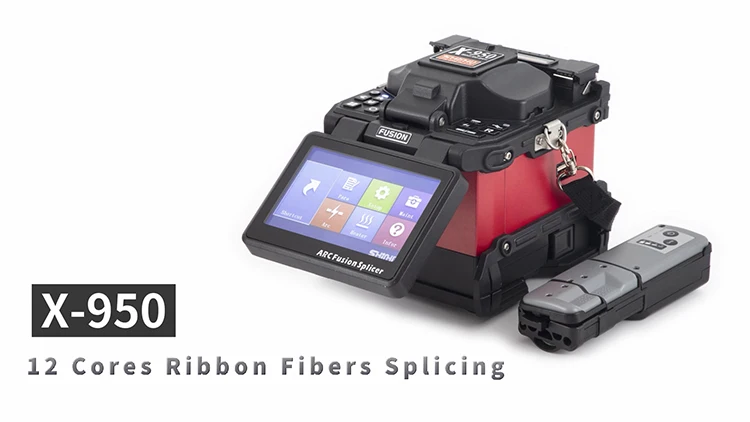

X-950 Ribbon fiber fusion splicer is with the latest accurate fiber alignment technology, it has very stable performance and low fusion loss, it is suitable for different fiber optical projects and various environmental conditions.

Features

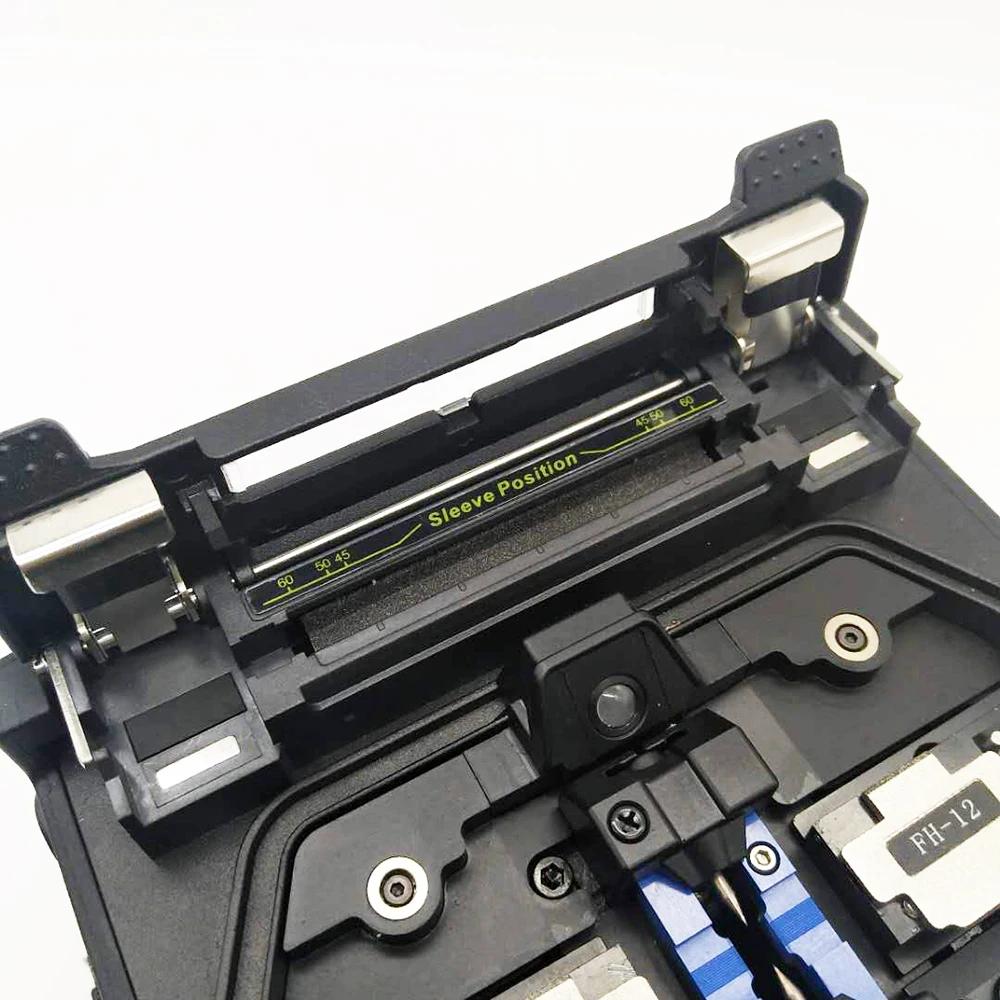

*Applicable to 2-12 ribbon fiber splicing
*Consistent and quality low-loss splicing
*20s splicing time, heating 1-2/4-12 fiber ribbon 26s/40s
*Applicable to different types fibers (SM/MM/DS/NZDS)

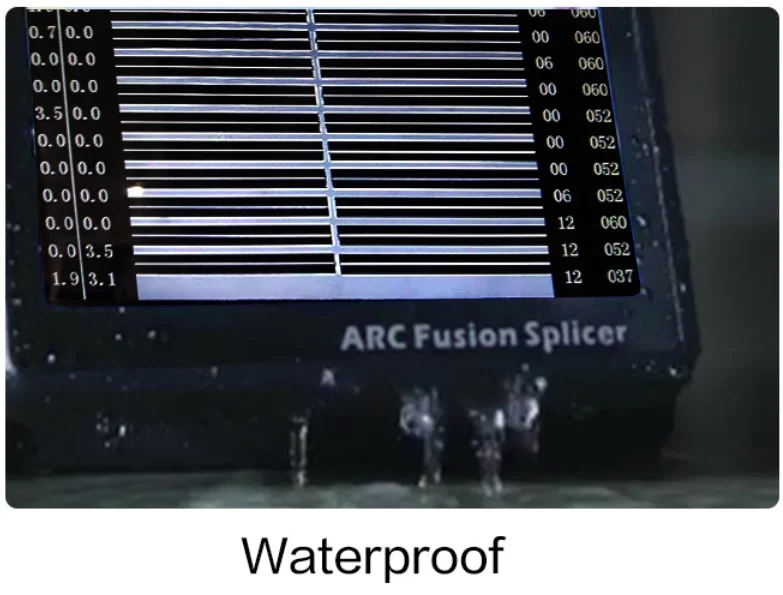

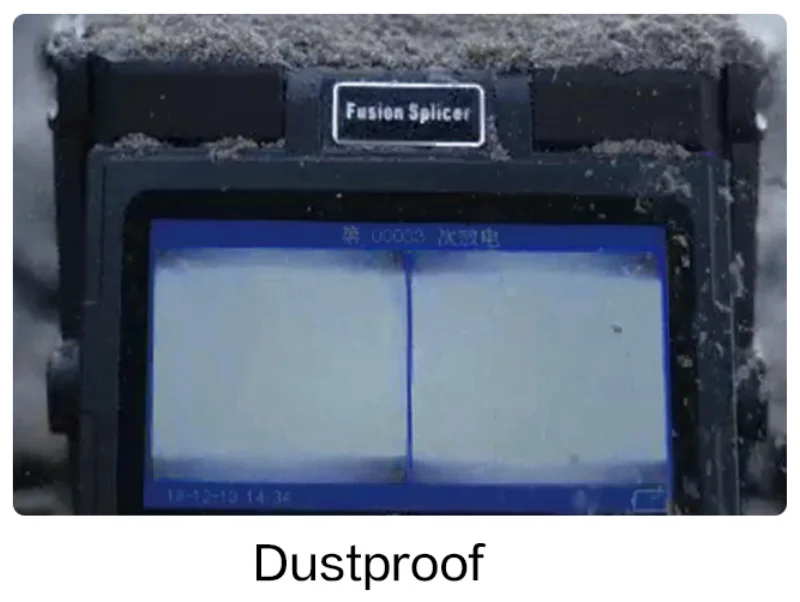

*Ruggedized body, waterproof, anti-dust, anti-shock
*Pluggable Li-battery, support separate charging
*Easy to maintenance, easy to replace the electrodes
*USB port for software upgrading, records exporting
*Equal with 12R
*Comply with CE/Rohs international standard

Product Specification

Packing&Shipping

Product Name	X-950 Ribbon Fiber Fusion Splicer
Applicable fiber	SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655)
Fiber quantity	Single core，2-12 cores
Fiber alignment method	Clad to Clad
Typical splice loss	SM:0.05dB MM:0.02dB DS:0.08dB NZDS:0.08dB
Return loss	＞ 60dB
Diameter of coating	250～400µm
Splicing program	40 groups
Operate mode	Automatic/Manual
Auto-heating	Available
Typical splicing time	20 seconds
Typical heating time	1-2 cores 26 seconds，4-12 cores 40 seconds
Fiber magnification	25X
Display screen	5.0 inch color LCD monitor
Records storage	4000 groups data records and 100 group images
Loss evaluation	Available
Tension test	1.8-2.2N
Interface	GUI menu interface, easy for operation
Battery	5200mAh Li-battery, typical 150 cycles splicing and heating, suppport separating charging
Power supply	Adapter, input: AC 100-240V(50/50HZ), output: 11-13.5V
Electrodes life	More than 3000 ARC discharges, can be replaced vonveniently
Ternimal	USB2.0 port, for software upgrading and records exporting
Operating conditions	Altituede: 0-5000m, Humidity: 0-95%, Temperature: -10℃~+50℃, Wind speed: Max 15m/s
Dimension	155mm(L)×144mm (W)×155mm (H) /
Weight	2.30kg (including battery)

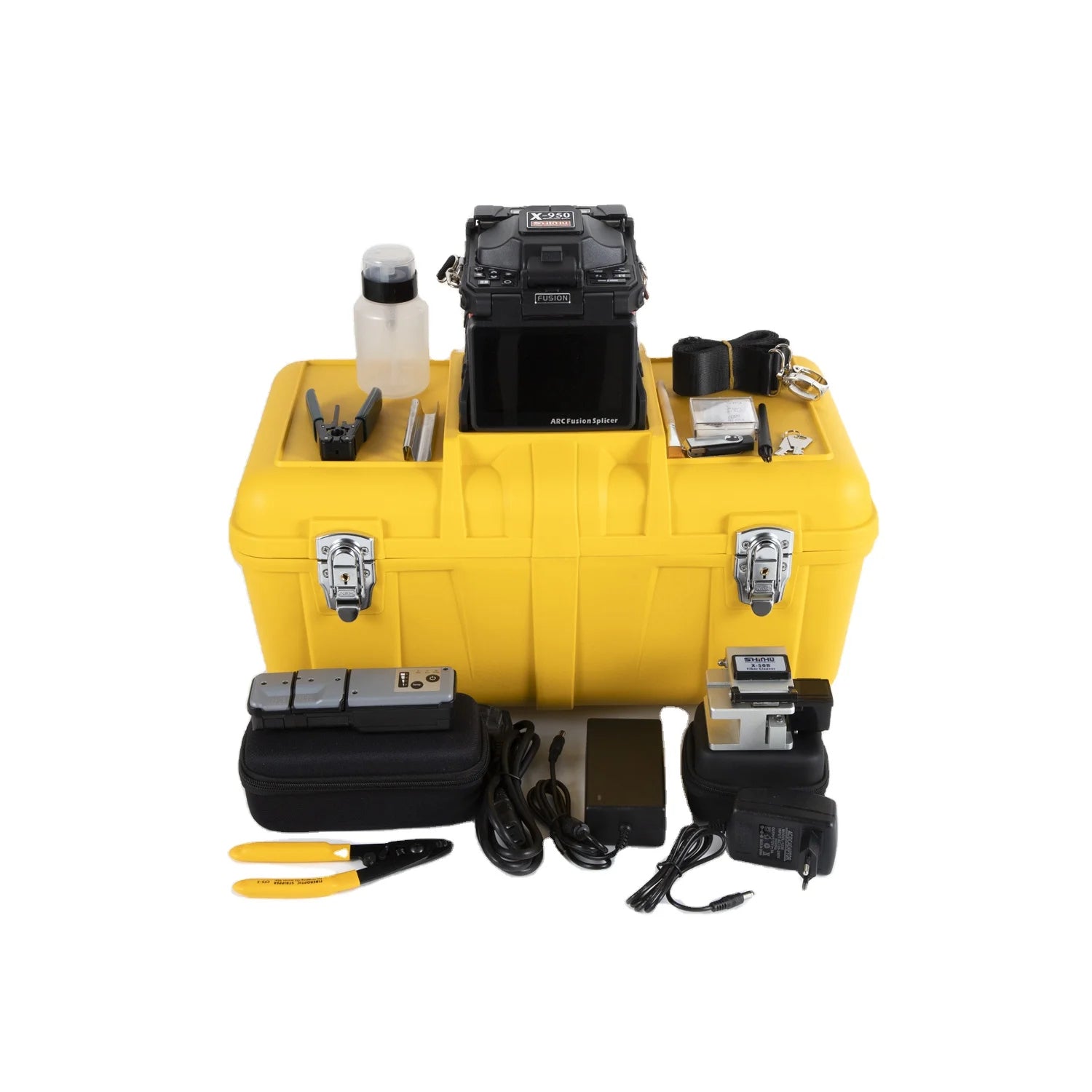

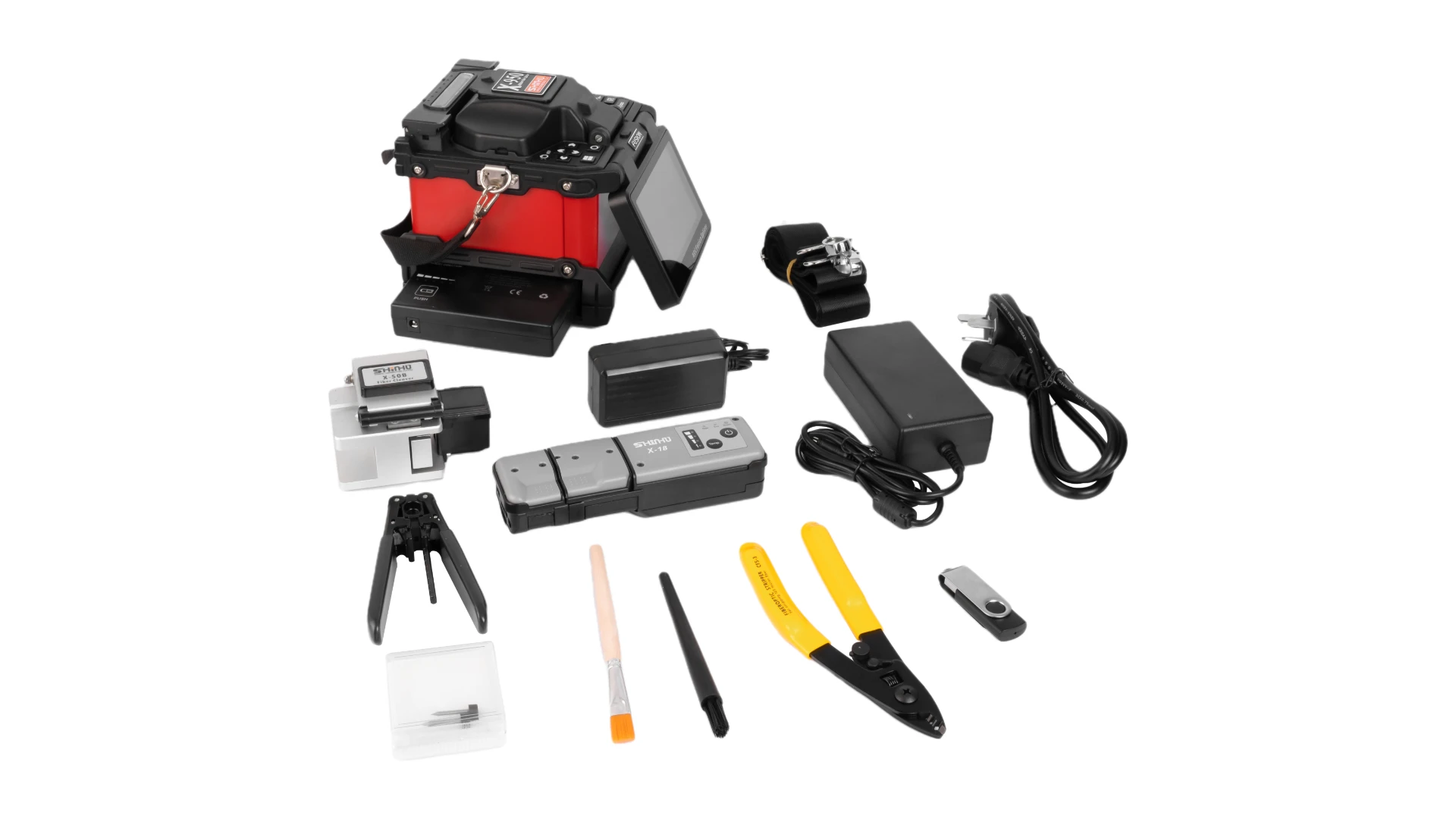

Standard Package	1. Main machine with battery inside  2.Carrying Case 3.X-18 heater stripper 4.X-50B fiber cleaver 5.Fiber holder R-12 6.Power adapter 7.Power cord 8.Spare electrodes 9.USB user manual 10.Strap 11.Cooling tray 12. Optional fiber holder are available

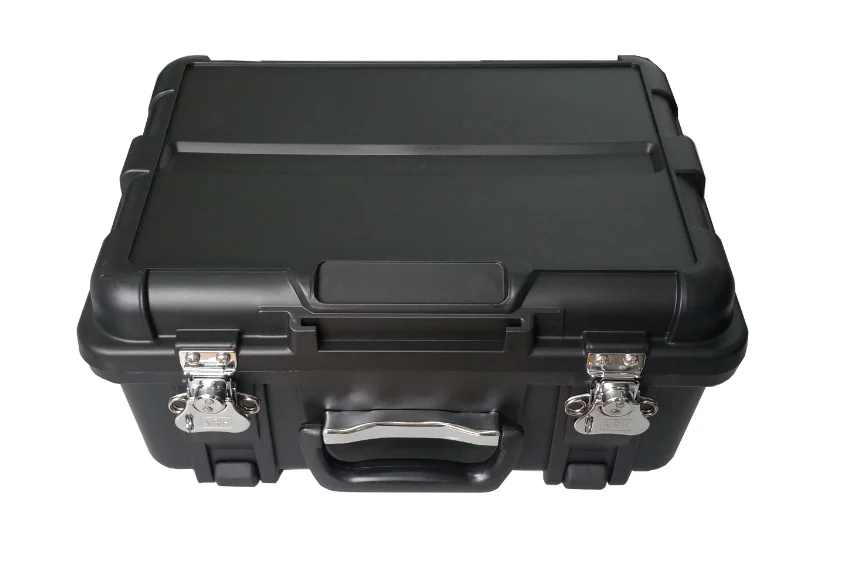

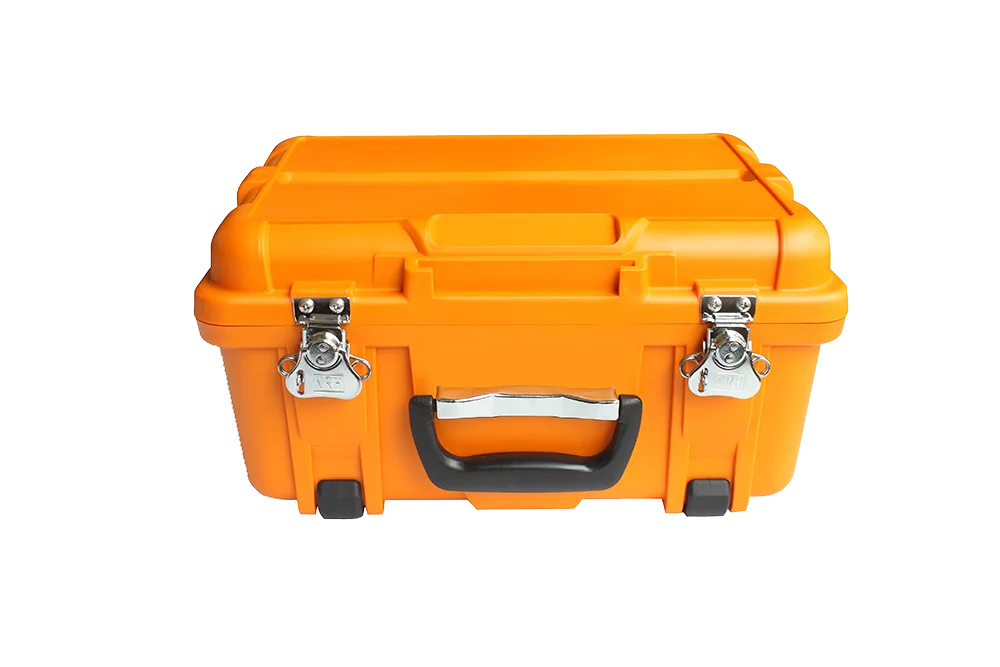

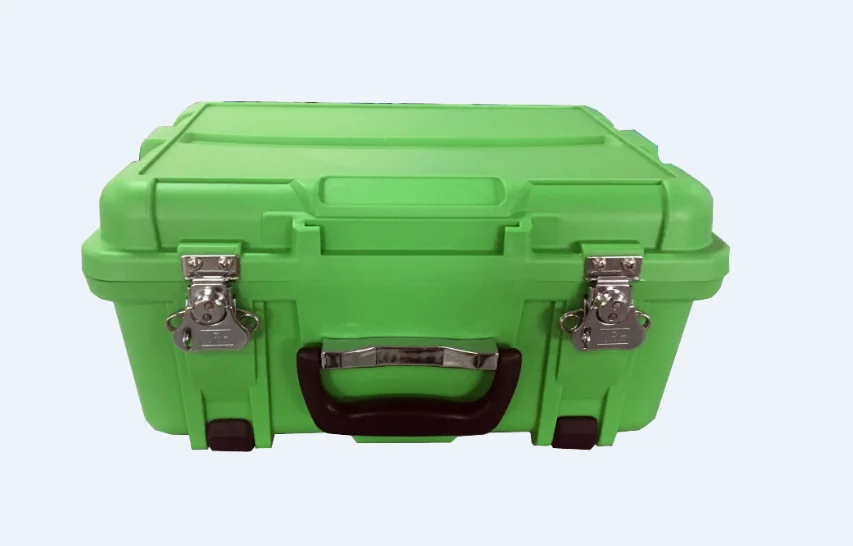

Packed in carrying case, then into carton.We could deliver within 3 days for standard orders.
Delivered out by express, air or by sea according to customer's request.

Deliver by Express or by Air for standard orders.

After Sales Service

1) Warranty: 3 Years for the main Splicer. 2)Lifelong technical support. Any problem during using, we will offer guidance to solve the problem. 3)Quick feedback. Usually customers can get our reply within 1 hour, latest will be not over 10 hours. 4) 36 months warranty period. Within warranty period, all repair and replacement are for free. 5) Reasonable cost for repair & replacement. According to our experience, most problems could be solved by machine menu operation via our remote guidance, do not need repairing or replacement.

Certifications

Company Introduction

XIANGHE(SHINHO) is one real professional manufacturer of fusion splicers.We provide OEM, ODM and other services to our valuable customers from overseas markets.Our optical fiber splicing machines have advanced and stable performance, their operation is easy and intelligent, being widely used in kinds of telecom areas, like communication projects,broadcasting & TV, railway, petroleum & chemical industry, optical passive components production, scientific institute, etc.
Compared with world famous leading brands and other Chinese splicers, our splicers' fusion losses have reached world's advanced level, much better than all Chinese brands' fusion splicers.

FAQ

1. Are you manufacturer or distributor?
-----We are the original manufacturer, OEM & ODM are also available.

2. Why Choose Xianghe?

----Industry technology leader: More than 20 years experience, keeping upgrading new technology and now models.
----Reliable product quality: ISO9001:2015 quality management system, strict quality control and testing process.
----Strong production/OEM ability: More than 10,000 units machines sold to more than 50 countries and areas every year, OEM available.
----Satisfied after-sales service: Life long technical support, quick feedback to any problem, 24 months warranty period.

3. What Certificate you have?
-----CE,Rohs, and ISO.

4. What is the warranty?
-----3 Years from the date from you received the splicer. If there is any problem you meet, please contact us, we will instruct to solve it .

5.What is the lead time?
-----Within 3 working days after received payment. For urgent orders, we could offer speed-up service.

6. How to be your distributor?
-----We welcome customers to be our distributor. We will give you full support. Contact us if you are interested.
