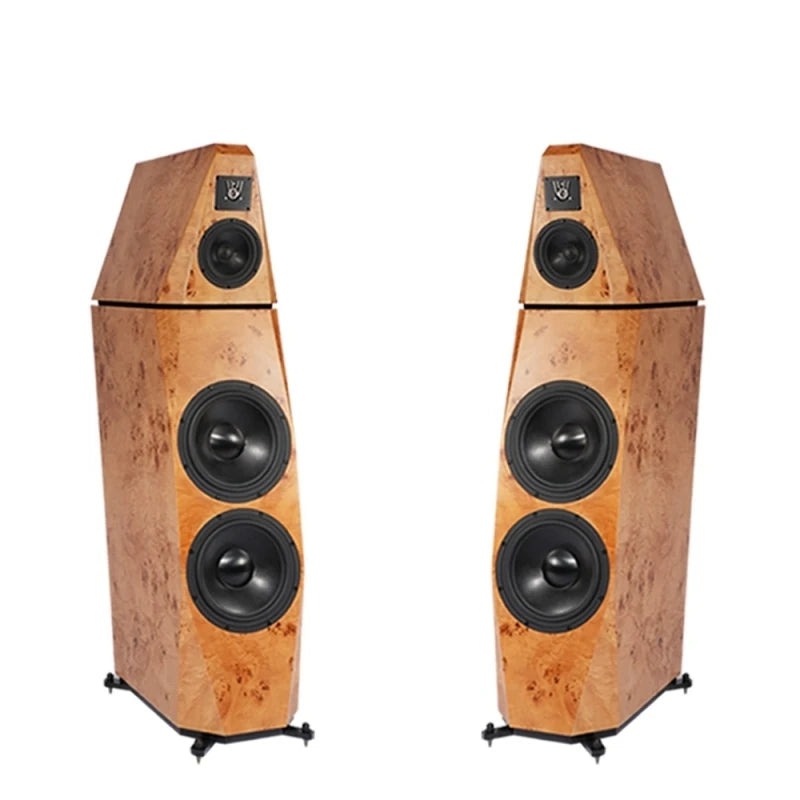

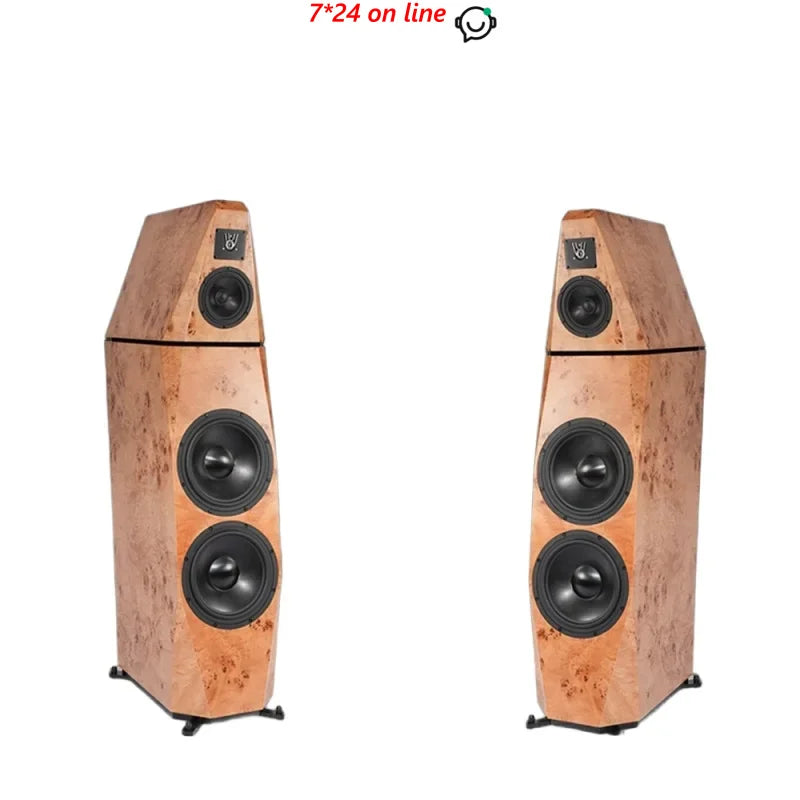

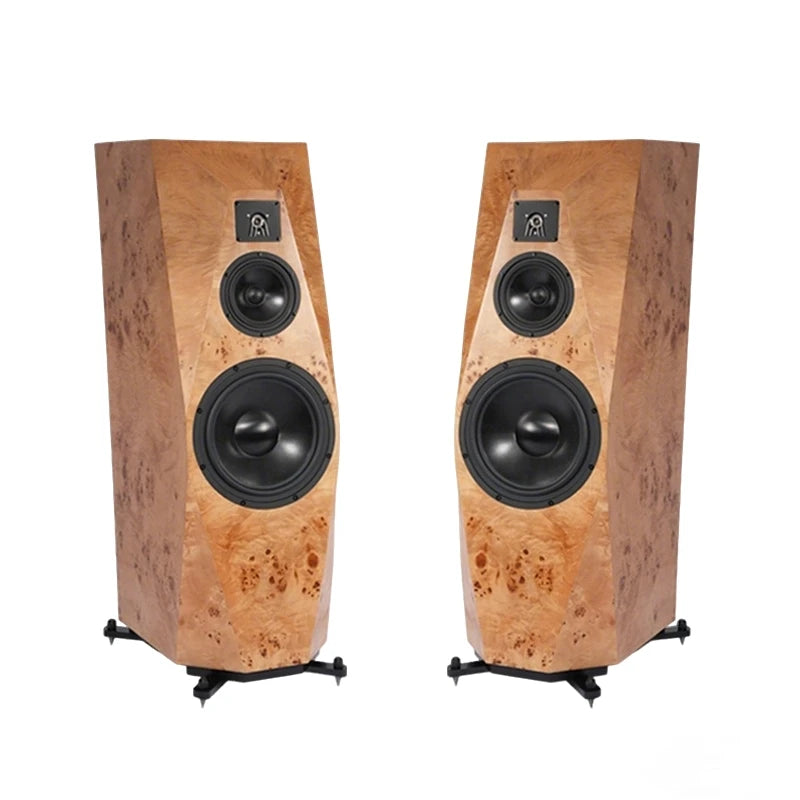

SBH-012 Diamond 1&2 Audiophile Grade HiFi Floorstanding Speakers High-End Audio Sound System

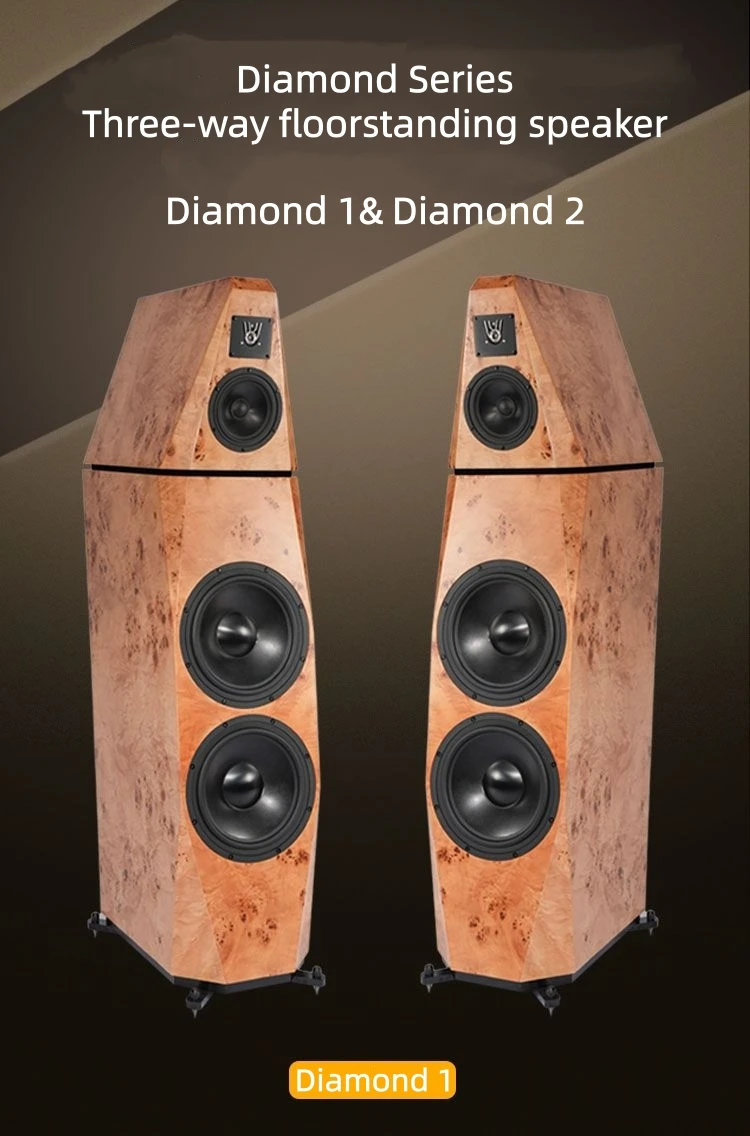

The Diamond Series floor-standing speakers feature a three-way design, widely acclaimed by audiophiles and

electro-acoustic engineers for their clarity, transparency, first-class spatial presentation, and versatile sound

performance.

The Diamond Series cabinet design integrates acoustic principles, significantly enhancing the system's sonic

performance.

The diamond-cut edges reduce diffraction from the front baffle for mid-high frequencies, allowing the speakers to

create a deeper soundstage and clearer audio imaging.

With independent chambers for the mid-high and low-frequency drivers, the multi-faceted diamond-cut

construction provides superior cabinet rigidity and resonance resistance.

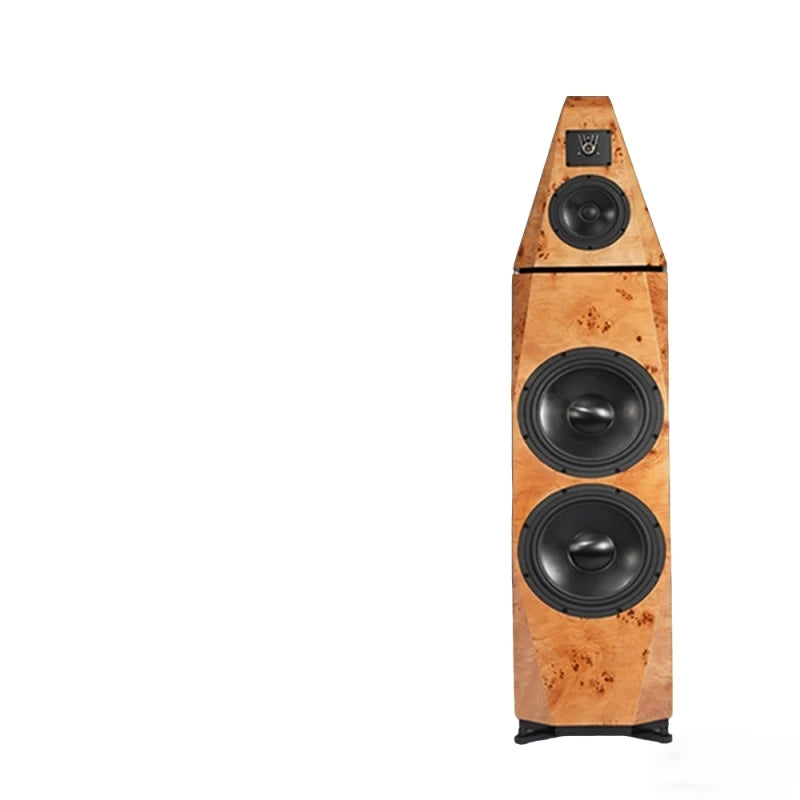

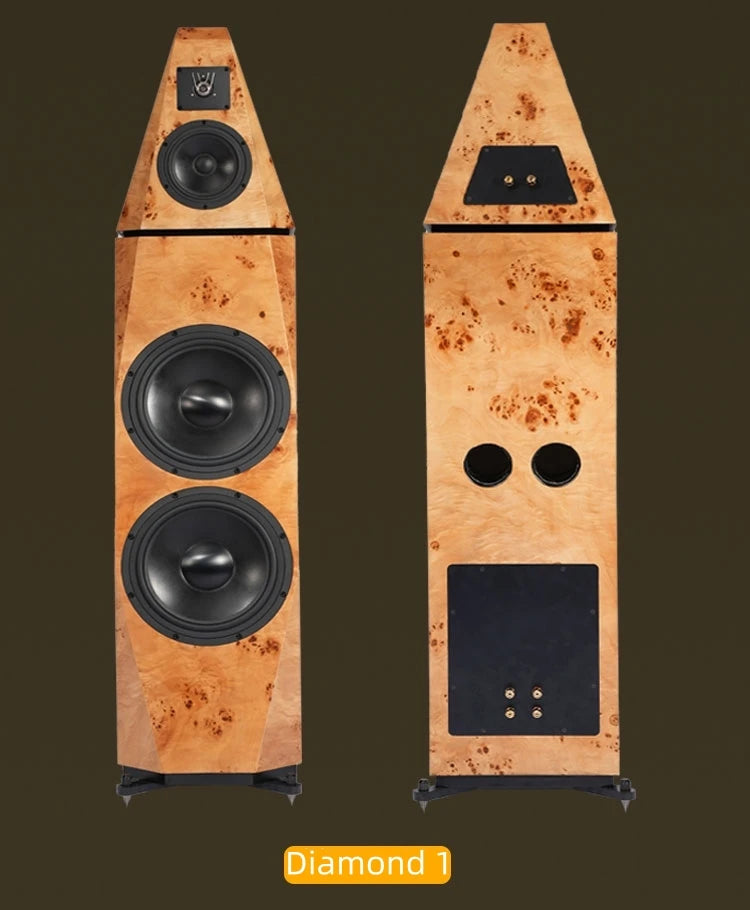

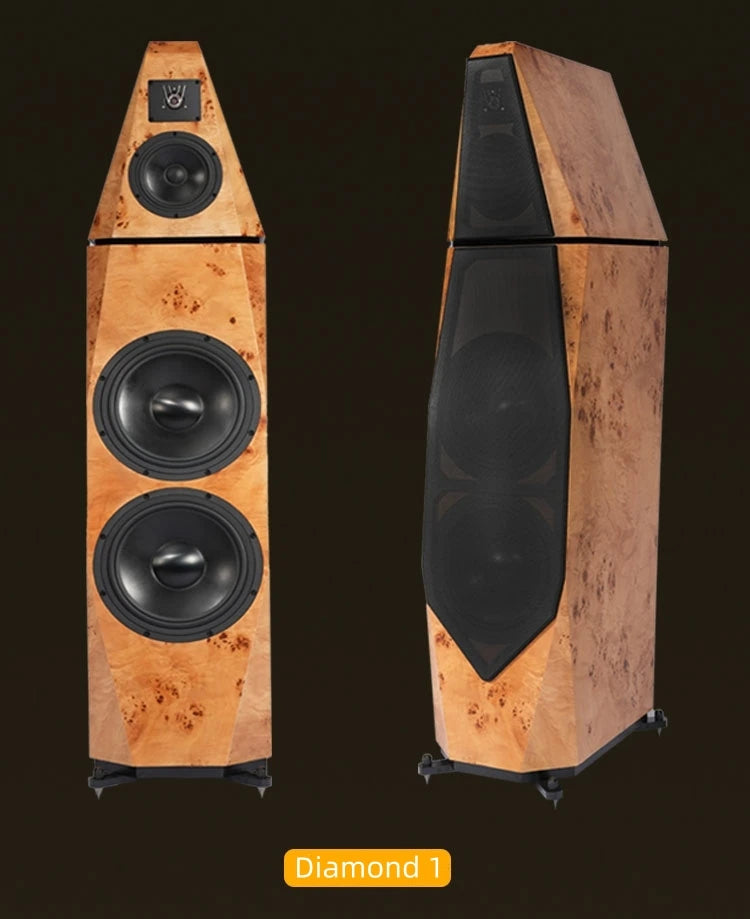

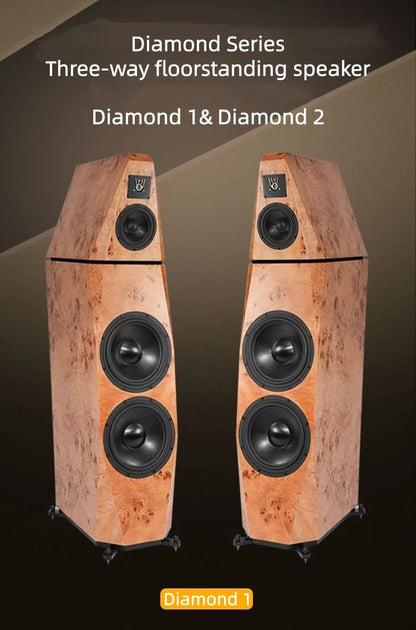

Diamond One Technical Specifications

Tweeter: 1-inch Titanium Alloy + Silk Dome Tweeter

Midrange: 7-inch Honeycomb Sandwich Cone Midrange

Woofer: 12-inch x2 Honeycomb Sandwich Cone Woofers

Sensitivity: 91dB

Impedance: 4Ω

Crossover Points: 300Hz / 2.2kHz

Frequency Response: 28Hz - 40kHz

Amplifier Power: 50-500W

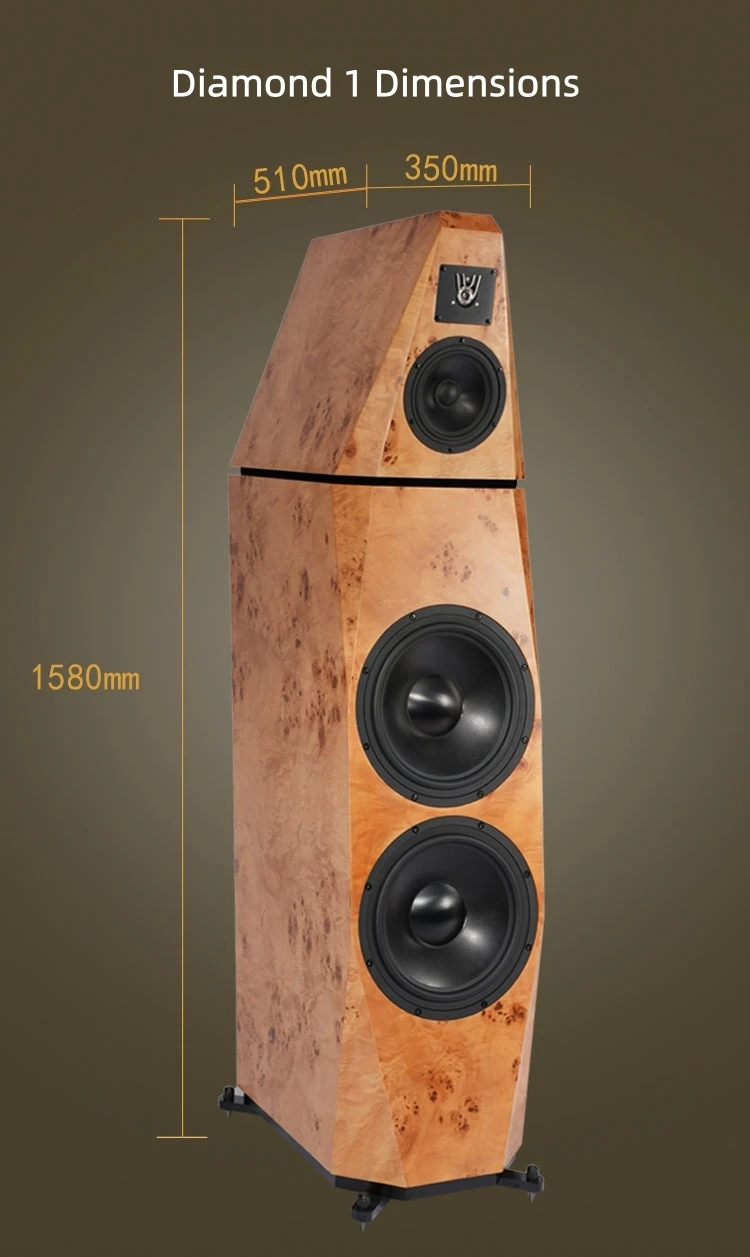

Dimensions (HWD): 35*51*158 cm

Weight: 79.6 kg each

Recommended Applications: HiFi Audiophile Systems, Home Theater Systems, Concert Halls

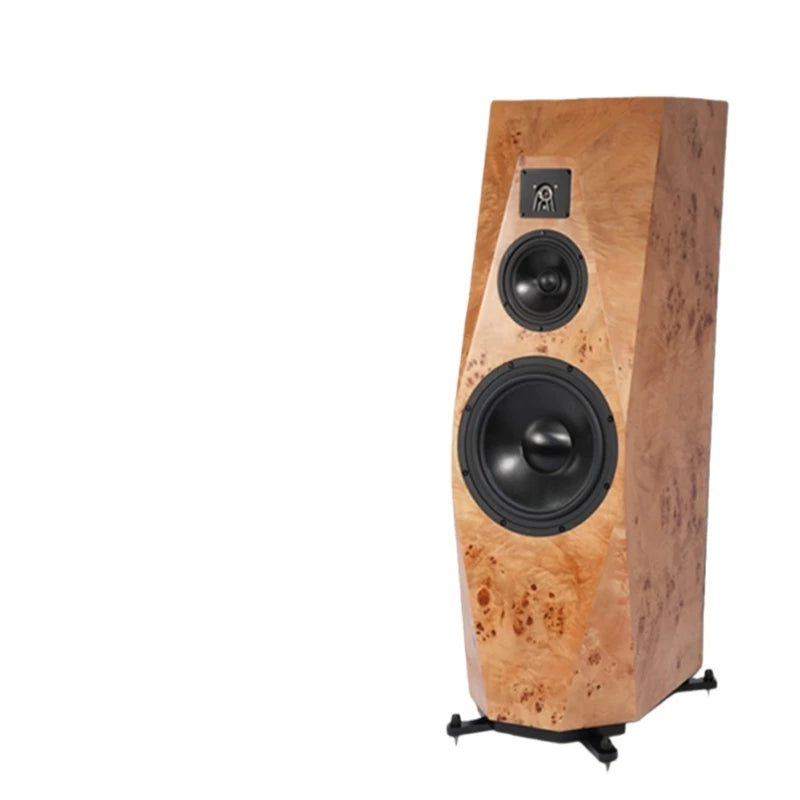

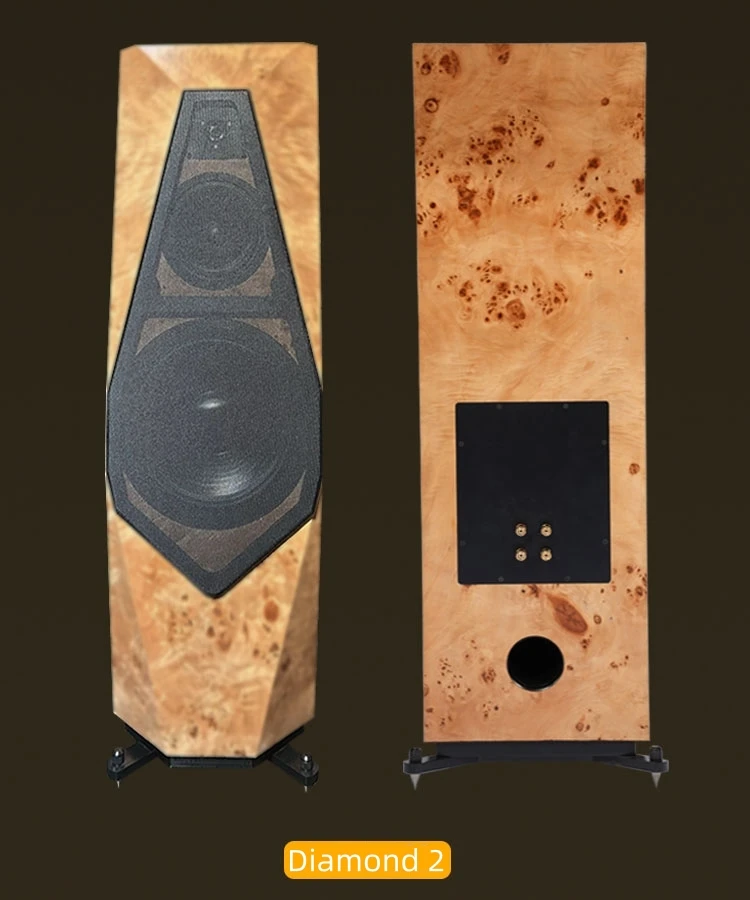

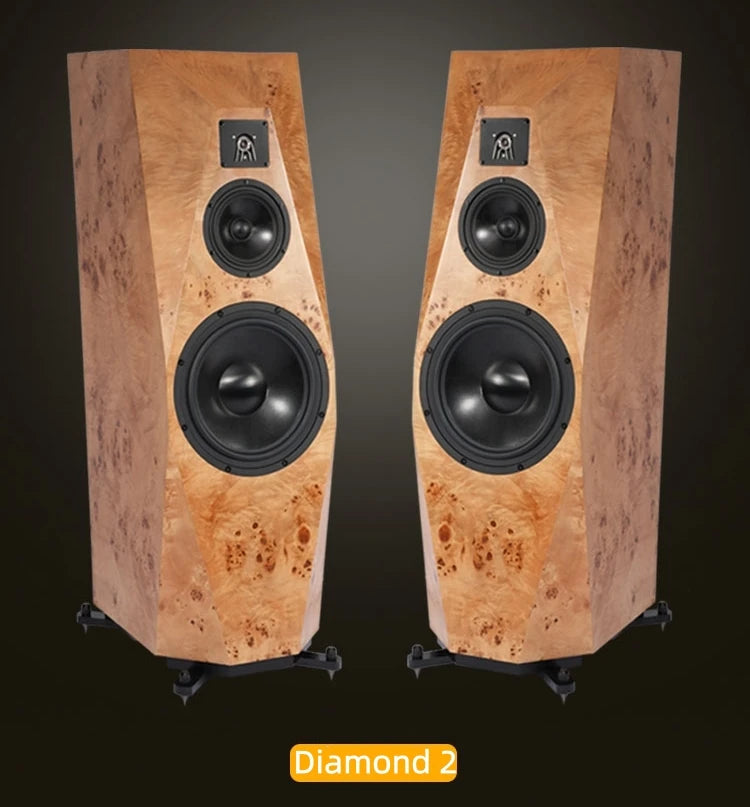

Diamond Two Technical Specifications

Tweeter: 1-inch Titanium Alloy + Silk Dome Tweeter

Midrange: 7-inch Honeycomb Sandwich Cone Midrange

Woofer: 12-inch Honeycomb Sandwich Cone Woofer

Sensitivity: 89dB

Impedance: 8Ω

Crossover Points: 300Hz / 2.2kHz

Frequency Response: 36Hz - 40kHz

Amplifier Power: 50-300W

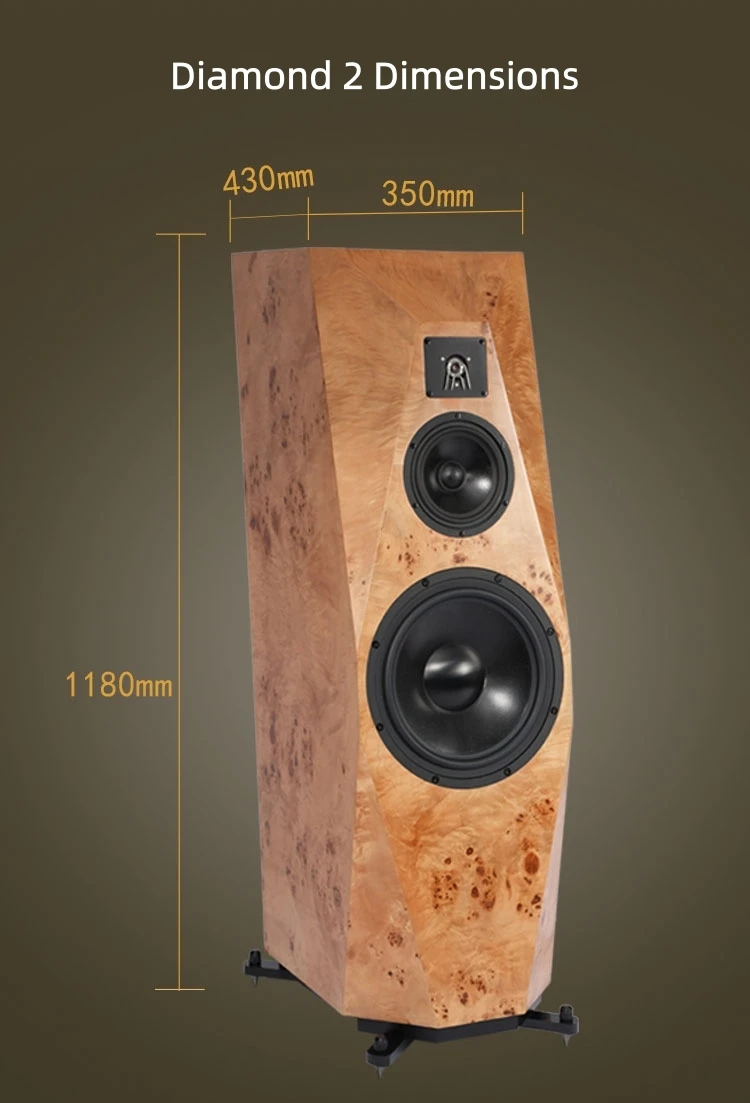

Dimensions (HWD): 35*43*118 cm

Weight: 55 kg each

Recommended Applications: HiFi Audiophile Systems, Home Theater Systems, Concert Halls

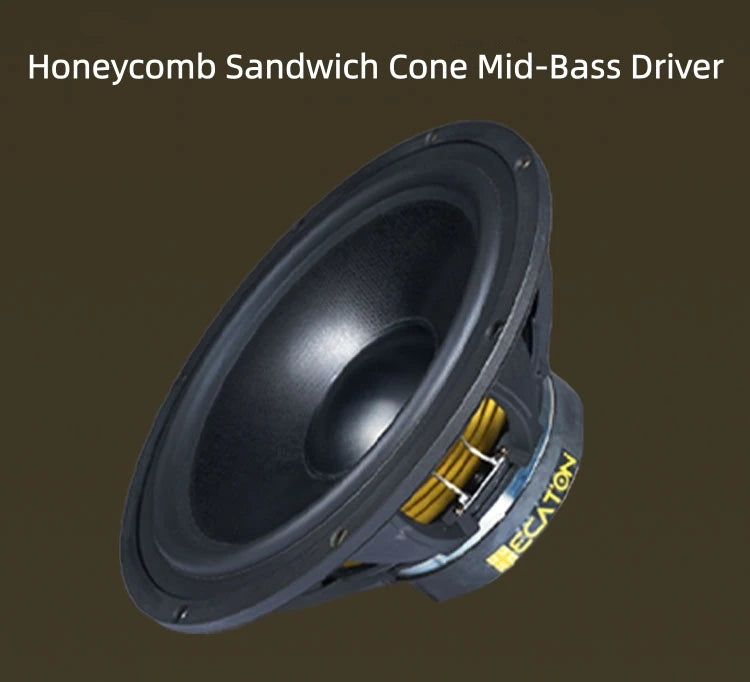

The woofer employs a 12-inch British Xton honeycomb sandwich cone driver. The honeycomb sandwich structure

enhances overall rigidity while increasing internal damping of the diaphragm, resulting in low harmonic distortion,

a smoother frequency response curve, excellent dynamic response, and powerful, full-bodied bass.

The reduction in diaphragm vibration mass significantly improves the transient response of the low frequencies,

delivering faster speed and abundant energy, creating a distinctive sound character.

The magnetic circuit design utilizes high permeability, low magnetic reluctance, excellent magnetic saturation

characteristics, and a stable ferrite magnetic system, ensuring highly efficient electromagnetic conversion for

even more impactful bass performance.

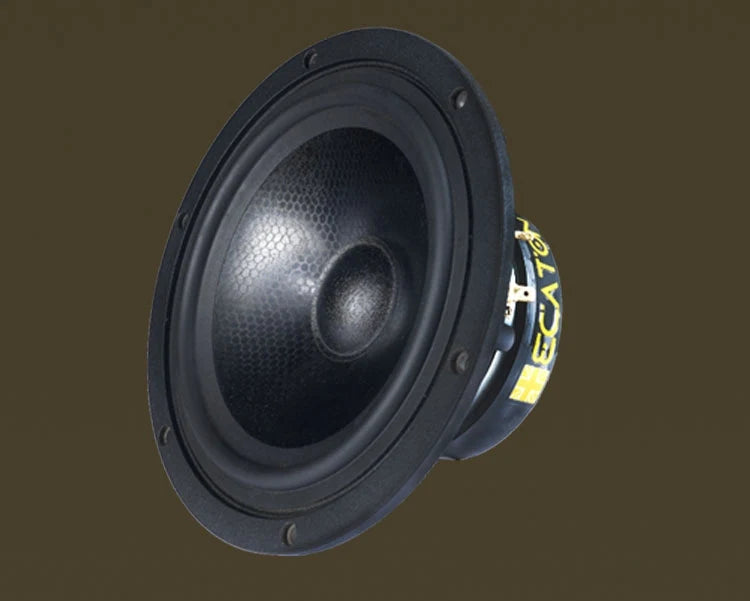

The midrange driver uses a 7-inch British Xton honeycomb sandwich cone unit, delivering a richer, clearer, cleaner,

and more vibrant midrange sound. It features imported German rubber surrounds with special anti-aging additives,

achieving top-tier performance in damping, compliance, fatigue resistance, and elasticity.

The genuine German-made spider and voice coil ensure highly efficient electromagnetic conversion, providing a

continuous and powerful driving force for the vibration of the honeycomb cone.

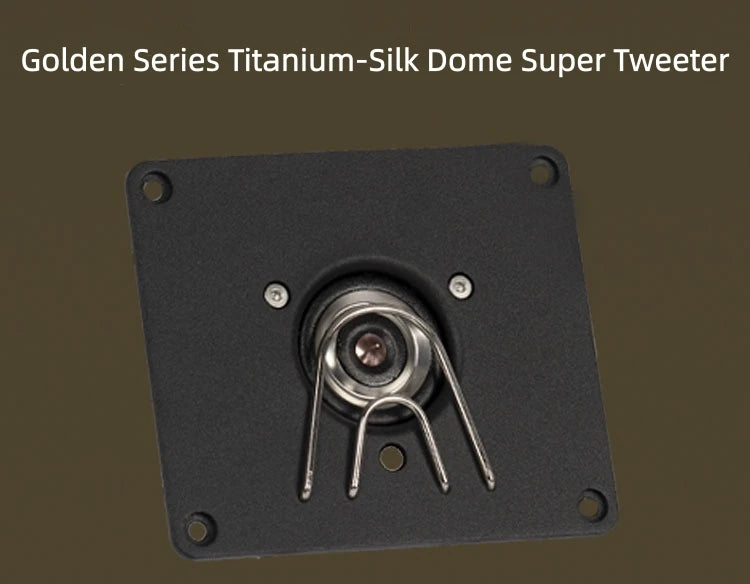

The tweeter features a British Xton "Titanium Alloy + Silk Dome" driver, combining the silk dome’s smoothness

with the metallic character of titanium. Equipped with a powerful neodymium magnet system, it offers high

sensitivity and extends up to 40kHz, delivering refined, gentle, elegant, and transparent sound that remains

fatigue-free over long listening sessions, effortlessly handling all types of audio sources.
