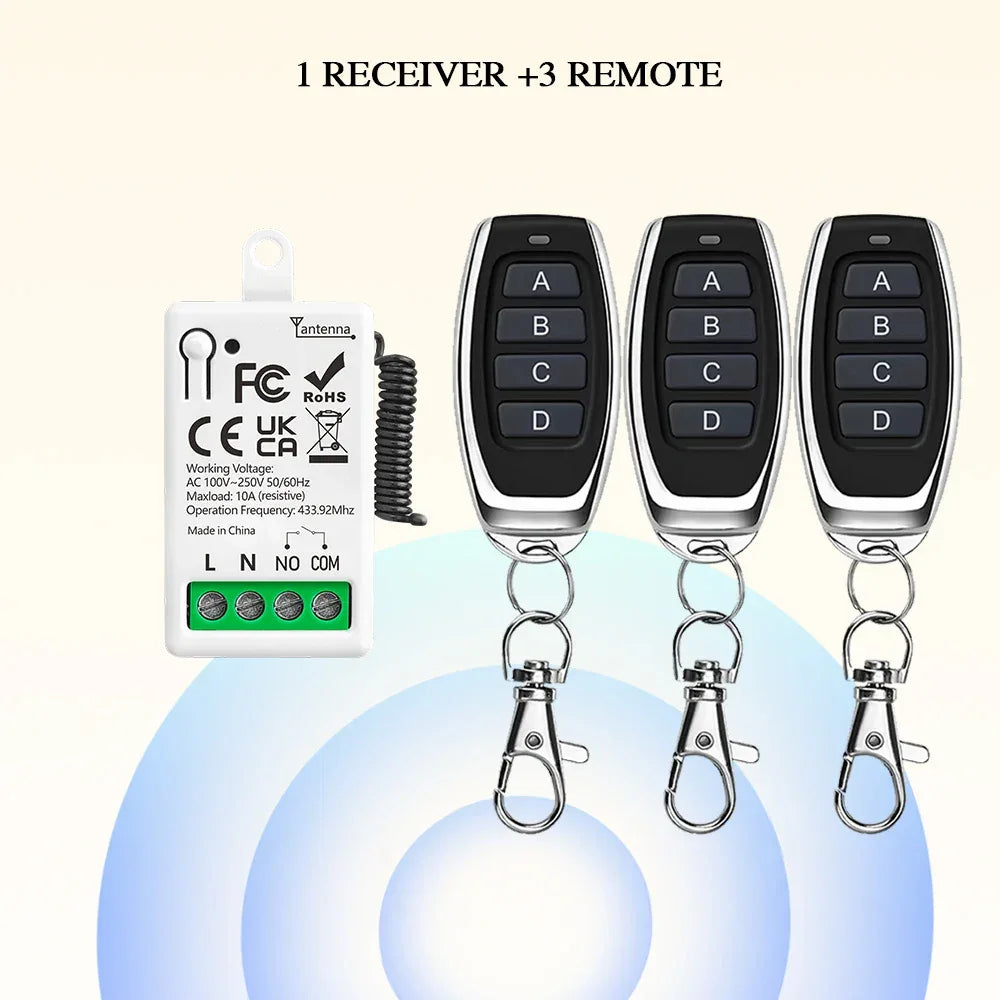

RF433MHz Dry Contact Wireless Remote Control Light Switch AC110V 220V 10A Mini Relay Module for Garage Control Lock LED DIY Lamp
RF433MHz Dry Contact Wireless Remote Control Light Switch AC110V 220V 10A Mini Relay Module for Garage Control Lock LED DIY Lamp
Couldn't load pickup availability
SPECIFICATIONS
Application 1: Led Light Lamp Bulb Switch, Home Security Alarm System
Application 2: Garage control system
Application location: Home, Farm, Factory, Office, Supermarkets and so on
Brand Name: NONE
Certification: CE,FCC
Channel: 1
Choice: yes
Control distance: 50m (Theoretical distance)
Controller working frequency: 433.92MHZ
Frequency: 433 MHz
High-concerned chemical: None
Matching mode: Intelligent Learning code 1527
Model Number: 2201Fcom54
Origin: Mainland China
Package: Yes
RF remote size: 60*30 mm
Receiver size: 47*28*22 mm
Receiving sensitivity: 97dbm
Round panel battery: 2*CR2016 (Include)
Support APP: No
Use: Universal,Lighting,Switch,ROOM,Home
Wireless Communication: RF
Working temperature: -30 ~ +80 Celsius
Working voltage: AC 100V-250V
semi_Choice: yes

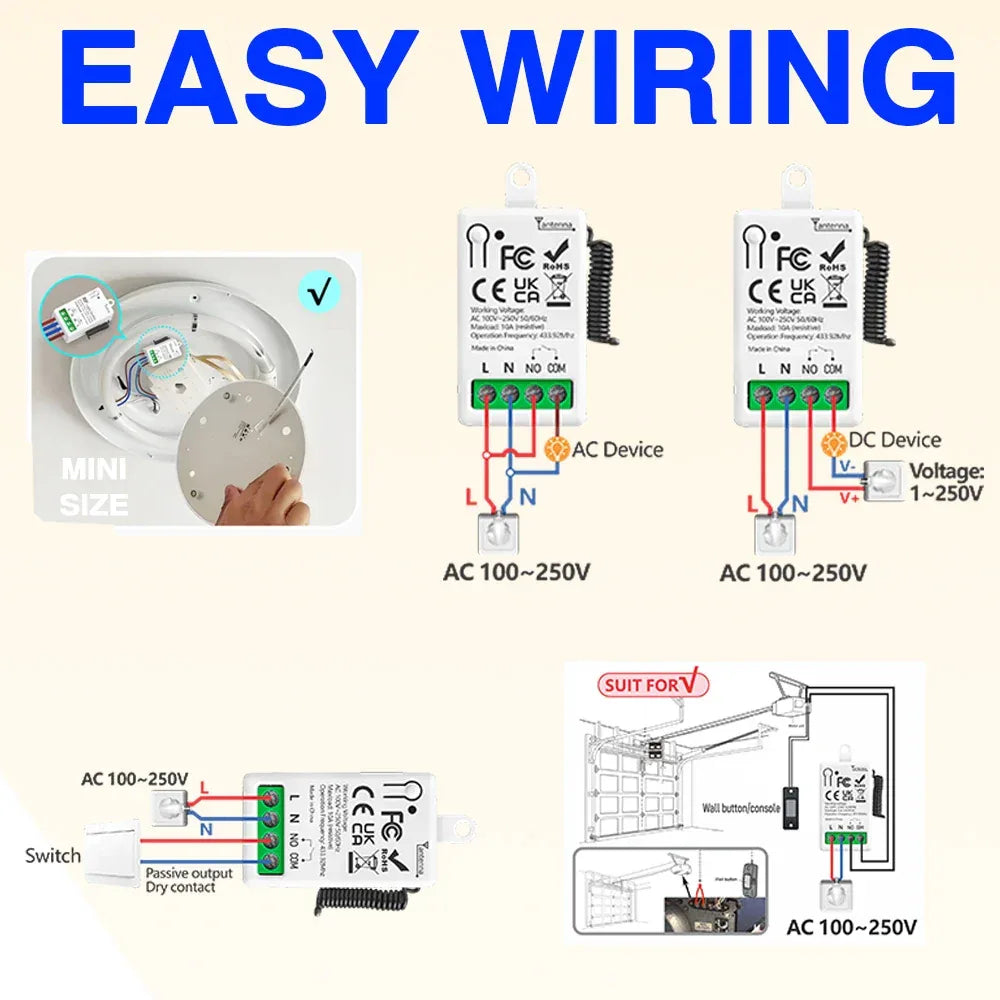

Power Source and Connection Capabilities

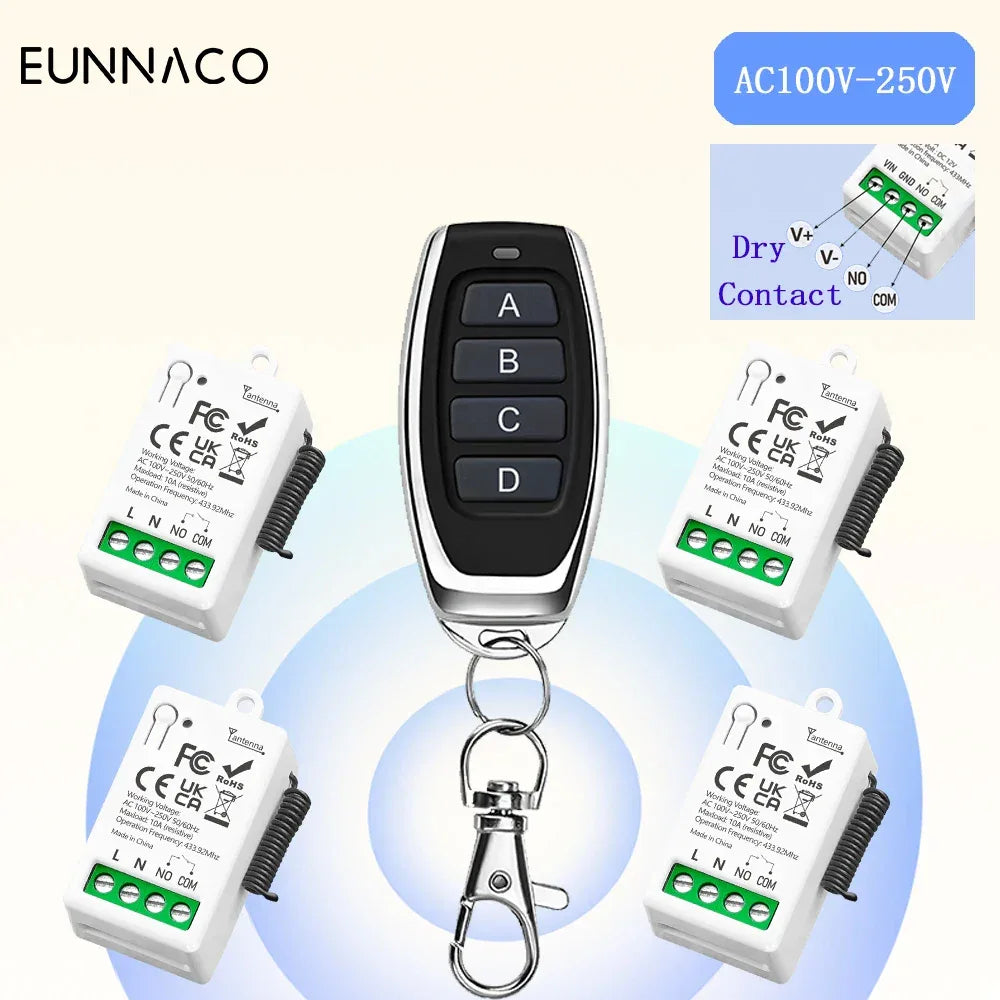

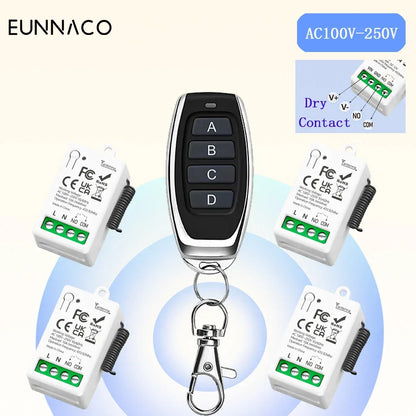

Dry Contact:
Power is sourced from an external entity. It has a NO (Normally Open), NC (Normally Closed), and COM (Common) port. The output can be made equivalent to the input, and it can be connected to other power sources. It can be connected to 1 - 250 v, which implies a wide range of compatibility in terms of the number of devices it can interface with.
Wet Contact:
The power is supplied by the same source that the control circuit uses to switch the contact. It has L (Line) and N (Neutral) ports. Here, the output is equal to the input, and it can only control AC devices within the voltage range of 100V - 250V.
△Powerful RF signals: Wall switches and miniature relays with antennas are completely new designs to ensure stability of RF signals. In open spaces, its working range can reach 50 meters.
△Multiple control support: You can control 5 receivers simultaneously with a single wall switch (press the wall switch, all 5 receivers will work simultaneously); you can control one receiver with 10 wall switches (each switch can control the receiver on and off after pairing with 10 wall switches); you can also control three receivers with a three-button wall switch.
△Mini Size Smart Switch: This smart switch can be hidden in the junction box, saving space.
△Dry contact design for DIY/garage control systems: This receiver controls a wide range of 1-250V devices, making it more powerful and safer than a wet contact receiver.
△Excellent products: Our products have passed CE, CCC, RoHs certification, safe and reliable, and of high quality.
△Fast shipping with quality after-sales service: Usually shipped within 24 hours after you pay. And, we will solve all the problems you encounter during the shopping process.

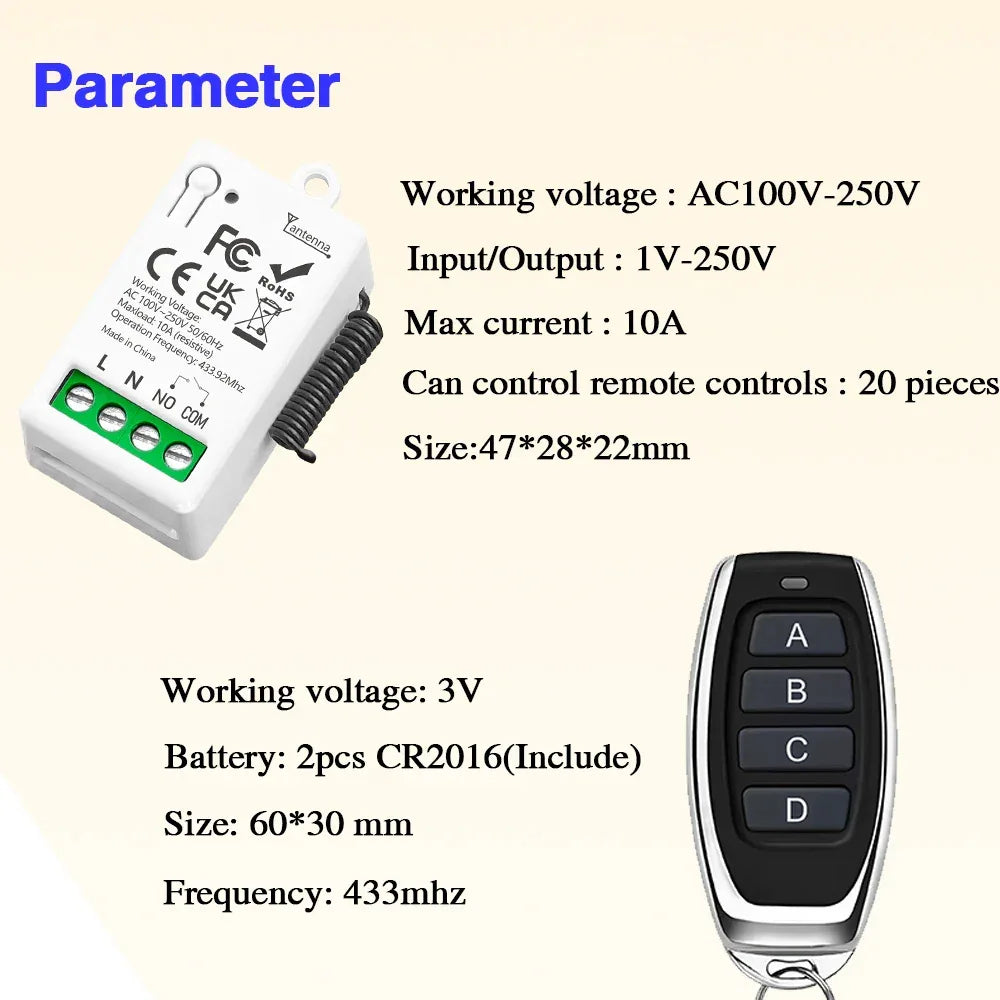

Product parameter

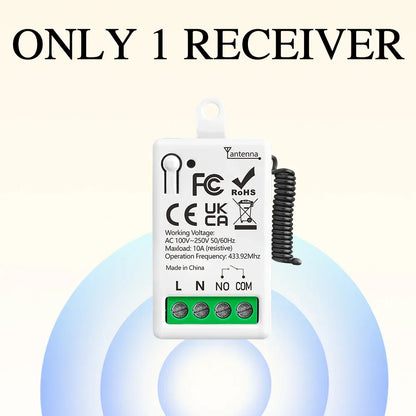

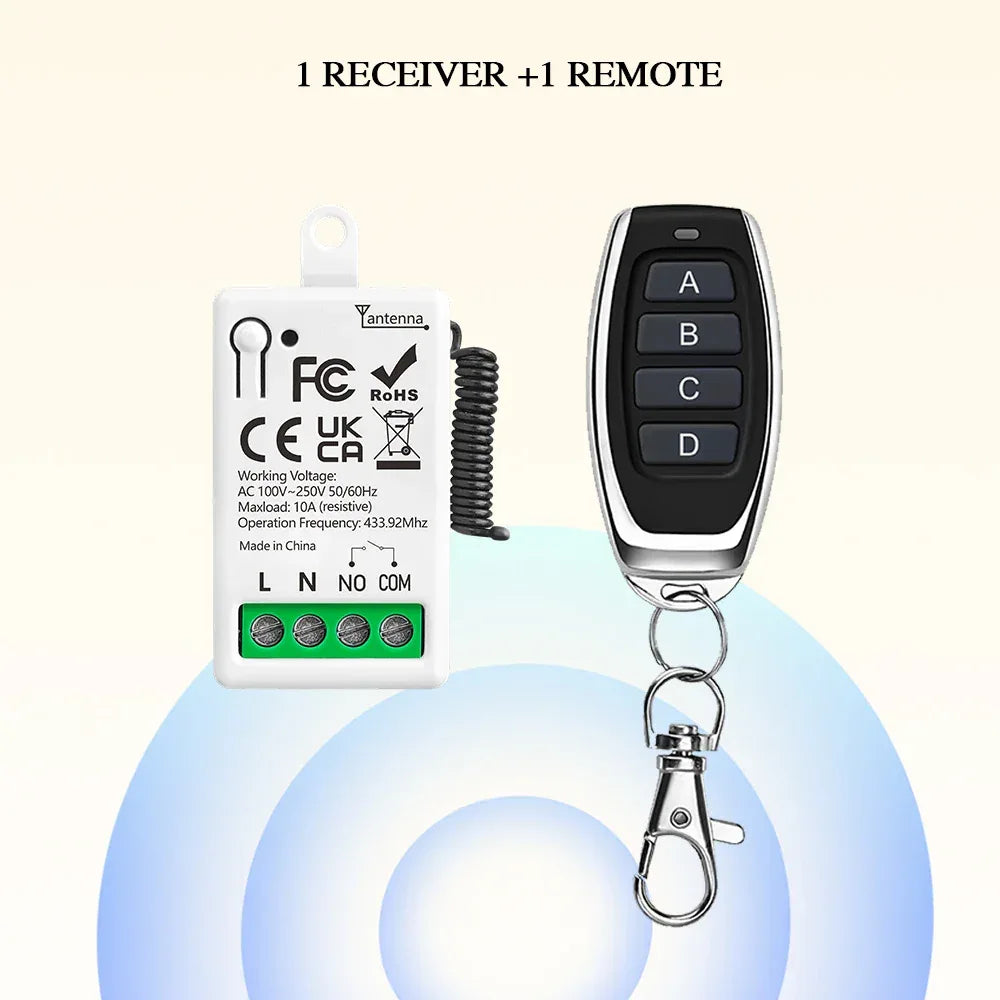

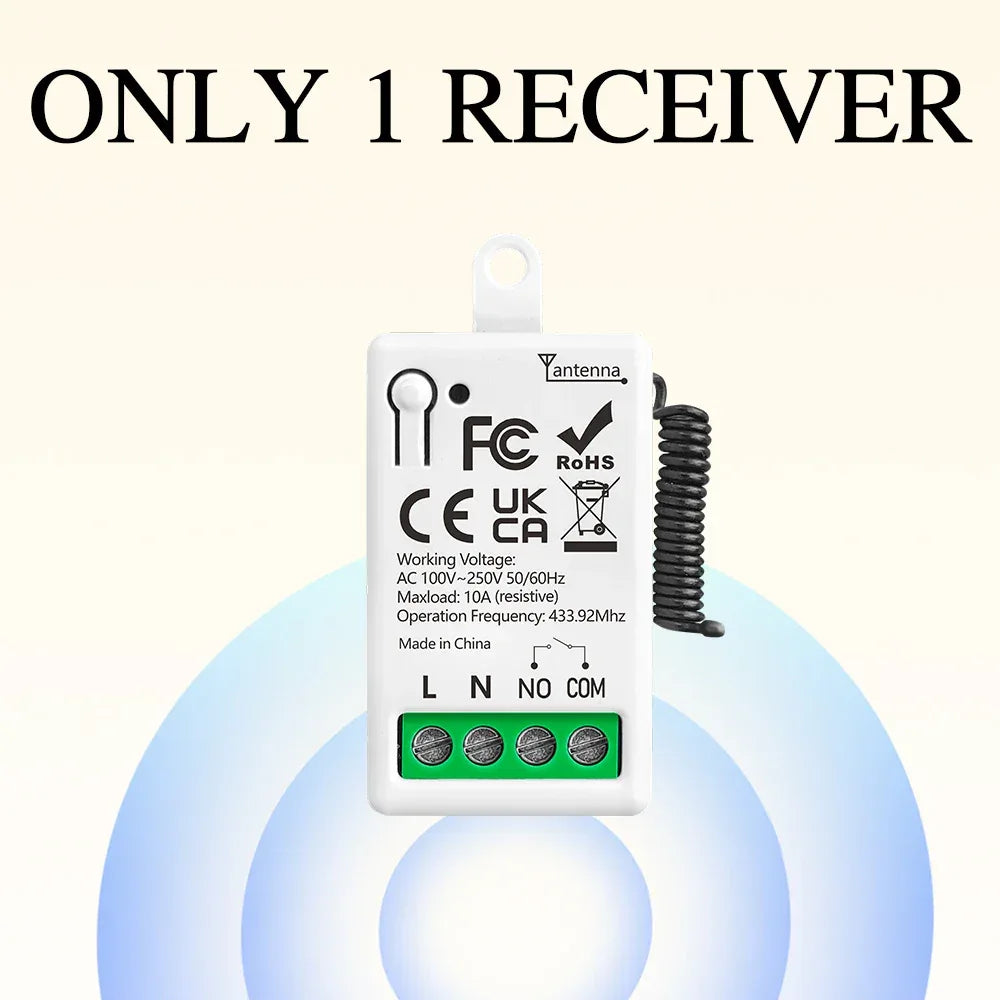

Parameter : mini dry contact receiver
Input power : AC 100-240V
RF Frequency : 433MHz
Remote storage : 10pcs
Size : 47*28*22 mm
Max Current : 10A
Shell : Yes
Port : NO NC COM
Certification : CCC,CE,RoHS

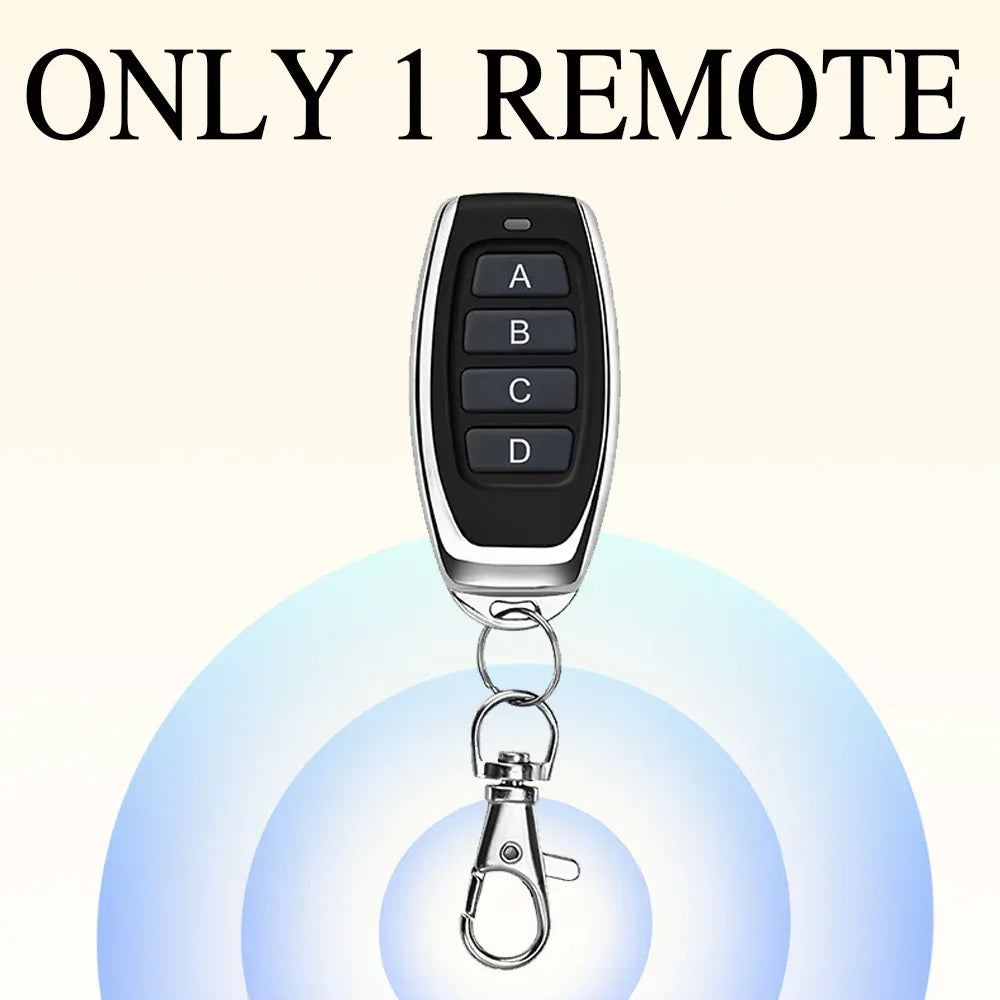

Parameter : RF remote
RF frequency : 433MHz
Support encoding : 1527 Leaning code
Transmitting range : 50 meters
Battery : 2pcs CR2016(Include battery)

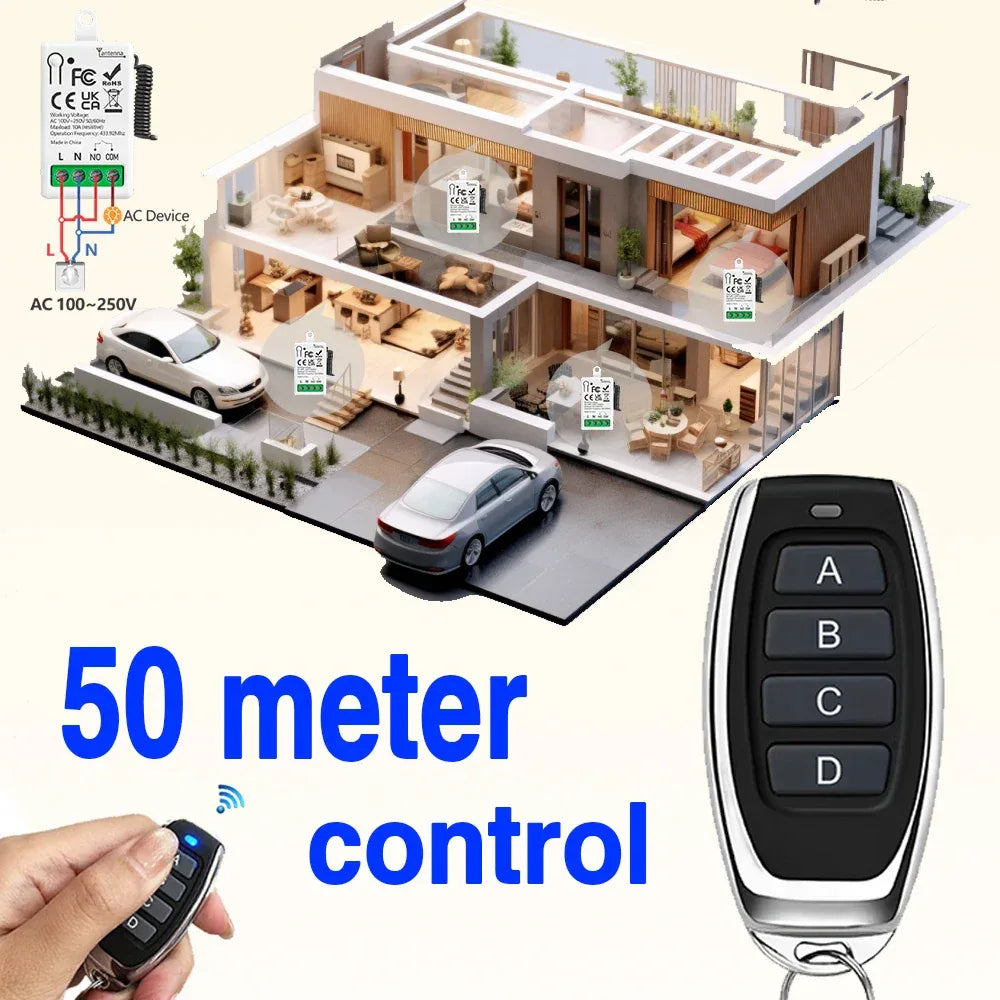

Strong RF signal,support 50m in open space
Sometimes you can stretch the antenna to stable the signal

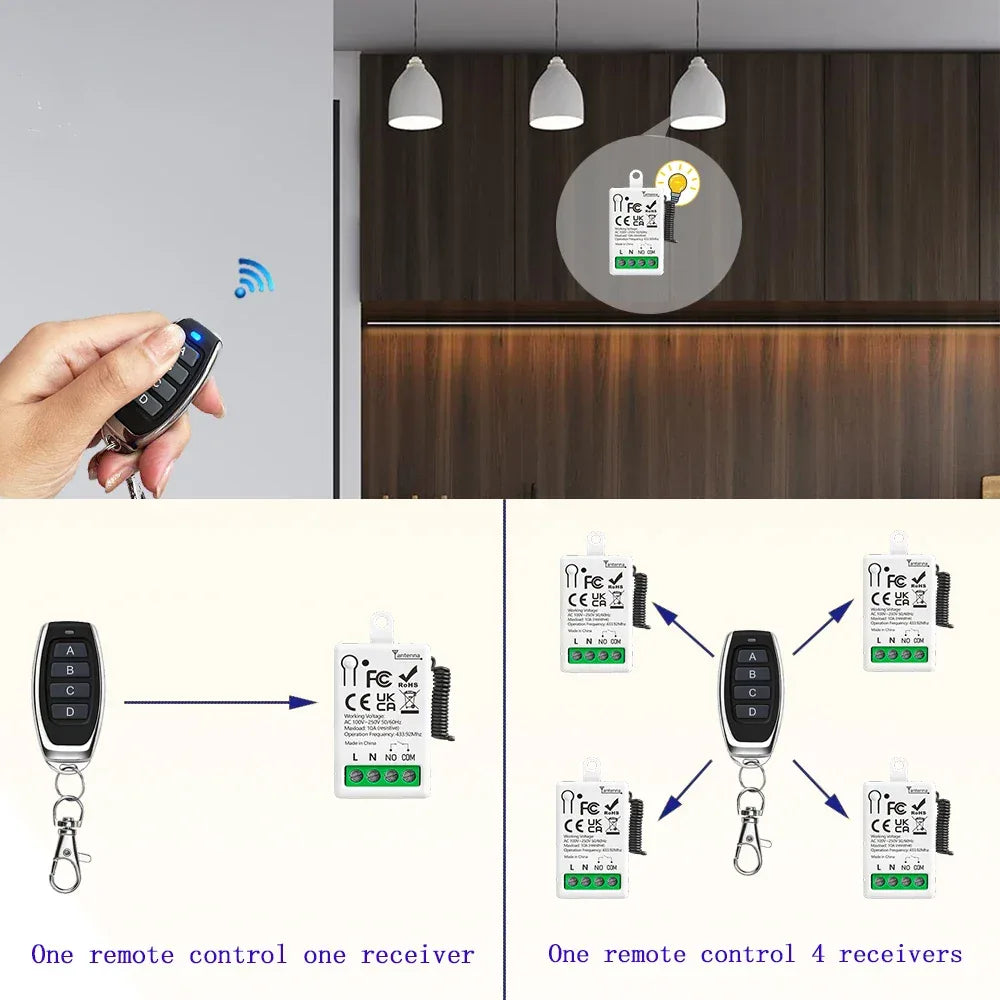

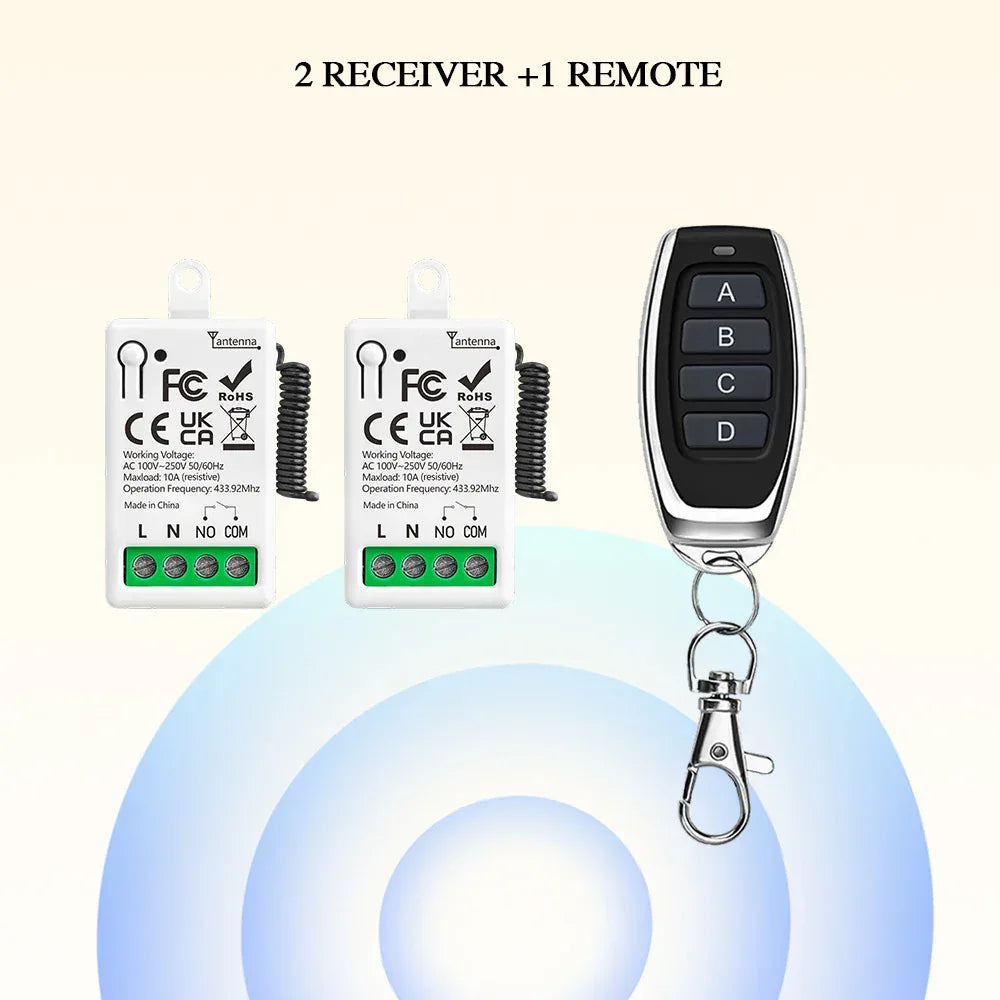

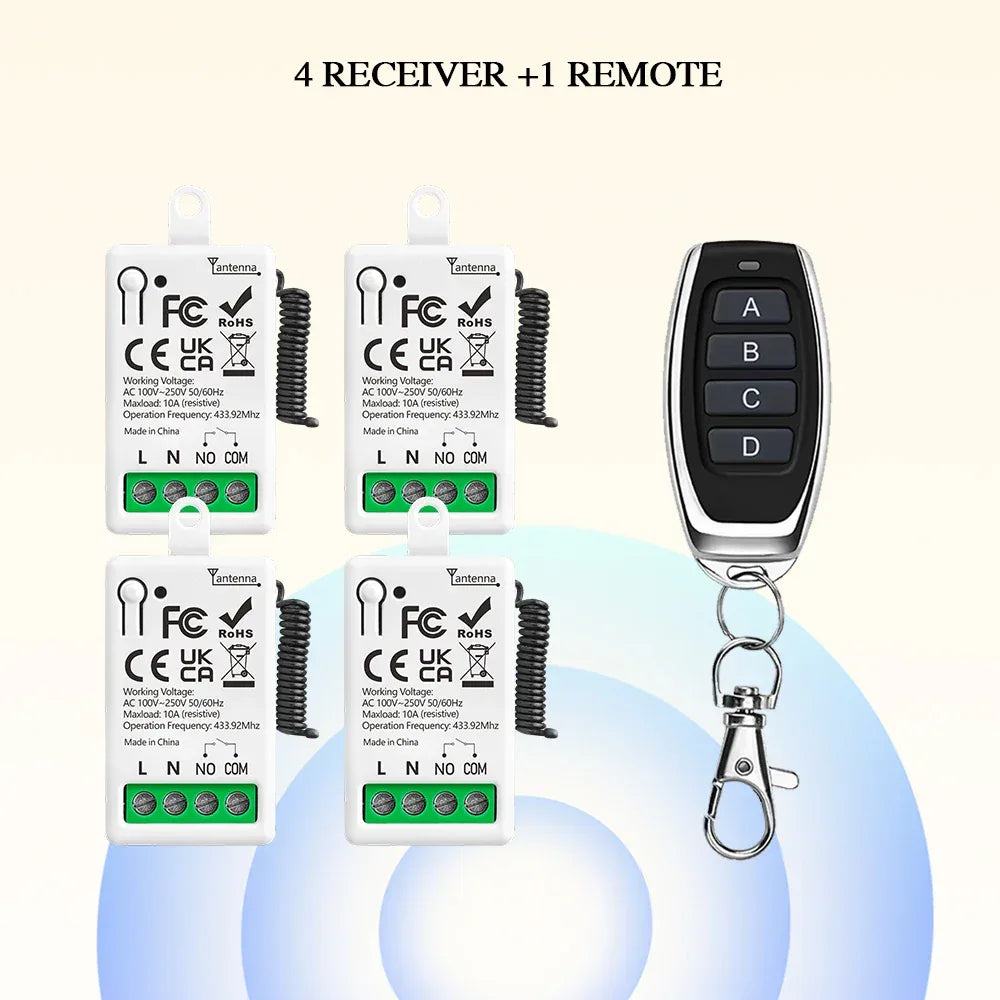

You can use a wall switch to control 5pcs receivers at the same time;(Press wall switch, all 5pcs receivers will work at the same time)
You can use 10pcs wall switches to control one receiver;(After pair with 10 wall switches,every one can control receiver on and off)
You can use three buttons wall switch to control three receivers too
Dry contact,for DIY/Garage control system
It has NO NC and COM port, it can work with many other systems,such as home garage control

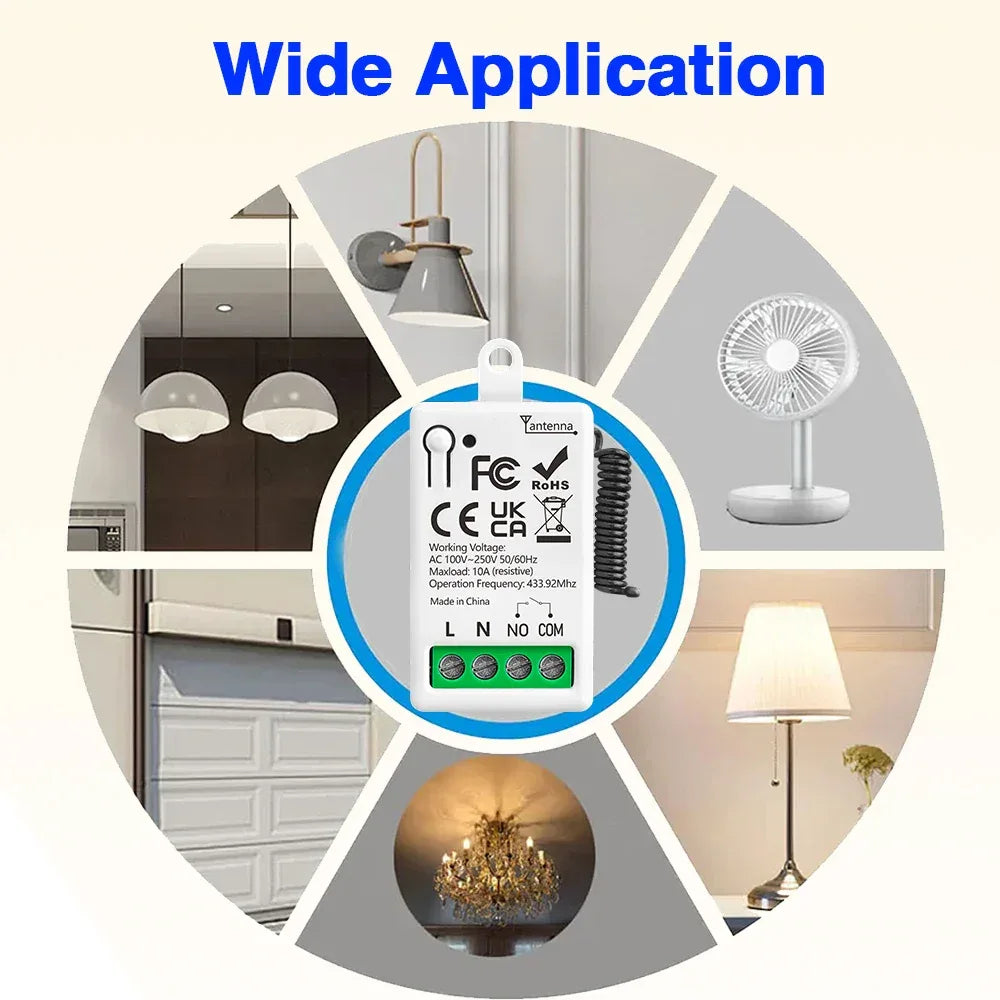

Product Application Area
Products can be used in homes, farms, factories, offices, laboratories, supermarkets and so on;
Remote control Electric curtain \ Water pump \ Fan \ Lamp \ LED light \ bulb \ ventilation device \ Signal transmission \ DIY;
Remote control Home appliances humidifiers coffee machines, microwaves, Led, Light and so on.
How to use
a.Momentary mode:
Press and hold A button,this relay will work;Release A button,this relay will stop.
b.Toggle mode:
Press A button,the relay will work;press A button again,this relay will stop.
c.Latch mode:
Press A button,the relay will work;press B button ,this relay will stop.(In this mode,you need a 2 buttons remote at least )
d.Dealy mode
Press A button,the relay will work;after 5/10/15/20 seconds,this relay will stop.
How to set up
1.Momentary mode:
Press learning button once,press A button once,succeed.
2.Toggle mode:
Press learning button twice,press A button once,succeed.
3.Latch mode:
Press learning button 3 times,press A button once,and then press the B button once,succeed.
4.Delay mode:
Press learning button 4/5/6/7 times,press A button once,succeed.
Clean data:
Press learning button 8times,the data will be cleaned.All remotes cannot control this receiver.
If you want to change modes,you need to clean the data first.
