SPECIFICATIONS

Brand Name: NONE

Channel: 4

Choice: yes

Feature: RF Learning Code Decoding Receiver

Frequency: 433 MHz

High-concerned chemical: None

Model: RX480E 433Mhz RF Relay Receiver Module

Model Number: RF 433MHz RX480E

Name: Remote Control Switch Transmitter

Origin: Mainland China

Package: Yes

Type: 4-Channel Wireless Learning Module

Use: Universal

Wireless Communication: RF

Features:

1. 433MHz wireless reception: support learning mode, compatible with a variety of remote control signals

2. Three working modes: pointing, self-locking, interlocking optional, to meet the needs of different scenarios

3. High sensitivity reception: remote control distance up to 15-25 metres, strong performance through the wall, stable signal.

4. Multi-channel independent control: support 4 independent outputs, flexible configuration to meet diversified needs.

5. Simple learning pairing: indicator light prompts pairing status, quickly complete the remote control binding

Parameters:

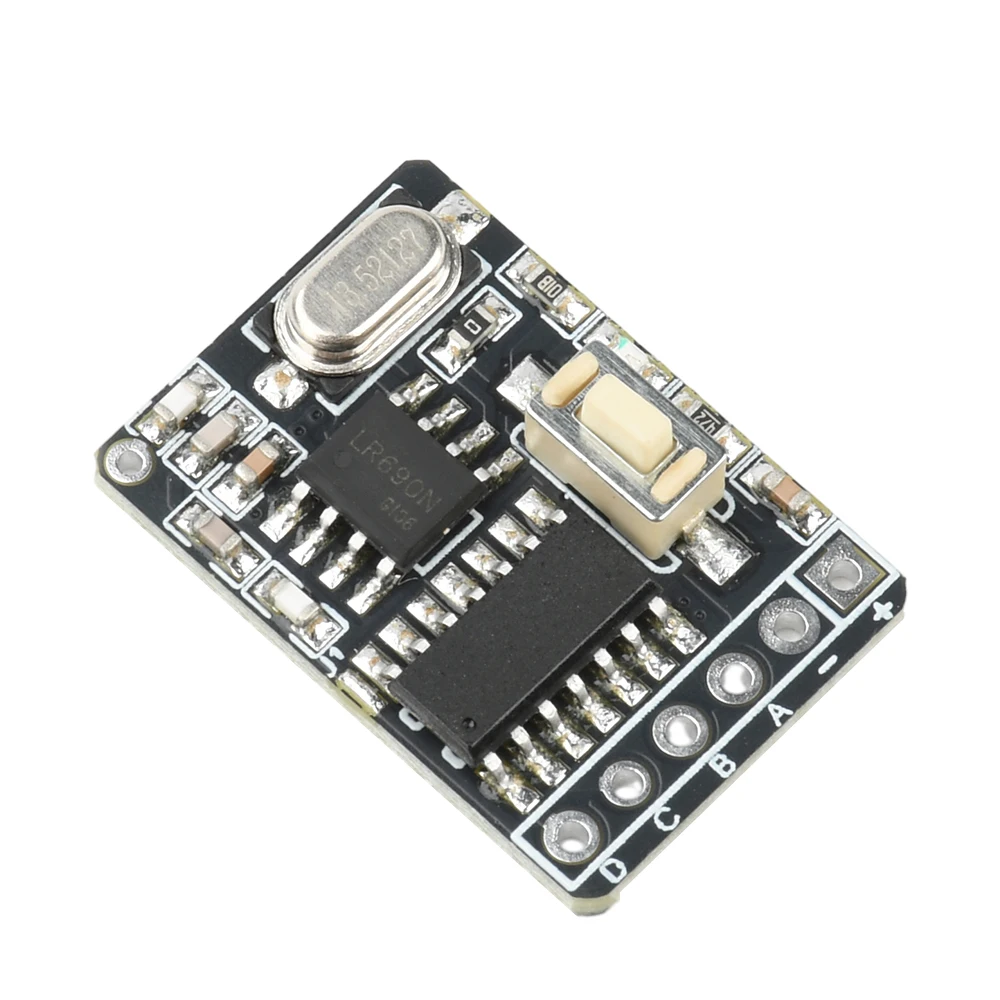

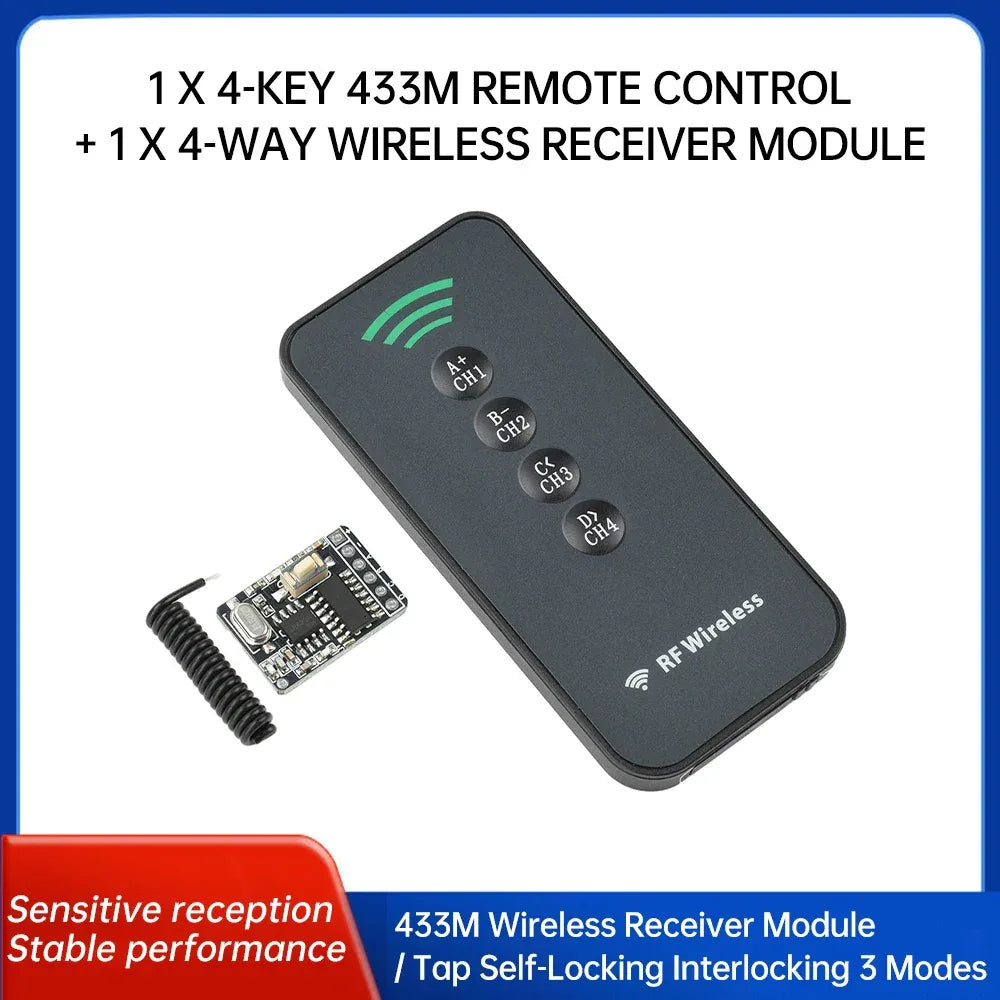

Product Name: 4-channel wireless learning module + remote control

Operating Voltage: DC 3-5V

Operating Frequency: 433MHz (Learning type)

Remote Control Distance: 15-25 metres (through the wall)

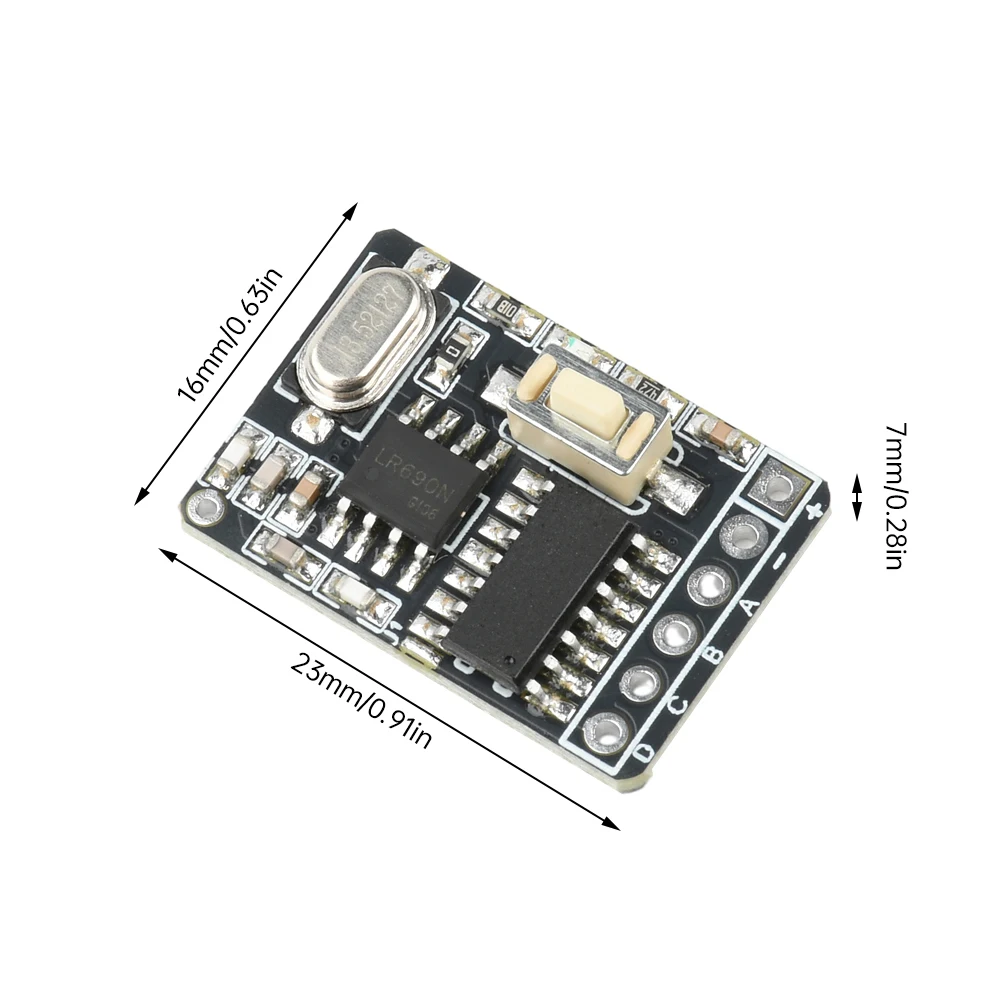

Module Size: 16*23mm

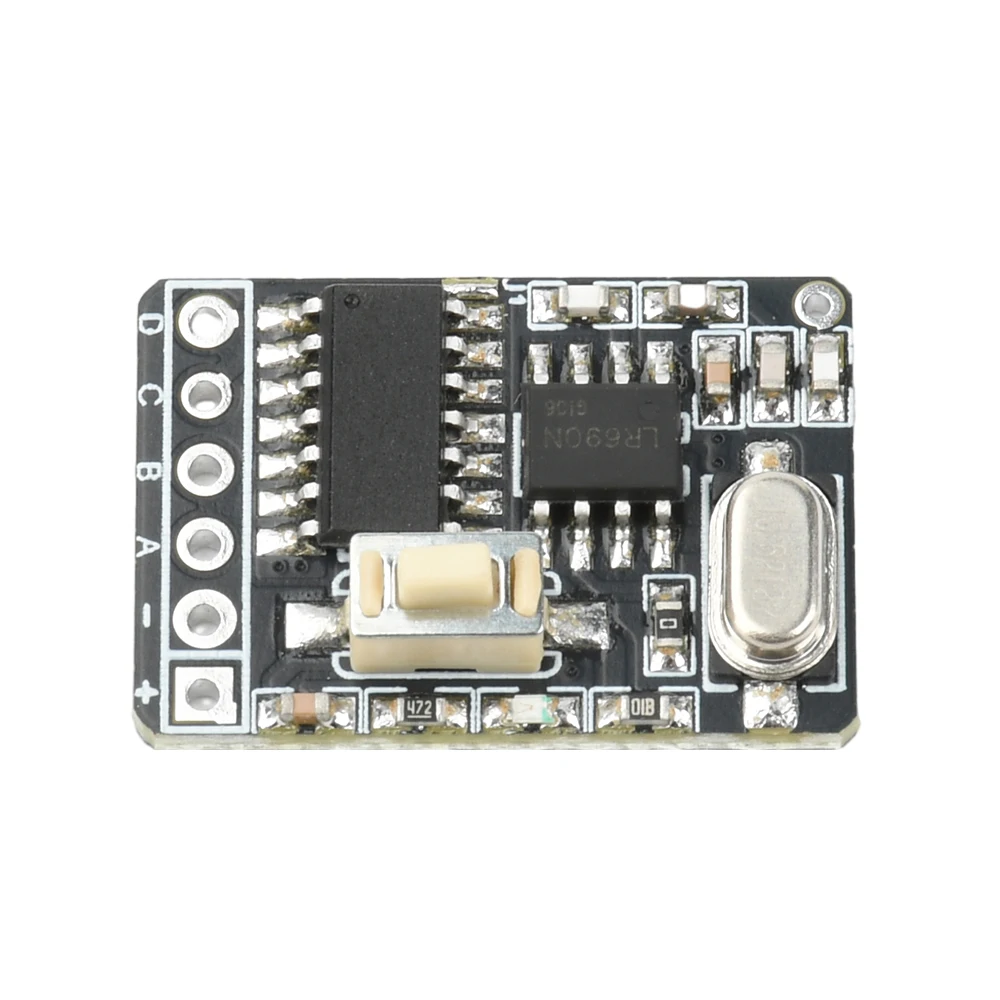

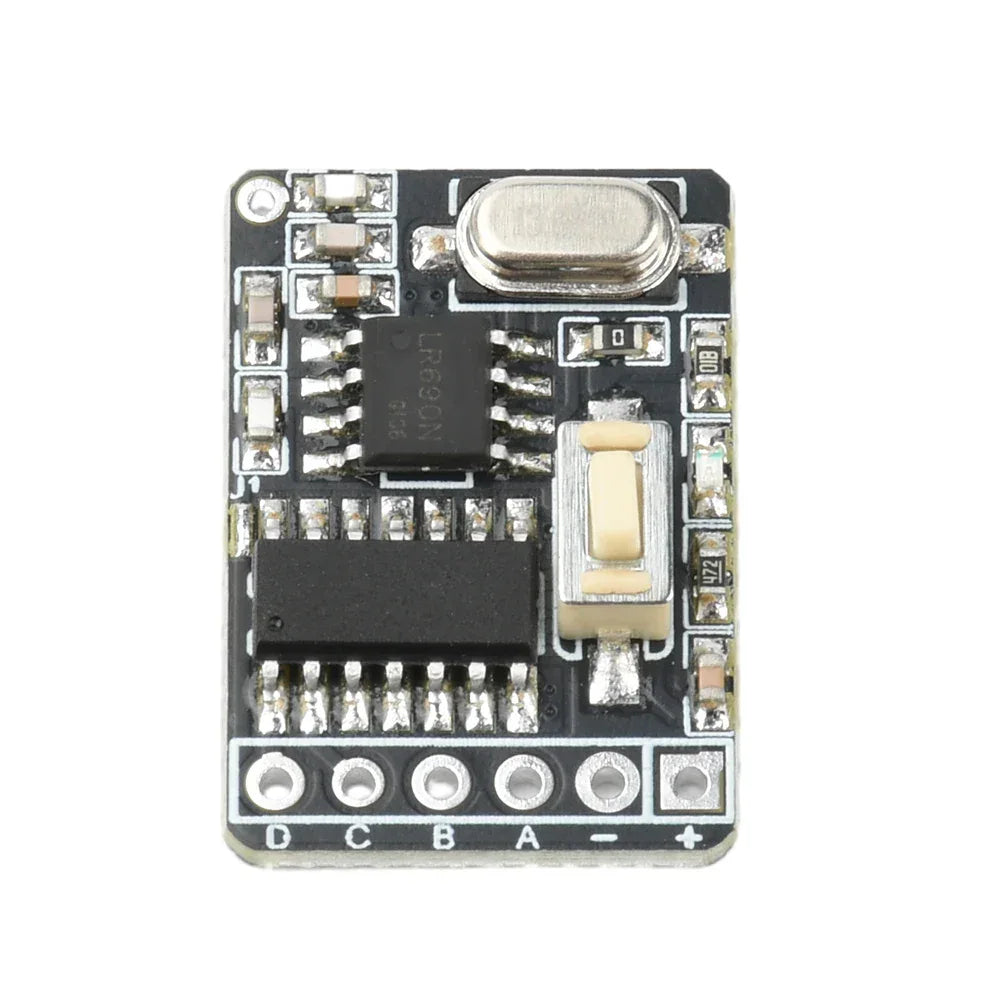

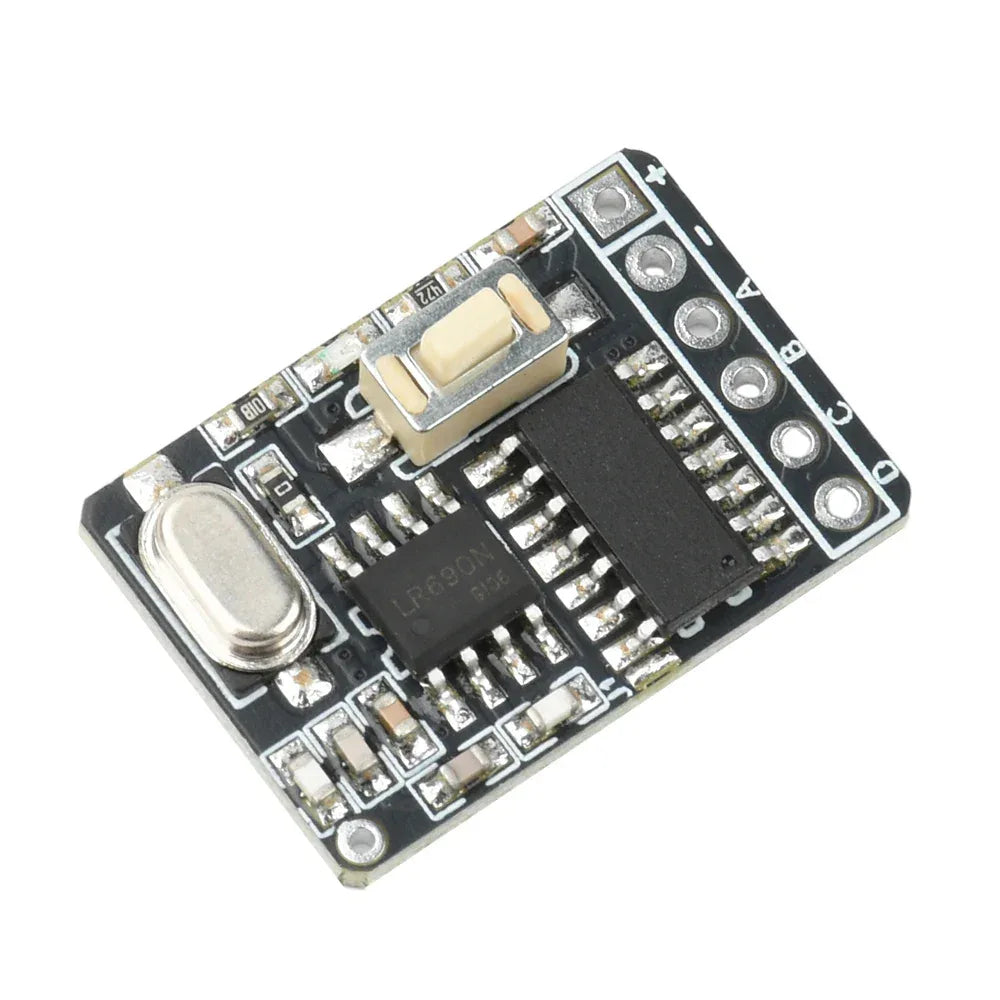

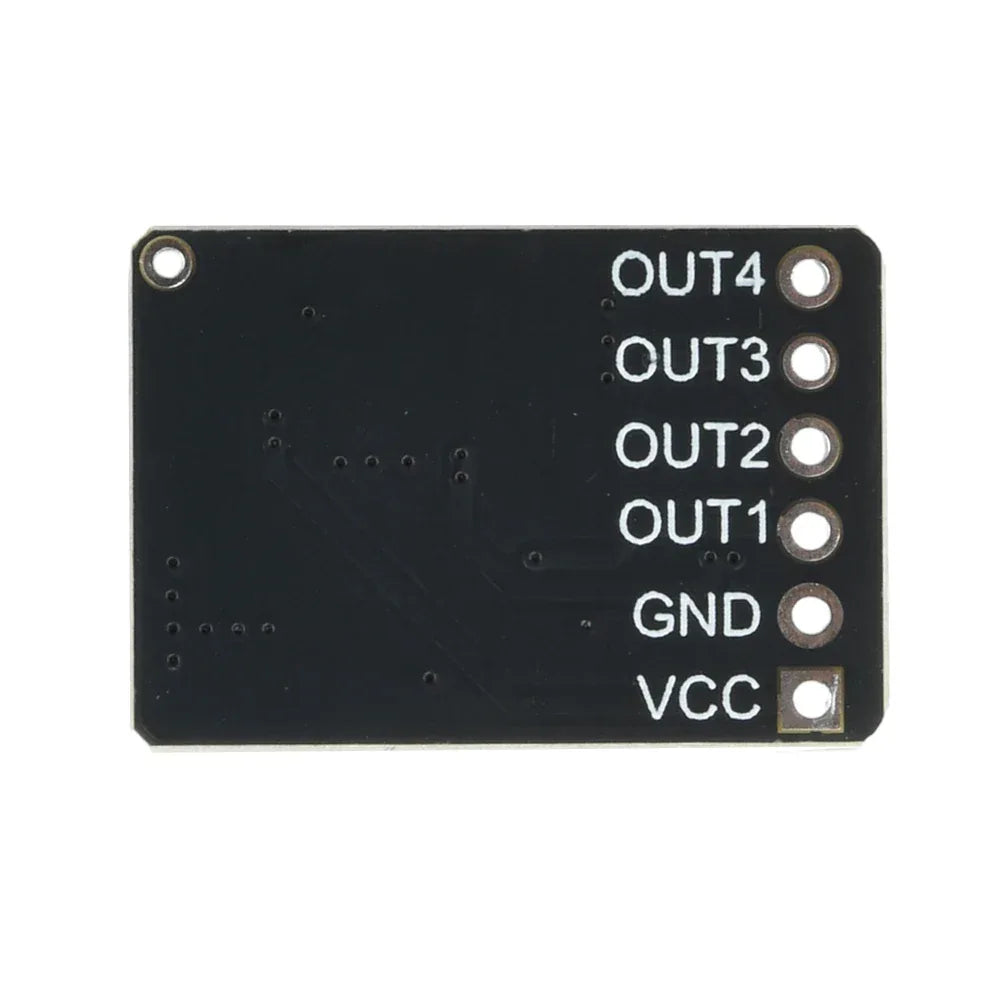

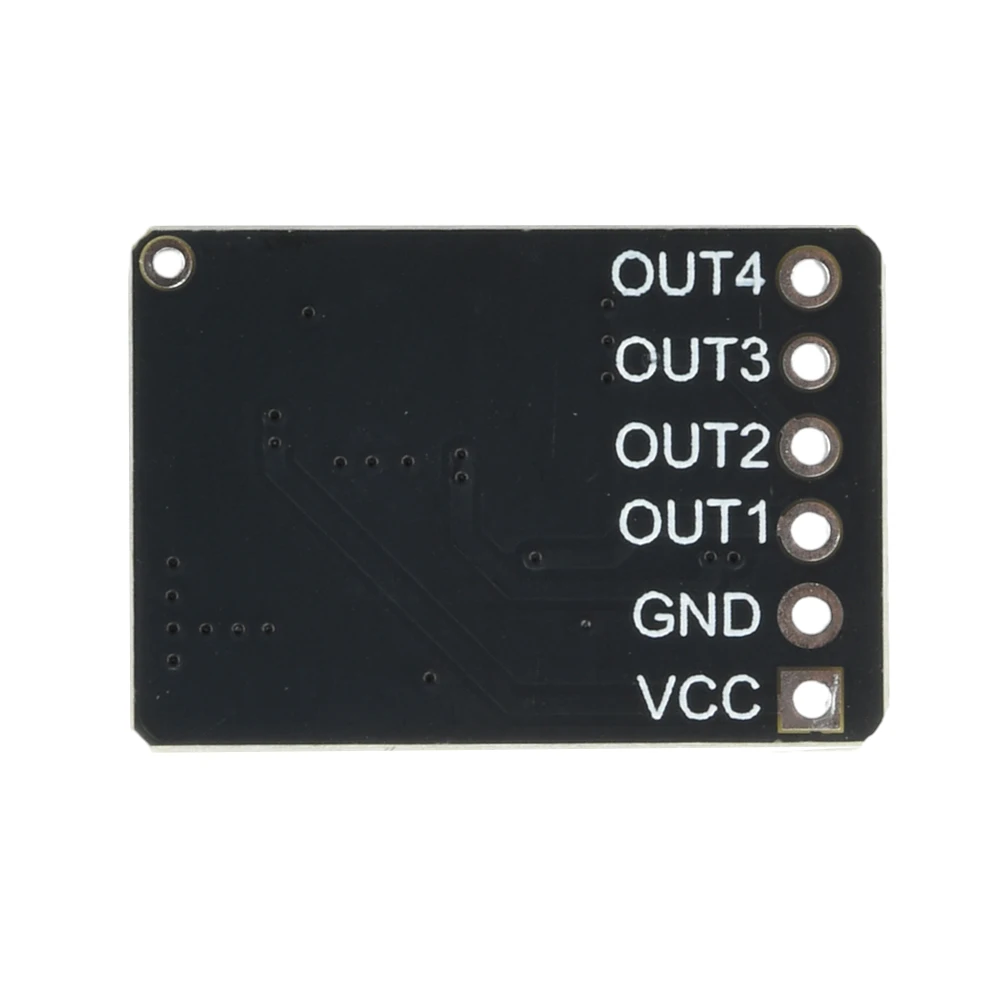

Wiring Mode: (+) connect to the positive pole of the power supply (-) connect to the negative pole of the power supply; ABCD stands for 1-4 outputs

Output Mode:

The module is powered on and the 4-channel outputs are at low level by default; when the remote control signal is received, the 4-channel outputs are at low level. Output mode: the default output of 4-channel module is low level; when the remote control signal is received, the output will become high level; (shorting the J1 bit above the module, the module can be set to output high level by default)

Function description: (learning mode)

1. Press and hold the learning button above the module, the learning indicator flashes 1 time and then release, at this time press the remote control button A that needs to be learned, the module indicator flashes 3 times and then does not flash, release the remote control button, the first way A and the remote control A key pairing is completed

2. Press and hold the learning button on top of the module, the learning indicator light will flash 2 times and then release, at this time, press the remote control button B which needs to learn, the module indicator light will flash 3 times and then not flash, release the remote control button, the pairing of the second channel B and the remote control key is completed.

3. Press and hold the learning button on top of the module, the learning indicator light will flash 3 times and then release, at this time, press the remote control button C which needs to learn, the module indicator light will flash 3 times and then not flash, release the remote control button, the third way C and the remote control key pairing is completed.

4. Press and hold the learning button on top of the module, the learning indicator light will flash 4 times and then release, at this time, press the remote control button D that needs to learn, the module indicator light will flash 3 times and then not flash, release the remote control button, the fourth way D and the remote control D key pairing is complete.

5. Press and hold the learning button on top of the module, the learning indicator light flashes 5 times and then release, at this time press the remote control button E that needs to learn, the module indicator light flashes 3 times and then does not flash, release the remote control button, the total control key and the remote control E pairing is complete (the total control key means: 1 button can control 4 ways at the same time)

Working mode setting:

press and hold the button first, then power on, the module above the indicator light flash 1 let go, set for self-locking; flash 2 and then let go, set for point action, flash 3 and then let go, set for interlocking

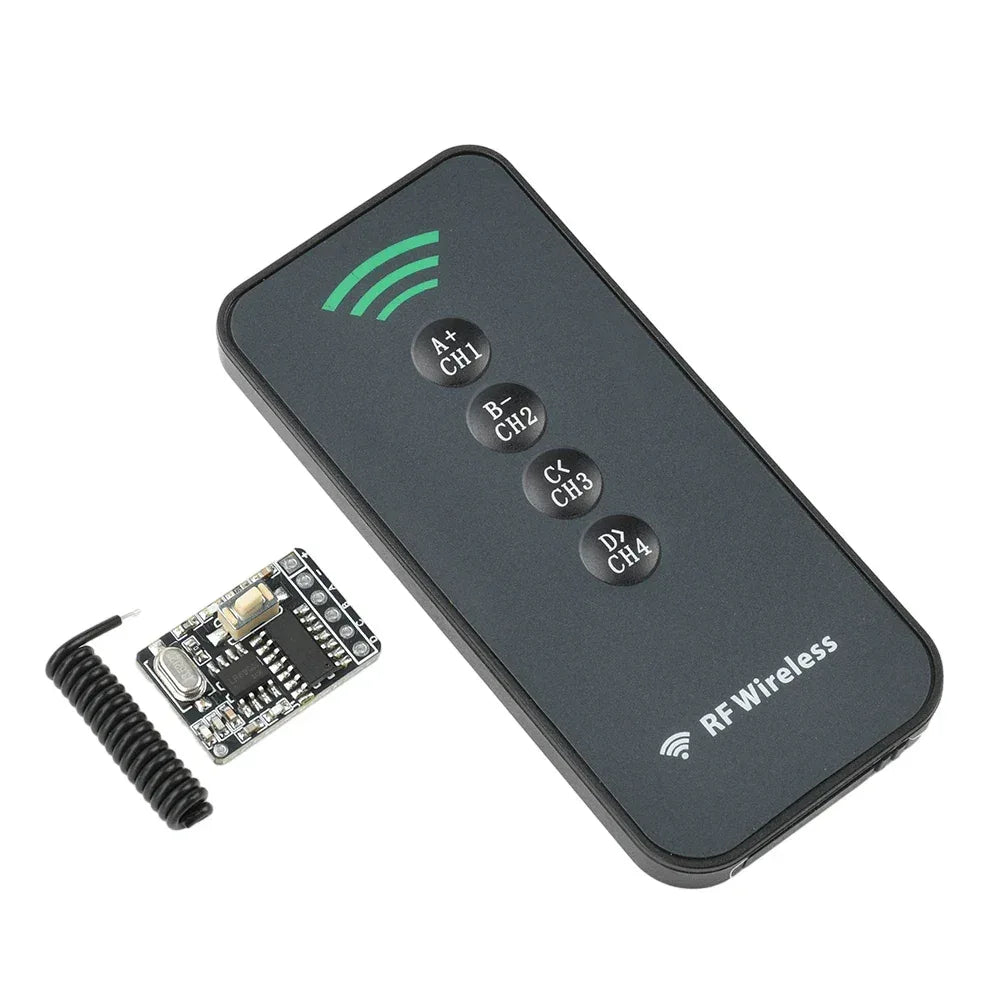

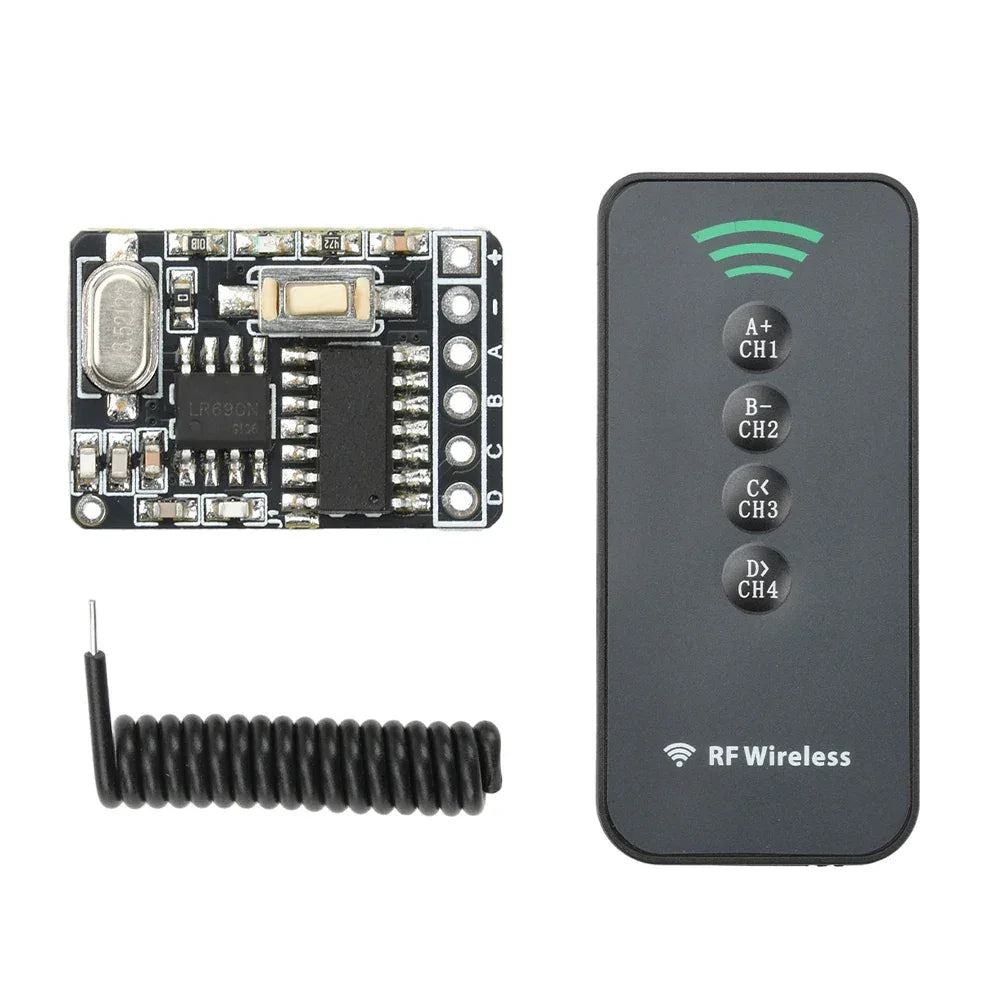

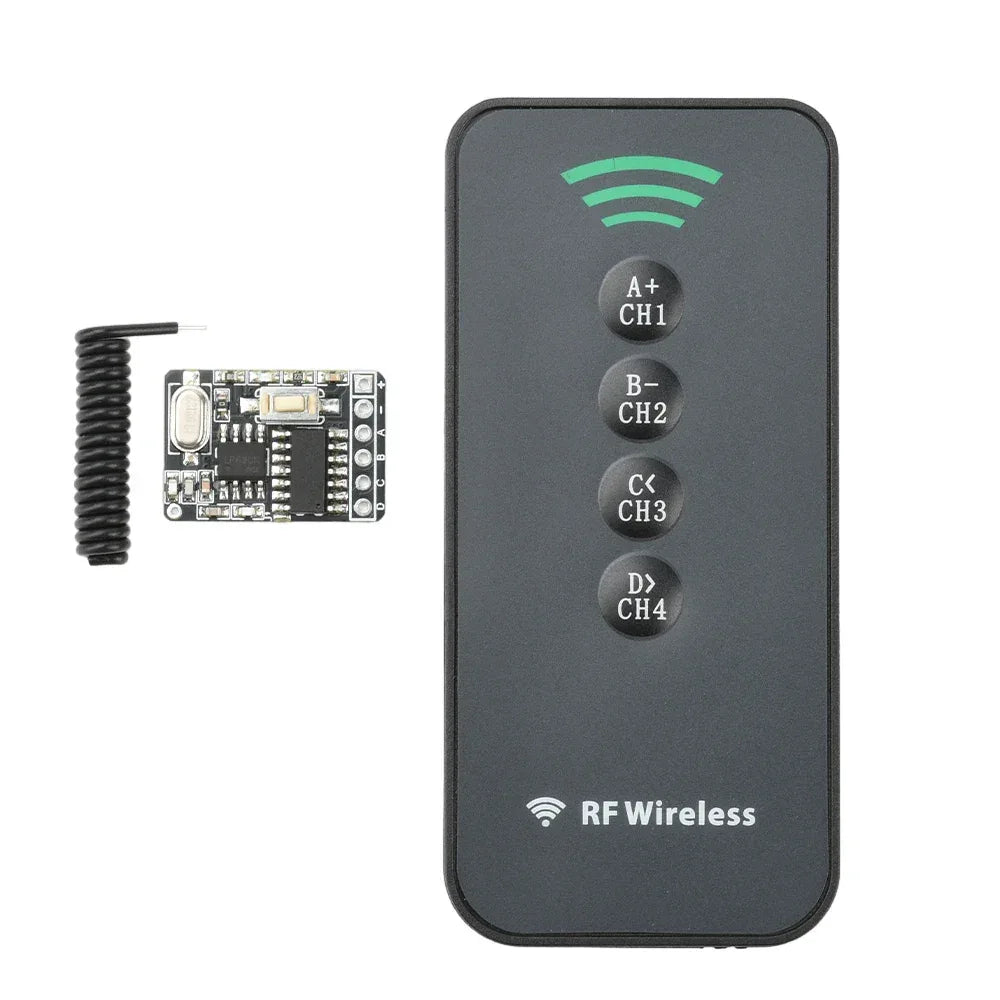

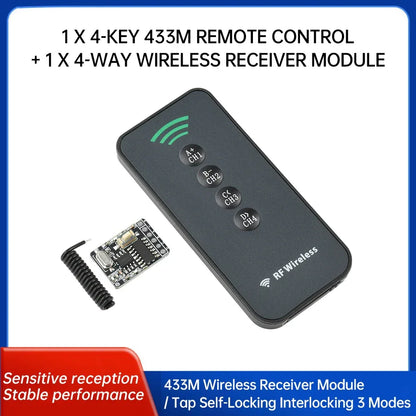

Delivery list:

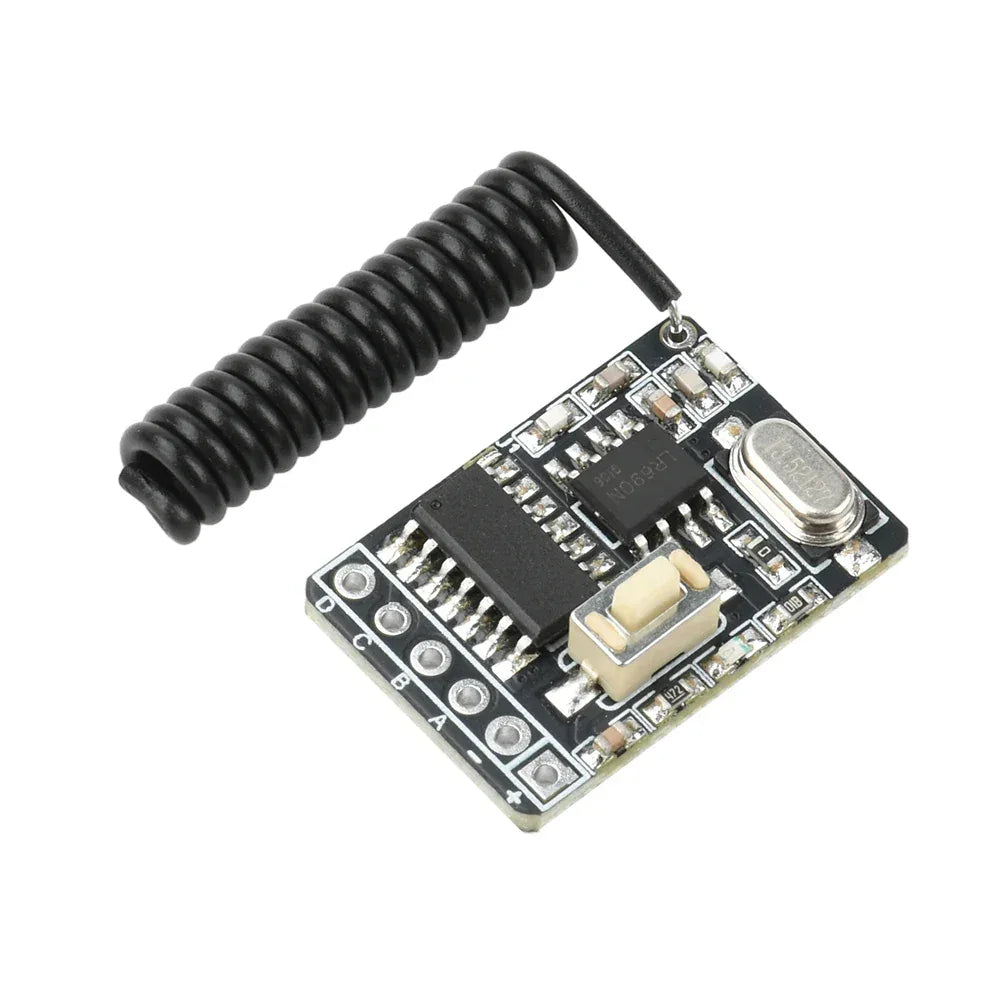

RX480E 4-channel wireless learning module*1

remote control*1

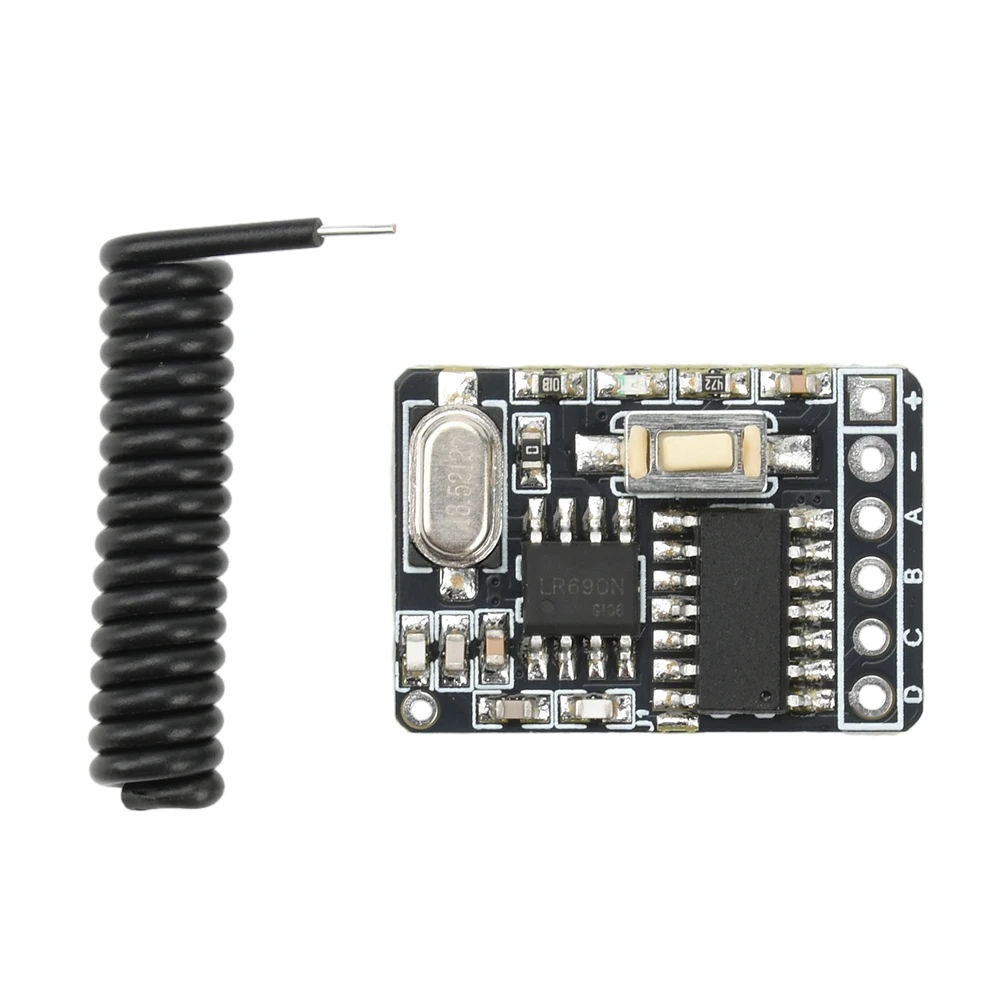

antenna*1
