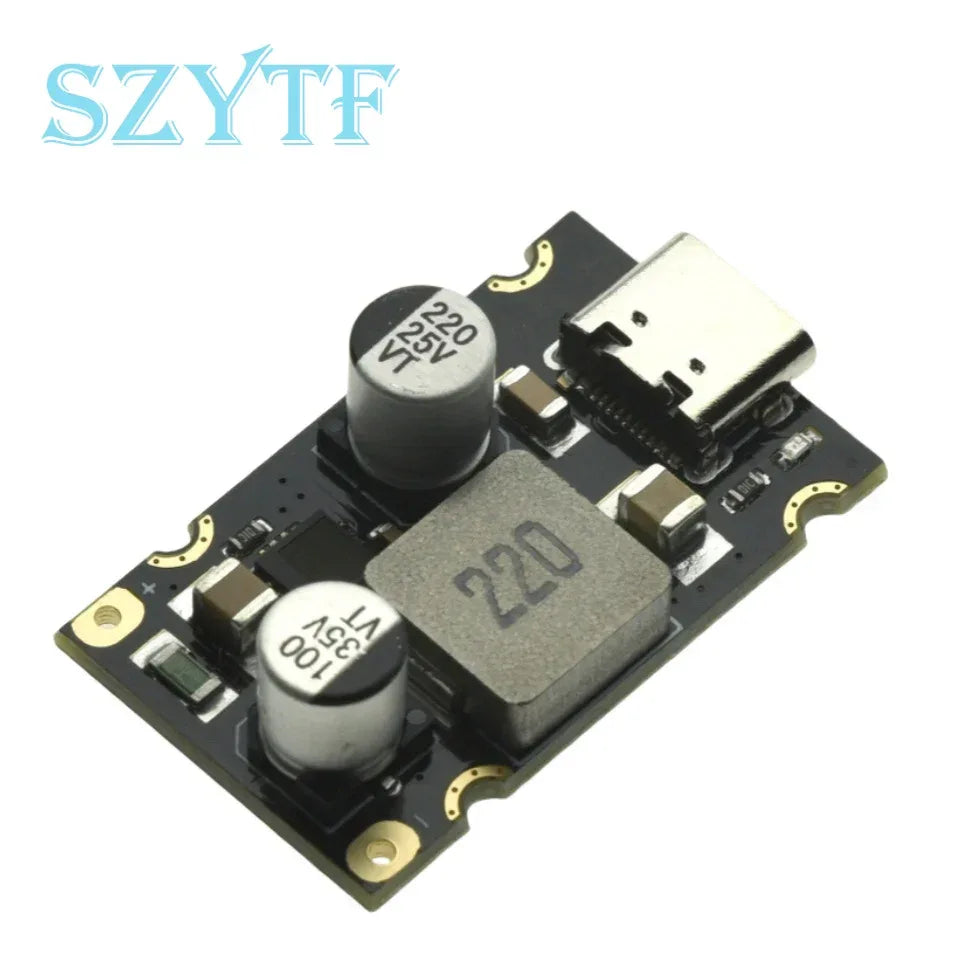

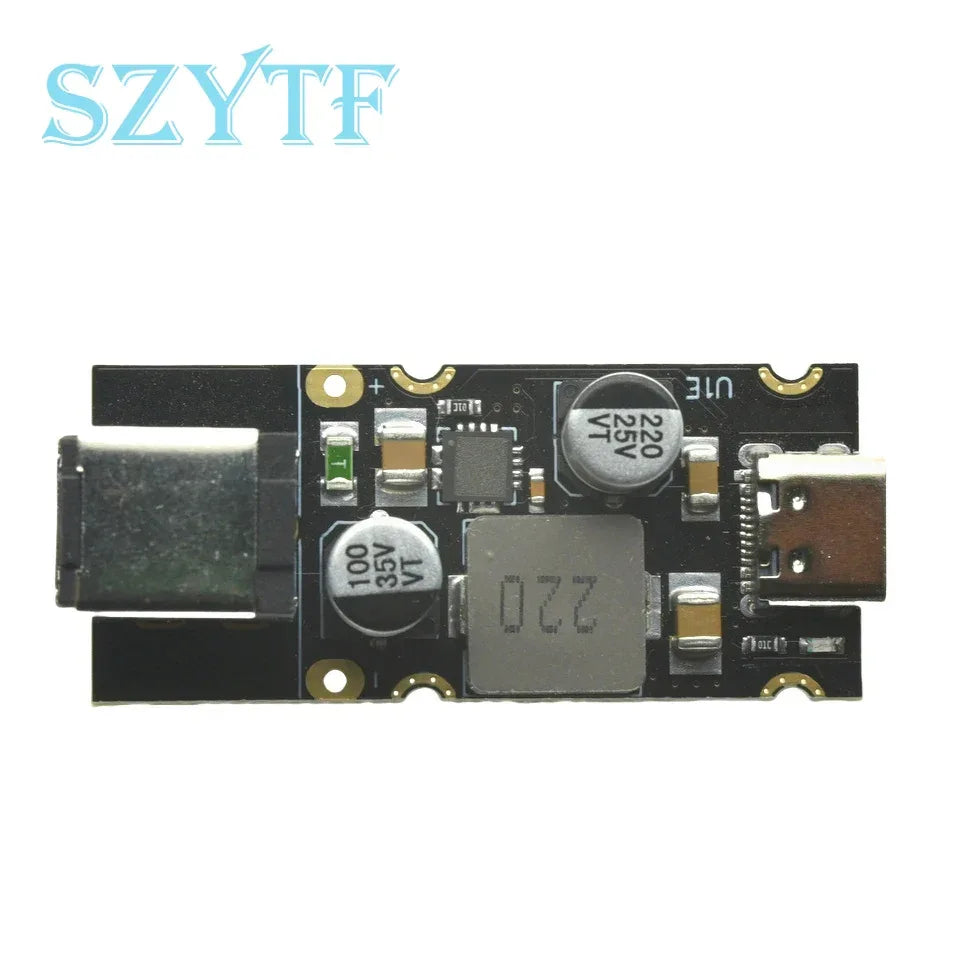

PD65W fast charge module

Type-C interface PD QCSCP PPS Fast

charge full protocoi charger module

Product features:

Supports PD3.1 (PPS), Qc3.0, and SCP

With protection function, input overvoltage and

undervoltage protection, input overcurrent

protection, output overcurrent short-circuit

protection, overtemperature protection=

Maximum output 20V 3.25A

Input 8~30V(step-down only)

DC type is divided into 5521 and 5525 two kinds,

5521: outer diameter

5.5mm, inner diameter 2.1mm; 5525: Outer

diameter 5.5mm,inner diameter 2.5mm.

Product parameters:

Input voltage :DC8~30V

Output voltage: Automatically adjust at 3.3V~21V

when connected to a TYPE-C compatible receiving

device (input voltage should be higher than output

voltage, if you want to trigger 20V fast charge, input

voltage should be higher than 20v)

Output power: 65w Max (5V3A,9V3A,12V3A,

20V3.25A, etc.)

Max output :20V 3.25A

Conversion efficiency :92%~97%

Output voltage ripple :&lt, 200mV

No-load current :< 3mA

Input overvoltage and undervoltage protection

Input overcurrent protection

Output overcurrent short-circuit protection

Overtemperature protection for the whole machine

Supported charging protocols :PD3.1(PPS), QC3.0,

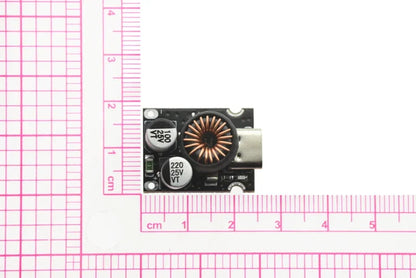

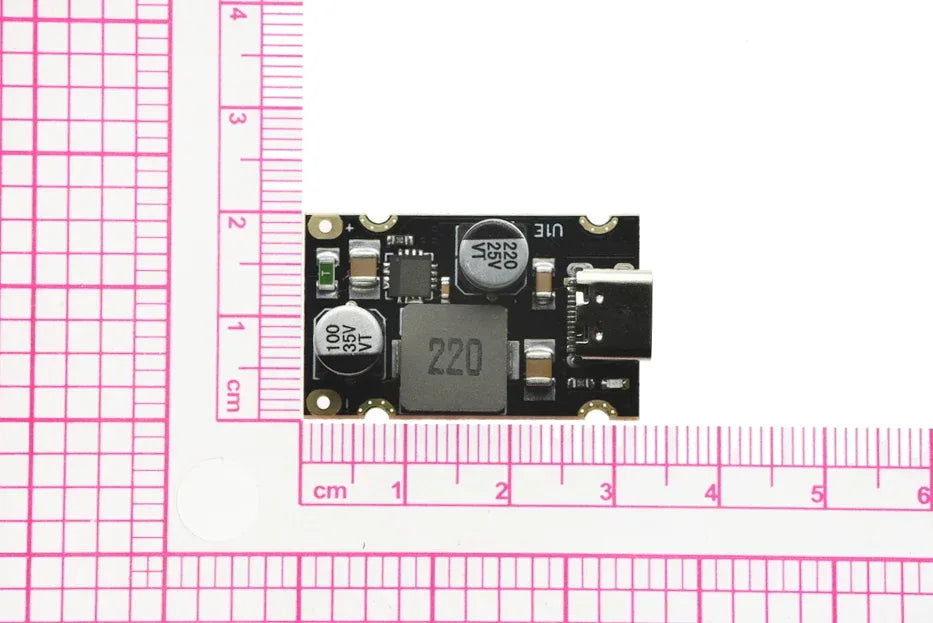

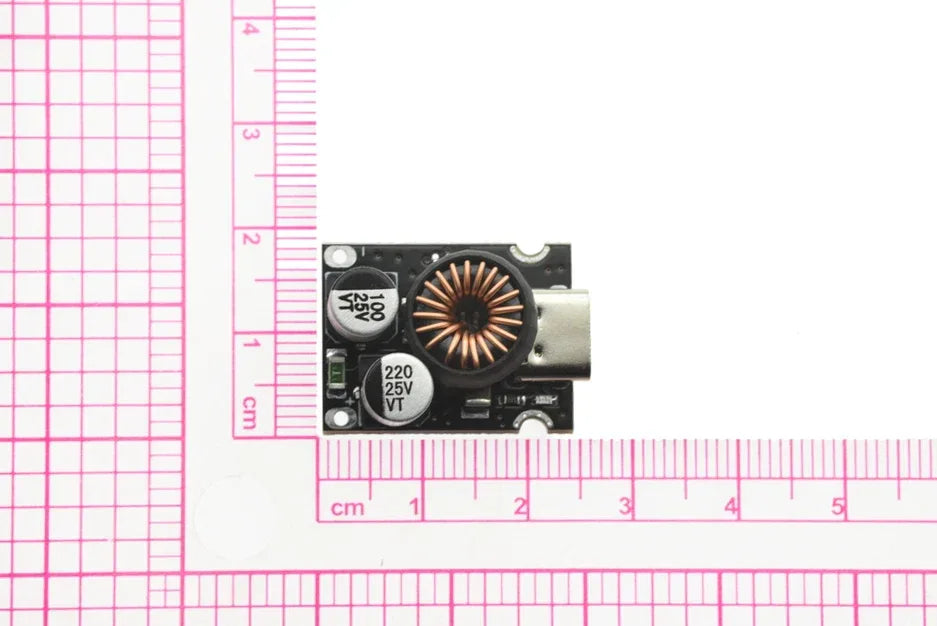

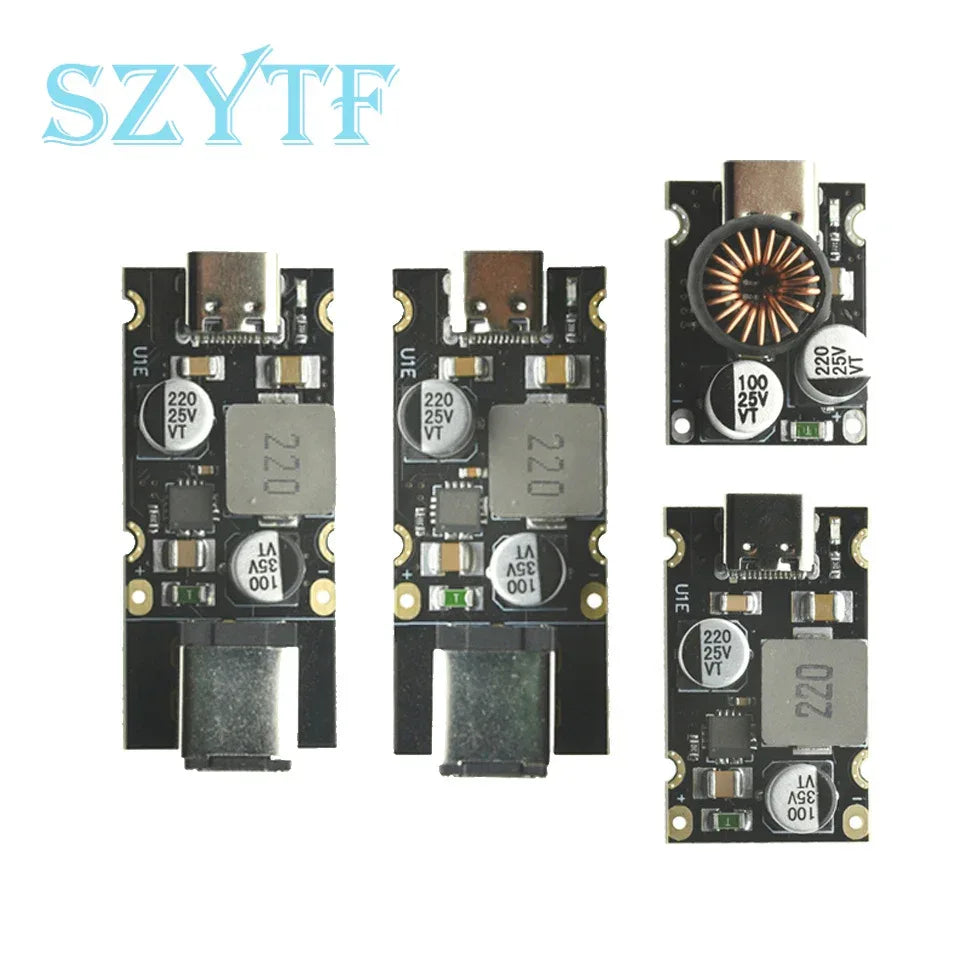

Product size:

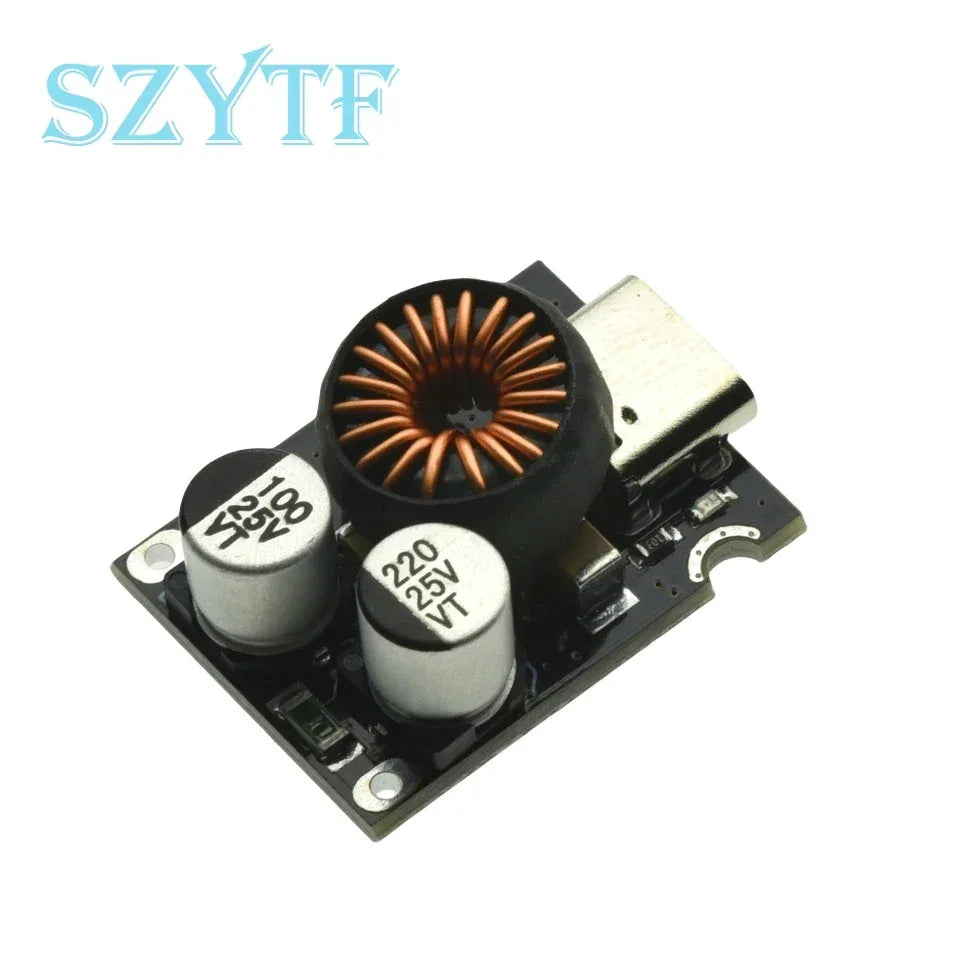

Standard model :32x20x10mm(excluding 1mm of

protruding C-socket)

With DC seat :44x20x10mm(excluding the

protruding 1mm of the C socket)

Supported charging protocols:

BC1.2, Apple protocol Qualcomm Oc2.0 and OC3.0

Huawei Fast Charge protocol FCP and SCP

Samsung Fast Charge Agreement AFC

MTK PE+1.1 and MTK PE+2.0PD2.0/PD3.1(PPS)

output protocols

Product application: All kinds of power supply

transformation fast charge output

Instructions for use:

If the 20 to 24V power adapter is used as the input, you

are advised to power on the power supply before

connecting to the module.  Otherwise, the module may

fail to output 65W due to a slow power supply.

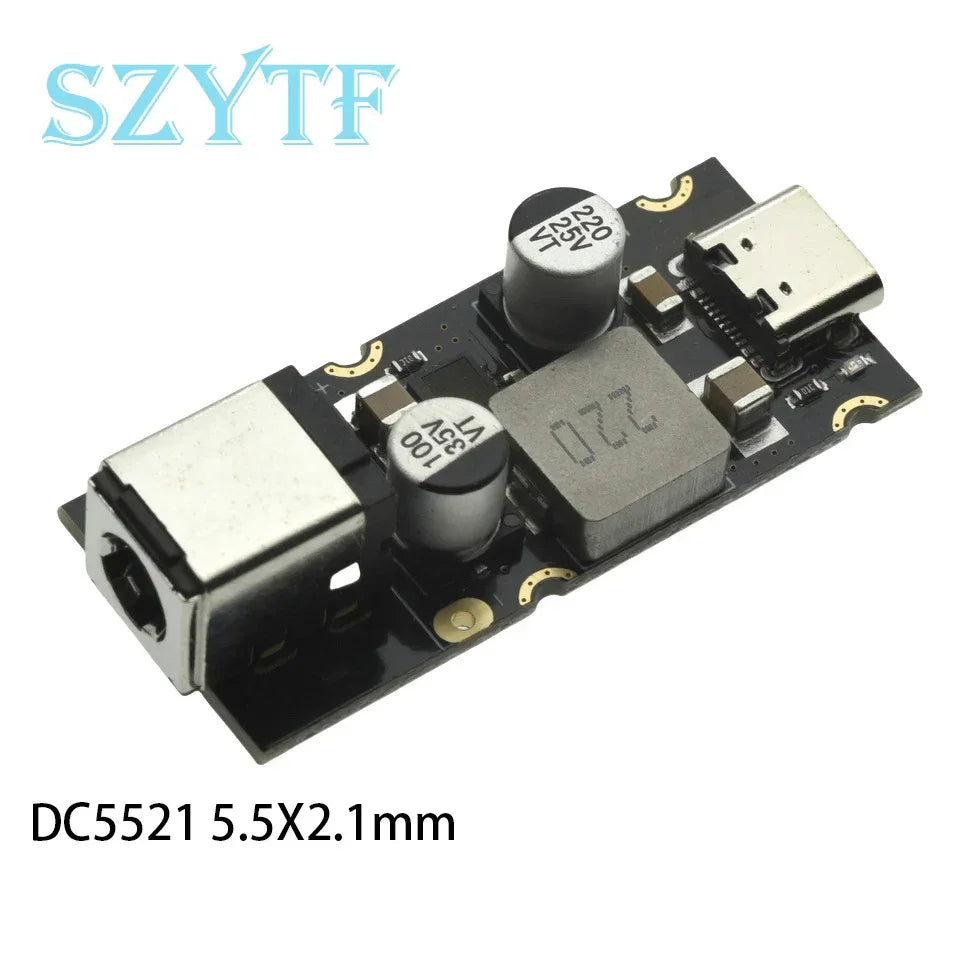

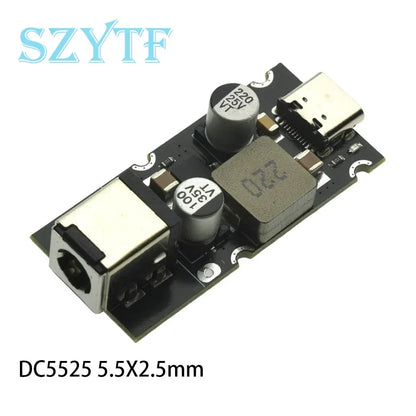

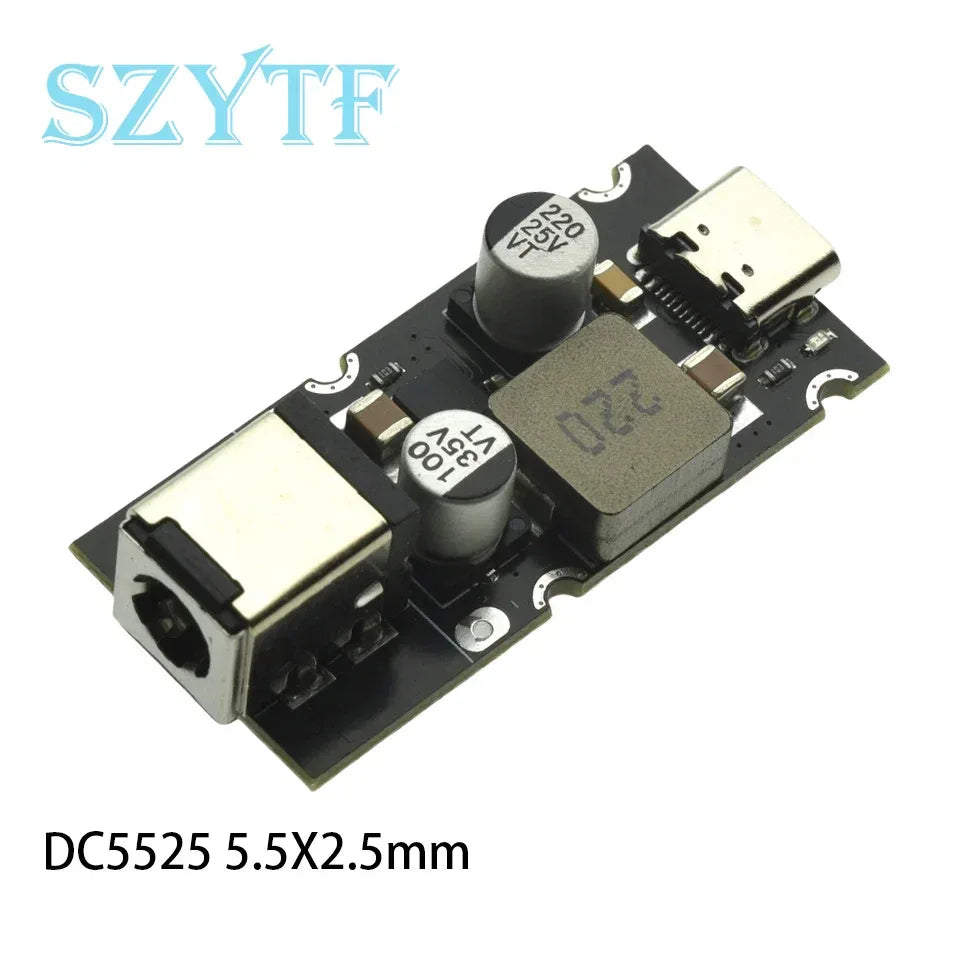

The DC model is divided into 5521 and 5525

5521: Outer diameter 5.5mm, inner diameter 2.1mm;

5525: Outer diameter 5.5mm, inner diameter 2.5mm.

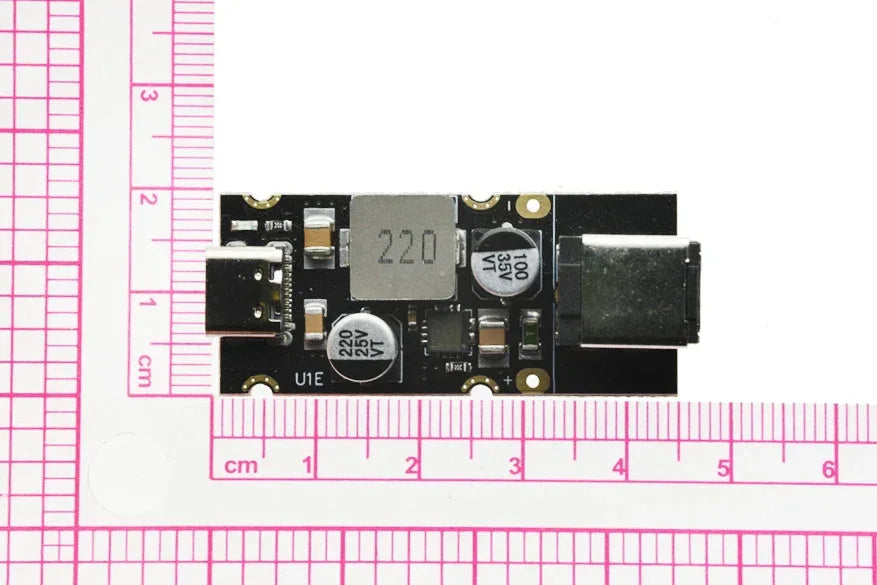

The length of the DC model is increased by 12mm

compared with the standard model, which is 44mm, and

the Type-c mother seat and DC seat are about 1mm

protruding from the plate edge.  The 5521 is also

compatible with the 5525 plug with tuning fork shrapnel

Product temperature rise and

output ripple:

Test conditions: input voltage 24V, ambient

temperature 24°C, load support PD65W laptop

(power about 50%), the computer run pressure test

to ensure that the power of the power end is full

65W.
