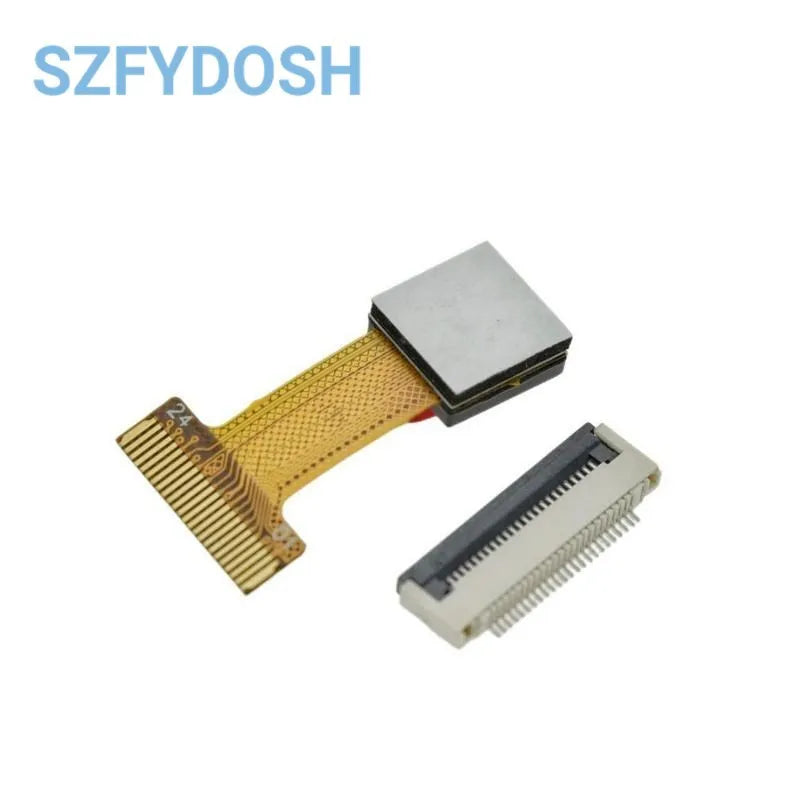

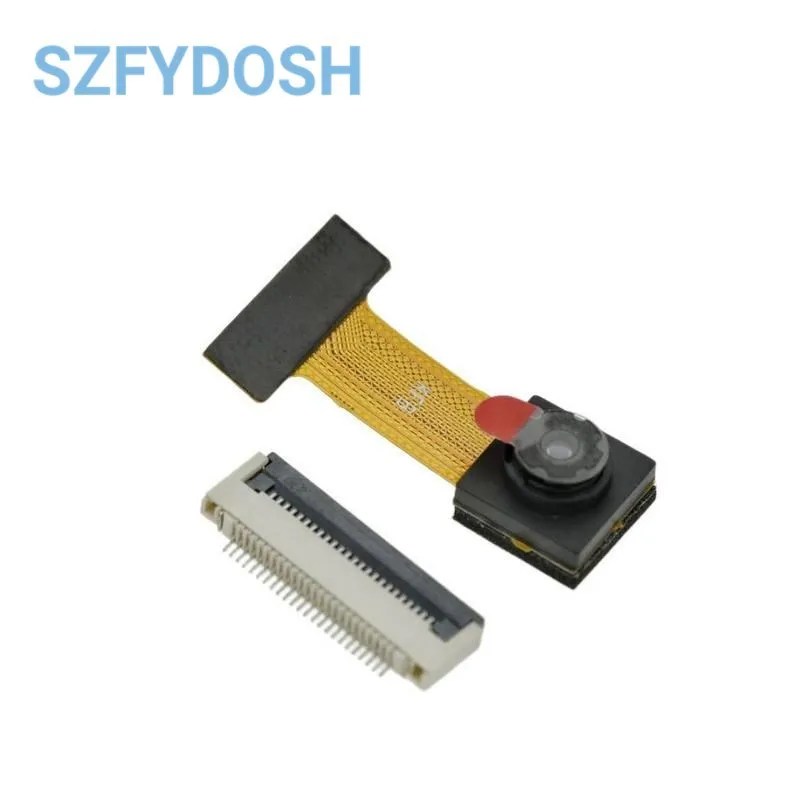

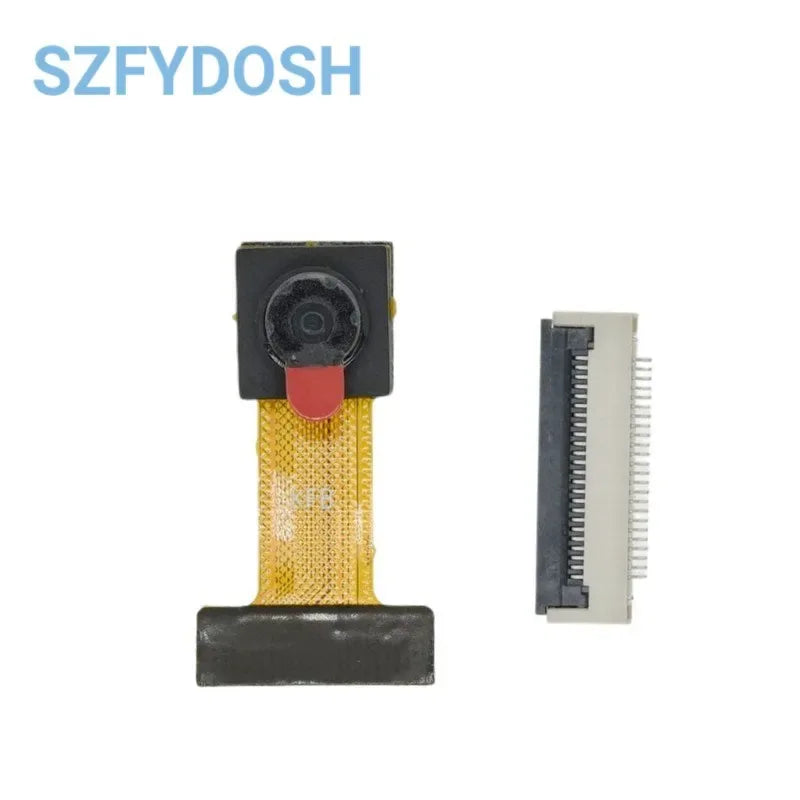

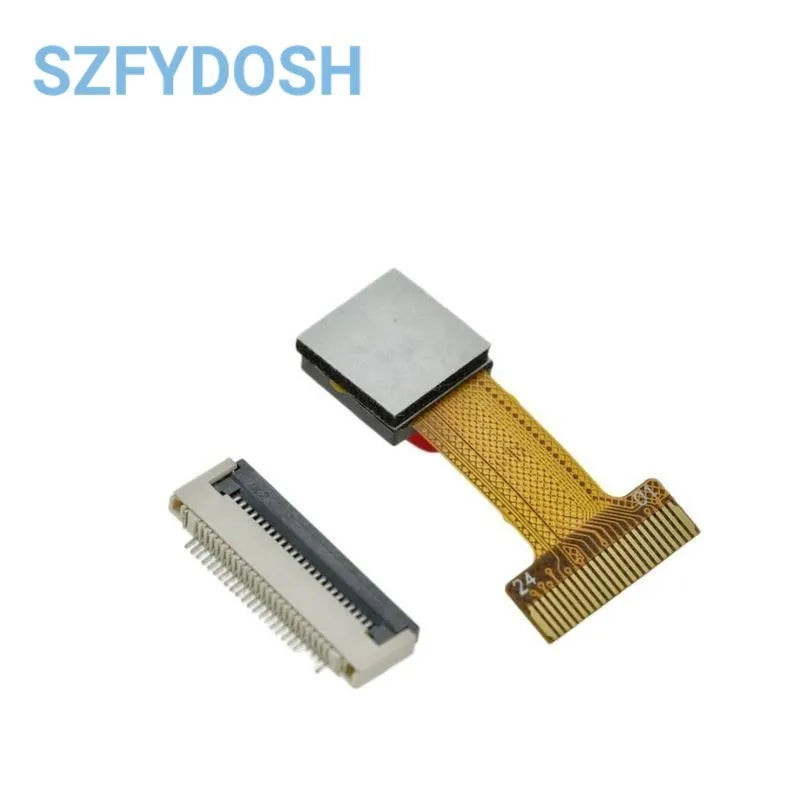

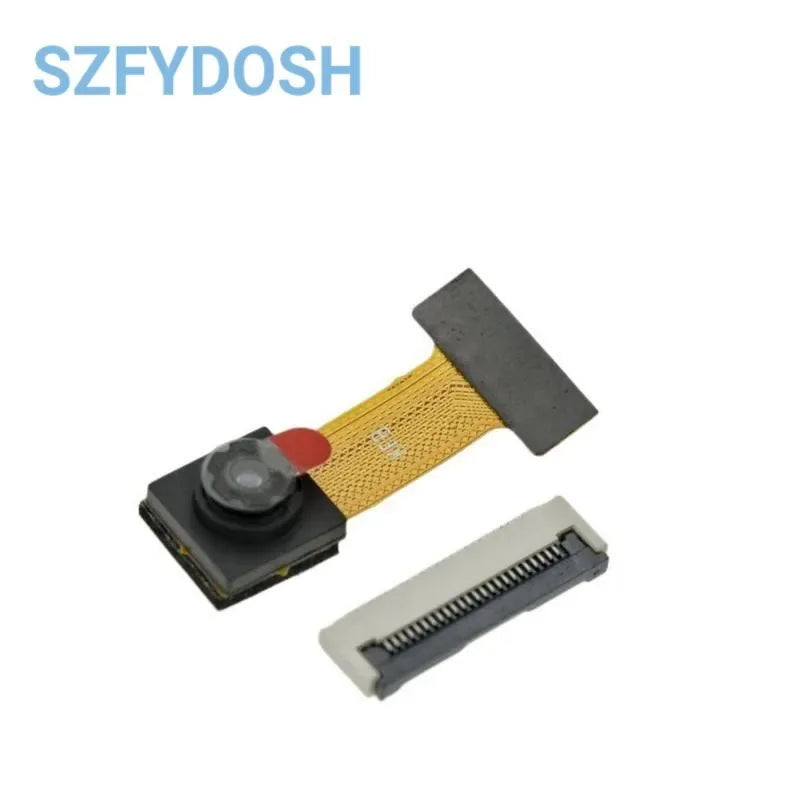

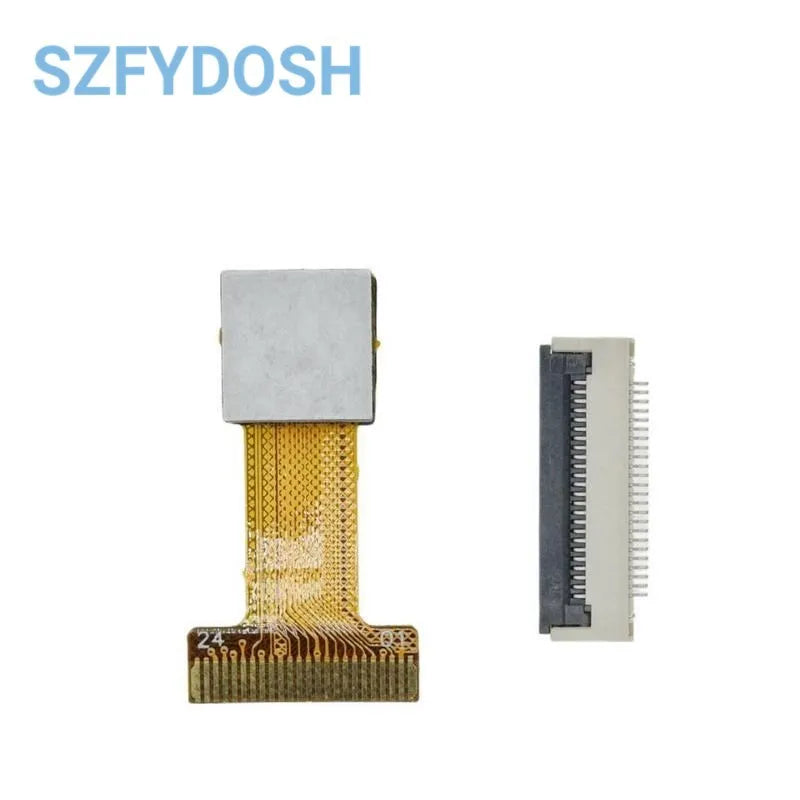

OV7670 camera module 62 degree 24P 30W pixel OV7670 camera module send pin socket
OV7670 camera module 62 degree 24P 30W pixel OV7670 camera module send pin socket
Couldn't load pickup availability
SPECIFICATIONS
Application: Computer
Brand Name: SZFYDOSH
Choice: yes
Condition: New
Dissipation Power: n/a
Model Number: OV7670
Operating Temperature: n/a
Origin: Mainland China
Package: Other
Supply Voltage: n/a
Type: Module
is_customized: Yes
semi_Choice: yes
30W pixel OV7670 camera module Send super good quality seat diy
Photosensitive array 640X480
IO voltage 2.5V to 3.0V (internal LDO supplies 1.8V to the core)
Power consumption 60mW/15fpsVGAYUV
Sleep
Temperature operation -30 ° C to 70 ° C
Stable operation 0 ° C to 50 ° C
Output format (8-bit) ? YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data
Optical size 1/6"
Field of view 67°
Maximum conversion rate 30fps VGA
Sensitivity 1.3V/(Lux-sec)
Signal to noise ratio 46 dB
Dynamic range 52 dB
Browse mode line by line
Electronic exposure 1 line to 510 lines
Pixel area 3.6 μm x 3.6 μm
Dark current 12 mV/s at 60 °C
