SPECIFICATIONS

Application: Tuya Wifi APP

Battery: rechargeable 18650*2 pcs (not included)

Brand Name: Customized

Capacity: fingerprint 100+password 100+ card 100

Data Storage Options: Cloud

Door Type: Wood Door,Steel Door,Aluminum Door

Emergency Power Supply: DC5V Type C

Keycard type: 13.56Mhz M1 card

Lock Cylinder Security Grade: Grade C

Material: Aluminium Alloy,aluminum alloy

Model Number: F5 PRO

Network: Bluetooth

Place of Origin: Guangdong, China

Power supply: DC 6V / DC 12V

Product name: Smartlife APP controlled Smart door lock 5050 6085 RFID Digital Lock

Smart App: Tuya Wifi APP

Unlock way: Fingerprint + Password + Card + Key+Tuya APP+APP camera

Working temperature Humidity: -20~60℃ / 20~90 %

Specification

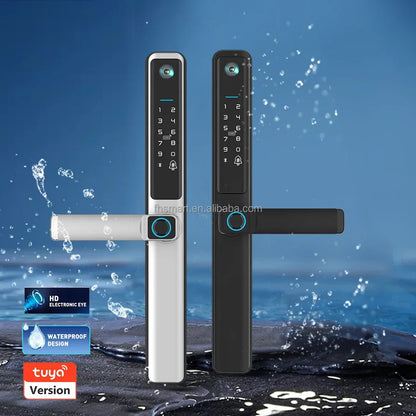

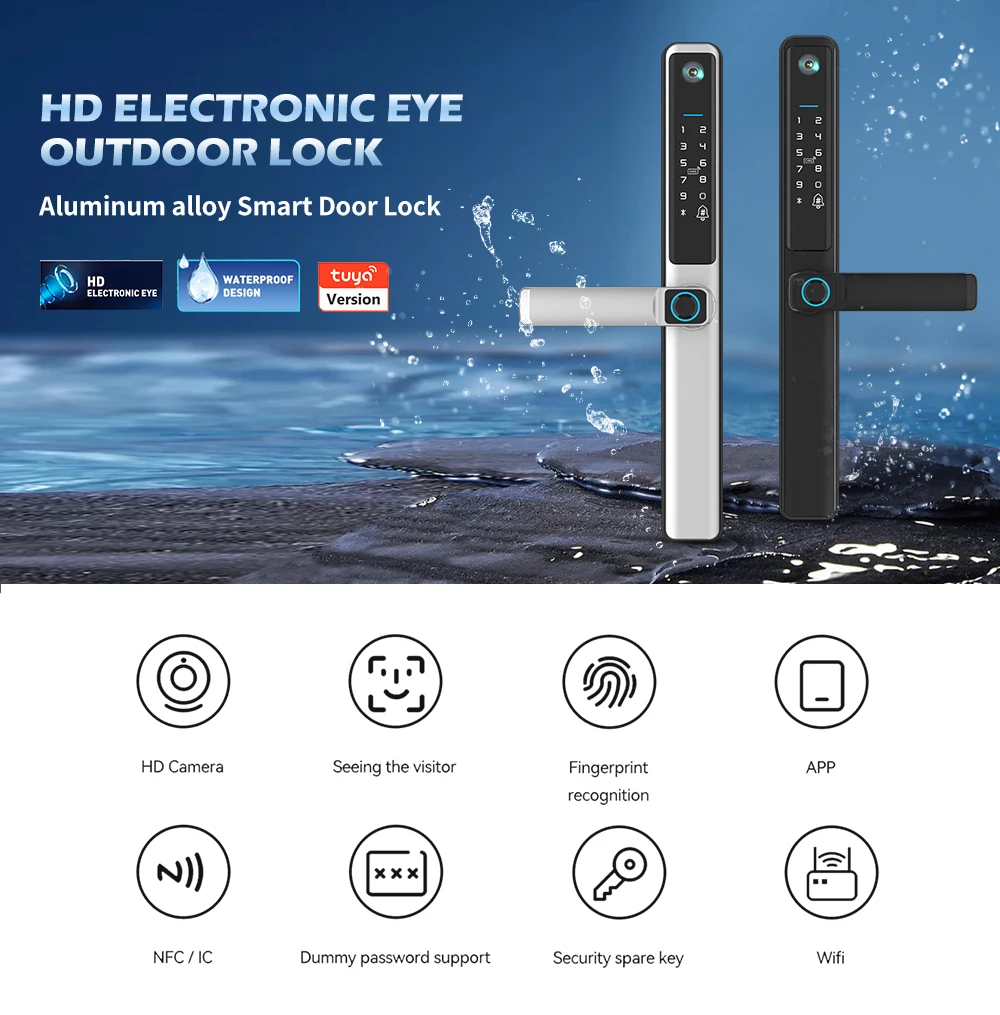

Product name	Wifi Tuya APP camera sliding door smart lock outdoor gate fingerprint lock
Unlocking ways	camera+fingerprint+passwored+card+key+Tuya
Material	Aluminum alloy
Capacity	fingerprint 100+ password 100+card 100+Unlimited APP password
Keycard type	13.56Mhz M1 card
Battery Type	AAA*4 PCS
Support system	Android 4.3/IOS7.0 or above
Emergency Unlock	DC 5V / Type C
IP Standard	IP55; suitable for outdoor use
Temperature and Humidity	-20~60℃ ； 20-90%

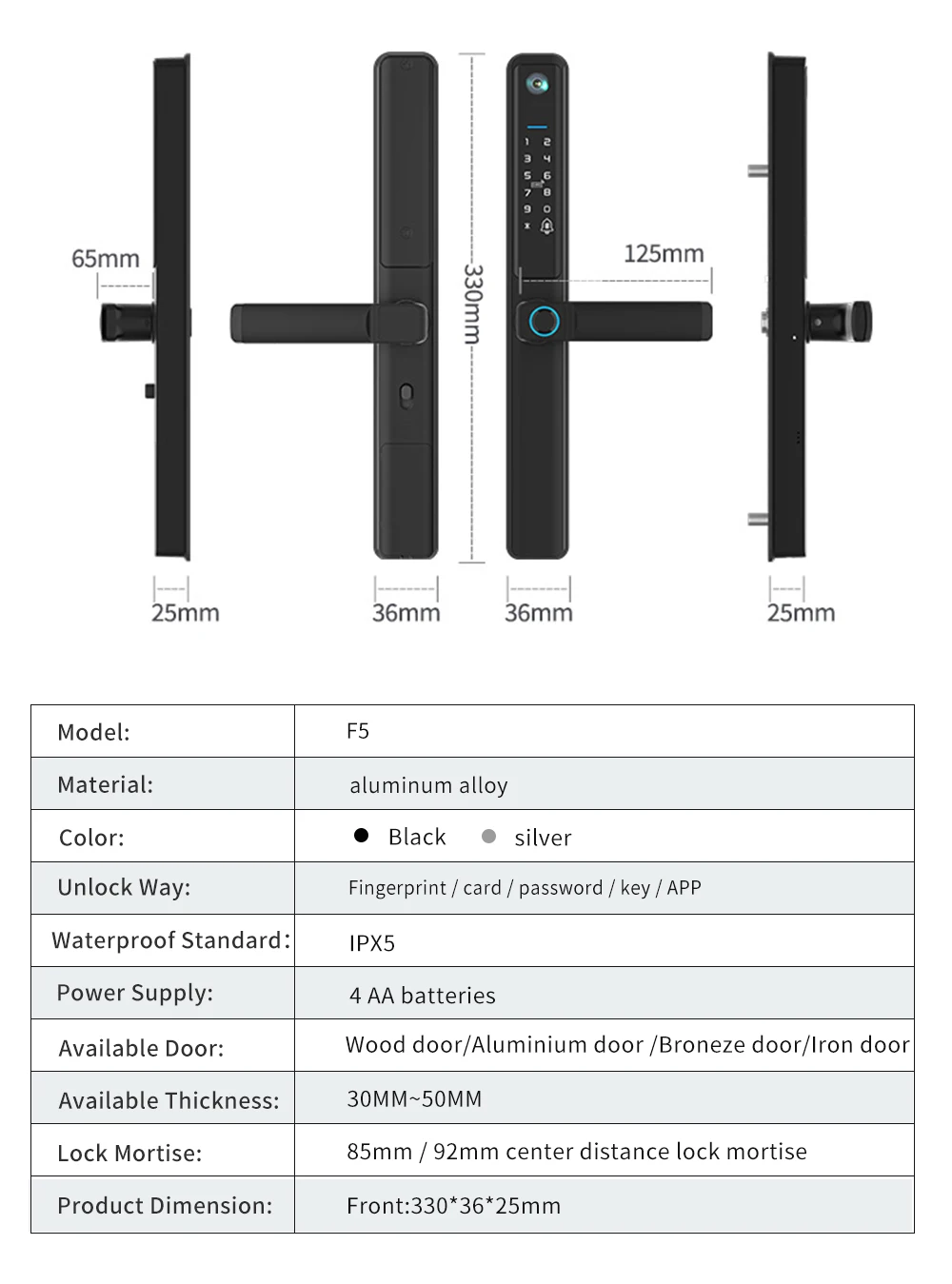

Product Dimension	front 330*36mm;
Warranty	1 YEAR
Price	>> Contact to get the latest price for this item.

FEATURES

If your door is with some certain roof protection , we highly recommend this aluminum alloy smart door lock for you which works with latch bolts XX85 or double hook XX85mm mortiser lock.

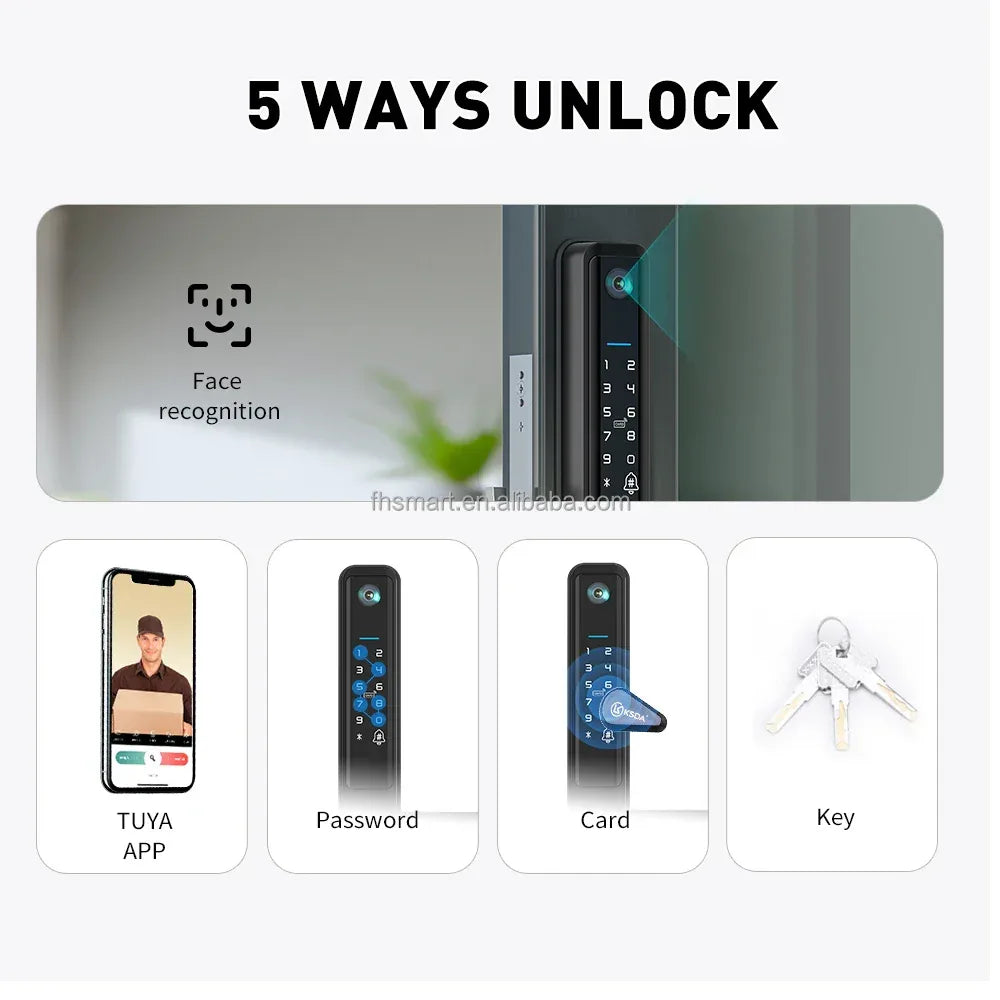

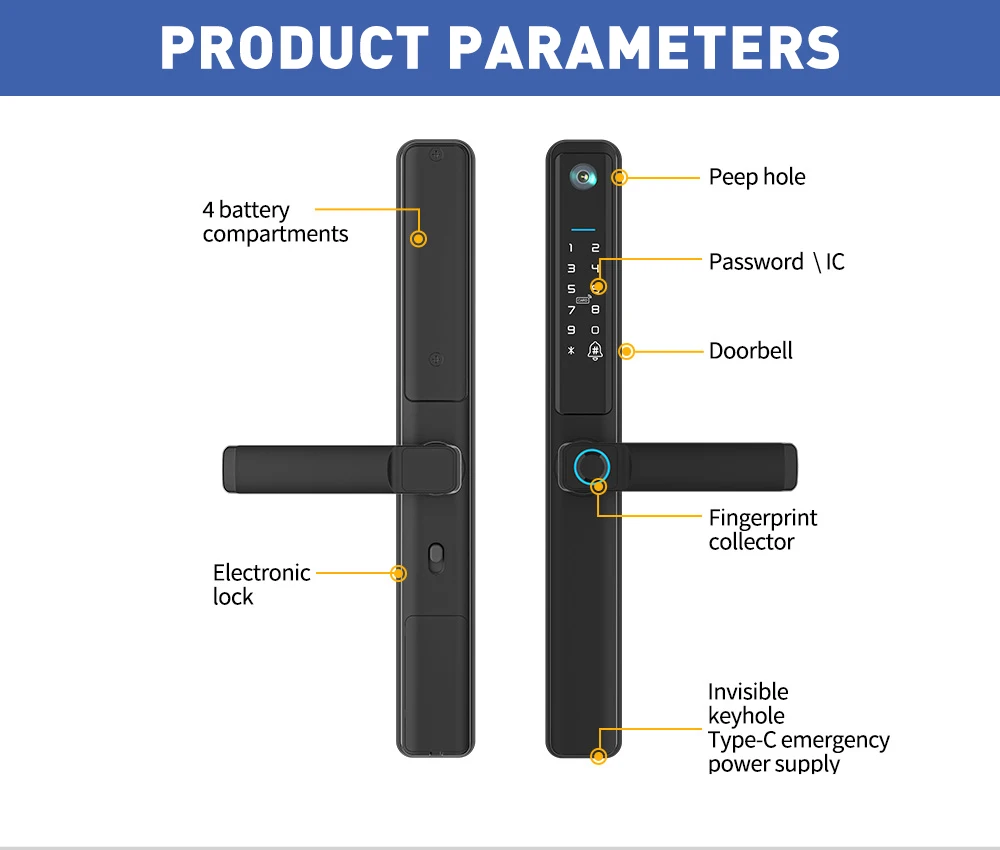

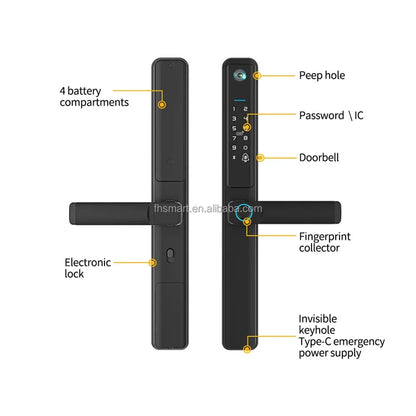

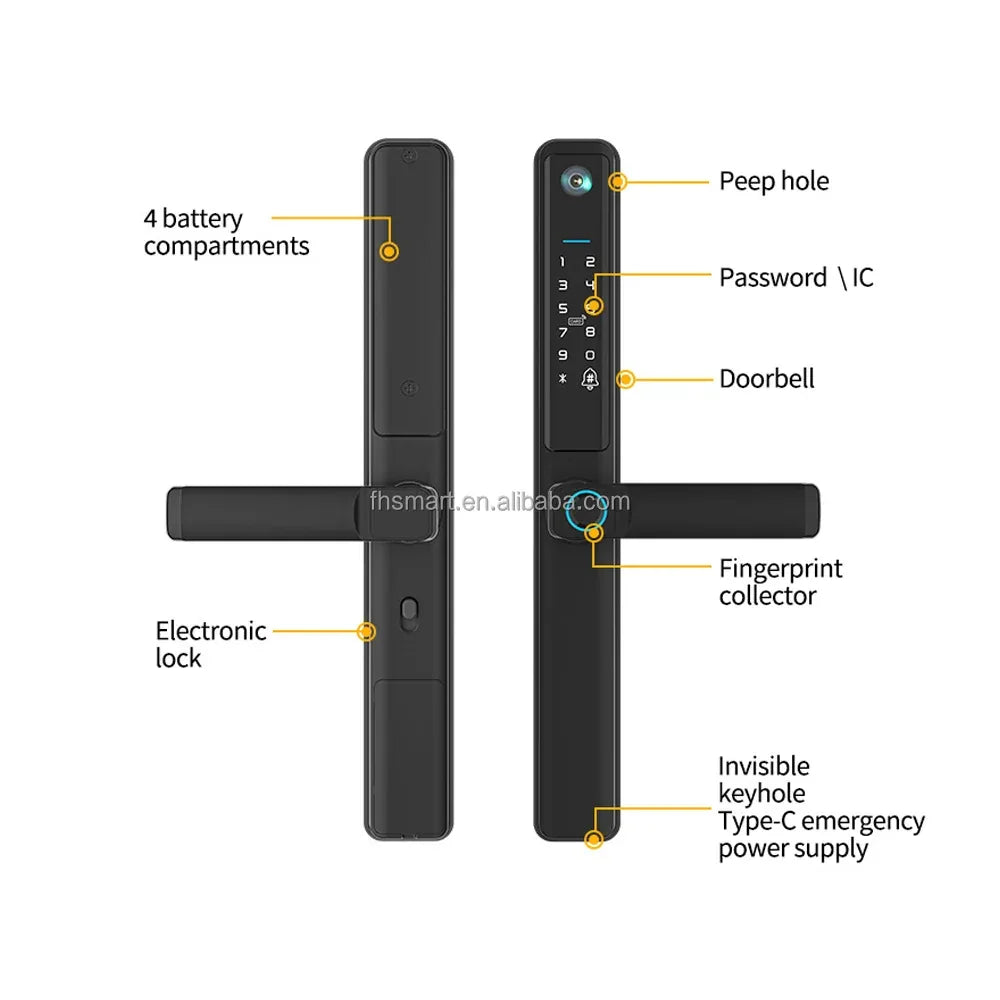

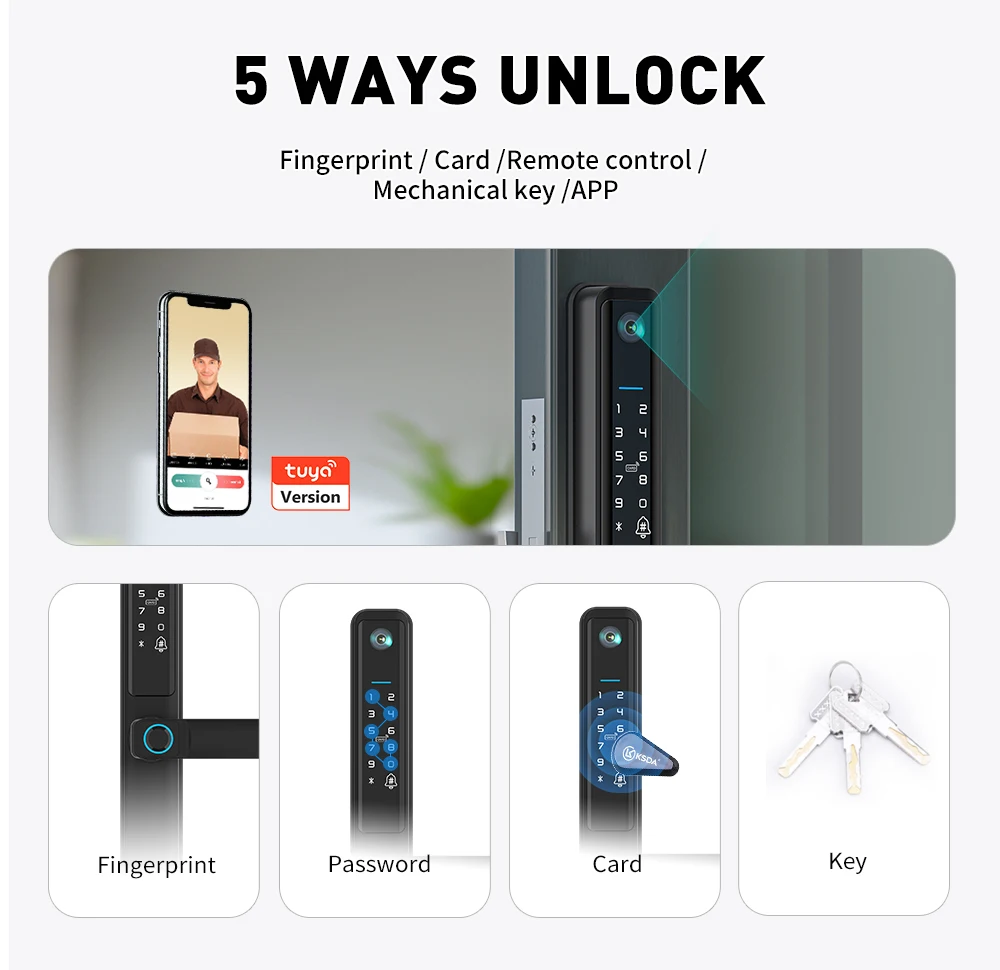

1. unlocking ways: APP camera / fingerprint / password / card/ key / Tuya APP.

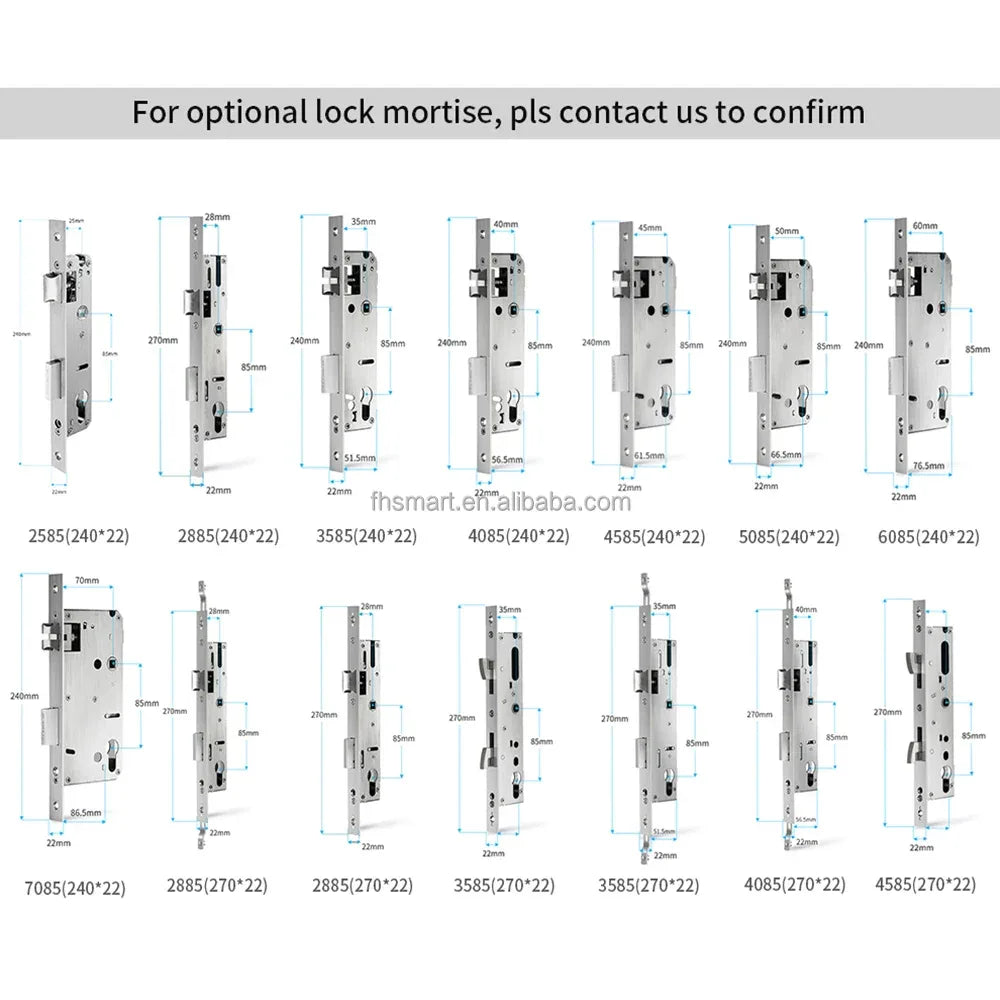

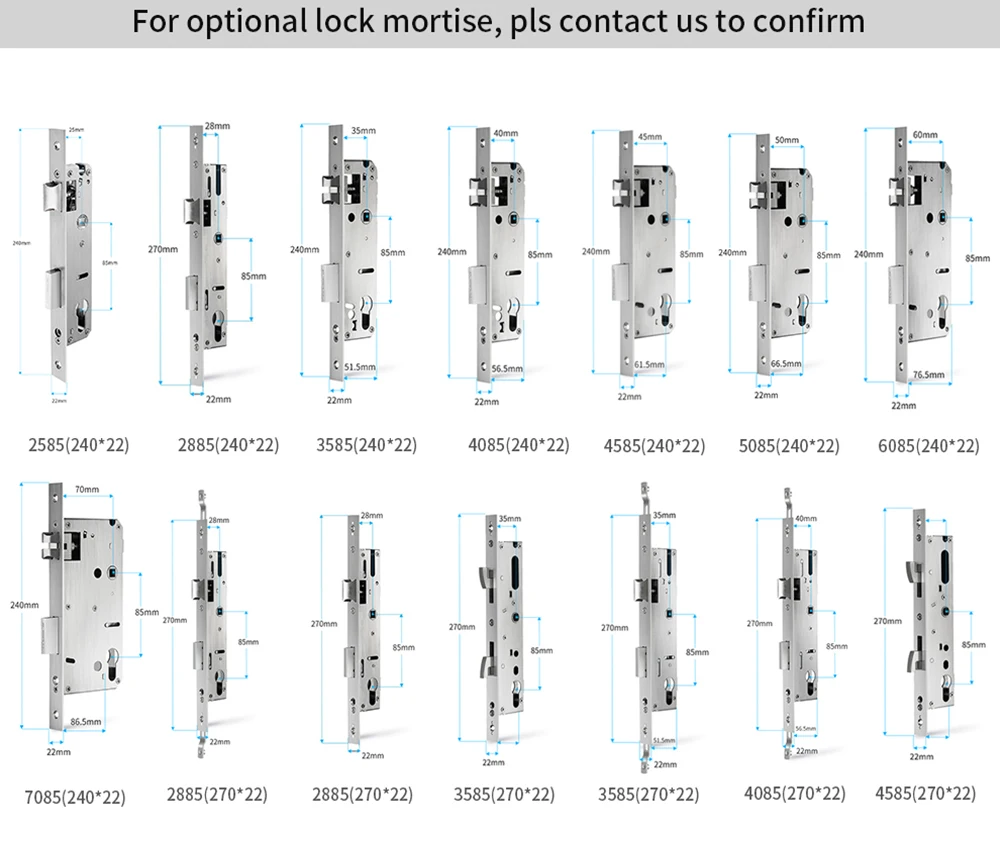

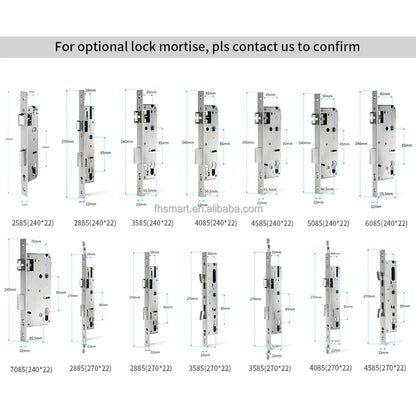

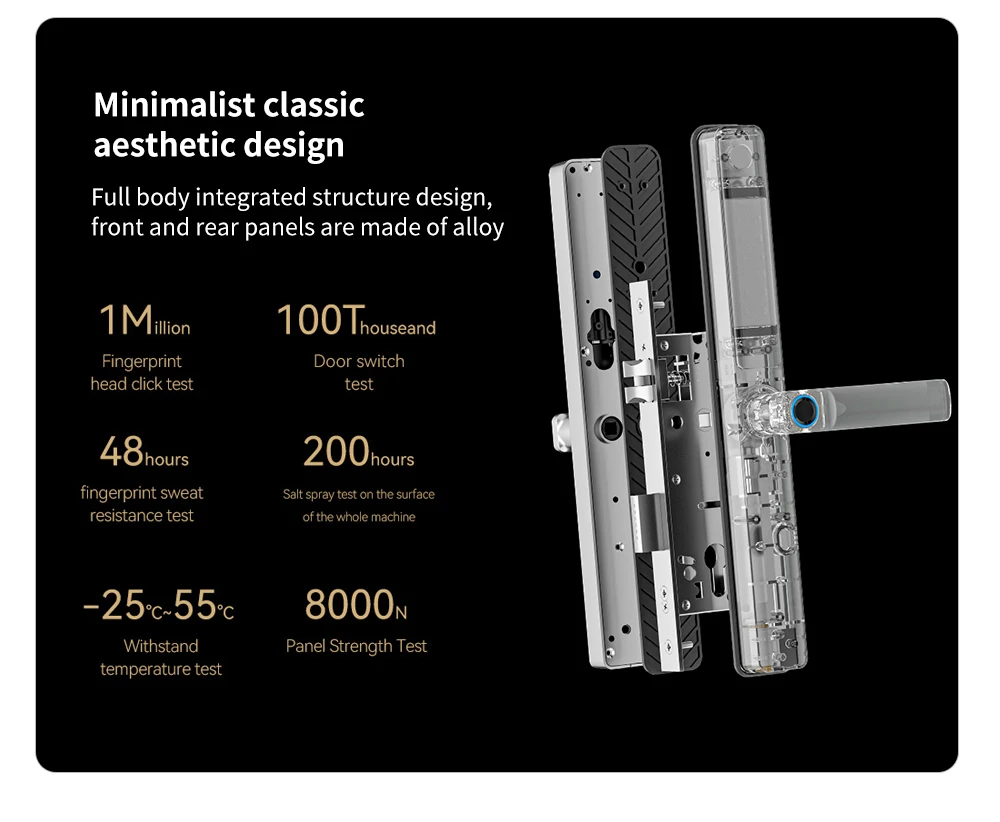

2. Compatible mortise lock: XX85 (XX could be 28/35/40/ 45/50/60/70 etc); .

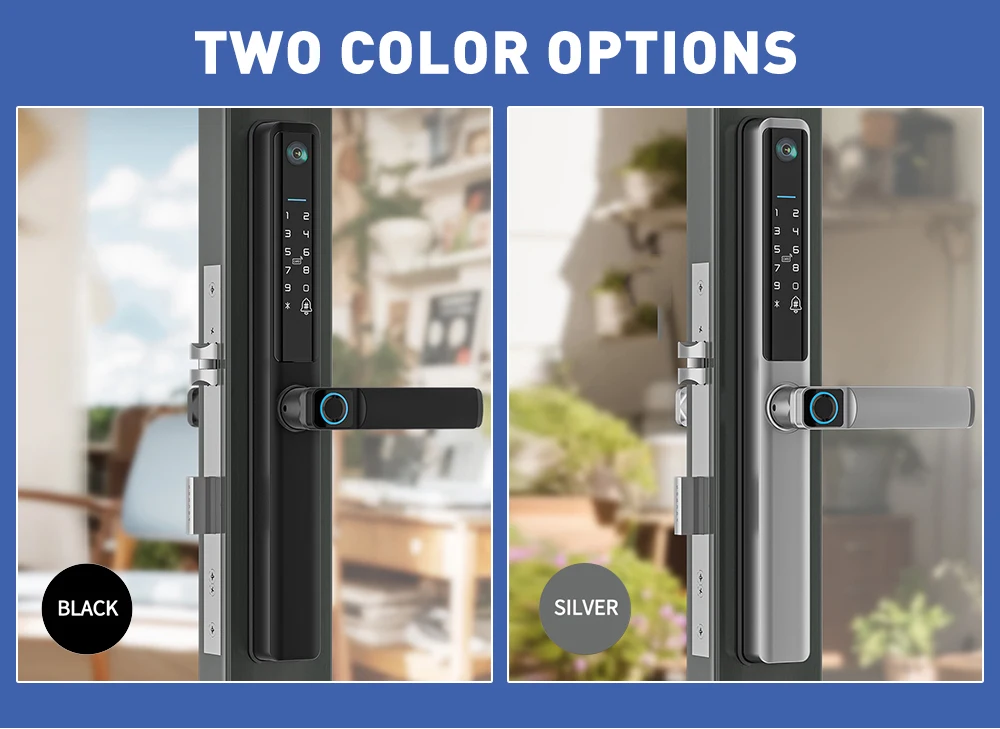

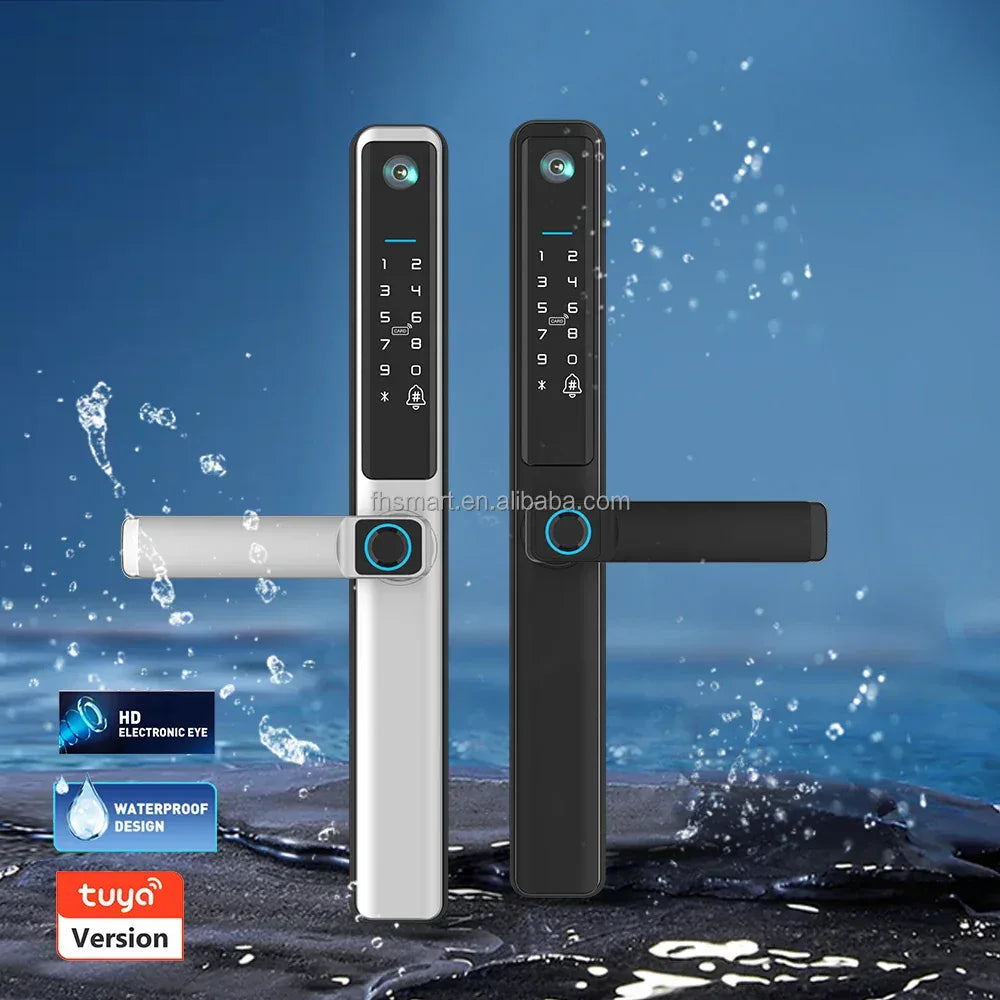

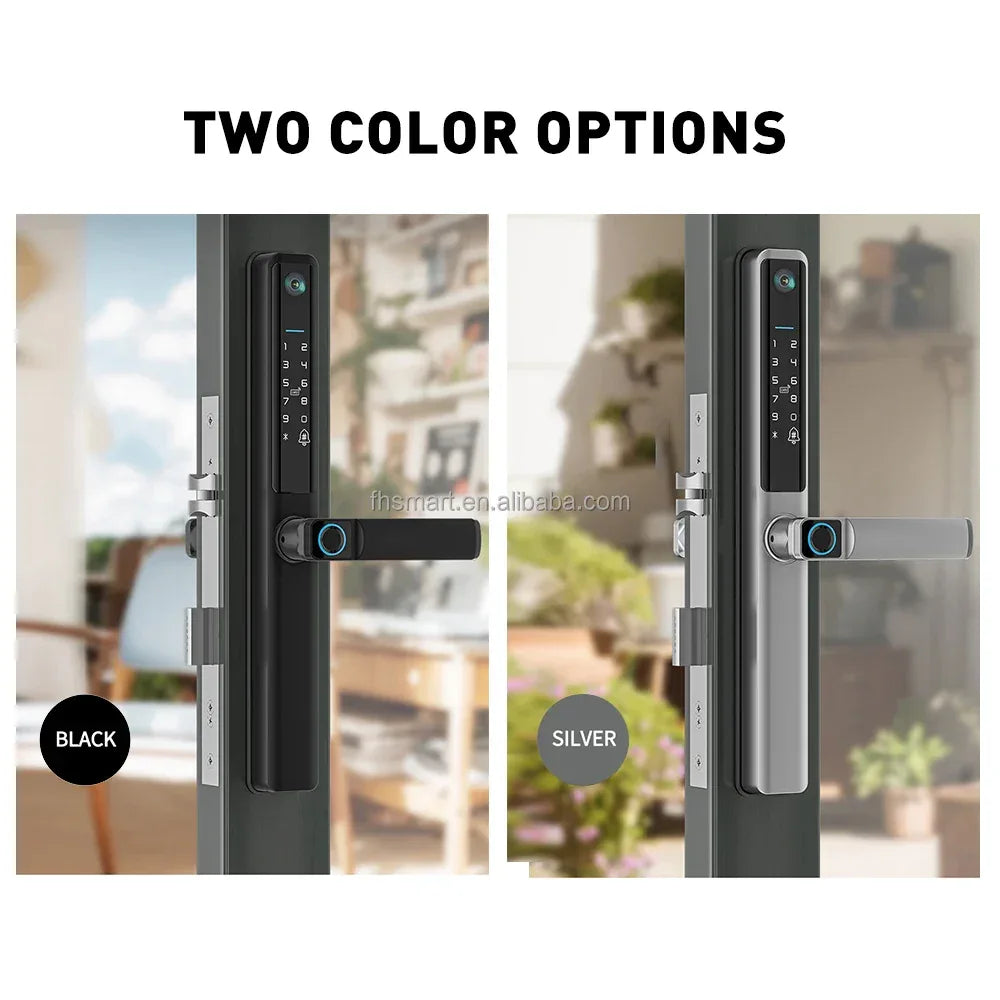

3. Color available : black/silver

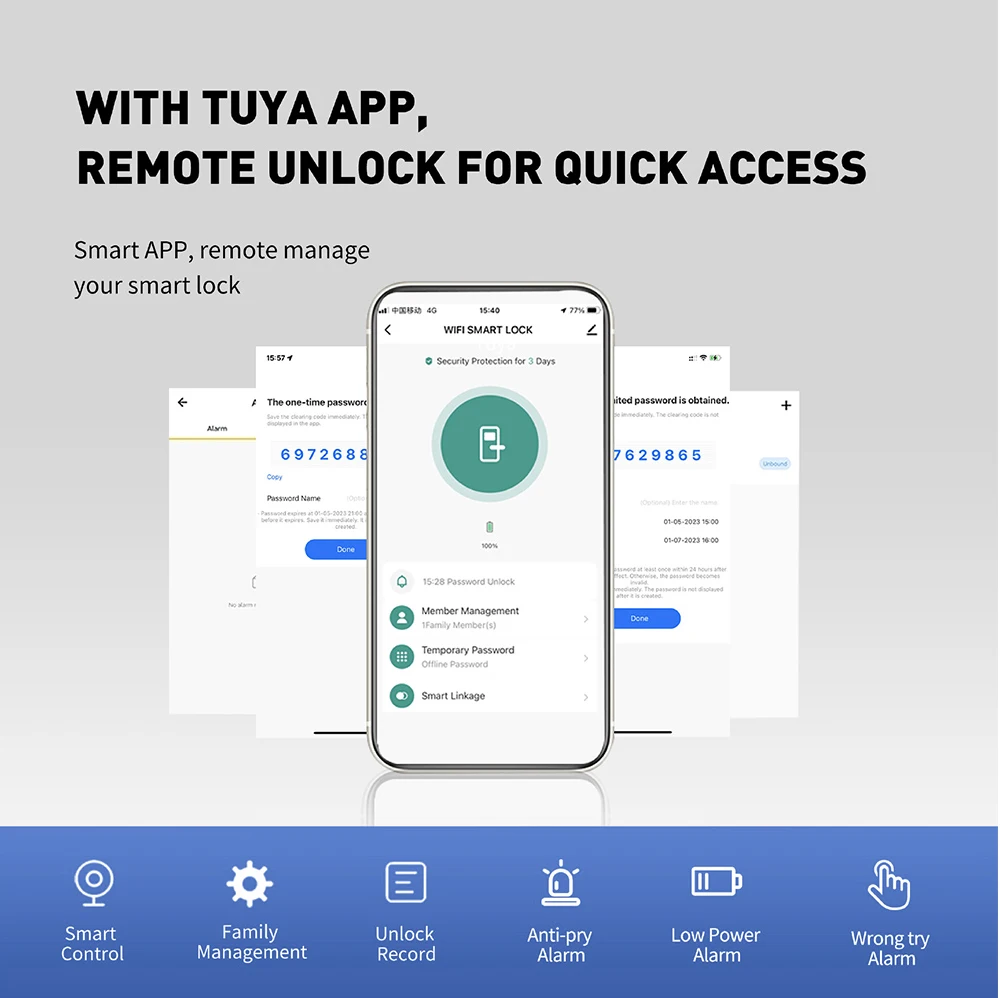

4. Tuya/ Smart life APP : checking unlocking record; generate certain periodic password /one-time password etc.; set passage molding ; wrong trial app notification. Perfect solution for outdoor / front door use.

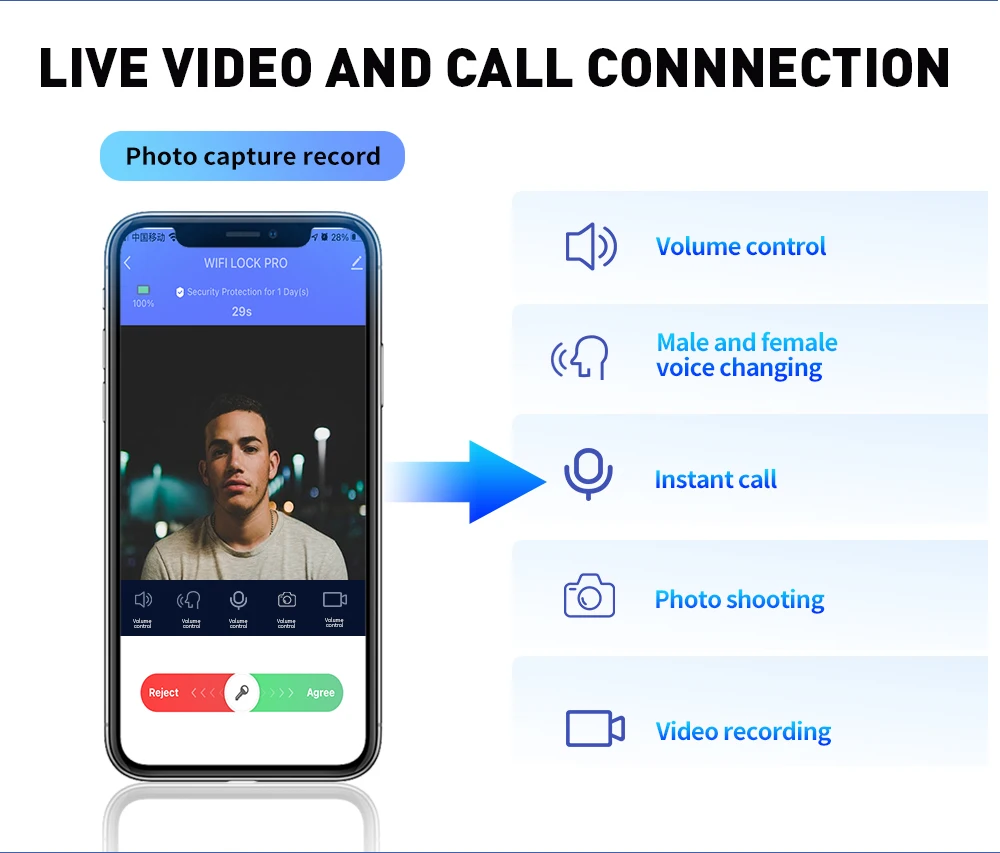

5. Remote Unlock: the lock is Tuya wifi connection. After connecting the lock to the network, your phone can get a notification for remote unlock when the door bell rings. Also the camera will enable you to see in the APP who is outside there.
6. Emergency Unlock: USB- type C connection for power failure; key unlock.

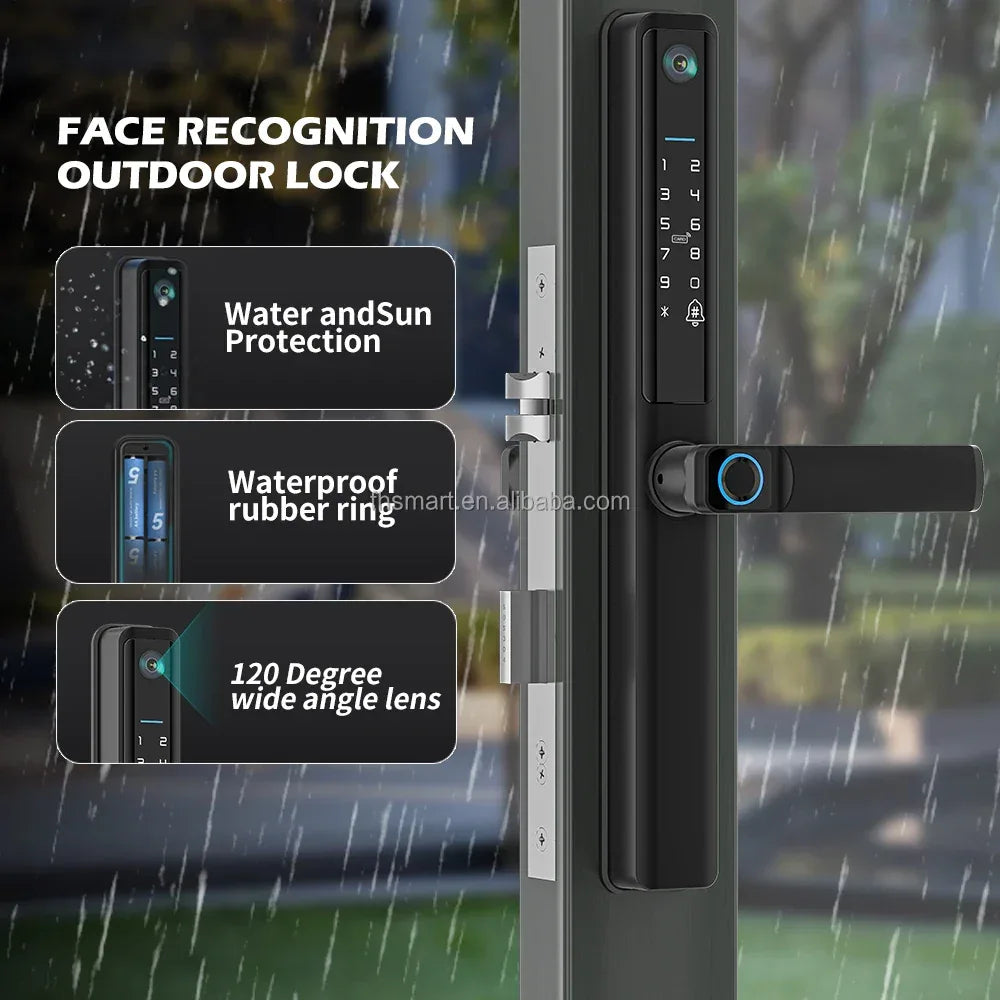

7. Waterproof Standard and Temperature: we offer silicone mat for the lock and water splashes not problem but not for total outdoor exposed way use. Temperature -20~60℃.

8. Passage Mode: Passage mode means that no register information will be needed to unlock. Using occasion: for convenience house in and out e.g. when there is a party, there can be many guests and under this mode the guests will not have to input any register information.
9. Warranty : One year. Should you have any problem, free to contact us to find solution together.

Standard Package includes:

lock *1

assessories package for installation *1

M1 cards*2

mortiser lock (standard one 3585 latch bolts)*1

Keys *2

User manual*1

Installation template *1

Product Description

FAQ

1. What is the compatible mortiser lock?

RE: Stanard we offer 3585 latch bolt. Backset could be 28/35/40/45/50/60/70mm.

2. The house is for renting use. Can I remote control the lock?

RE: yes you can. After connecting the lock to network when someone rings the door bell, you can get notification on Tuya app to unlock.

3. Does this lock have a backup key? Or any emergency unlock way?

RE: Yes, there are 2 keys included for back up use. Insert the key and turn it then press the handle to unlock. There is USB - type C interface for you to connecting the lock to a powerbank to unlock if you are facing the power failure problem.

4. Is it waterproof?

RE: Yes, but better with roof protection. this model is specially designed for outdoor / front door lock which can reach IP55.

5. Will this fit my door?
A: This 85mm smart mortise lock fits standard Euro profile doors (35-60mm thickness). Measure your existing lock to confirm.

6. Is professional installation required?
A: Package includes a paper template. You can also contact us for video guidance. If you have tools (e.g. for drilling or cutting spindle etc) , it is not that difficult to install. If not, recommend professional person to do.

7. Does it work on wooden/aluminum/UPVC doors?
A: Yes, compatible with all door types (wood, metal, composite) but mind that the thickness is within 35-60mm.
