One Year Warranty No MOQ Desktop 18 Inch UV Coating Machine A3 Hand Feed UV Coater
One Year Warranty No MOQ Desktop 18 Inches A3 UV coating machine
The brand-new desktop UV coating machine introduced by SIGO Company is useful and necessary for coating and protecting photos, spurt draws and presswork. The machine is small and easy to operate while most of coating machines are cumbersome and difficult to use. Hence this new product takes small room and has better functions.
Main Usages
At present the products of UV coating machines used for laser print, ink print, Art paper and stick paper are water proof, moisture-proof, durable, ultraviolet-proof .The pictures can be coated many times and won’t be damaged.The UV liquid would stick on the surface of the pictures and it is hard to separate after solidifies under ultraviolet rays. There are two results to coating pictures. One is called light which shows bright, colourful and clear images. Another one is called matte which doesn’t reflect much light hence it shows elegant, beautiful images. These two results of coating are now very popular for photo print, typing, portraits, spurts draws, book covers, Spring Festival pictures, calendars, cards, product samples and boxes.
Advantages
Compares with traditional cold and hot lamination film, UV liquid has the following advantages:
Transparency has risen for 50%.No bubbles and scrapes problems.
UV liquid can be re-used hence less wastes and it is easy to coat.
For Unity Albums, UV liquid has a incomparable advantage as it not only decrease the thickness of pictures but also cause no folds at the pressing step and lamination film can hardly achieve this.
YOUTUBE VIDEO LINK: https://youtu.be/eTjjWfvFM_g
Pls copy the link into broswer to view
Desktop UV Coating Machine
| Spec | LMA14" | LMA18" | LMA24" |
| Coating width | 350mm | 450mm | 600mm |
| Coating thickness | 0.2-2mm | 0.2-2mm | 0.2-2mm |
| Cost | 0.3-5Yuan/m² | 0.3-5Yuan/m² | 0.3-5Yuan/m² |
| Working speed | 7.7m/min | 7.7m/min | 7.7m/min |
| Change roller speed | 6min | 6min | 6min |
| Operation | Electric | Electric | Electric |
| Power | 2.2KW | 3KW | 4.4KW |
| Voltage | 220V | 220V | 220V |
| Motor | 220V 25W | 220V 40W | 220V 40W |
| UV lamp | 220V 2KW | 220V 2KW | 2pcs 220V 2KW |
| Machine material | Metal | Metal | Metal |
| Coating roller | Rubber | Rubber | Rubber |
| Reflector | Alloy | Alloy | Alloy |
| Scraper | Stainless Blade | Stainless Blade | Stainless Blade |
| Fan | Copper coil | Copper coil | Copper coil |
| Dustproof cover | Transparent acrylic | Transparent acrylic | Transparent acrylic |
| G.W | 96KG | 118KG | 150KG |
| N.W | 75KG | 98KG | 128KG |
| Packing | Plywood Carton | Plywood Carton | Plywood Carton |
| Machine size | 740*650*520mm | 900*700*580mm | 1040*665*610mm |
| Packing size | 800*740*630mm | 940*730*640mm | 1110*740*640mm |
| Optional extra UV lamp | 40$/pcs | 40$/pcs | 40$/pcs |
| Optional Extra Rubber Roller | 140$/pcs | 150$/pcs | 160$/pcs |
| Optional extra steel roller | 145$/pcs | 155$/pcs | 165$/pcs |
| Optional Embrossing Roller | 250$/pcs | 260$/pcs | 270$/pcs |
| Optional bottom box | No | No | 100$/pcs |
| Optional transformer | 300$/pcs | 300$/pcs | 300$/pcs |

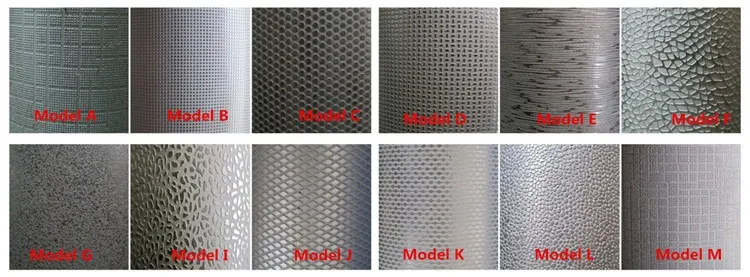

OPTIONAL EMBROSSING ROLLER

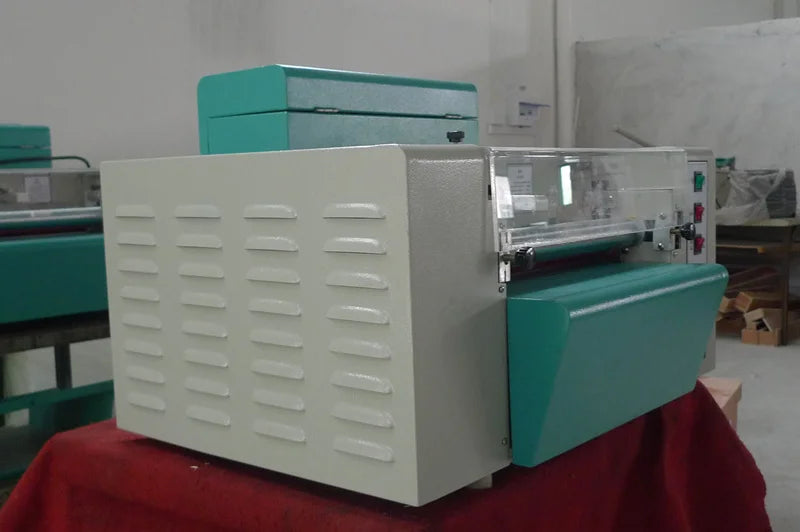

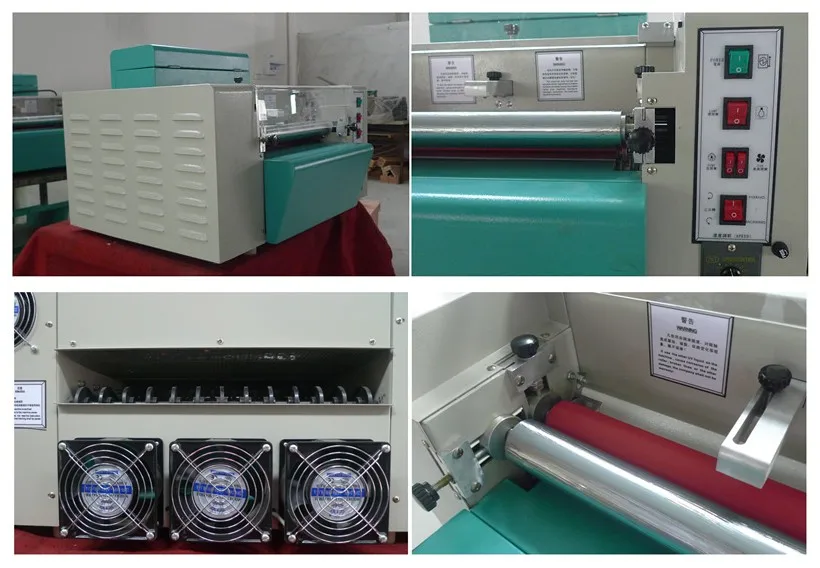

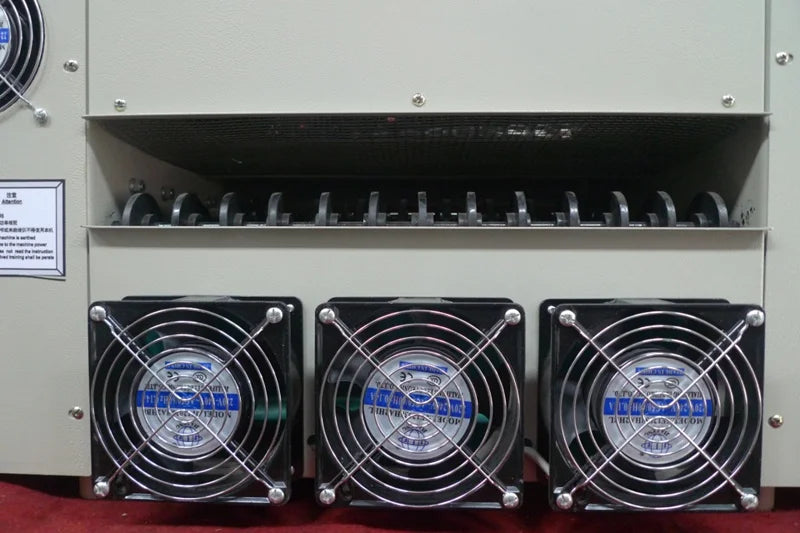

OUTSIDE OVERVIEW

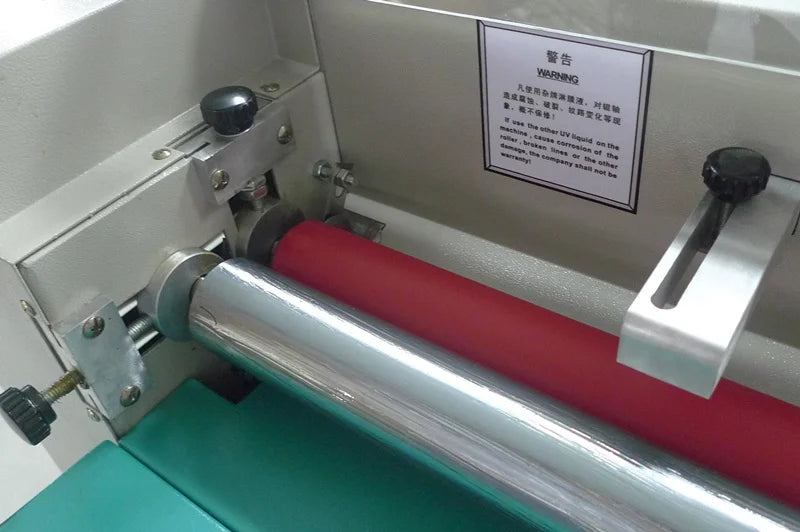

INSIDE OVERVIEW

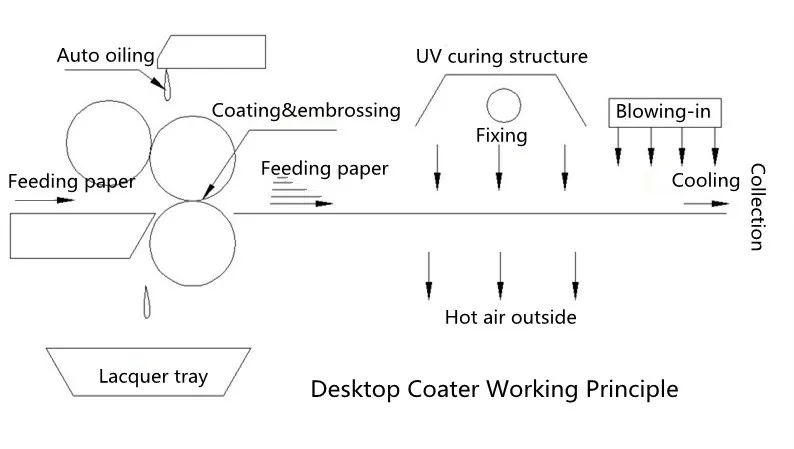

WORKING PRINCIPLE

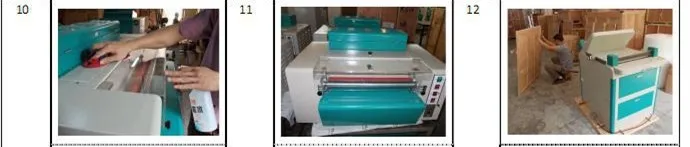

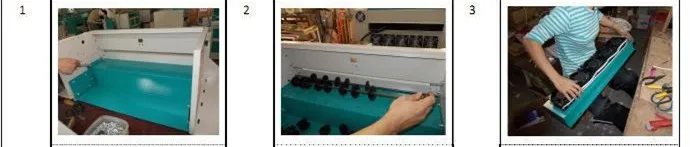

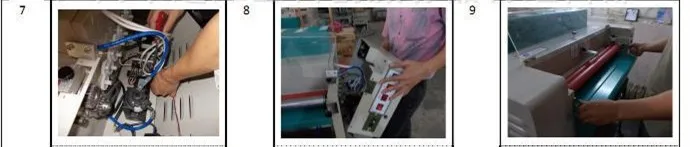

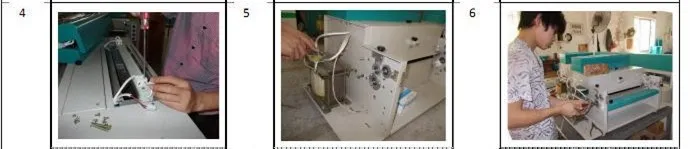

PRODUCTION STEPS
Assembely metal sheet Install wheel Install fans
Install UV lamp Install transformaer Install roller
Install circuits Install cover Testing
Cleaning Finishing Packing
Hangzhou Fuyang Sigao Office Supplies CO., LTD was founded in 2003. Our company is a synthetical enterprise occupying more than ten thousand square meters of factory building. We own import and export right.
The major products of our corporation are text binding machines, paper processing machinery, and various of binding materl (Binding plstic comb, double loops wire, spiral coil, paper cover, PVC cover, slide binder,etc). In addition, we also deal with office consumption, such as cover paper of binding,clamp bars, plastic and rubber rings, and iron rings. Our products have won high reputation among customer at home and abroad for the reliable performance and novel design.
Welcome to visit our company and cooperate with us.
Company Show
Automatic desktop 18" UV coater/UV coating machine
1.Q:Are you a factory or trading company ?
A:We are factory at Fuyang, Hangzhou ,any time welcome visit us.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Hangzhou City, Zhejiang Province, China, around 1 hours train from Shanghai .Around
1hour from "Hanghou Internatil Airport "to our factory. All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:What's the material of your products ?
A:The roller is Germany, Steel and Silicon (Import) to make it.
4.Q:How can i get some samples ?
A:We are honored to offer you sample to test it, around 4-5days arrived your hand after receive payment.
5.Q:What's the terms of payment ?
A:We can do T/T WU Paypal 100% before shipping.
6.Q:How does your factory do regarding quality control?
A:Quality is priority. Our factory always attach great importance to quality controlling from the verybeginning to the very end. Our factory has gained CQC, ISO, SGS,FSC authentication
