SPECIFICATIONS

Application: Industry,Laboratory,Repair Appliances

Brand Name: NICE-POWER

Certification: CE FCC

Efficiency: 0.85

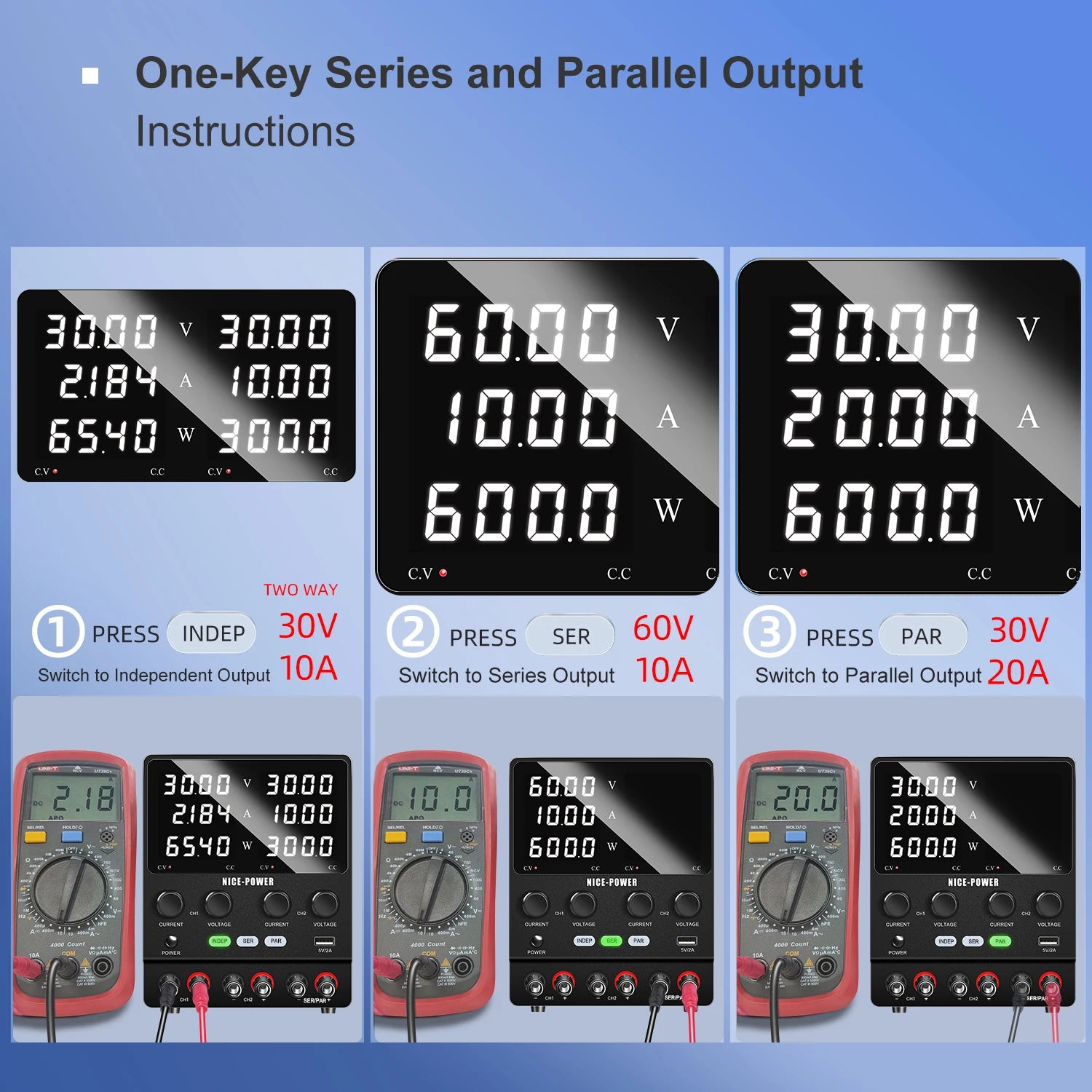

Feature: One-key series connection, parallel connection

Feature 2: power supply led

Feature 3: dual channel power supply

Input Voltage: 220 V,AC220V

Model Number: SPS3010-2KD

Output Current: 20A,10A/20A

Output Power: 300w

Output Type: Single

Output Voltage: 60 V,30V/60v

Place of Origin: Guangdong, China

Product Name: Switching DC Power Supply with storage function

Protection: Over Temperature Protection,Over Power Protection

Product Description

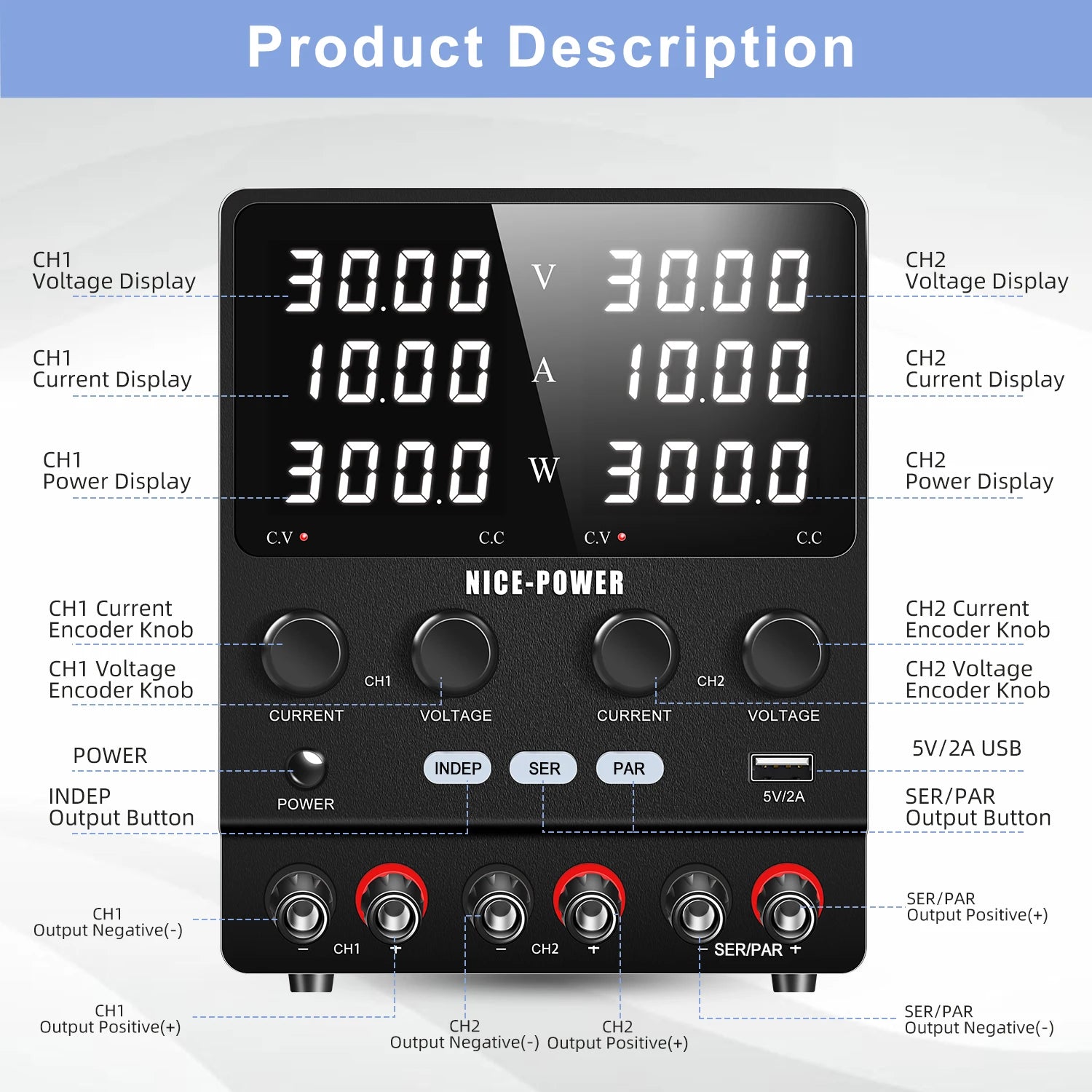

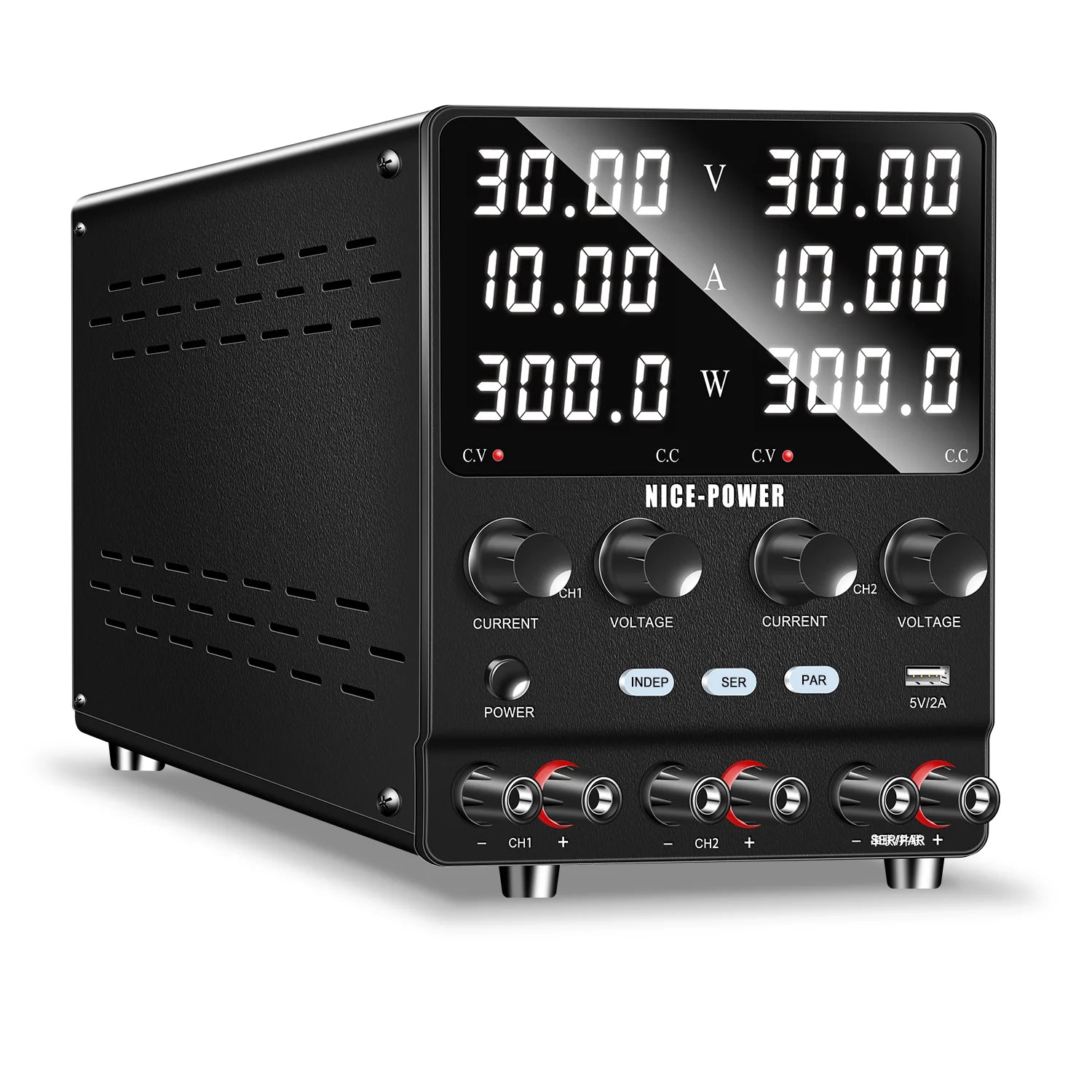

NICE POWER SUPPLY SPS3010-2KD Switch Dual DC Regulated Power Supply 30V 10A LED Display Adjustable Double Channel Lab Bench Power Source

Product Features: Small size, light weight and high power density. Constant voltage, constant current automatic switching. Voltage, current, power Temperature controlled fan heat dissipation, low noise and long life Application Field: 1. Production line testing. 2. Mobile phone, computer, electrical maintenance. 3. Product aging, plating. 4. Charge the battery. 5. Laboratory, research and teaching. 6. Everything else needs a DC regulated power supply. Specification: Model:SPS3010-2KD Output Voltage: 0 ~30v/0~60v Output Current: 0 ~10A/0~20A Working Temperature: 0℃ ~40℃ ; Relative Humidity: <80%RH Storage Temperature: -10℃ ~70℃ ; Relative Humidity: <70%RH Constant Voltage State: Voltage stabilitys1 %+30mV Load stabilitys1 %+30mV Ripple noises50mVms (valid value) Constant Current State: Current stabilitys1 %+30mA Load stabilityS1 %+30mA Ripple noises50mArms (valid value) Display Accuracy: +1%+5digits Display Resolution: Voltage: 00.01V Current: 0.001A

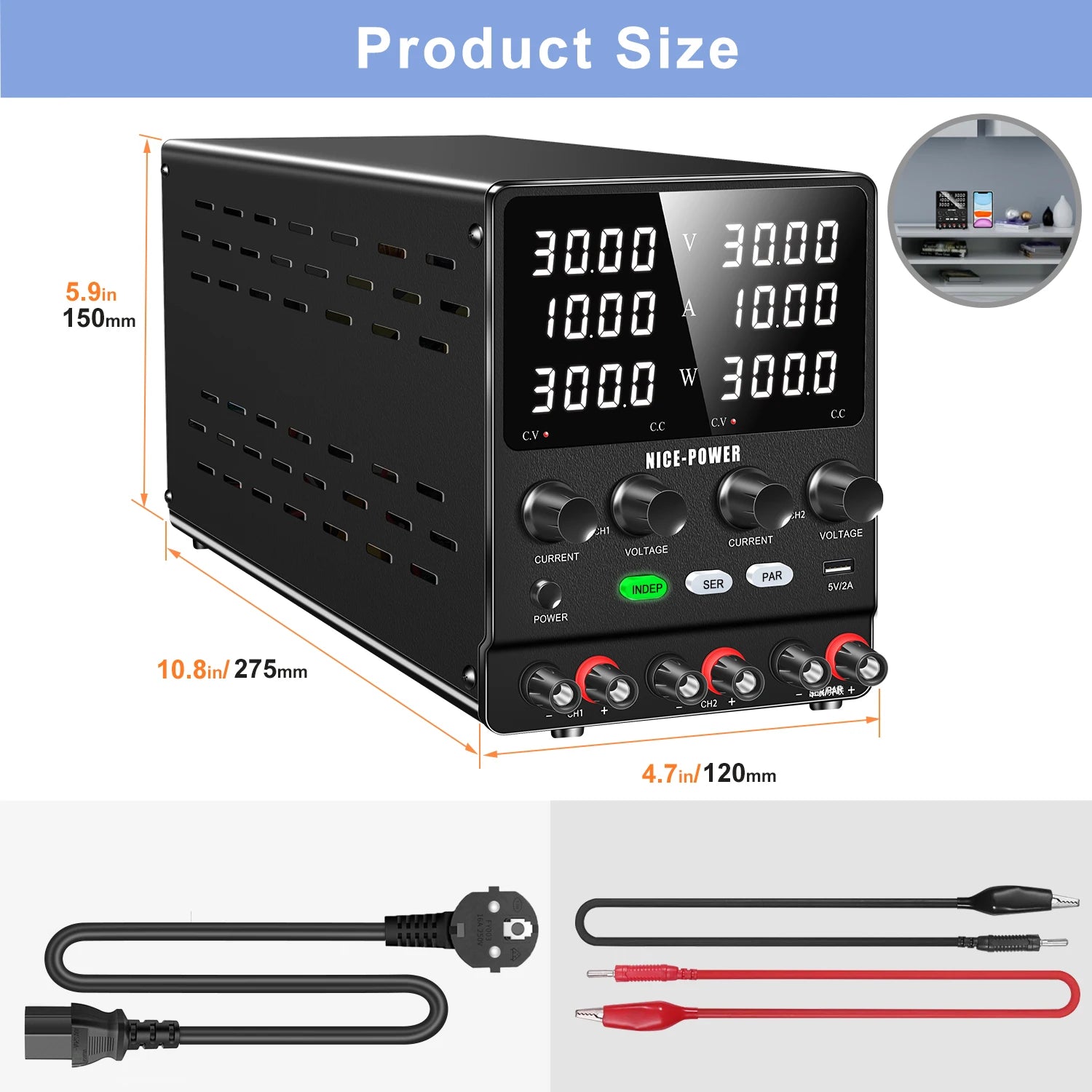

DC POWER SUPPLY SIZE:30*12.4*15.6CM

SPS3010-2KD Weight:3.5KG

Packing List: 1*DC Power Supply 1*Power Cord 2* Output Load Cord 1* User Manual

Model Number			SPS3010-2KD

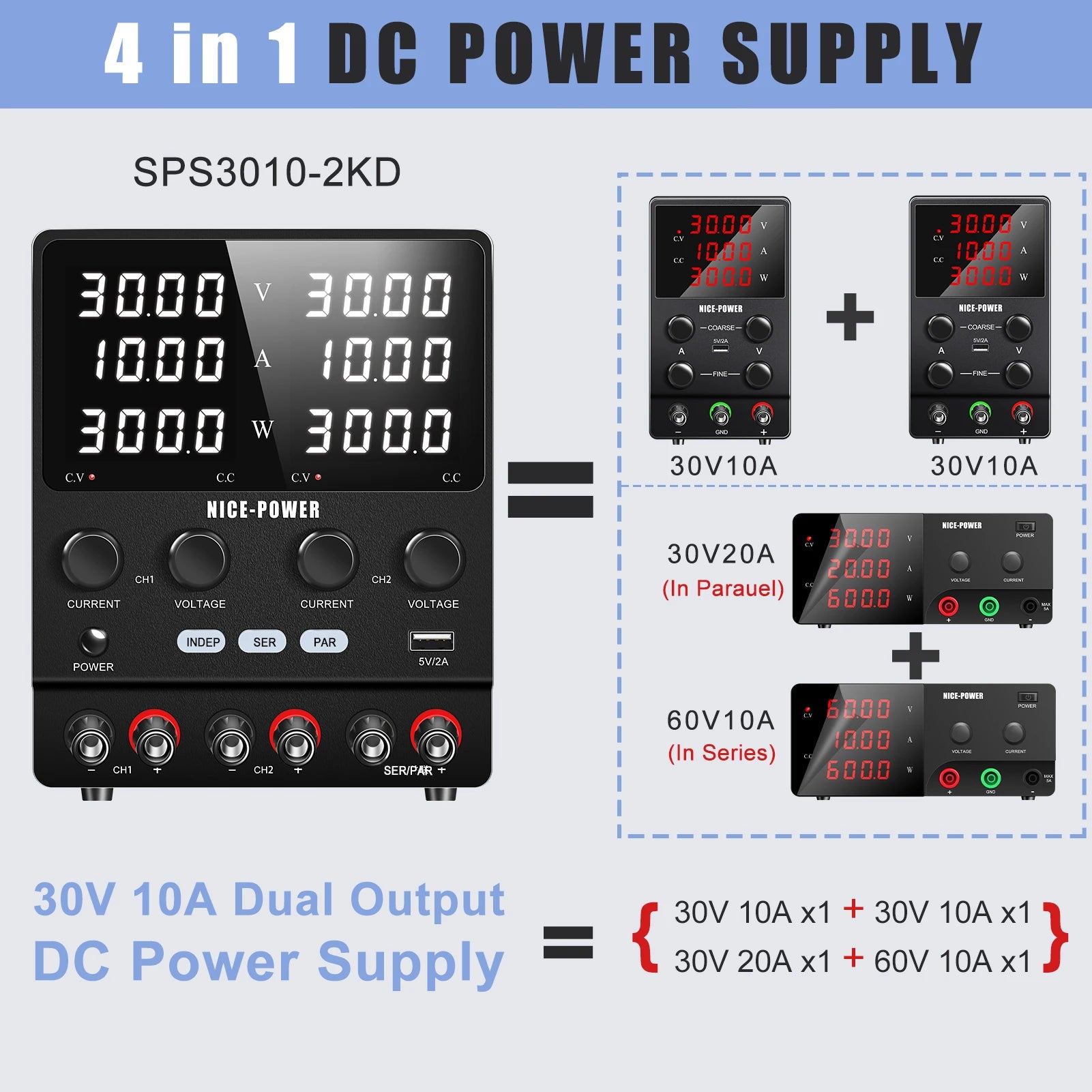

Rated Value(0°C~40°C)	Voltage	Indep Mode:0-30V Series Mode:0-60V Parallel Mode:0-30V
		Current	Indep Mode:0-10A Series Mode:0-10A Parallel Mode:0-20A
		Power	IndepMode:300Wx2 Series Mode:600W Parallel Mode:600W
USB/Type-C Output	V/A	5V/2A
Load Requlation	Voltage	≤0.3%+10 mV
		Current	≤0.1%+2.5 mA
Line Requlation	Voltage	≤0.01%+2.5 mv
		Current	≤0.1%+2.5 mA
Setting Resolution	Voltage	100mV
		Current	1 mA
Readback Resolution	Voltage	100mV
		Current	1 mA
Setting Accuracy	Voltage	≤0.01%+10mV
		Current	≤0.01%+10mV
Readback Accuracy	Voltage	≤0.01%+10mV
		Current	≤0.01%+10mV

Details Images
