SPECIFICATIONS

Brand Name: NICE-POWER

Features1: regulated power supply

Features10: Voltage regulator

Features2: diy power supply

Features3: Dc Power Supply

Features4: lab bench power supply

Features5: voltage regulator switch

Features6: Bench power supply

Features7: adjustable dc regulated power supply

Features8: Voltage stabilizer

Features9: Power supply for pc

Input Voltage: 230v±10% or 115v±10%(110V need customized)

Model Number: KQ0913-SPS-H305 BLACK

Output Current: 0-5A DC

Output Frequency: -

Output Type: Single

Output Voltage: 0-30V DC

Place of Origin: Guangdong, China

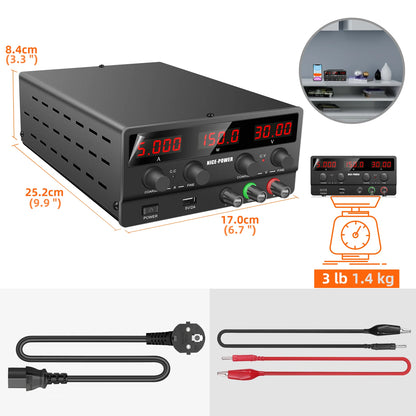

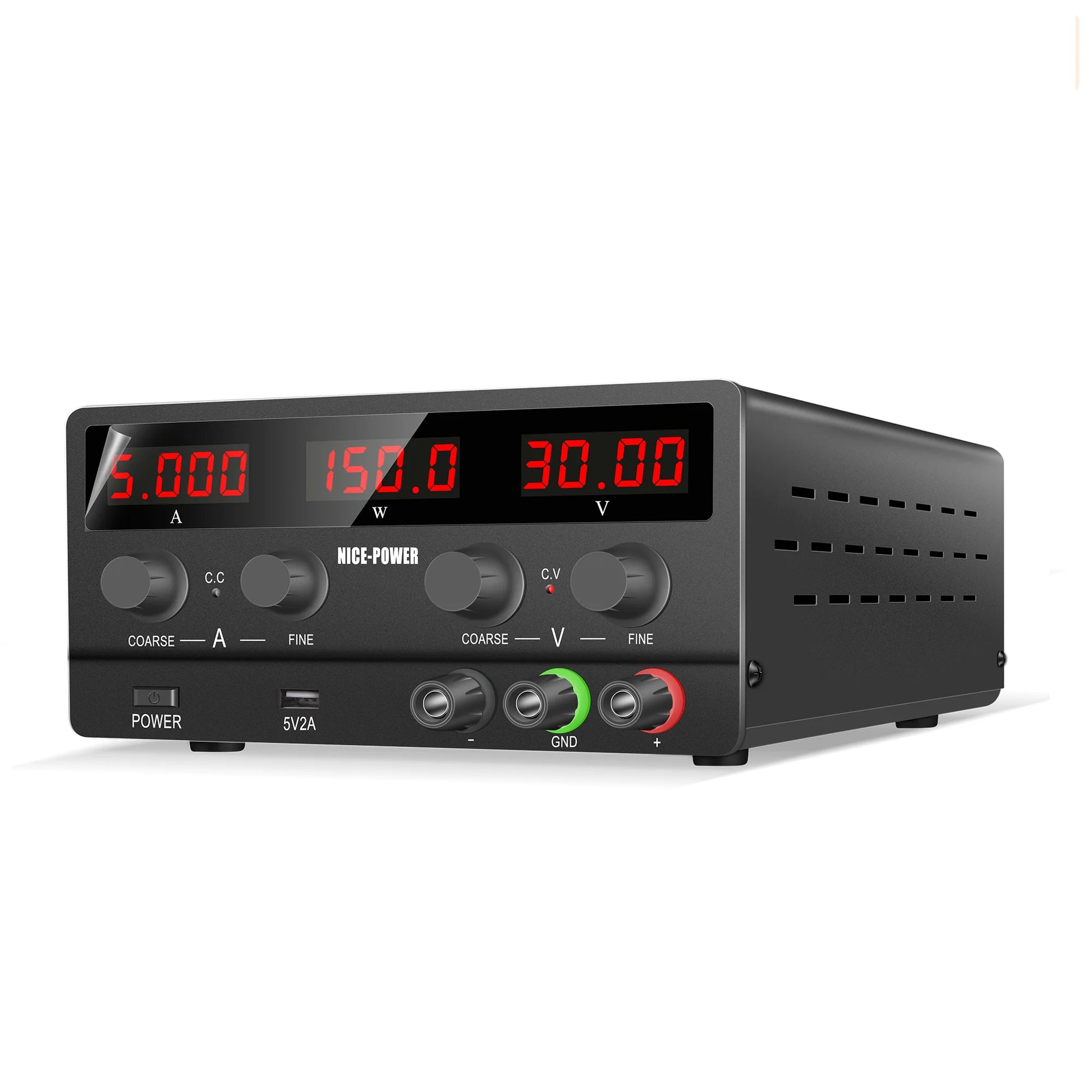

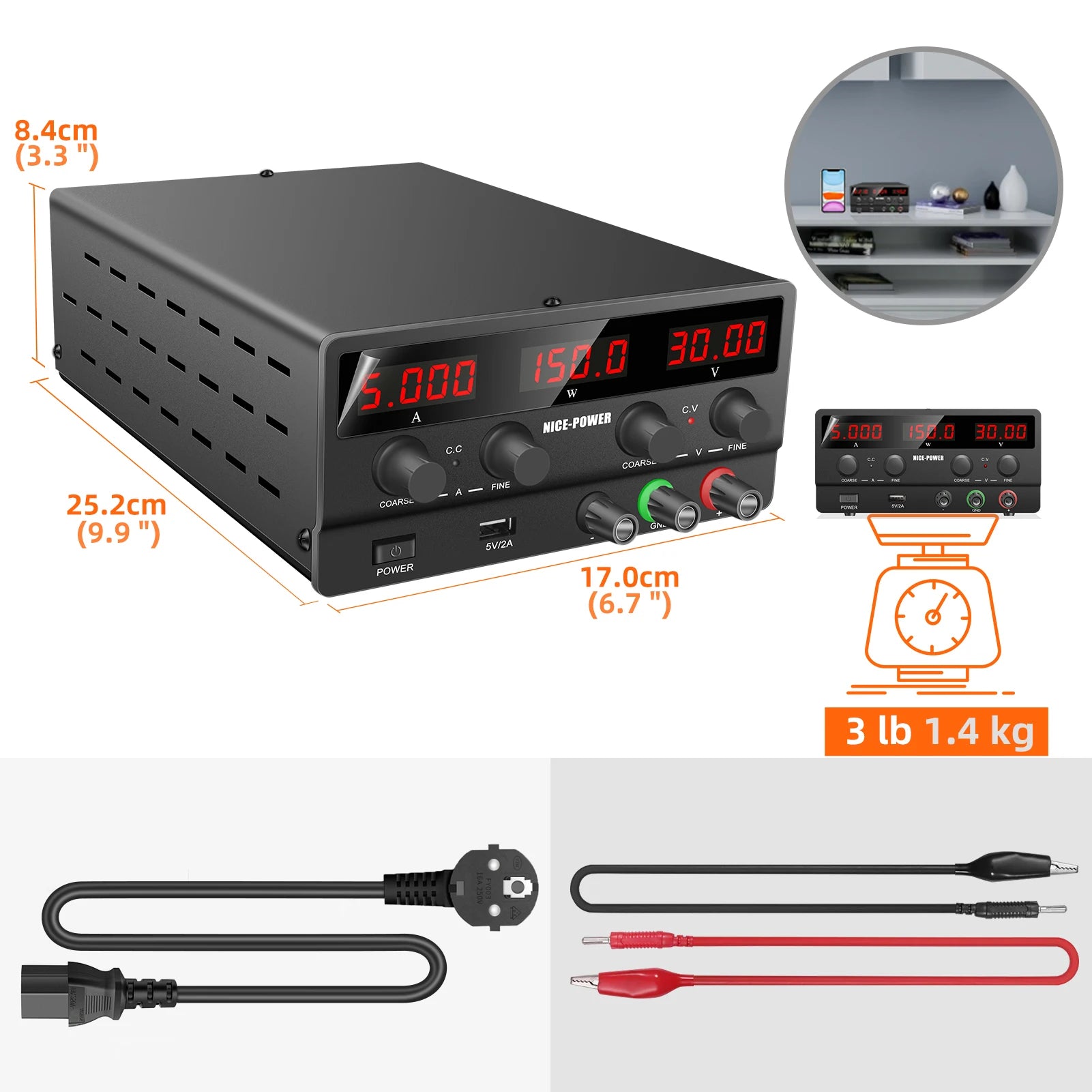

NICE-POWER SPS-H305 Black 30V 5A Repair usb switching Variable Adjustable Digital Bench mini voltage dc power supply

DC Power Supply Advantage

1.Have complete operating protection function

2.Highly efficient, low ripple, small volume, light weight

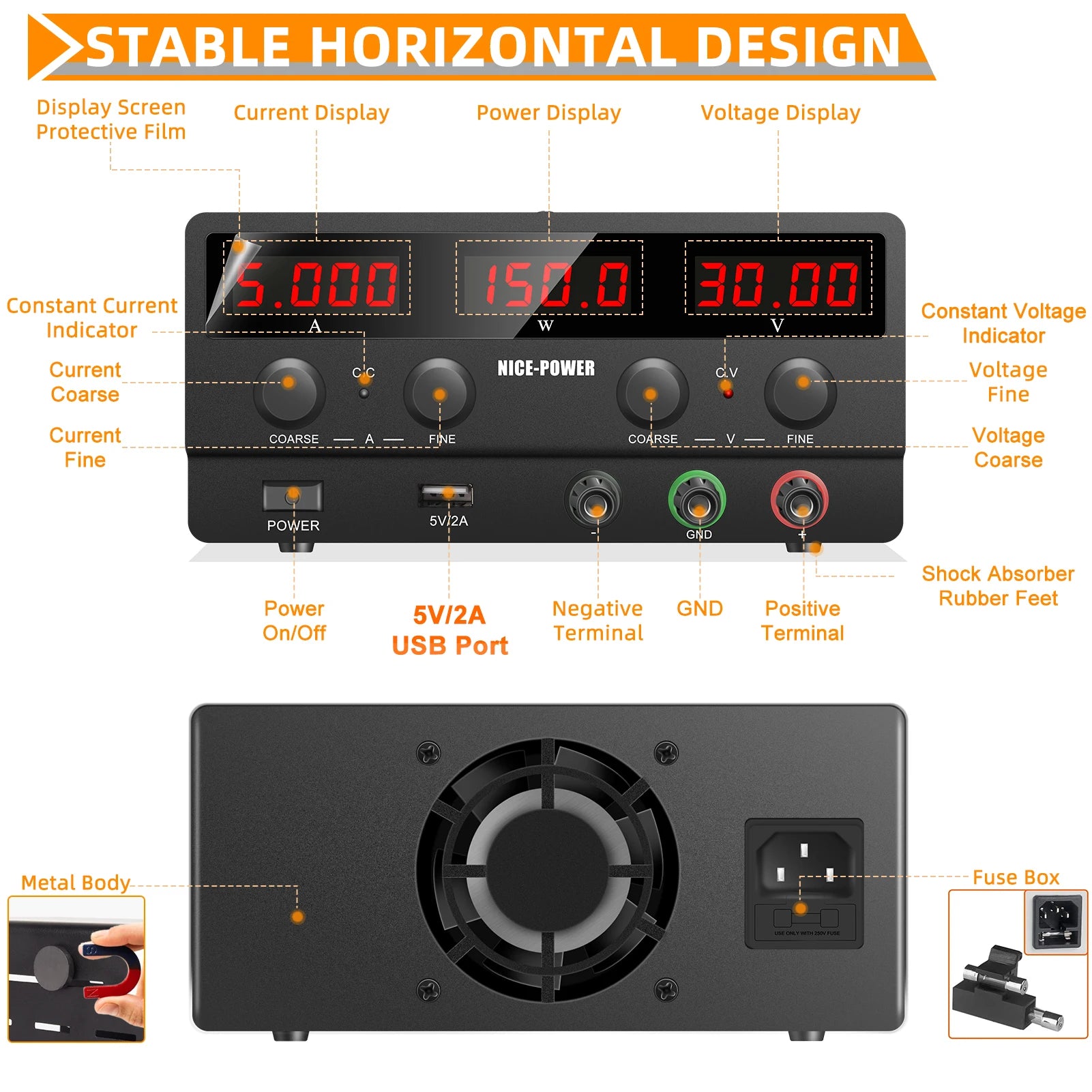

3.Double display voltage, current, and high precision

4.Voltage stabilization, current limiting, simple operation

5.Dual voltage input and convenient choice

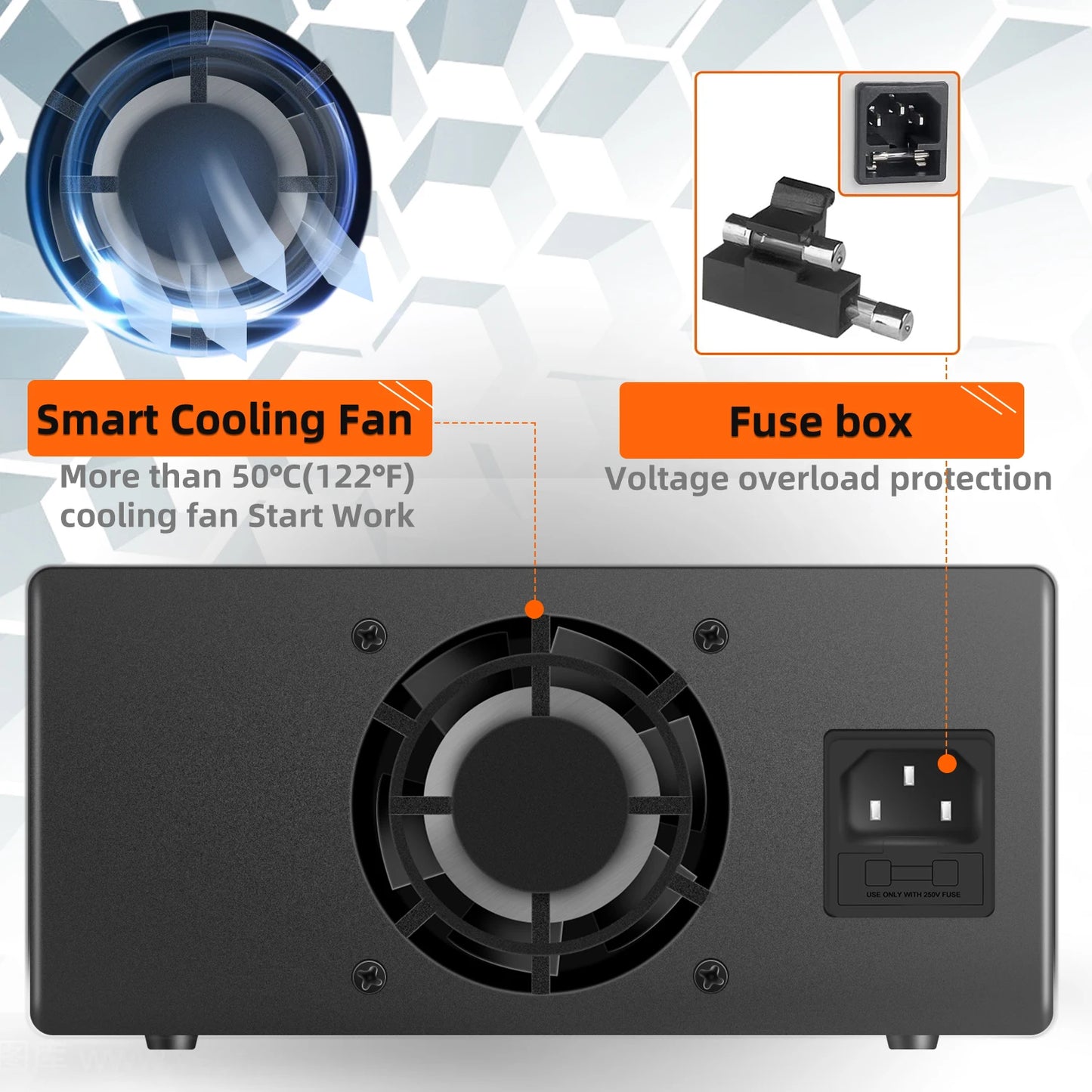

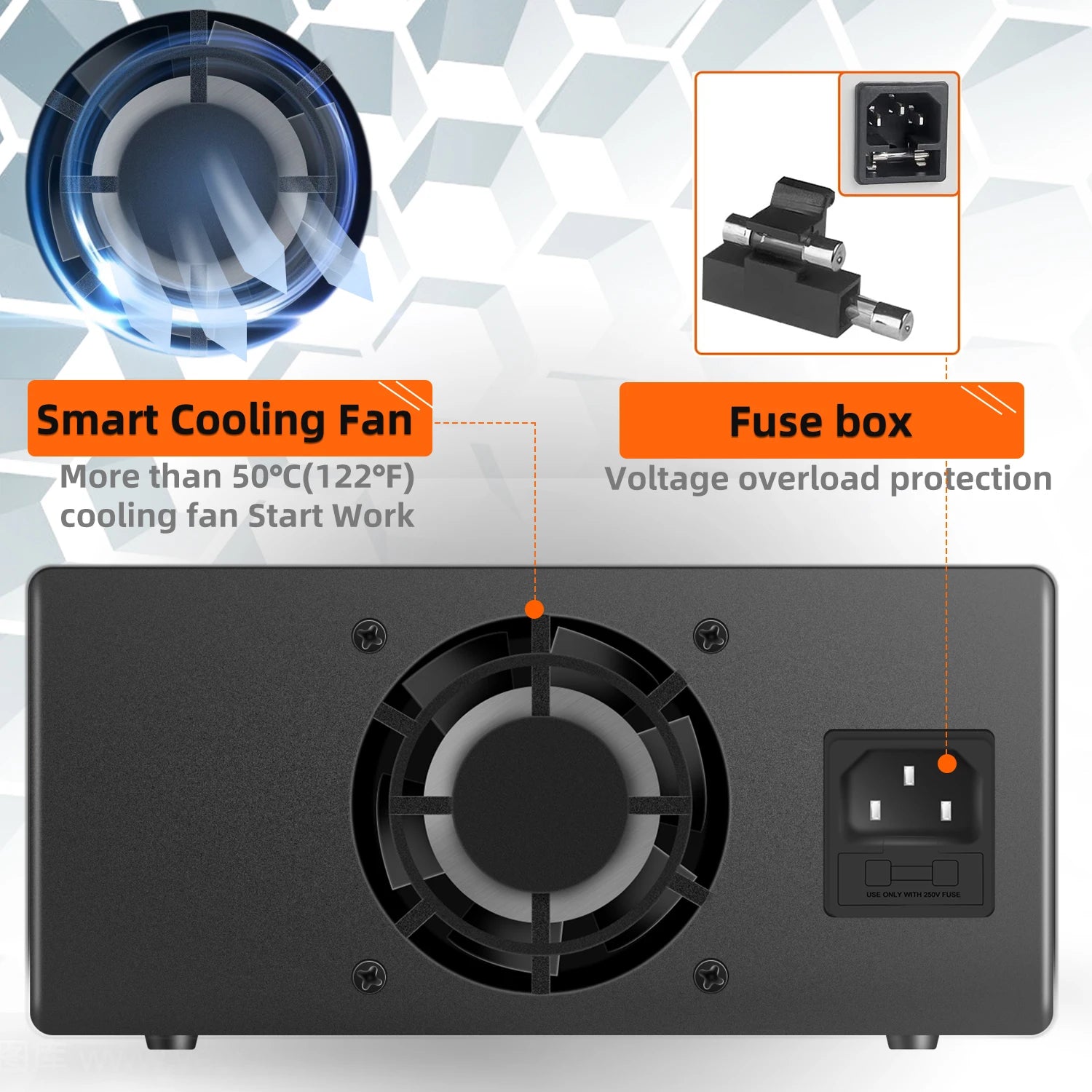

6.Temperature control fan heat dissipation, low noise

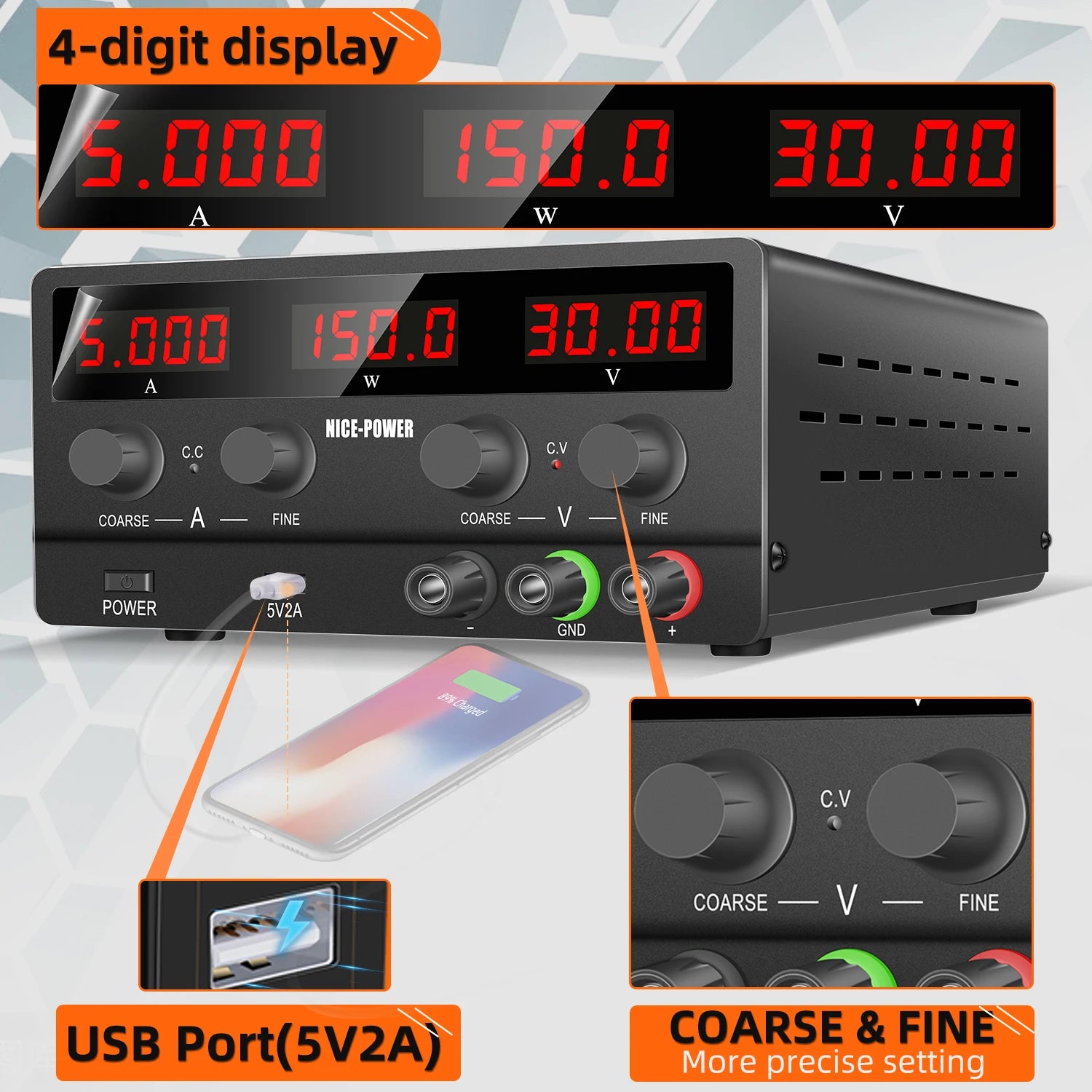

7.Double potentiometer more precise adjustment

More Parameters

Output Voltage ranges from 0 to 30V with continuous adjustment .

Output Current ranges from 0 to 5A with continuous adjustment .

Voltage regulation : Line regulation<5mV. Load regulation<5mV.

Recovery time<500us(50% Load change,minimum load 0.5A)

Ripple & Noise<5m Vrms, 100m Vp-p

Temperature coefficient<100p pm/C.

Output current ranges from 0 to rating current with continuous adjustment

Current regulation line regulation<3mA. load regulation<3mA.

Indicator Meter

Voltage display precision: +-(0.5% of rdg + 2 digits).

Current display precision: +-(0.5% of rdg + 2 digits).

Operation Temperature & Humidity : 0~ 40 C, RH<80%.

Storage Temperature & Humidity : -10 ~ 70 C, RH<70%.

Brand	NICE-POWER
Model	SPS-H305
Voltage-Output	0-30V
Current Output	0-5A
