SPECIFICATIONS

Brand Name: NICE-POWER

Certification: FCC CE

Color: White

Effect of Load: CV≤1%+10mV

Input Voltage: 220V

Model Number: SPS-H3010

Output Current: 10a

Output Frequency: 50Hz

Output Type: Single

Output Voltage: 30V

Place of Origin: Guangdong, China

Power Effect: CV≤1%+10mV

Ripple Noise: ≤1 MV

Ripple Voltage: Vpp≤1%

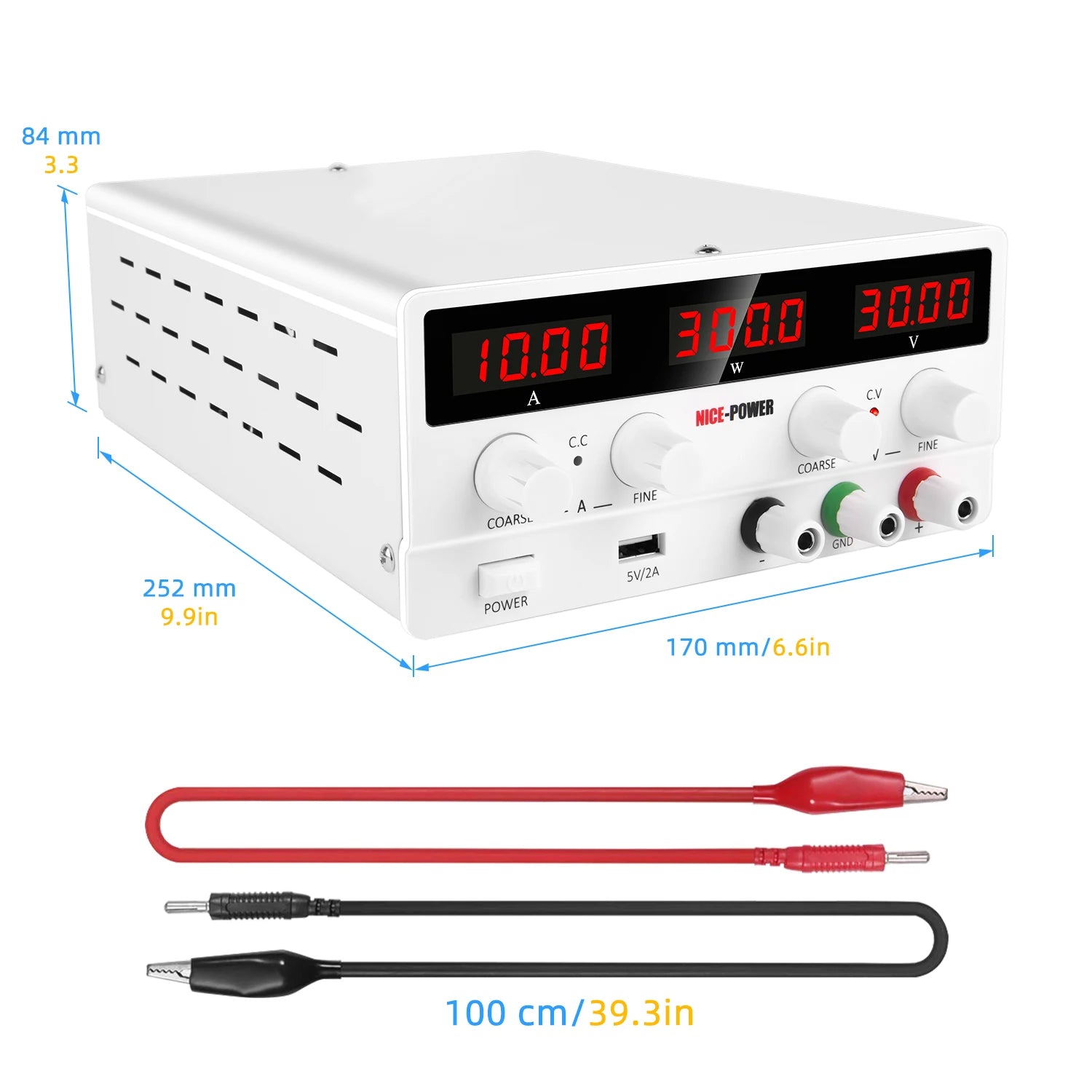

Size: 252*170*84mm

Type: Constant Voltage

Warranty: 1 Year

Weight: 1295g

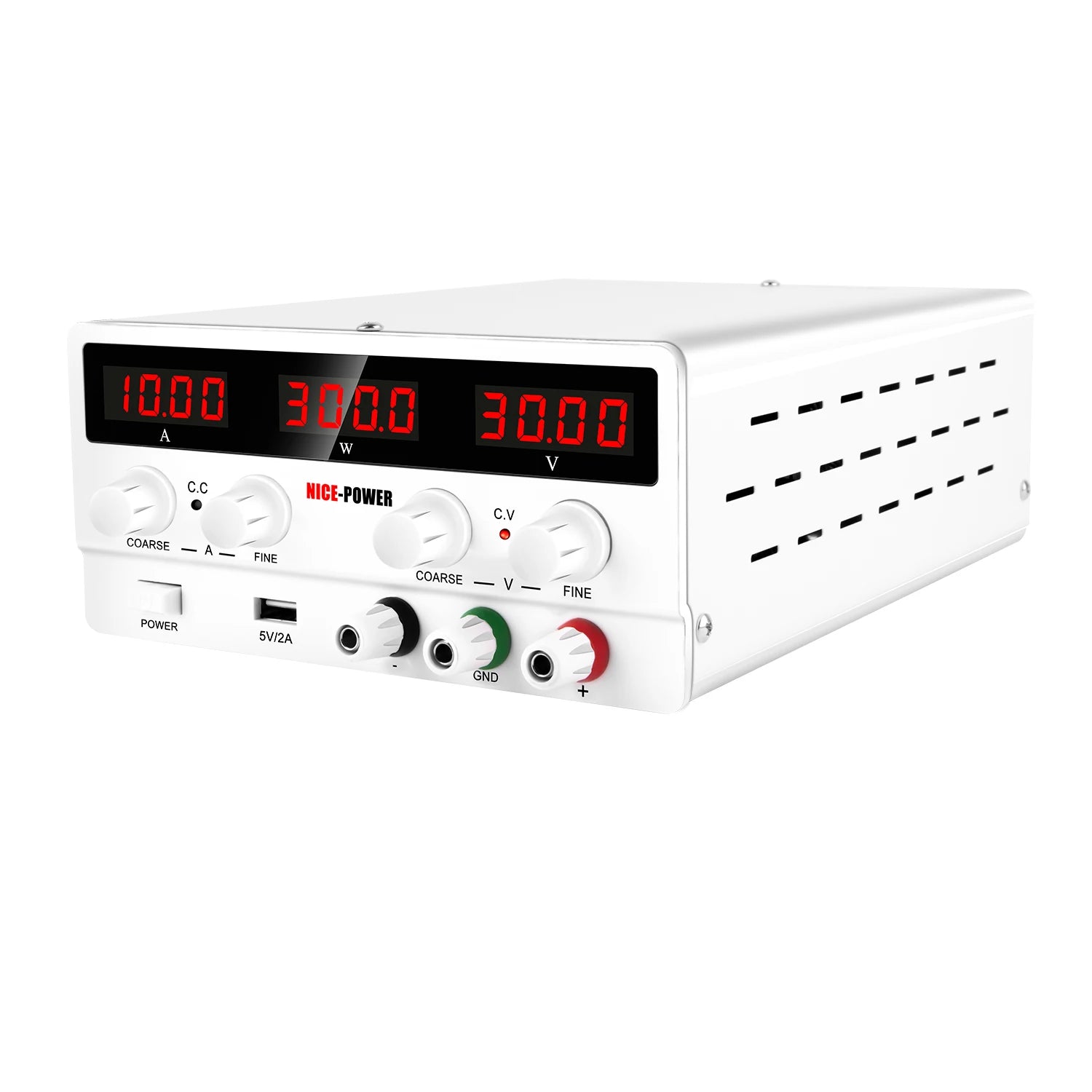

Nice Power SPS-H3010 30V 10A 300W Digital Display Adjustable DC Maintenance Power Supply Battery Backup

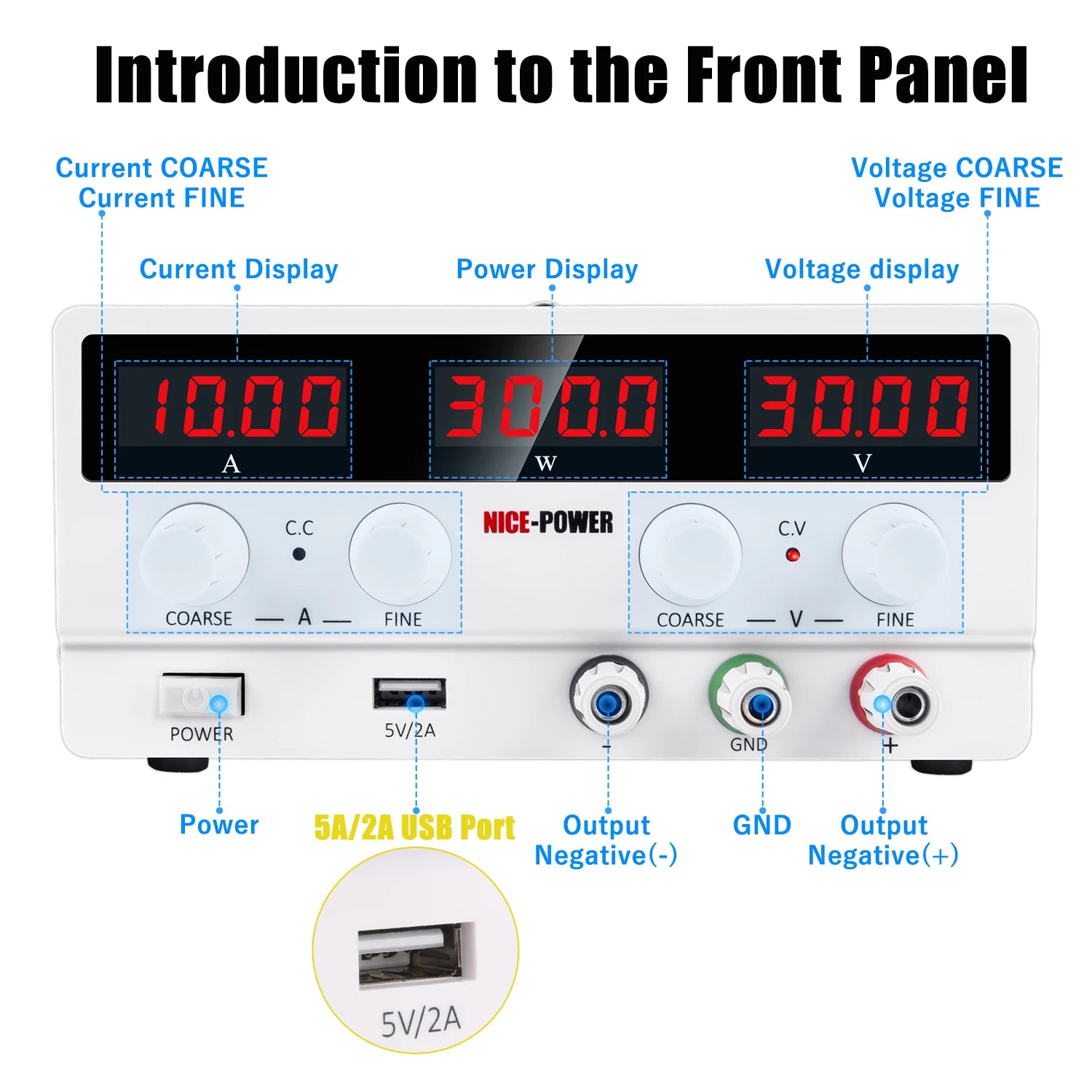

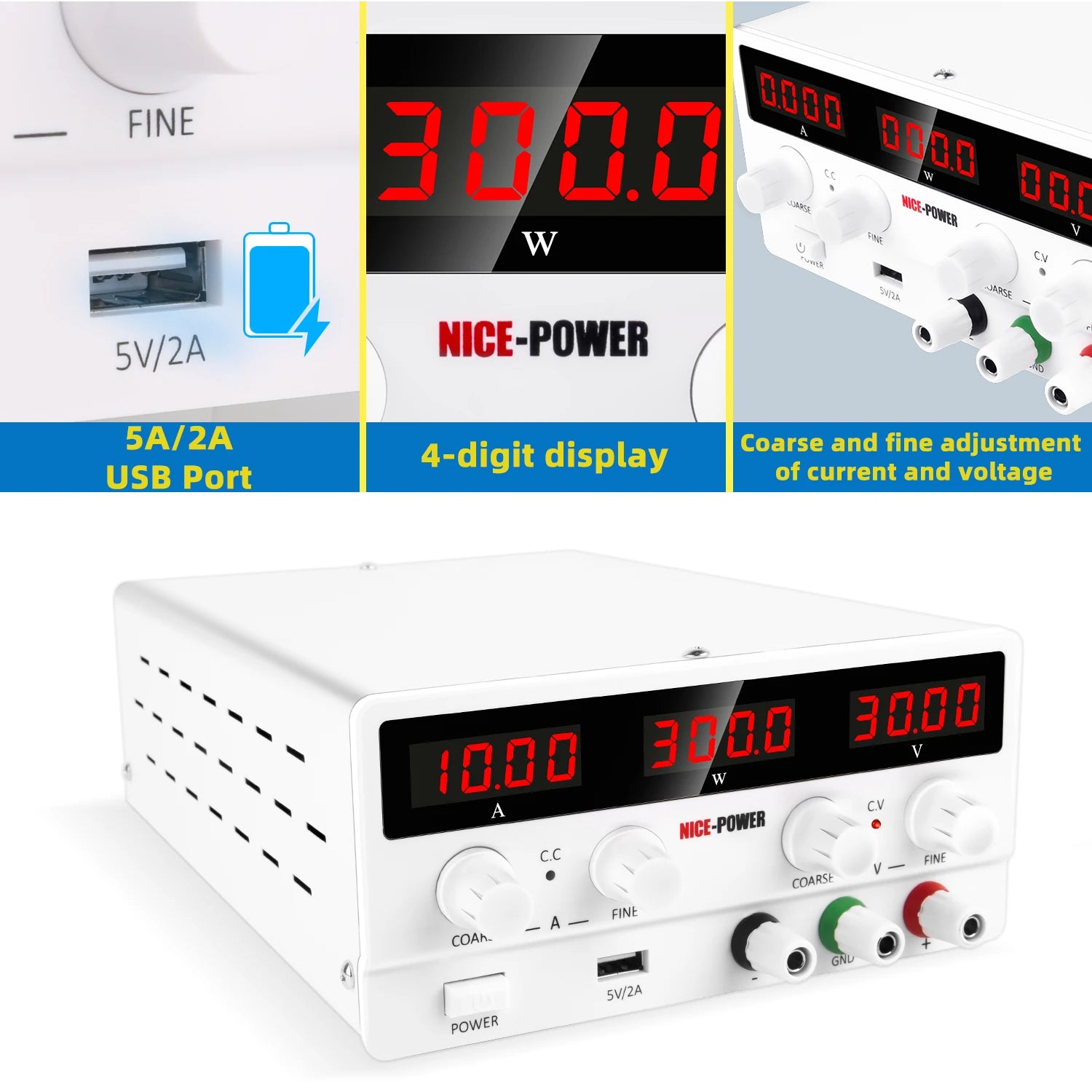

The SPS series is a Digital display mini DC power supply that simultaneously displays voltage, current.

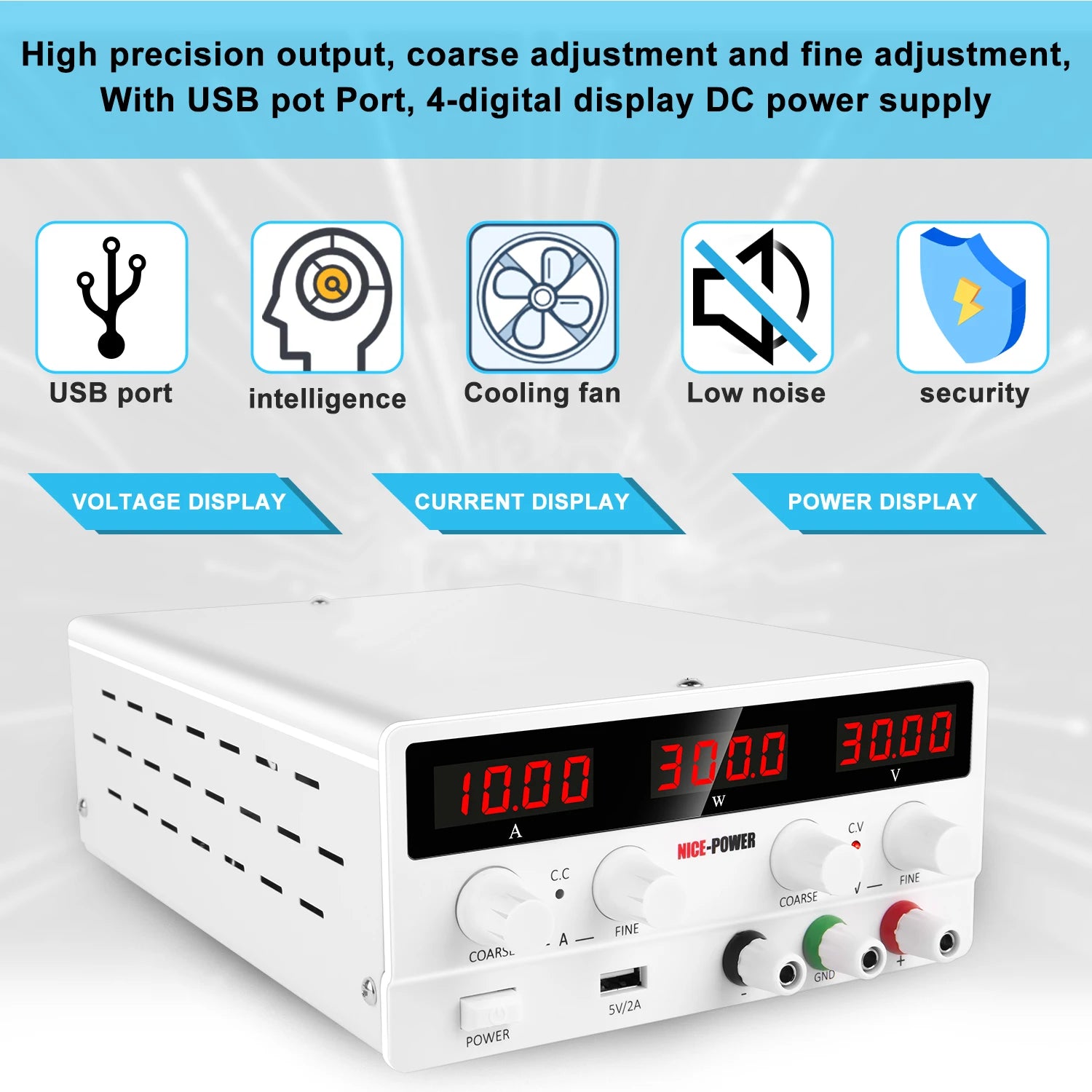

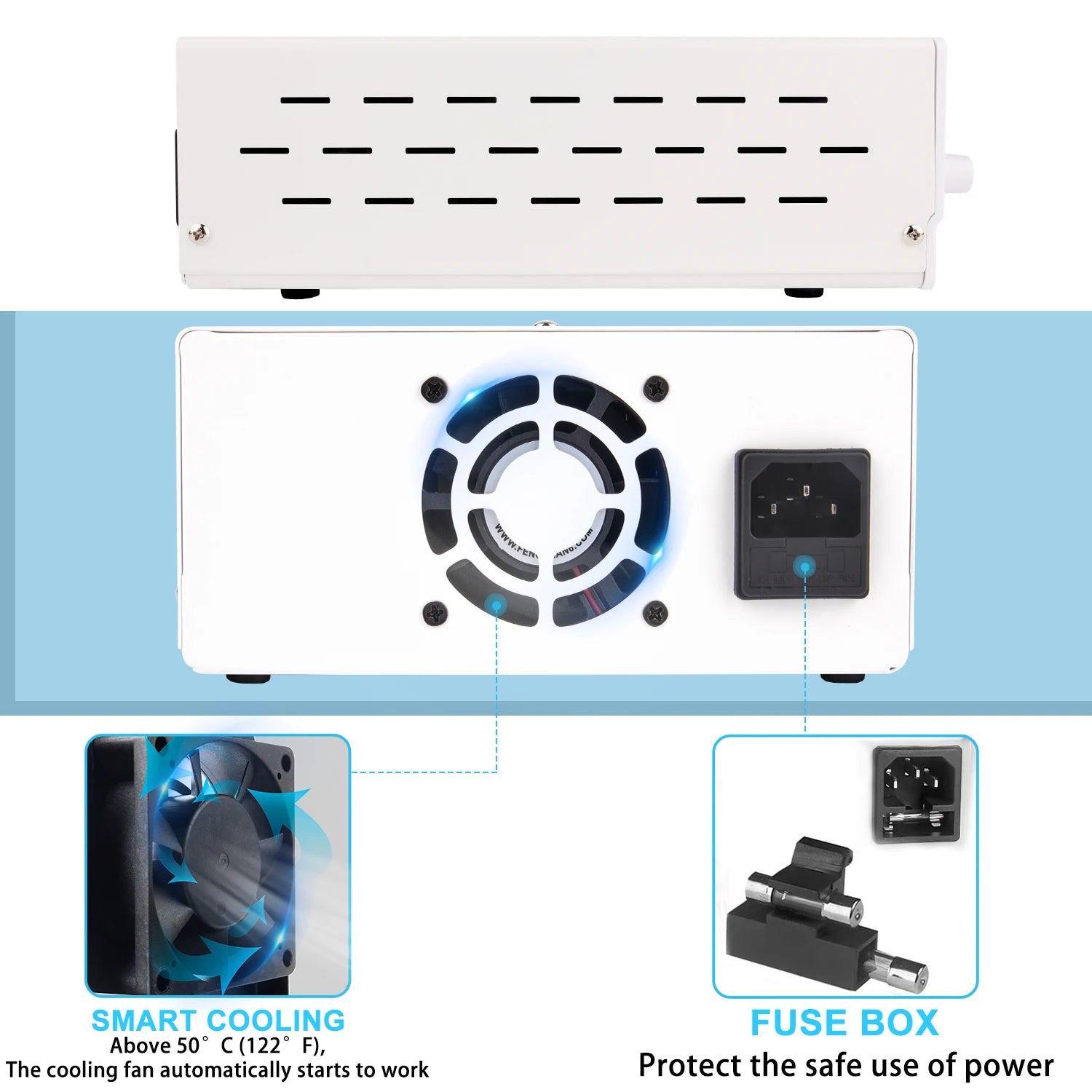

Product Features: Small size, light weight and high power density. Constant voltage, constant current automatic switching. Voltage, current, power Dsiplay. Temperature controlled fan heat dissipation, low noise and long life

Application Field: 1. Production line testing. 2. Mobile phone, computer, electrical maintenance. 3. Product aging, plating. 4. Charge the battery. 5. Laboratory, research and teaching. 6. Everything else needs a DC regulated power supply.

Specification: Condition: 100% Brand New Model:SPS-H3010 Color:White Output Voltage: 0 ~30V Output Current: 0 ~ 10A Voltage Resolution: 0.01V Current Resolution: 0.001A Ripple Voltage: Vpp≤1% Power Effect: CV≤1%+10mV Effect of Load: CV≤1%+10mV Ripple Noise: ≤1 MV Voltage Display Precision: ±1% + 1 digits Current Display Precision: ±1% + 2 digits Operating Environment: -10~45℃ /14~113℉ Rh≤90% Storage Environment: -20~60℃ /4~140℉ Rh≤80%

Model	SPS-H305	SPS-H3010	SPS-H605	SPS-H1203
Output Voltage	0-30V	0-30V	0-60V	0-120V
Output Current	0-5A	0-10A	0-5A	0-3A
Input Voltage	230V+10%50Hz (115%+10% 60Hz)
Working Temperature	0℃-40℃；Relative Humidity :<80%RH
Storage Temperature	-10℃-70℃ Relative Humidity :<70%RH
Constant Voltage State	Voltage Stability 0.1%+3mV Low Voltage 0.2-0.3%+3mV
