SPECIFICATIONS

Application: Industrial

Brand Name: NICE-POWER

Certification: FCC CE

Display Type: 4 Digits LED Display

Input Voltage: 220V(11V needs to be customized)

MOQ: 1pc

Model Number: SPPS-S1203

Output Current: 3A

Output Frequency: 50Hz

Output Type: Single

Output Voltage: 120V

Place of Origin: Guangdong, China

Product Name: Programmable power supply

Protections: OCP,OVP

Size: 150*200*250mm

Type: Constant Voltage

Warranty: 1 Year

Weight: 3kg

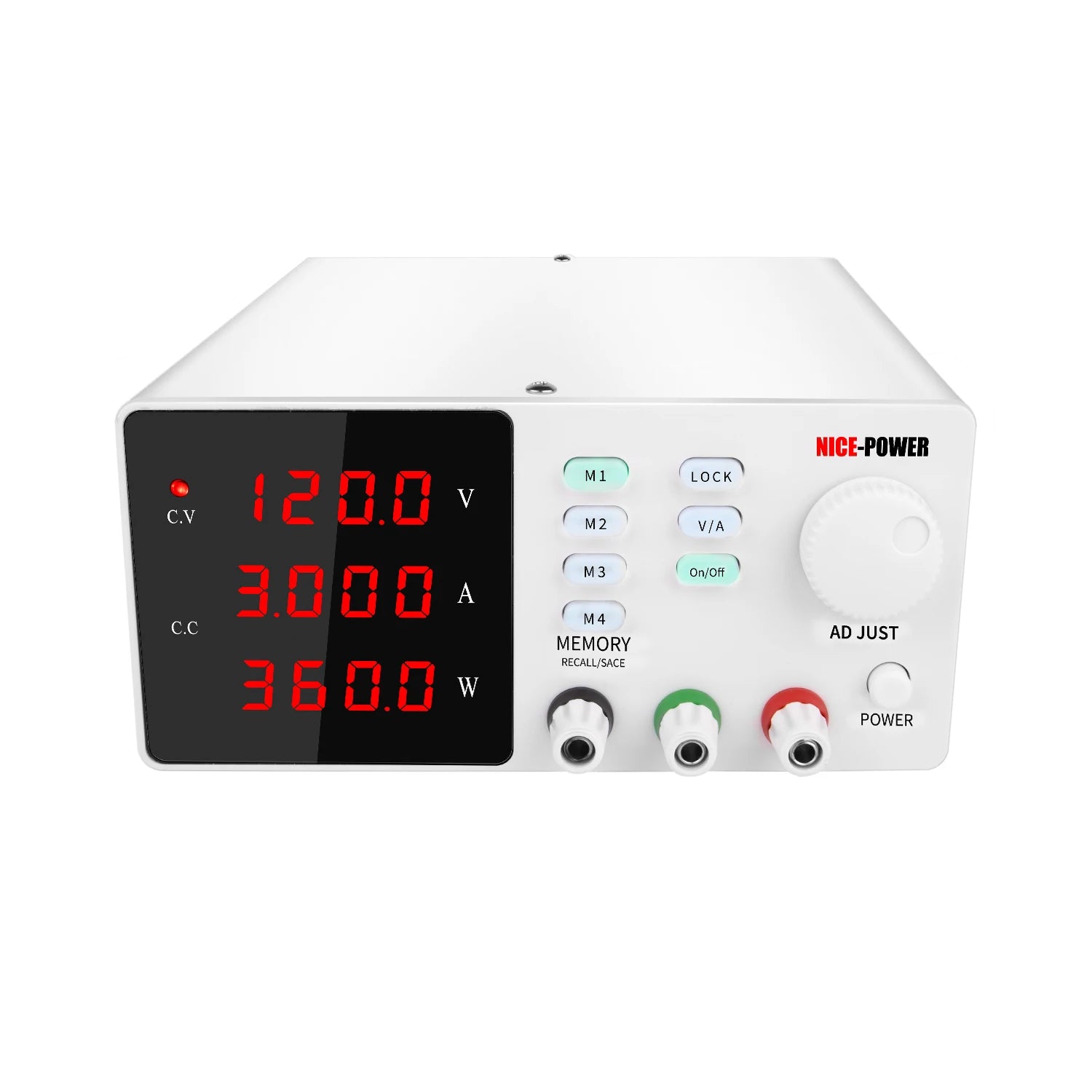

NICE-POWER SPPS-S1203 120V 3A Digital LED 4 Memory Single Output DC Programmable Bench Adjustable Switching Power Supply

The SPPS series is a Digital display mini DC power supply that simultaneously displays voltage, current，power.

Product Features:
Small size, light weight and high power density.
Constant voltage, constant current automatic switching.
Voltage, current, power

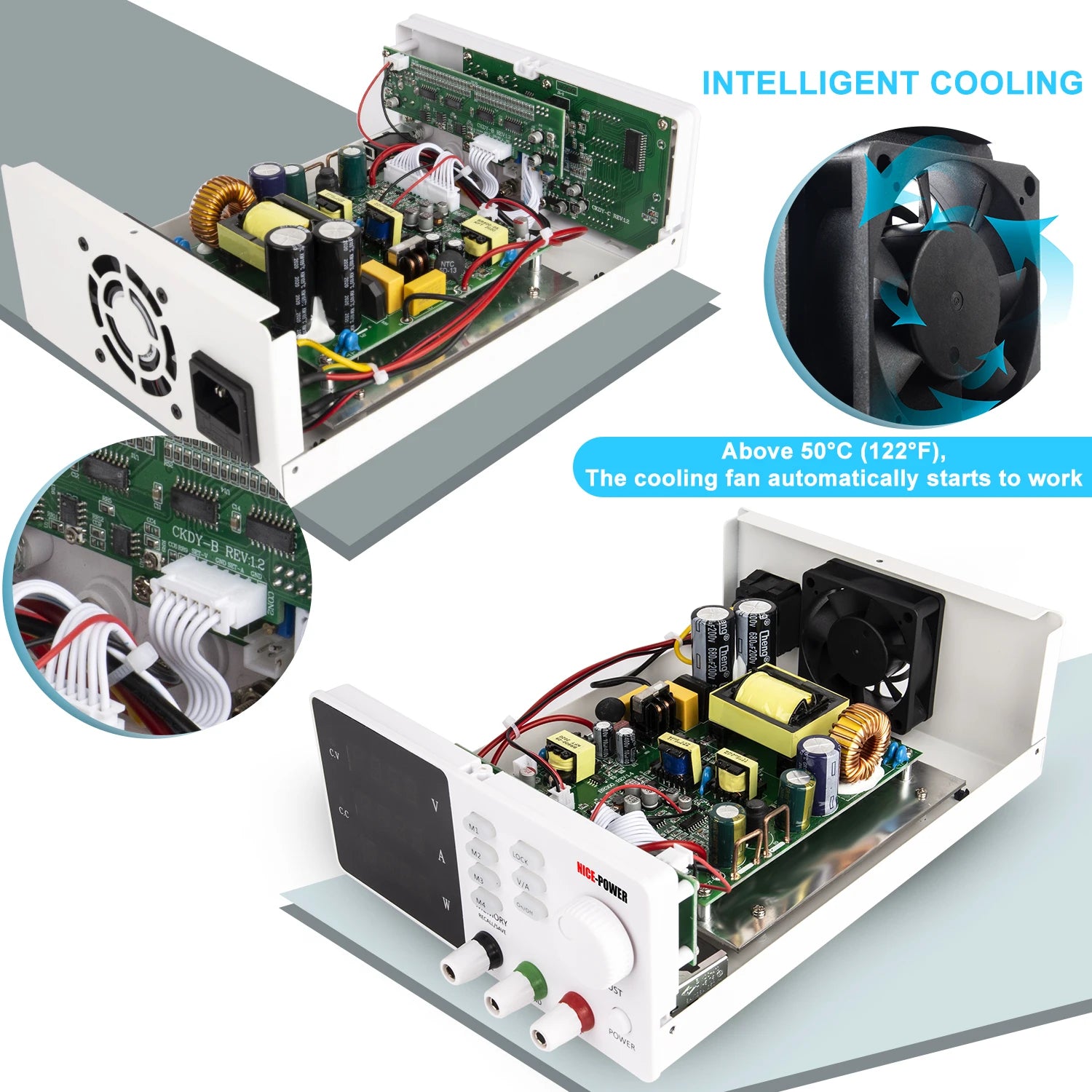

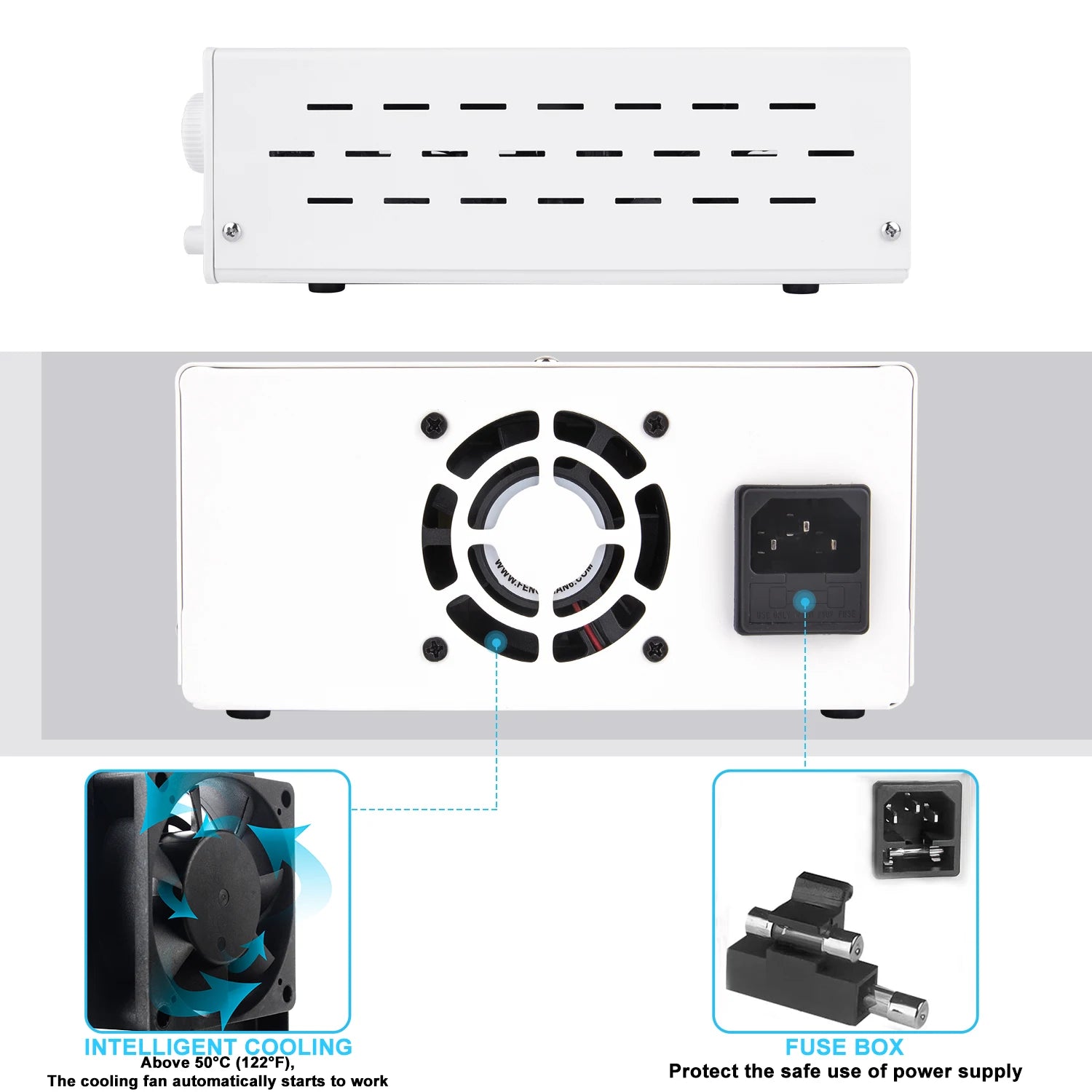

Temperature controlled fan heat dissipation, low noise and long life


Application Field:
1. Production line testing.
2. Mobile phone, computer, electrical maintenance.
3. Product aging, plating.
4. Charge the battery.
5. Laboratory, research and teaching.
6. Everything else needs a DC regulated power supply.


Specification:
Condition: 100% Brand New
Model:SPPS-S1203
Output Voltage: 0 ~120V
Output Current: 0 ~ 3A
Voltage Resolution: 0.01V
Current Resolution: 0.001A
Ripple Voltage: Vpp≤1%
Power Effect: CV≤1%+10mV
Effect of Load: CV≤1%+10mV
Ripple Noise: ≤1 MV
Voltage Display Precision: ±1% + 1 digits
Current Display Precision: ±1% + 2 digits
Operating Environment: -10~45℃ /14~113℉ Rh≤90%
Storage Environment: -20~60℃ /4~140℉ Rh≤80%
Weight:3Kg

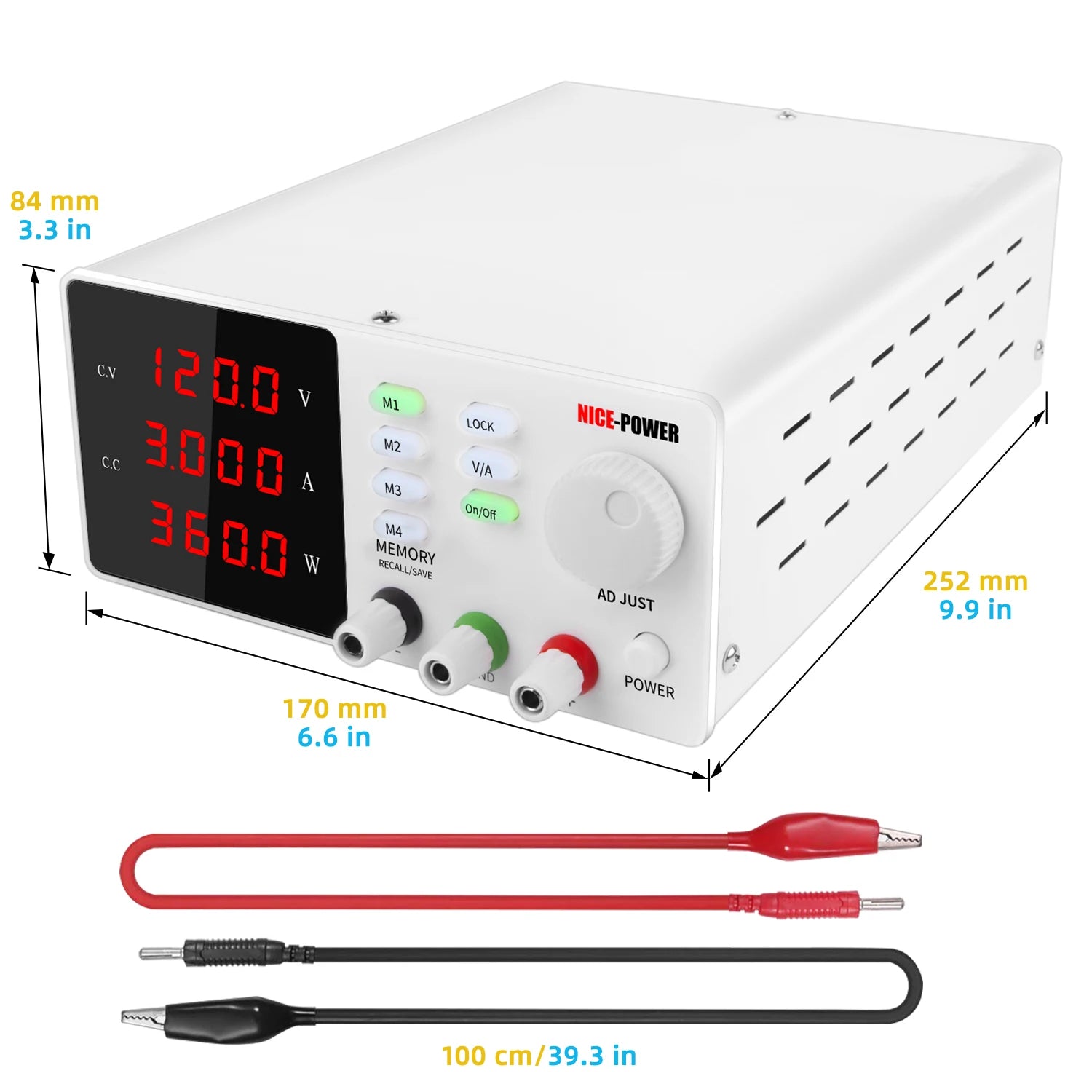

Size:252*170*84mm

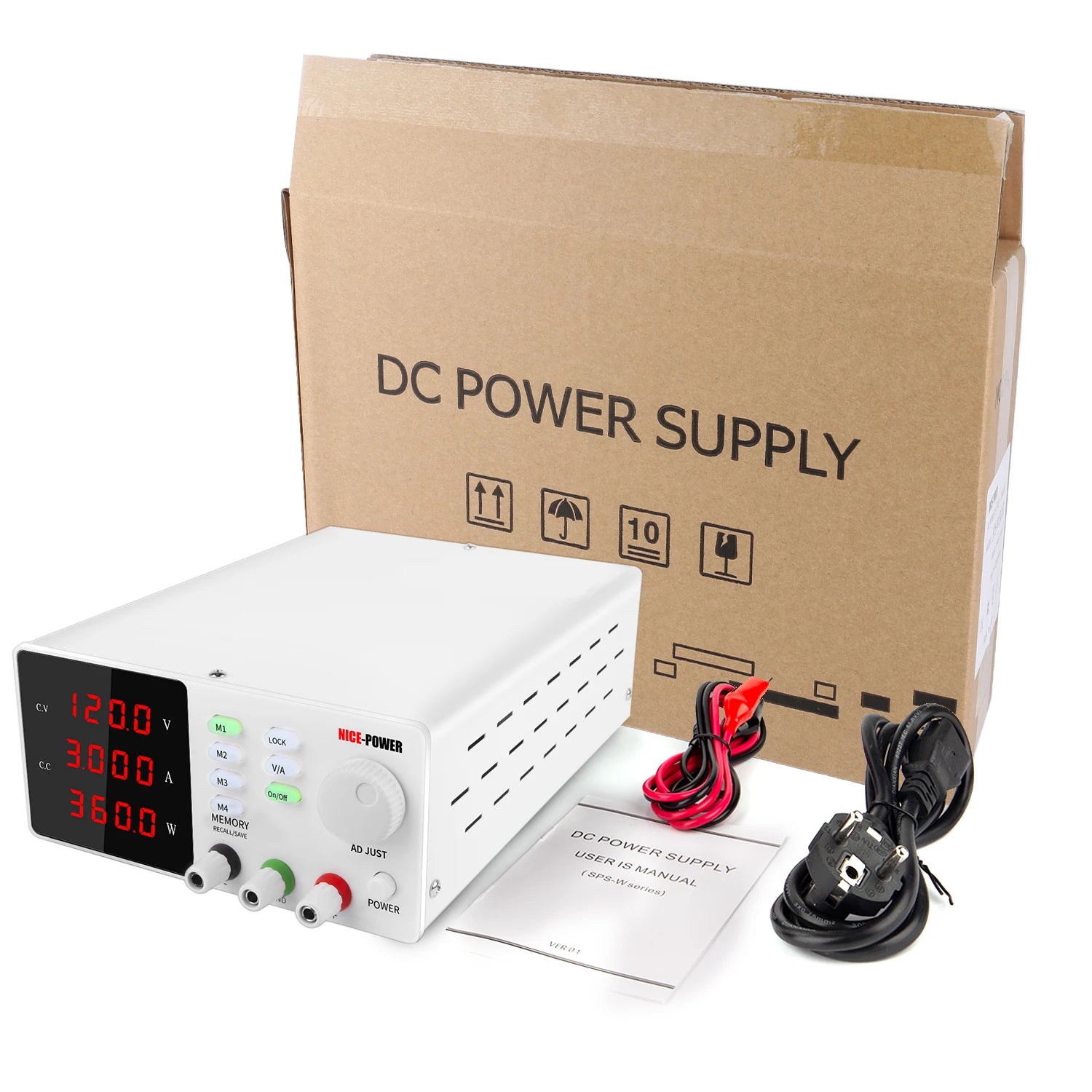

Packing List:
1* 120V 3A DC Power Supply
1* Power Cord
1* Output Line
1*English Instruction manual

Type	SPPS-S1203
Output Voltage	0-120V
Output Current	0-3A
Power	360W
