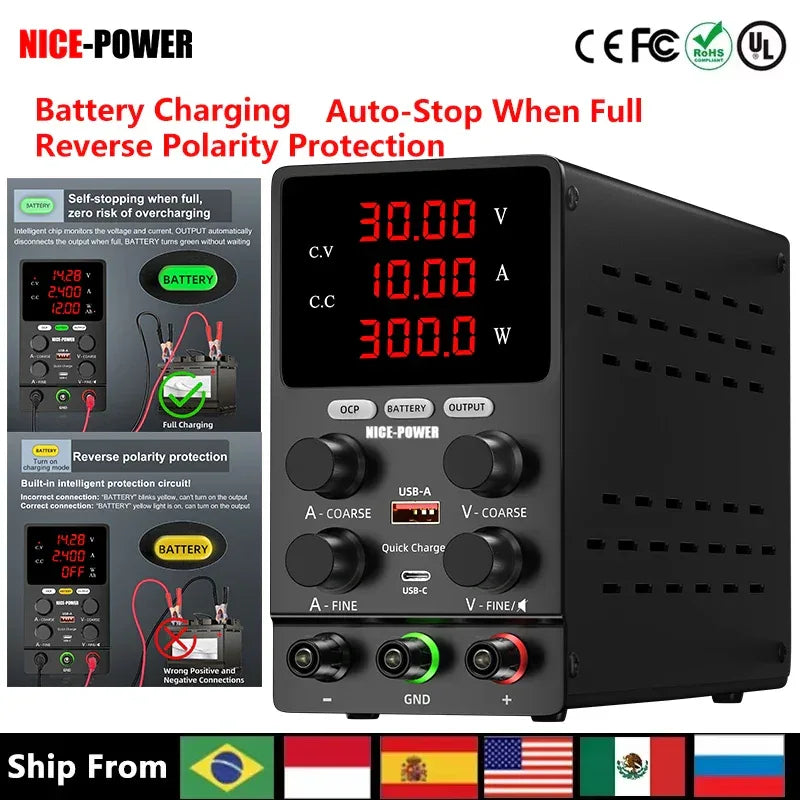

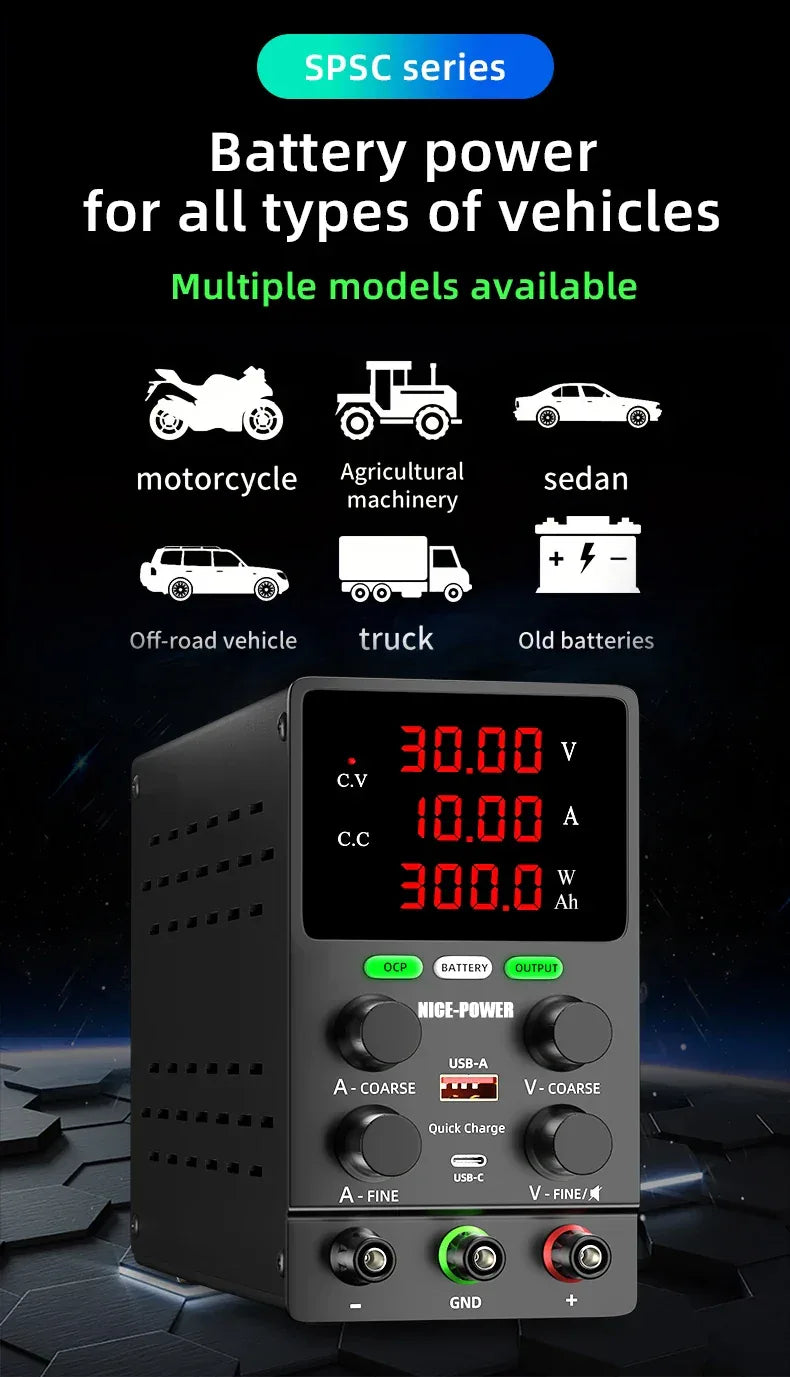

NICE POWER Adjustable DC Power Supply 12V/24V Lead-acid Battery Charging Auto-Stop When Full Reverse Polarity Protection Source
NICE POWER Adjustable DC Power Supply 12V/24V Lead-acid Battery Charging Auto-Stop When Full Reverse Polarity Protection Source
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: KUAIQU
Certification: CE,FCC
Features 1: dc power supply adjustable
Features 10: Voltage regulator
Features 11: power regulators
Features 12: Laboratory power supply 60v 5a
Features 13: regulated power supply
Features 14: diy power supply
Features 15: lab bench power supply
Features 16: voltage regulator switch
Features 17: Bench power supply
Features 18: adjustable dc regulated power supply
Features 19: bench power 30v 10a
Features 2: variable power supply
Features 20: Voltage stabilizer
Features 21: 24 volt dc power supply
Features 22: Power supply for pc
Features 23: bench power 60v 5a
Features 24: dc power supply
Features 25: DC powersupply
Features 26: Children's electric four wheeled vehicle (12V/24V lead-acid battery)
Features 27: Adult folding electric scooter (24V/36V lithium battery)
Features 28: Battery Charging and Maintenance for Balance Car (24V)
Features 29: 22.2V (6S) for large model aircraft (fixed wing/helicopter)
Features 3: digital power supply
Features 30: 14.8V (4S) for lithium battery pack and remote off-road vehicle
Features 31: Specialized charging for lithium battery packs and 24V battery packs for large ship models
Features 32: Backup battery charging for electric tools (12V/18V/20V lithium drills, angle grinders, hammers)
Features 33: Battery charging for household sweeping robots (14.4V/18V)
Features 34: Emergency Charging of Electric Bicycle Backup Battery (24V)
Features 35: Detection and activation charging of laptop batteries (11.1V/14.8V)
Features 36: Maintenance power supply and battery charging for the built-in power board (12V/24V) of the monitor
Features 37: Internal battery charging for printer (24V)
Features 38: Charging the battery of the emergency starting power supply (12V) for automobiles
Features 39: Charging the battery of the car refrigerator (12V/24V)
Features 4: laboratory power supply
Features 40: Temporary power supply and battery testing during car audio modification
Features 41: Control circuit power supply for self-made small welding machine
Features 42: Testing and power supply of self-made high-power LED light strips (12V/24V)
Features 43: Battery charging and activation of self-made energy storage power supply
Features 5: power supply led
Features 6: Voltage stabilizer
Features 7: bench source 30v 10a
Features 8: ac-dc switching power supply
Features 9: ac 110v 220v can work
High-concerned chemical: None
Model Number: SPS3010C charge
Origin: Mainland China
Output Current: 0-10A
Output Frequency: 50HZ/60HZ
Output Power: 401 - 500 W ,150-500（include500）
Output Type: SINGLE
Rated Capacity: 40-1000VA（include40VA）
Type: Power Supply
Use: Other
is_customized: Yes
Dear friend, please don't worry, our products support 4 kinds of plugs, we will send the power cord according to your needs. If you need help, please leave me a message. thank you for your purchase!
Selling Point Description:

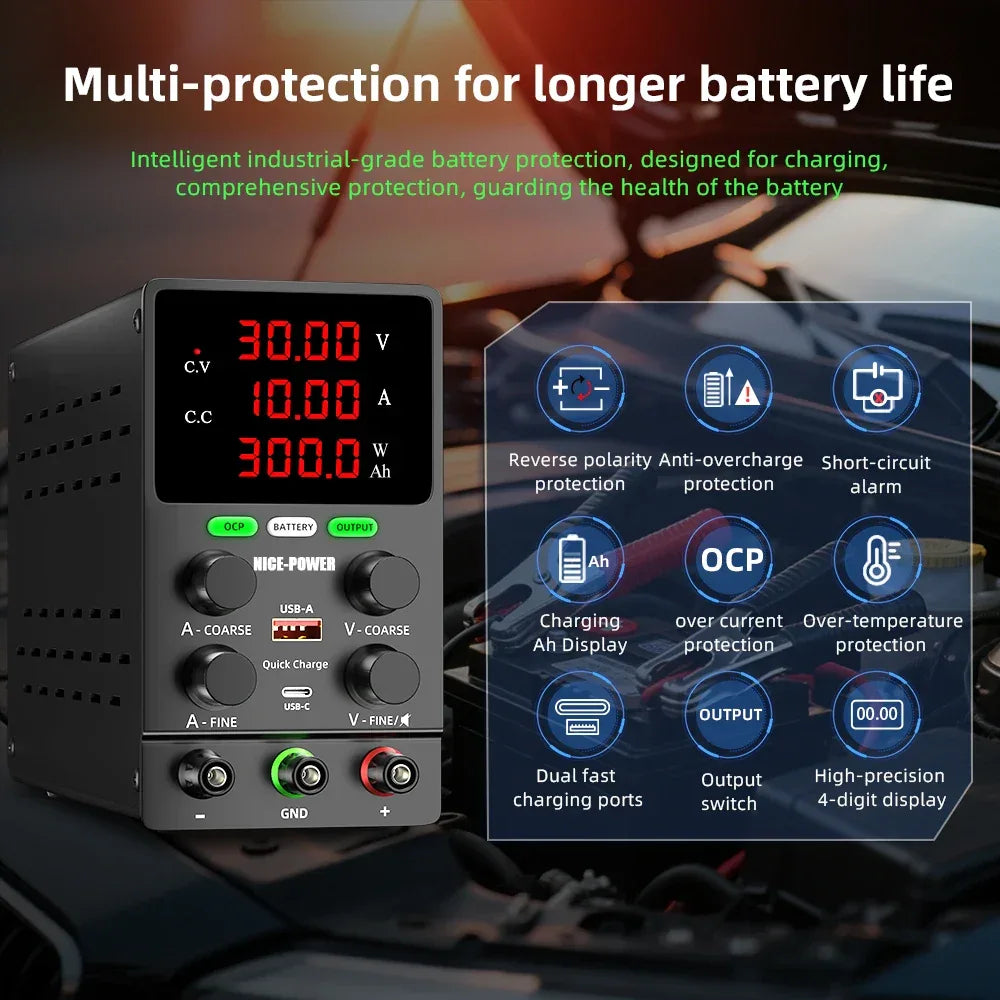

Battery positive and negative pole detection: Turn on the "BATTERY" function, and the orange light will flash. When charging the battery, if the output positive pole is connected to the battery negative pole and the output negative pole is connected to the battery positive pole, the "BATTERY" light will still flash orange, indicating a wiring error or battery damage. At this time, it is not possible to output current and voltage.

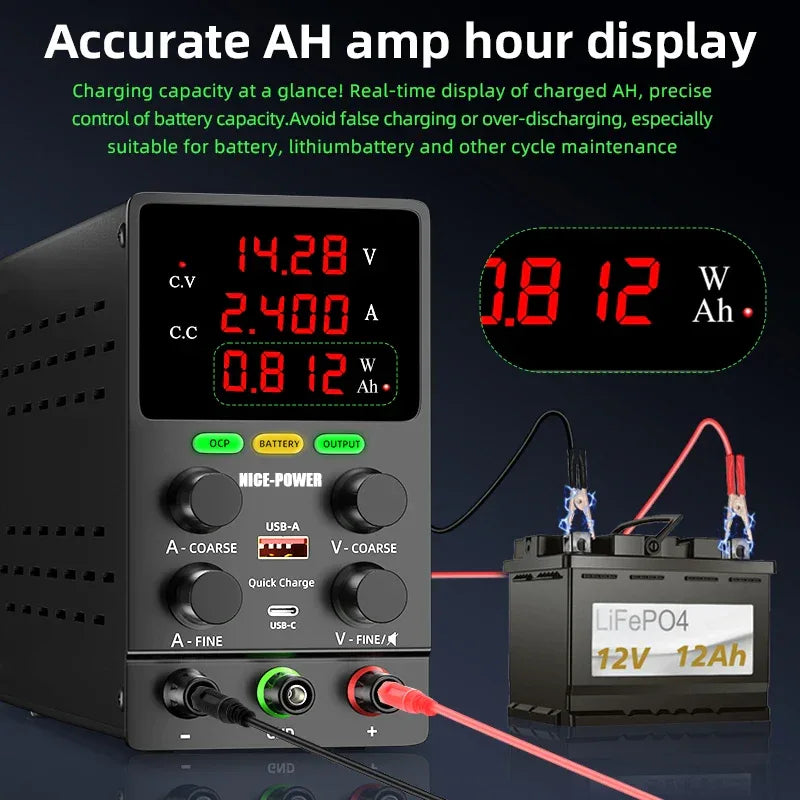

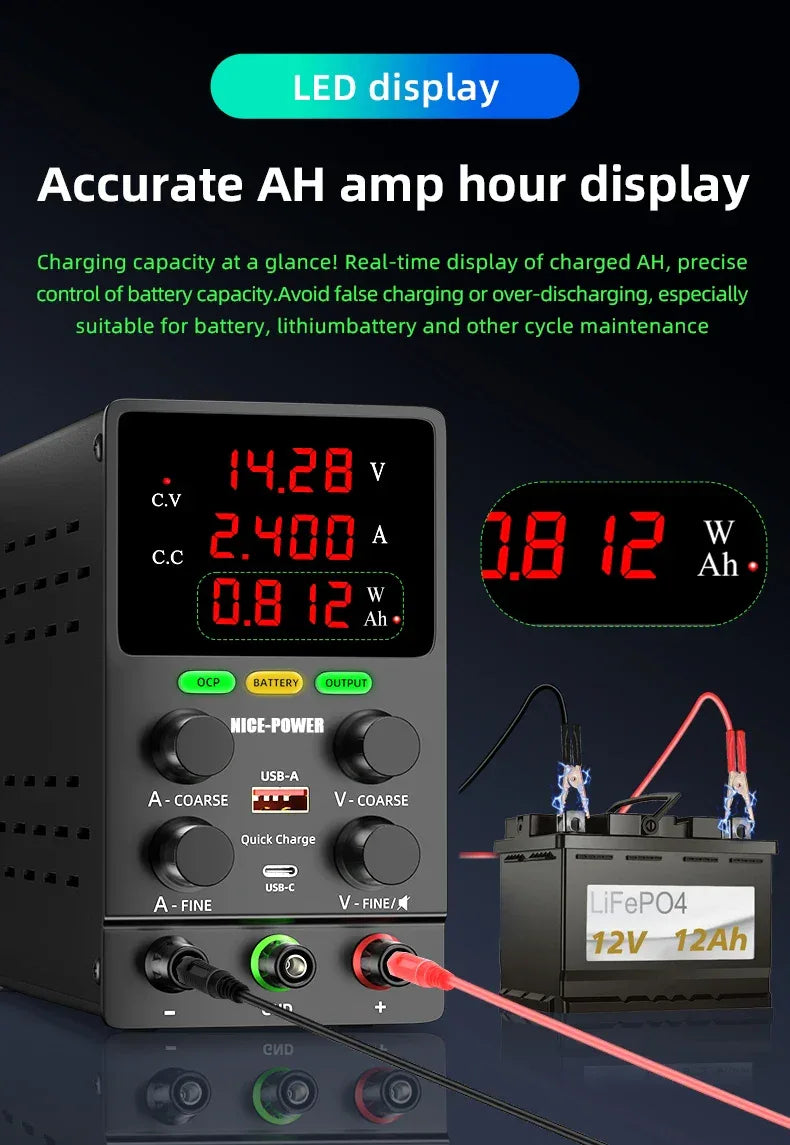

[Charging Status Detection]: When the battery is charging normally, the "BATTERY" orange light is constantly on, and there is a battery level display and Ah display. The real-time display of charging power (Ah) allows you to understand the battery status.

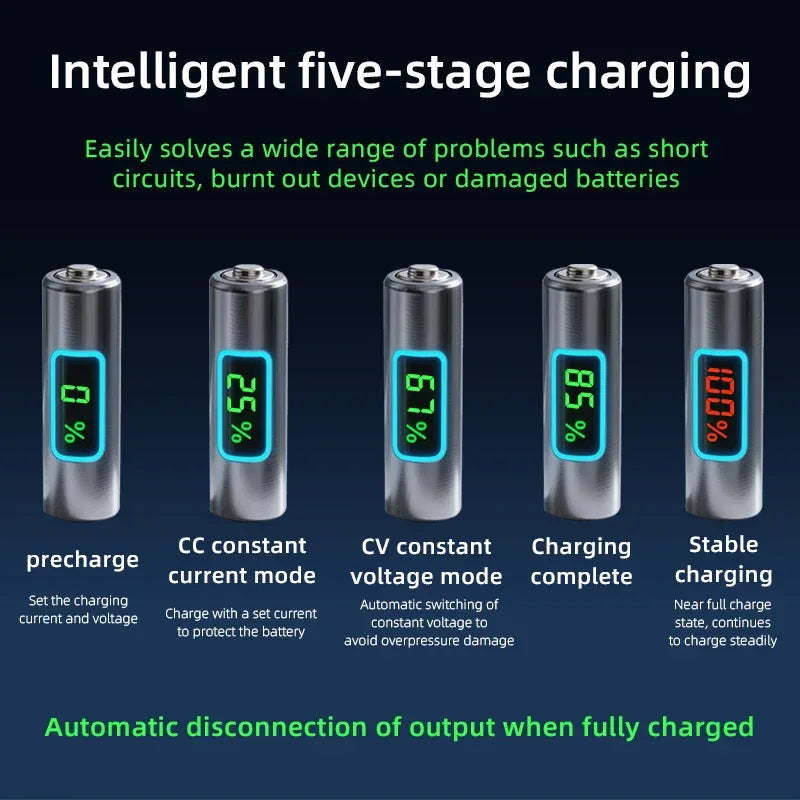

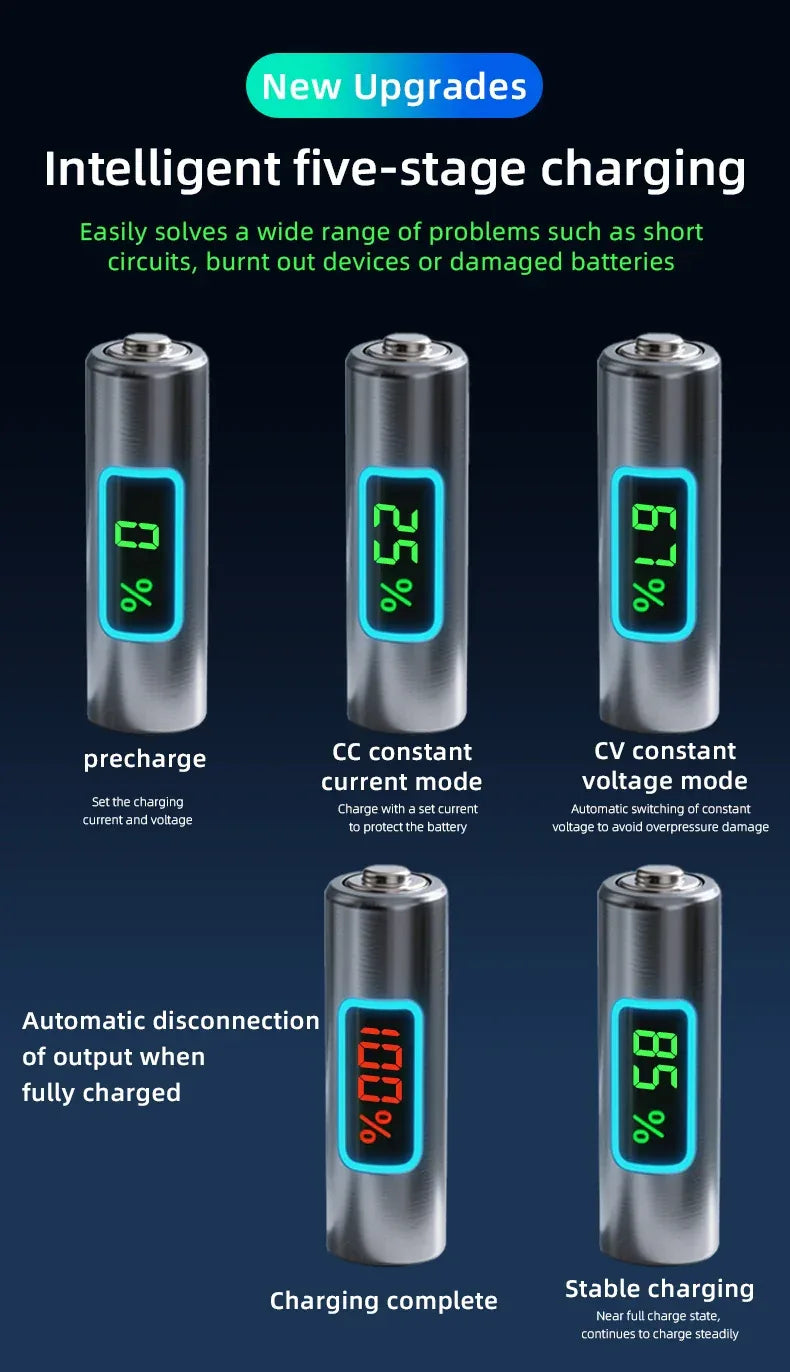

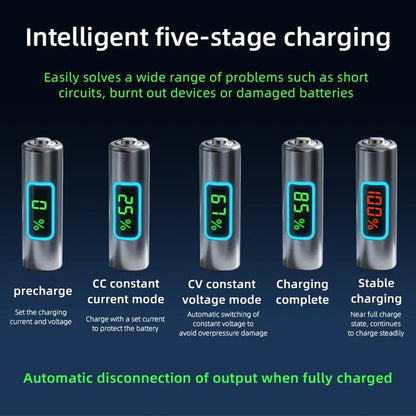

[Battery Full Stop Output]: After the battery is fully charged, the "BATTERY" light turns green and the output is disconnected. When your battery is full, our power supply will stop charging, allowing you to rest assured.

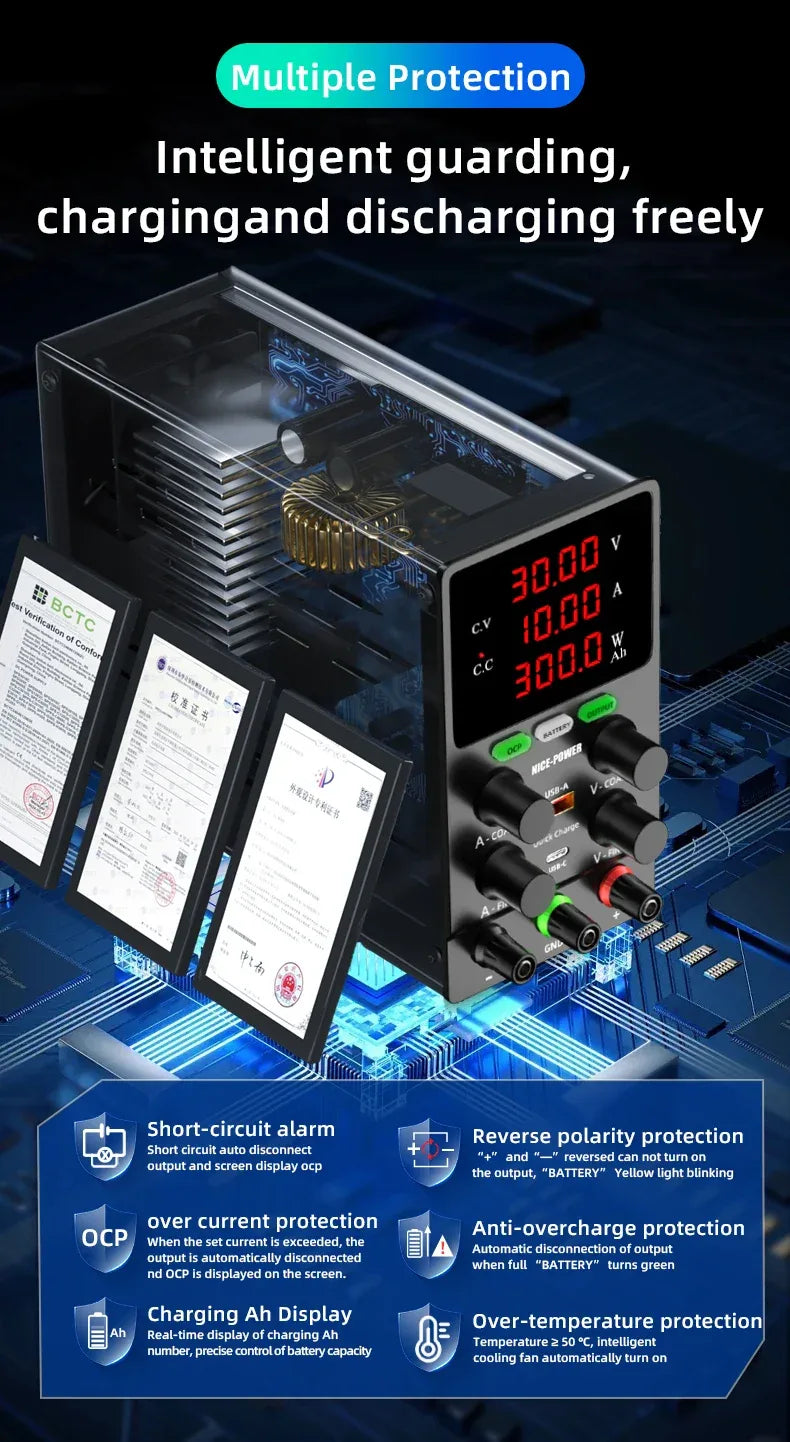

[OCP Function] Overcurrent detection alarm: easily activated through the "OCP" button. Detect short circuits and overcurrent, trigger alarms and stop output to protect connected devices.
Two different charging ports, USB and Type-C, facilitate fast charging of mobile phones and electronic devices that require repair.

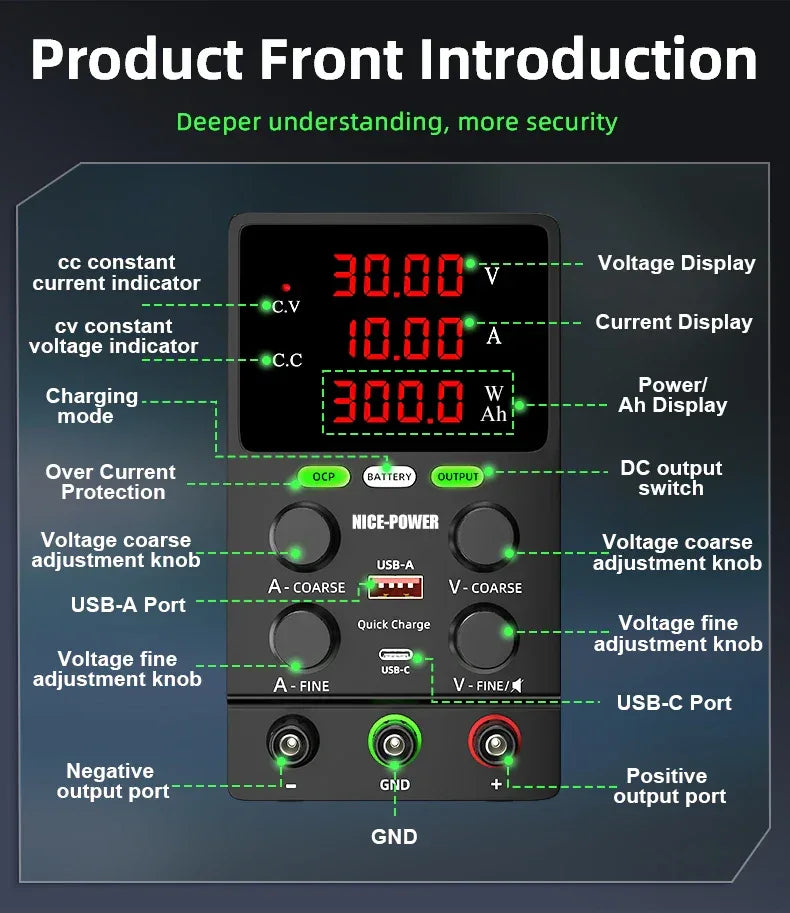

Sometimes we need to switch between different voltage or current outputs, but we often forget to unplug the previous instrument, causing it to burn out, which often occurs during maintenance. The output on/off key aims to solve this problem. By pressing the output on/off key, the required voltage and current can be adjusted without actual output power, making this DC power supply safer and more energy-efficient.

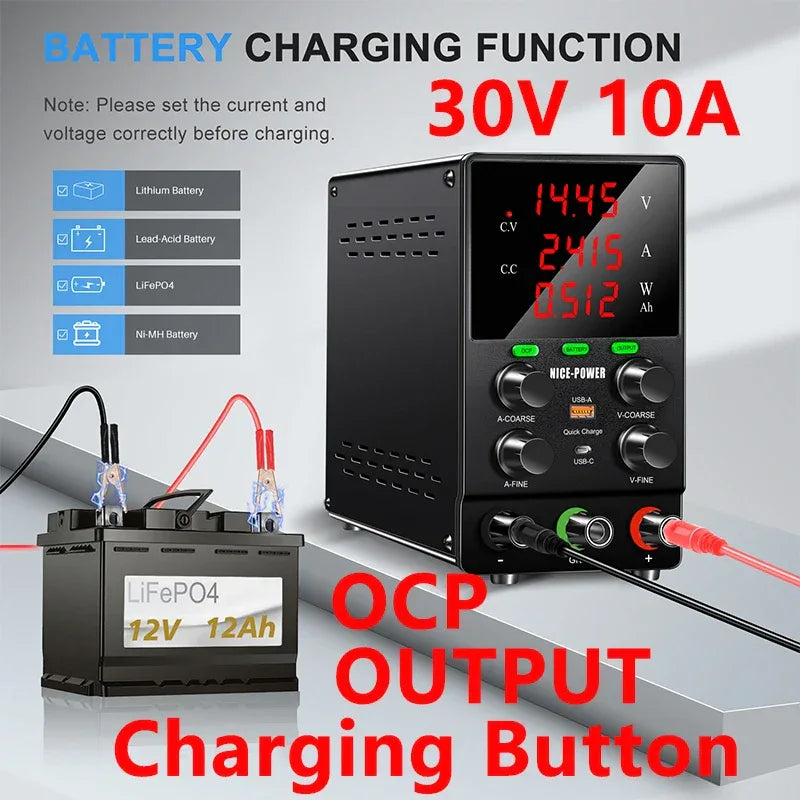

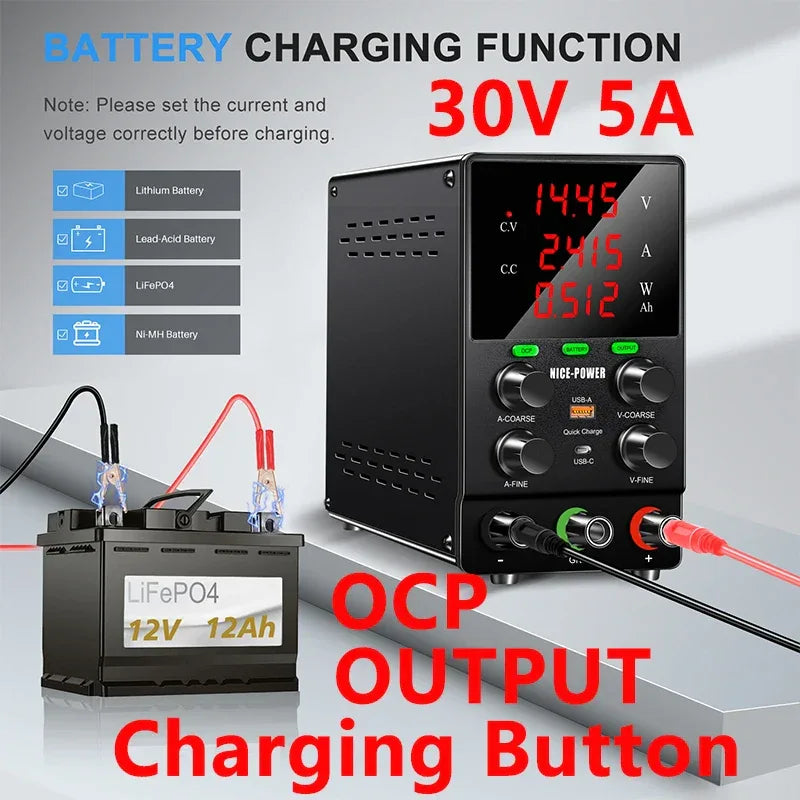

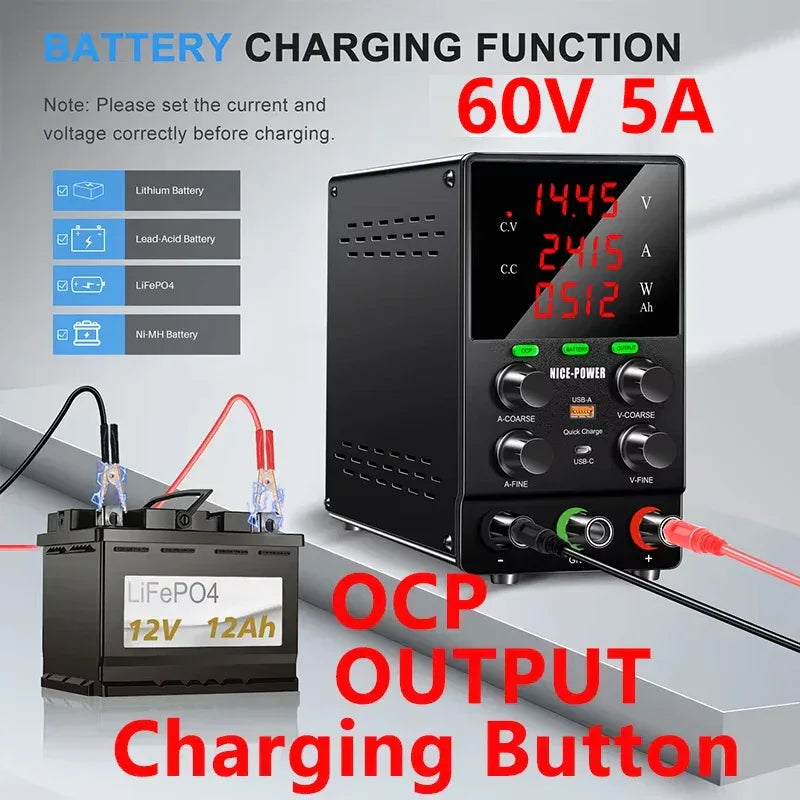

Charging Function Operation Description:
Turn on the "BATTERY" function, the orange light flashes
When the battery is charging normally, the orange light "BATTERY" stays on
The "BATTERY" light flashes orange, indicating a wiring error or battery damage
After the battery is fully charged, the "BATTERY" light turns green and the output is disconnected

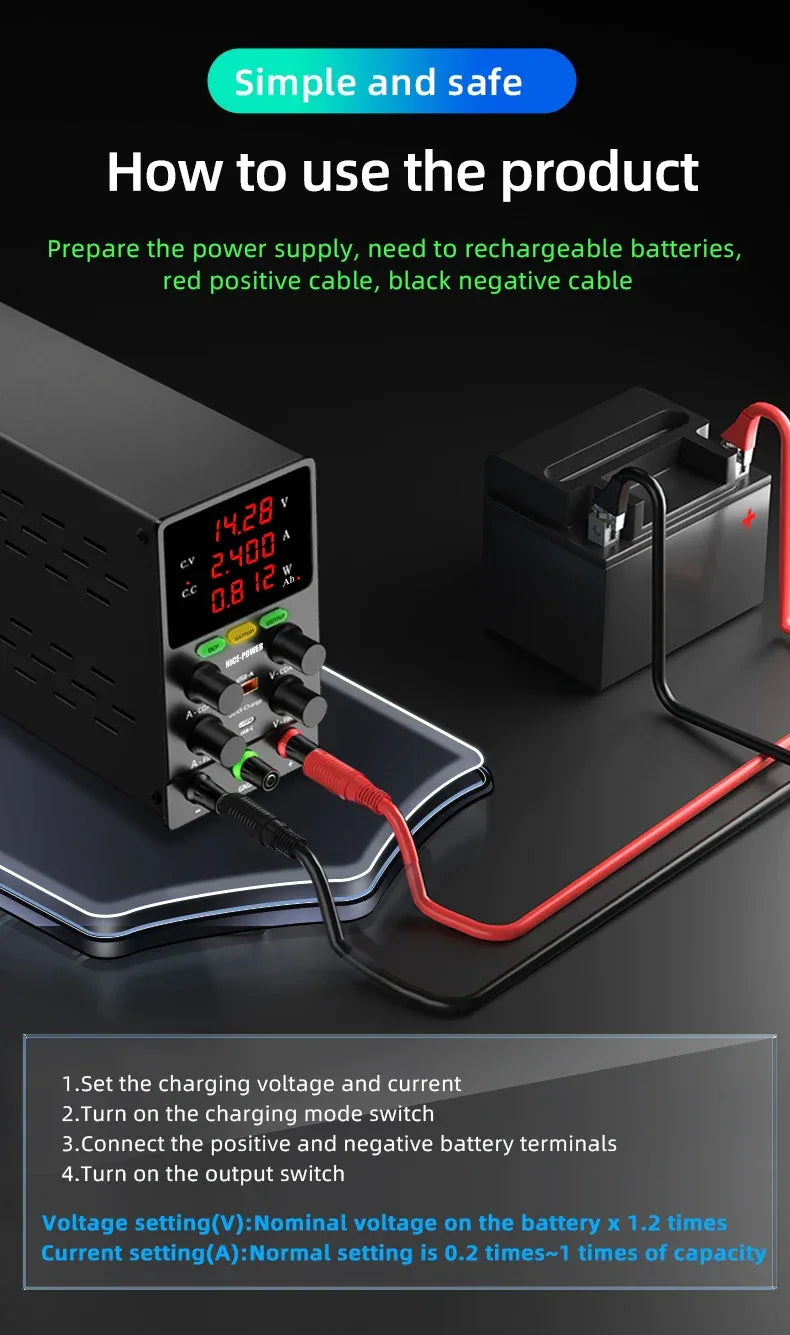

Firstly, you will press the "Battery" button (the "Battery" light will start flashing yellow), and adjust the voltage and current adjustment knobs to the desired values.
If the connection is incorrect (polarity heating or disconnection), or if there is a problem with the battery and charging cannot start, the "battery" light will remain on
twinkle. Confirm correct connection or check if the battery is damaged.
If there is an abnormal situation such as cable disconnection during the charging process, the power supply will stop charging, and the "battery" light will start flashing again.
Please solve the problem before pressing the 'OUTPUT' button to continue charging.
After charging is completed, the green light on the "battery" indicates that the battery is fully charged.

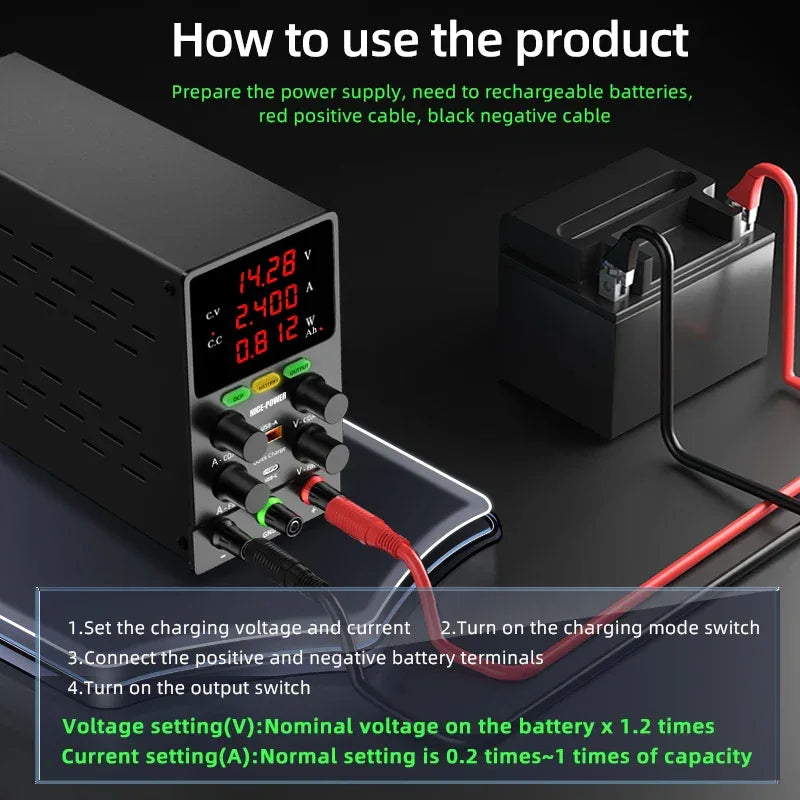

Charging Precautions:
1. It is necessary to set the charging voltage and charging current according to the original battery manufacturer's recommendations. The charging voltage is generally 1.15 times the rated voltage of the battery, and the charging current is set to 0.2C (C=total battery capacity, unit: Ah, for example)
5000mAh battery, charging current should be set to 1A. ）
2. Please make sure to work in battery charging mode (press the battery button to turn on the light)
3. Connect the battery correctly, with red corresponding to the positive pole and black corresponding to the negative pole. After confirming that everything is correct, press the OUTPUT button to start charging
4. This product is not a professional charging device. If used for a long time, please purchase the corresponding dedicated charger
5. Non professionals or untrained personnel are prohibited from using
6. Please ensure that someone is on duty during the charging process and prohibit charging when leaving
7. Minors are prohibited from using
DC Power Supply Specification
Input Voltage 110V±10% 60Hz / 220V±10% 50Hz
Working Temperature 0 ℃-40℃; Relative Humidity: ＜80%RH
Storage Temperature -10 ℃-70℃; Relative Humidity: ＜70%RH
Constant Voltage State Voltage stability≤0.1%+3mV Low Voltage:0.2~0.3%+3mV Load stability≤0.5%+3mV Ripple noise≤30mVrms
Constant Current State Current stability≤0.2%+3mA Load stability≤0.2%+3mV Ripple noise≤20mArms
Display Accuracy 0.5%+2digits
Display Resolution Voltage: 000.1V / Current: 0.001A

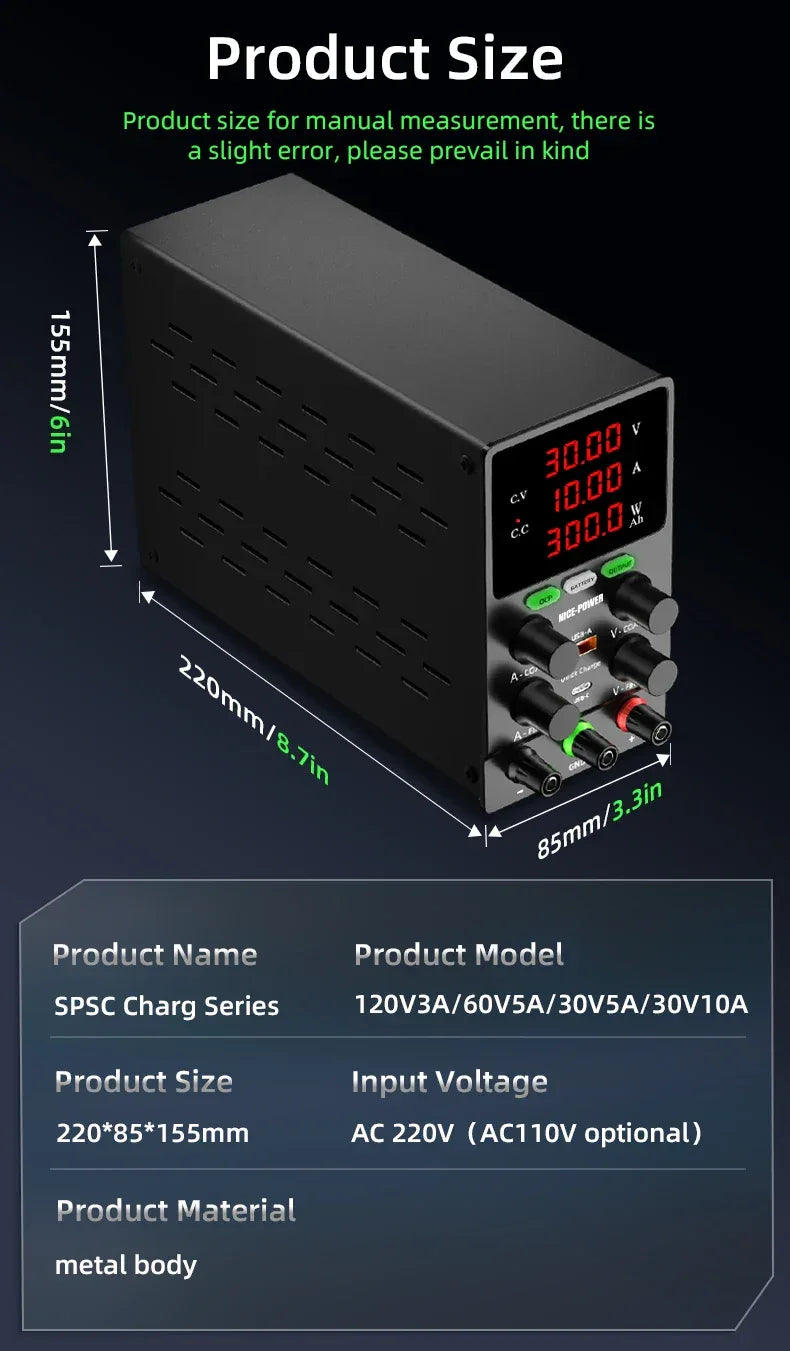

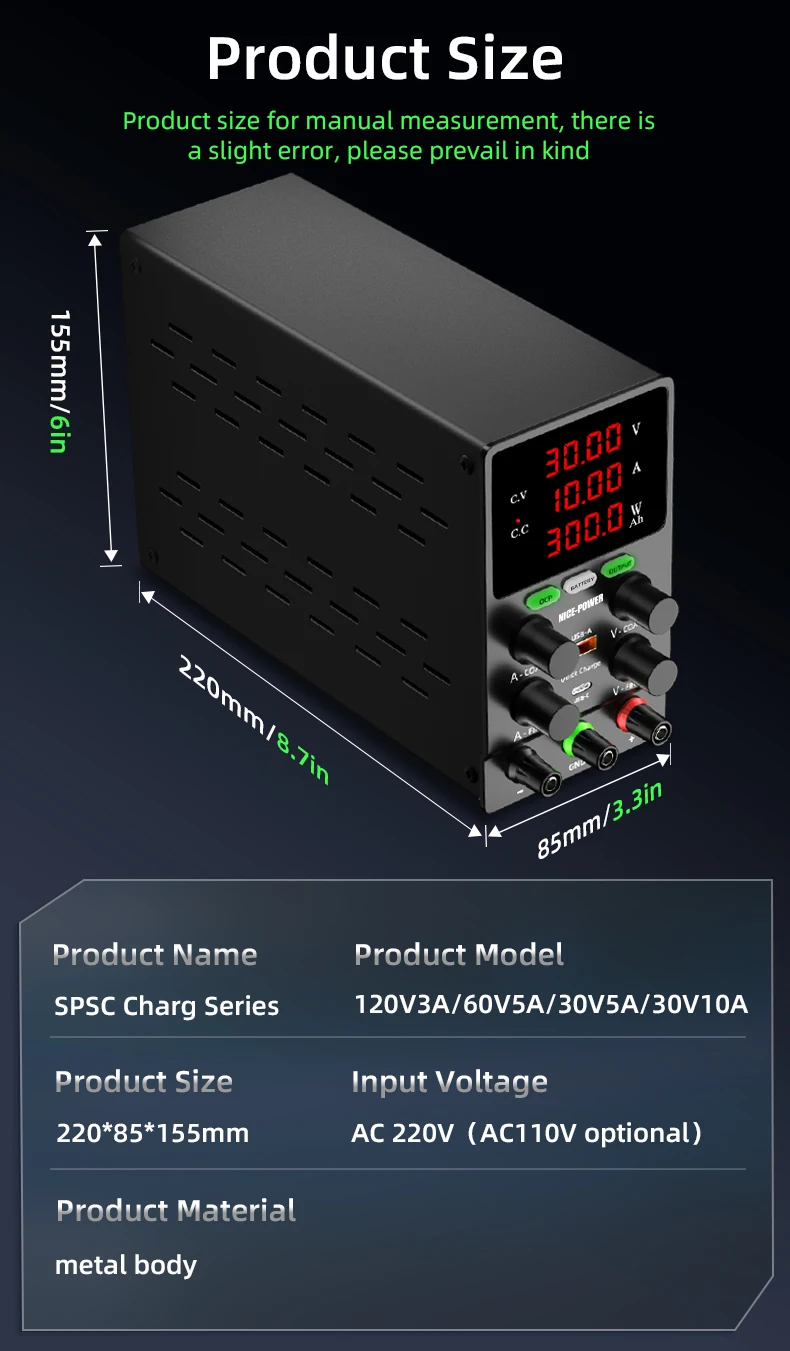

Product Dimension 3.3 x 9.4 x 5.9 Inches
Product Weight 2.6 lb
Fuse Standard 5A (AC 110V Input)
Application Scenarios
1. Electric vehicle backup battery (lead-acid/lithium battery)
2. Daily charging and recharging of children's toy car batteries, remote control car/model airplane batteries
3. Special charging for batteries of small devices such as flashlights, power banks, radios, emergency lights, etc., to avoid overcharging and damage
4. When students and electronics enthusiasts DIY small inventions (such as homemade desk lamps, small fans, sensor modules), they can be used as temporary power sources or battery charging sources
5. Alternative charging solutions for small household appliances (such as razors and electric toothbrushes) after the original charger is lost.
6. Charging the batteries of spare car keys, car vacuum cleaners, air pumps, and other accessories does not require starting the car.
7. Battery detection and charging repair for mobile phones, tablets, and laptops, with reverse polarity protection to prevent the wrong positive and negative poles from burning the board during maintenance
When repairing the internal circuit boards of small household appliances (rice cookers, microwave ovens, printers), they are used as temporary power supply and battery charging tools.
9. Experimental power supply for physics and electronic engineering laboratories, used for battery charging and circuit testing in student experiments.
10. The equipment batteries of the robot club and model flight club are charged and maintained uniformly, and the voltage can be adjusted to adapt to different types of batteries.
11. Pre factory battery charging and performance testing of small electronic components, sensors, and smart wearable devices, with a stop once fully charged function to improve production efficiency and avoid overcharging of defective products
12. Outdoor lighting equipment (headlights, campsite lights), walkie talkies, and battery charging for handheld GPS are unstable alternatives to solar charging.
13. Emergency charging of camera backup batteries and drone batteries during field exploration and photography.
14.When there is a power outage at home, charge the batteries of emergency lights, walkie talkies, and small medical devices (such as blood pressure monitors) to ensure basic living needs.
15.When the vehicle breaks down, charge the built-in battery of the onboard emergency power supply to achieve secondary rescue.

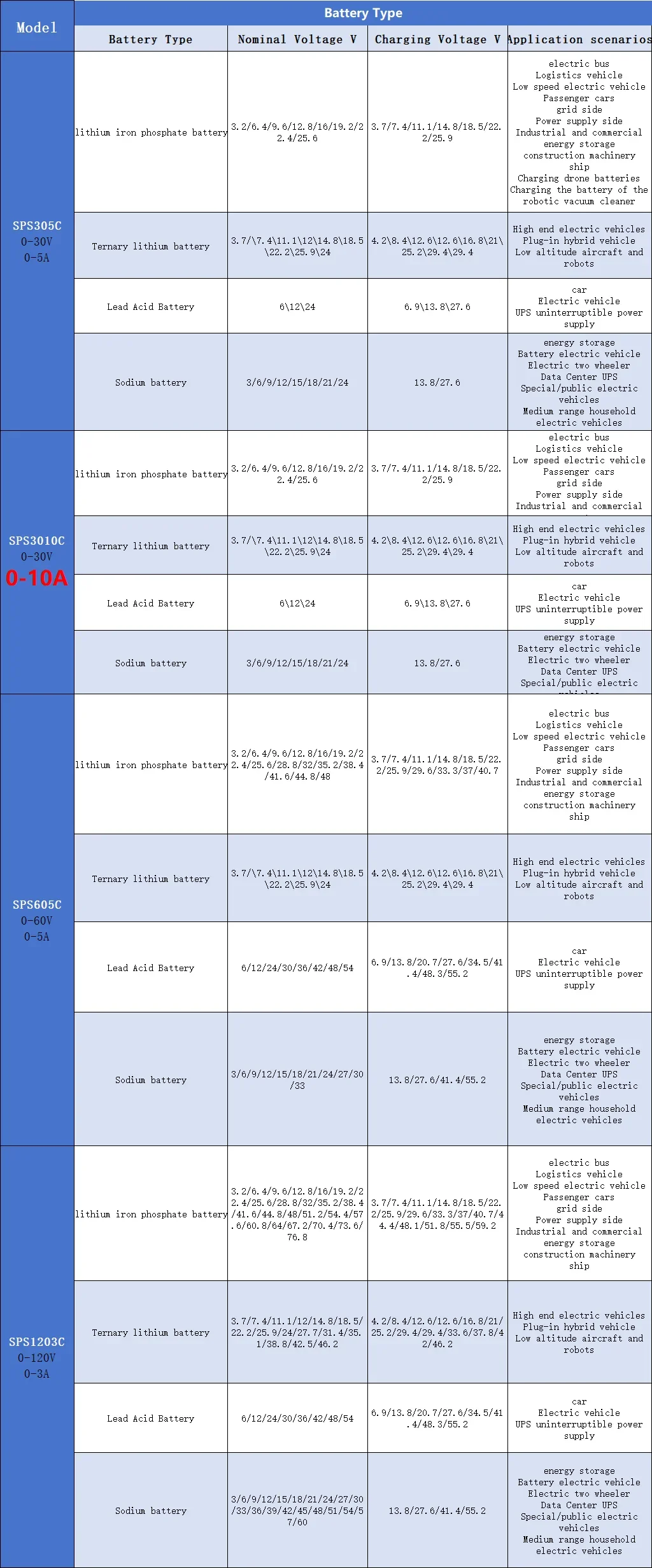

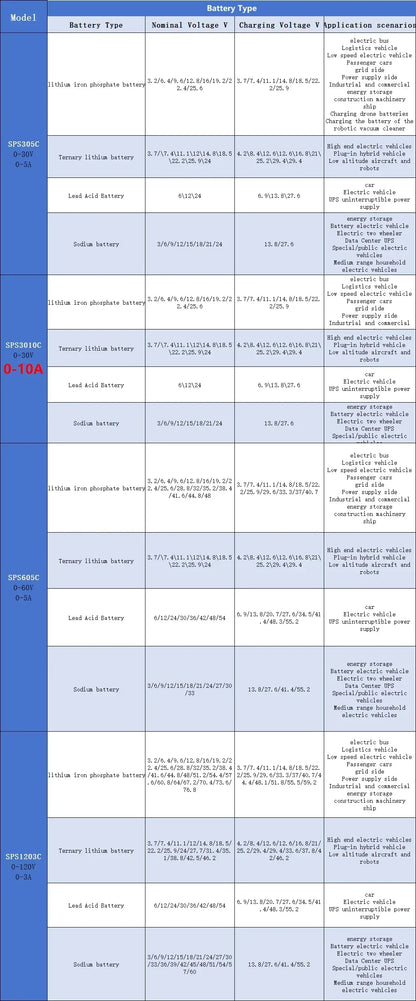

Common Battery Charging Voltmeter
Packing list
1x DC power supply
1x power cord (EU, US, UK, AU)
1x test lead
1x manual
