SPECIFICATIONS

application: Server/Workstation

chipset: Intel H110

chipset manufacturer: Intel

cpu type: Core I7/Core I5/Core I3/Pentium/Celeron

form factor: Mini-ITX

graphics card type: Integrated-need CPU support

hard drive interface: SATA

item condition: New

maximum ram capacity: 32 GB

memory bank: 2 DDR4 DIMM

memory channel: Double

memory type: DDR4

package: Yes

place of origin: Guangdong, China

ports: SATA,VGA ,USB 2.0,USB 3.0,HDMI

products status: New

socket type: LGA 1151

with cpu: No

Company Profile

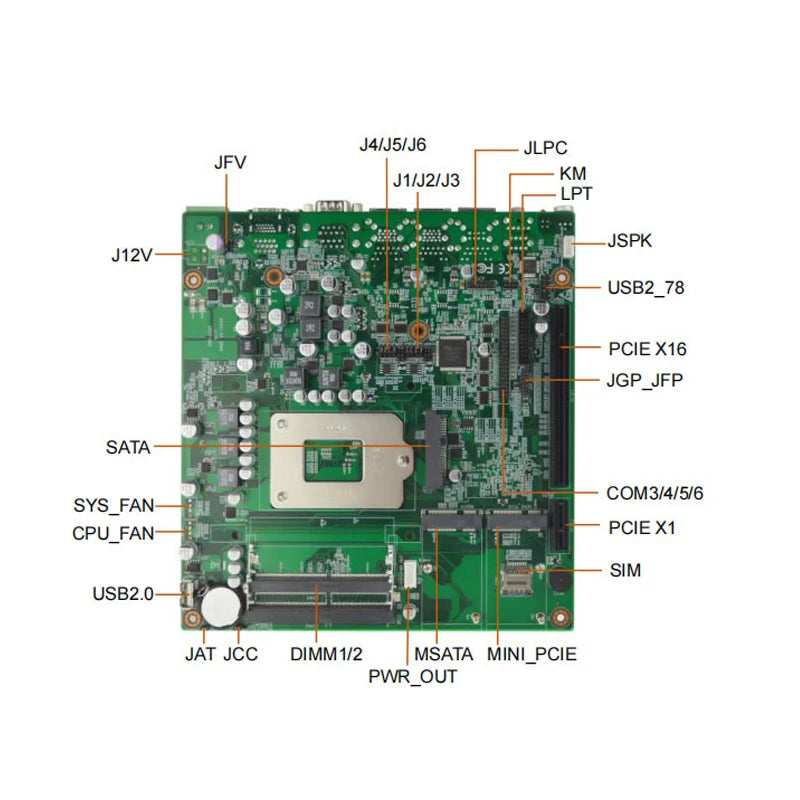

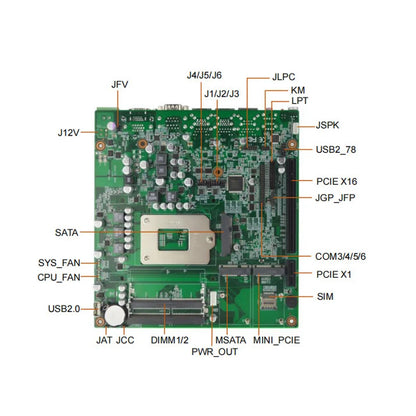

Product Paramenters

Edition	01 bandwidth voltage, supporting 9-36V power supply 02 No bandwidth voltage, supports 12V 10A power supply
processor	Intel Skylake/Kaby Lake LGA1151 Processors
Chipset	Intel H110 chipset with a maximum power consumption of 6W
system memory	2 dual channel SODlMM slots, supporting DDR4 1866/2133/2400MHz, with a maximum capacity of 32GB

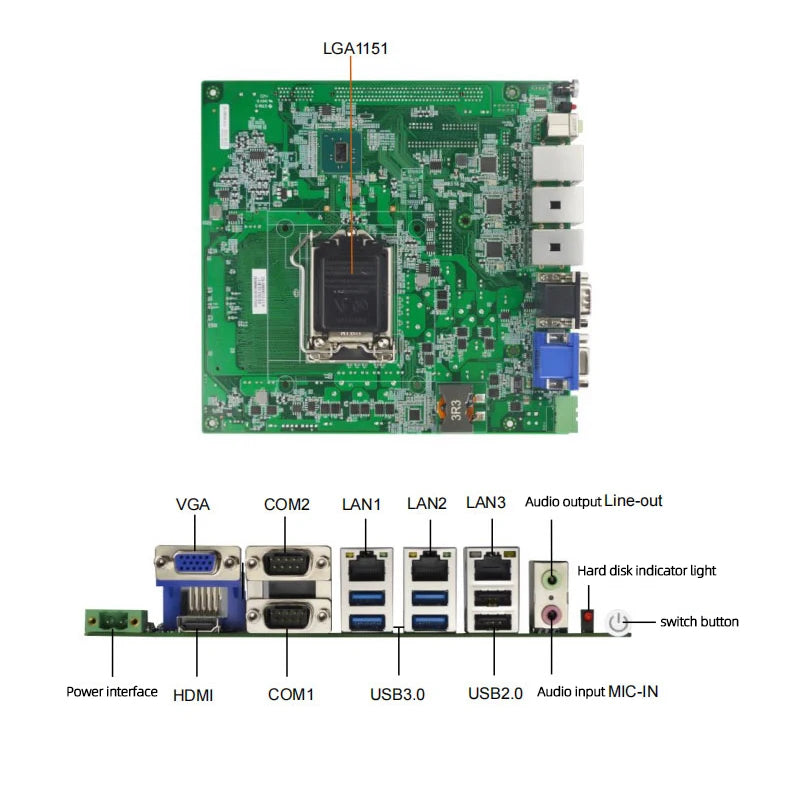

Display interface	1 standard DB15 VGA interface, maximum supported resolution 1920x1200@60HZ 1 standard HDMl interface, maximum supported resolution4096x2160@24HZ supports independent dual display
network interface	3 Intel 1211 Gigabit Ethernet ports, supporting 10/100/1000Mbps, adaptive and wOL functions
Storage interface	1 SATA3.0,1 MSATA
USB interface	4 USB 3.0 rear ports, 5 USB 2.0 ports (2 rear ports, 1 built-in port, 2 pins)
serial interface	6 RS232, COM1/2 also supports RS4221485 mode
audio interface	Using Realtek ALC662 audio control chip, supporting dual channel and stereo sound 1 audio socket: green for Line out, pink for Mic in
GPIO Interface	1 2X5Pin GPl0 pin interface, led out by the chipset, supporting 8 input or output channels
Expansion interface	1 PCle X16 slot, 1 PCle X1 slot  1 MINIPCle interface,supporting WiFl/3G/4G functionality 1 JLPC expansion interface, which can be extended to 8 RS232/485 serial ports
BIOS	AMI BIOS
OS support	Windows 7, Windows 8, windows 10, Linux, etc
watchdog	255 level timer, resettable
Power supply type	DC12v 10A, 2Pin green terminal or 2x2Pin square socket (reserved) supports 9-36v wide voltage
ambient temperature	Working temperature: -20 °C~70 °C, storage temperature: -40 °C~80 °C
Humidity	5% -95% relative humidity, no condensation

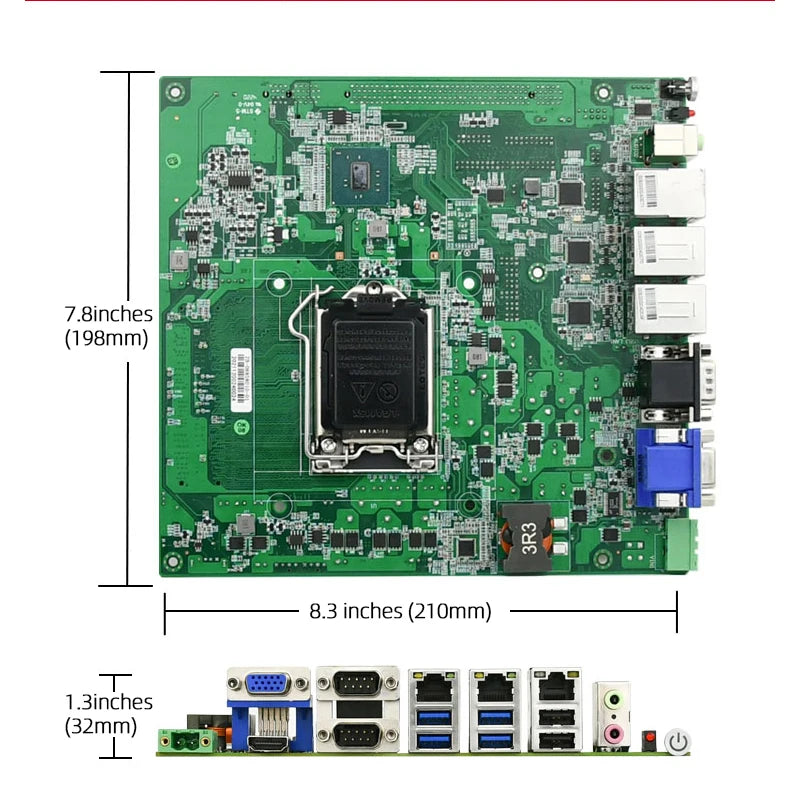

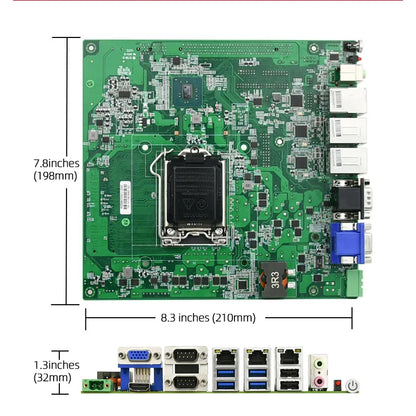

structure size	210mm x 198mm (length x width)
