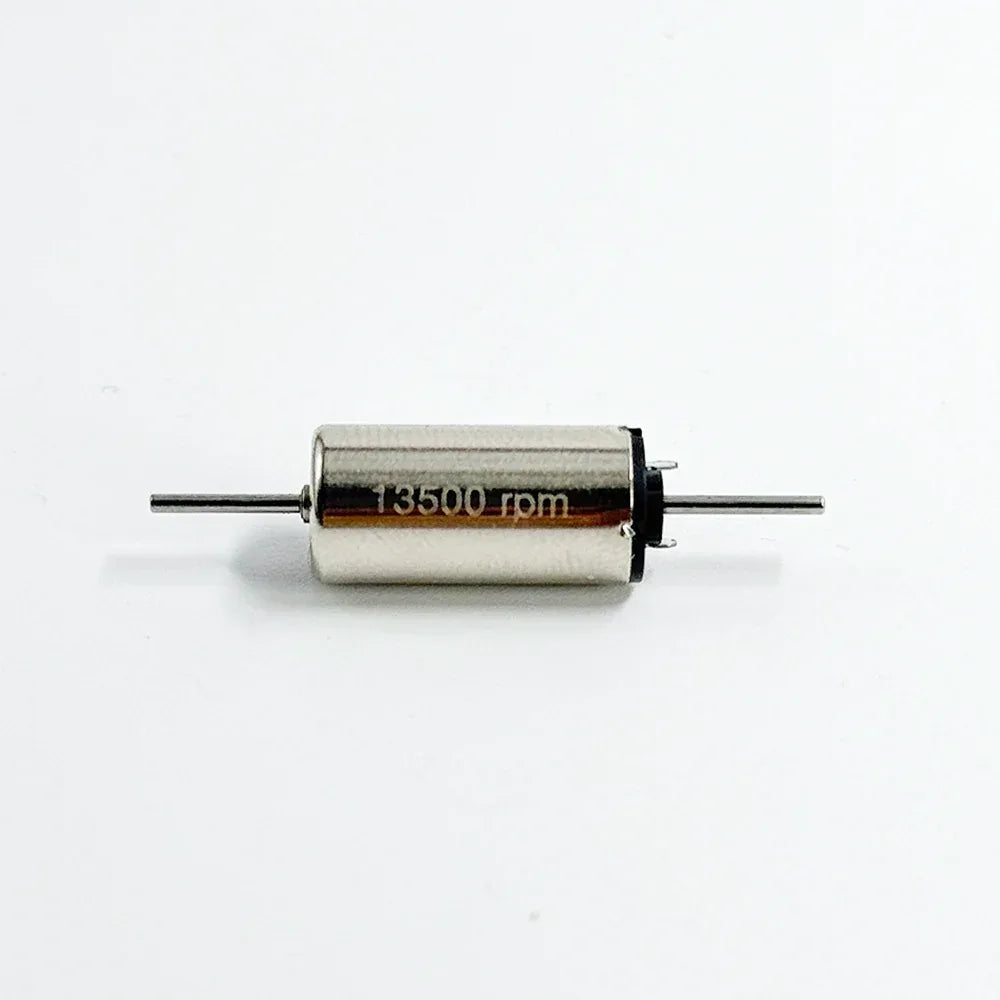

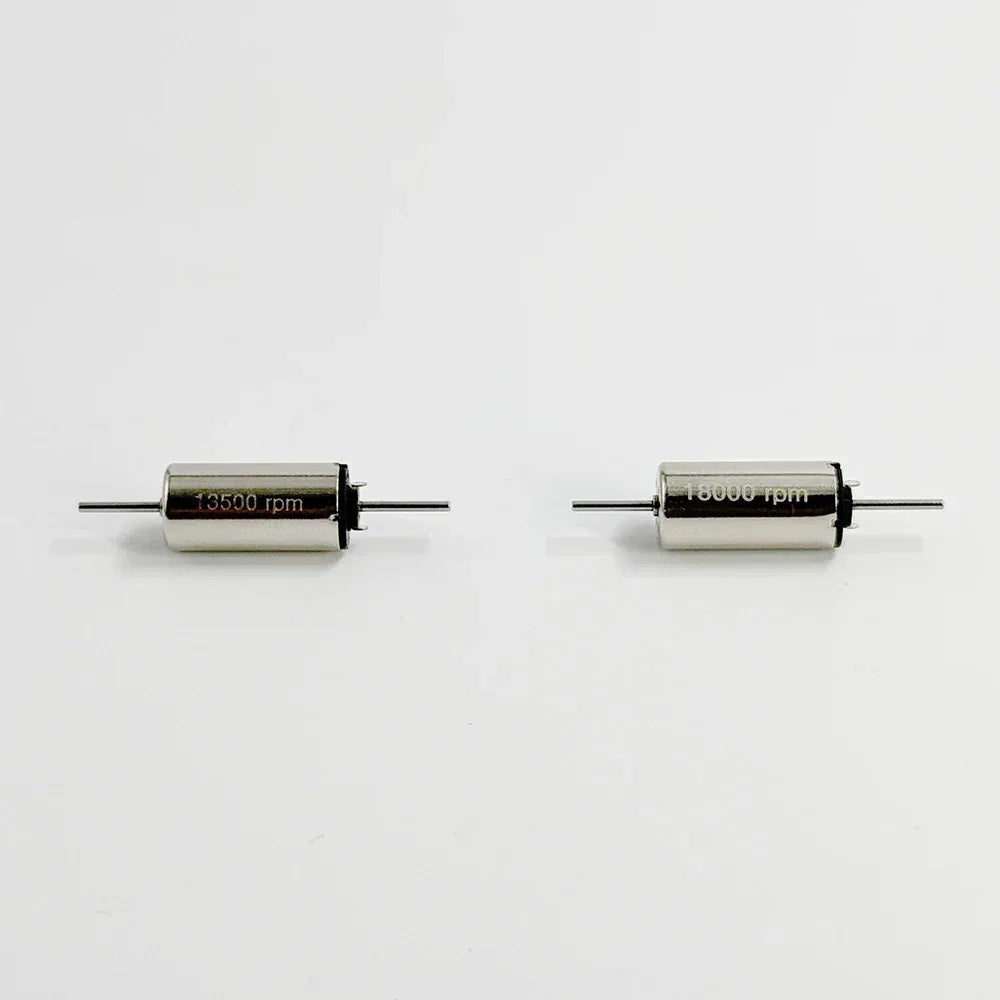

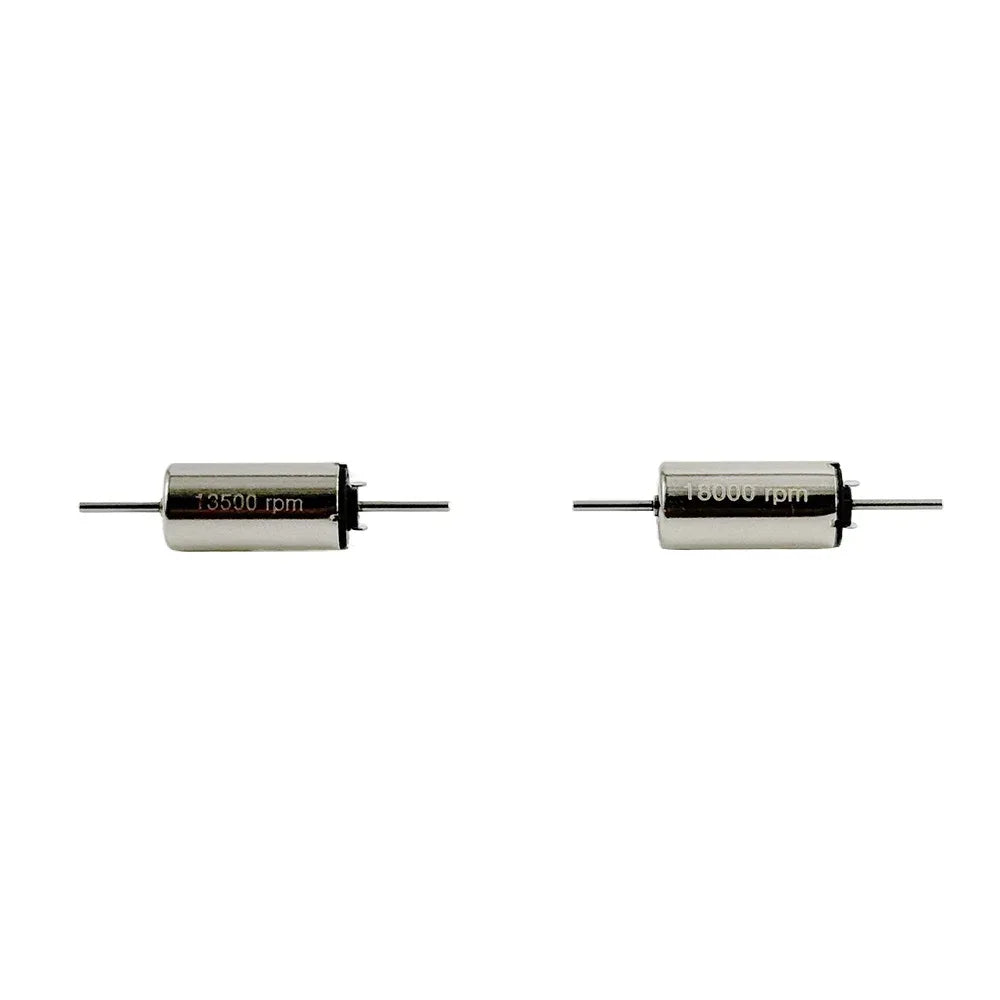

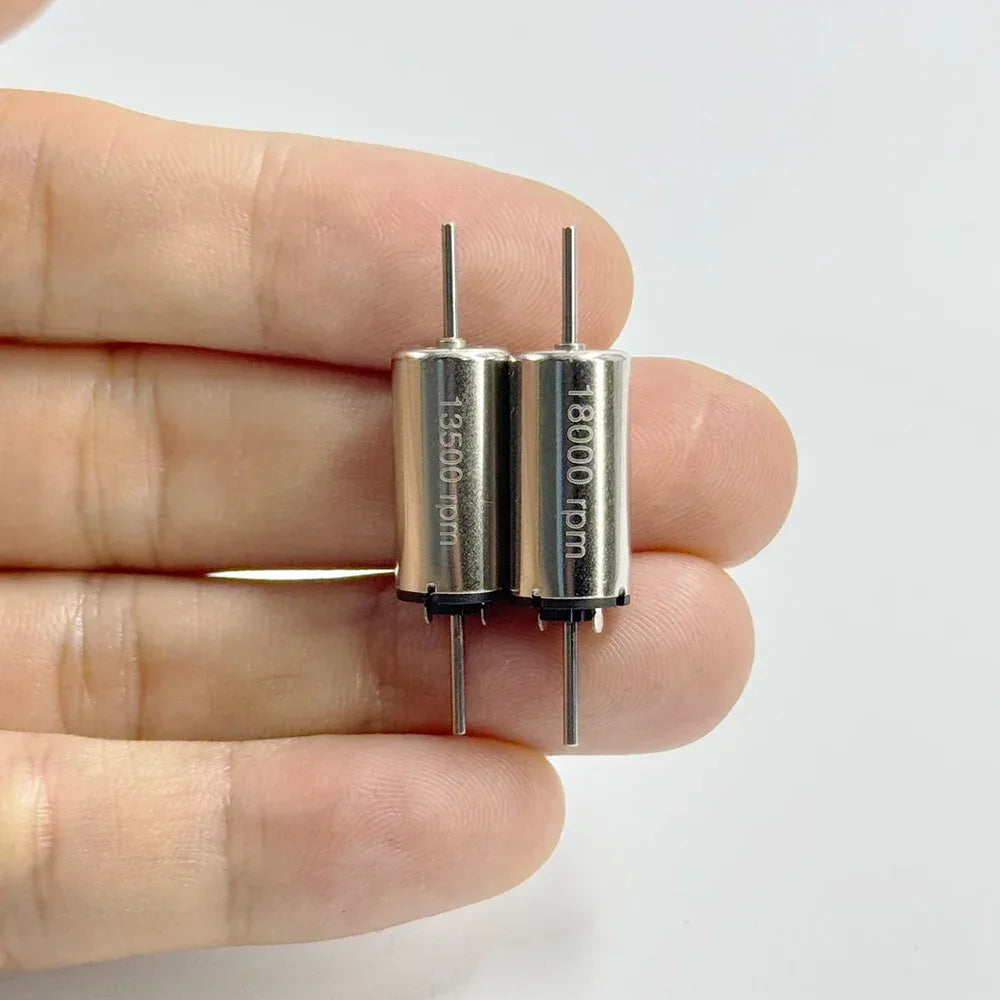

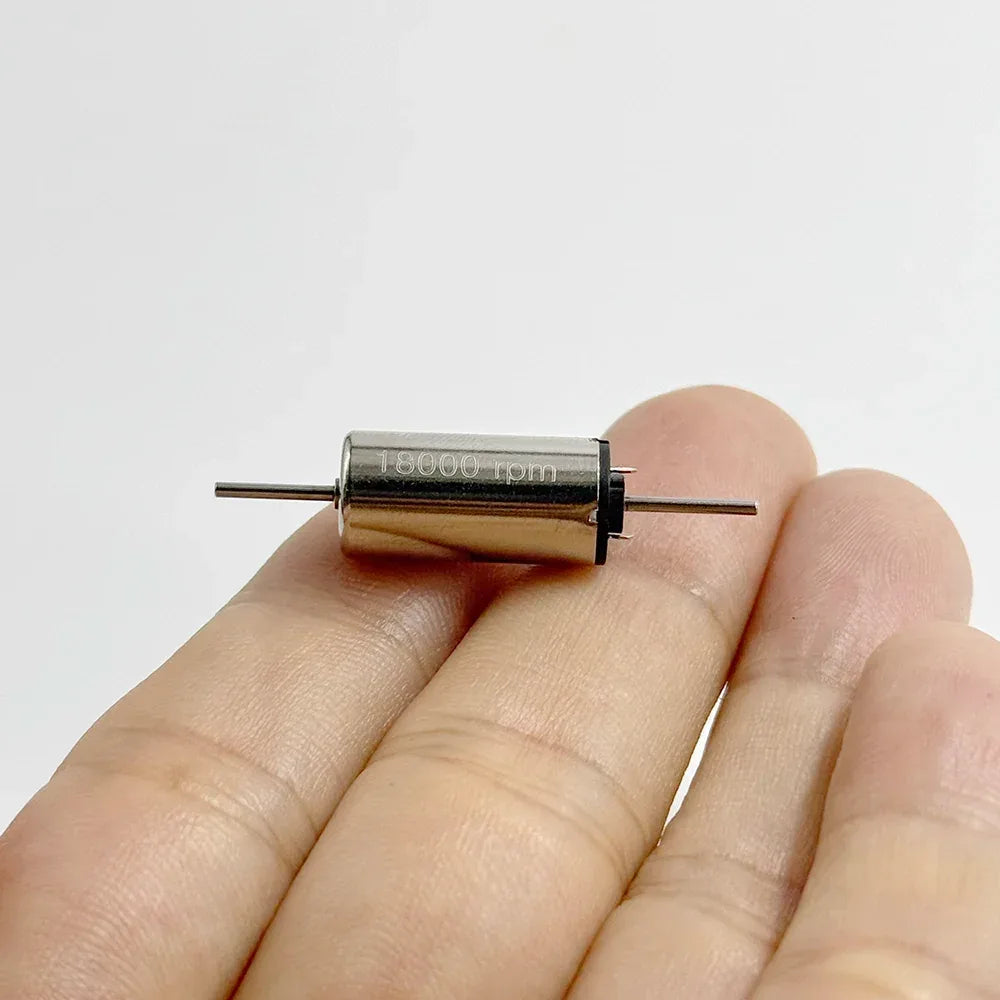

Mini 0816 Dual Axis 8mm Micro Motor DC 12 Volt 13500RPM/18000RPM Hollow Cups High Speed Strong Magnetic 1mm Diameter Shaft
Mini 0816 Dual Axis 8mm Micro Motor DC 12 Volt 13500RPM/18000RPM Hollow Cups High Speed Strong Magnetic 1mm Diameter Shaft
Couldn't load pickup availability
SPECIFICATIONS
Actual Rated Input Voltage: DC 6V-12V
Brand Name: NONE
Certification: None
Choice: yes
Commutation: Brush
Construction: Permanent Magnet
Country/Region of Manufacture: China
Current Type: DC
Efficiency: IE 1
High-concerned chemical: None
Model: 816 coreless motor
Model Number: 816
Origin: Mainland China
Shaft Diameter: 1.0mm
Shaft Type: Straight
Special Motor Construction: Spindle Motor
Type: Micro Motor
semi_Choice: yes

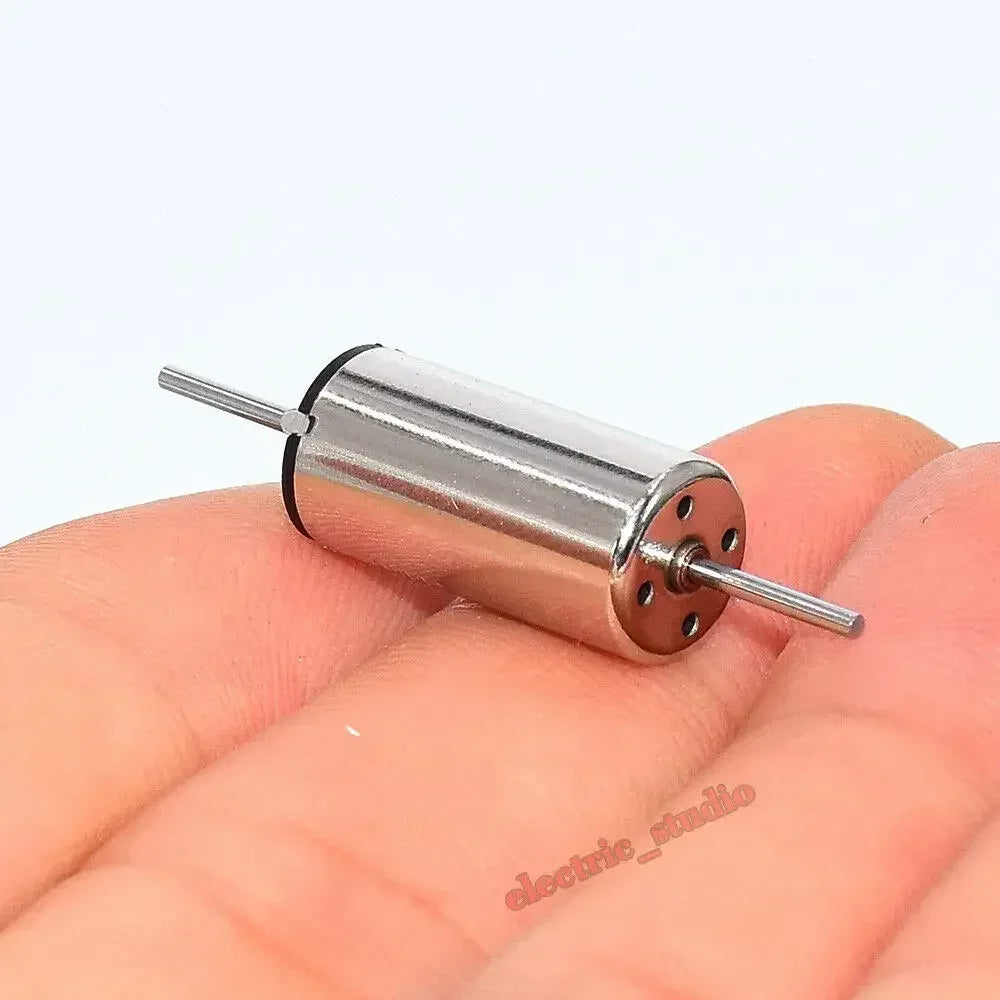

1.Model: 816 mini coreless motor
2.Motor diameter: 8.1mm
3.Motor length: 16.7mm
4.Output shaft diameter: 1.0mm
5.Output shaft length: 8mm/9.5mm
6.Weight: About 4.1g
7.Voltage range: DC 6V-12V
8.Application: Mainly used for micro hobby toy model, toy rail train and other machines.

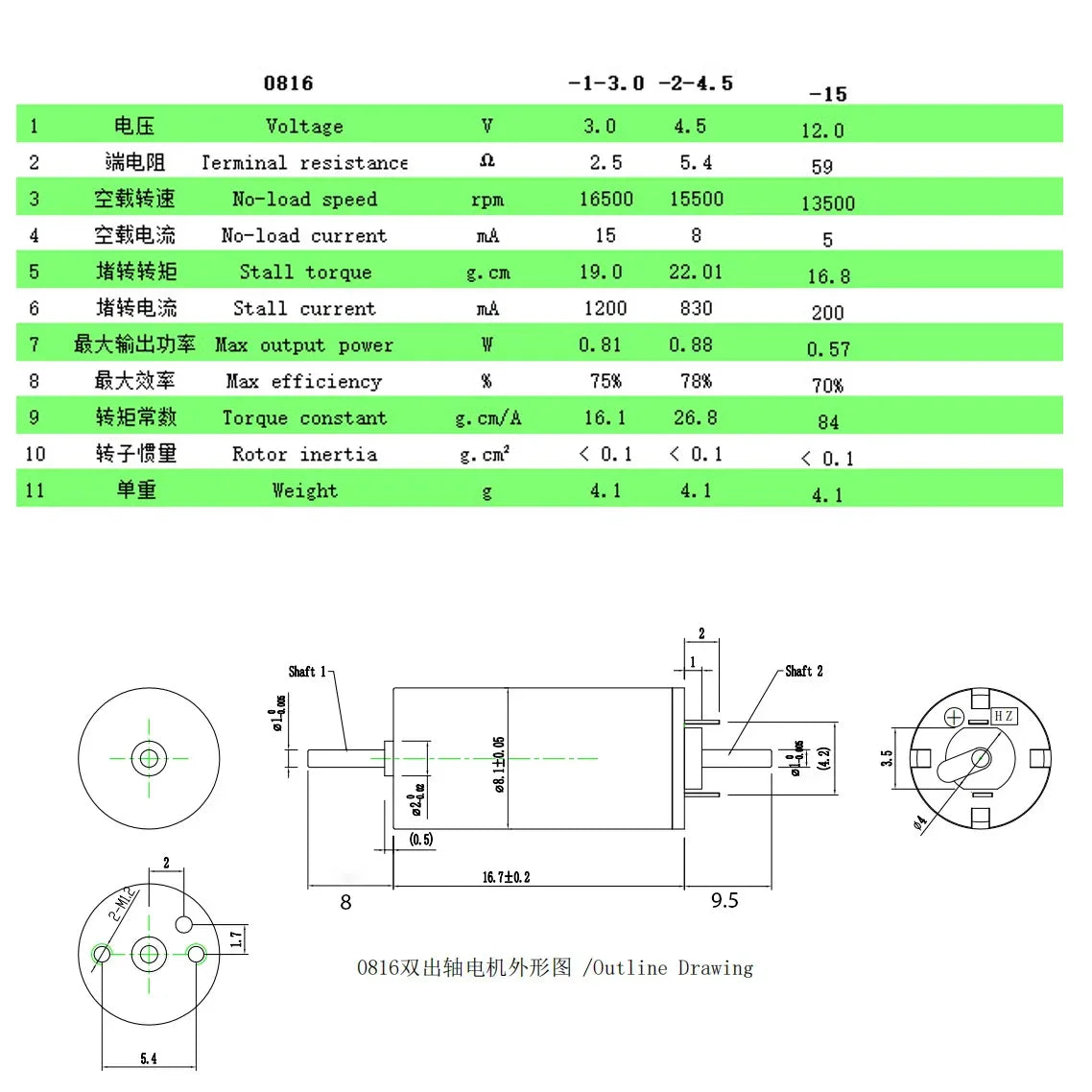

| 1 | 电压 | Voltage | 12.0 | 12.0 | |
| 2 | 堵 电 阻 | Terminal - to - terminal resistance | 59 | 30 | |
| 3 | 空载转速 | No - load speed | r/min | 13500 | 18000 |
| 4 | 空载电流 | No - load current | mA | 5 | 15 |
| 5 | 堵转转矩 | Stall torque | \(g\cdot cm\) | 16.8 | 21.1 |
| 6 | 堵转电流 | Stall current | mA | 200 | 400 |
| 7 | 负载电阻 | Rated torque | \(g\cdot cm\) | 2.5 | 5.0 |
| 8 | 负载转速 | Rated speed | r/min | 11300 | 14000 |
| 9 | 负载电流 | Rated current | mA | 35 | 95 |
| 10 | 最大效率 | Max efficiency | % | 70% | 70% |
| 11 | 转矩常数 | Torque constant | \(g\cdot cm/A\) | 84 | 62 |
| 12 | 转子惯量 | Rotor inertia | \(g\cdot cm^{2}\) | ＜0.1 | ＜0.1 |
| 13 | 重量 | Weight | g | 4.1 | 4.1 |
Package Include:
Motor x 1pc
