SPECIFICATIONS

Brand Name: FMAi

Choice: yes

Frequency Band: 433.92MHz

High-concerned chemical: None

Origin: Mainland China

Type: Other Module

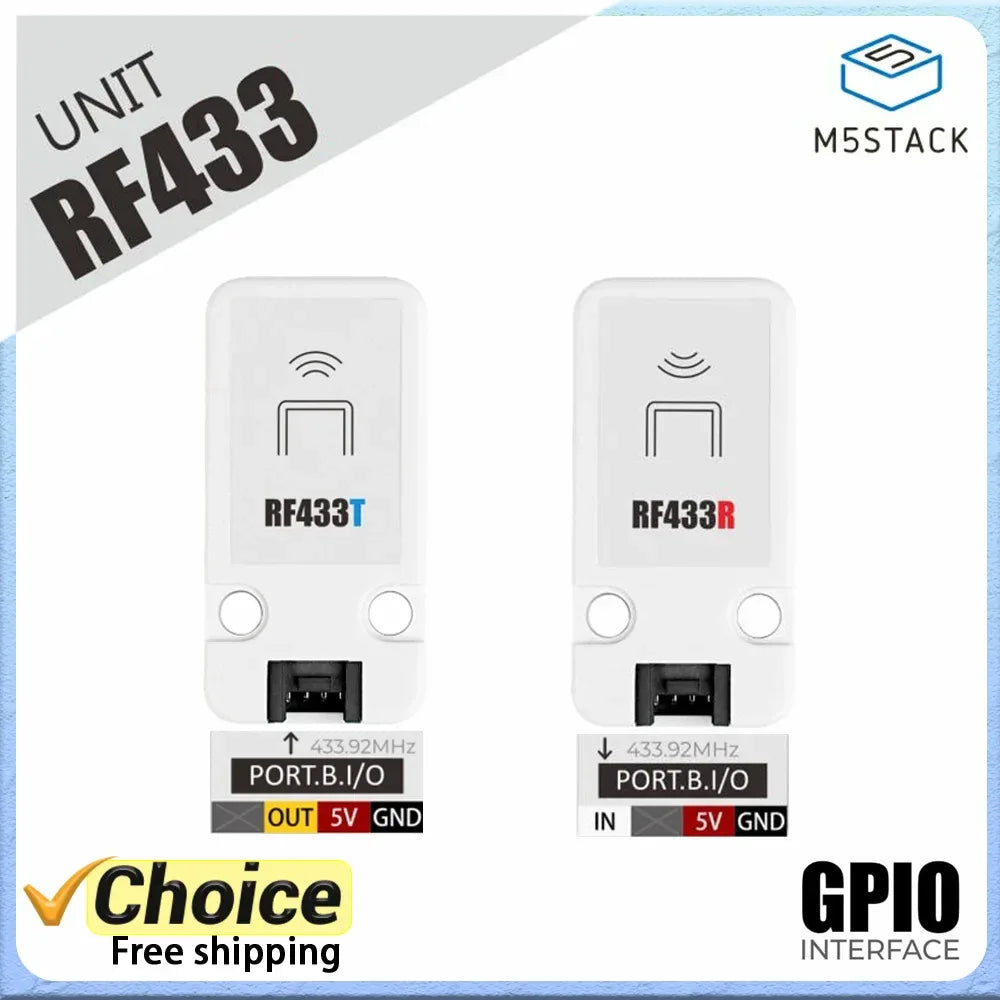

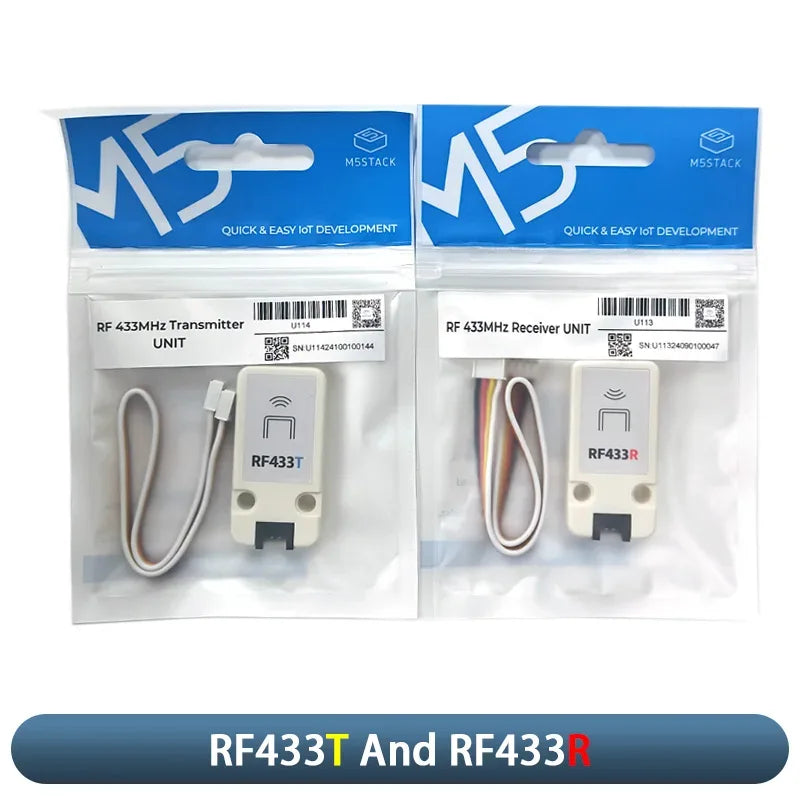

M5Stack RF433T/R Wireless RF Transmitter & Receiver Working Frequency 433.92MHz for IoT RF Remote Control Automation Application

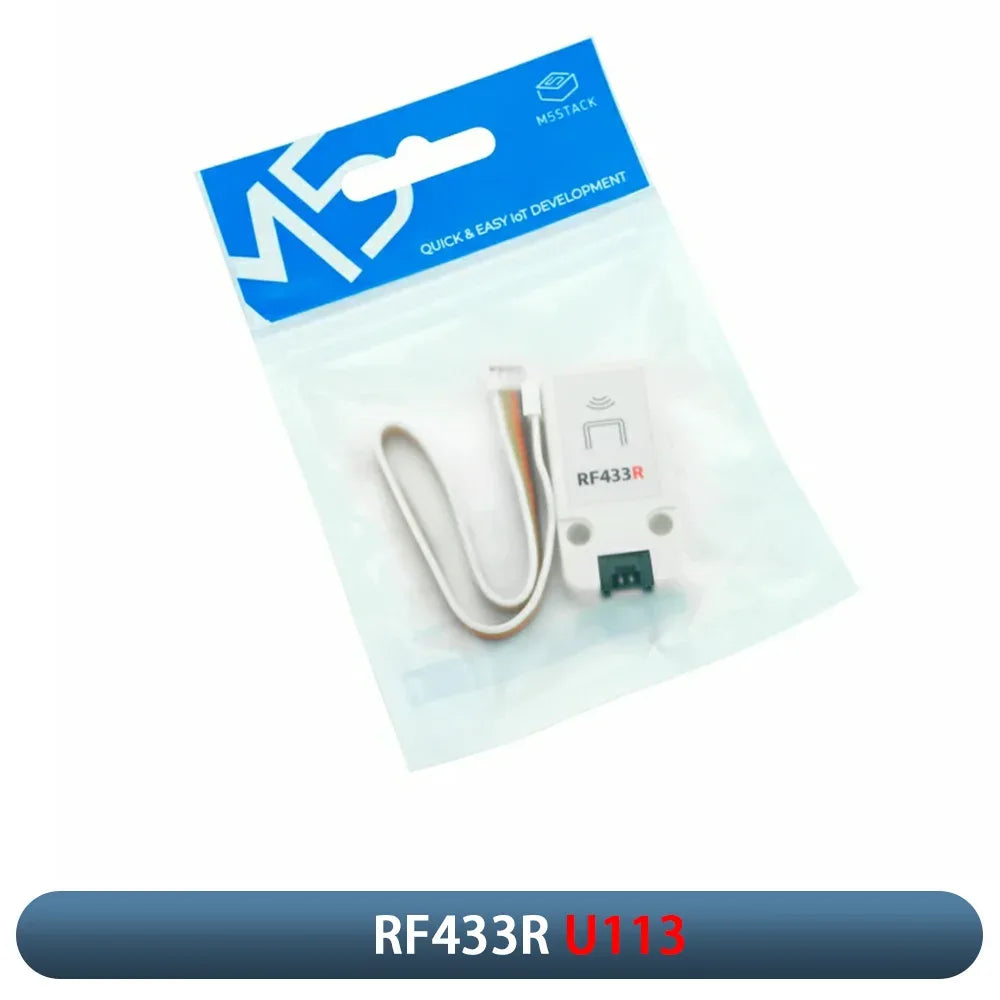

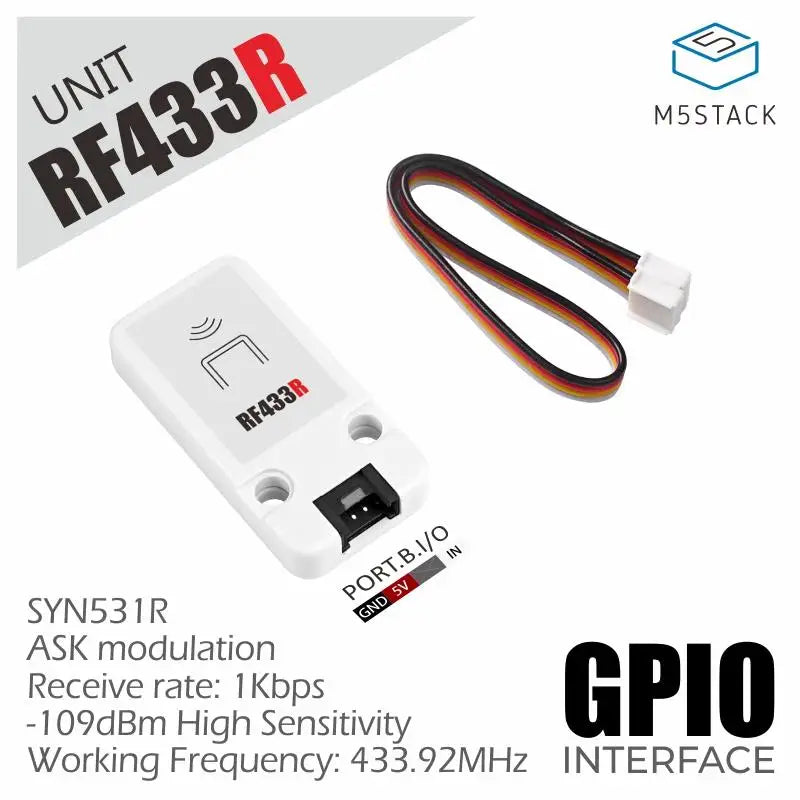

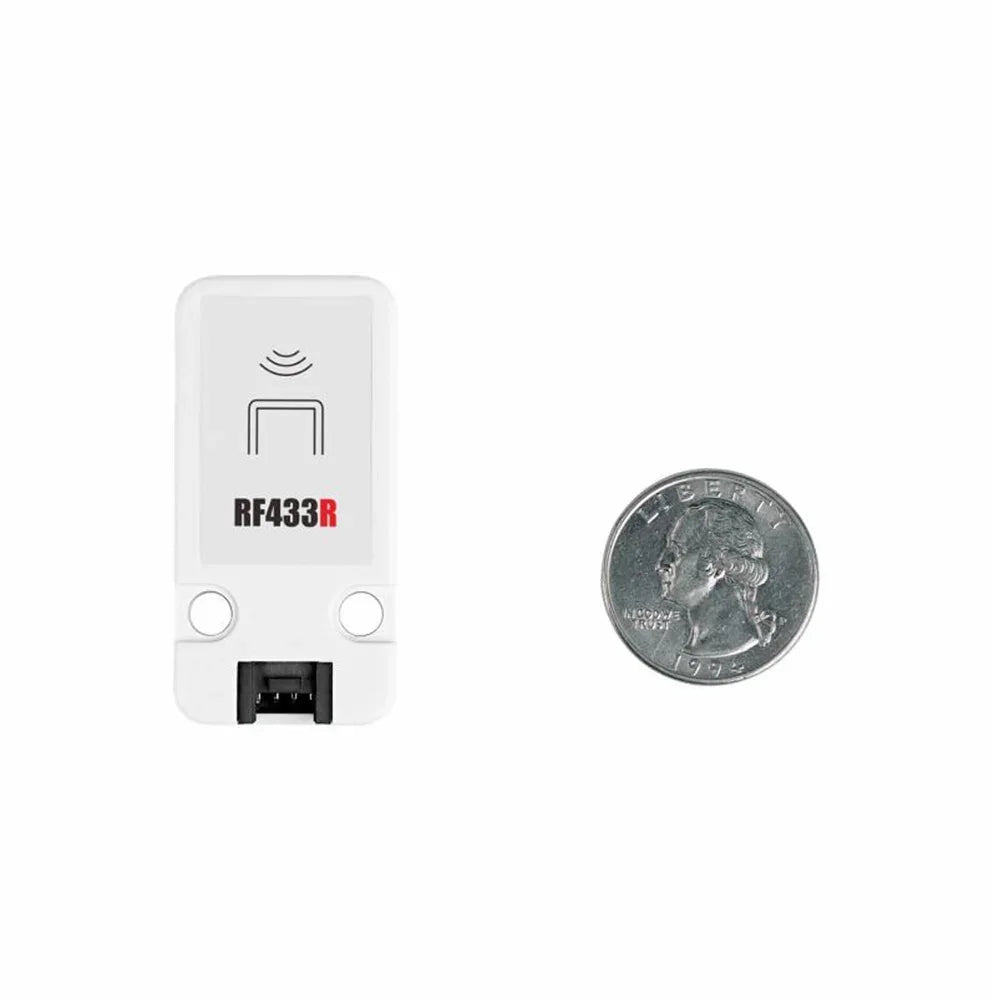

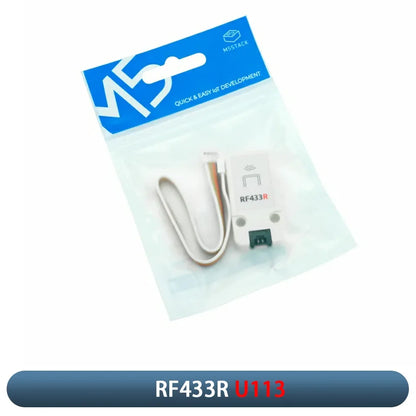

RF433R Receiver Description:

RF433R is an RF wireless radio frequency receiver, using SYN531R radio frequency receiver, working frequency is 433.92MHz (using ASK modulation) commonly used by wireless controllers, built-in PCB antenna, stable receiving signal distance up to 10M, typical receiving sensitivity It is -109dBm. The exquisite and compact housing design can be embedded in a variety of radio frequency remote control applications. It is suitable for security alarm, wireless automatic meter reading, home and industrial automation, remote remote control, wireless data transmission and other system fields.

Product Features

Operating frequency: 433.92MHz

-109dBm high sensitivity, receiving rate 1Kbps (ASK modulation)

PCB antenna

Excellent selectivity and noise suppression

Include

1x RF433R Unit

1x HY2.0-4P Cable

Applications

*Building Automation

*Security alarm

*Home and industrial automation

*Remote control

*Wireless data transmission and other system fields

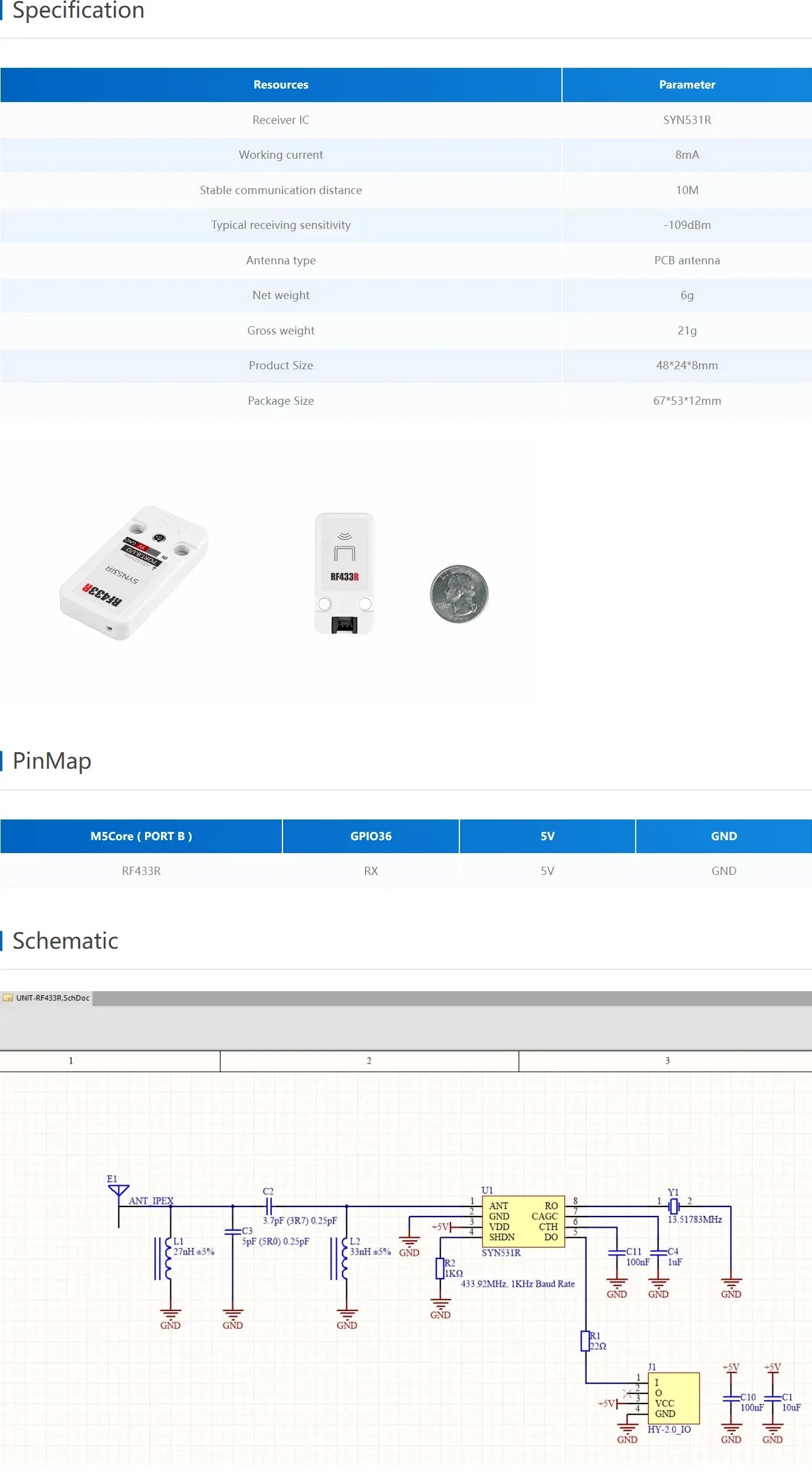

RF433R Receiver Specification

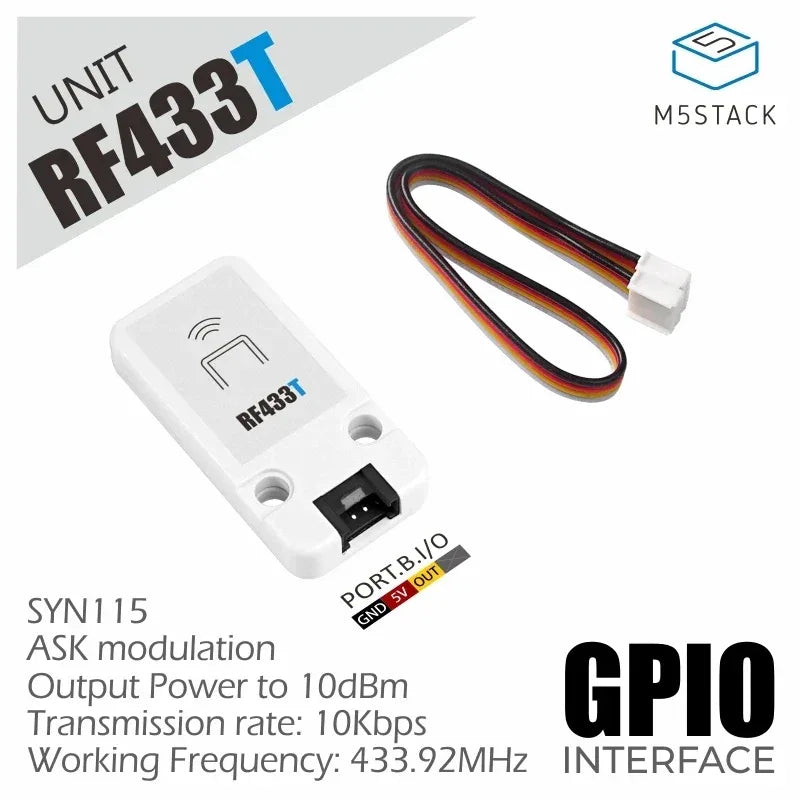

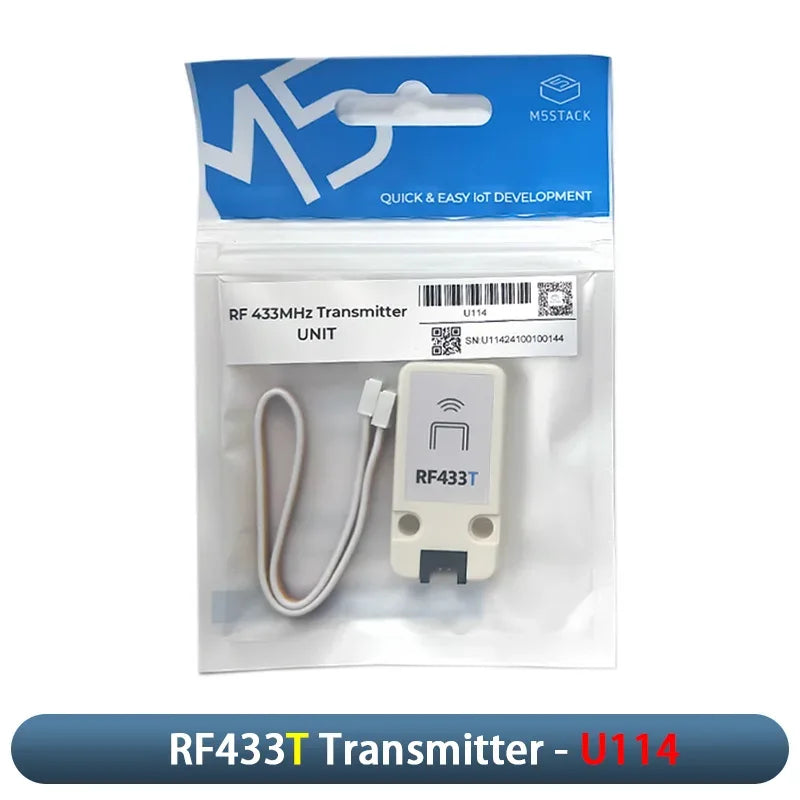

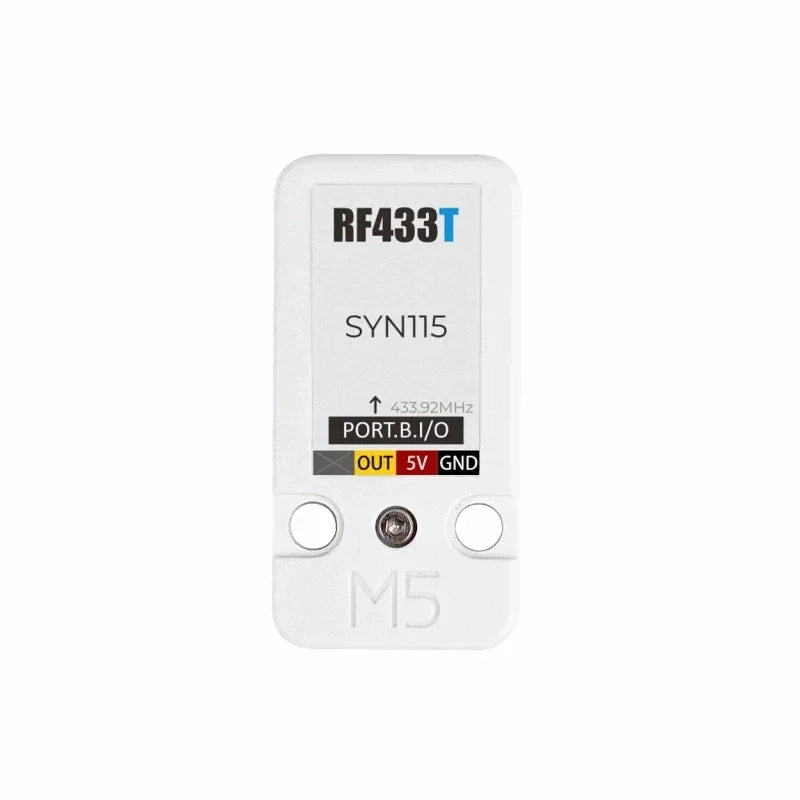

RF433T Transmitter Description:

RF433T is a radio frequency (RF) transmitter, using SYN115 radio frequency transmitter IC, working frequency is 433.92MHz (using ASK modulation) commonly used by wireless controllers, built-in PCB antenna, stable signal transmission distance up to 10M, The output power reaches 10dBm. The exquisite and compact housing design can be embedded in a variety of radio frequency remote control applications. It is suitable for security alarm, wireless automatic meter reading, home and industrial automation, remote remote control, wireless data transmission and other system fields.

Product Features

*Working frequency: 433.92MHz

*Data transmission rate 10kbps (ASK modulation)

*Output power 10dBm

*PCB antenna

Include

1x RF433T Unit

1x HY2.0-4P Cable

Applications

*Building Automation

*Security alarm

*Home and industrial automation

*Remote control

*Wireless data transmission and other system fields

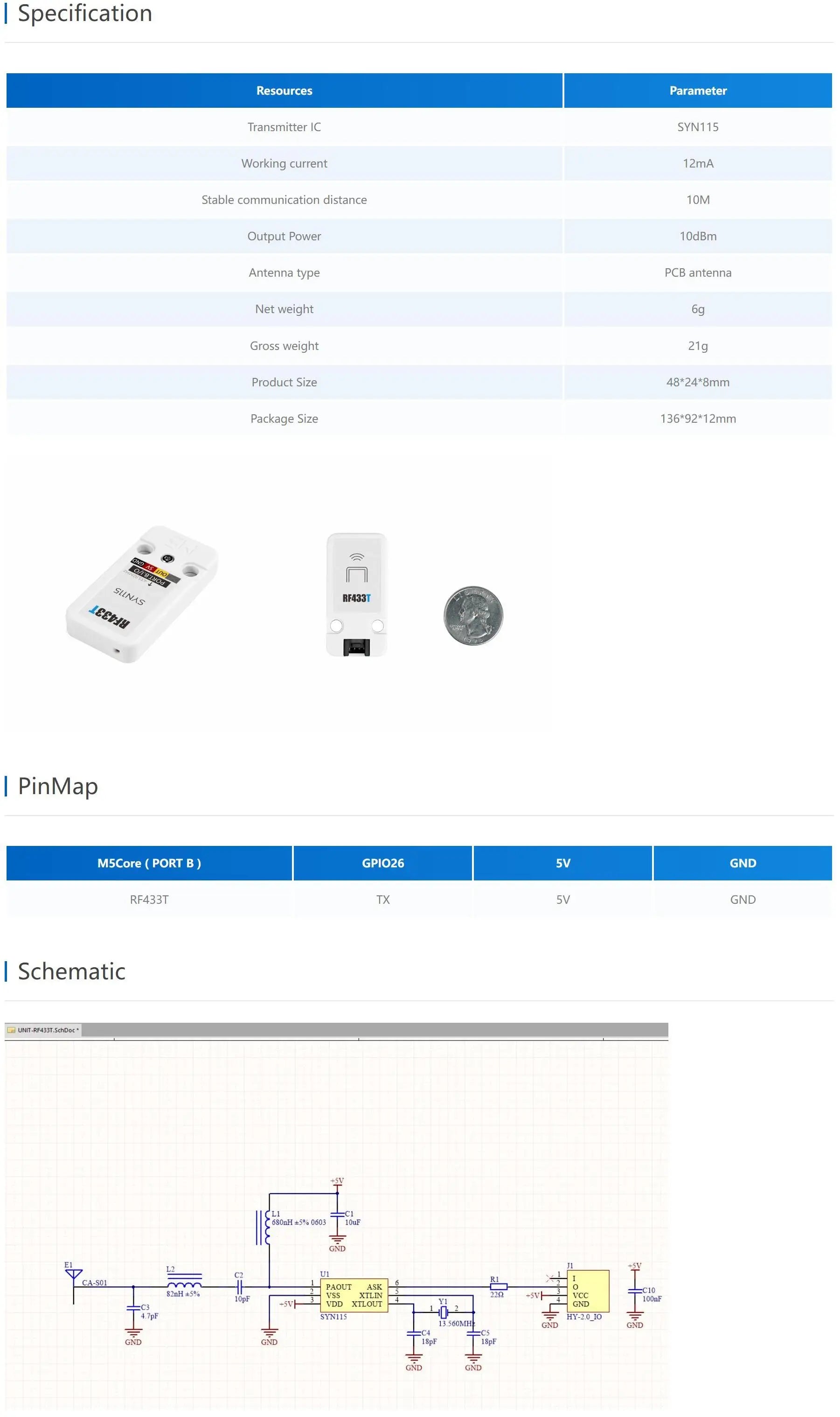

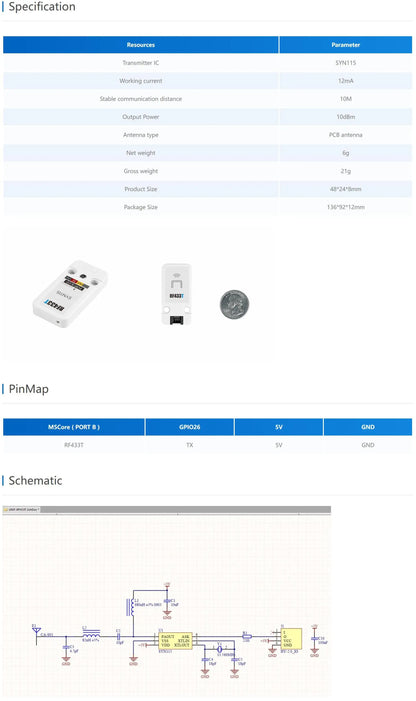

RF433T Transmitter Specification
