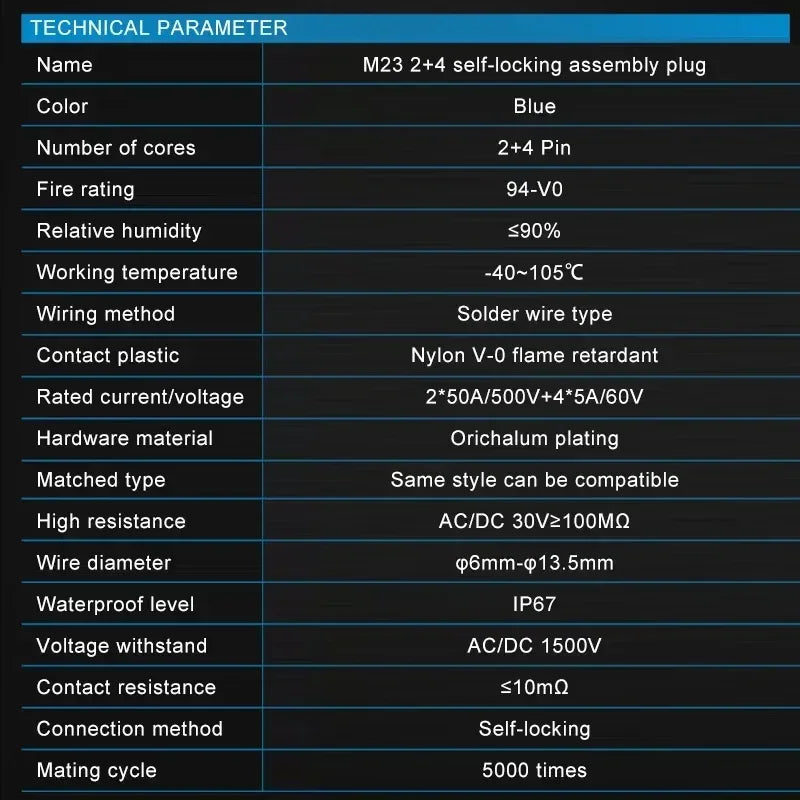

SPECIFICATIONS

Ambient temperature: -40-105℃

Application field: new energy

Brand Name: DIVEDEER

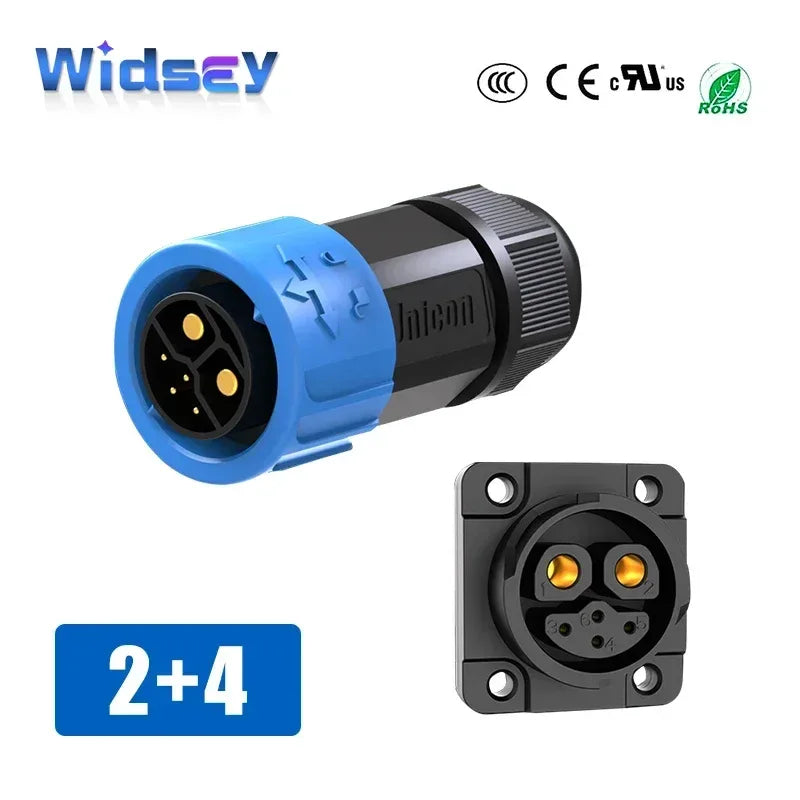

Certification: CE,RoHS,UL

Choice: yes

Connection: Solder wire type

Connection method: Self-locking type

Contact resistance: ≤10mm²

Cross sectional area: 23MM

Fire rating: 94-V0

Hardware material: Orichalum plating

High-concerned chemical: None

Insulation resistance: AC/DC 300V≥100MΩ

Mating cycle: 5000 times

Model Number: M23

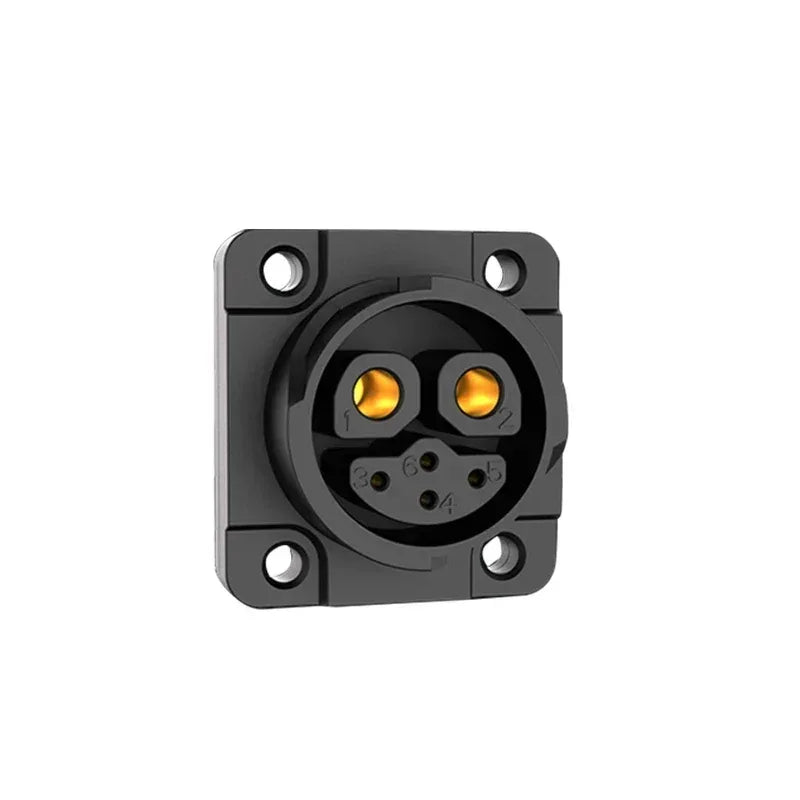

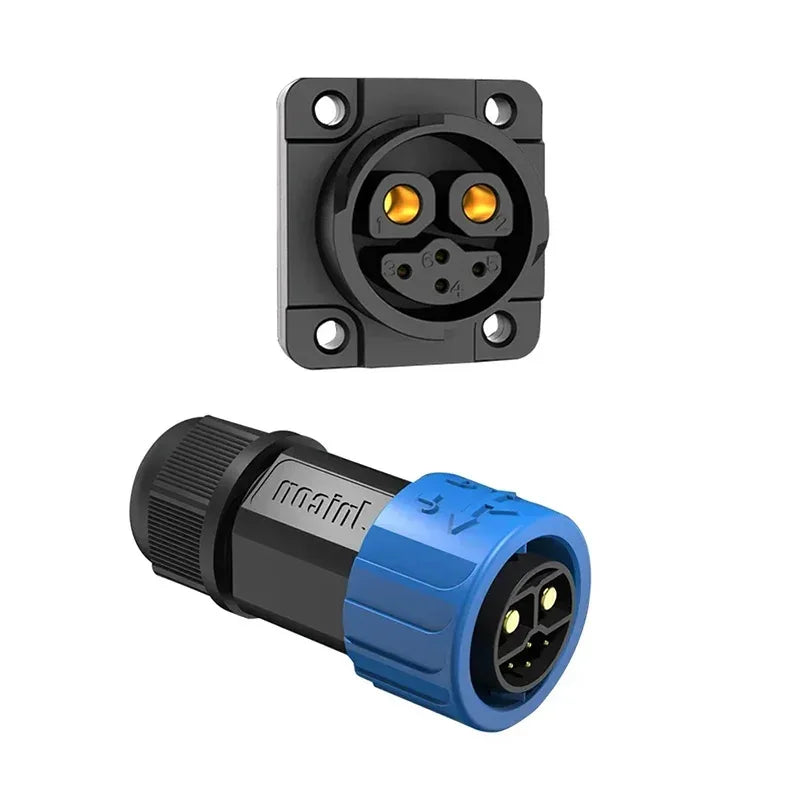

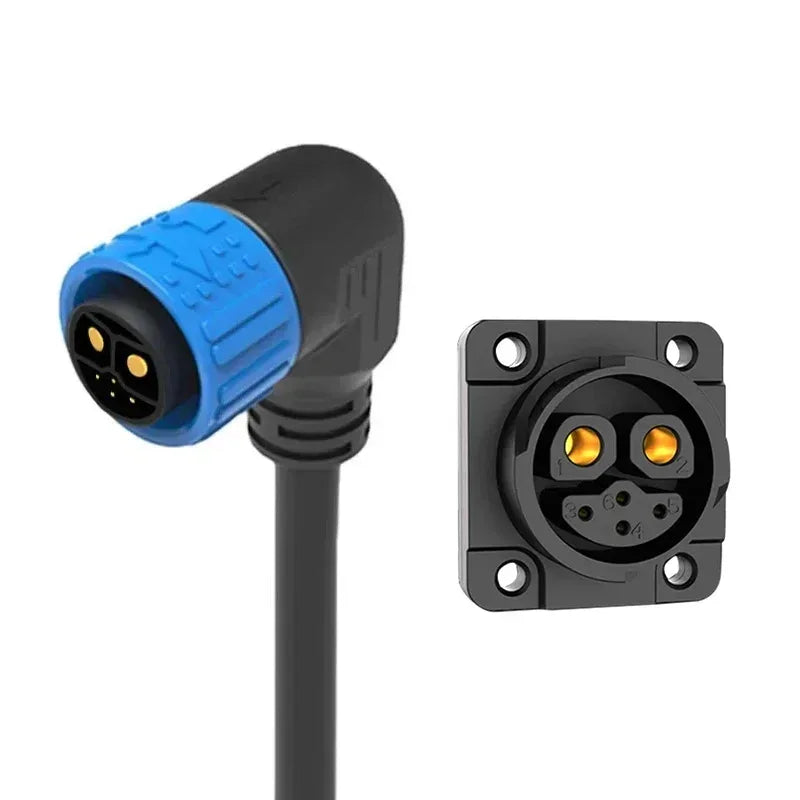

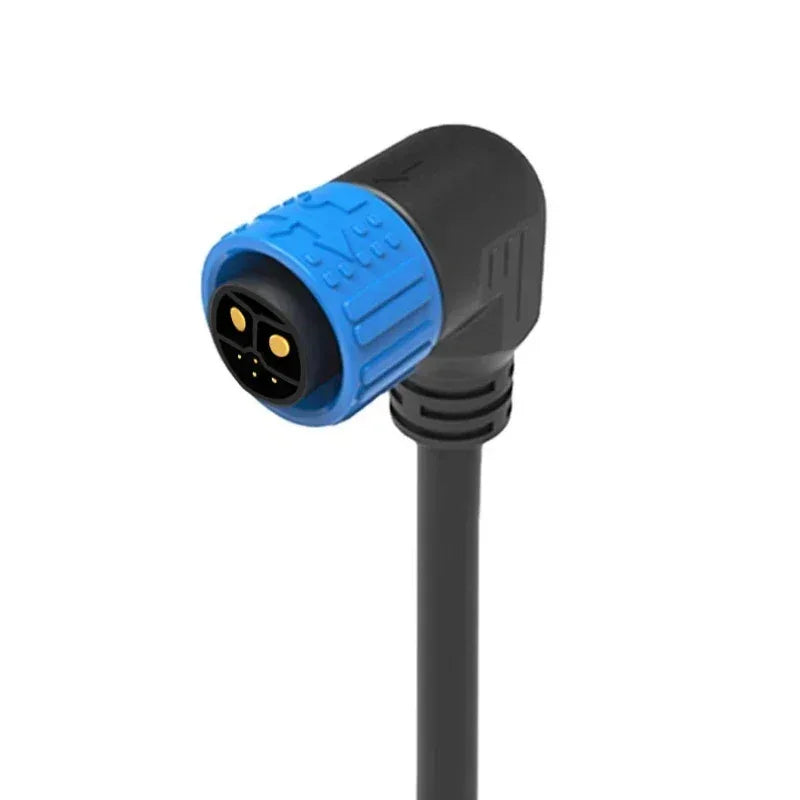

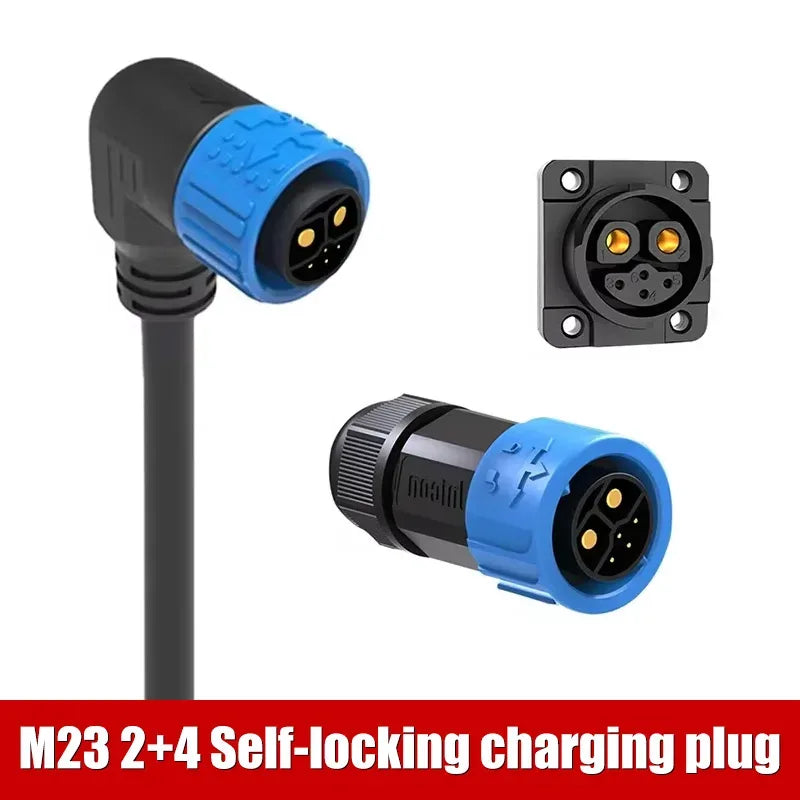

Name: 2+4 Pin Battery connector

Number of cores: 6 pin

Origin: Mainland China

Rated current: 50A/5A

Rated voltage: 500V/60V

Shell Material: PA66

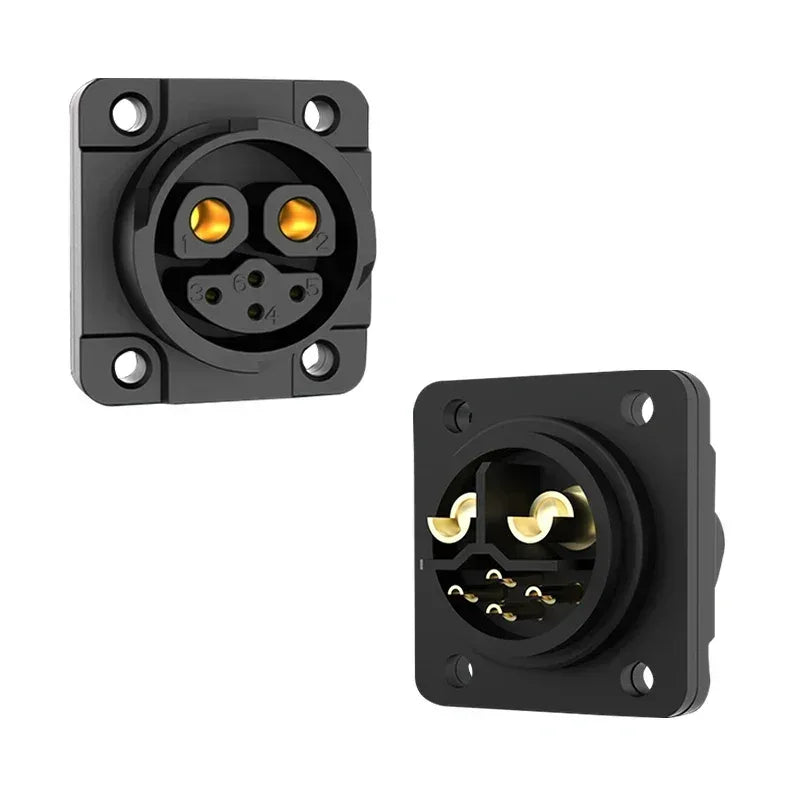

Type: Panel installation

Voltage: 24V

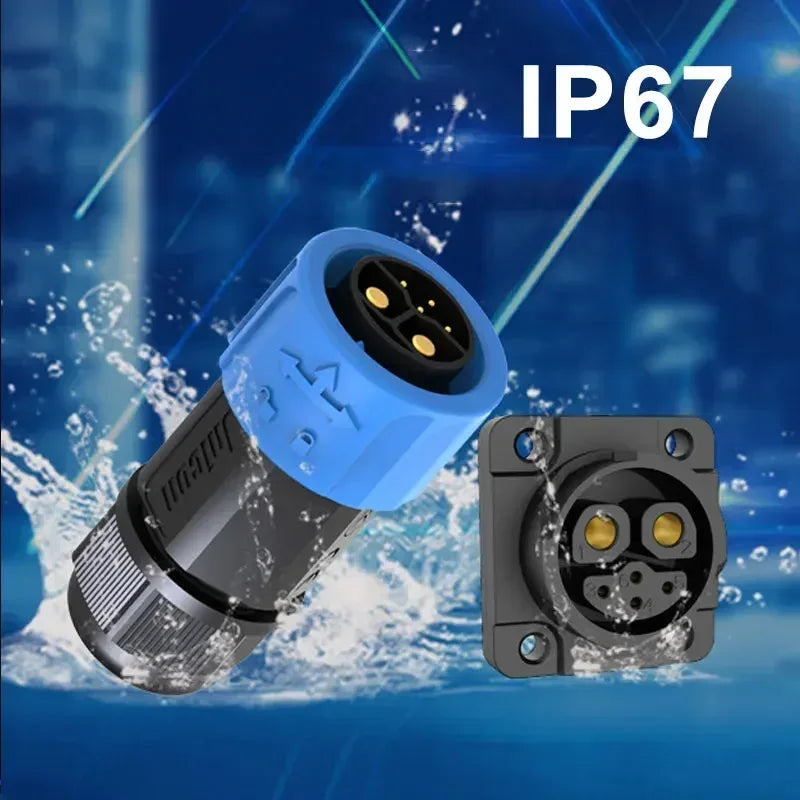

Waterproof level: IP67

Wire gauge: 6-13mm

Withstanding voltage: AC/DC 1500V

semi_Choice: yes
