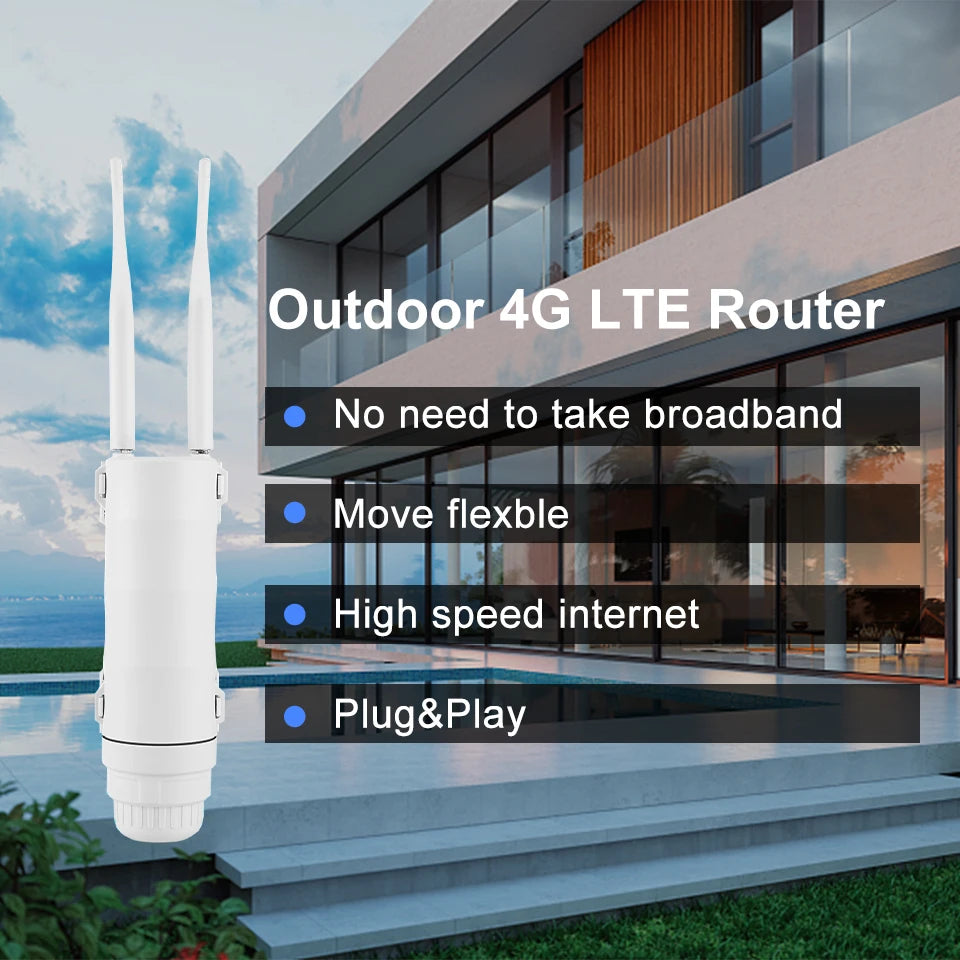

KuWFi 300Mbps Outdoor LTE Router CAT4 4G Router Wireless Wi-Fi Detachable External Antenna WAN LAN Port Support 24V POE 64 Users
KuWFi 300Mbps Outdoor LTE Router CAT4 4G Router Wireless Wi-Fi Detachable External Antenna WAN LAN Port Support 24V POE 64 Users
Couldn't load pickup availability
SPECIFICATIONS
2.4G Wi-Fi Transmission Rate: 300 Mbps
5G Wi-Fi Transmission Rate: None
Antenna Type: Fixed
Application: Outdoor
Brand Name: KuWFi
Certification: None
Choice: yes
Frequency: 2.4 GHz
Frequency Band Class: Single-Band
Function: Firewall
High-concerned chemical: None
LAN Ports: 1
Max. LAN Data Rate: 300Mbps
Number of USB Interfaces: None
Origin: Mainland China
Package: Yes
Recommended Uses: Home
Standards And Protocols: Wi-Fi 802.11g,Wi-Fi 802.11b,Wi-Fi 802.11n
Support Mesh: Not Supported
Supports WDS: No
Supports WPS: No
Type: WireLess
WAN Ports: 1 x10/100Mbps
Wi-Fi Supported Frequency: 2.4G
Wi-Fi Transmission Standard: 802.11b
Wired Transfer Rate: 10/100Mbps
Wireless Communication Standard: 802.11.n
Wireless transmission rate: 300m
With Modem Function: Yes
semi_Choice: yes
FAQ:

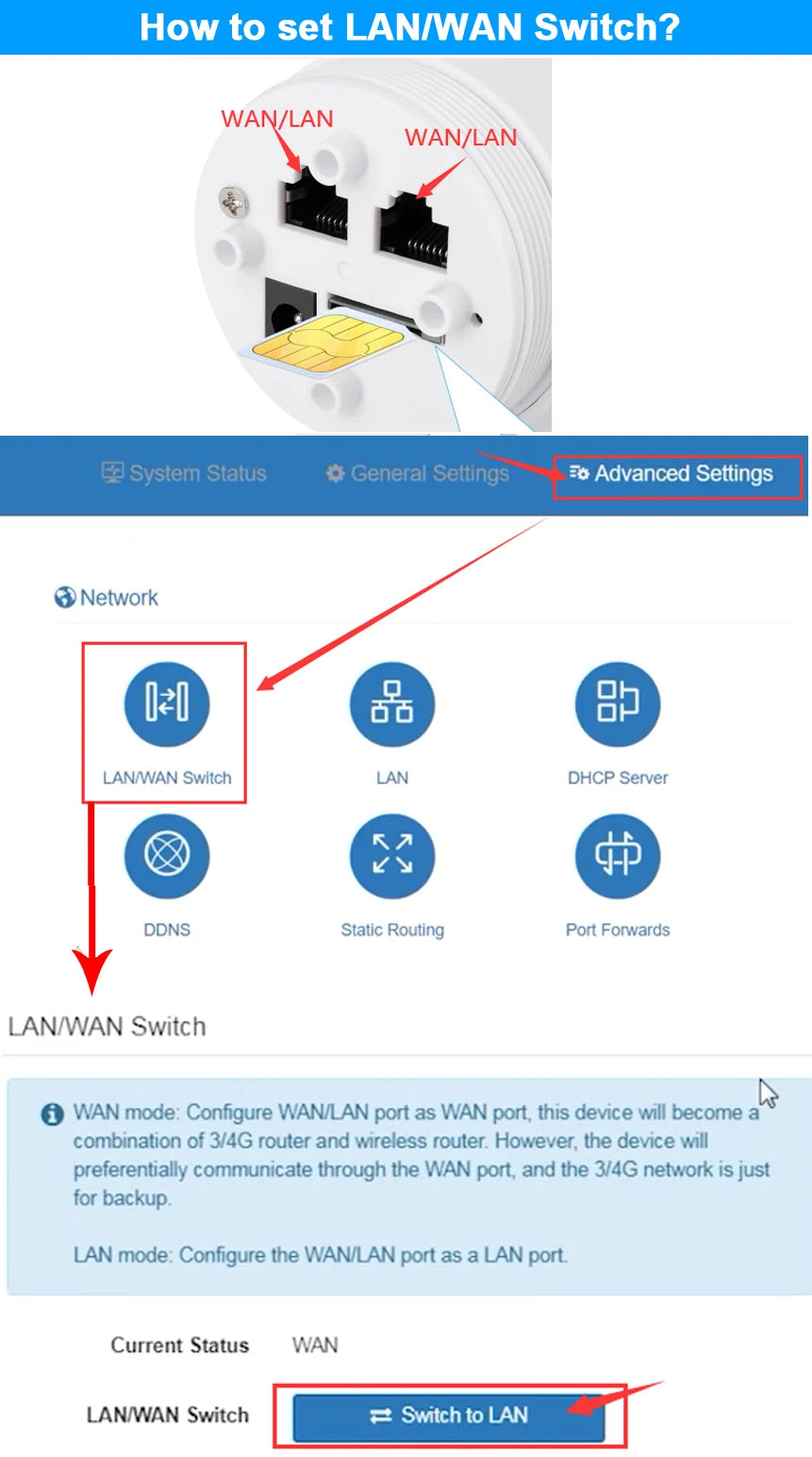

Q1: How to provide network to other devices through LAN interface?

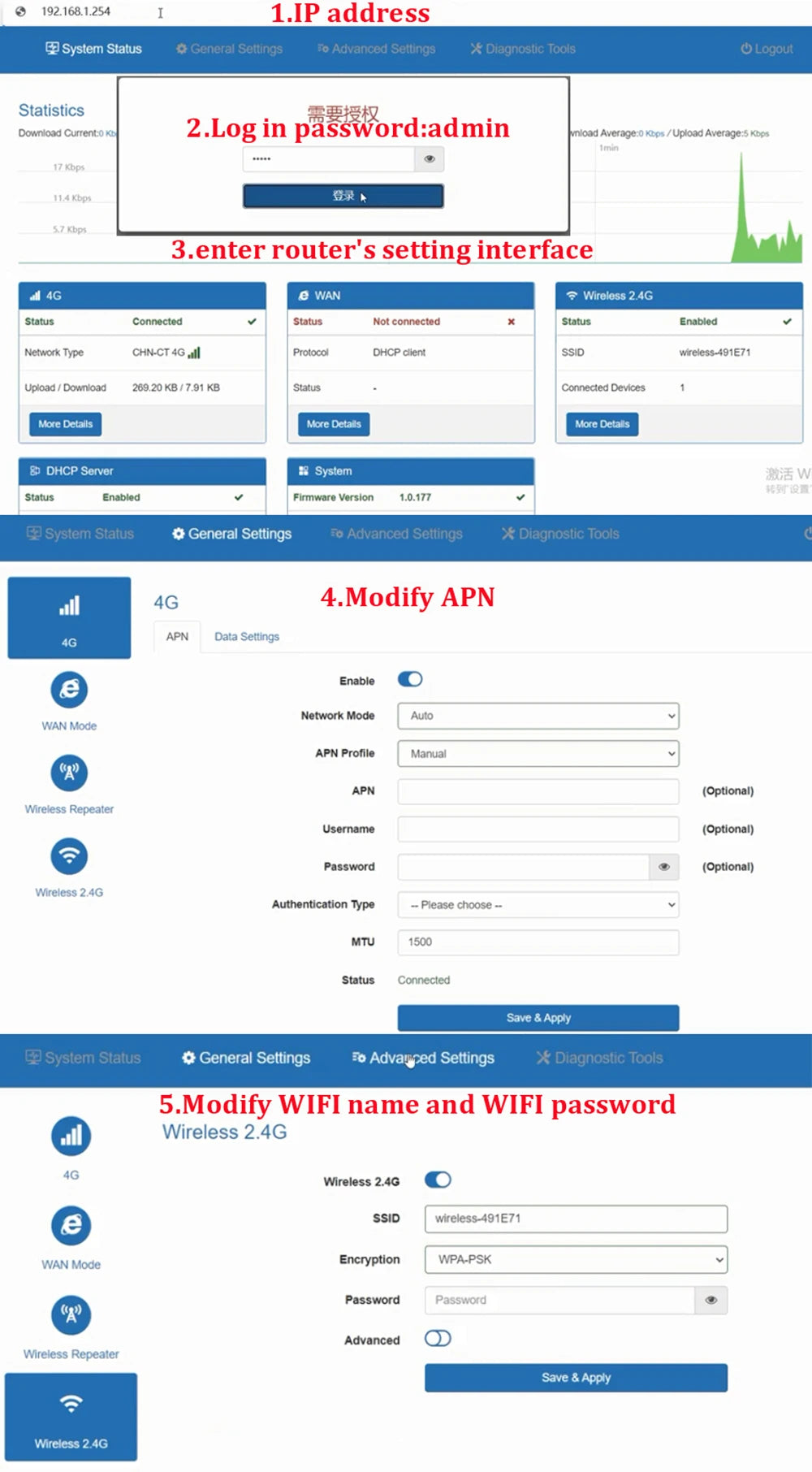

A1: Users need to log in to the WEB UI to switch WAN/LAN functions. As shown in the following picture.
Frequency Band:

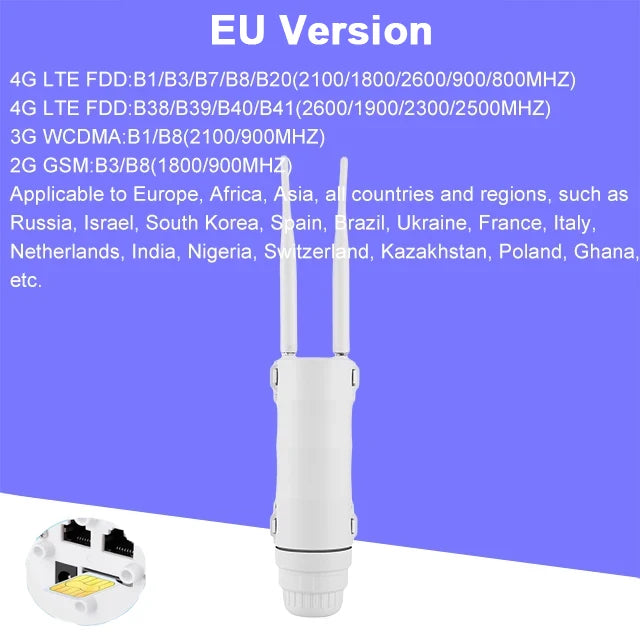

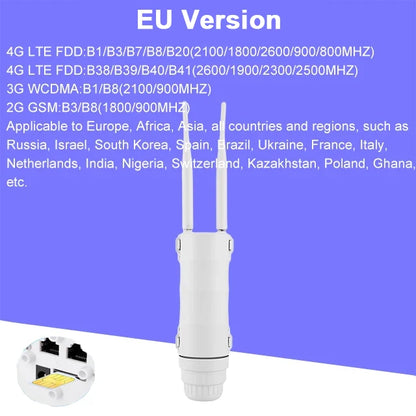

EU Version:
4G LTE FDD:B1/B3/B7/B8/B20(2100/1800/2600/900/800MHZ)
4G LTE FDD:B38/B39/B40/B41(2600/1900/2300/2500MHZ)
3G WCDMA:B1/B8(2100/900MHZ)
2G GSM:B3/B8(1800/900MHZ)
Applicable to Europe, Africa, Asia, all countries and regions, such as Russia, Israel, South Korea, Spain, Brazil, Ukraine, France, Italy, Netherlands, India, Nigeria, Switzerland, Kazakhstan, Poland, Ghana, etc.

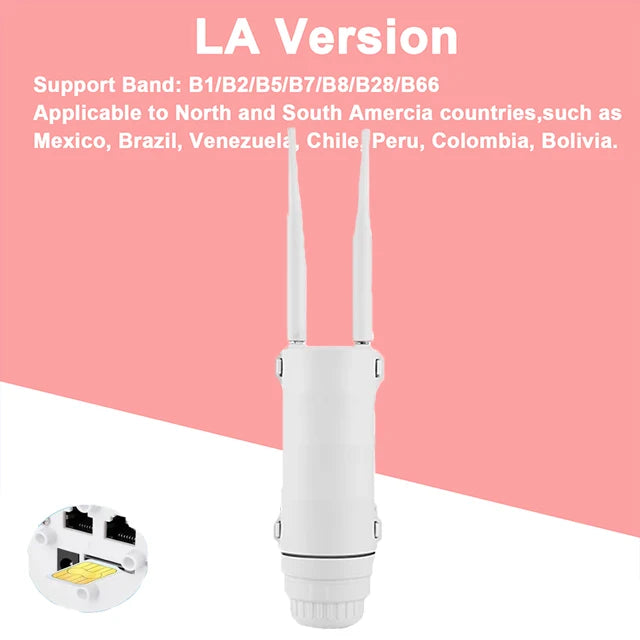

LA Version:
Support Band: B1/B2/B5/B7/B8/B28/B66
Applicable to North and South Amercia countries,such as Mexico, Brazil, Venezuela, Chile, Peru, Colombia,
Bolivia.
This router is unlcoked. But different operators have different frequency bands in different countries.
If you don't know the 4G frequency band used in your country/region, please check on the following website:
web: https://en.wikipedia.org/wiki/List_of_LTE_networks
Overview:
Outdoor 4G router designed for WIFI users to get access to internet via 3g/4g sim card. It is used to supply internet access to indoor &outdoor WiFi coverage and monitor camera project
Features:
CAT4 4G Router:
Once you have inserted the SIM card and configured the APN information correctly, the device will be able to access the internet.4G network with the fastest download speed of up to 150Mbps and upload speed of up to 50Mbps.

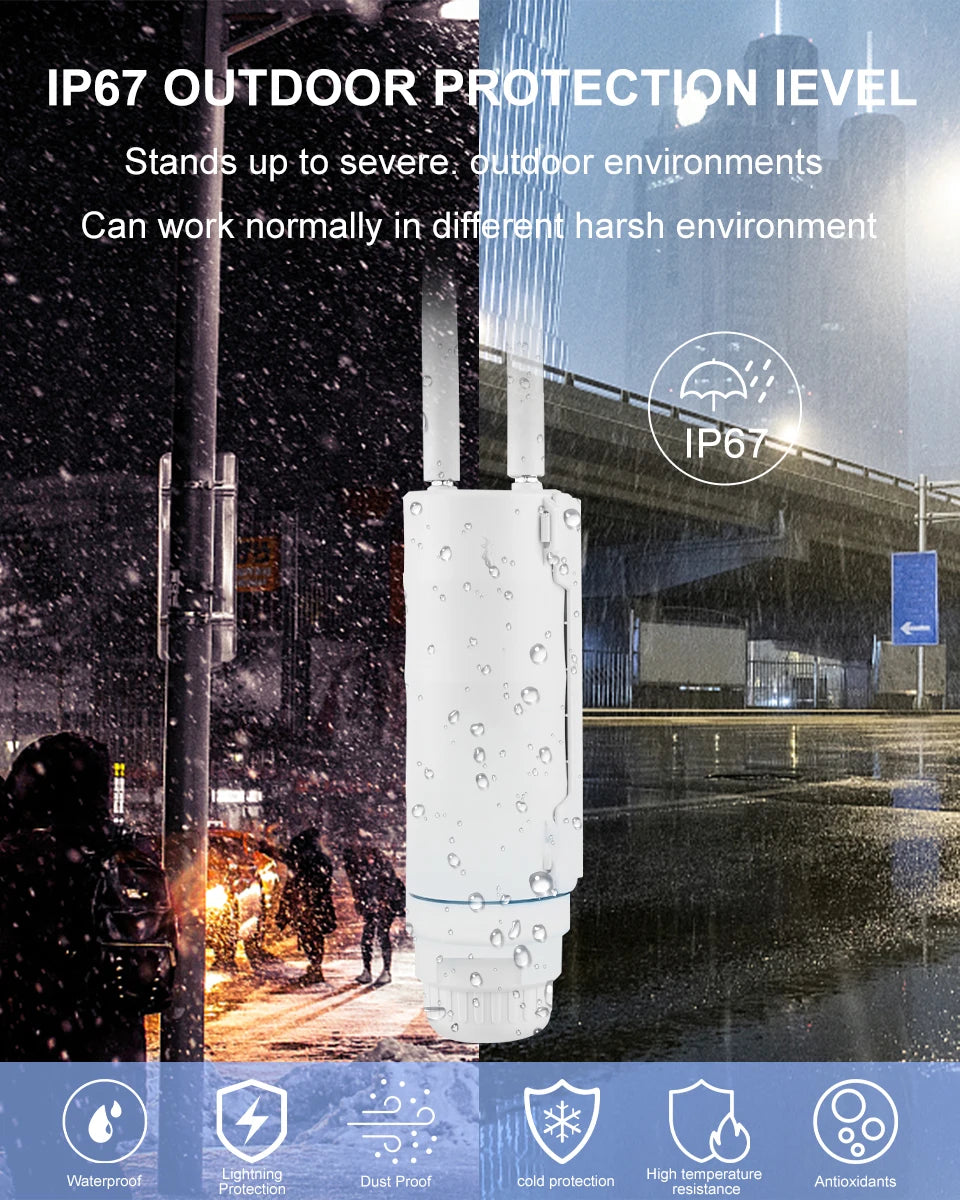

IP67 grade three-proof design:
It adopts three-proof design, and has good heat dissipation function, which can adapt to various thunderstorms, snow and other harsh weather.
Wired network, 4G wifi optional:
Whether it is 4G network or wired broadband, the router can connect to the network as needed, so that you can surf the Internet without worry and enjoy broadband life anytime, anywhere.

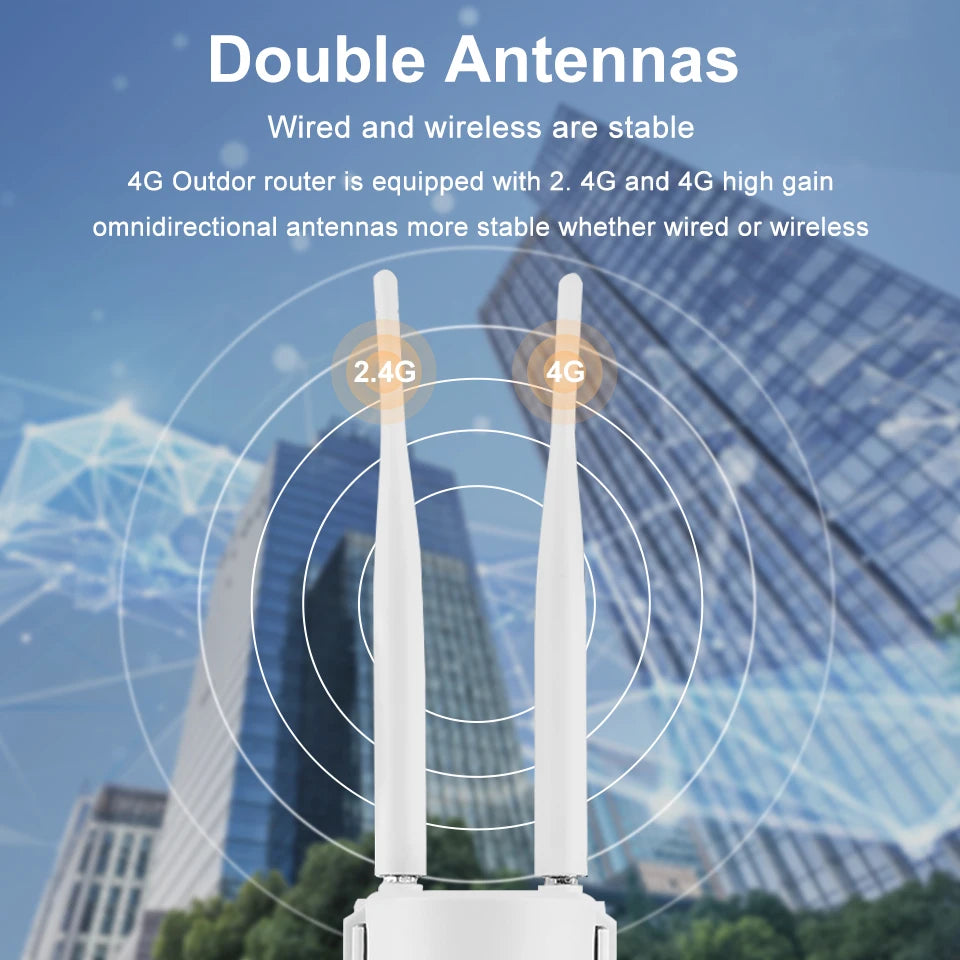

Dual antenna high speed:
2.4G Internal 5dBi x 2PCS,4G external 5dBi x 2PCS, Internal LTE diversity antenna. Wi-Fi Transfer rate：UP to 300Mbps. Support LED indicator.
Outdoor wifi distance :
10-100M （Outdoor accessibility）,support max 64 wifi user at the same time.
Specification:
- Flash/RAM/:8/64M
- Wi-Fi：IEEE 802.11b/g/n
- Wi-Fi Transfer rate：UP to 150Mbps
- Encryption：Wi-Fi Protected Access (WPA/WPA2)2
- Customization：Smart system,high-level；Customization possibility
- LED：LED indicator
Interface type
Wan: 1 x 10/100 Mbps wan port(RJ45)
Lan: 1 x 10/100 Mbps Ethernet port(RJ45)
Antenna: 1*wifi antenna ,1*4G antenna
Power: POE, through RJ45 port
Reset: Restore the router to its original factory default setting
Speed(CAT4)
FDD - LTE Downlink：150Mbps， Uplink：50Mbps
TDD-LTE: Downlink：150Mbps， Uplink：50Mbps
HSPA+: 42Mbps(download speed) 5.76Mbps(upload speed)
HSUPA: 5.76Mbps (upload speed)/ HSDPA: 7.2Mbps(download speed)
UMTS:384Kbps (download speed/upload speed)
Package Included:
1x Outdoor 4G LTE Router
2x Antenna
1x 24V/0.5A POE Power Adapter
1x RJ45 Cable
1x User Manual

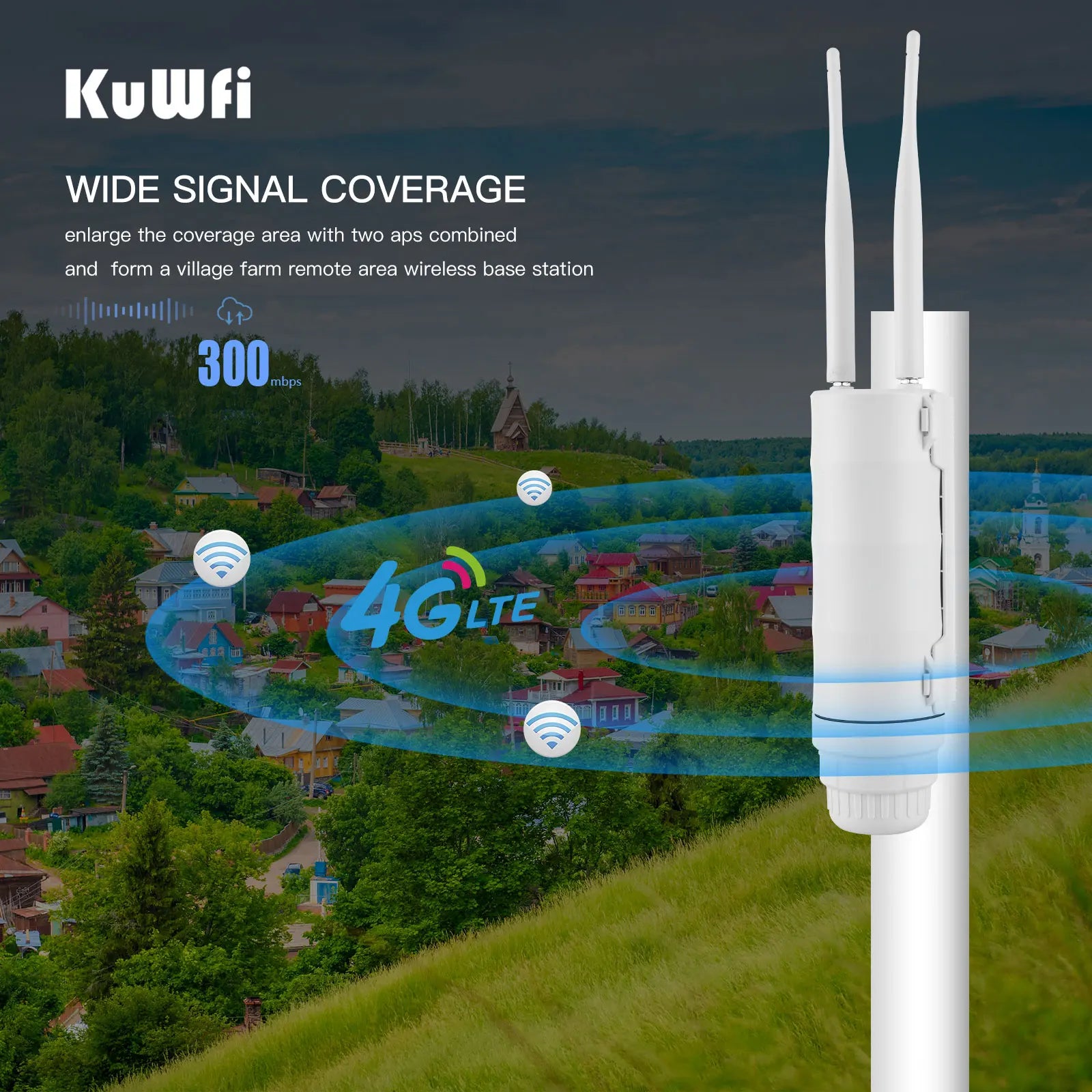

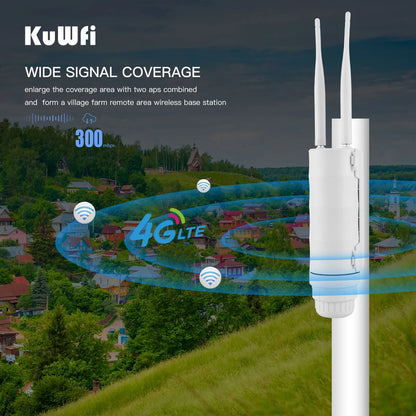

Wide Signal Coverage

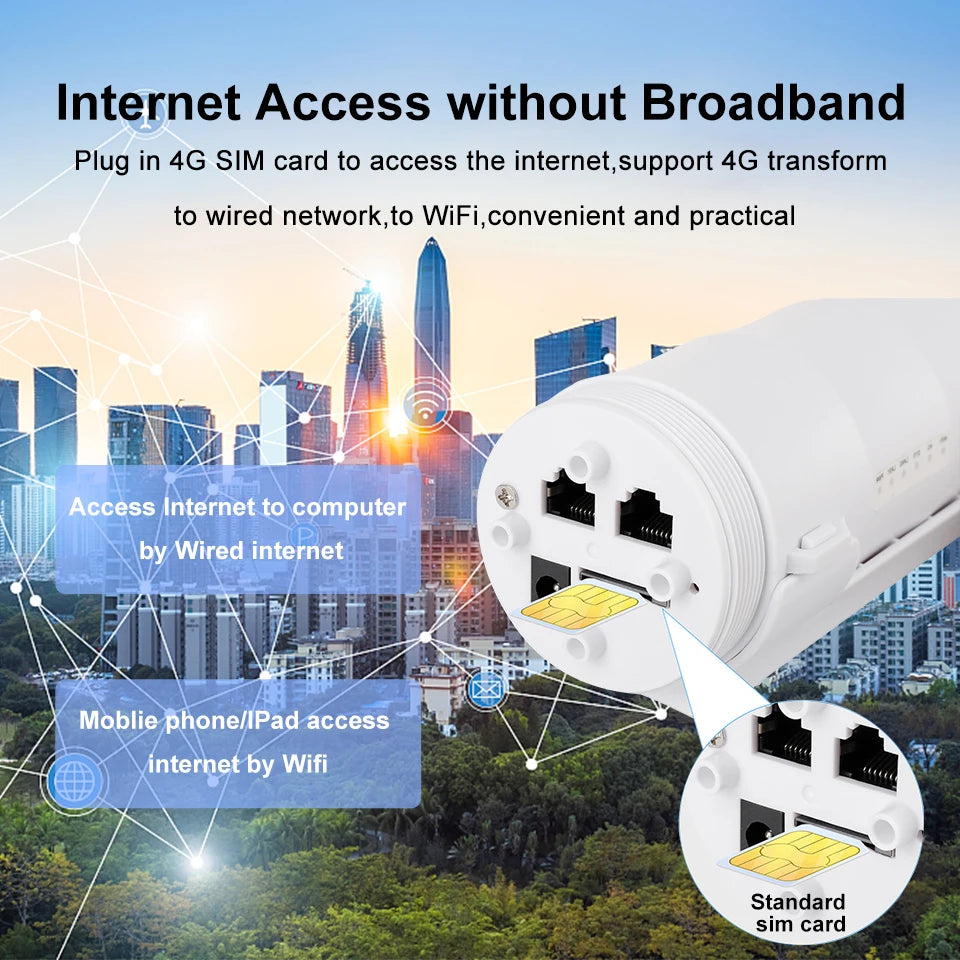

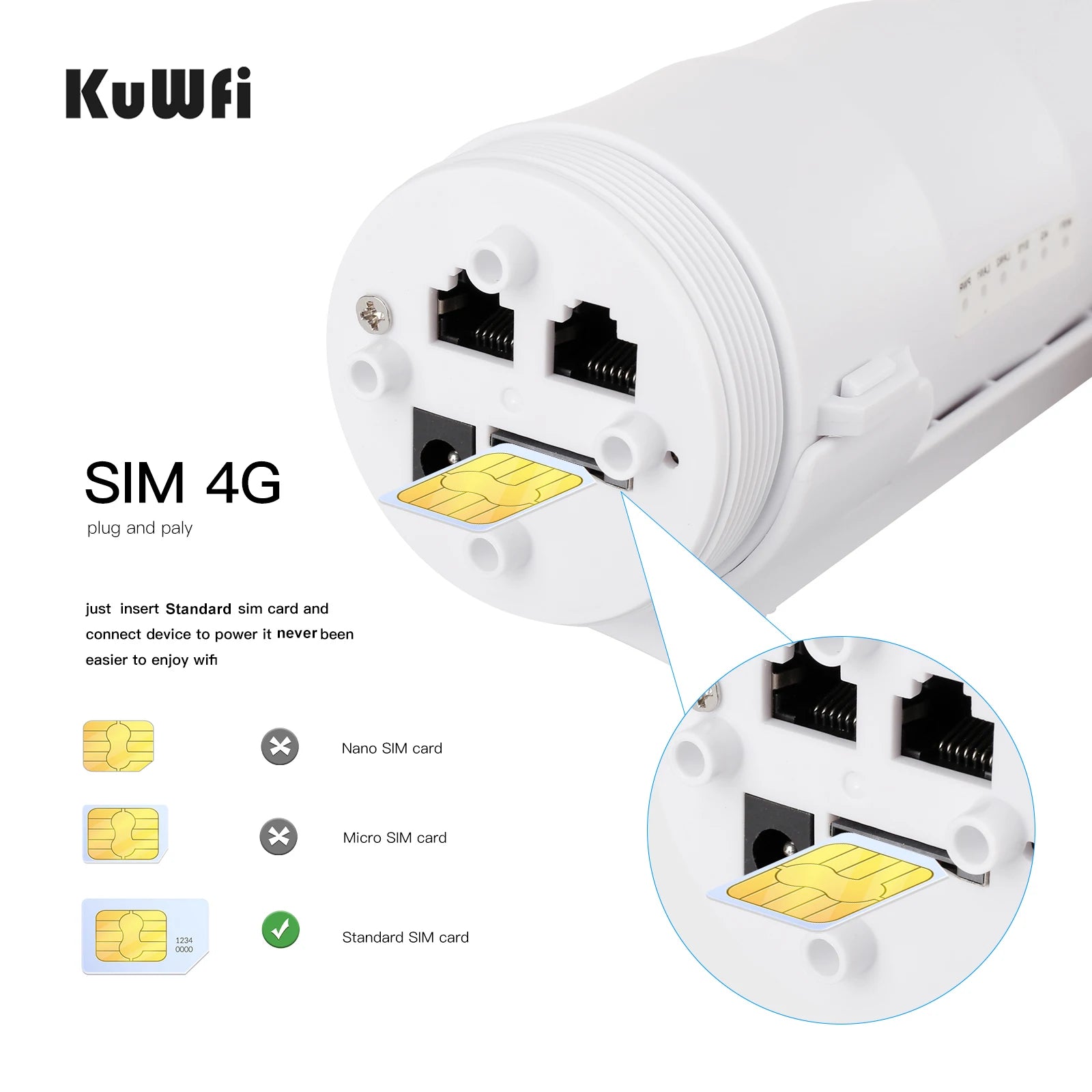

Support Standard Sim Card, Plug and Play

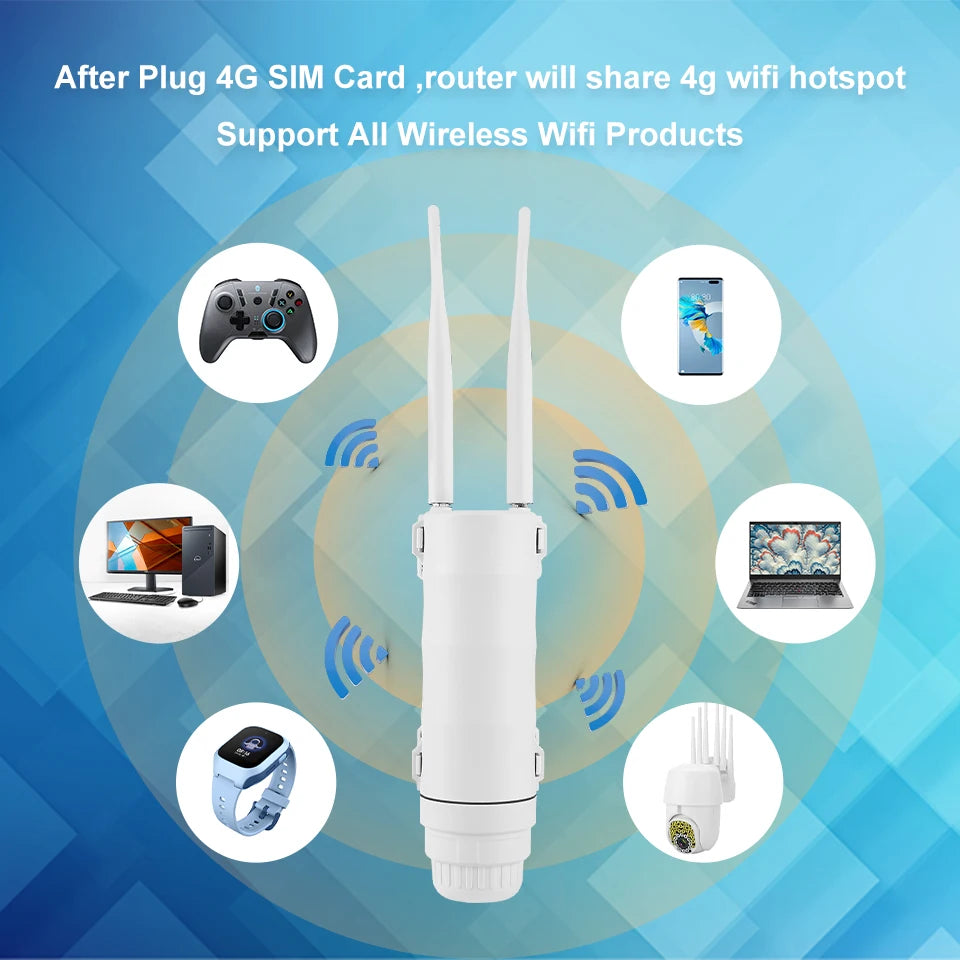

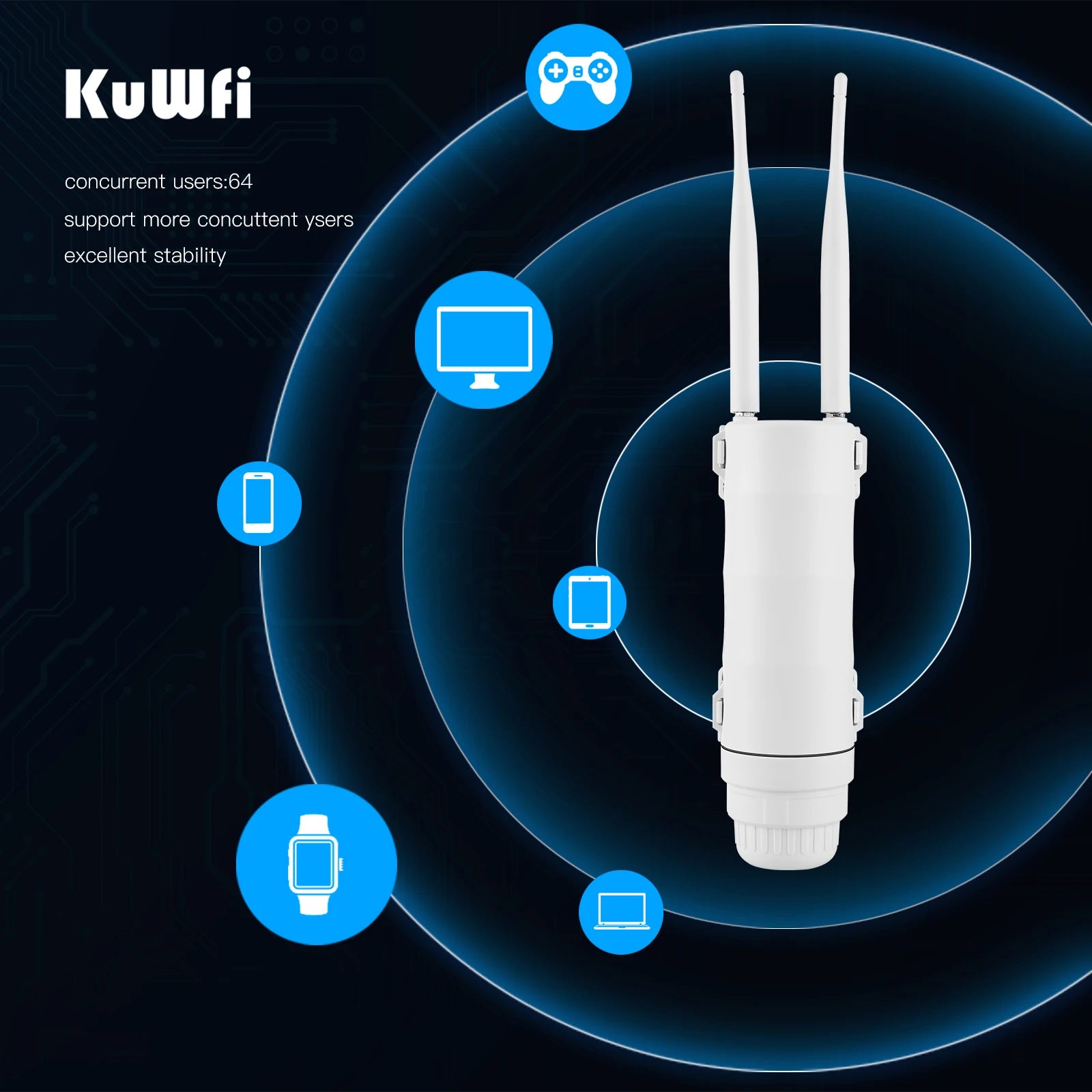

Support Max.64 WiFi Users at the Same Time

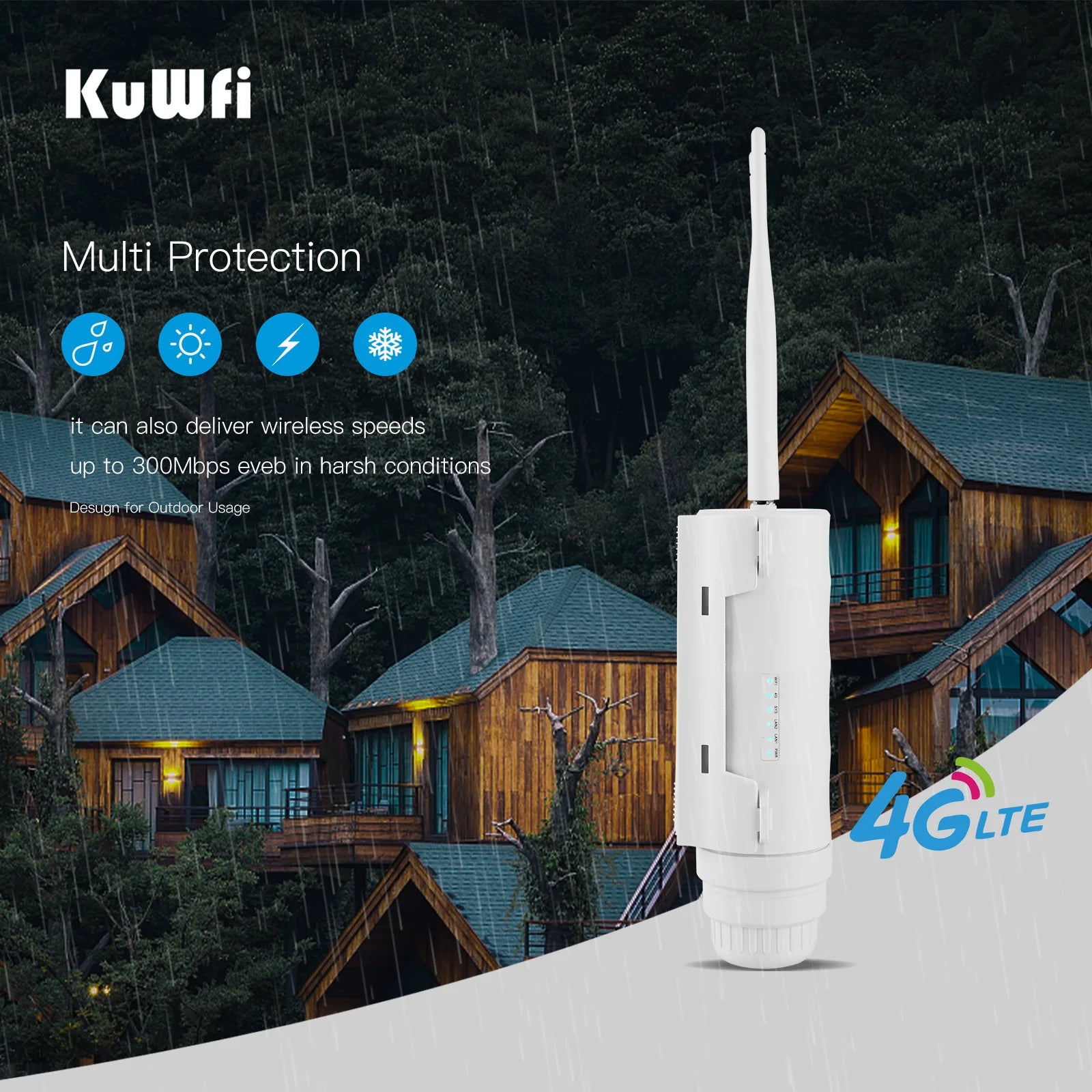

Multi Protection, Design for Outdoor Usage

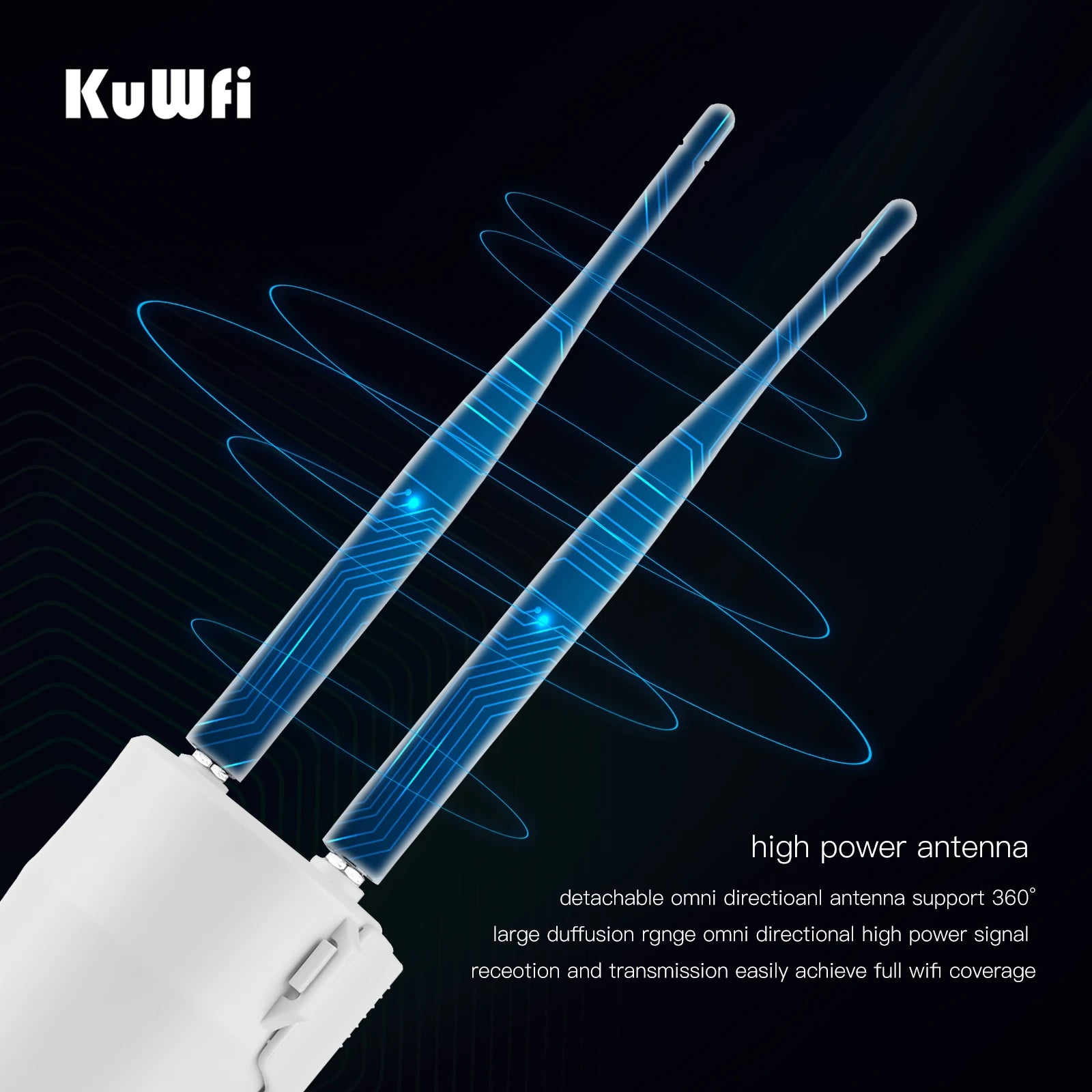

High Power Antenna

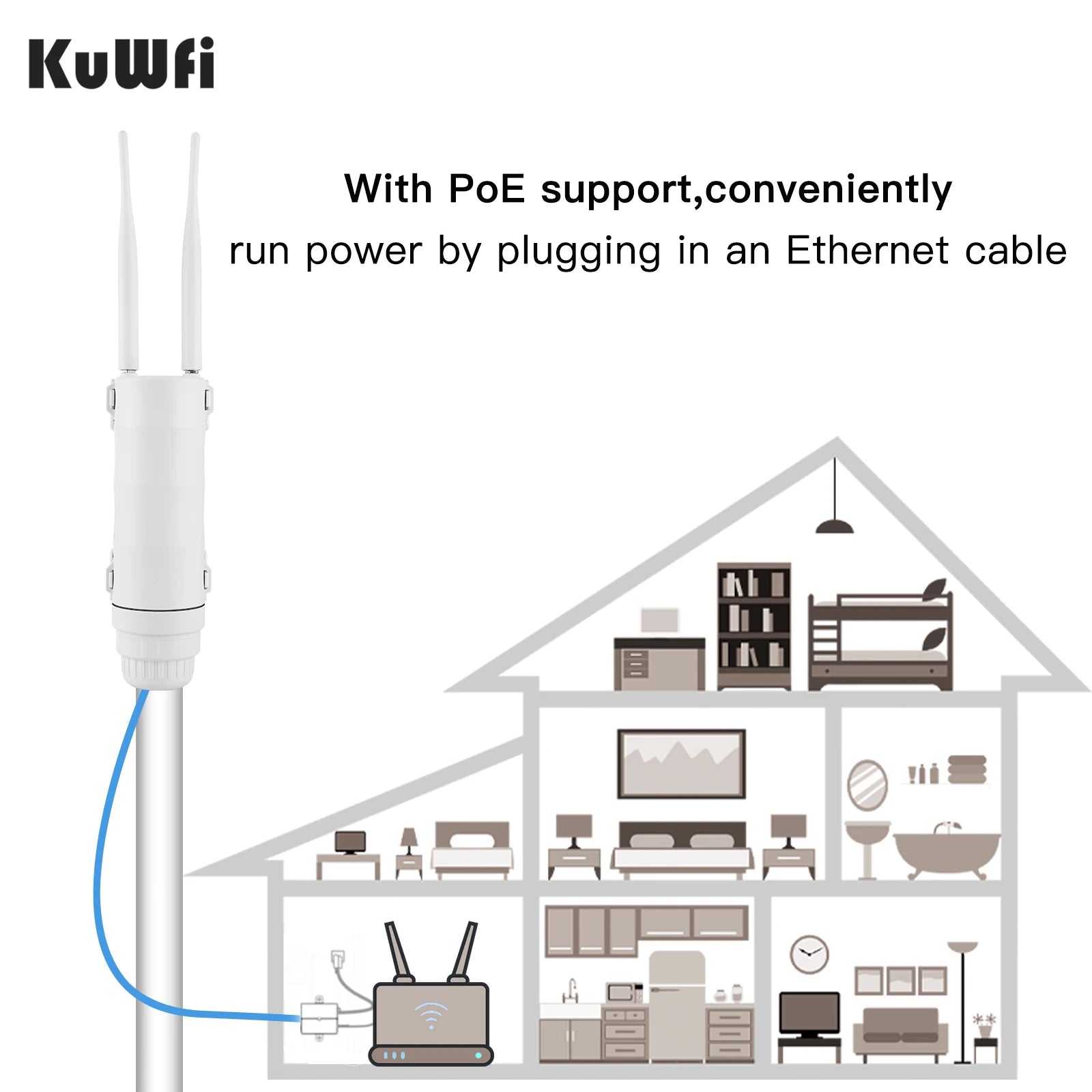

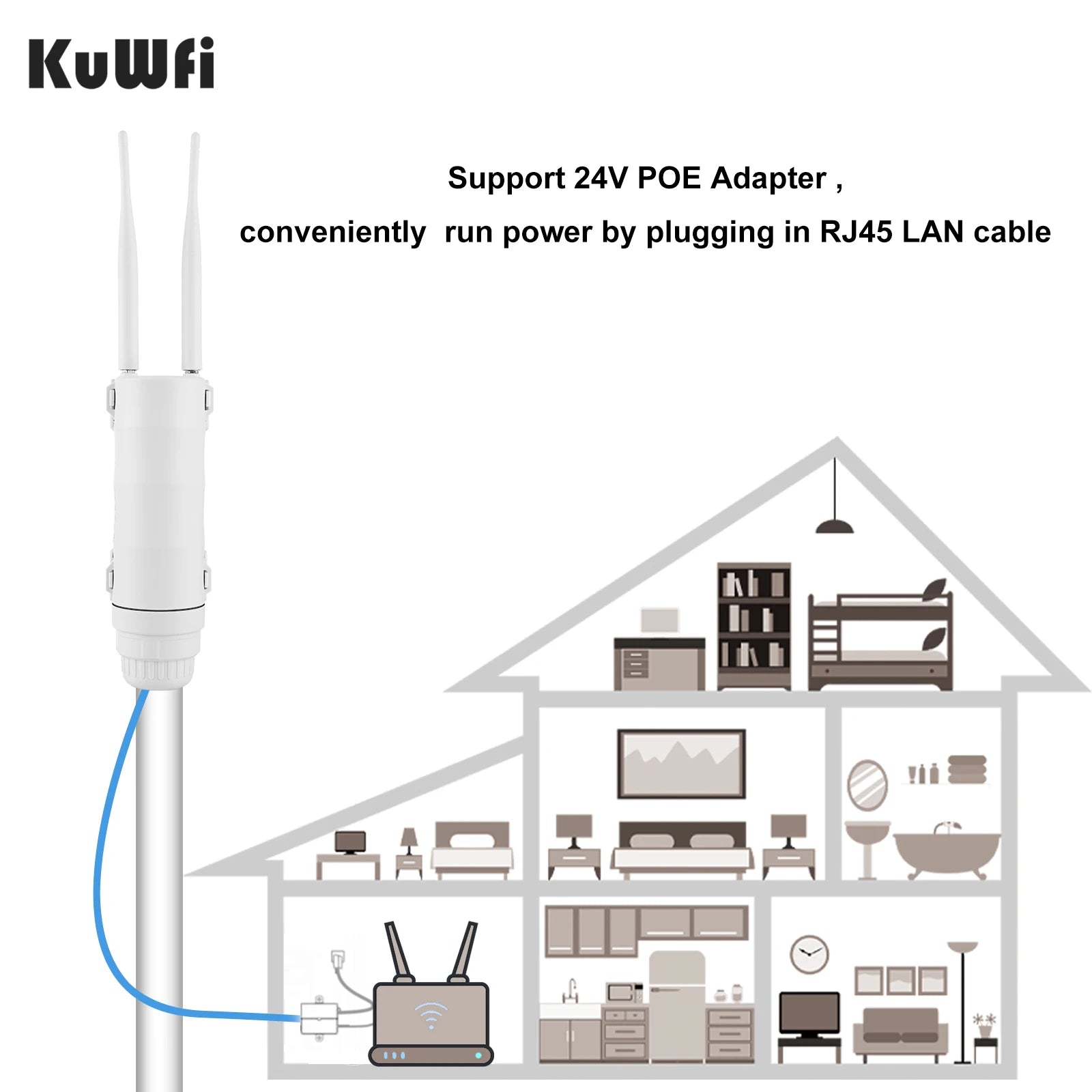

Support POE, Easy to Use with RJ45 Cable

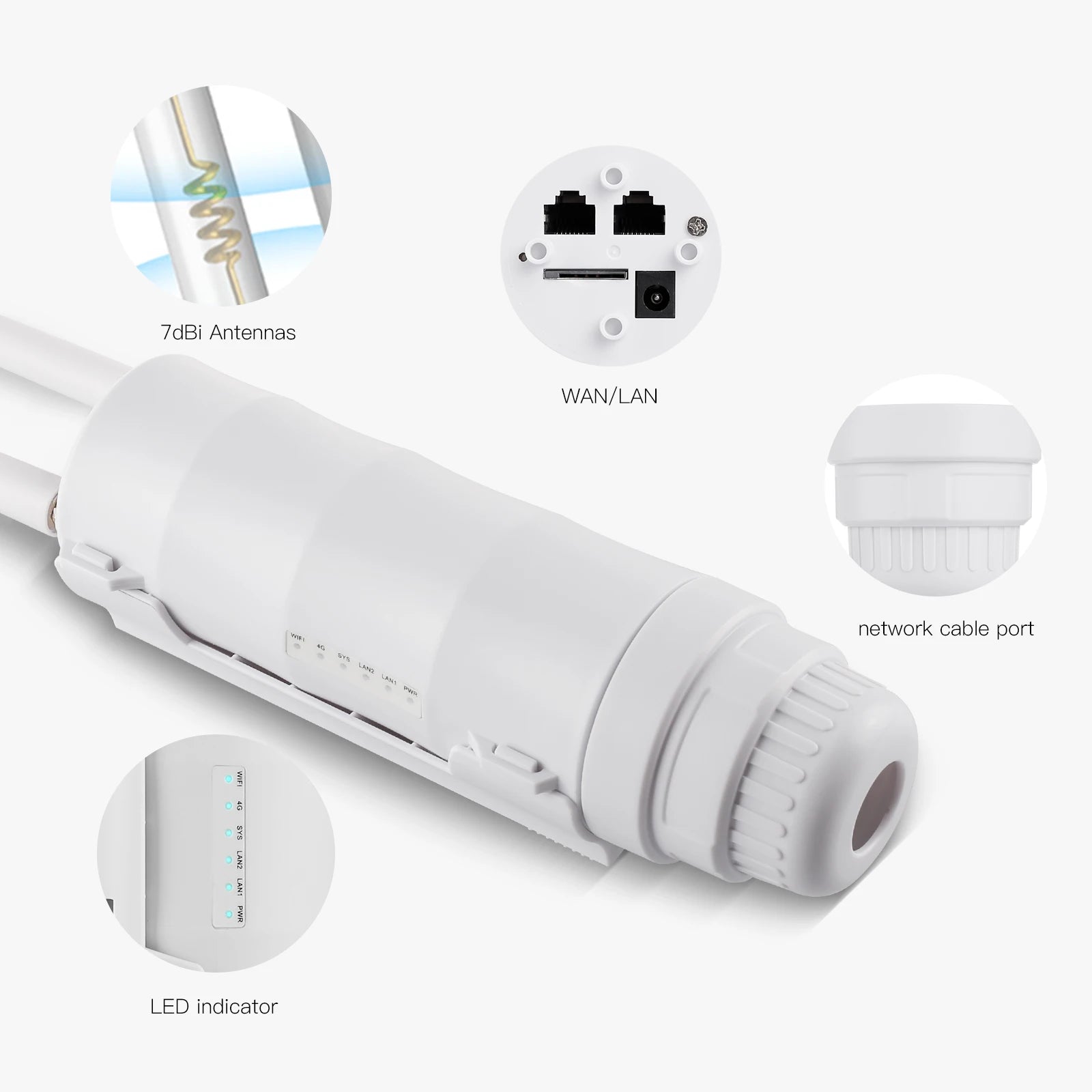

Interfaces, Antennas and Indicators

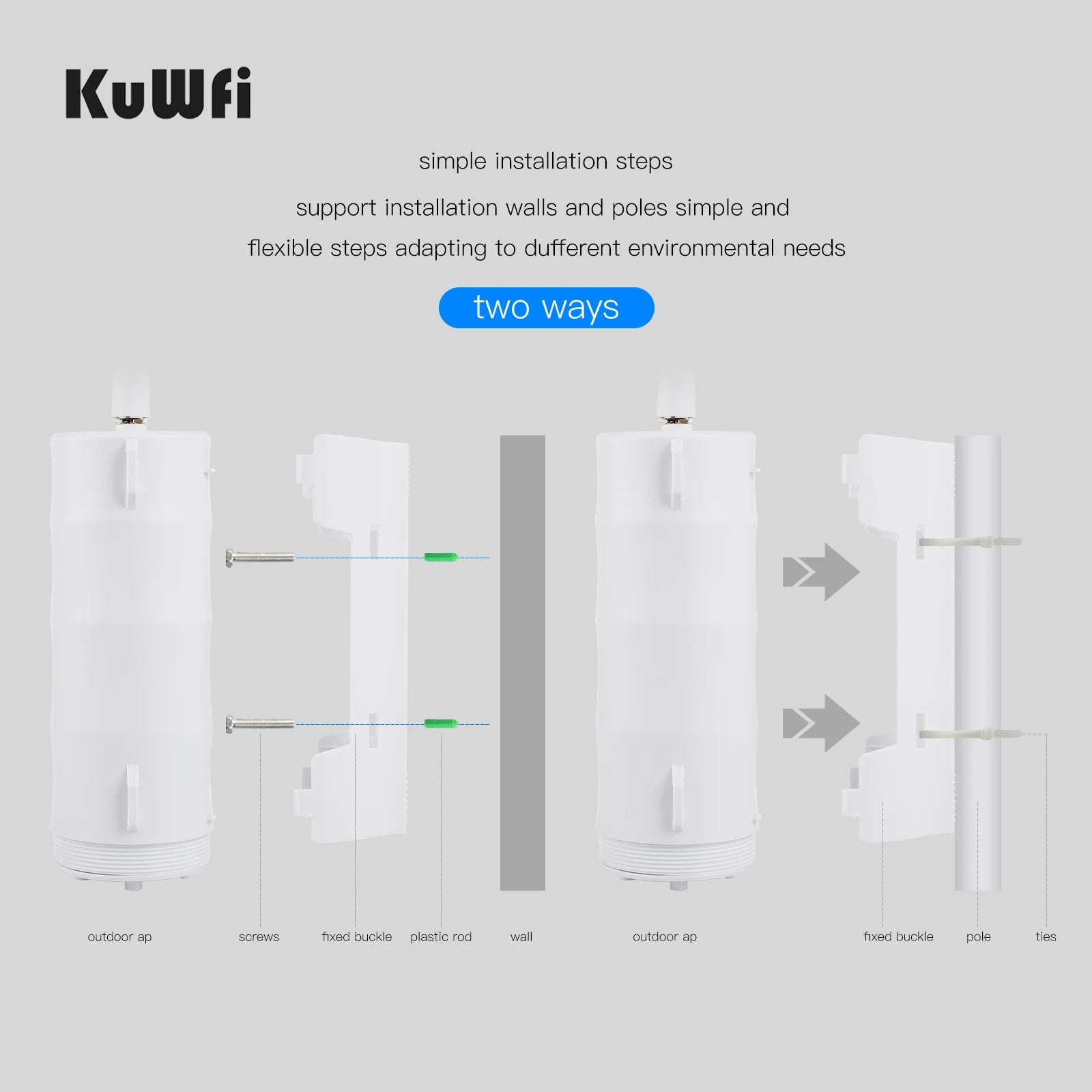

Two Installation Steps

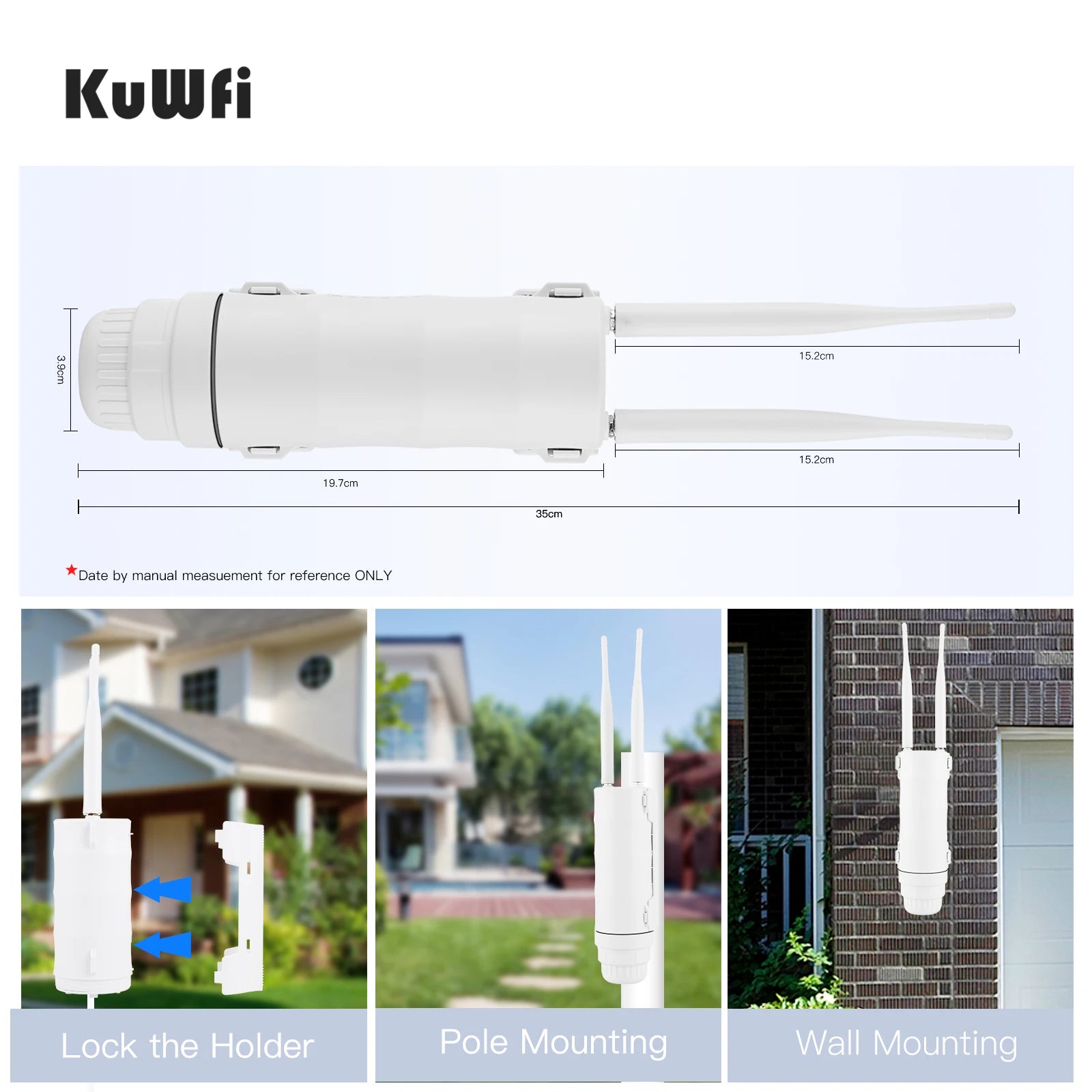

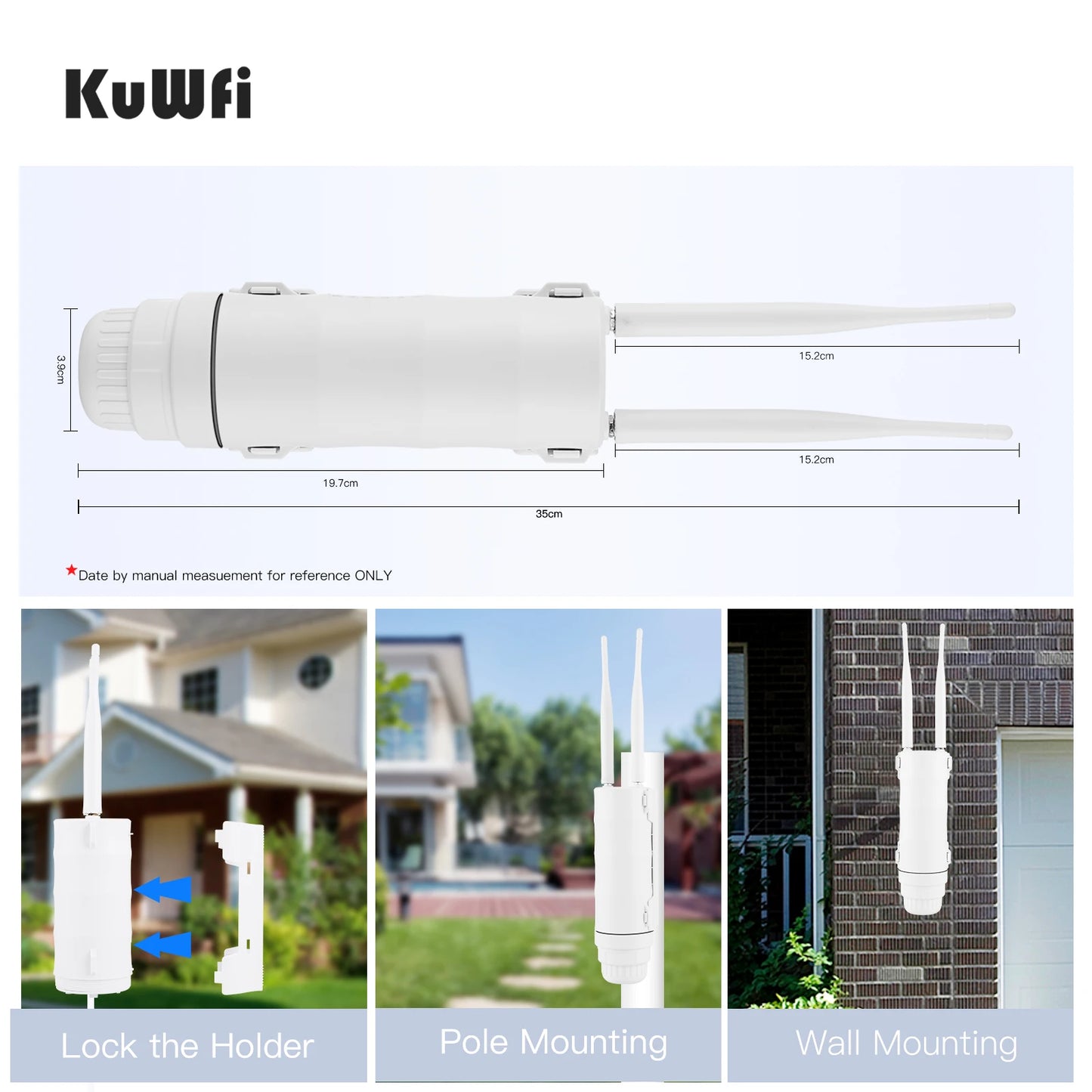

Size and Installation Display

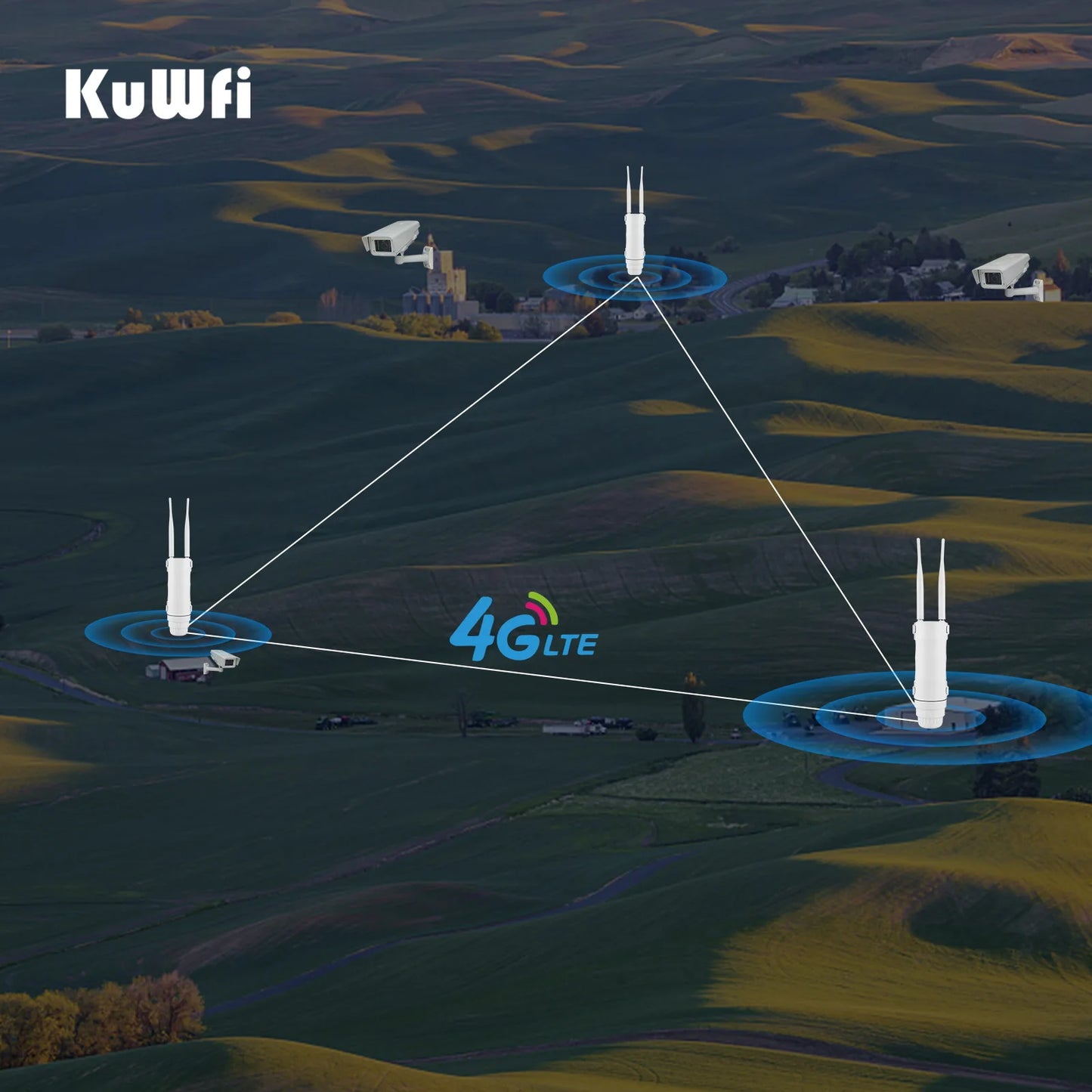

Mesh WiFi Installation Example

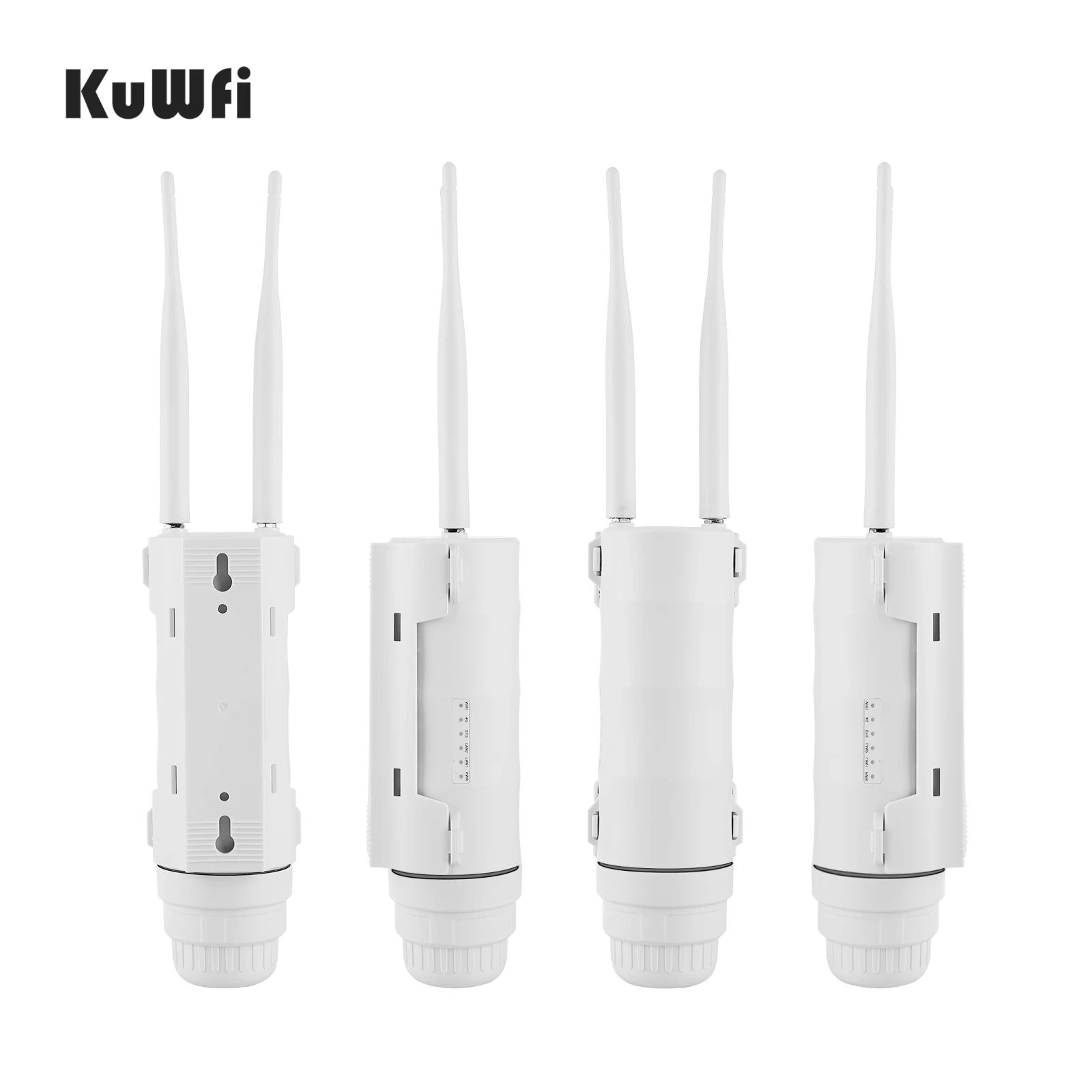

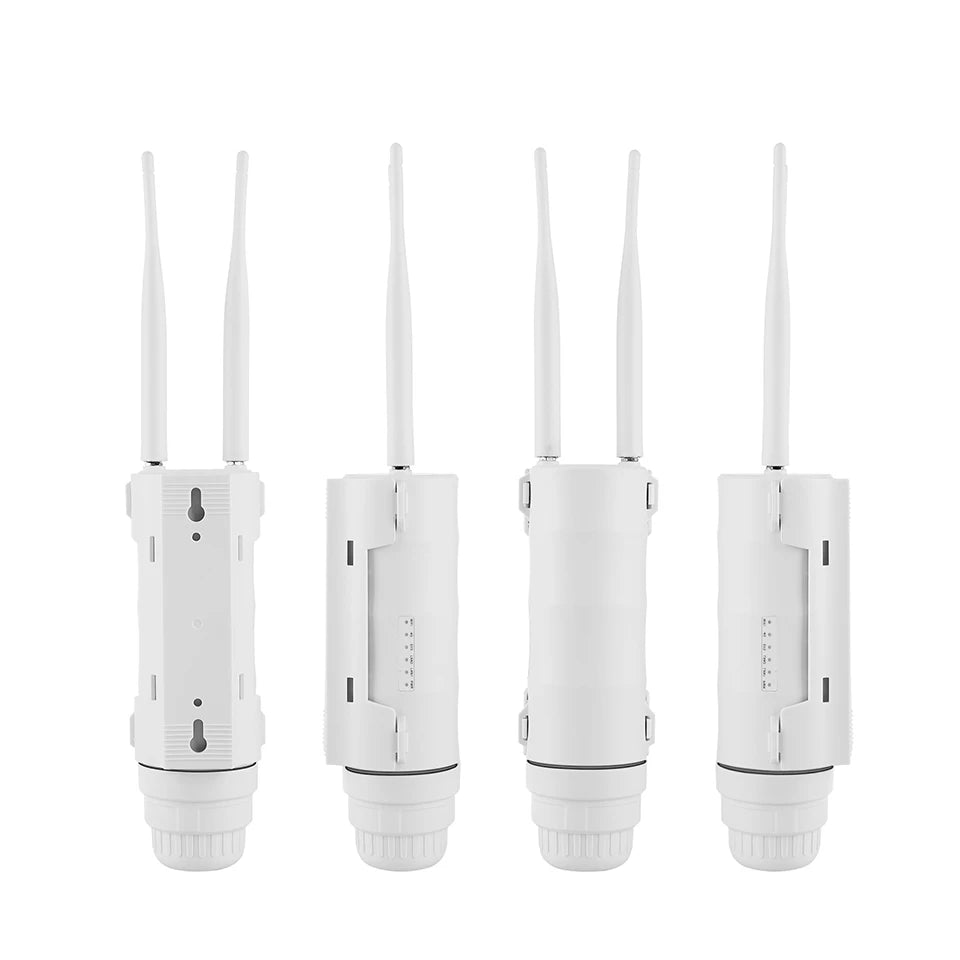

Product Display from Different Angles
