JIT RD RD6012PW DC DC Digital Control Variable Step Down 60V 12A Converter Adjustable Power Supply Battery Charging Device

CFA51,471 XOF

~~CFA0 XOF~~ CFA51,471 XOF

Sale Produits stock

Shipping calculated at checkout.

Output Power 0-720W

SPECIFICATIONS

Application: Industry,Laboratory

Brand Name: RD

Efficiency: 95%

Input Voltage: 7-70V DC

Model Number: RD6012PW

Output Current: 0-12A

Output Current accuracy: ±(1‰+6 digits)

Output Frequency: no

Output Type: Single

Output Voltage: 0-60V DC

Output Voltage accuracy: ±(0.5‰+4 digits)

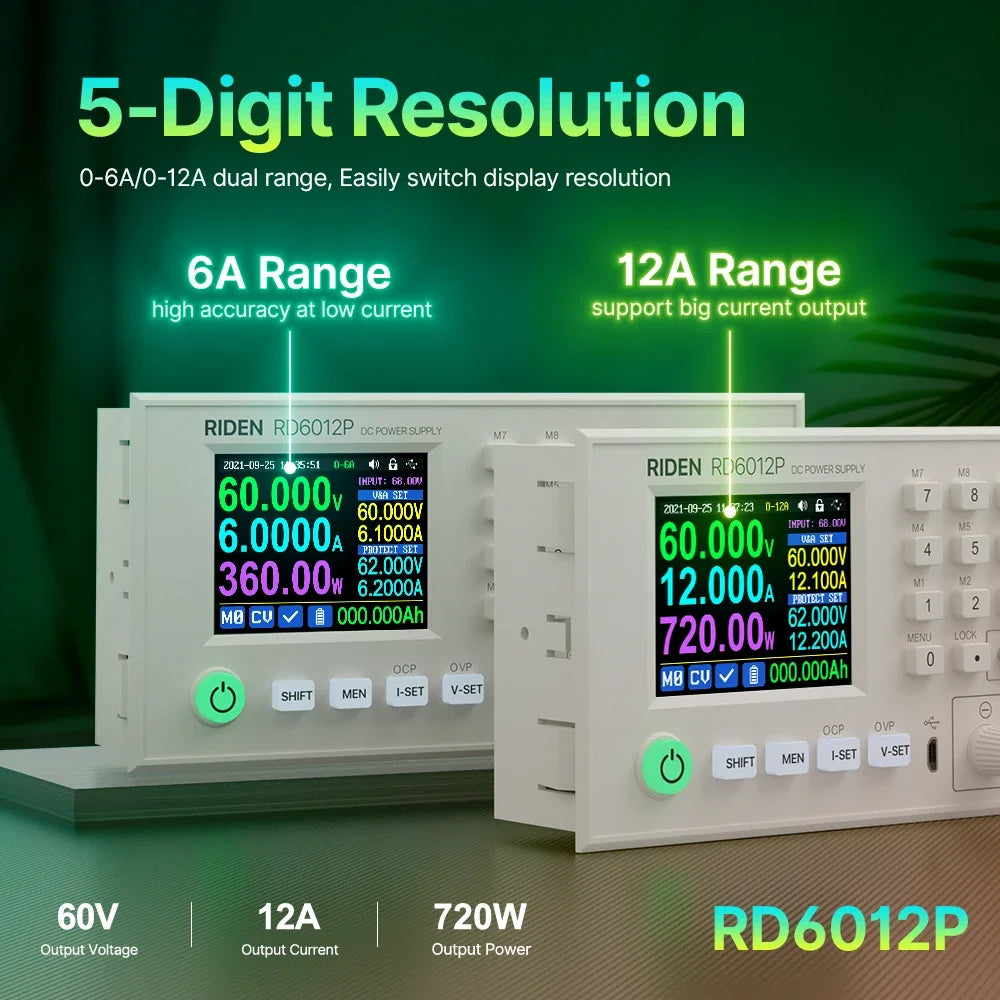

Output current resolution: 0.0001A(6A)/0.001A(12A)

Output voltage resolution: 0.001V

Place of Origin: Zhejiang, China

Product Weight: about 0.66kg(with package)

Product dimension: 167*81*65mm

Protection: Short Circuit Protection,Overcurrent Protection,Overvoltage Protection,Over Temperature Protection

Type: DC-DC

Product Description

RD6012P(W) operation instructon, PC software instruction , APP instruction ,APP and PC software download link:
Main download llink : https://drive.google.com/drive/folders/1NdHp_BiQKGyVf5ahfyhNrGkTcO2AzWC0?usp=sharing

NOTE:

Note before buying:
1,RD6012P series has two versions:RD6012P and RD6012P-W,RD6012P-W have WIFI board , RD6012P don't have . RD6012P-W can use WIFI board to connect APP, also use USB micro cable to connect PC solftware . RD6012P don't have WIFI board, only support PC software by connecting with USB micro cable, no support APP. For wifi board to connect PC software, now it did not support.
Note: WiFi connection is a test function, due to poor compatibility of some computers, if you cannot connect PC software via WiFi, please ignore this function. Forthis function, we do not provide any guarantee and technical support, and we will decide whether to keep this function based on customer feedback.
2, for PC software, it only support win 7 and above for now. For APP, it only support android 5.0 and above.For APP and PC
software, because there may be incompatibilities problems, please download first before buying , if you can download and install, you can make order, or else stop buying. If you don't test the PC software and APP function before buying and find that the products works fine except the PC software or APP, we refuse to refund

3. There is a BACKUP fuse in the RD6012P/RD6012PW box, if you burn the fuse, you can insert the fuse in the socket next to the burned one for temporary use, but the socket can only support under 10A for short time usage, so it is better to remove the damaged fuse and solder the good fuse on the same position.

4. If RD6012PW can connect to the hotspot shared by the mobile phone but cannot connect to the router, you need to shut down the client isolation/ AP isolation and WMM function.

4.RELATED PRODUCT:

There are some models recommended

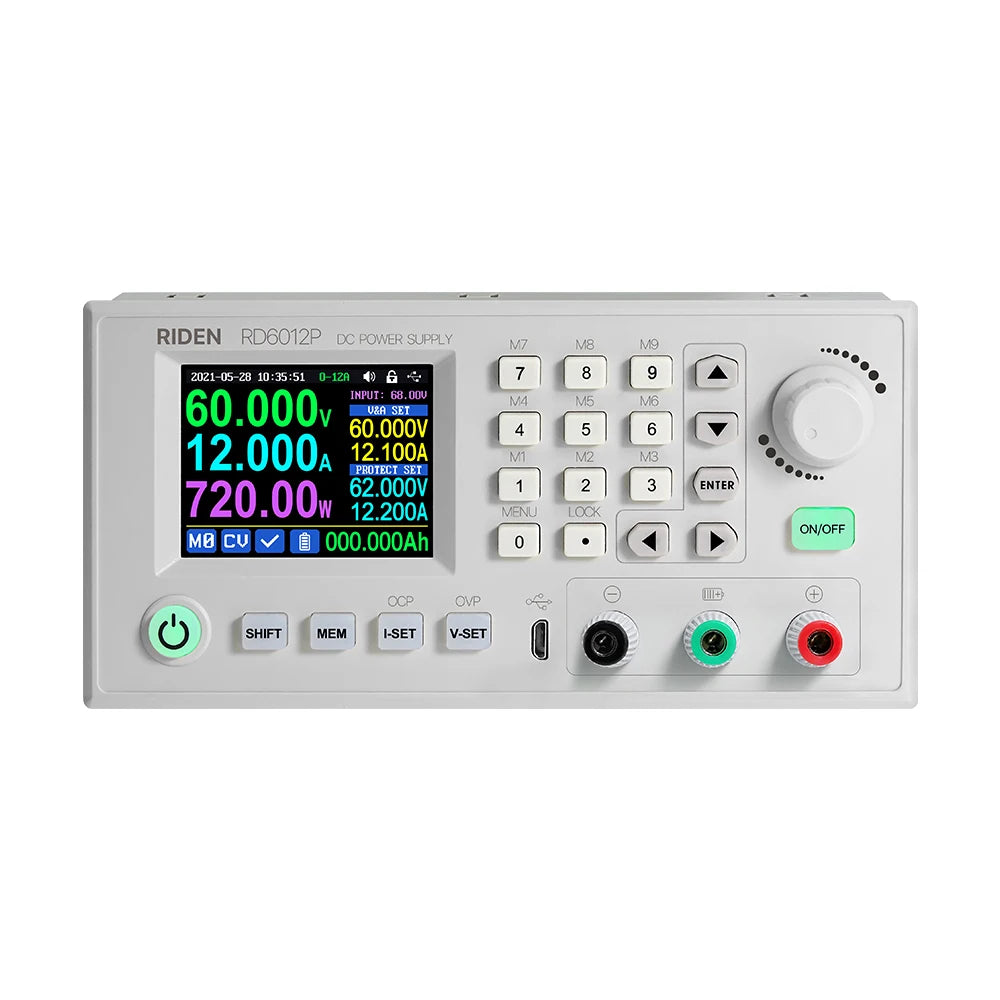

5.PRODUCT DESCRIBTION :

A: Power button	B: SHIFT Second function button
C: Quick storage button	D: Current/Over current protection setting
E: Voltage/Over voltage protection setting	F: Micro USB port
G: Power supply output negative terminal/ Battery charging negative terminal	H: Battery charging positive terminal (Dedicated terminal for battery charging)
I: Power supply output positive terminal	J: Output switch
K: Enter/ Confirm button	L: encoder potentiometer/Cancel button
M: Direction button	N: keypad
O: Screen

AA: Actual output voltage value	AB: Actual output current value
AC: Output power	AD: Current data group
AE: Constant voltage Constant current status	AF: Protection status indication
AG: Battery charging indication	AH: Battery related information display area
AI: Over current protection value	AJ: Over voltage protection value
AK: Output current preset value	AL: Output voltage preset value
AM: Input voltage	AN: Communication interface
AO: Button lock status	AP: Button tune
AQ: Current range	AR: Date time

Feedback

Our Youtube channel RD tech:
https://www.youtube.com/channel/UCy73jJ5-ZqhPzT7wJ6KTIaw

Packing & Delivery

Company informaition

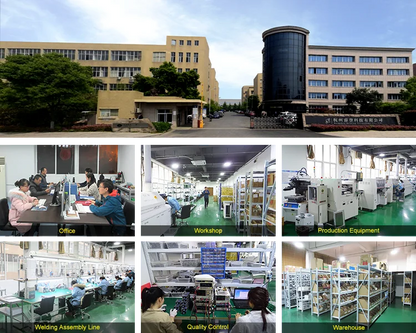

HangZhou RuiDeng Technology Co., Ltd is a professional manufacturer of varied power supply manufacturers, independent research and development, production and sales .
