JBD Smart BMS LiFePo4 12S 36V 16S 48V 20A 40A 50A 60A 80A Li-Ion BMS 10S 13S 14S 16S 17S Balance Protection Board Built-in BT
JBD Smart BMS LiFePo4 12S 36V 16S 48V 20A 40A 50A 60A 80A Li-Ion BMS 10S 13S 14S 16S 17S Balance Protection Board Built-in BT
Couldn't load pickup availability
SPECIFICATIONS
Accessory Type: Battery Accessories
Applicable Battery Type: 3.2v Lifepo4/3.7v Li-ion Battery
Application Field: Power Battery,E-Bike,E-Motorcycle
BT Function: Built inside BT
Balance Function: Common port with balance
Balance Model: Charge/Static equalization
Balance Wires: Yes and Free

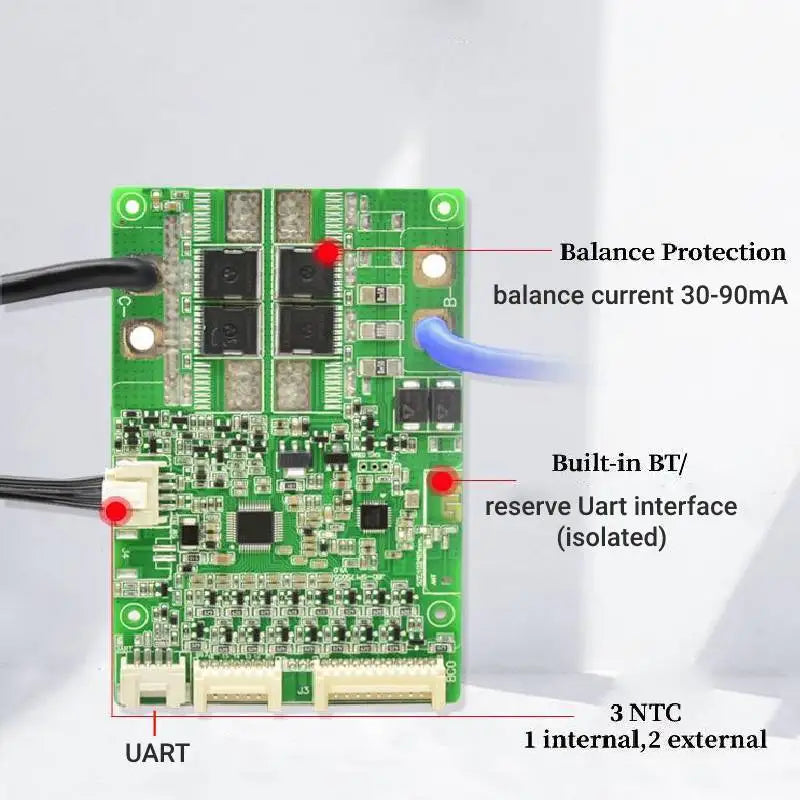

Balance current: 30mA-90mA
Battery Included: No
Brand Name: JBDBMS
Certification: CE,FCC,RoHS
Charger included: N
Choice: yes
Communication Function: UART
Current: 20A/40A/50A/60A/80A
High-concerned chemical: None
Model Number: SP17S005
Number of Strings: 10S/11S/12S/13S/14S/15S/16S/17S
Origin: Mainland China
Six Protection Functions: Yes
Size: 102*65*12mm
Temperature Sensor: 1pc Internal+2pcs External
Voltage: 36V/48V/60V
semi_Choice: yes

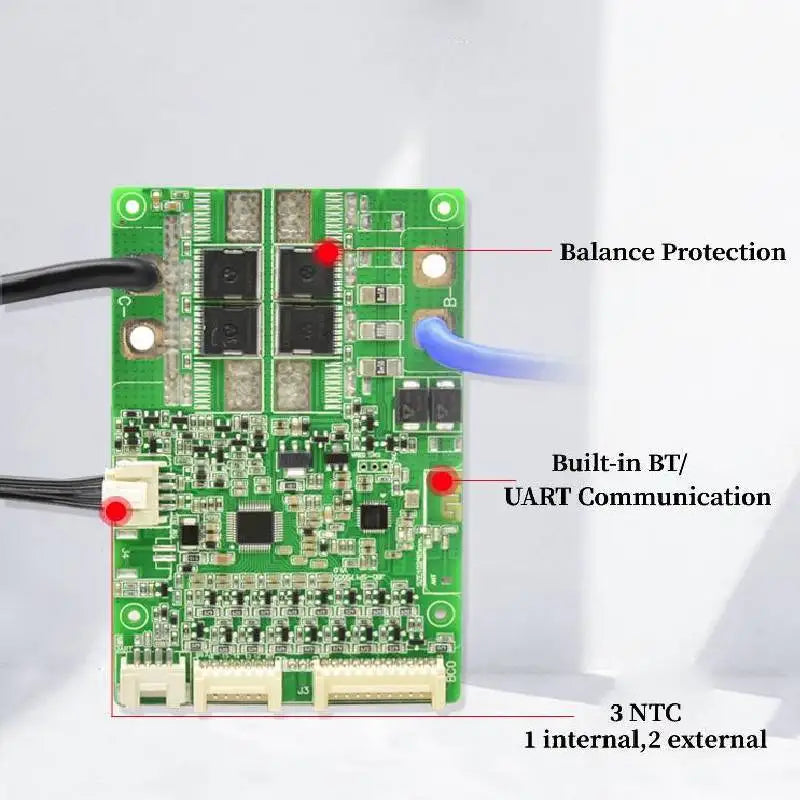

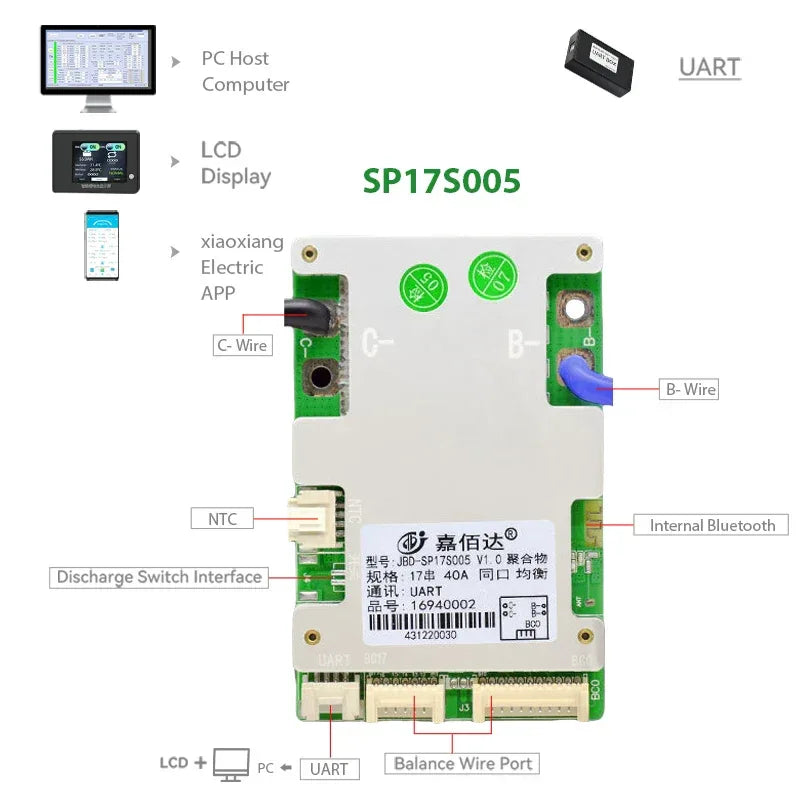

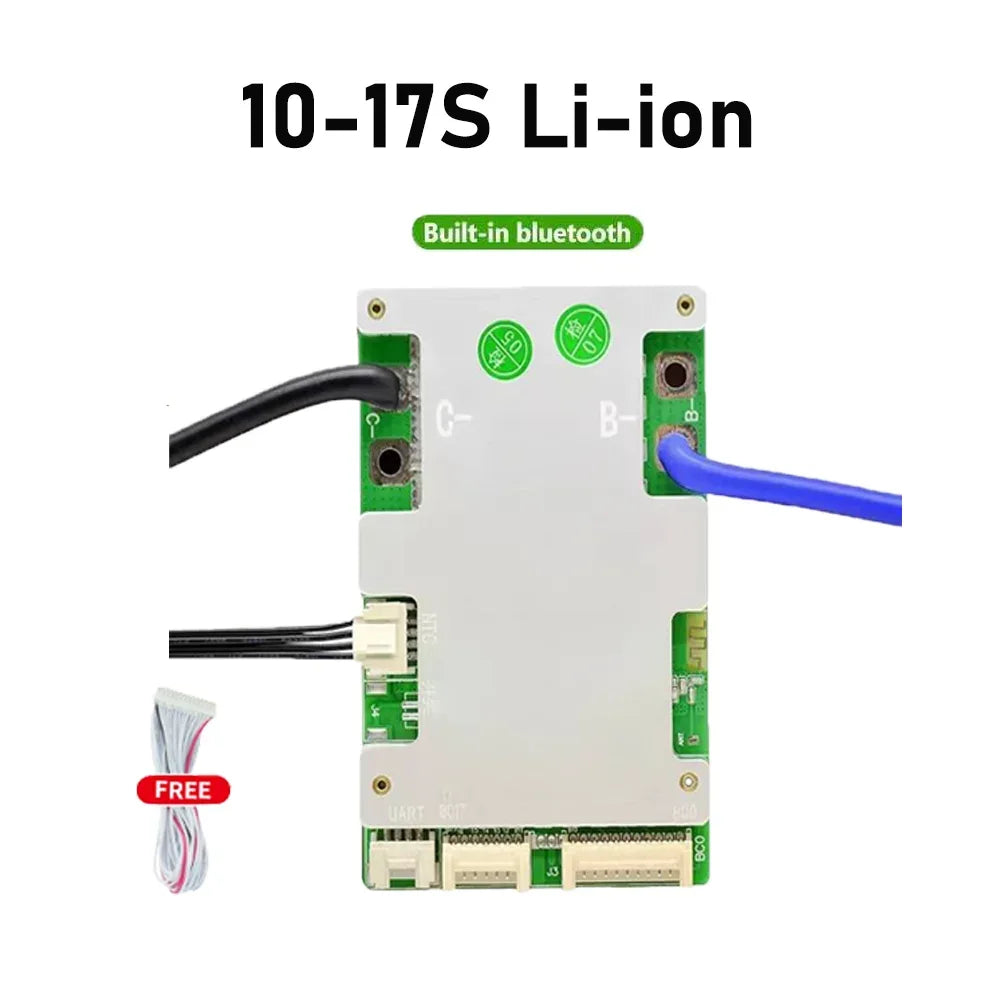

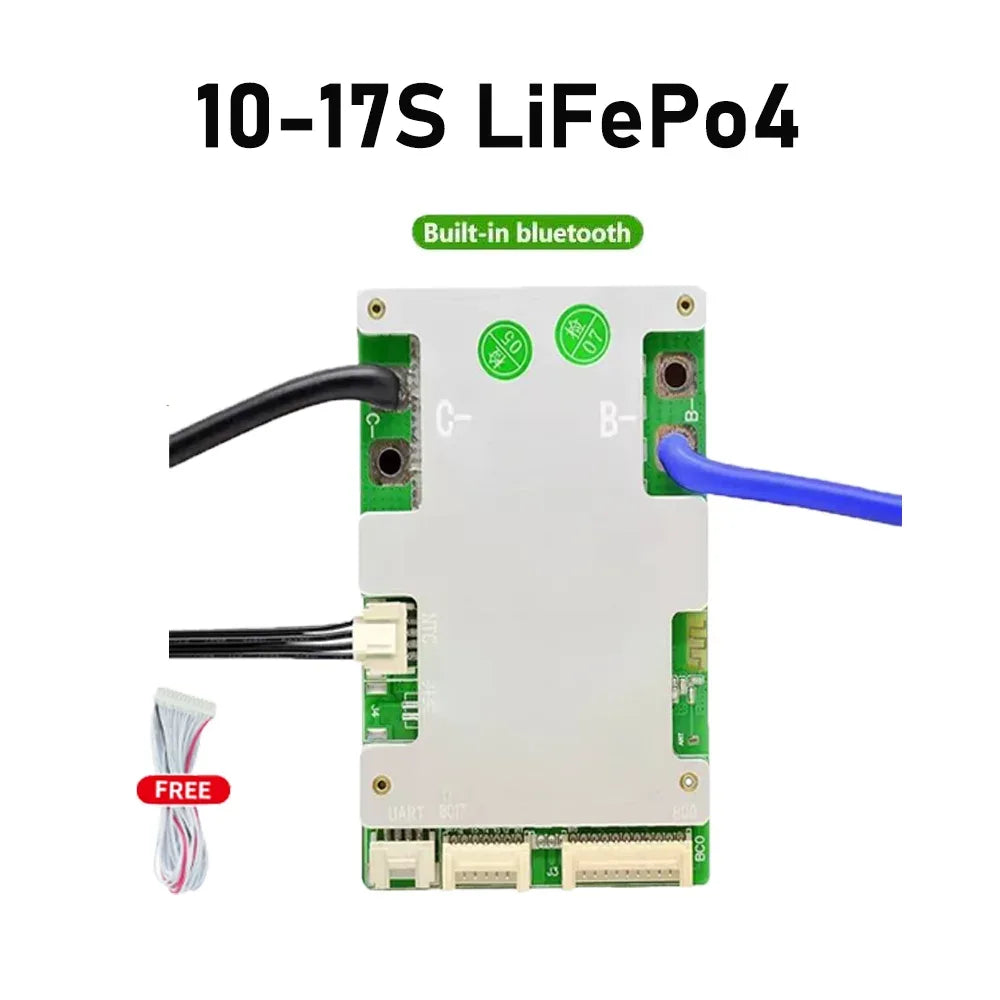

JBD BMS Smart BMS- SP17S005
Product Introduction
Size:102*65*12mm
Applicable Battery Type: Lifepo4 & Li-ion Battery

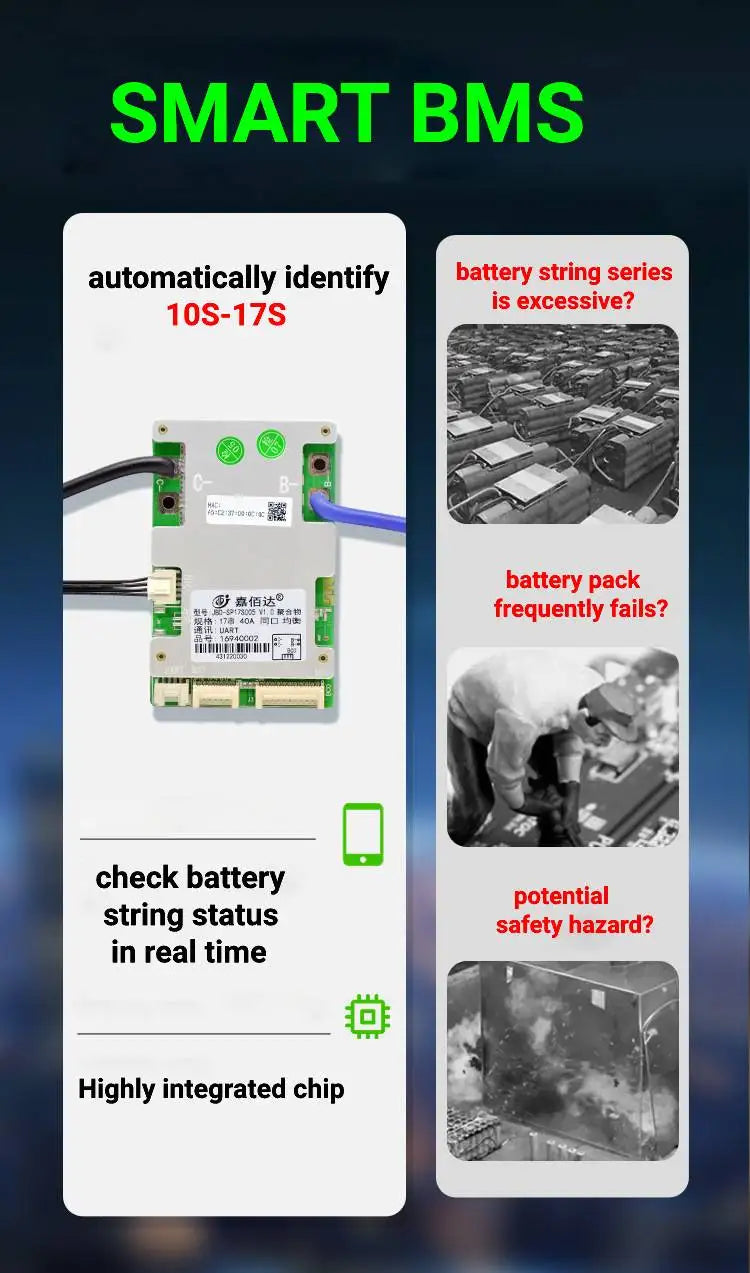

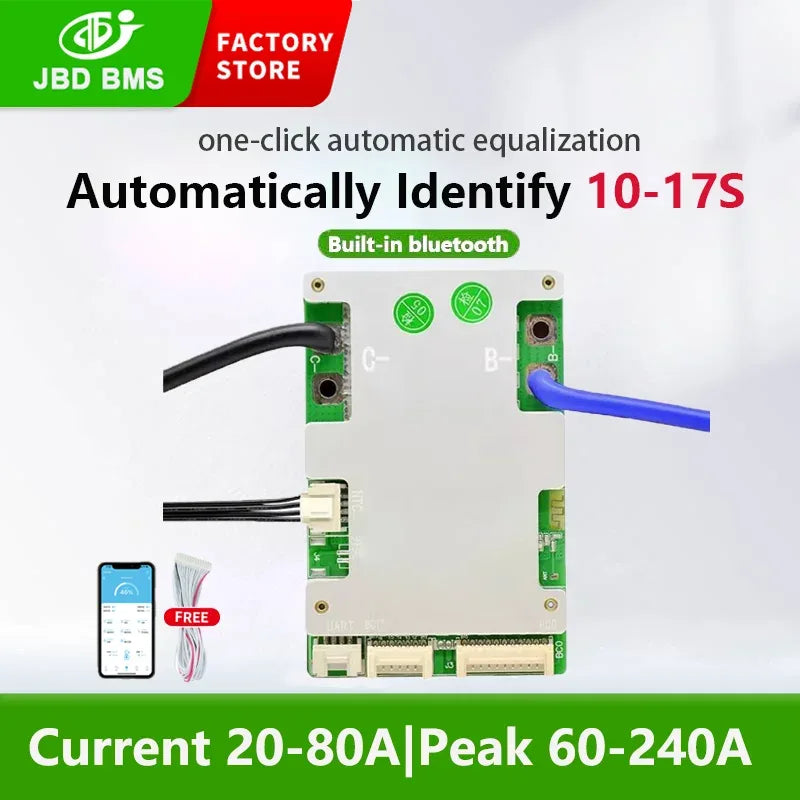

Support :Automatically identify10S-17S
Package Included:BMS with built-in BT* Balance Wires
Function Introduction

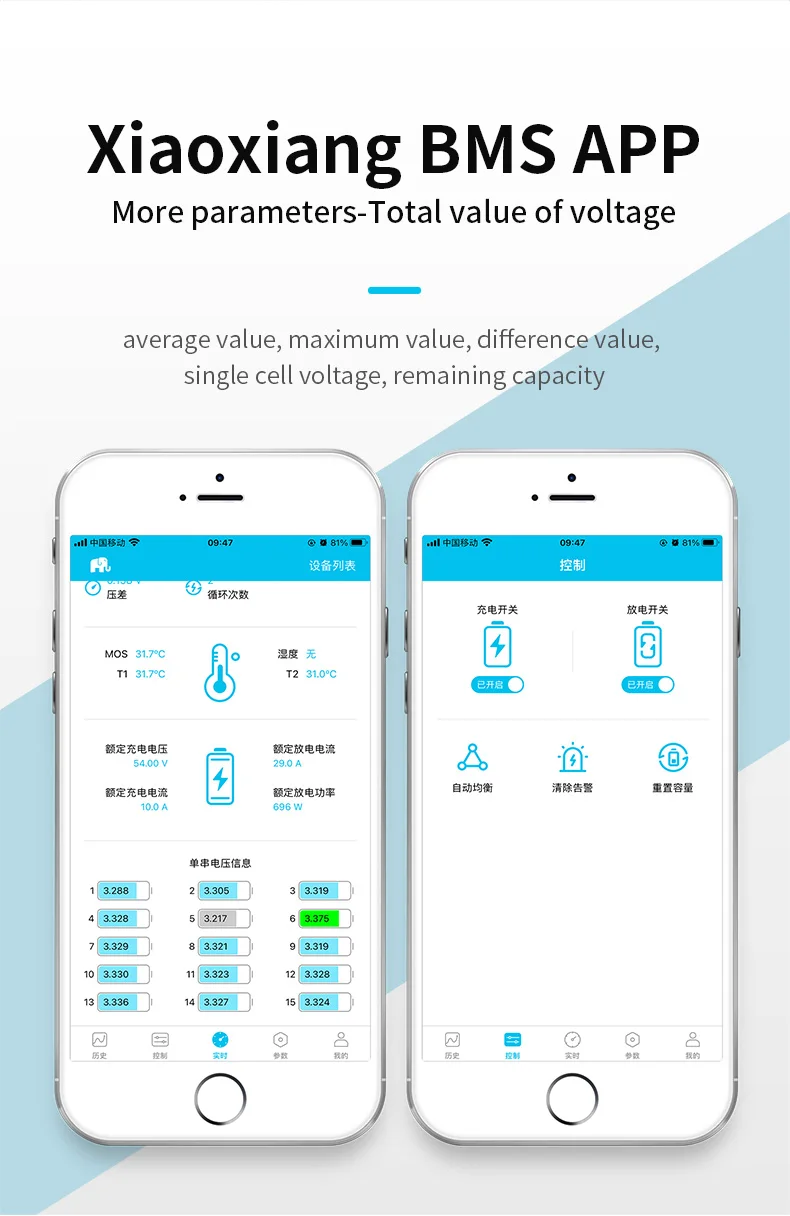

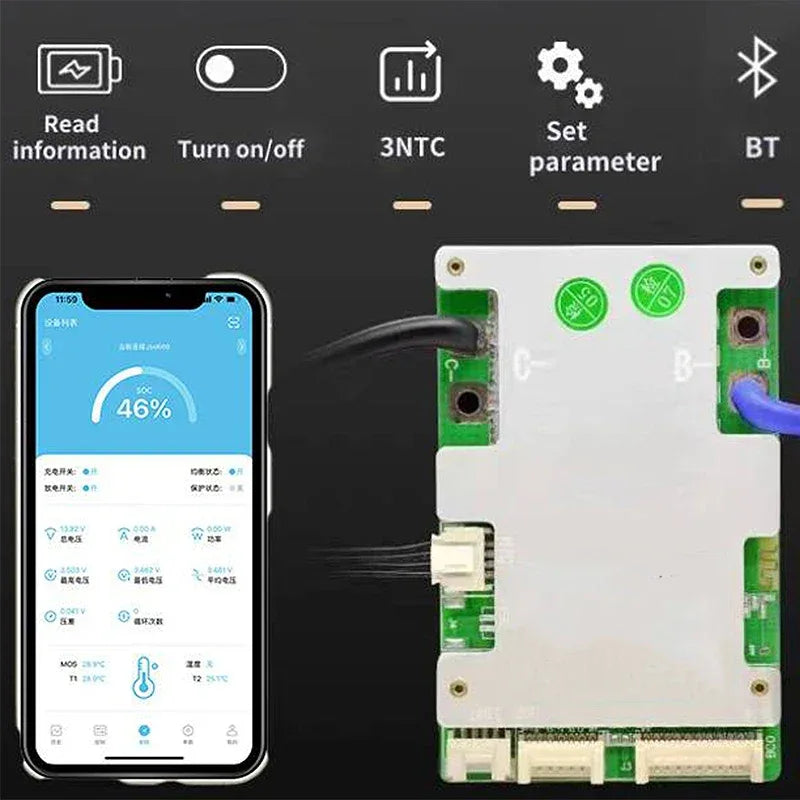

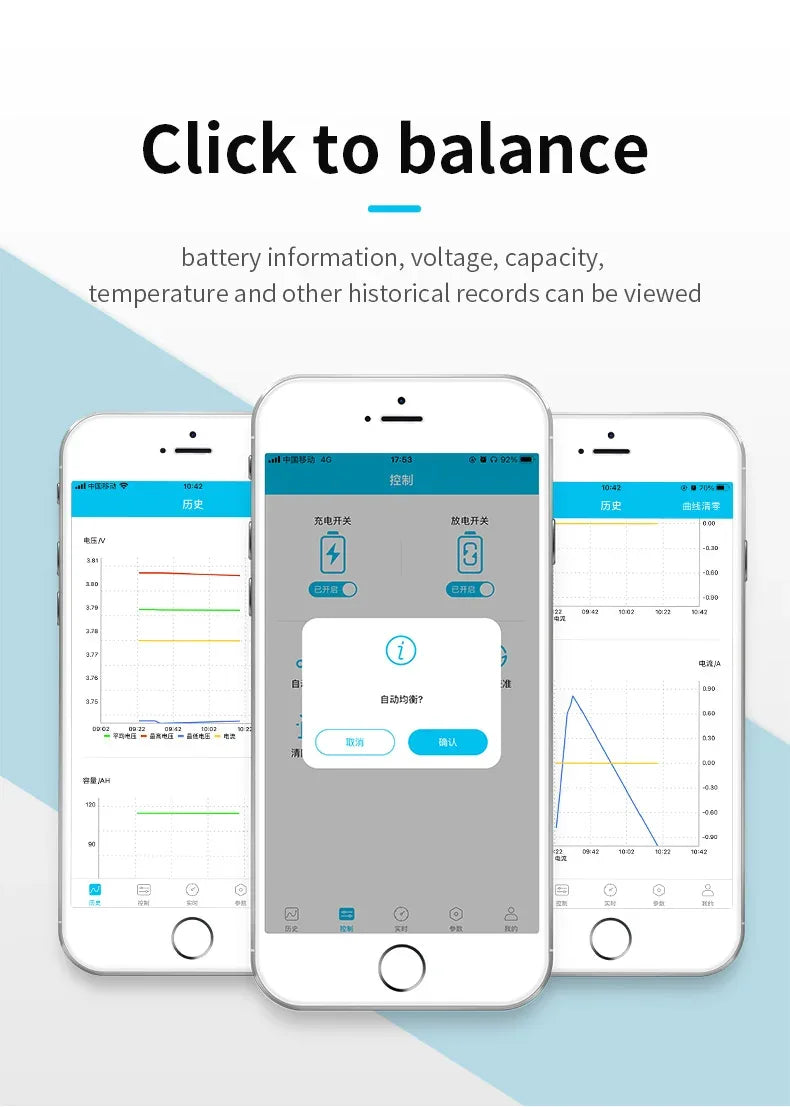

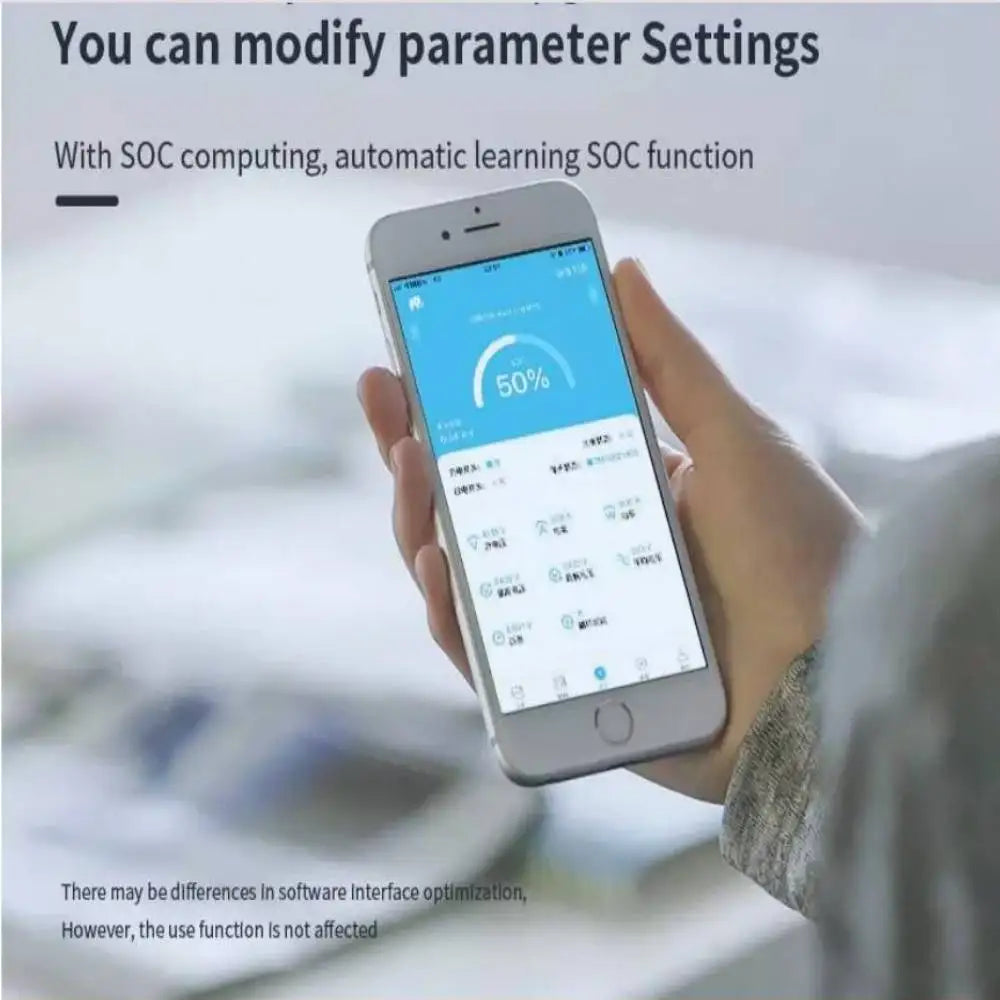

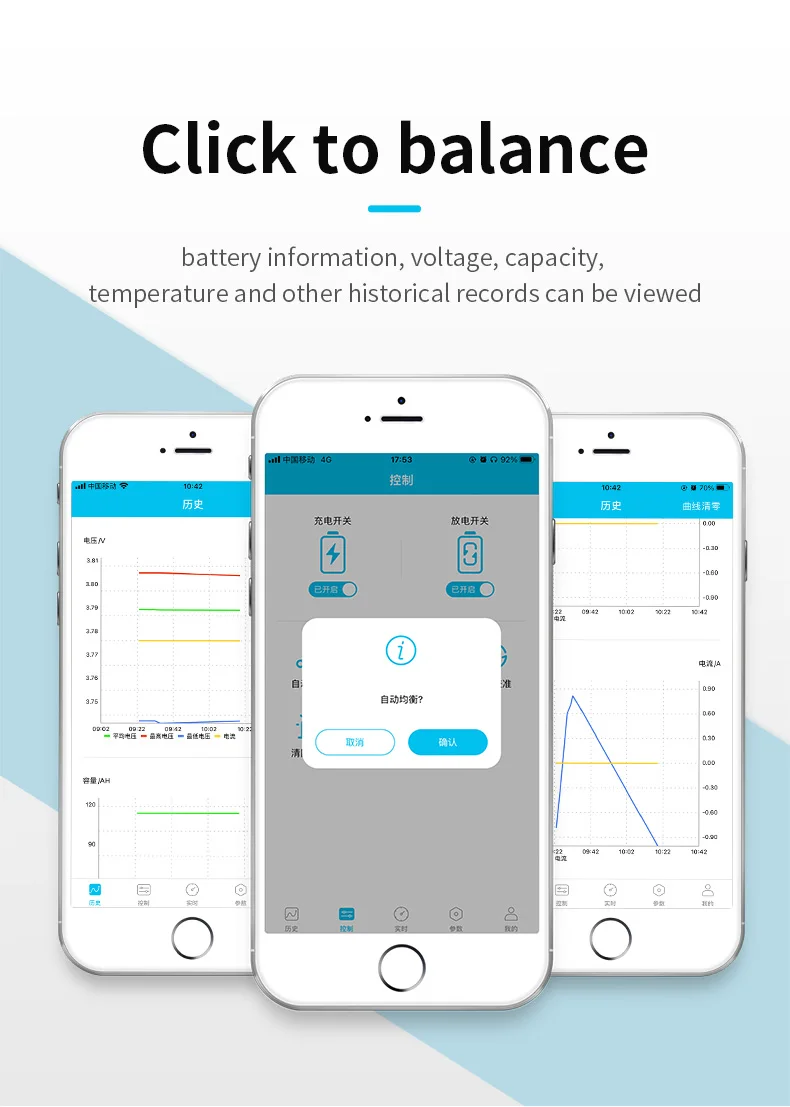

(1)BT - APP in Phone(xiaoxiangElectric App)
Support Both IOS version and Android version,
can monitor and change the parameters (need to be within the specified range)

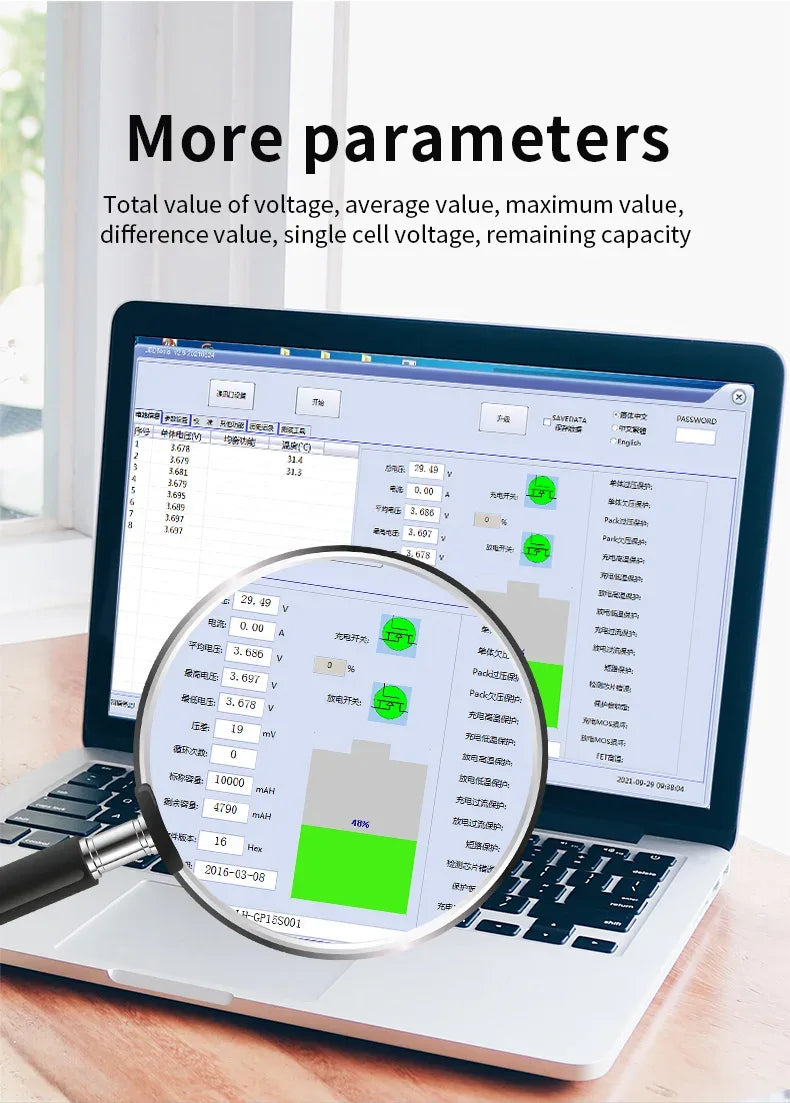

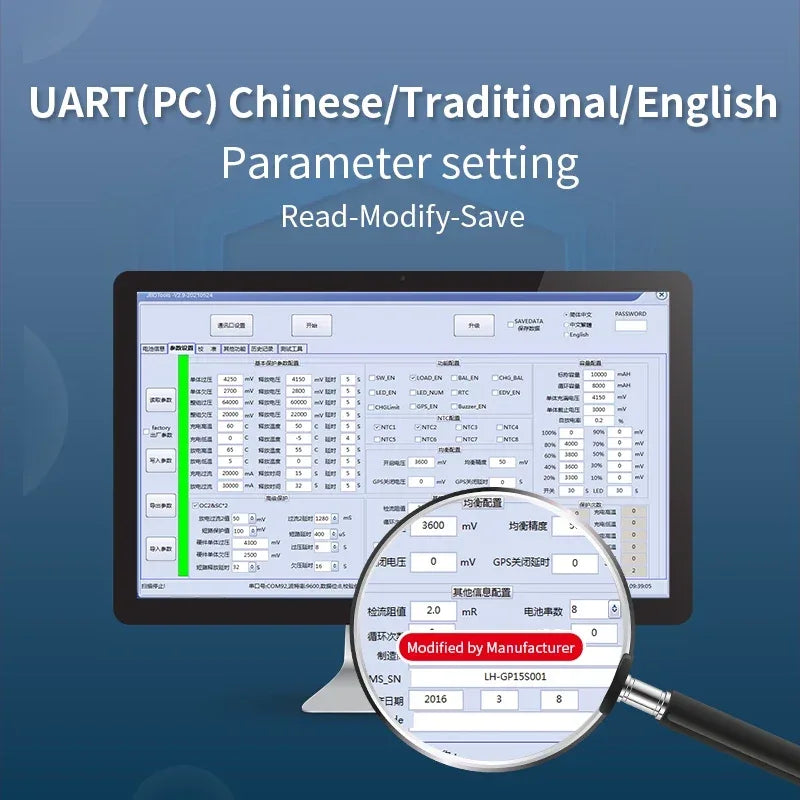

(2)UART- JBD PC Tool Box
Monitor and Set parameters,ask for service for PC Tool Software Documents and PC tool Manual.
(3)UART LCD Displayer--Can monitor paremeters on LCD displayer.
Attention

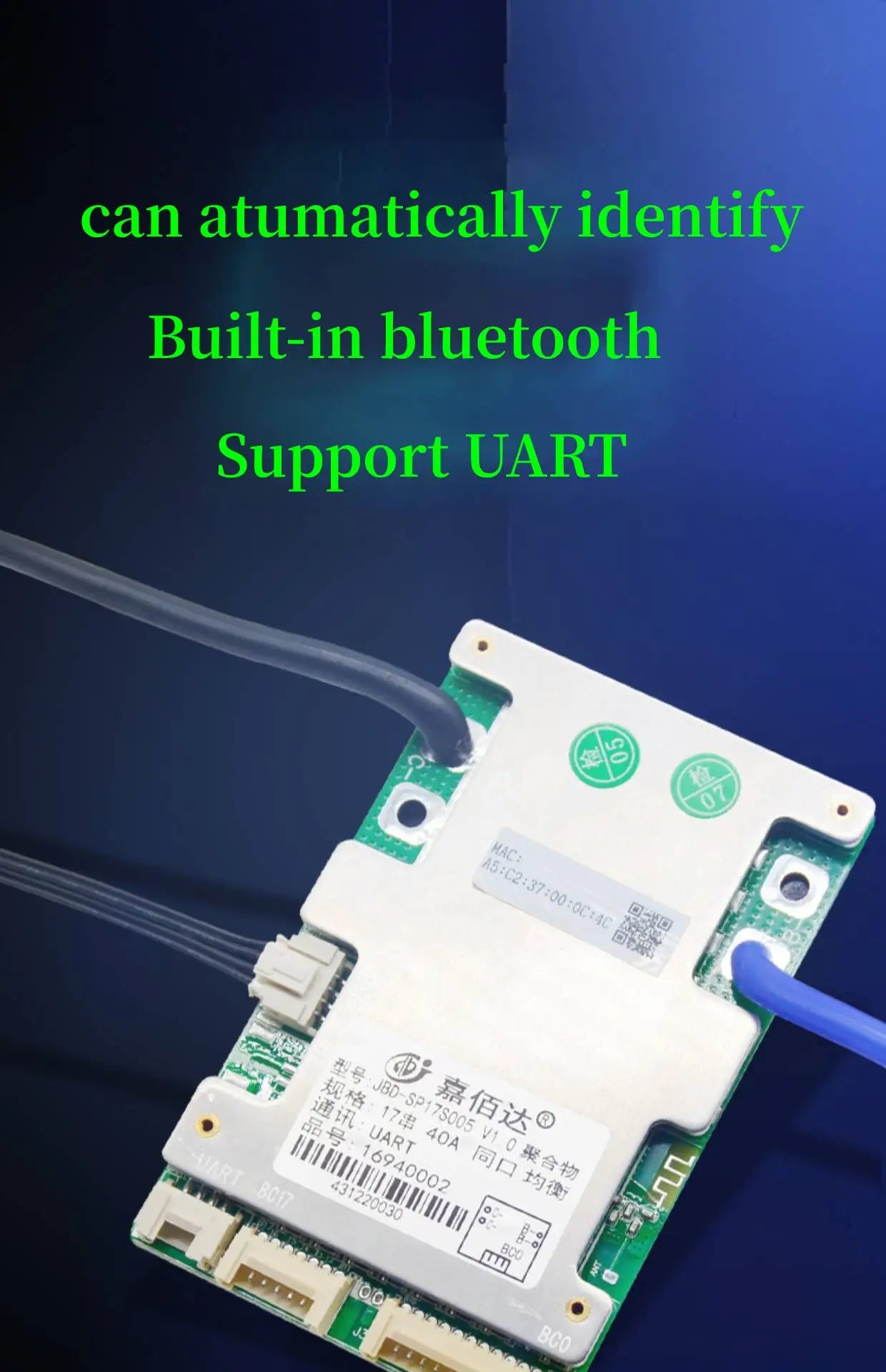

(1)All smart bms has BT and UART function
(2)UART/CAN accessory need buy separately:https://www.aliexpress.com/item/3256804529002284.html
(3)All UART communication can be converted to Canbus communication if needed, only need to
buy a canbus module converter separately.
