JBD Smart BMS 7S 8S 9S 10S 11S 12S 13S 14S 24V 36V 48V Built-in BT 20A 30A BMS Lifepo4 Li-ion Passive Balance Uart for E-bike
JBD Smart BMS 7S 8S 9S 10S 11S 12S 13S 14S 24V 36V 48V Built-in BT 20A 30A BMS Lifepo4 Li-ion Passive Balance Uart for E-bike
Couldn't load pickup availability
SPECIFICATIONS
Accessory Type: Battery Accessories
Applicable Battery Type: Lifepo4/Li-ion Battery
Application: Li-ion/lifepo4 Power Batteries, E-Bike, E-Motorcycle, E-Scooter
BT Funtion: Built-in BT
Balance Current: 25-55mA
Balance Function: Same Port With Passive Balance
Balance Model: Static/Charge balance
Battery Included: No
Brand Name: NONE
Certification: RoHS
Charger included: N
Choice: yes
Communication Function: UART
Continuous Current: 20A 30A
Discharge Switch: Optional
Electronic: No
Five Protection Functions: Overcharge Protection, Over-discharge Protection, Overcurrent Protection, Over Temperature Protection, Short Circuit Protection
High-concerned chemical: None
Model Number: SP14S004
Origin: Mainland China
Size: 63x52x12mm
Support Number of Strings: 7-14S
Temperture Protection: 1pc internal and 1pc external
Voltage: 24V 36V 48V
Voltage range: Low voltage non-USB (below 75V DC, below 50V AC)
semi_Choice: yes

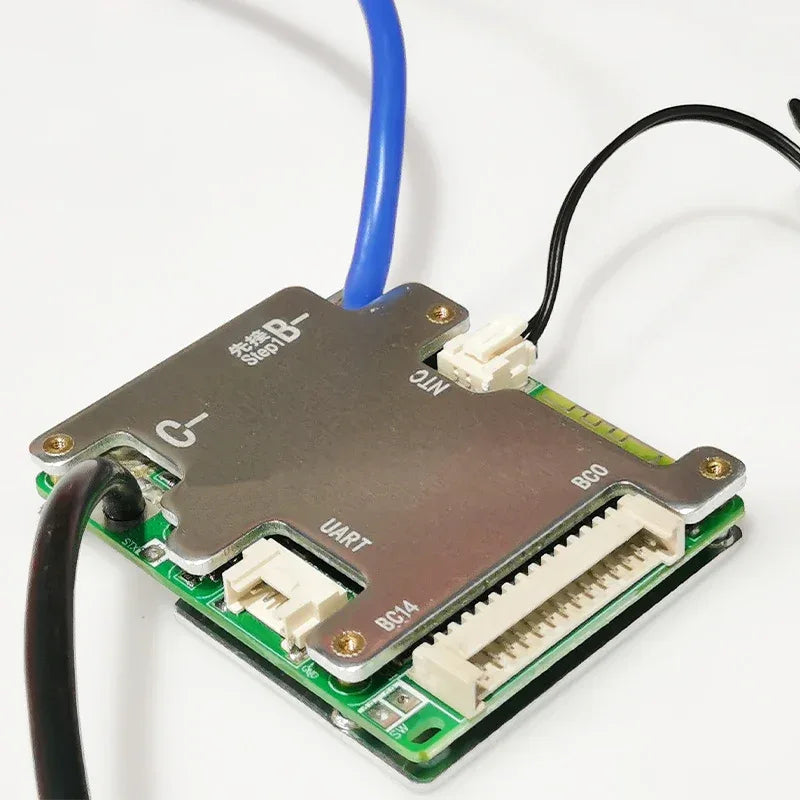

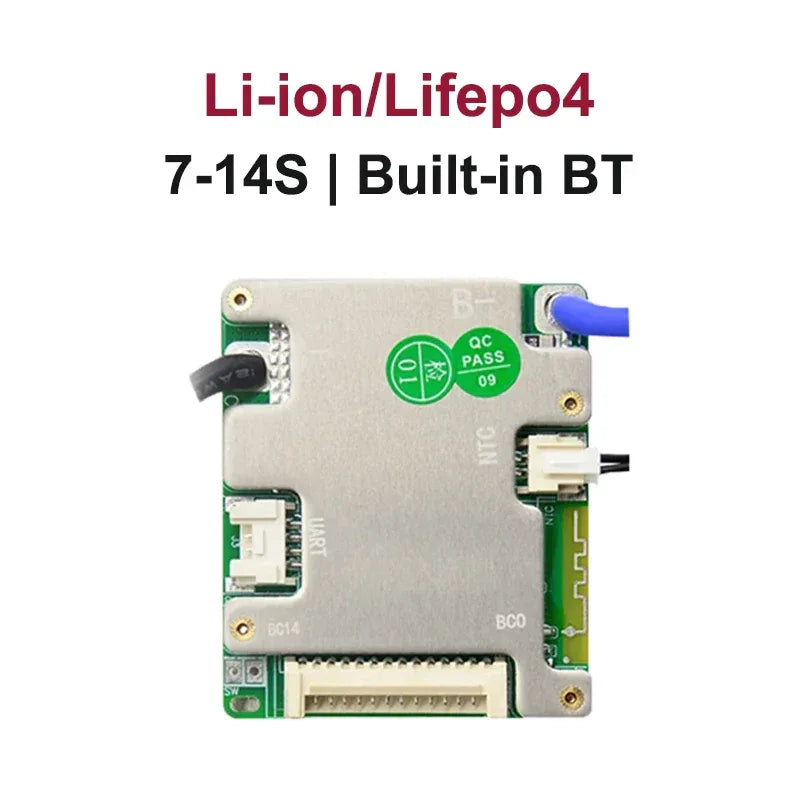

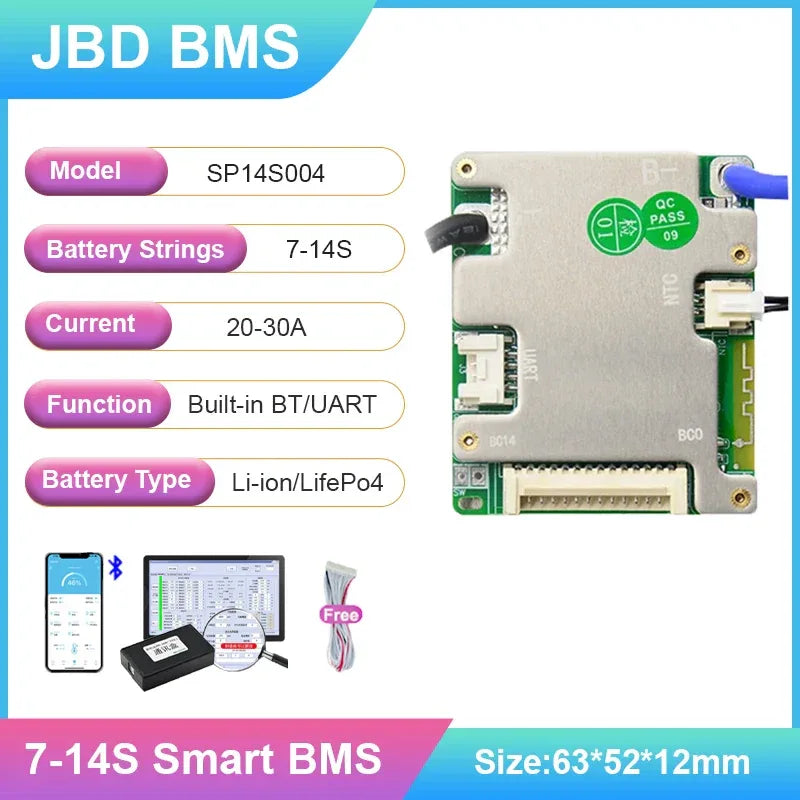

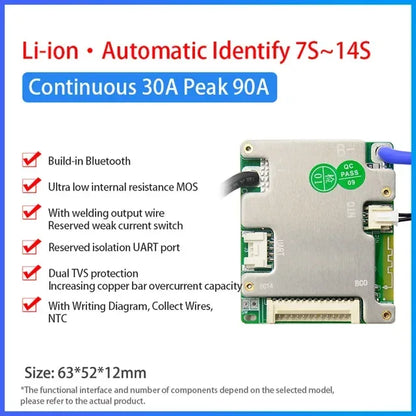

JBD BMS Smart BMS -SP14S004

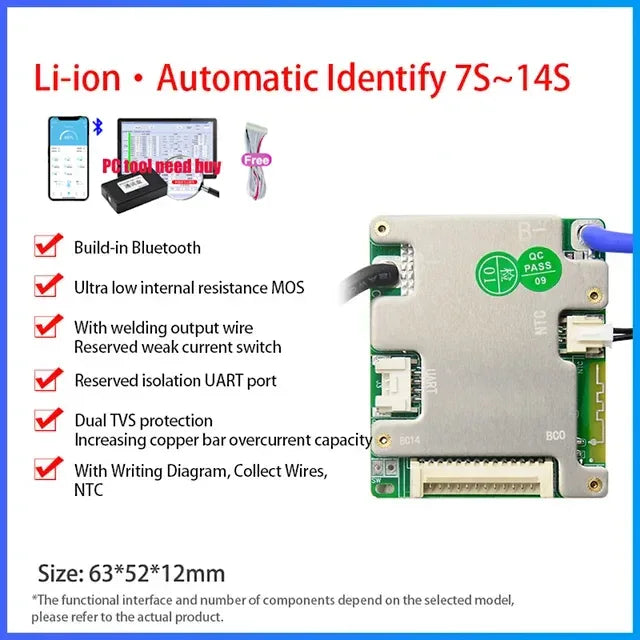

Jiabaida BMS 7S 8S 9S 10S 11S 12S 13S 14S supports automatical identification of strings for lithium ion batteries

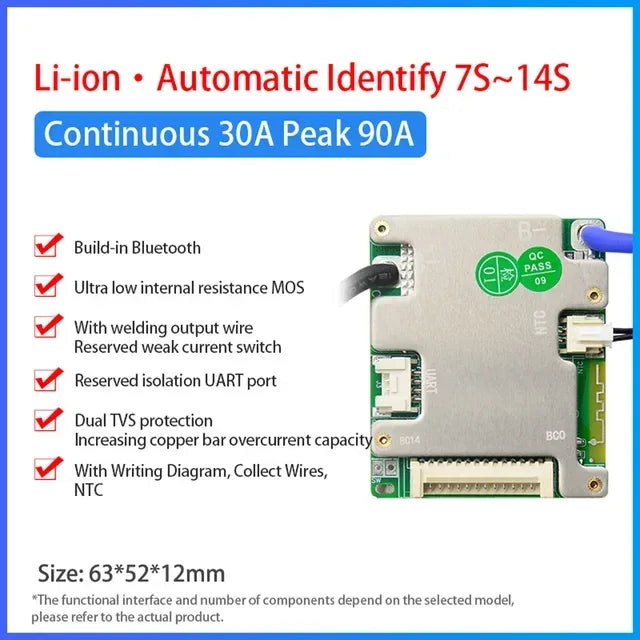

Product Introduction:

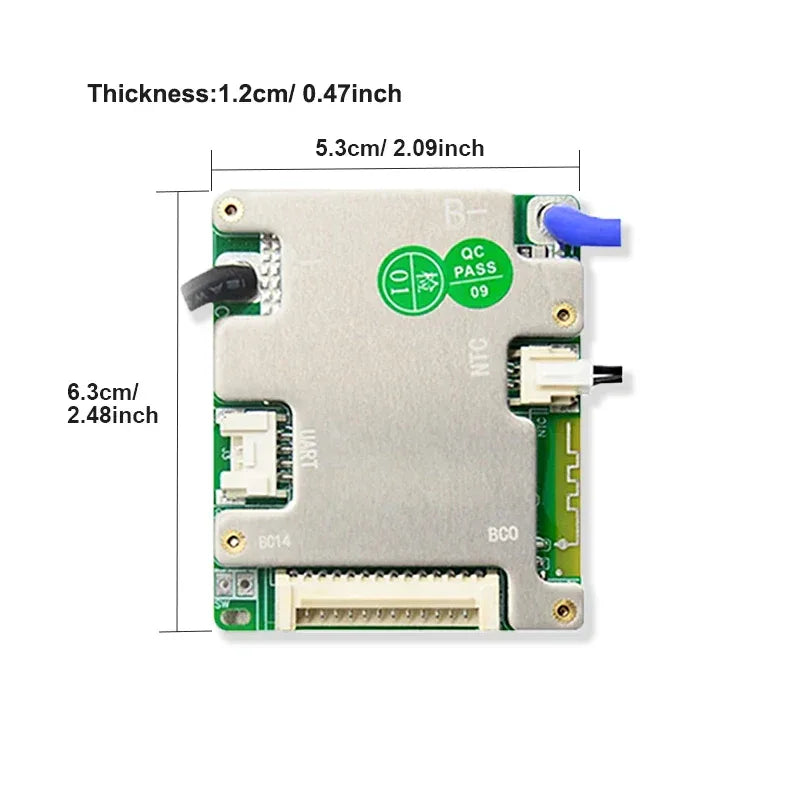

1. Size: 63x52x12mm.
2. Applicable Battery Type: Lifepo4 & Li-ion Battery.
3. Support number of strings:7-14S Li-ion/Lifepo4.
4. Balance current: 25-55mA.
5. Balance way: Static/Charge Equalization.
6. Continuous Current: 20A 30A
7. Pcb circuit protection board.
8. Application Field: E-Bike, E-Motorcycle, E-Scooter

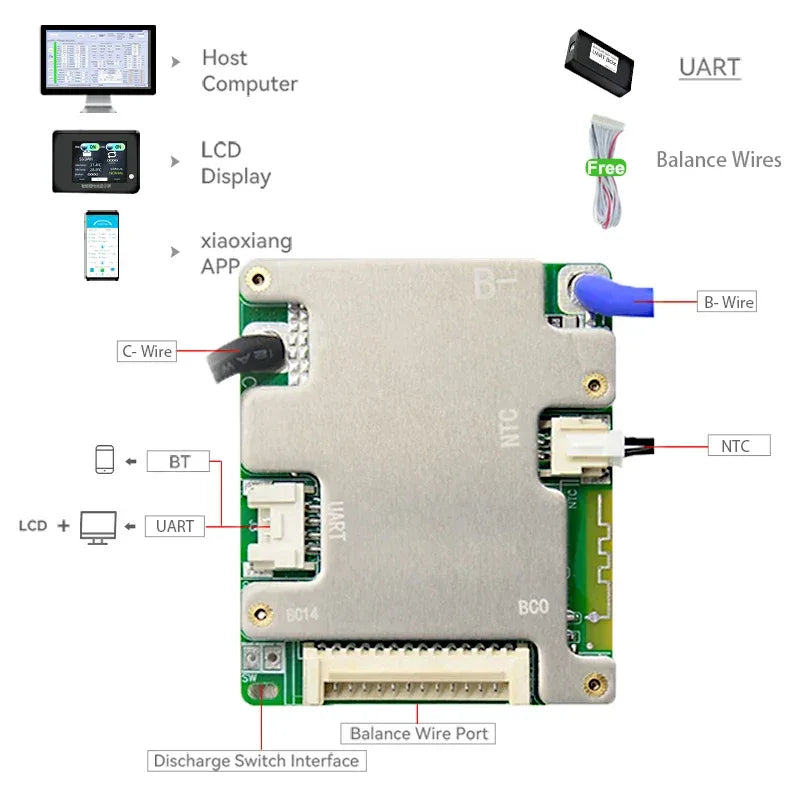

Function Introduction:

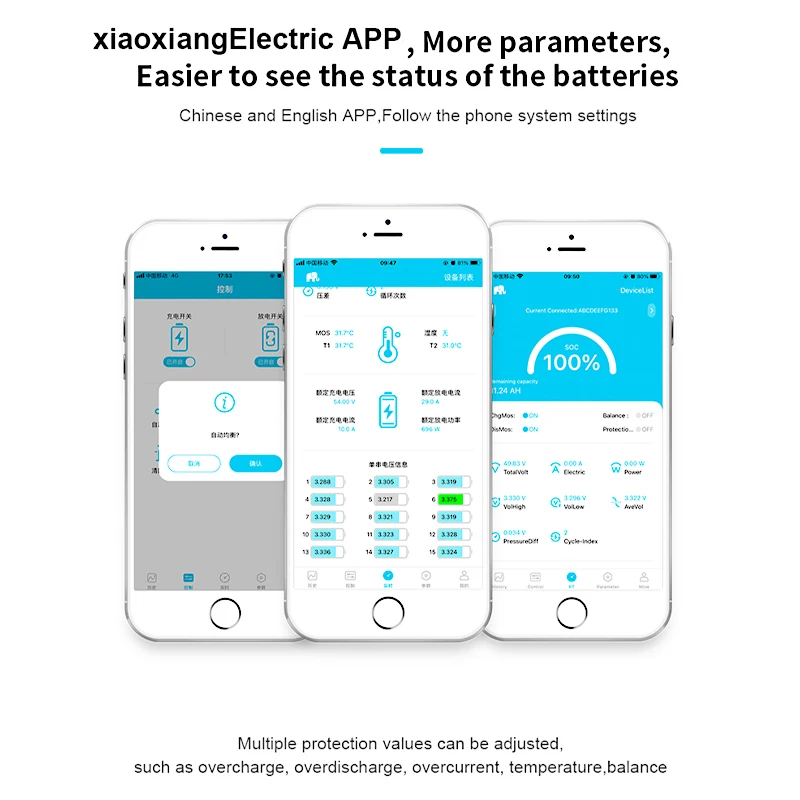

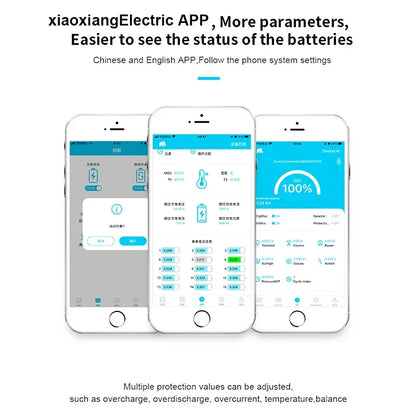

1. BT-APP in Phone (Xiaoxiang Electric App)
Support Both IOS version and Android version, can monitor and change the parameters within the specified range.
xiaoxiangElectric APP: http://www.jiabaida.com/appdown/index.html
2. UART-JBD PC Tool Box
Monitor and Set parameters, ask for service for PC Tool Software and PC tool Manual.
PC Tool Software: https://jbdtools.oss-cn-beijing.aliyuncs.com/packfile/JBDTools.zip
3. UART-LCD Displayer-Can monitor paremeters on LCD displayer.
Attention:
(1)The Interface Port of the UART is the same as the BT.
(2)All smart bms has BT and UART function.
(3)UART PC Tool Box/UART to CAN Converter Module Accesorry need you to buy separately.
(4)All UART communication can be converted to Canbus communication if needed, only need to buy a UART To CAN converter module seperately.
(5)UART/RS485/CAN Accessory needs buy separately.
(6)If the discharge switch is needed, pls contact customer service.

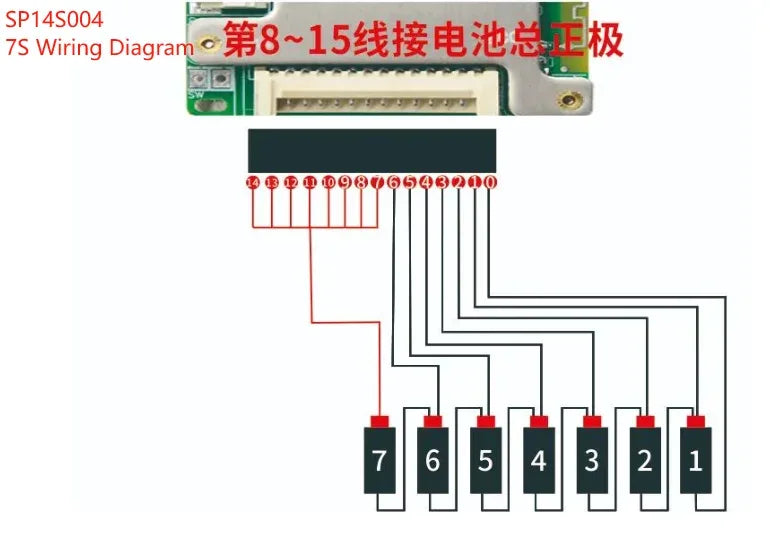

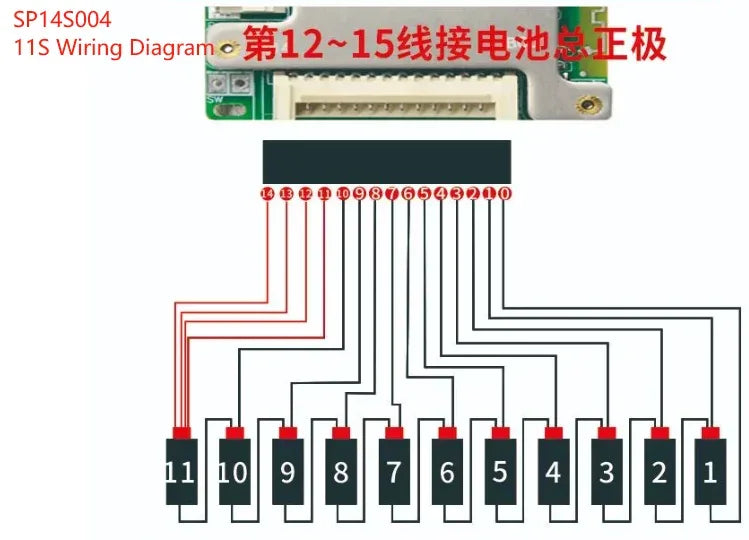

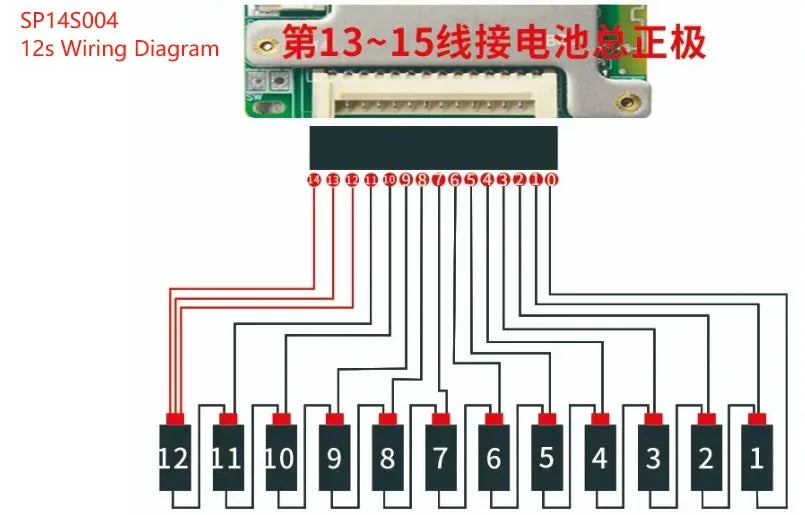

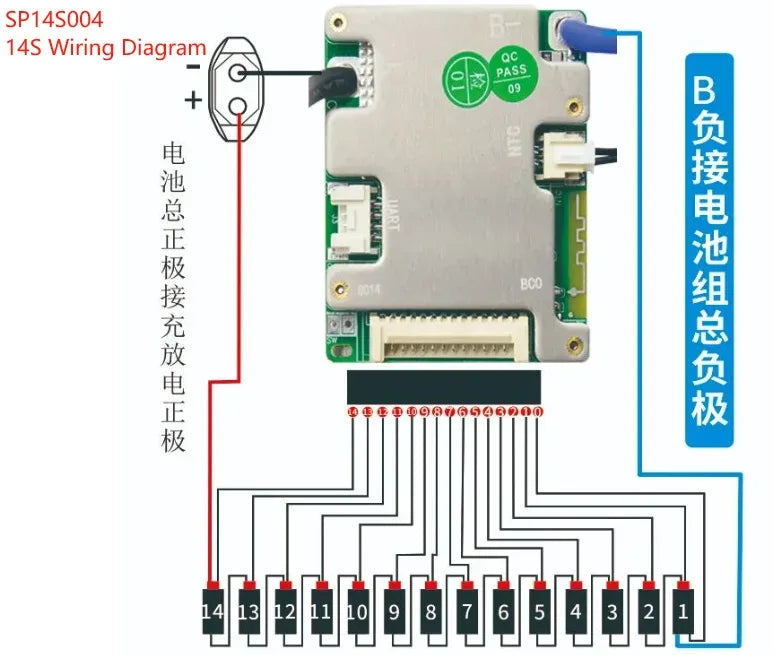

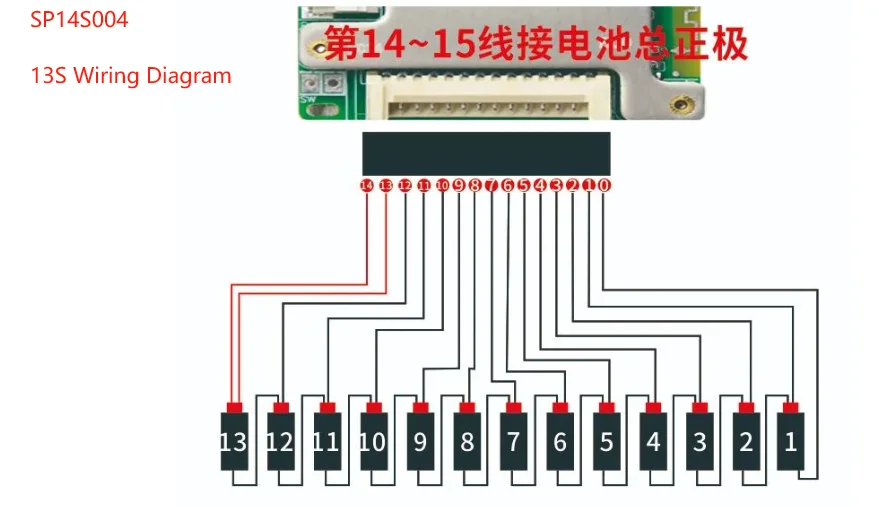

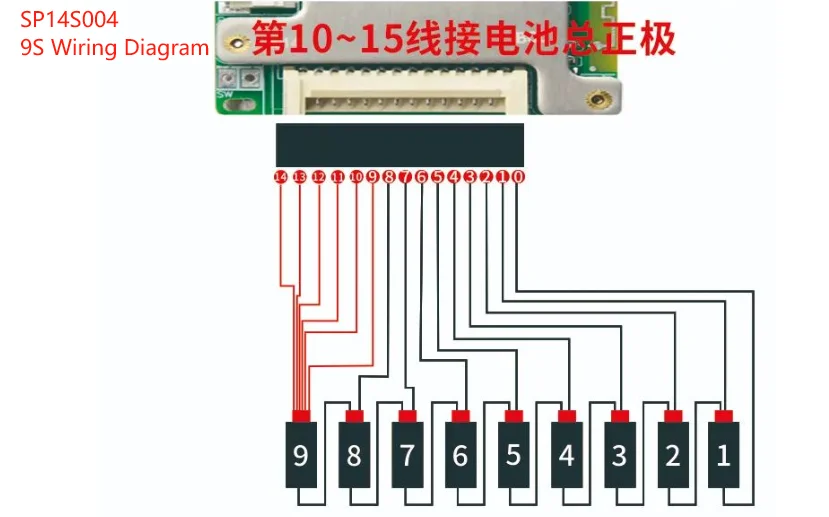

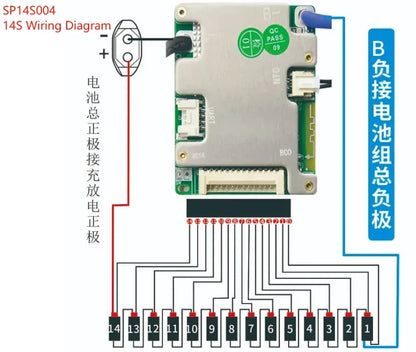

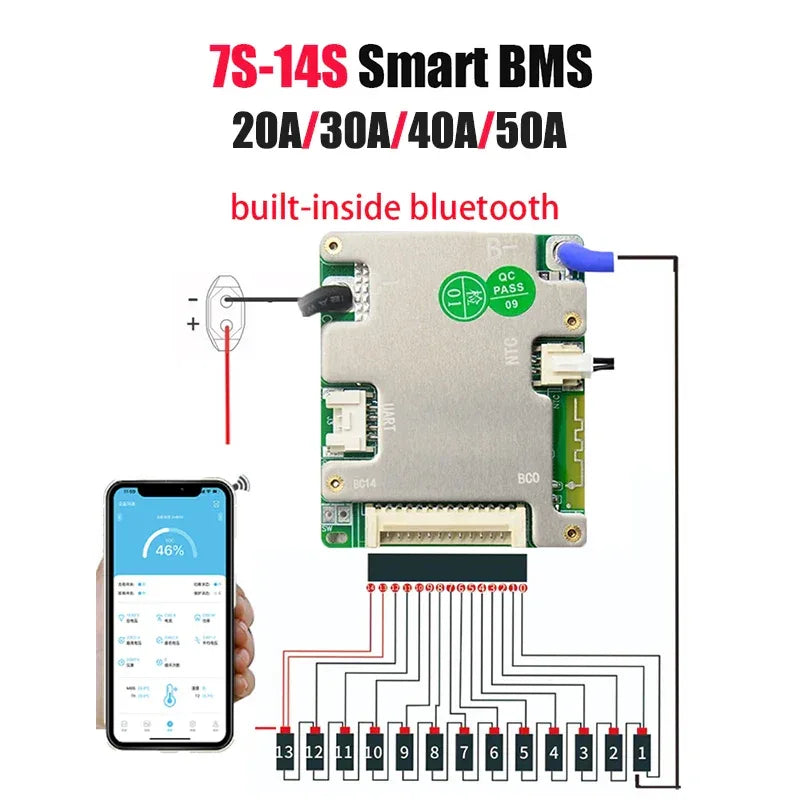

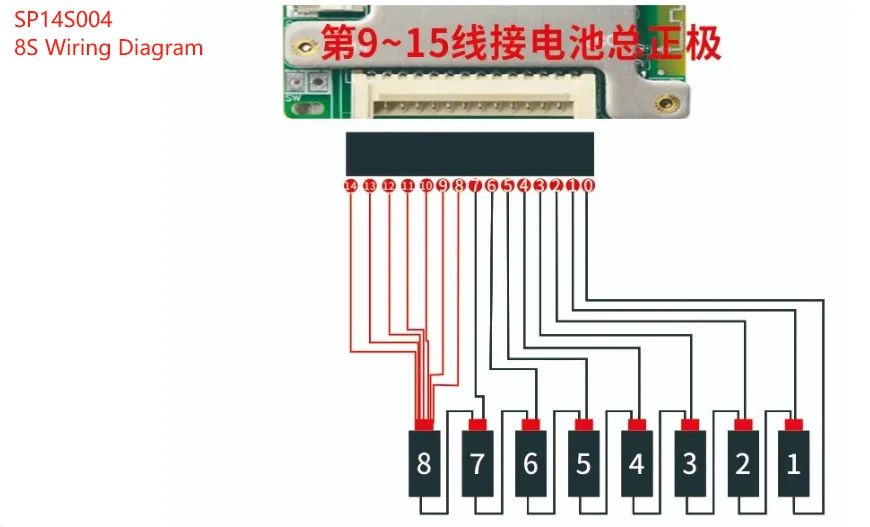

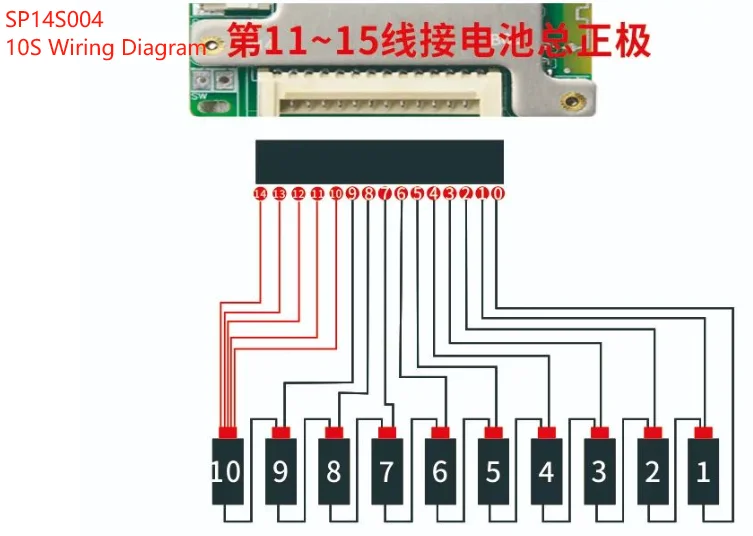

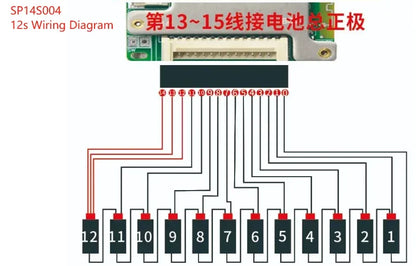

Wiring Method:
