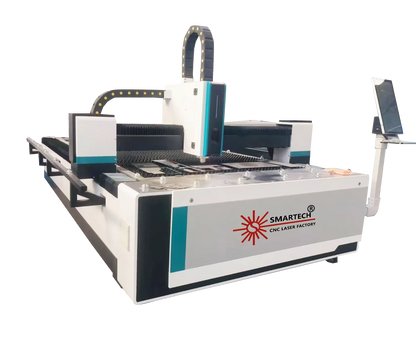

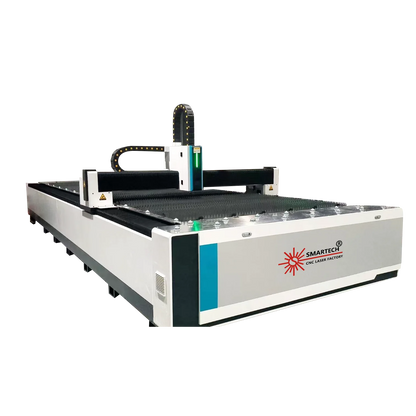

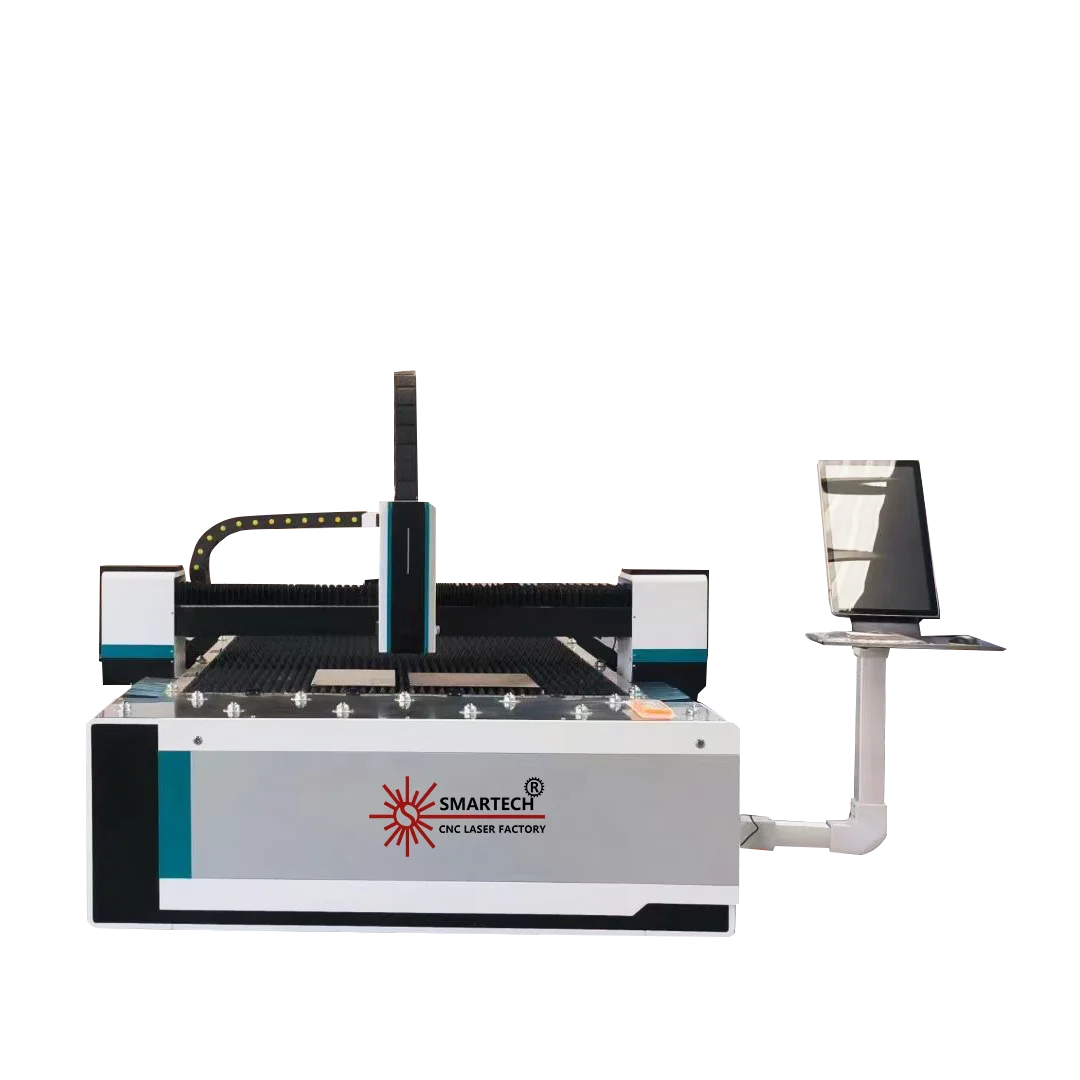

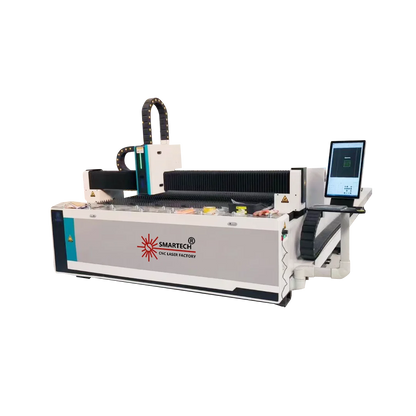

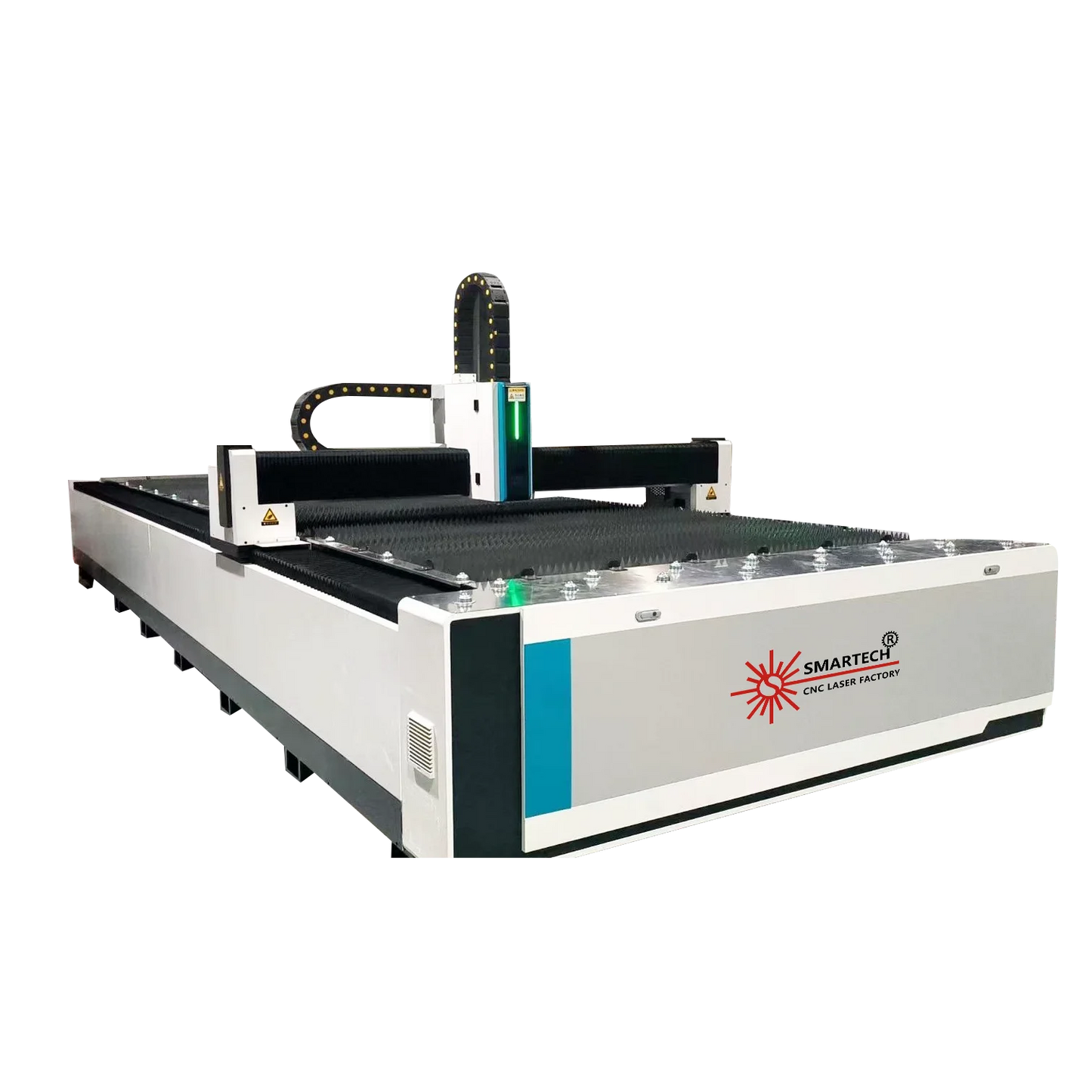

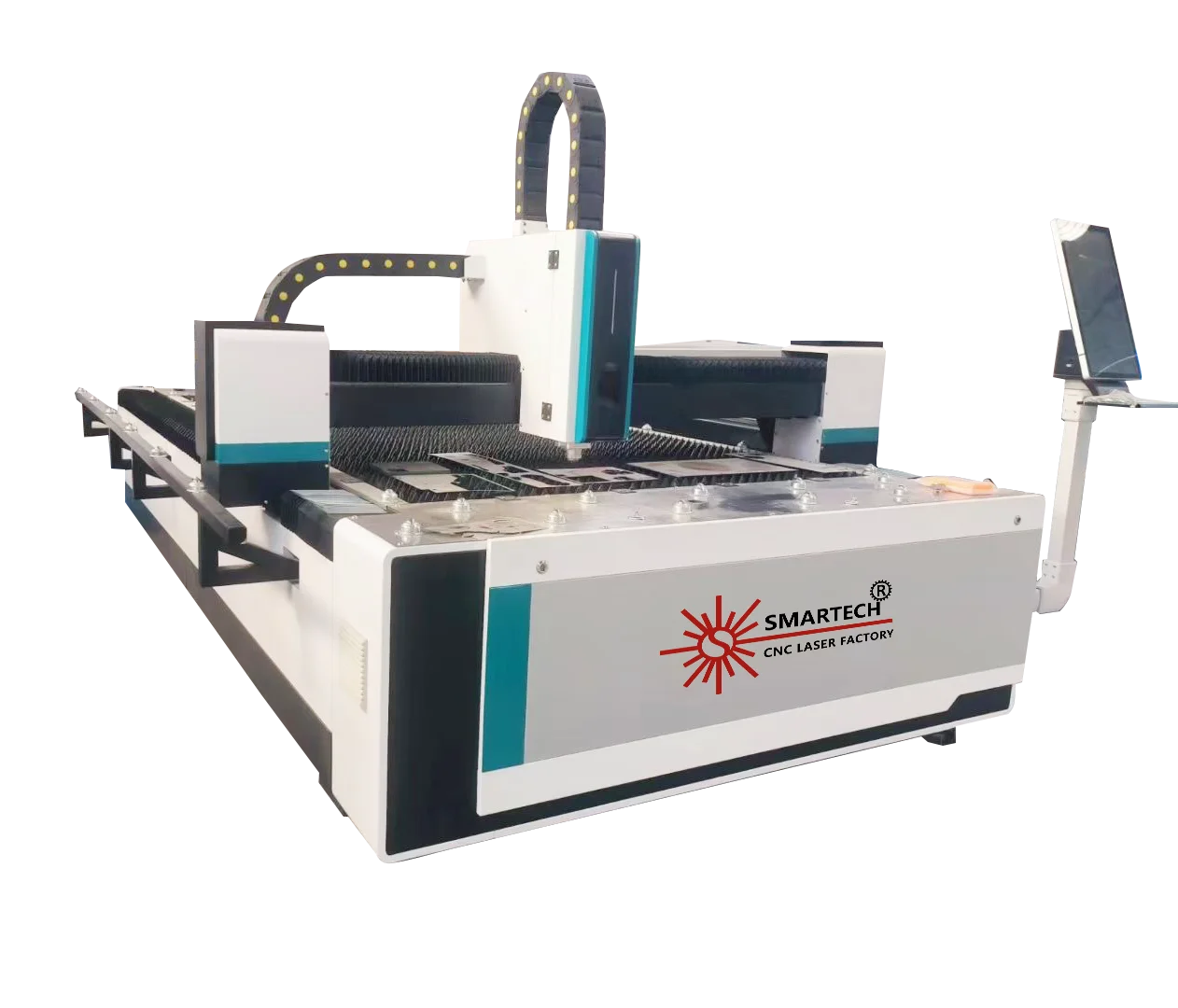

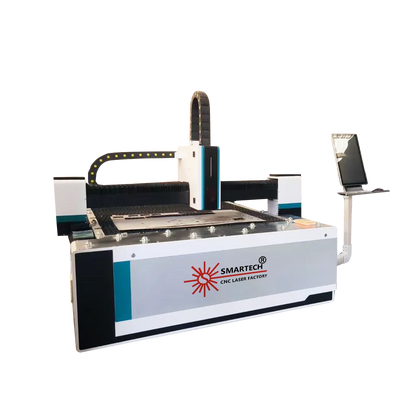

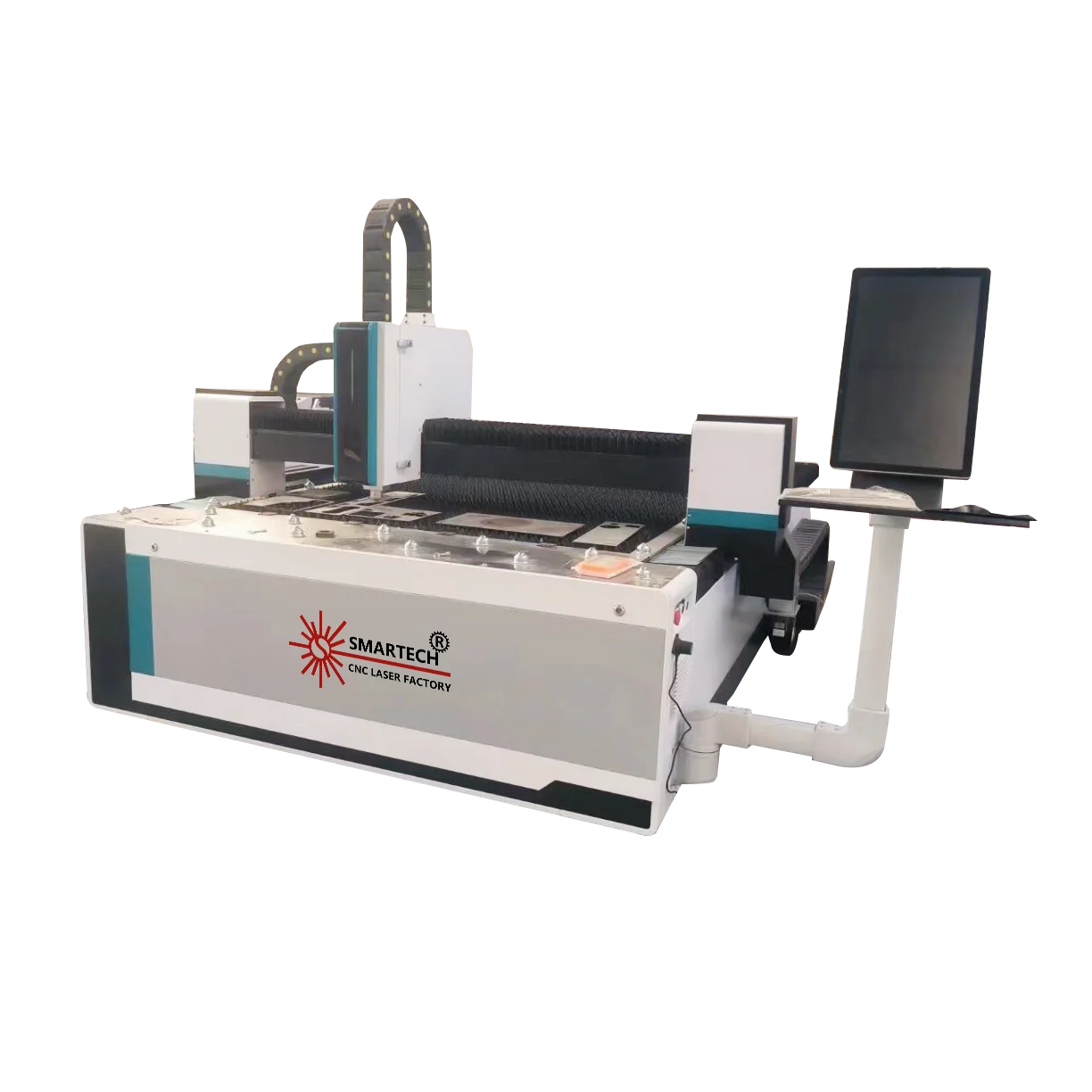

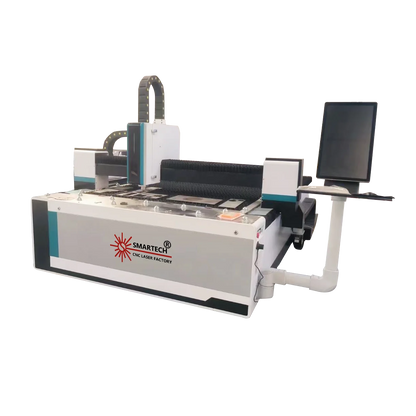

IPG Raycus MAX 3KW 4KW CNC Fiber Laser Cutter Machine Automatic Cyphcut for Fuji Metal Steel Pipe Tube Plate Cutting AI PLT

CFA4,551,482 XOF

~~CFA4,551,482 XOF~~ CFA4,551,482 XOF

Sale Sold out

Shipping calculated at checkout.

power(w) 1500 W

cutting area 1500mm*3000mm

Laser Source Brand Raycus

SPECIFICATIONS

After-sales Service Provided: Online Support

Applicable Material: Metal

Application: Industrial Metal Cutting

Cutting materials: Stainless Steel Carbon Steel Aluminum

Feature: Servo-Motor

Function: Cutting Metal Nonmetal Materials

Key Selling Points: Automatic

Keyword: Fiber Laser Cutting Machiens

Laser head: Raytools Cutting Head

Laser power: 1000W /1500W/ 2000W / 3000W

Laser source: RAYCUS MAX IPG

Product name: Fiber Laser Metal Cutting Machine

Type: Fiber Lasr Cutting

Weight: 1500

brand name: SMARTECH

cnc or not: Yes

condition: New

configuration: 3-Axis

control system brand: Cypcut

cooling mode: Water Cooling

cutting thickness: depends

graphic format supported: AI,PLT,DXF,Dwg

guiderail brand: PMI

laser head brand: Precitec

laser type: Fiber Laser

mode of operation: Continuous Wave

optical lens brand: Wavelength

place of origin: Shandong, China

products handled: Sheet Metal And Tube

servo motor brand: Fuji

warranty: 3 years

Product Description

Main Configurations:

Model: SF1530

#Working area:1500x3000mm

#Source:- Max- 1500W

#Head- RayTools Auto focus

#Japan-Servo-yasakawa

#Controller- cypcut

#Height controller

#Reducer--Wanxin-From Taiwan

#Rack- YYC

#Rails - Taiwan PMI

#Germany ball screw transmission

#Support DXF,DXP,NC,G,etc

#Water chiller -Hanli

#Annealing , anti vibration heavy bed.

paste-pic-dp_uuid_1wzjc

Model	S-Fiber-1325	S-Fiber-1530	S-Fiber-2040
Working Area	2500 ×1300 mm	3000 × 1500 mm	4000 × 2000 mm
Laser Type	Germany IPG /Chinese fiber laser generator Raycus /Max
Laser Power	1000/1500W/2000W/3000W
Complete machine power	52/55 KW
Maximum XY axis Acceleration	2.0 G
Beam Quality M2	< 0.373
Positioning Accuracy	≤ ± 0.03 mm/m
Re-positioning Accuracy	≤ ± 0.02 mm/m
Max Cutting Speed	0-40 m/min (depending on material and thickness)
Power Supply Voltage	3-phase 380V/50Hz

	Machine parts	Brand	Origin
Structure Section	Annealing anti vibration heavy duty	SMARTECH	China
Optical Section	Laser Generator	Raycus/Max	China Top Brand
Optical Section	Laser Head	Raytools/Au3tech	china
Control Section	Control System	Cypcut/Au3tech	china
	Height Controller	BCS100 V3.0	independent height controller
	IPC	High stability industrial PC
Mechanical Section	Reducer	Shimpo	Japan
	Linear Guide	THK/HIWIN	Japan
	Rack pinion	YYC	Taiwan
	Ball screw	THK	Japan
	Motor Driver	Yaskawa/Panasonic/Fuji	Japan

metal cutting metal fiber laser

Structure section

The Segmented steel sheet Bed & Integrated Gantry High strength, stability, tensile strength, ensuring 20 years of use without distortion;

paste-pic-dp_uuid_d95da paste-pic-dp_uuid_ouhx1

Optical Section-Laser Generator

paste-pic-dp_uuid_7h83g paste-pic-dp_uuid_pfkyb

Control Computer

paste-pic-dp_uuid_ysxr5 paste-pic-dp_uuid_j0il7

Cutting Head

Features

1.Highly dustproof The dustproof grade is IP65, and the light path is completely enclosed, so the possibility of lens contamination is almost zero.

2.Motion picture zero focus The scale can be adjusted flexibly to unify the zero focus position and no longer worry about adjusting the process parameters.

3.Efficient water cooling The focusing lens, collimating lens and nozzle have built-in cooling function, which can solve the problem of cutting heating.

4.Optimized structural design Integrated body design, improved QBH optical fiber interface no longer stuck due to water leakage, rust and other reasons.

raytools laser head
