Inverter 12v 220v For 110v Pure Sine DC 12V 24V Power 1000W 2000W 2600W Solar Car Inverters Single Digital Display Converter

Inverter 12v 220v For 110v Pure Sine DC 12V 24V Power 1000W 2000W 2600W Solar Car Inverters Single Digital Display Converter

CFA24,134 XOF
CFA0 XOF CFA24,134 XOF
Sale Produits stock
Shipping calculated at checkout.
Color
Socket Type
Input Voltage|Output Voltage

SPECIFICATIONS

Brand Name: NONE

Certification: CE

Choice: yes

Features 1: Inverter

Features 2: Pure Sine Wave Inverter

Features 3: Inverter 12V 220V

Features 4: inverter 12v 110v

Features 5: inverter 24v 220v pure wave

Features 6: Inverter 12v 110v pure sine wave

High-concerned chemical: None

Input Voltage: DC 12V/24V/48V/60V

Model Number: ADL-KRT-001

Origin: Mainland China

Output Frequency: 50hz/60hz

Output Power: 1 - 200 KW

Output Type: SINGLE

Output Voltage: AC 110V/220V

Output Waveform: Pure Sine Wave

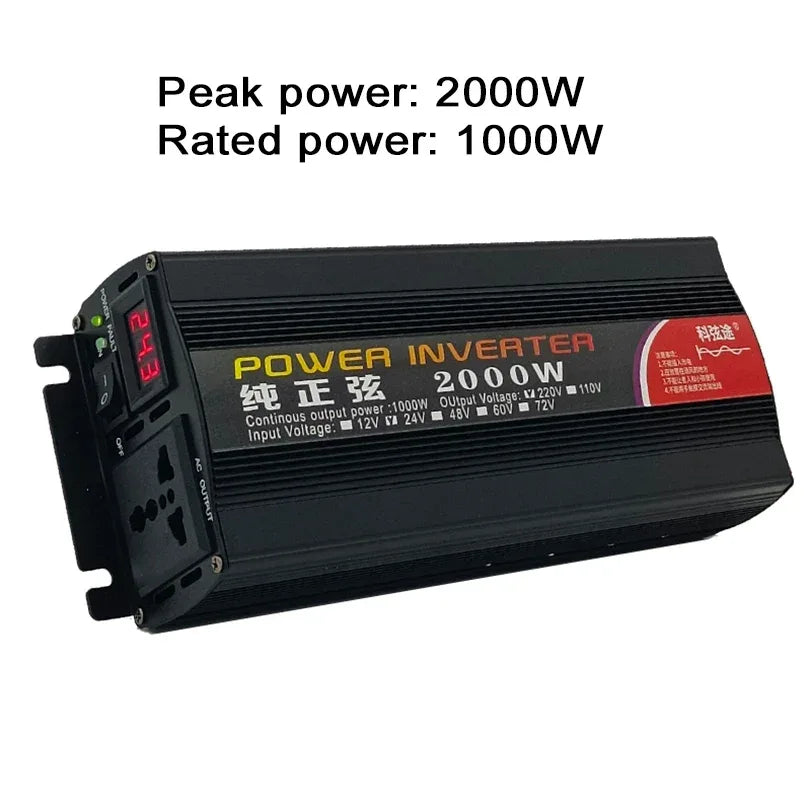

Peak Power(Rated power): 1000W (500W), 1800W(900W), 2000W(1000W), 2600W(1300W)

Size: 300mm*104mm*62mm(2600W)

Type: DC/AC Inverters,DC/AC Inverters

Weight: 0.75kg(1000W),0.95kg(1800W),1.15kg(2000W), 1.4kg(2600W)

is_customized: Yes

semi_Choice: yes

1. Welcome to our store. Our store provides pure sine wave inverters, UPS pure sine wave inverters, car inverters, solar inverters and so on.

2: Our store is a factory store, providing one-year warranty. The form of warranty is free shipping of accessories for maintenance.

3: Our store provides inverters with power of 100w-12000w. Please place an order according to your needs.

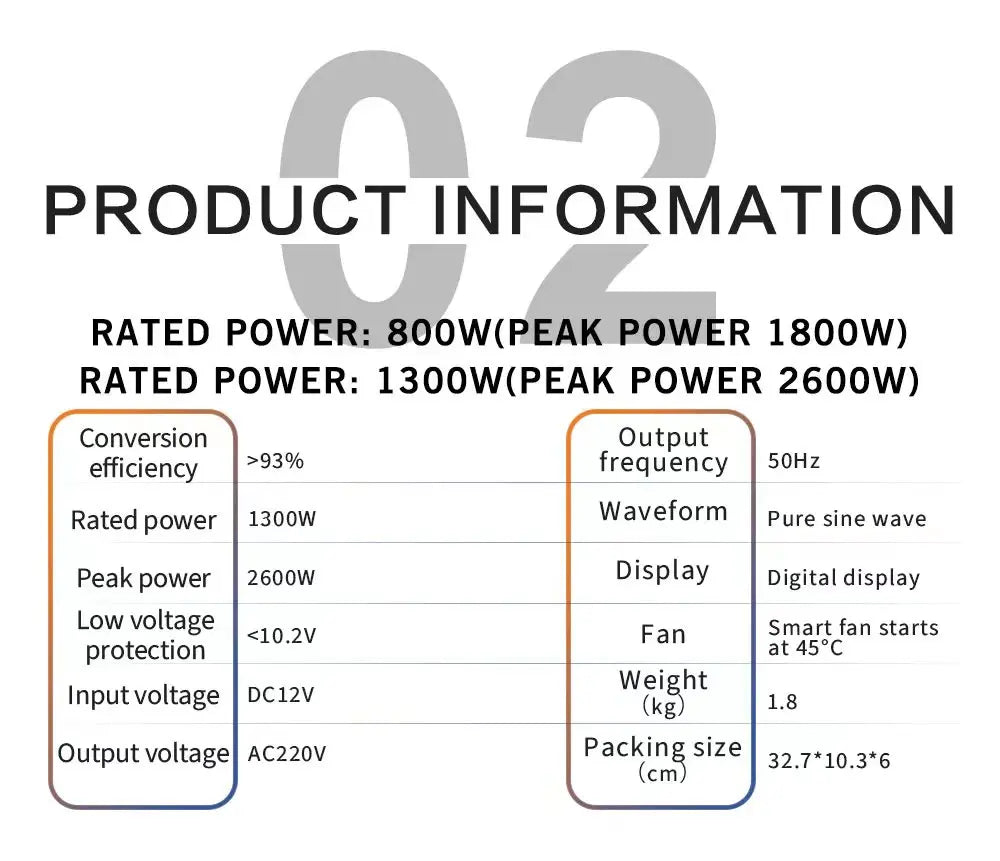

Main Specifications

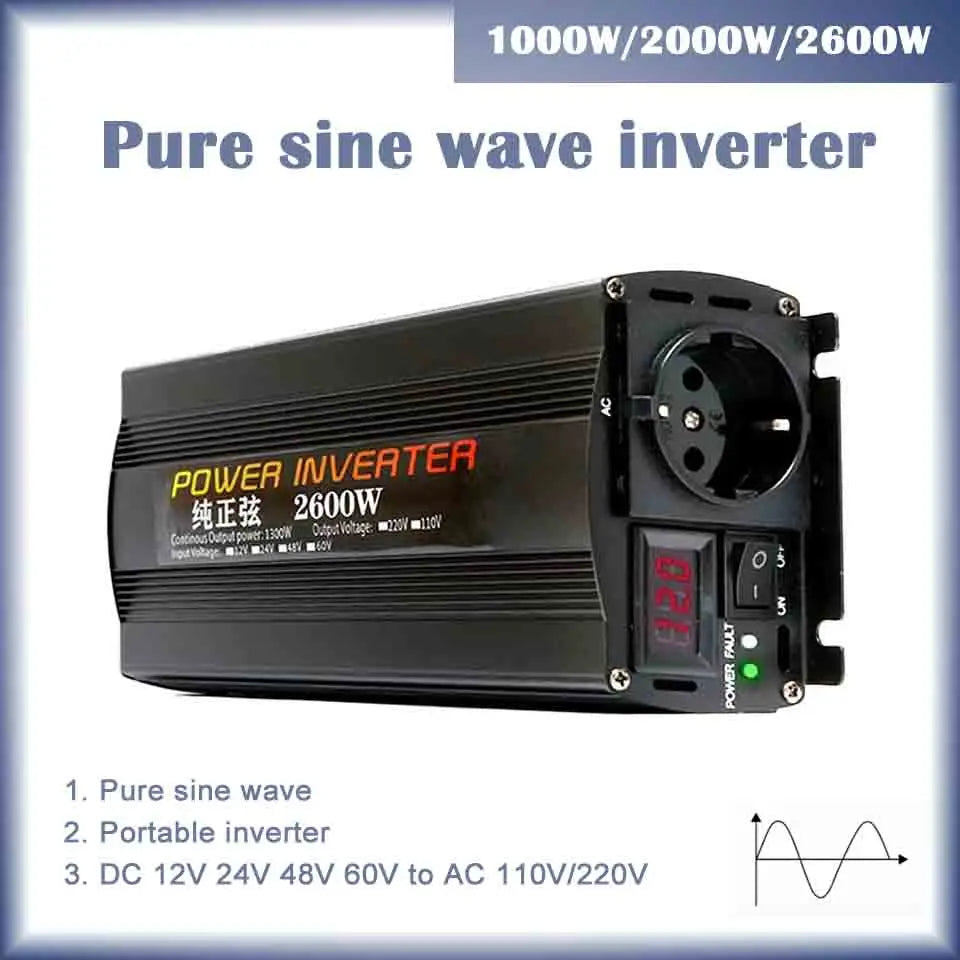

Type: Pure Sine Wave Inverter

Output voltage waveform: Pure sine wave

Peak Power（Rated power:）: 1000W(500W),1800W(900W),2000W(1000W),2600W(1300W)

Output voltage:110V/220V

Input voltage: 12V/24V/48V/60V

Output frequency: 50Hz or 60Hz±0.1%

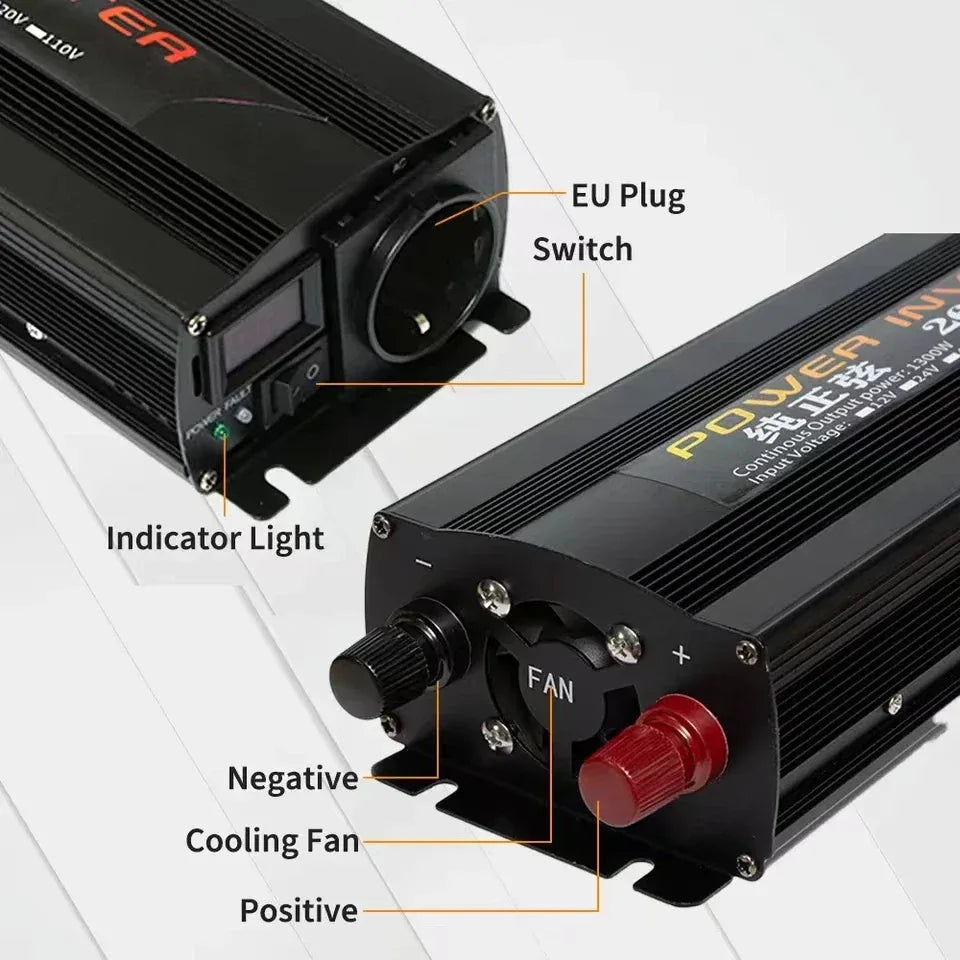

Socket: Universal, Europe

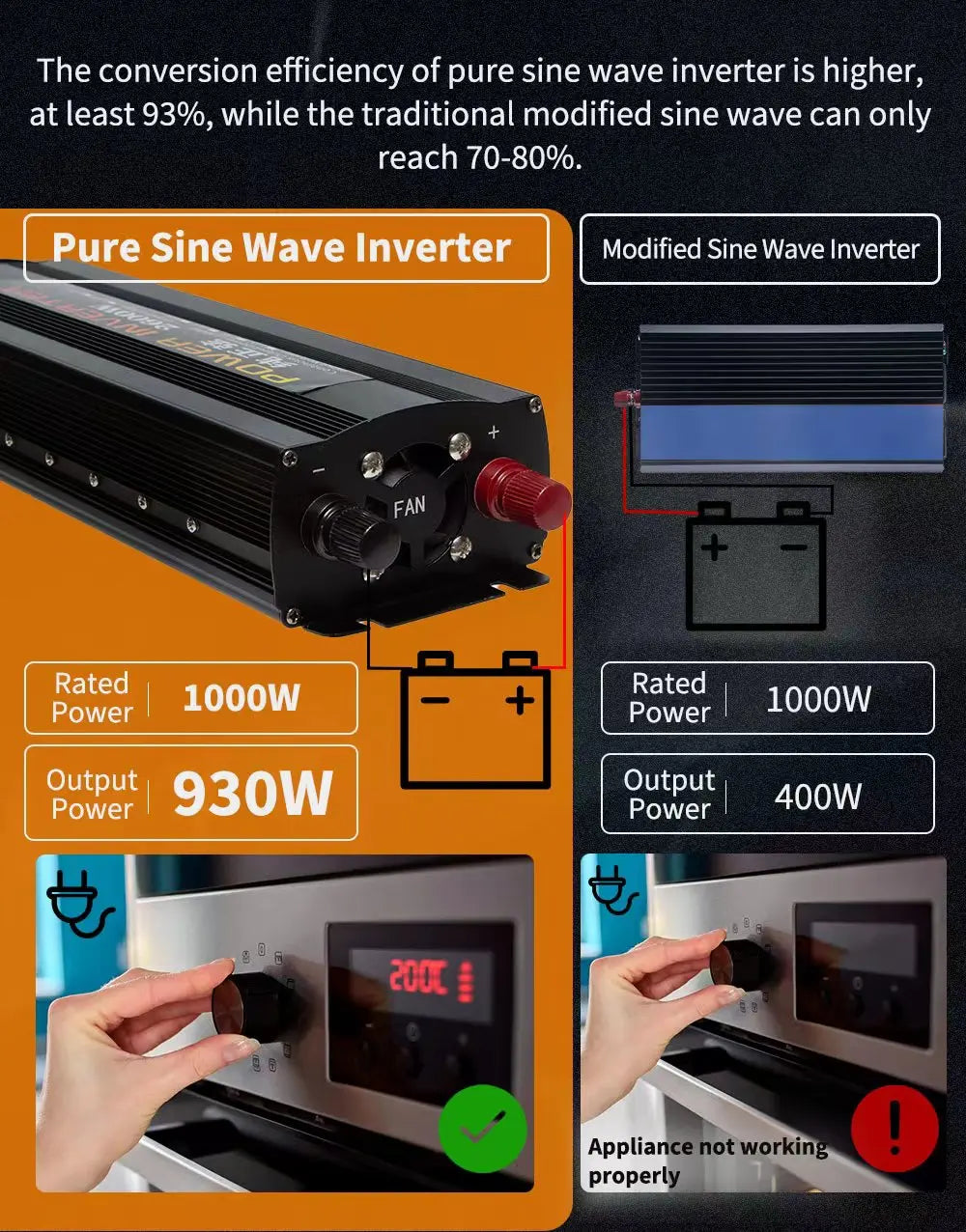

Conversion Efficiency: >90%

Total Harmonic Distortion:≤3%
Working temperature:-5~+50℃
Storagetemperature:-20~+70℃
Cooling method:Intelligent temperature controlled air cooling

Over Thermal:Shut Off Output Automatically

Input low voltage protection : 20Vdc±0.3V

Input high voltage protection: 30Vdc±0.3V

Over temperature protect: 80°±5°

Start :Soft Start

Fuses:Short Circuit

No-load current：Rated power:500W(0.3A), 1000W(0.6A),1500W(0.7A),2000W(0.7A),3000W/4000W(1.0A)
Over load protection:Rated power 500W(550W±50W),1000W(1100W±50W),1500W(1650W±50W),2000W(2200±50W),3000W(3300±50W),4000W(4000±50W),5000W(5000±50W),6000W(6000±50W)

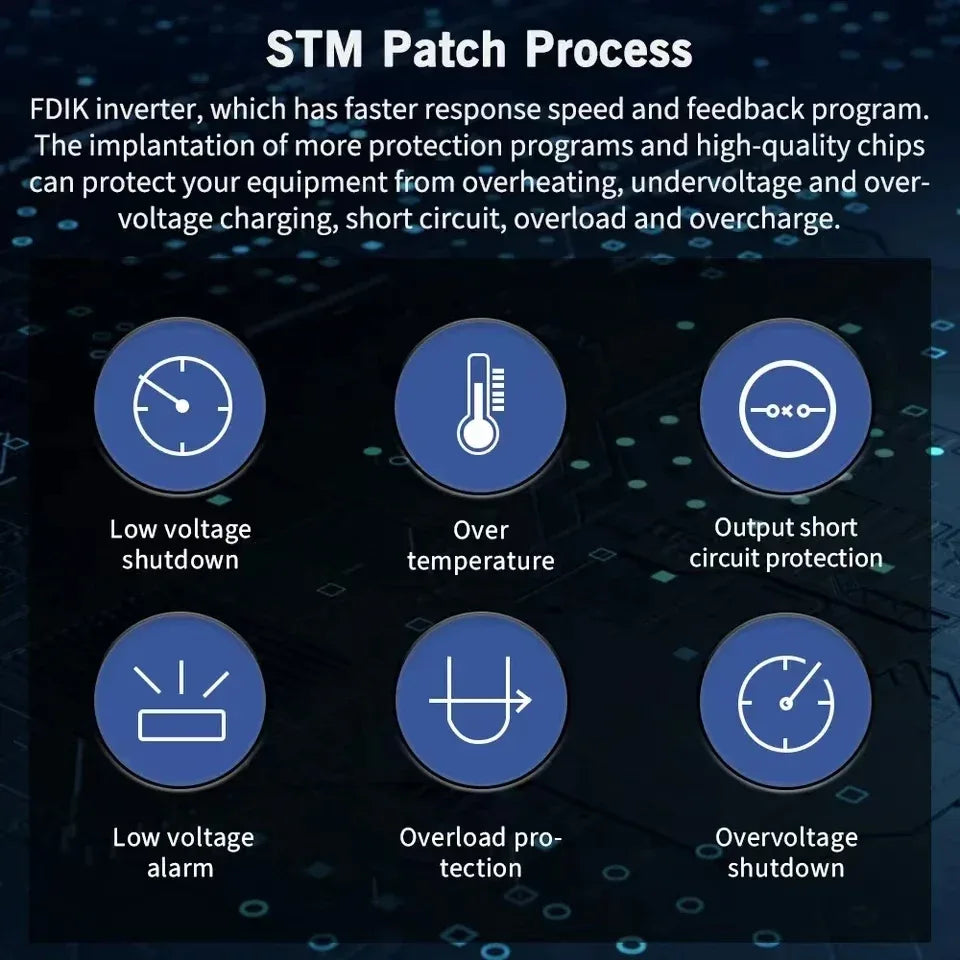

Protection:over-current protection, battery-reversal protection(external false), low battery warning, power-om protection

Power:0%-100%state(Continuous Running)-120% 10s-150% 1s

Features

●Sine wave output (THD<3%)

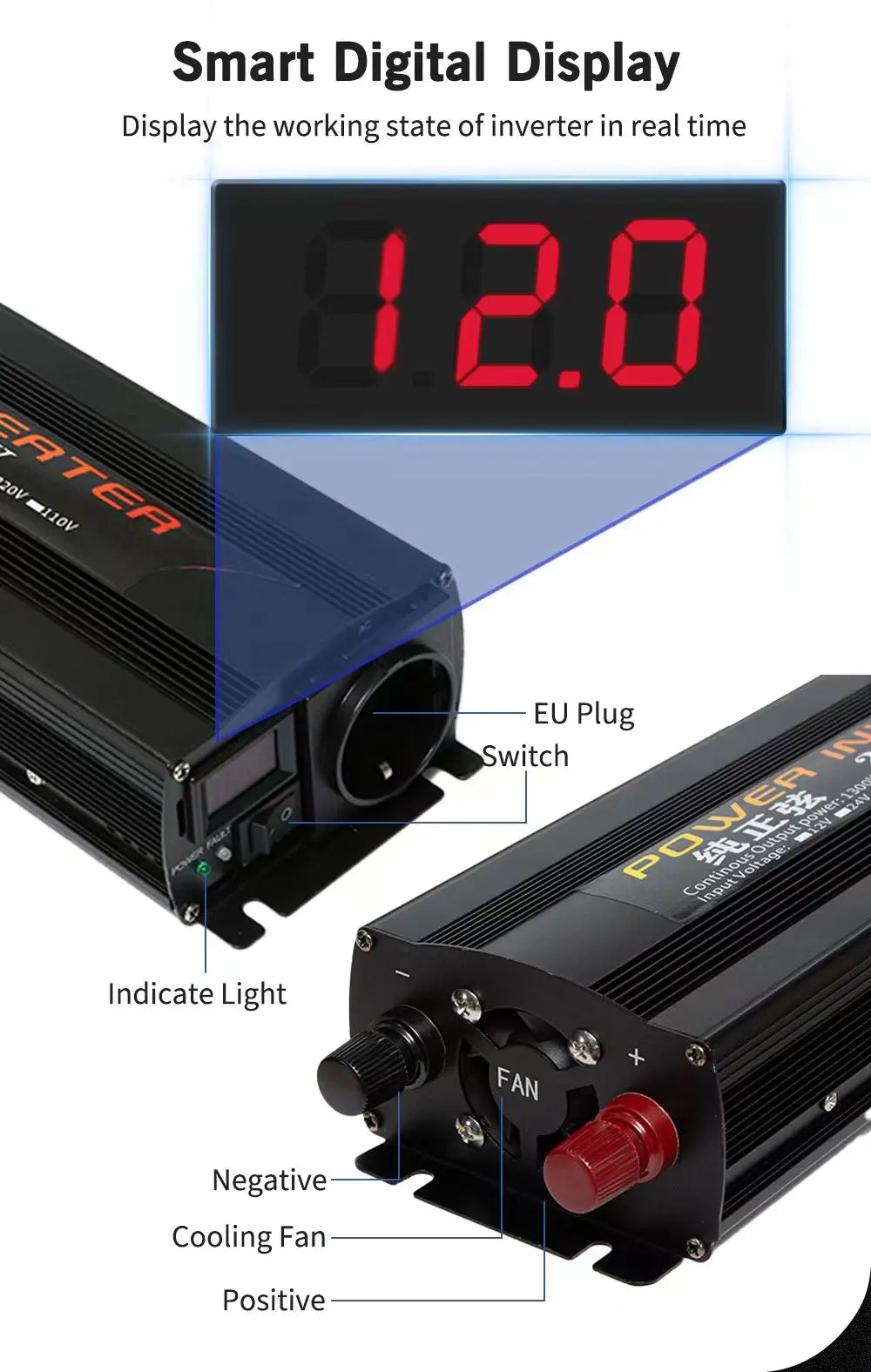

●All-digital control display

●Output up to 92% as maximum efficiency

●Products with the CE/FCC/LVD/ROSE norms

●Full LED display of working state

●Full LED display of working state

●Low battery capacity warning
●One-year free product maintenance and warranty

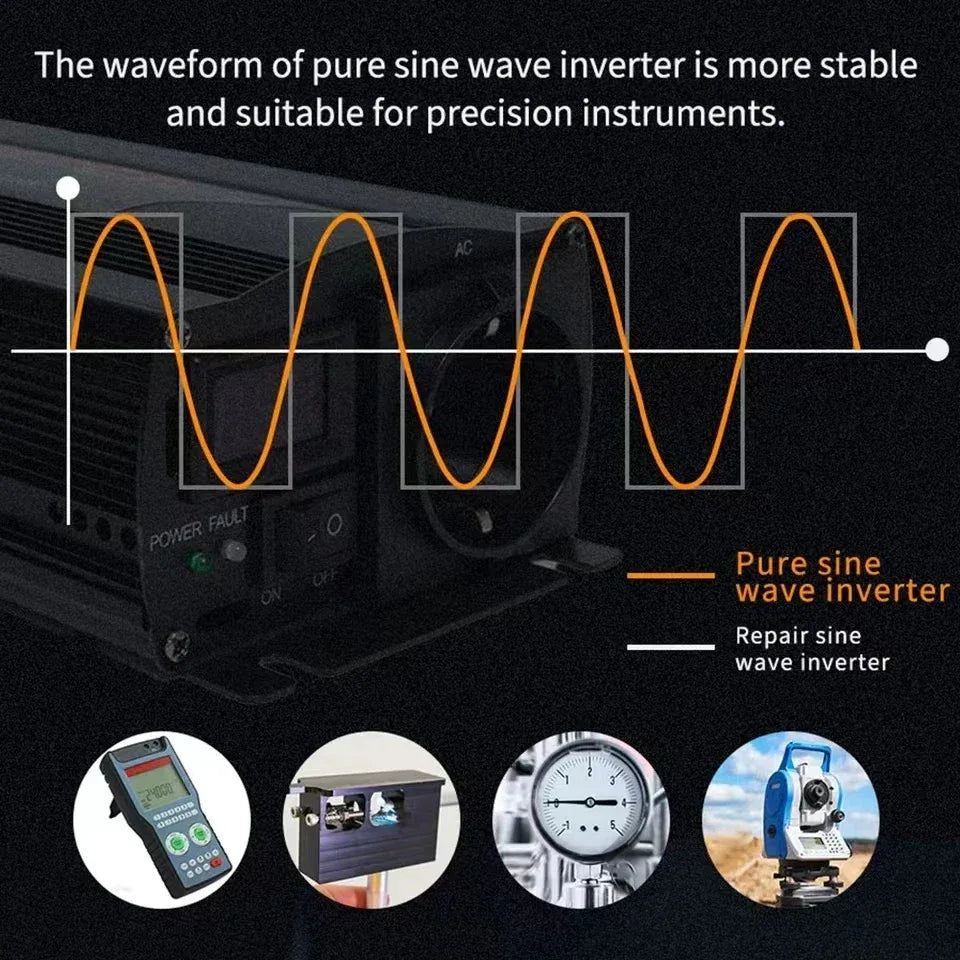

●This series of off-grid inverters are controlled by digitized CPU, and it is true sine wave
DC/AC,which use the battery pack to generate energy and convert it into AC voltage output.
●The output is sine wave, and it can work usually under 0%-100% of the load condition.
●Its surge power can increase more than double, which could apply to different types
of load, such as inductive load, capacitive load, etc.
●The application range includes computers, communications, yachts, recreational vehicles,family recreational devices, motors, electric tools, industrial-control devices, video players, household appliances, etc.

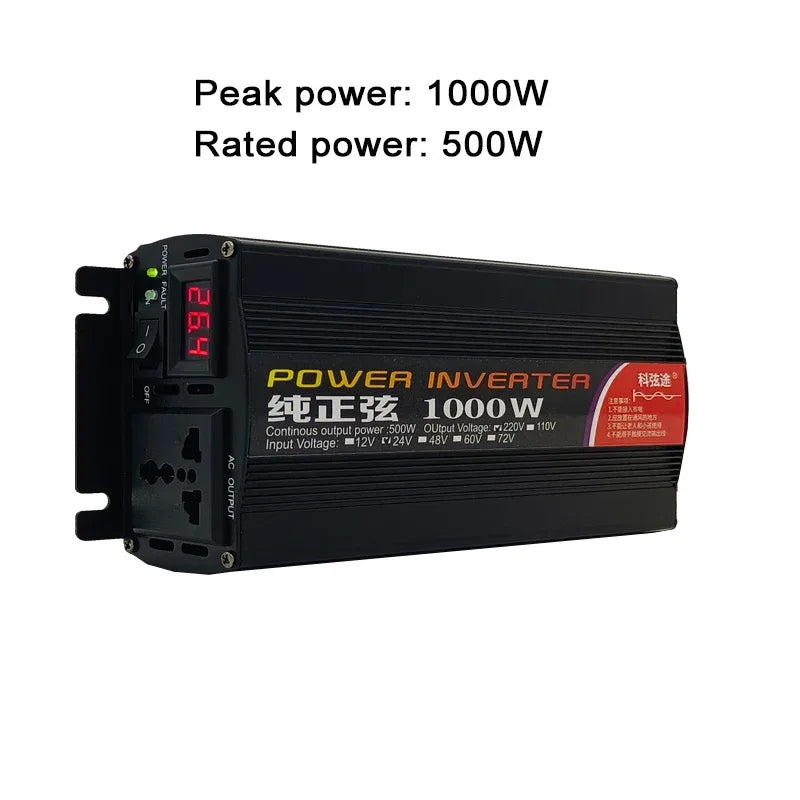

1000w inverter (product specifications)

Inverter size: 184mm*104mm*62mm
Net weight: 0.75kg
Packaging size: 245mm*146mm*72mm
Packing weight: 1kg

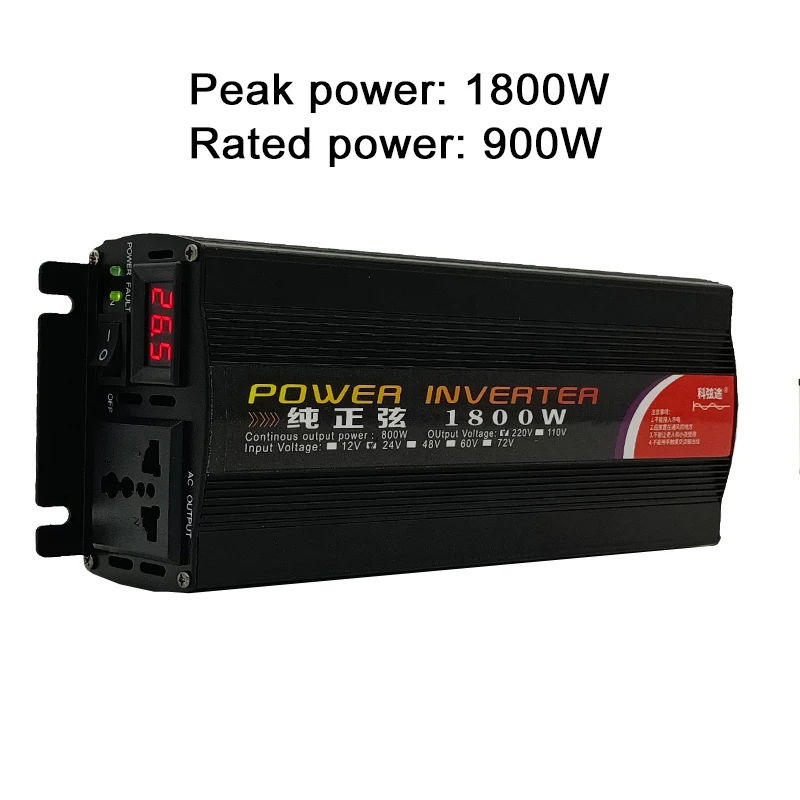

1800w inverter (product specifications)

Inverter size: 218mm*104mm*62mm
Net weight: 0.95kg
Packaging size: 310mm*146mm*72mm
Packing weight: 1.3kg

2000w inverter (product specifications)

Inverter size: 258mm*104mm*62mm
Net weight: 1.15kg
Packaging size: 340mm*146mm*72mm
Packing weight: 1.55kg

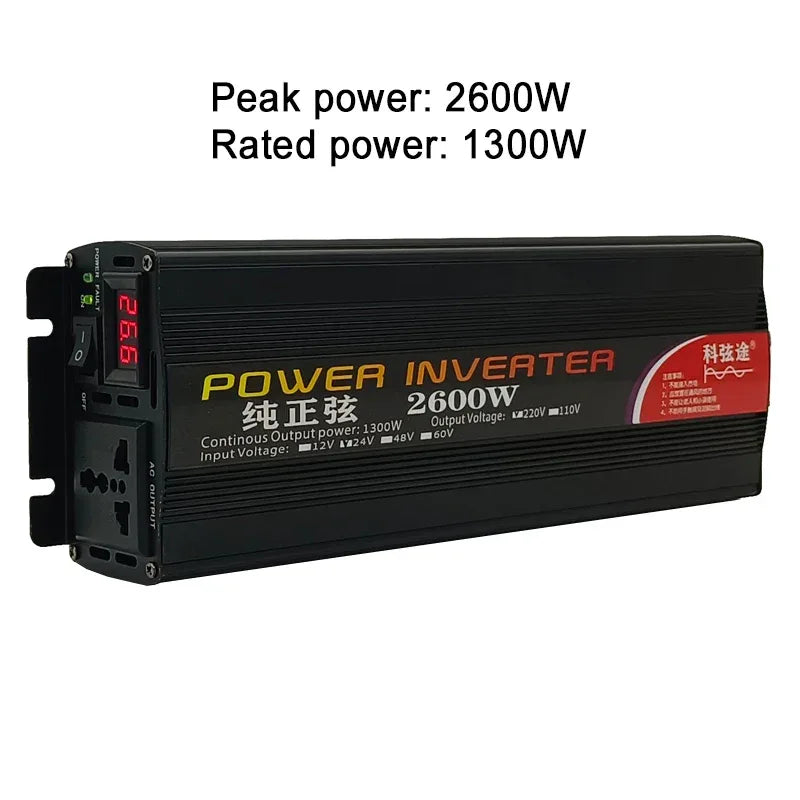

2600w inverter (product specifications)

Inverter size: 300mm*104mm*62mm
Net weight: 1.4kg
Packaging size: 380mm*146mm*72mm
Packing weight: 1.8kg








Note:

If this power is exceeded, please connect the battery output to the inverter, otherwise the car fuse will blow.

1.Please ensure that the rated power is higher than the appliance you want to apply.

2.If you want to run several devices at the same time, you should refer to the total wattage.

3.If you want to run the inductive load for a long time, choose the Pure sine wave inverter .

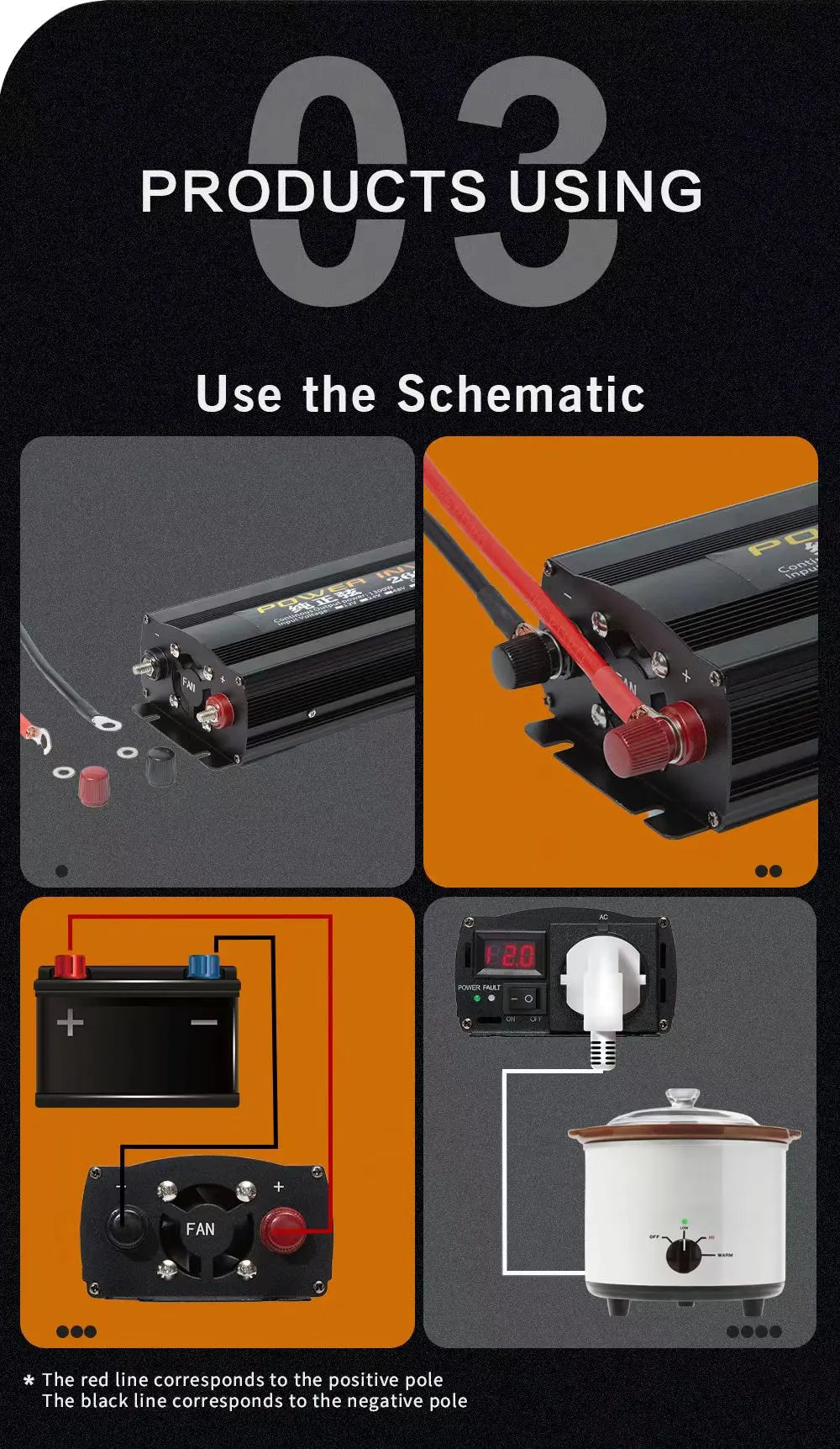

4.Please use the standard battery cables we sent, or a full power output may not be guaranteed. And the spare fuses in the package are just used when the original ones are burned by accident.

5.Please do not connect the inverter with the grid power, and a reverse connection of positive and negative is also forbidden.

6.Please do not overload. If your applications are inductive loads, please choose the inverters whose continuous power is 3-7 times higher than the watts of your appliances. such as fridge, icebox, drill, washing machine, water pump, microwave oven, oven, vacuum cleaner, hair dryer, etc. with motor inside. Please make sure the constant power of our inverter meets your need before order, or consult us for more details.


Installation Requirements
●The machine weight should be taken into consideration when fixing the machine, and avoid
high temperature and high pressure environment, in order to guarantee a long service life.
●This machine adopts built-in fan and force-air cooling, which needs to keep the air vents
unobstructed, and avoid operating during the high temperature environment or under the
overload condition, in case it would cause the machine breakdown or affect its service life.
(Please spare a distance of 1 5cm for the air vents without obstacles. )


When buying an inverter, you must first understand the voltage and frequency used in your country. Purchasing an inverter according to the frequency of your country will greatly improve the conversion efficiency of the inverter. If you have any questions, please contact us before purchasing. Thank you!


Country / voltage / frequency
Korea: 220V / 60Hz
Australia: 230V / 50Hz
Brazil: 110V / 220V / 60Hz
Chile: 220V / 50Hz
Colombia: 110V / 60Hz
Denmark: 230V / 5oHz
Finland: 230V / 50Hz
France: 230V / 50Hz
Israel: 230V / 50Hz
Italy: 230V / 50Hz
Russia: 220V / 50Hz
United States: 120V / 220V / 60Hz
Turkey: 230V / 50Hz
Spain: 230V / 50Hz
Mexico: 127V / 60Hz
PuertoRico: 120v60hz
Saudi arabia: 127V / 220V / 60Hz
South africa: 220V / 230V50Hz
Sweden: 230V / 50Hz
Switzerland: 230V / 50Hz
United kingdom: 230V / 50Hz
